The ATTO Disk Benchmark performance measurement tool is compatible with Microsoft Windows. Measure your storage systems performance with various transfer sizes and test lengths for reads and writes. Several options are available to customize your performance measurement including queue depth, overlapped I/O and even a comparison mode with the option to run continuously.
Use ATTO Disk Benchmark to test any manufacturer's RAID controllers, storage controllers, host adapters, hard drives and SSD drives and notice that ATTO products will consistently provide the highest level of performance to your storage.

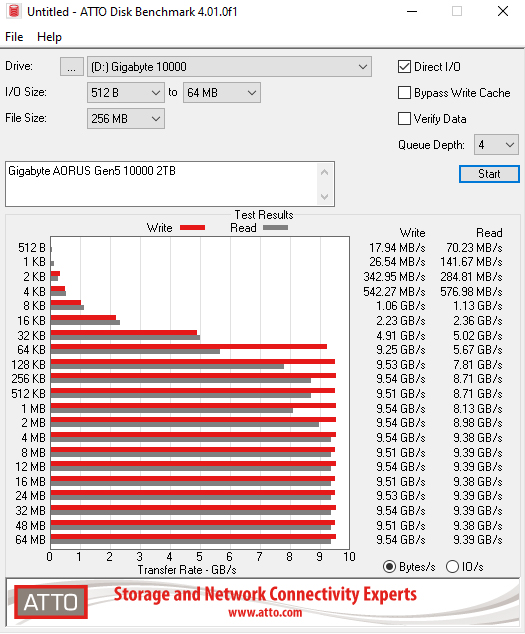

We are using version 4.1 for our NVMe disk tests.

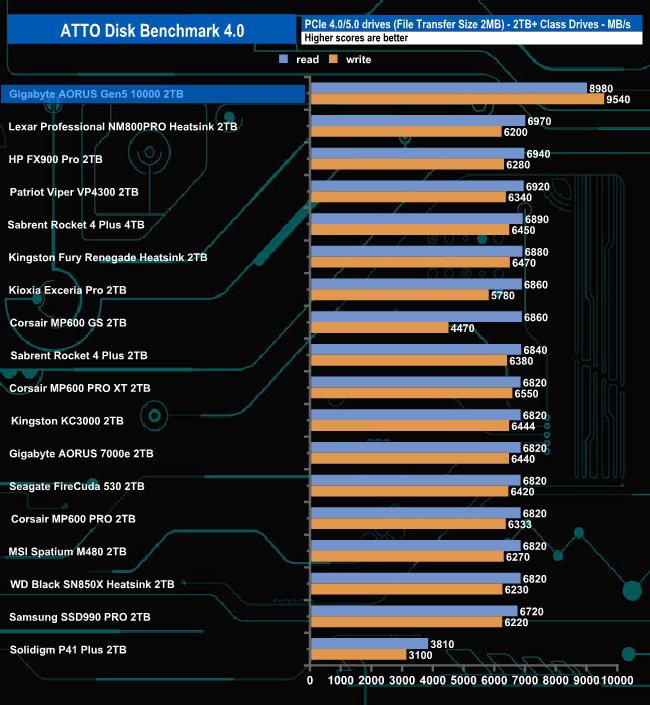

The 2TB AORUS Gen5 10000 is rated up to 10,000 MB/s for Sequential reads and up to 9,500MB/s for Sequential writes. Using the ATTO benchmark we couldn't hit the max read figure with a test result of 8,980MB/s. The write result actually was a little bit faster than the official figure at 9,540MB/s.
