WD Black NVMe 1TB SSD Review

1. Introduction2. WD Black NVMe 1TB3. Testing Methodology4. CrystalDiskMark5. ATTO Disk Benchmark6. AS SSD7. IOMETER8. 128KB Seq Performance9. 4K Random Read v QD Performance10. 4K Random Write v QD Performance11. 4K 70/30 Mixed Performance12. Throughput13. PCMark 8 - Storage Consistency14. PCMark 8 - Individual Test Suites15. PCMark 8 Storage Test - Individual Test Suites16. Performance Stability17. Real Life File Testing18. Closing Thoughts19. View All Pages

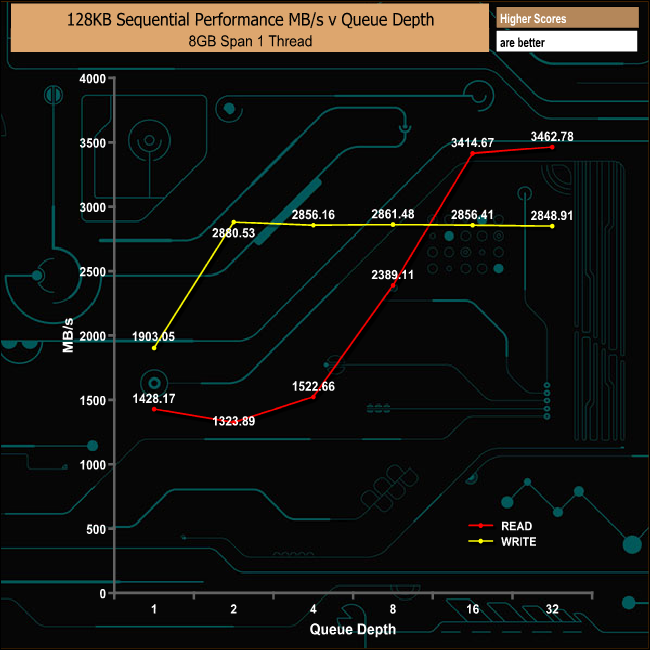

Testing the drive's sequential performance at varying queue depths saw the read performance increase with queue depth until it just surpassed the official maximum figure of 3,400MB/s at 3,462MB/s at a queue depth of 32. Writes, on the other hand, more or less peaked after the initial jump in performance between queue depths 1 & 2, with the peak coming at QD2 and a speed of 2,880MB/s.
