Gamdias Atlas P6 CG Featured Build

In our latest featured build video, we're putting together a seriously clean GAMDIAS sponsored PC, featuring the panoramic ATLAS P6 CG case, the CHIONE P5 Pro AIO cooler and the high-end THOR P2 1350P power supply. There's no talking, no music and no distractions, we're building the system ASMR style, so you can sit back and enjoy every click, snap and satisfying sound as the build comes together…

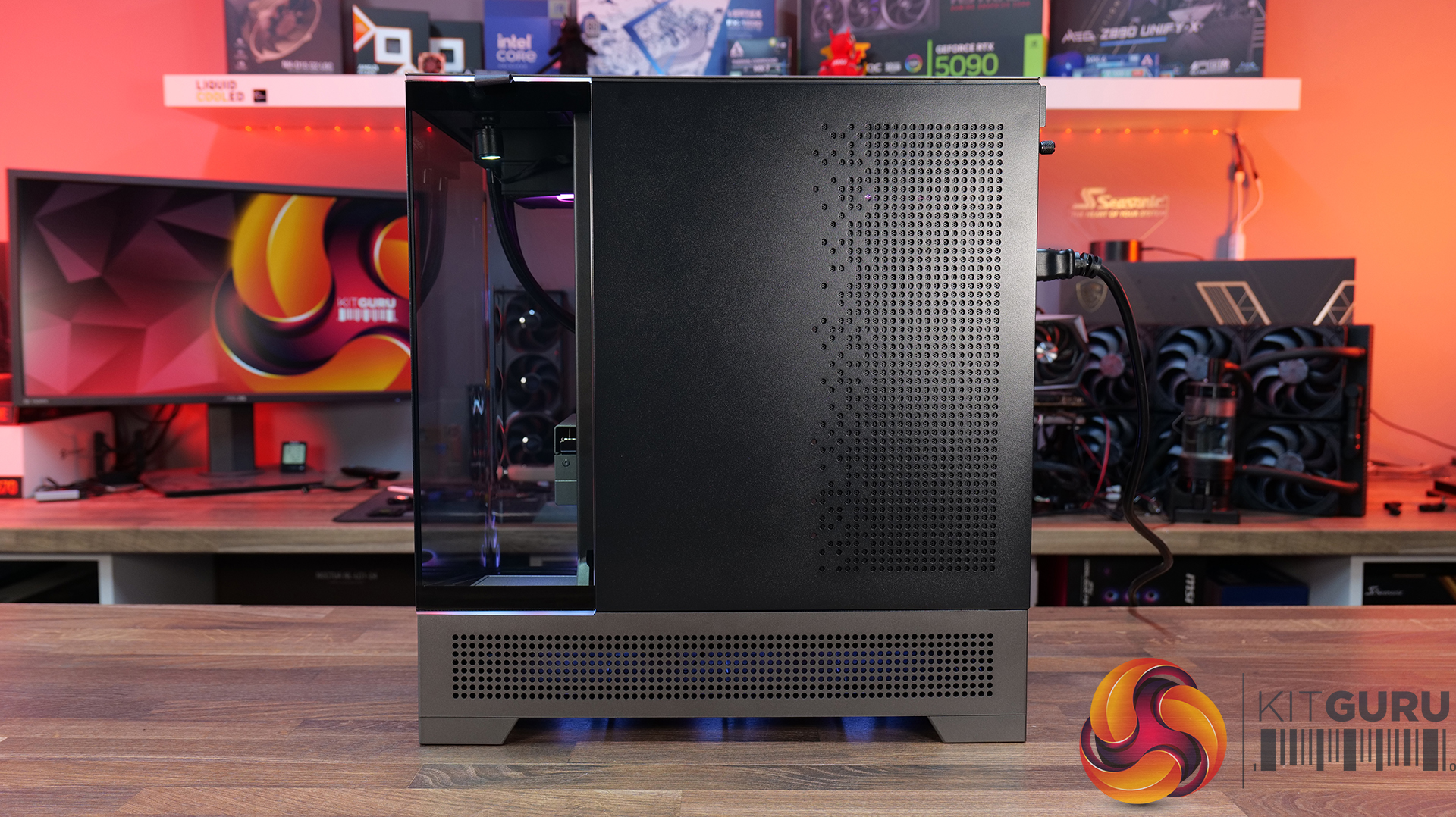

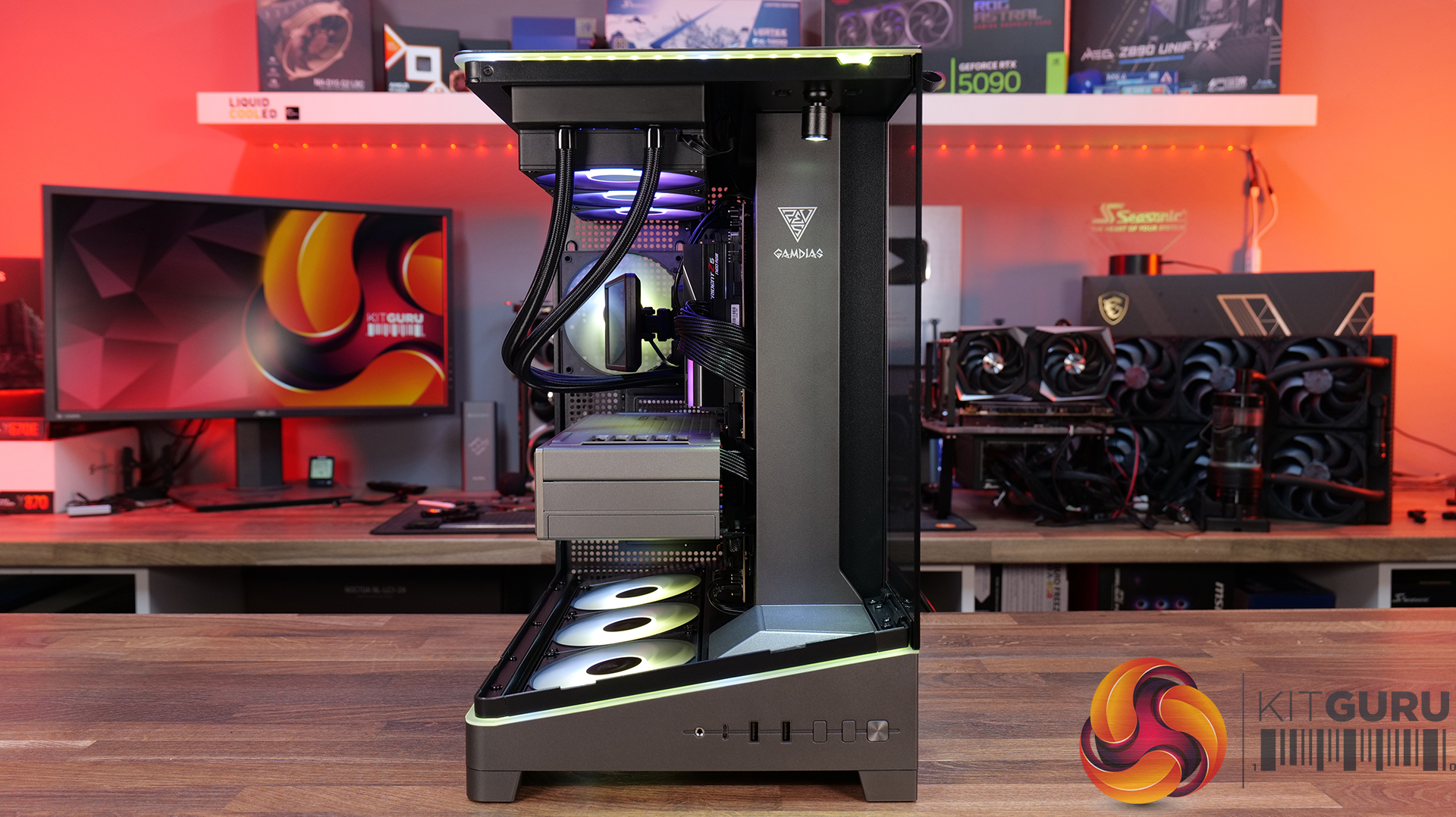

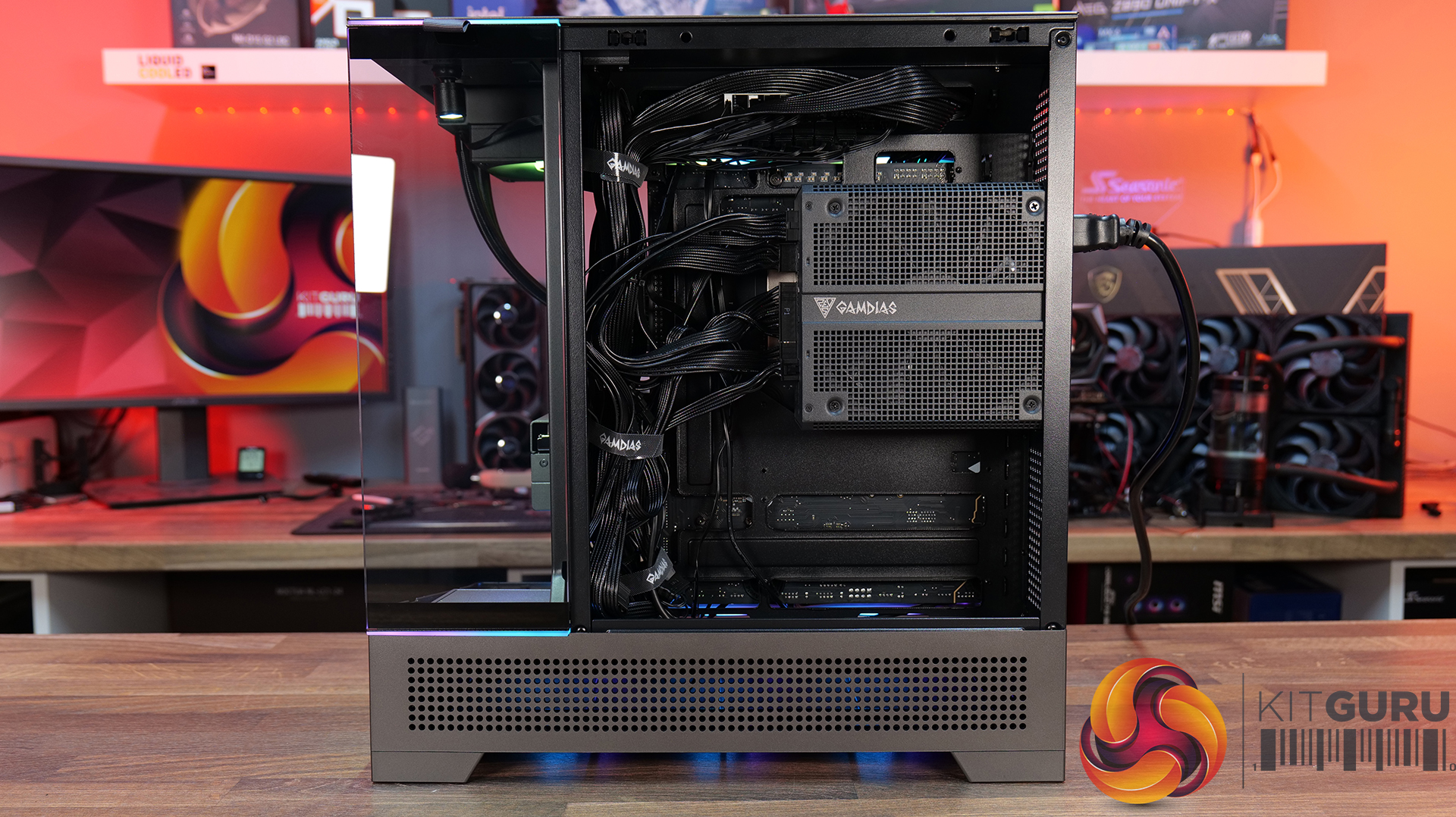

Case: Gamdias Atlas P6 CG – MSRP $159.90

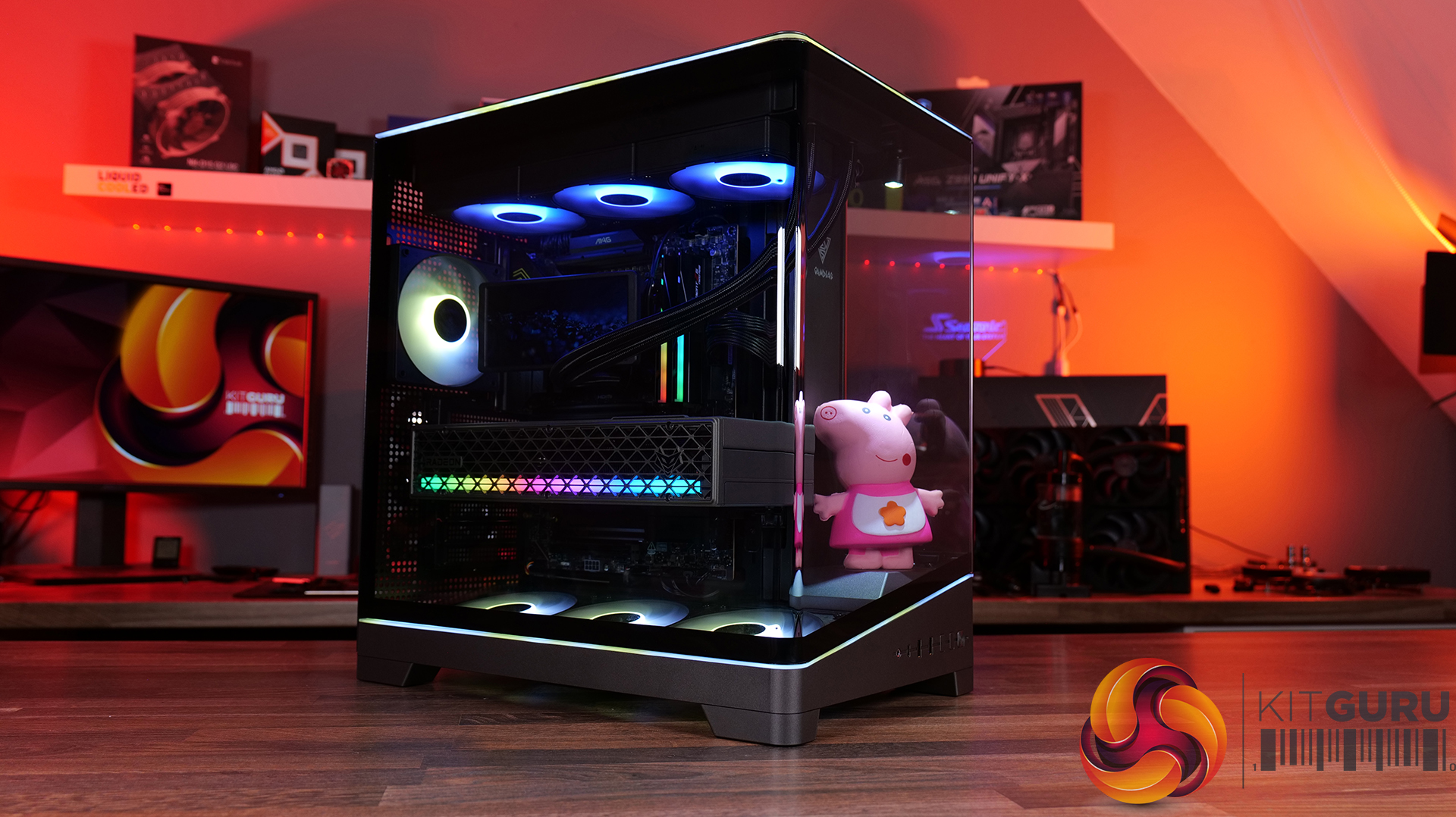

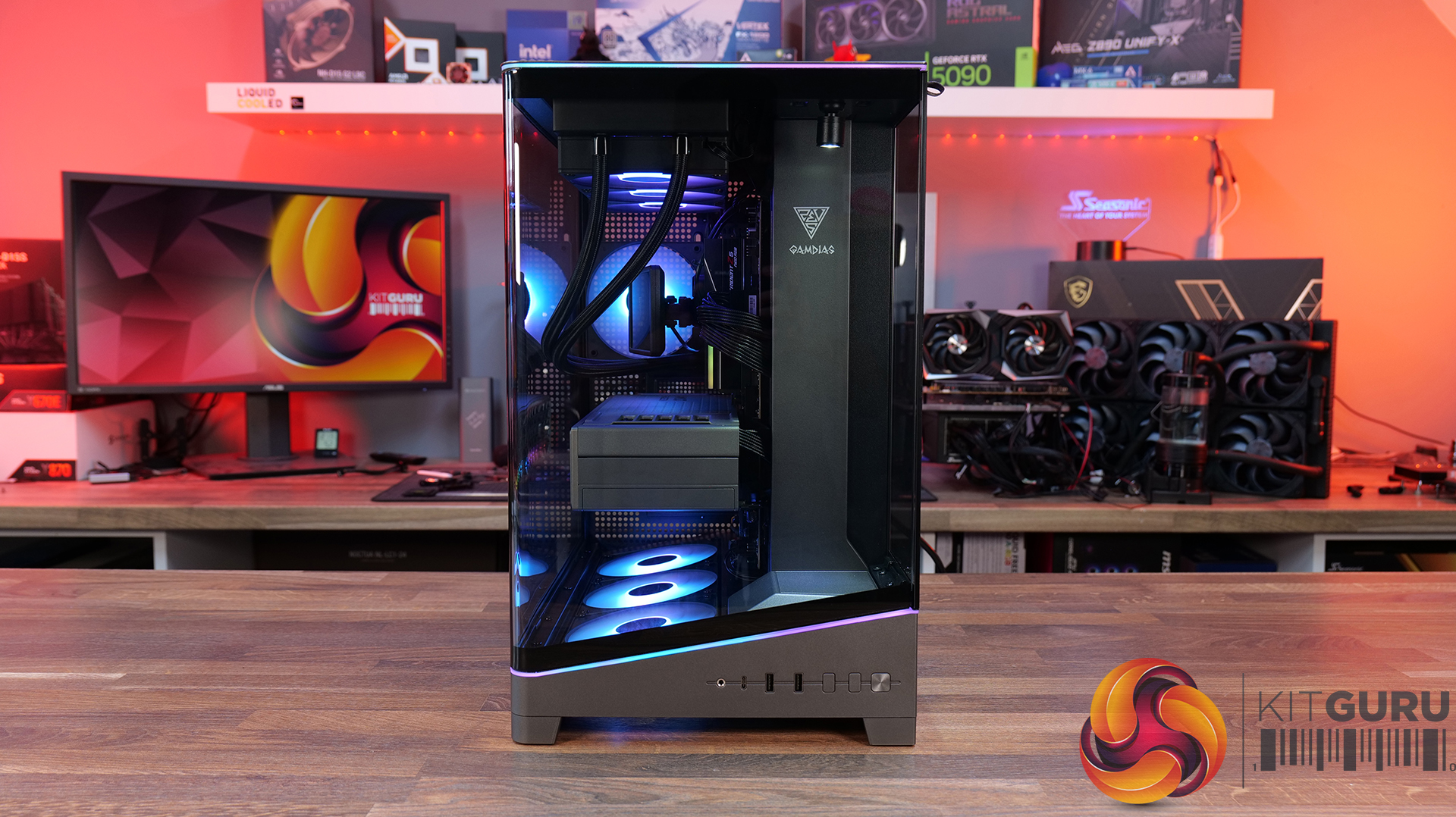

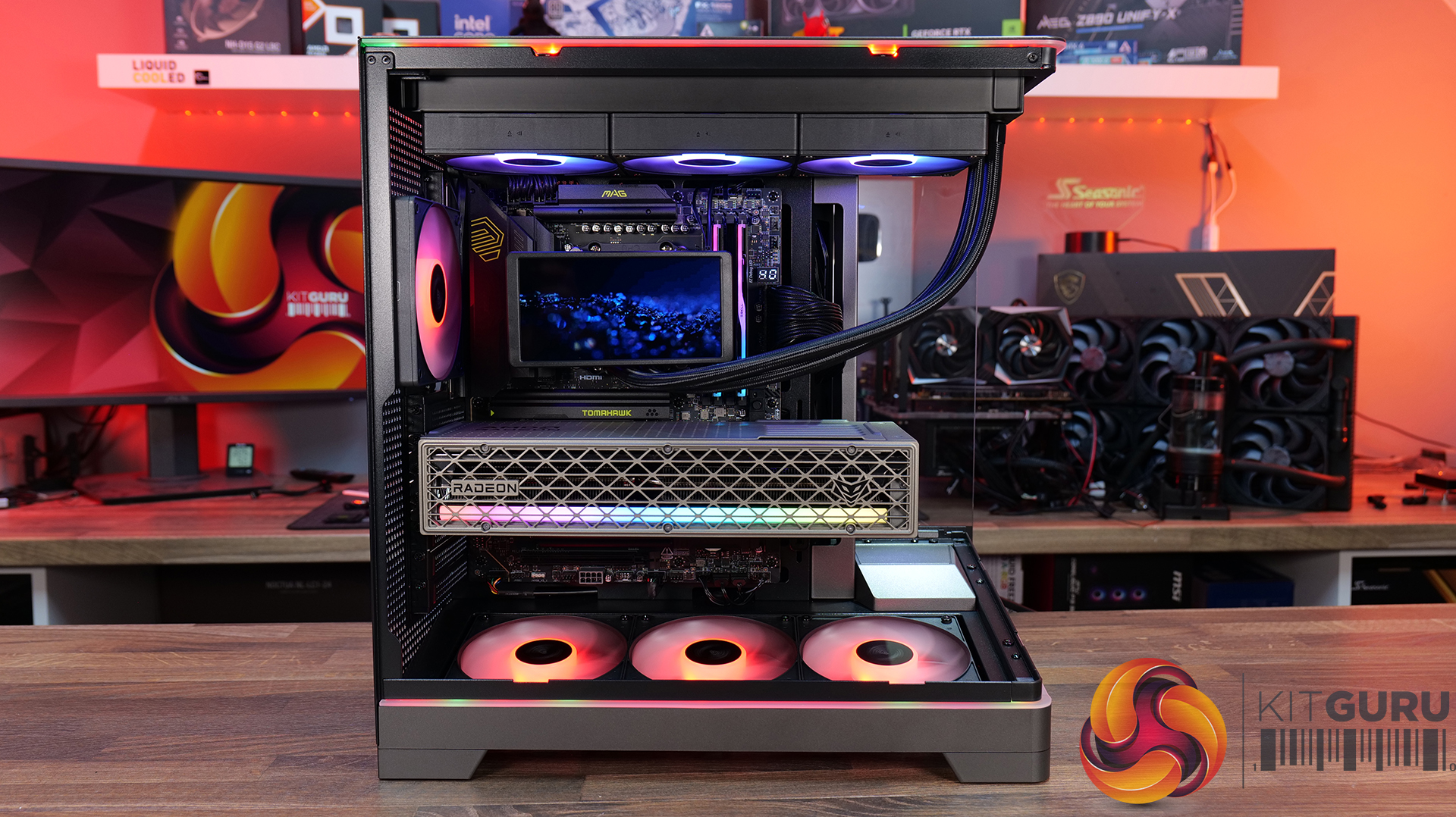

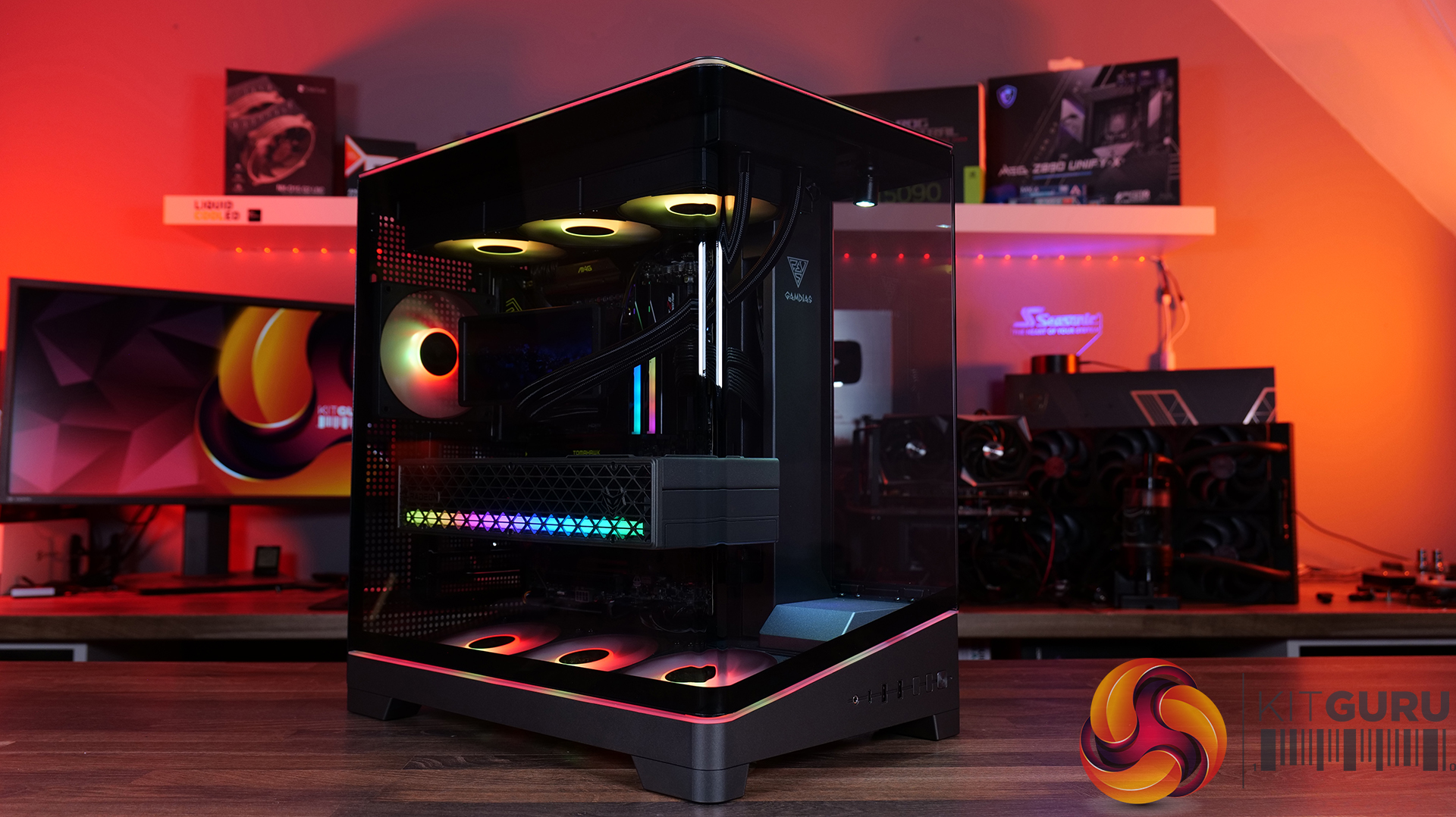

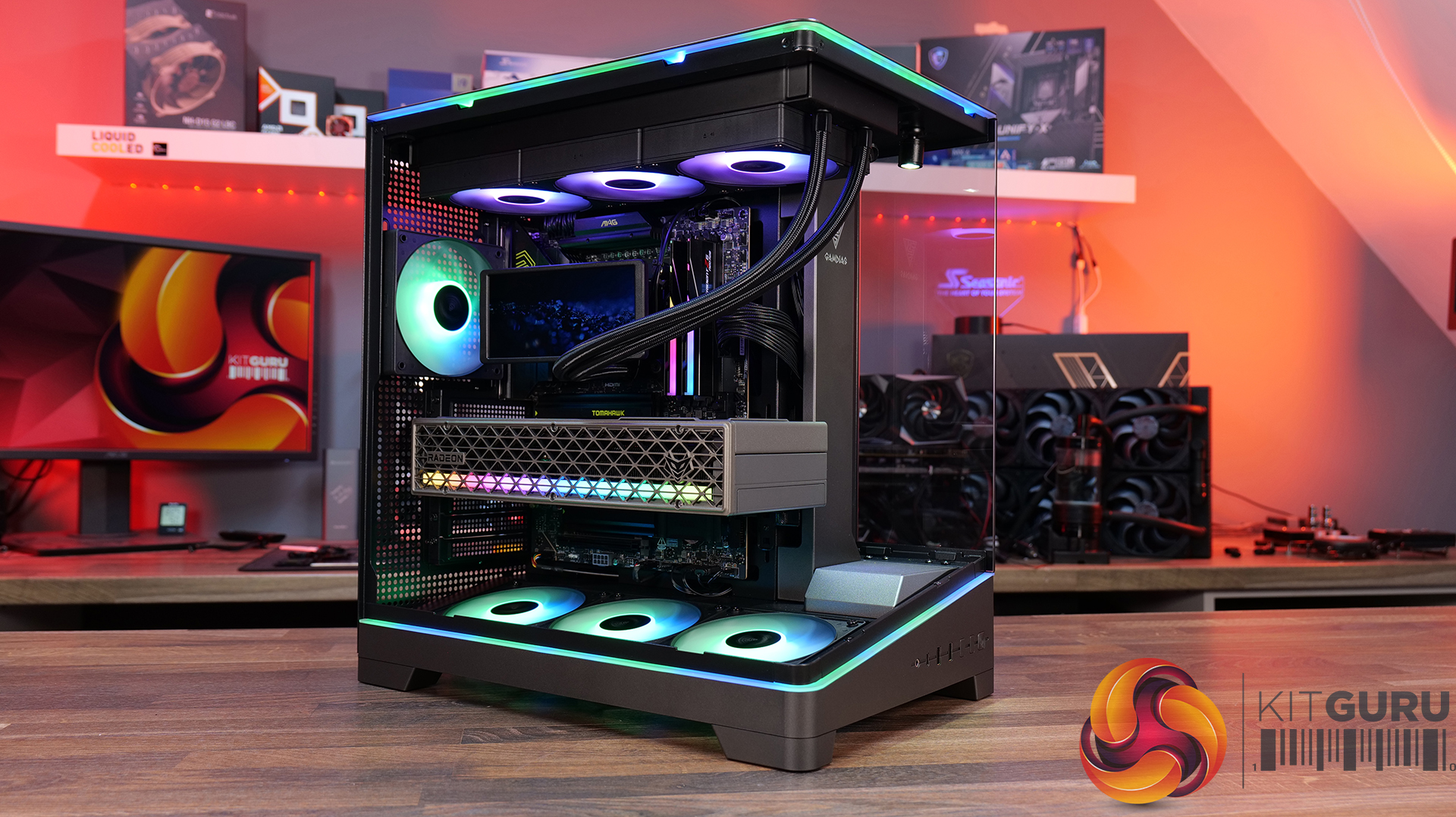

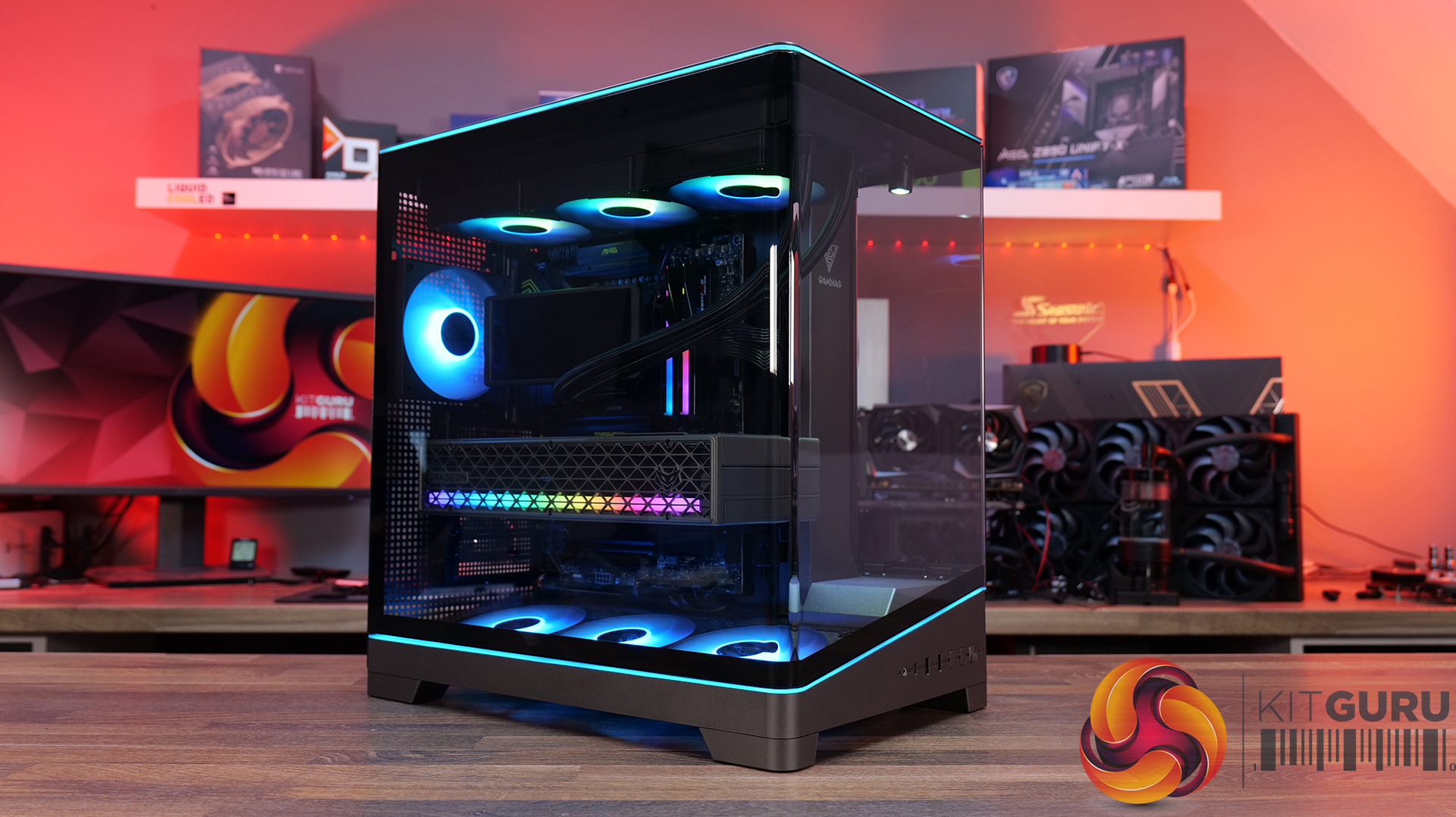

• Panoramic Showcase Design: The ATLAS P6 CG features a three-sided, columnless tempered glass layout with a one-piece curved glass panel, giving your components a clear 270-degree view. GAMDIAS has even included a dedicated display stage with an omnidirectional spotlight, so you can show off a favourite figure alongside the hardware.

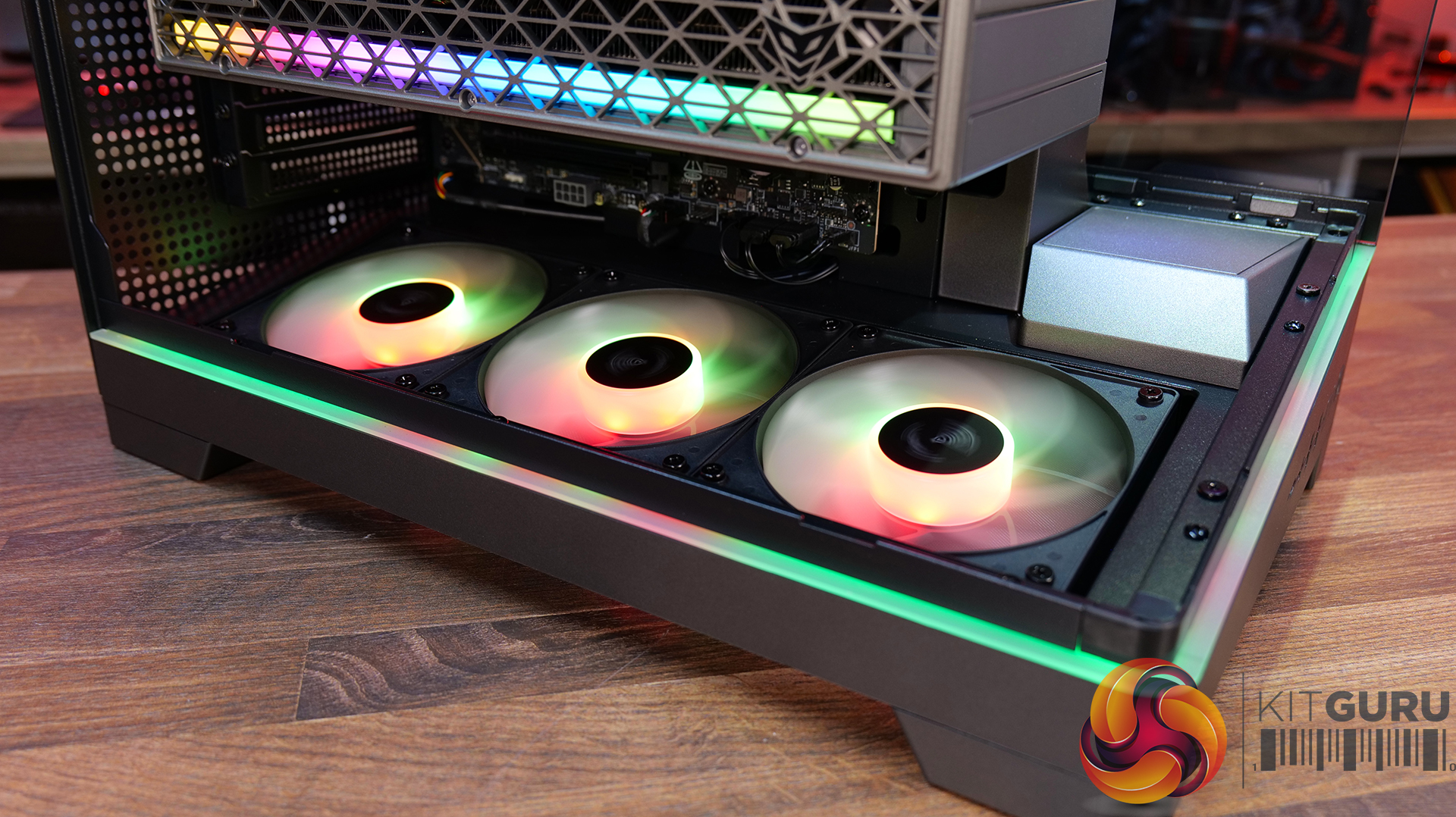

• Four ARGB Fans and Unique Airflow Layout: Cooling is handled by four pre-installed 120mm NOTUS M1 ARGB PWM fans, backed up by an 8-port PWM/ARGB hub. The case uses a chimney-style airflow design, with three bottom-mounted intake fans and a rear exhaust, while the slanted bottom intake is designed to direct airflow towards the GPU.

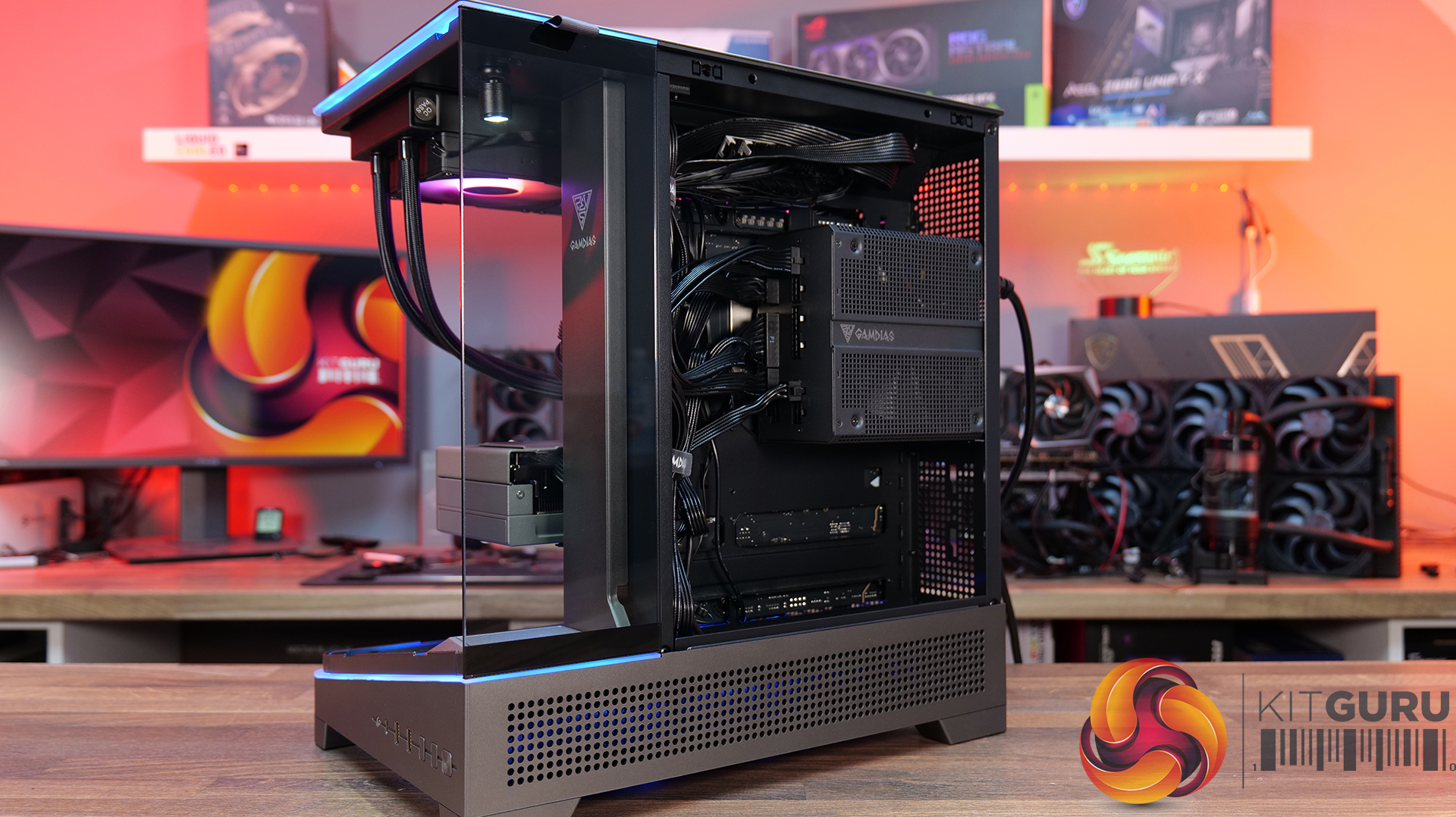

• Built For High-End Hardware: The ATLAS P6 CG supports ATX motherboards, 360mm radiators and graphics cards up to 425mm long. It also supports connector-hidden motherboards for a cleaner-looking build, while the generous 90mm cable-routing space and adjustable GPU support bracket should make cable management and installation a little easier.

Specifications

• Case Type: Mid Tower
• Motherboard Support: ATX / Micro-ATX / Mini-ITX
• Synchronization: 5V 3-Pin Addressable Header
• Colour: Black
• Expansion Slots: 7
• Materials: SPCC / ABS / Tempered Glass
• Windows: Front / Left / Right
• Radiator Support: Top: 360mm / 280mm; Rear: 120mm
• Fan Support: Top: 3 × 120mm / 2 × 140mm; Rear: 1 × 120mm; Bottom: 3 × 120mm
• Pre-installed Fans: 1 × 120mm PWM ARGB rear fan; 3 × 120mm PWM ARGB bottom fans
• Drive Bays: 2 × 3.5″ or 1 × 2.5″ + 1 × 3.5″ (HDD cage); 1 × 2.5″

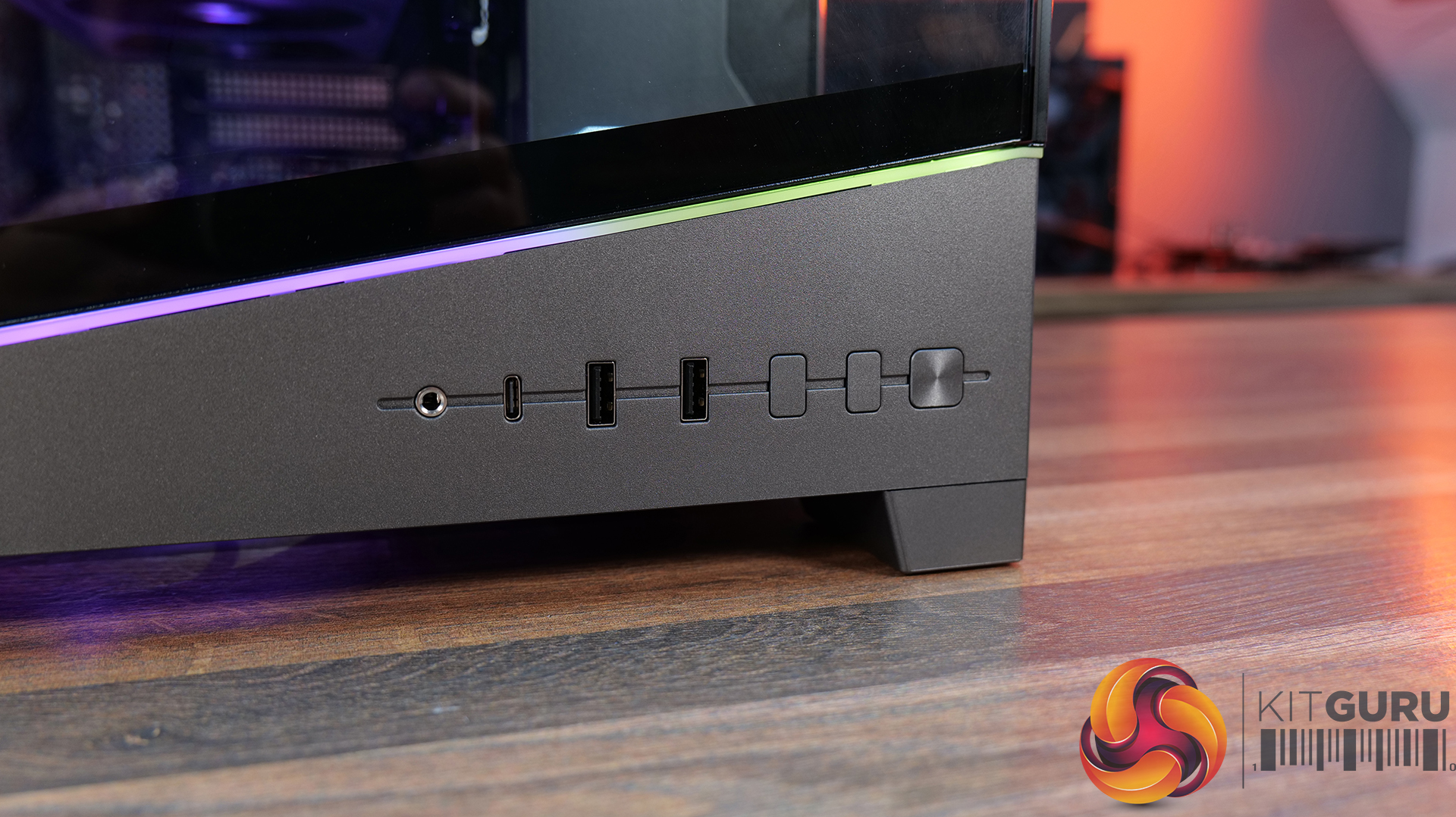

• I/O: 1 × USB Type-C, 2 × USB 3.0, 1 × HD Audio, 1 × LED Control, 1 × Showcase Lighting Switch
• CPU Cooler Clearance: 165mm
• Graphics Card Clearance: 425mm
• PSU Clearance: 200mm
• Dimensions (L × W × H): 432 × 285 × 465mm
• Pre-installed Control Box: 8-port hub

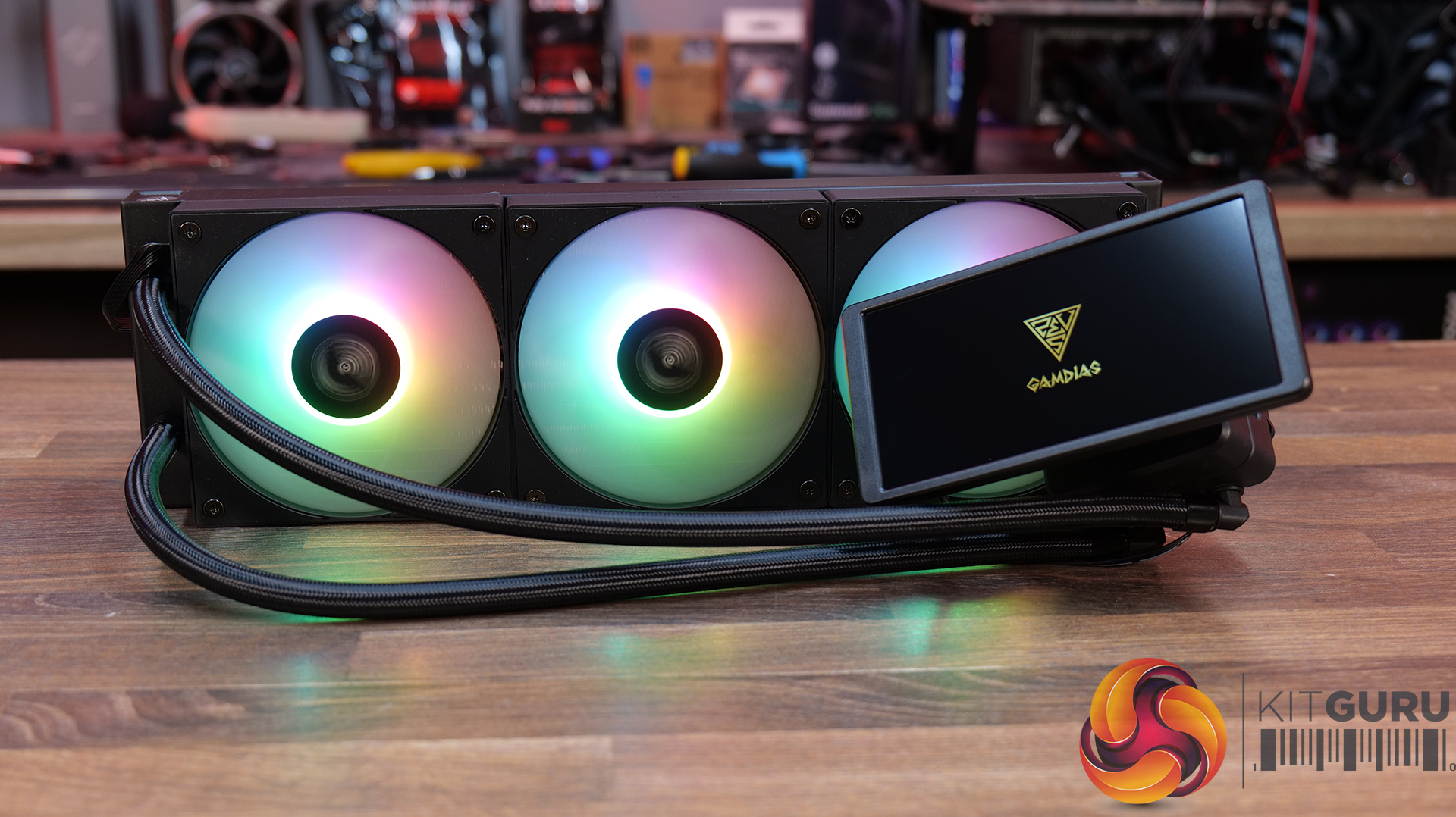

AIO CPU Cooler: CHIONE P5-360 PRO – MSRP $159.90

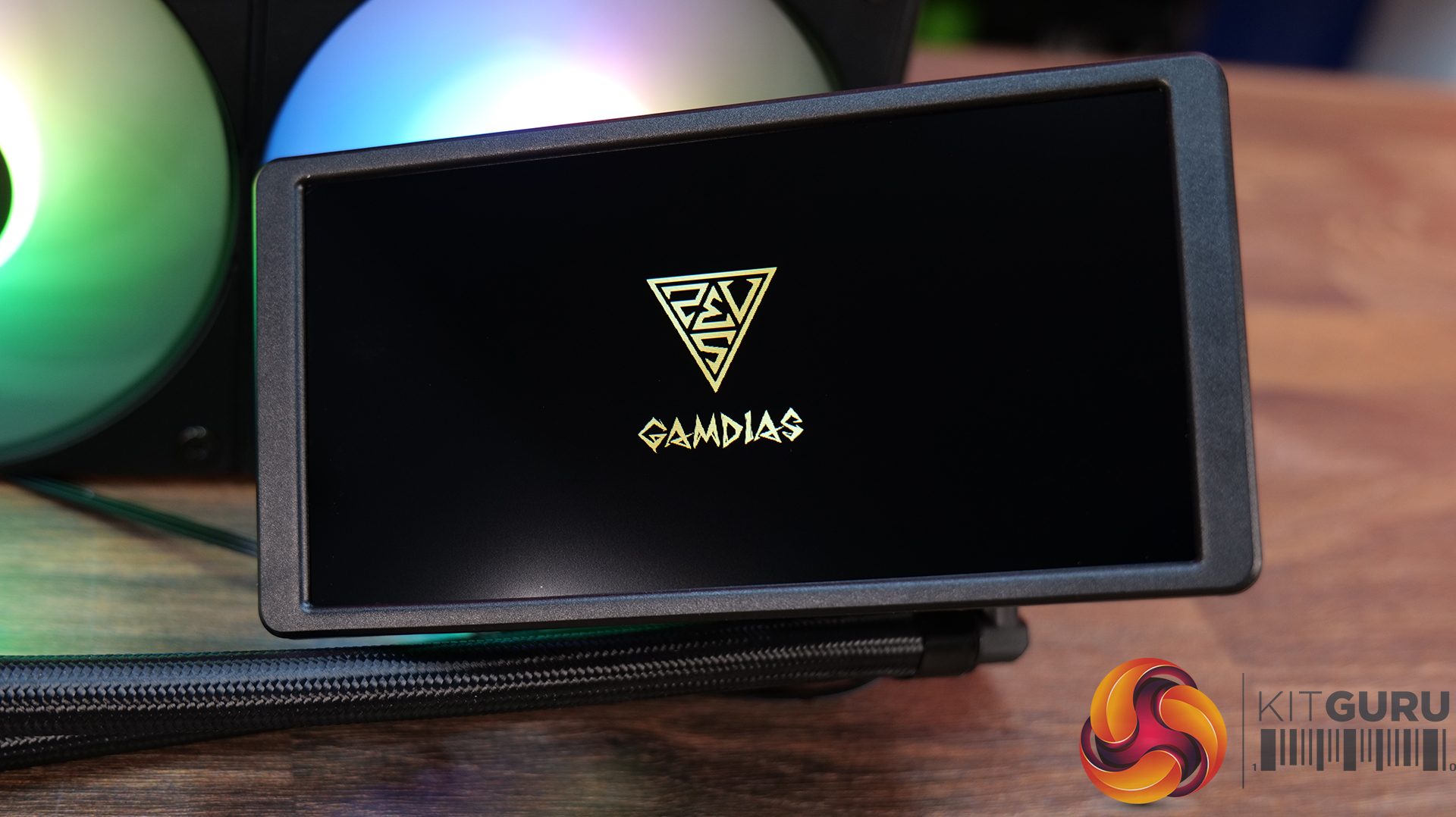

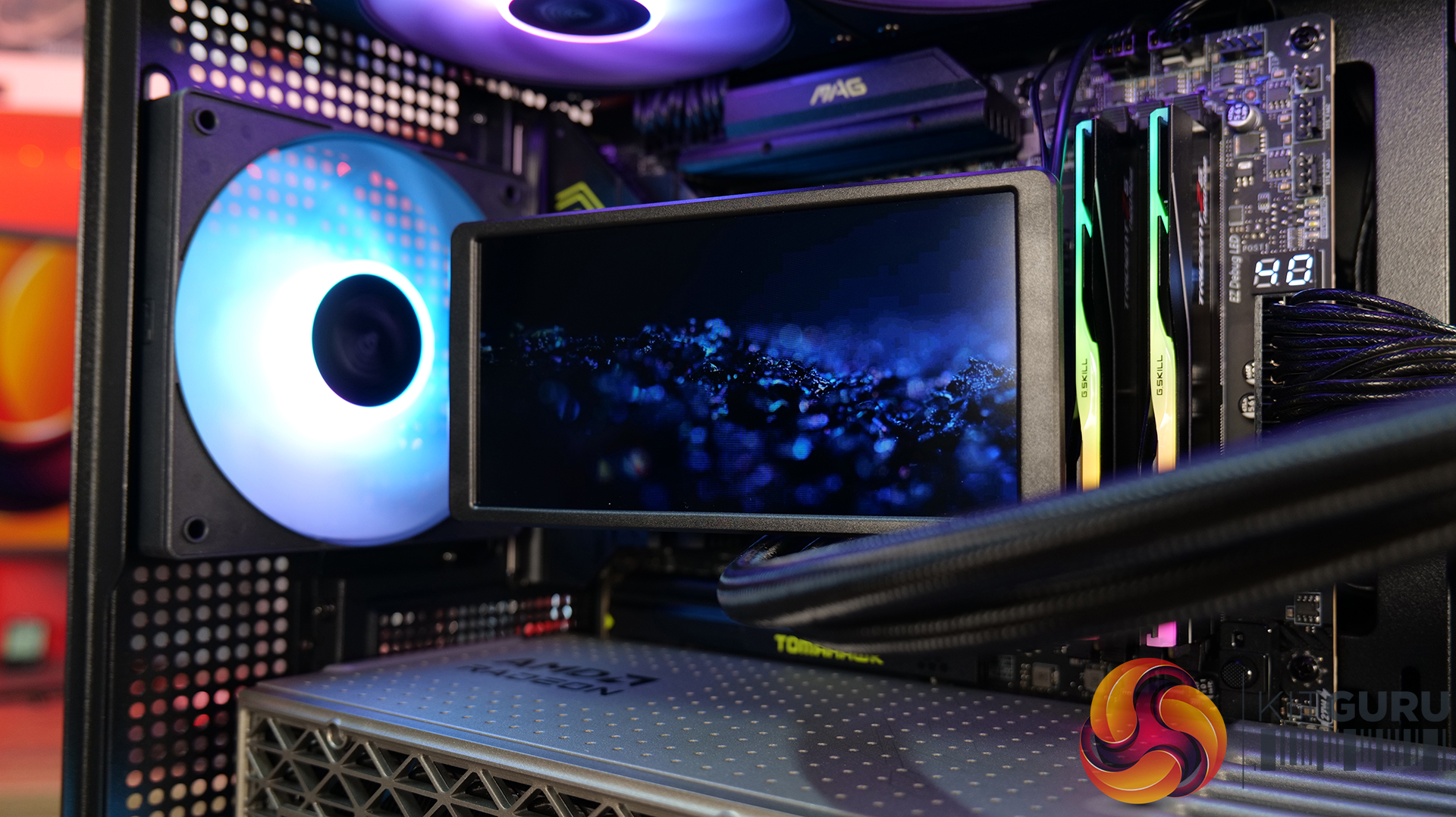

• 4-inch Customisable IPS LCD Screen: CHIONE P5 Pro features a 3.4-inch, 480 × 480 IPS screen, which can display real-time system information alongside custom images and animated GIFs. The magnetic display is also rotatable, while GAMDIAS' ZEUS CAST software lets you adjust the orientation and brightness to suit your build.

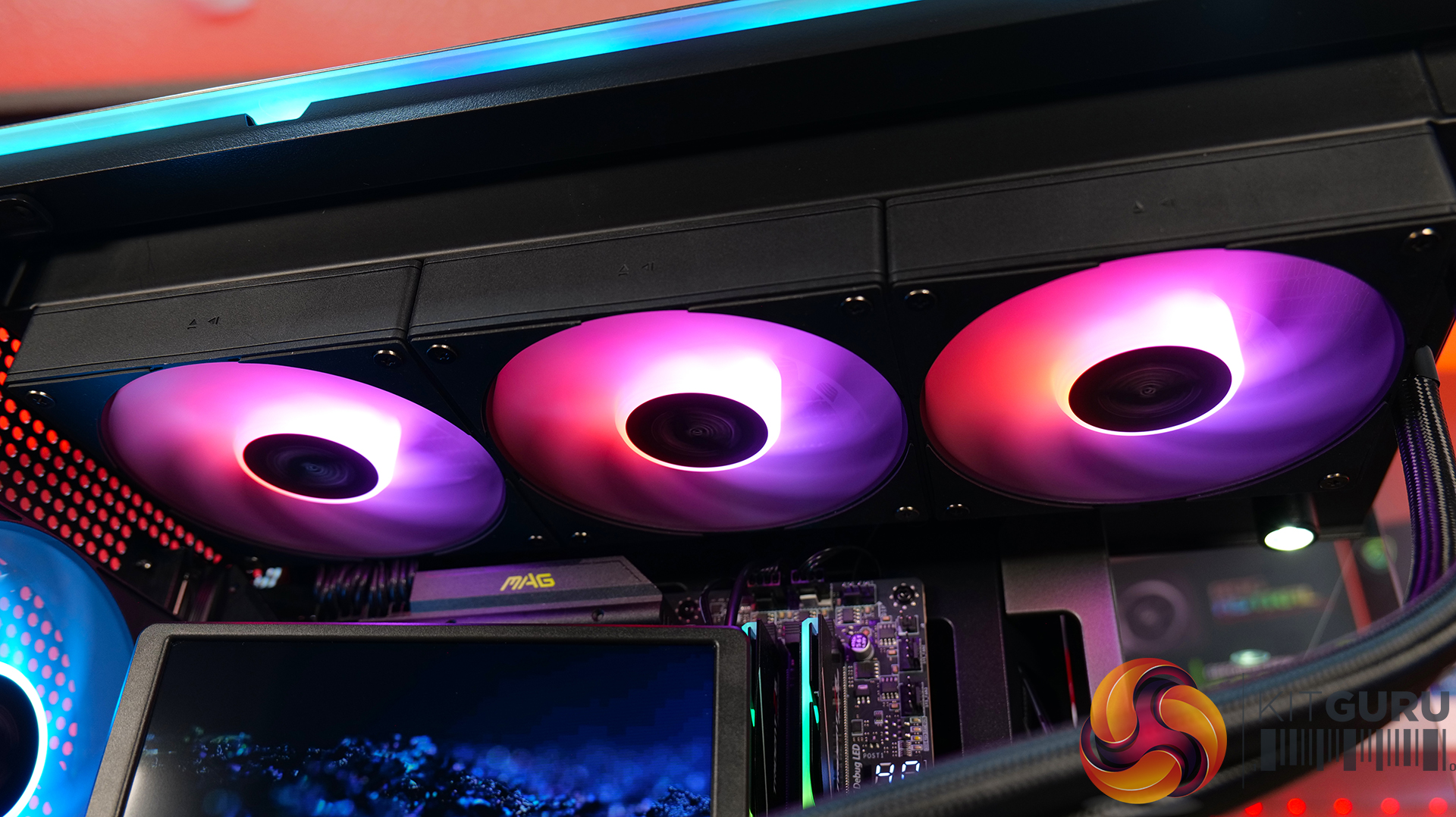

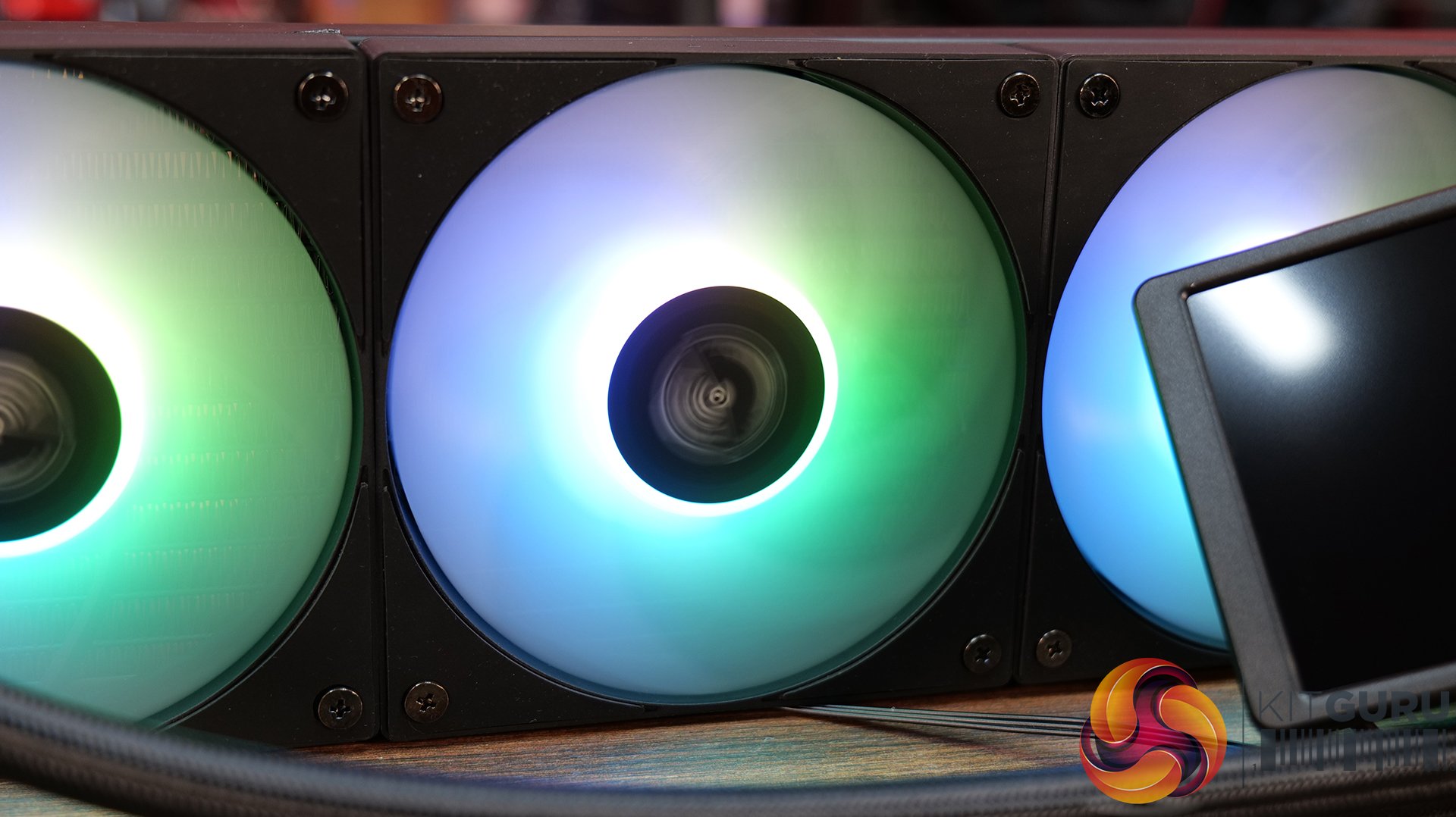

• Premium 360mm Cooling Setup: The CHIONE P5-360 combines a 360mm radiator with three 120mm hydraulic-bearing PWM fans with speeds up to 2200 RPM, for 81.81 CFM of airflow and 3.15 mmH₂O of static pressure. The cooler also features an upgraded copper coldplate with 0.12mm microflow channels and a pump running at up to 2700 RPM.
• Keep Your Build Looking Clean: GAMDIAS has included hidden cable routing to reduce cable clutter. The cooler also supports 30 built-in lighting effects and motherboard ARGB synchronisation via a 5V 3-pin header, with support for the latest Intel LGA 1851 and AMD AM5 platforms.

Specifications

• Socket Compatibility: Intel LGA 2066 / 2011-v3 / 2011 / 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156; AMD AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
• Radiator Dimensions: 396 × 120 × 27 mm
• Tube Material: EPDM
• Base Plate Material: Copper
• Radiator Material: Aluminium
• Sleeved Tubing: Yes
• Pump Rated Voltage: 12V
• Pump Speed: 2700 RPM ±10%
• Pump Connector: 4-pin
• Fan Dimensions: 120 × 120 × 25 mm
• Fan Speed: 400–2200 RPM ±10%
• Noise Level: 11–34.91 dBA
• Airflow: 81 CFM
• Static Pressure: 15 mmH₂O
• Bearing Type: Hydraulic Bearing
• Rated Voltage: 12V (Fan) / 5V (LED)
• Connector: PWM and 5V ARGB Sync
• PWM Control: Yes
• Motherboard RGB Sync: 5V 3-pin addressable (digital) RGB header only

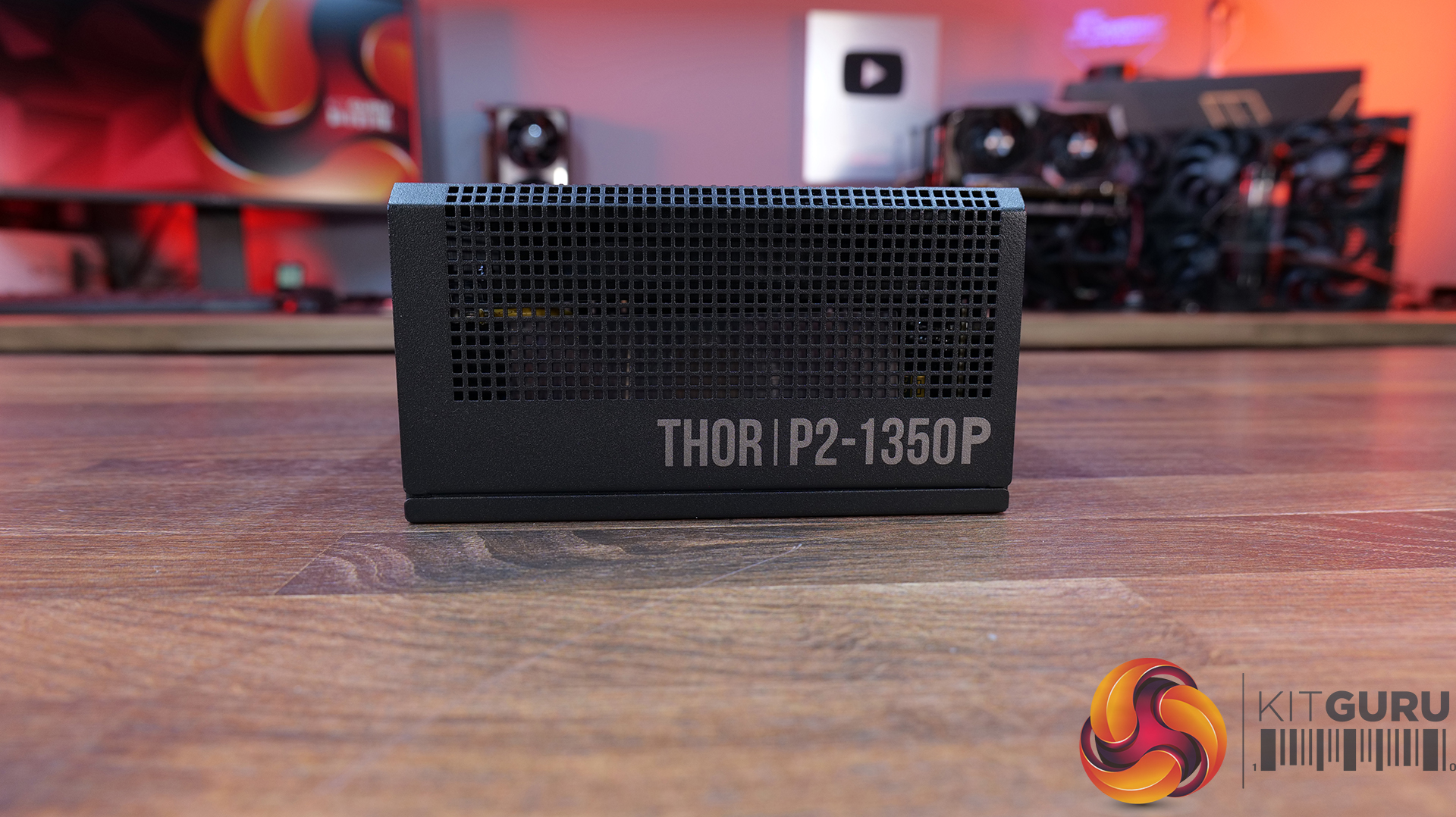

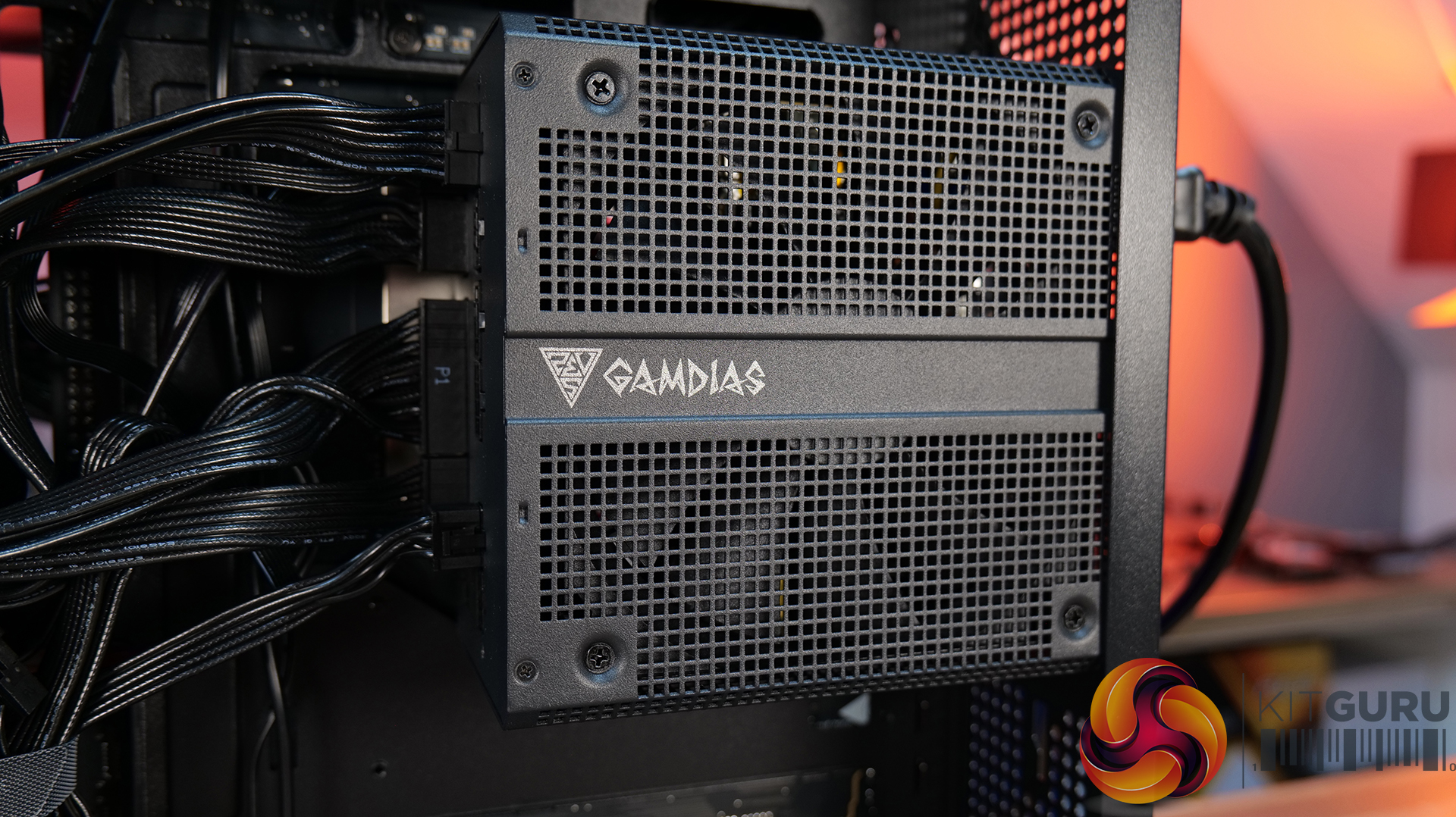

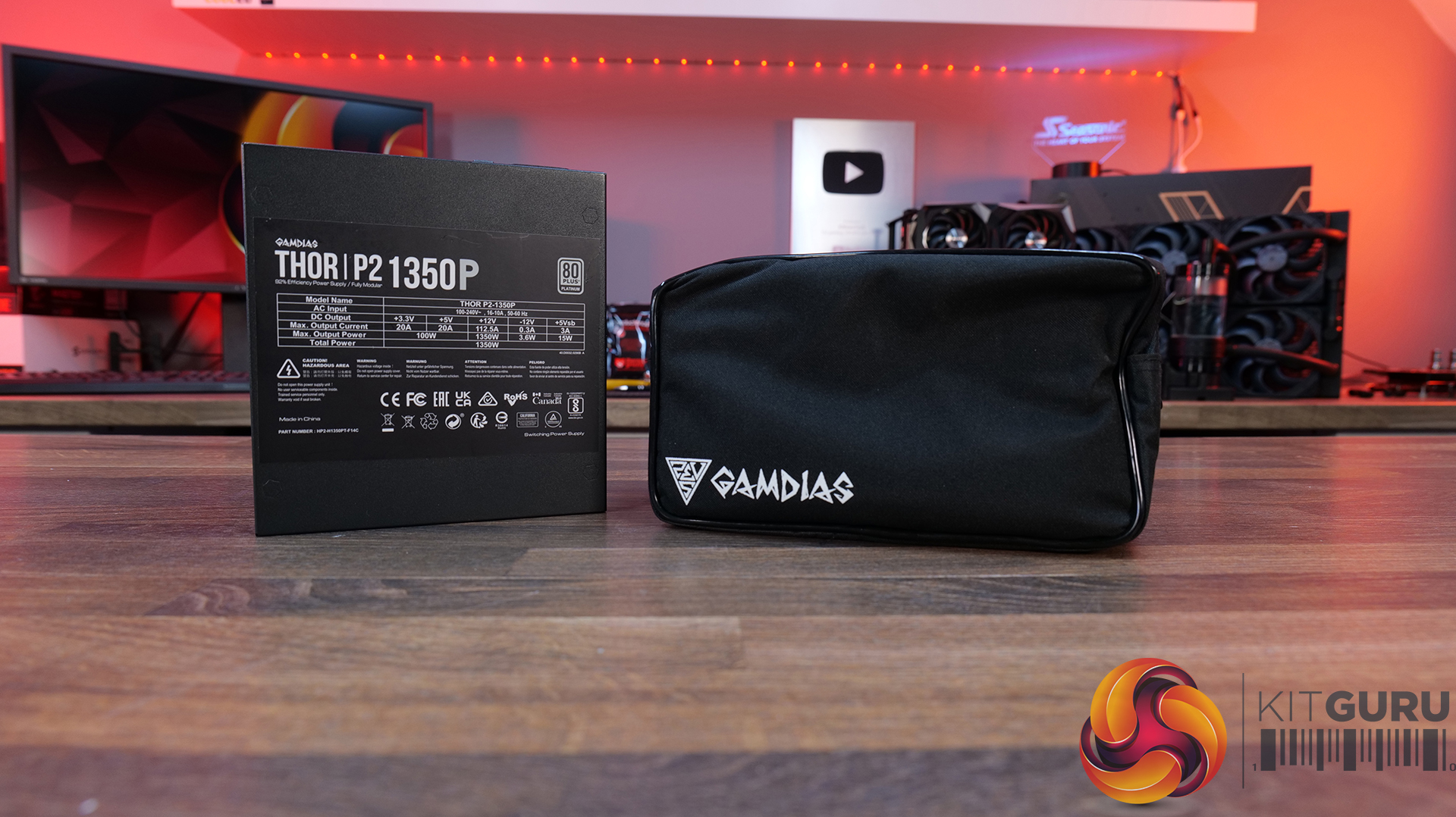

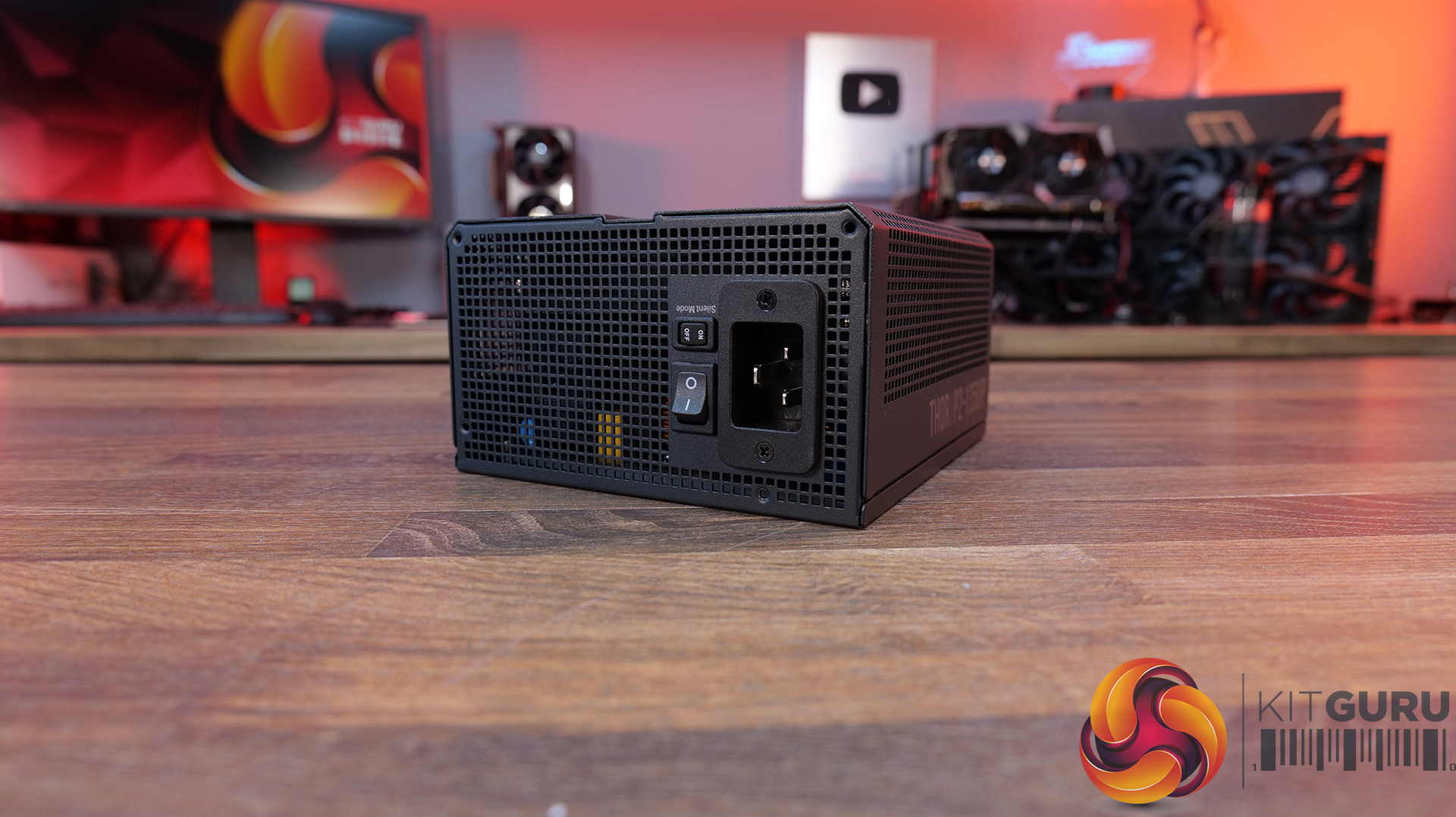

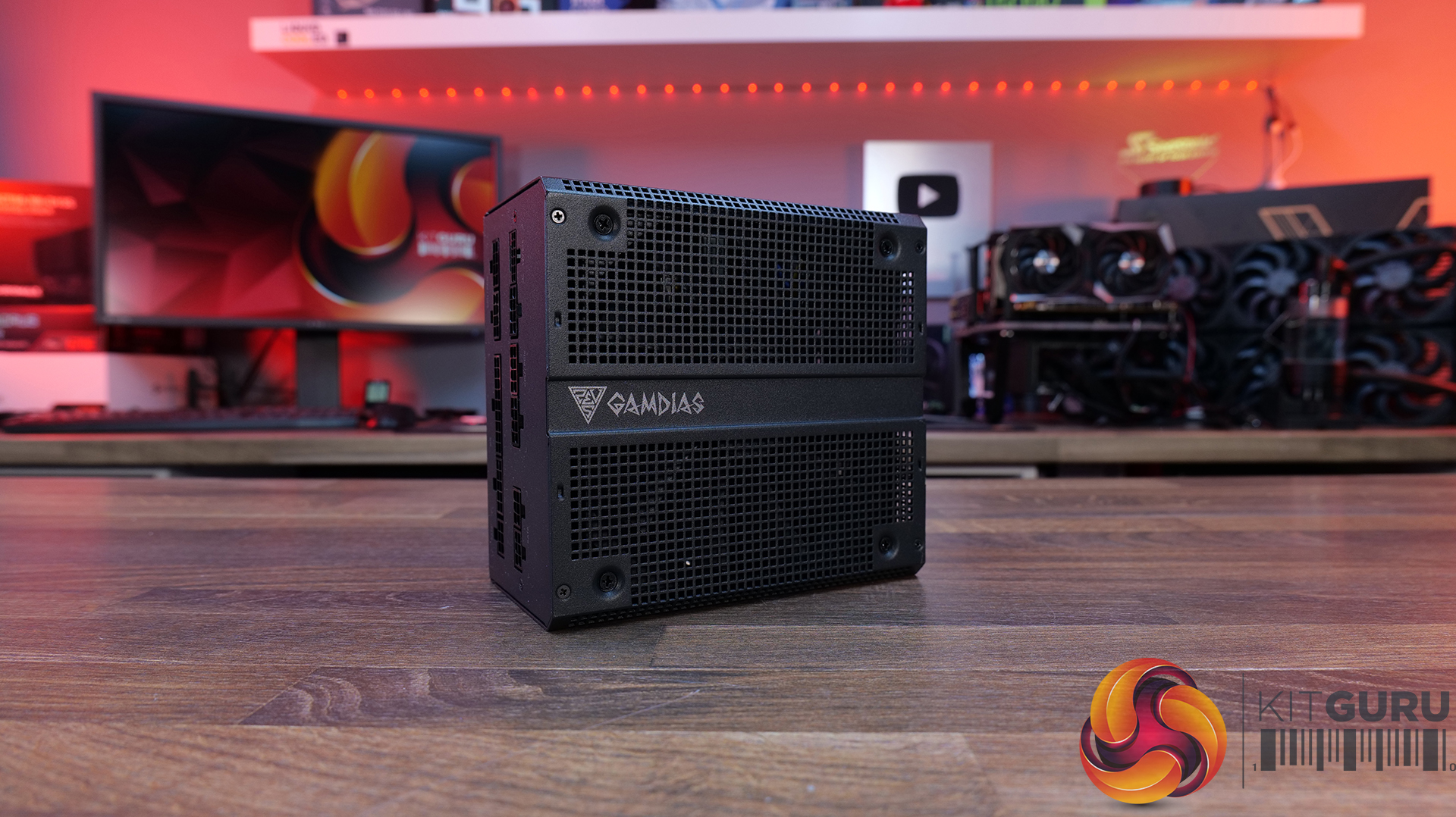

Power Supply: Gamdias THOR P2 1350P – MSRP $159.90

• 1350W Platinum-Rated Power: The THOR P2-1350P is a serious high-end unit, combining a huge 1350W output with 80 PLUS Platinum efficiency, making it well suited to demanding gaming PCs and workstations.
• Ready For Next-Generation GPUs: ATX 3.1 and PCIe Gen 5.1 compliance, plus a native 600W 12V-2×6 connector, the THOR P2-1350P is designed to handle the latest high-performance graphics cards and their demanding power requirements.
• Premium Components, 12-year Warranty: GAMDIAS has equipped THOR P2 with 100% Japanese capacitors, a 135mm Fluid Dynamic Bearing fan with a Zero Fan mode at low loads, comprehensive electrical protections and an impressive 12-year warranty.

Specifications

• Type: ATX 3.1
• Efficiency: 80 PLUS Platinum
• Power Factor Correction: APFC with a PF value of 0.99
• Motherboard Sync Support: No
• Dimensions (L × W × H): 160 × 150 × 86 mm
• C6/C7 Power State Support: Yes
• AC Input: 100–240V~, 16–10A, 50–60Hz
• DC Outputs: +3.3V / +5V / +12V / -12V / +5Vsb
• Maximum Output Current: 20A / 20A / 70.8A / 0.3A / 3A
• Maximum Output Power: 100W / 1350W / 3.6W / 15W
• Total Power: 1350W
• Peak Power: 1755W
• Protection: OVP / UVP / OPP / SCP / OCP / OTP
• Main Power Connector: 1 × 20+4-pin
• CPU Power Connectors: 1 × 4+4-pin and 1 × 8-pin
• PCIe Connectors: 3 × 6+2-pin
• 12V-2×6 Connector: 1 × 12+4-pin
• SATA Connectors: 6
• Molex Connectors: 2
• Modular Design: Fully modular
• Cables: Flat cables
• Capacitors: Japanese capacitors

Build Specification

• CPU – AMD Ryzen 7 9800X3D

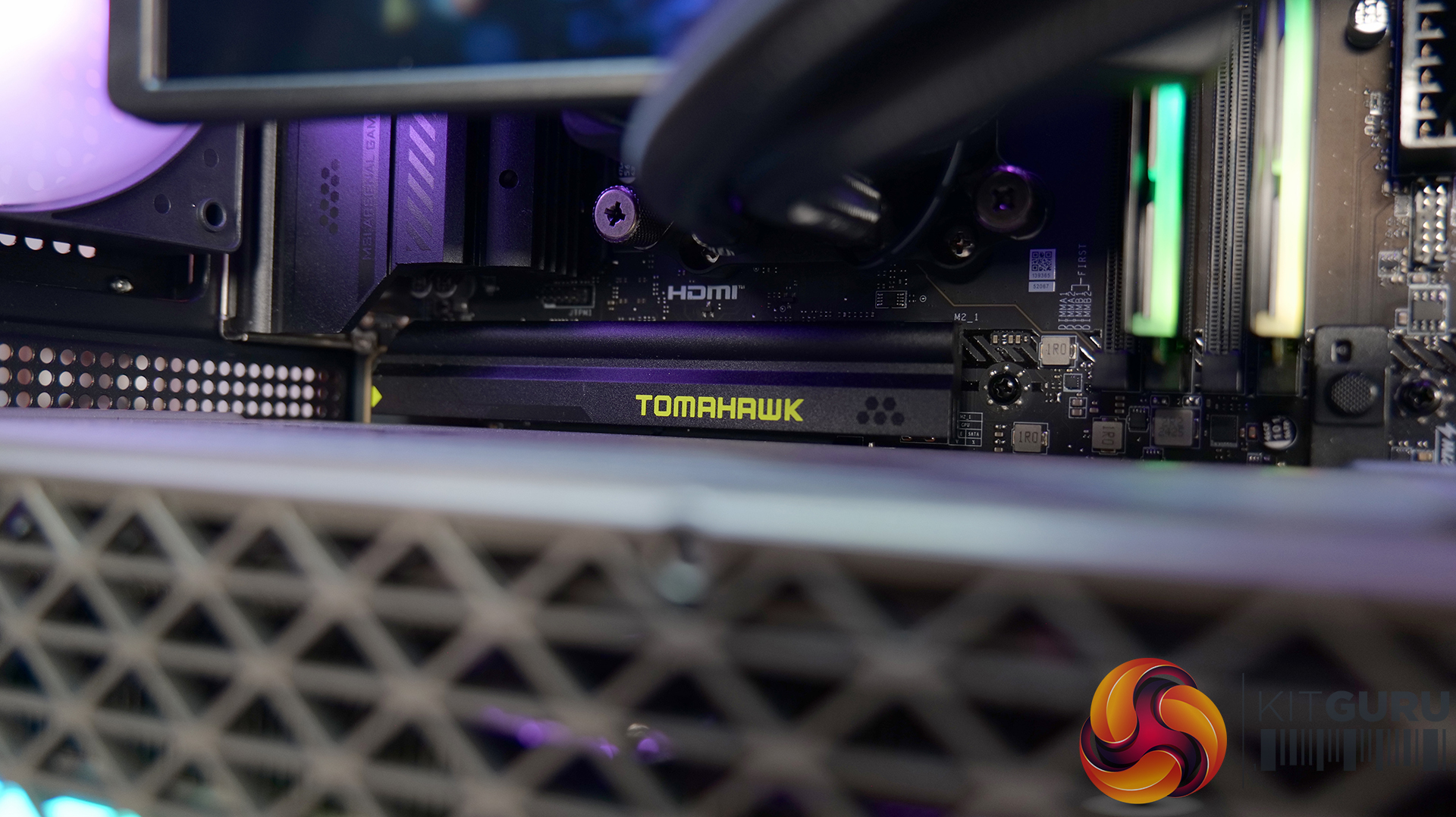

• Motherboard – MSI MAG X870 Tomahawk WiFi

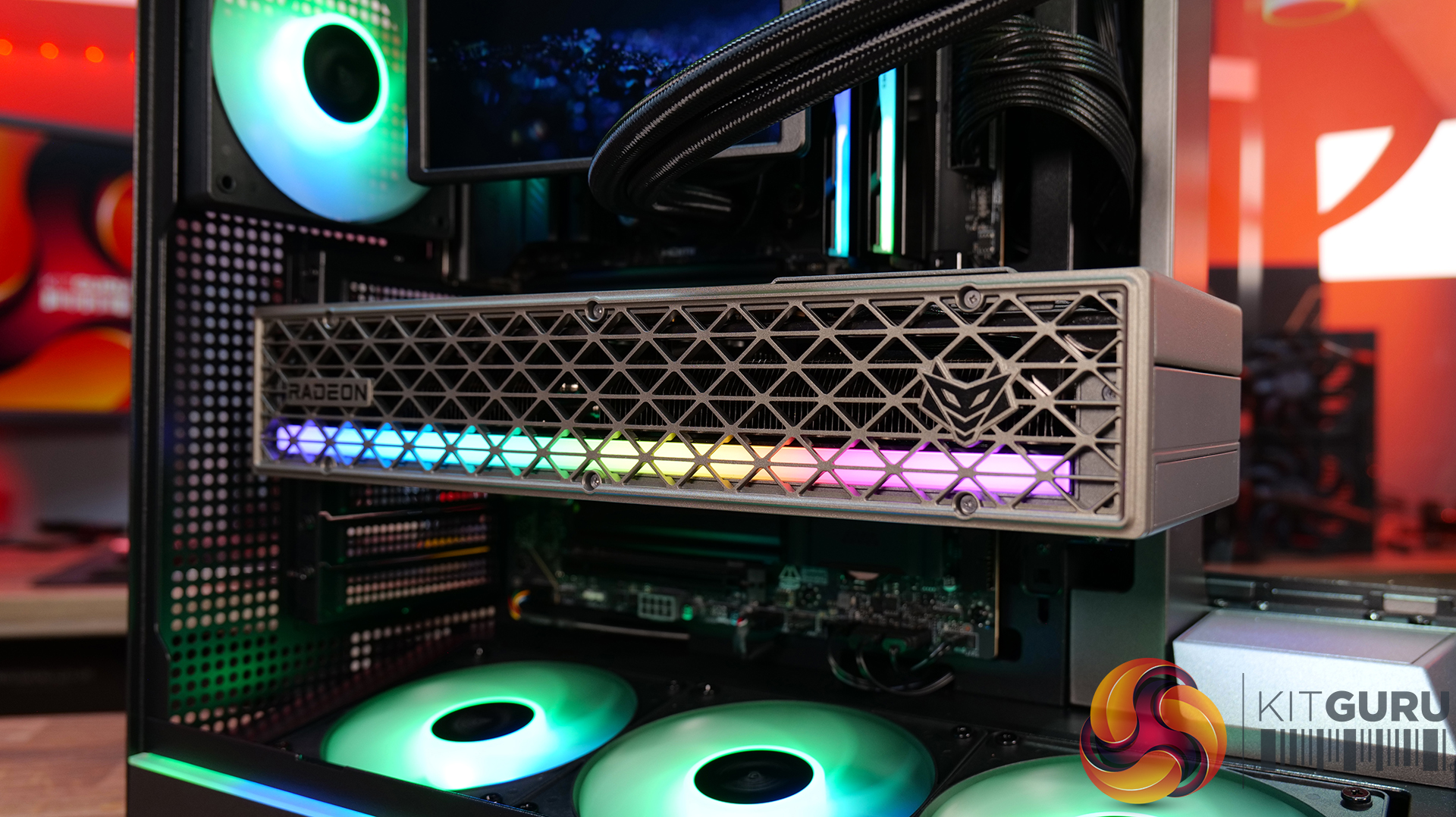

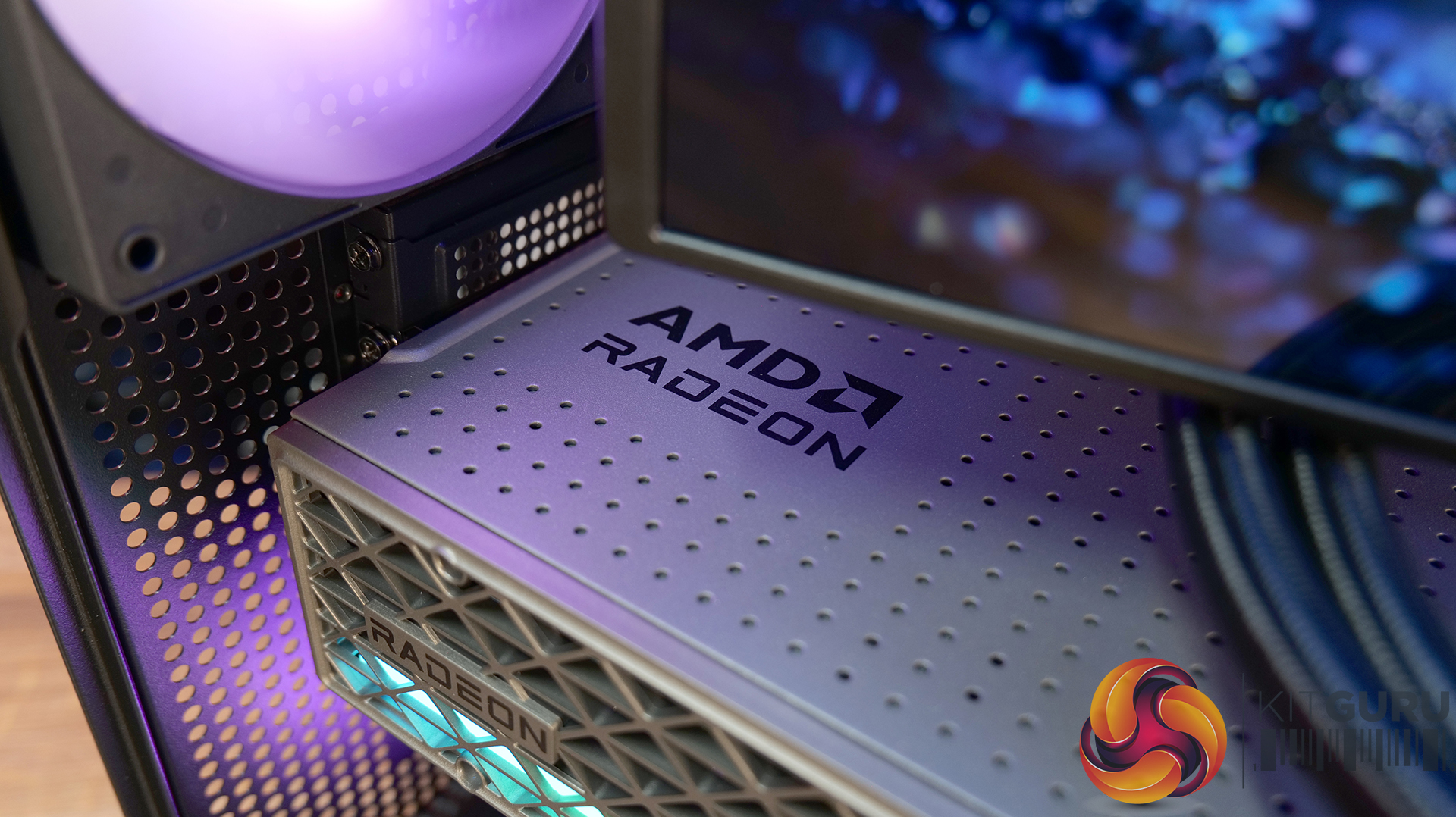

• Graphics Card – Sapphire Radeon RX 9070XT Nitro+

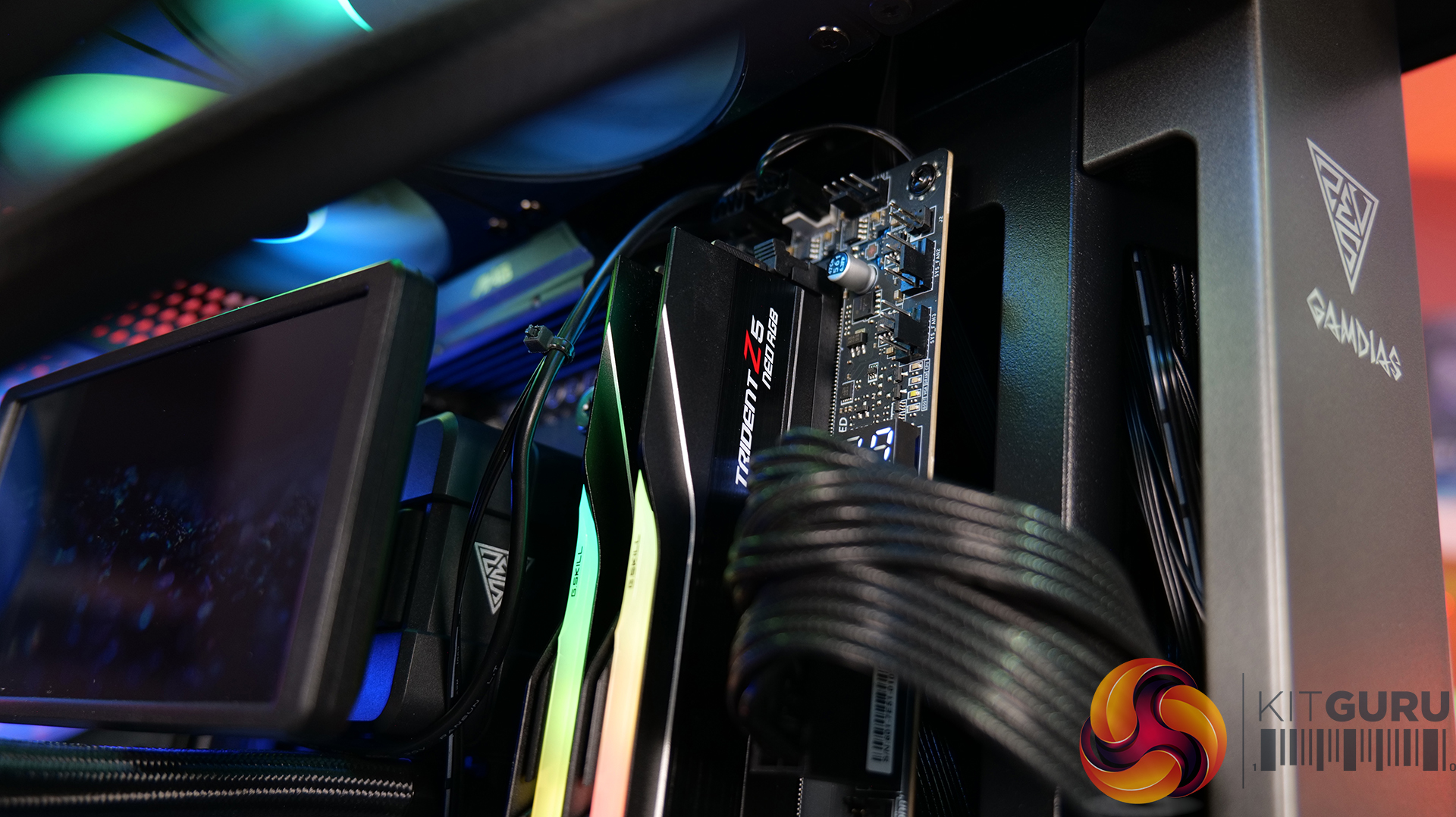

• Memory – 32GB (2 x 16GB Modeuls) G.SKILL Trident Z5 RGB DDR5-6000
• Storage – 1TB Corsair MP600 Elite PCIe Gen4 M.2 NVME SSD
• CPU Cooler – Gamdias CHIONE P5-360 Pro AIO Liquid Cooler
• Power Supply – Gamdias THOR P2 1350P ATX3.1 80+ Platinum
• Chassis – Gamdias Atlas P6 CG
• Operating System – Windows 11

KitGuru says: Gamdias' new Atlas P6 CG panoramic case works well with the CHIONE P5 Pro AIO screen and the THOR P2 1350P power supply has the grunt for any high-end gaming system.
