MSI MAG PANO 100L PZ White Project Zero Featured Build

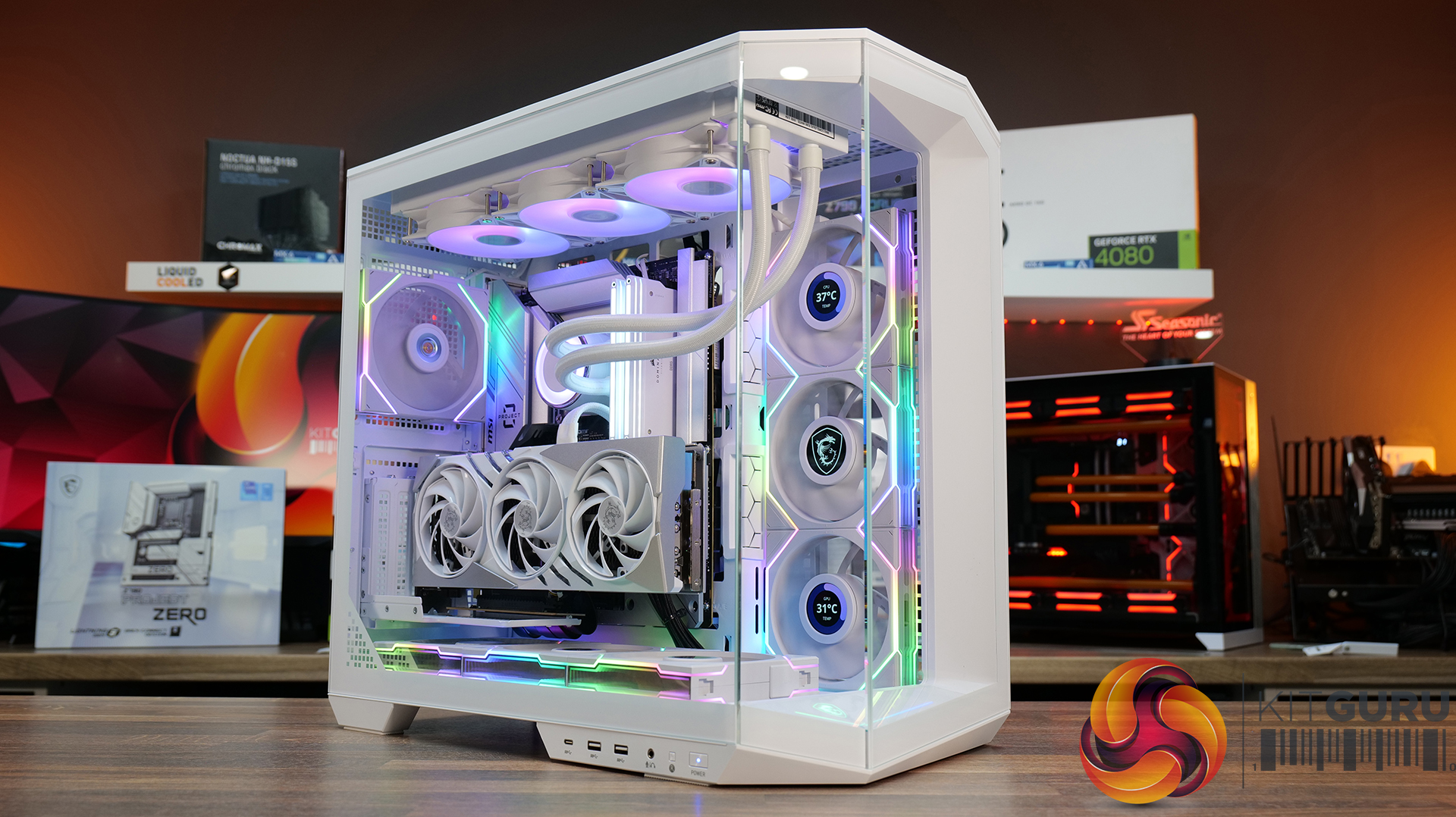

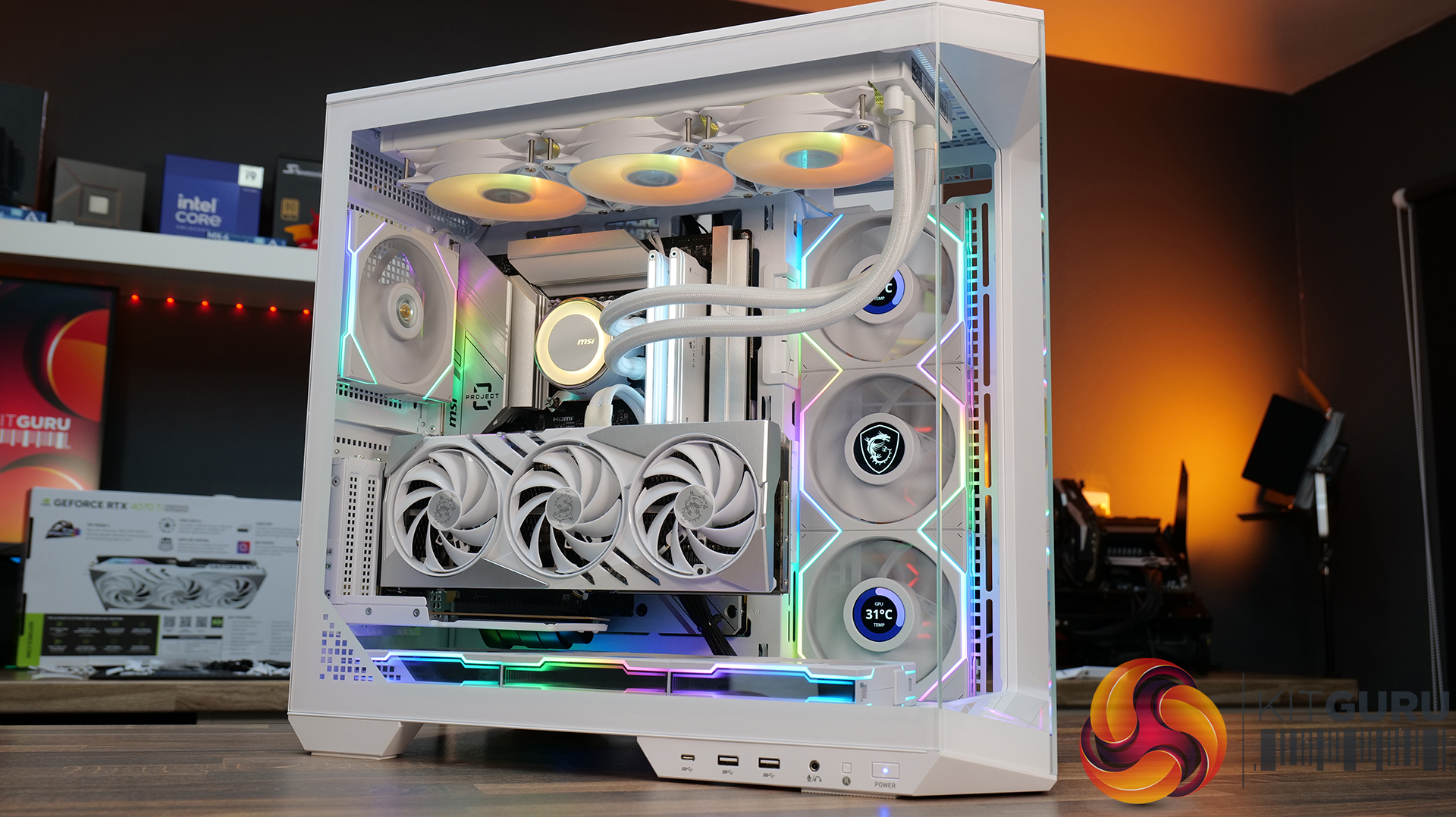

At Computex 2024, Leo and the crew showed us many new dual chamber cases and reverse connector motherboards. In this video we'll be combining the two to make an MSI sponsored build using the MAG PANO 100L PZ white case, a Z790 Project Zero motherboard and some other white MSI components. So let's throw all this lot together and see how easy, or difficult Project Zero is to build with…

Timestamps:

00:00 Intro
00:31 The case
01:30 A look around – strip down
03:58 Front I/O
04:24 Hardware support / cutouts
04:55 Vertical GPU mounting / accessories

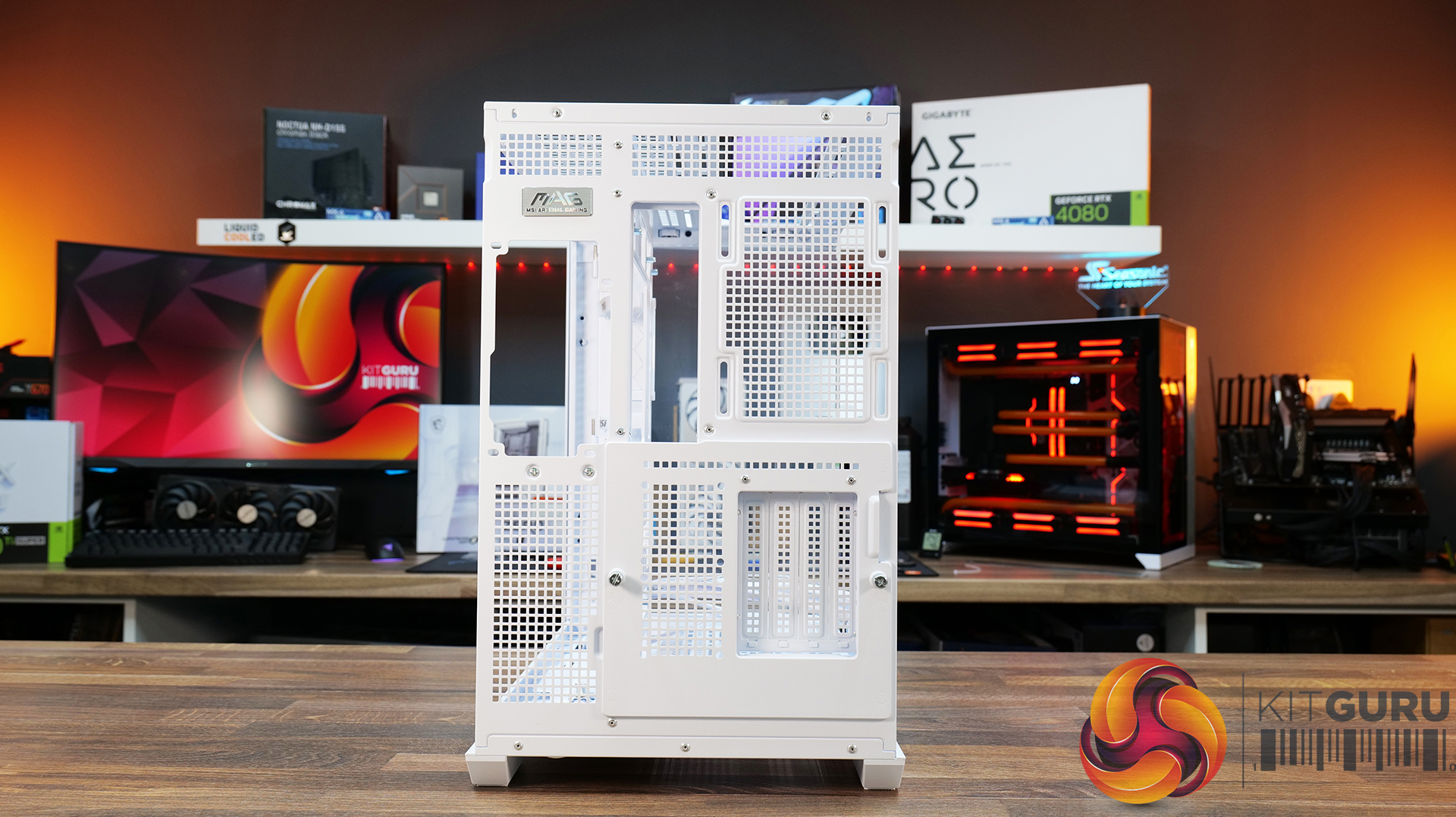

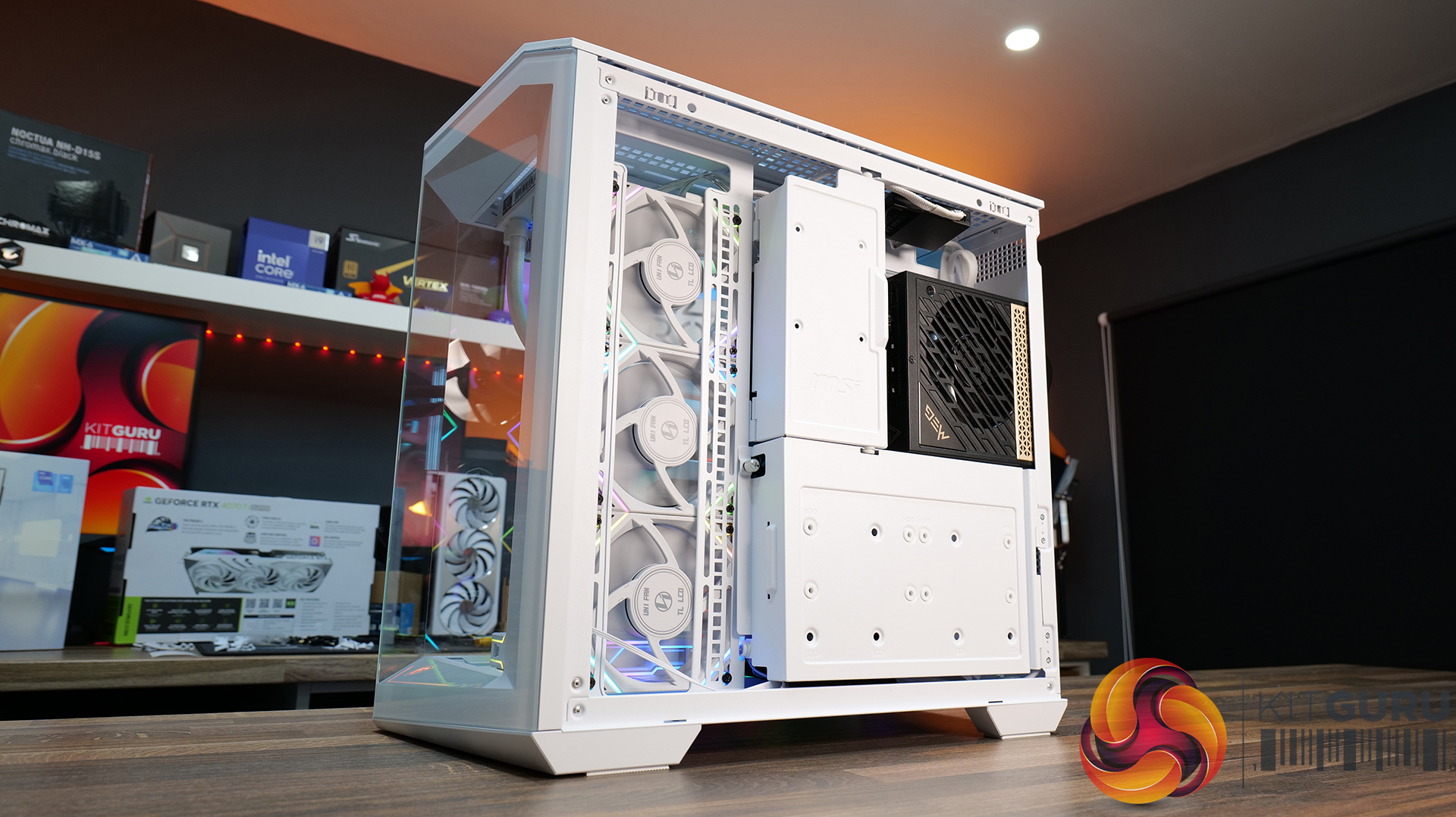

05:50 Rear of the case

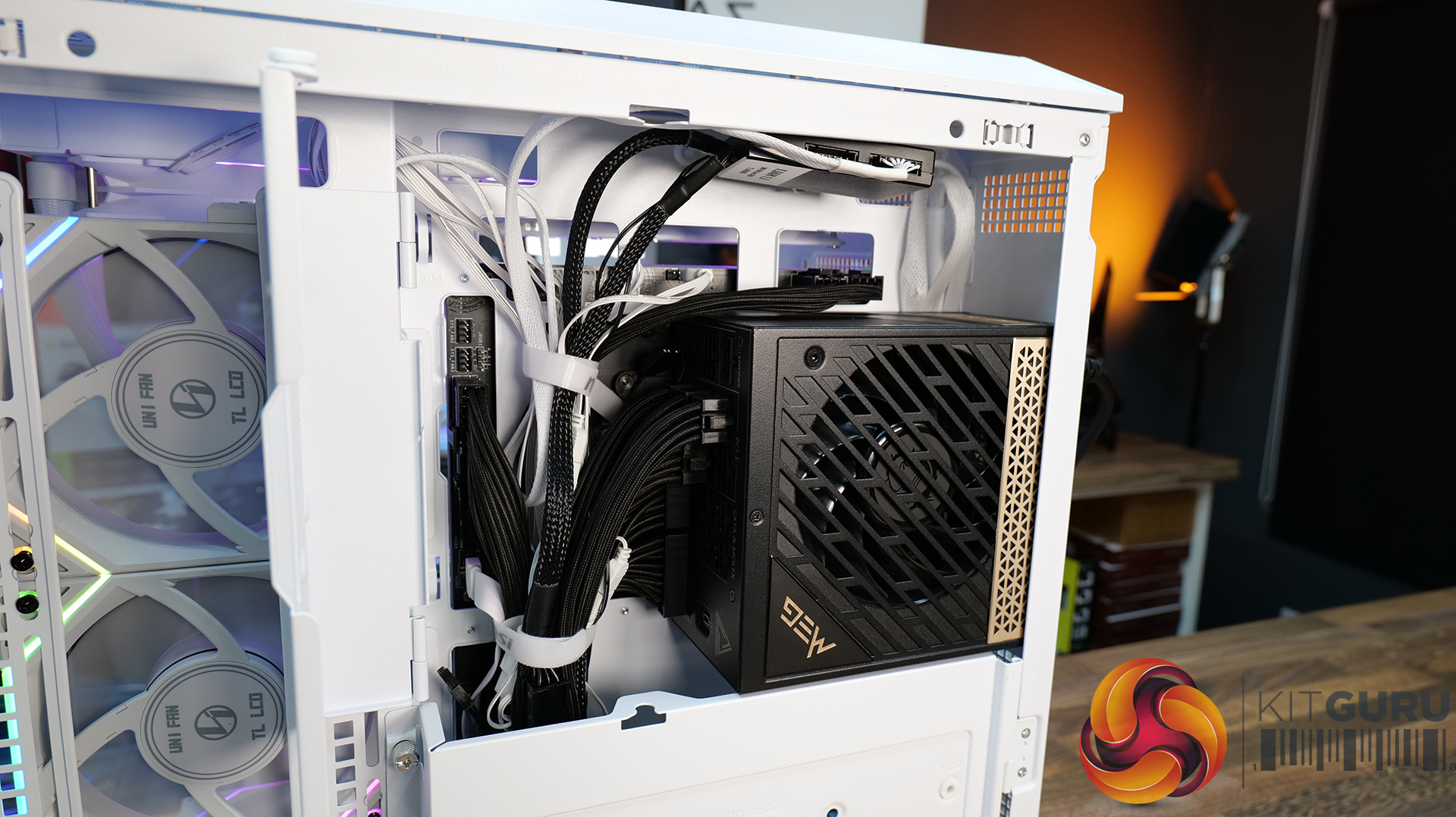

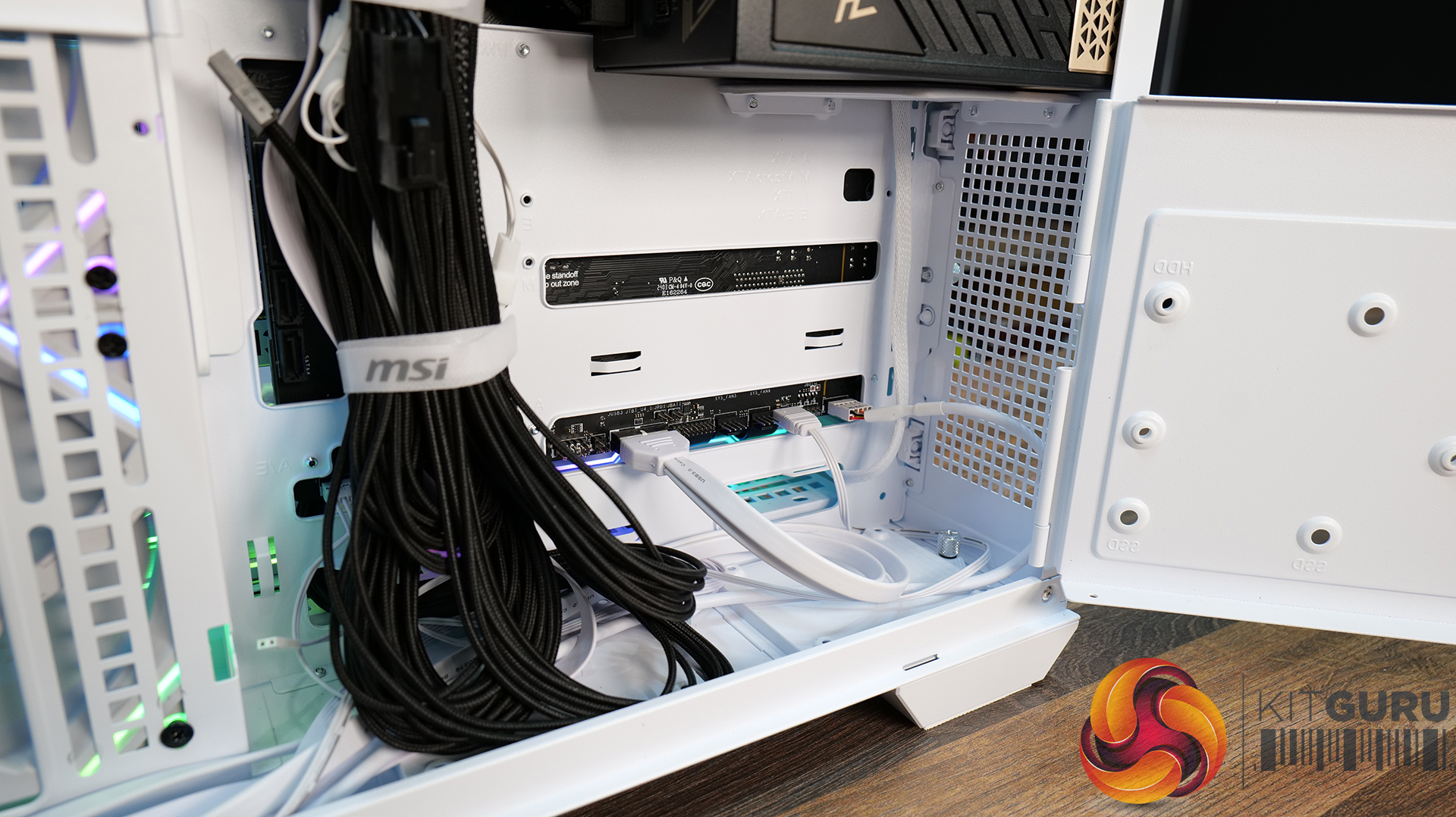

06:13 Second chamber / cabling / management

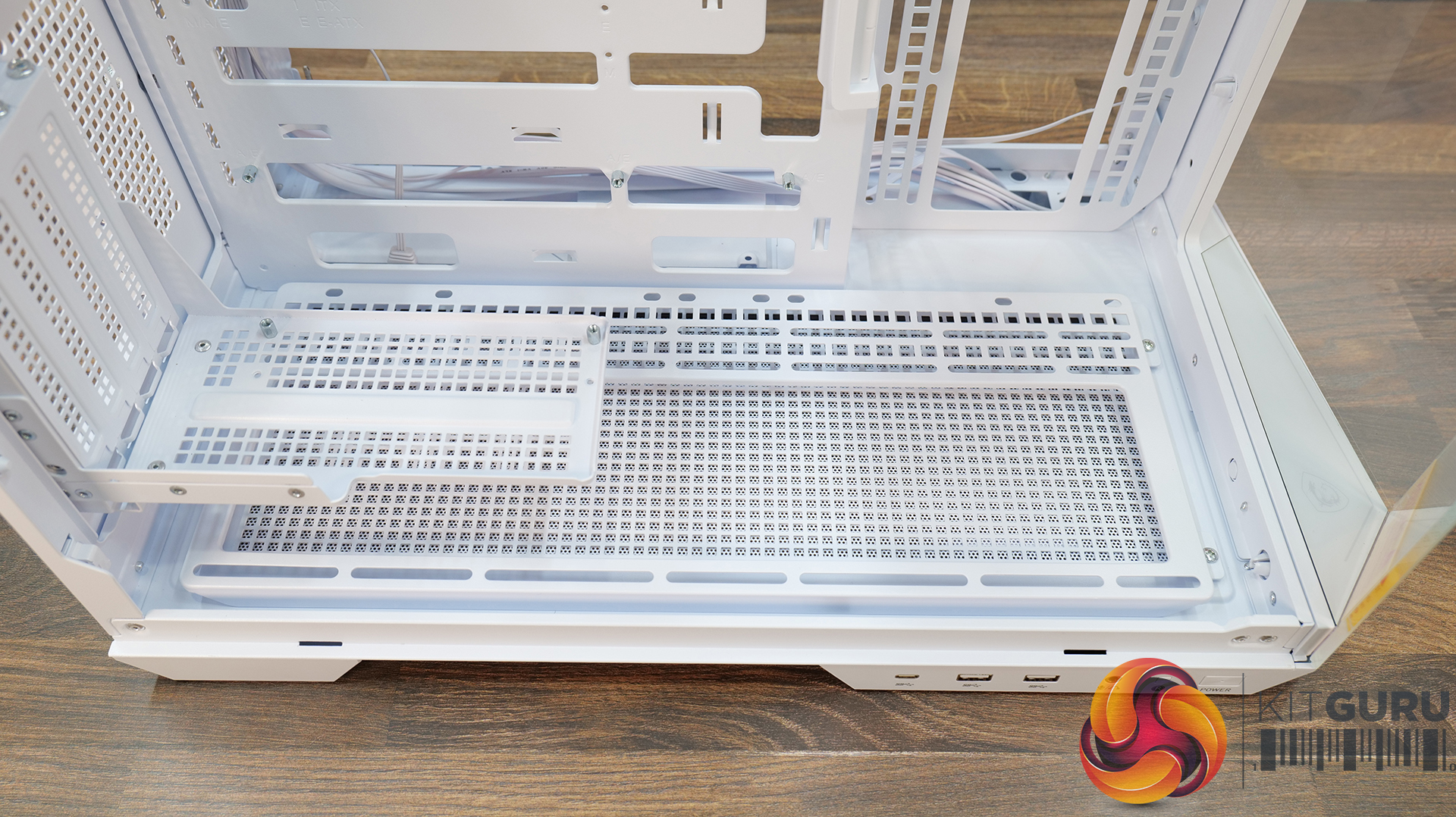

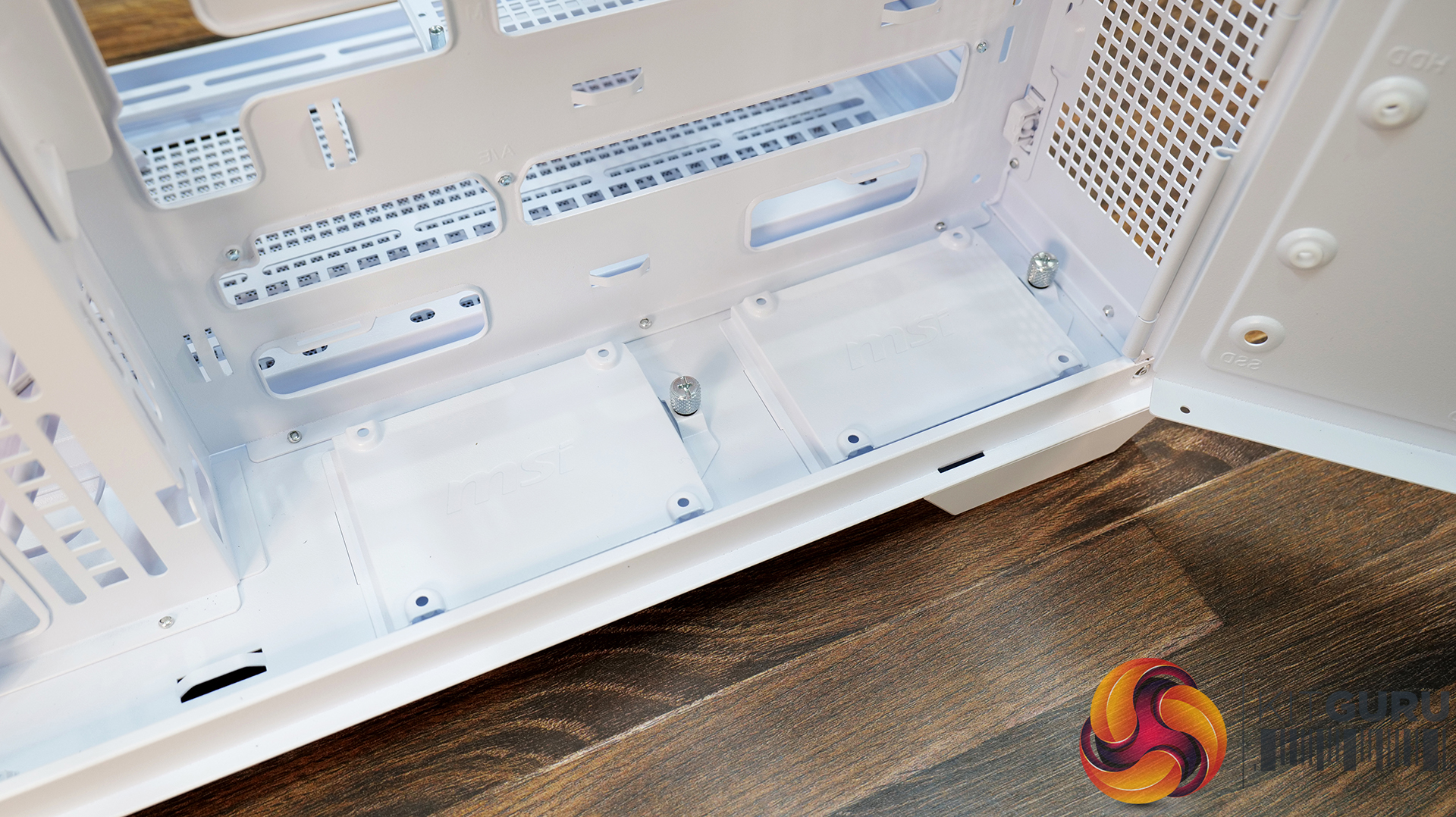

07:54 Floor of the case
08:19 Hardware for the build
09:41 TIMELAPSE BUILD
16:41 So what's the verdict?

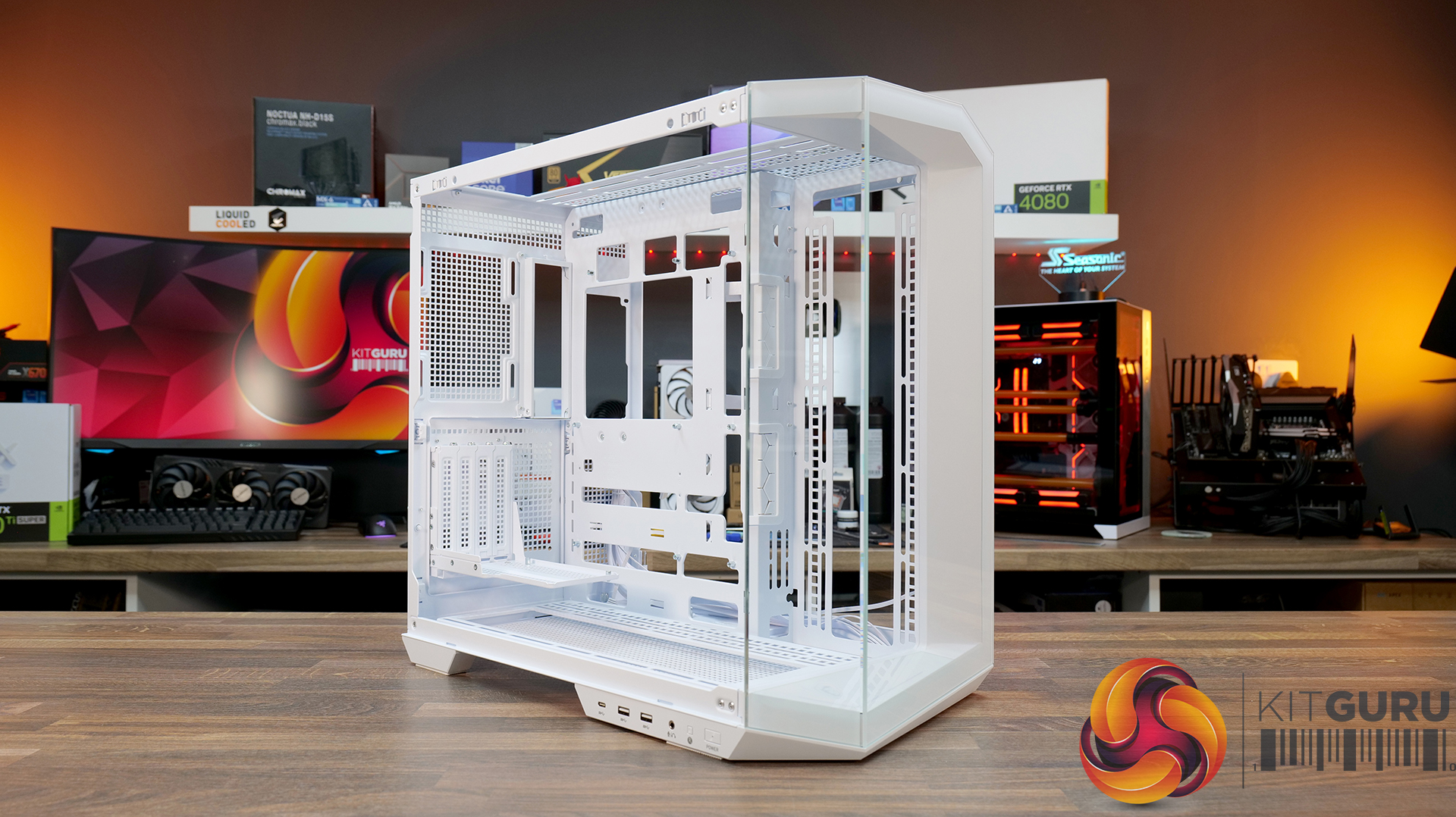

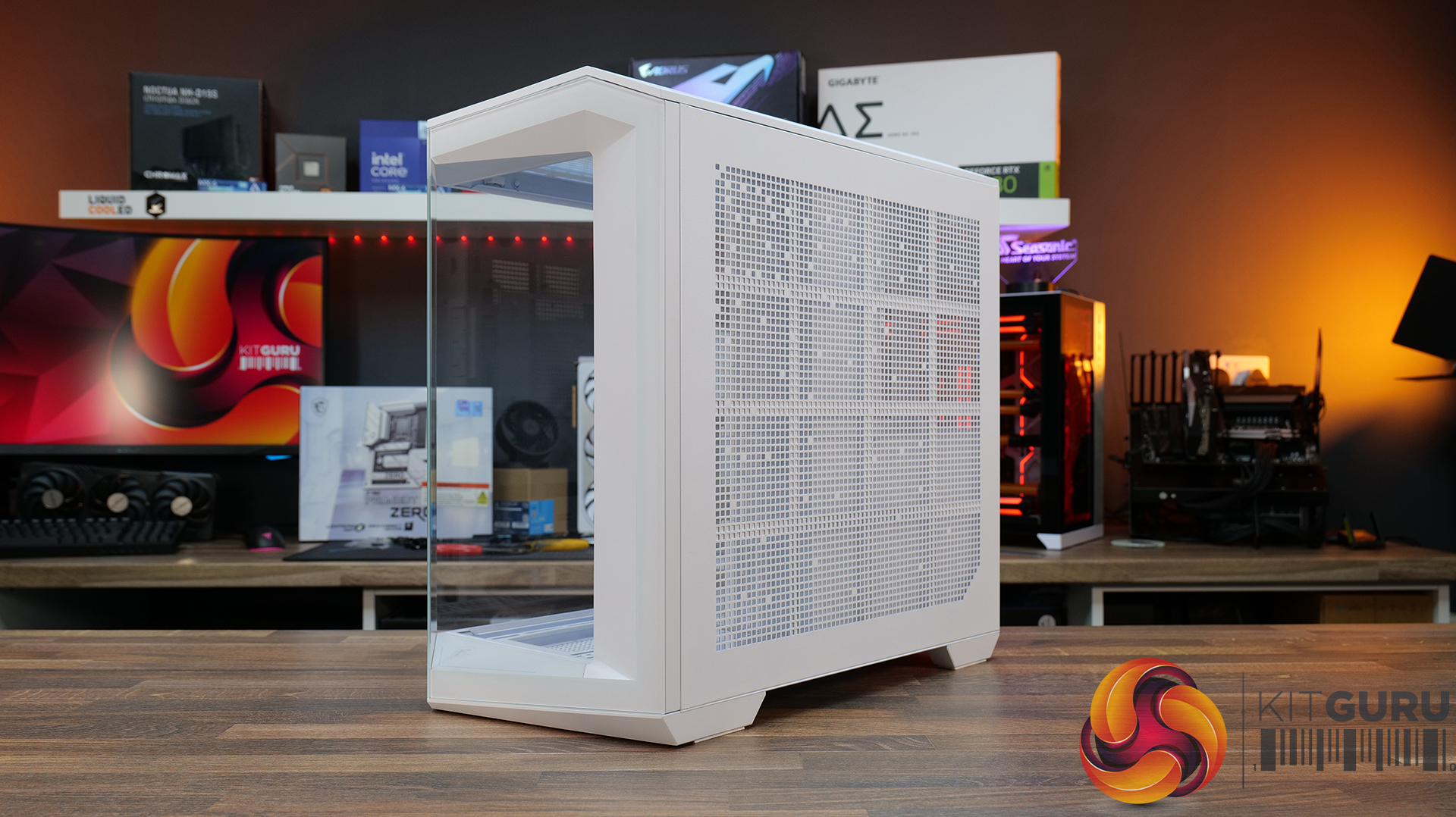

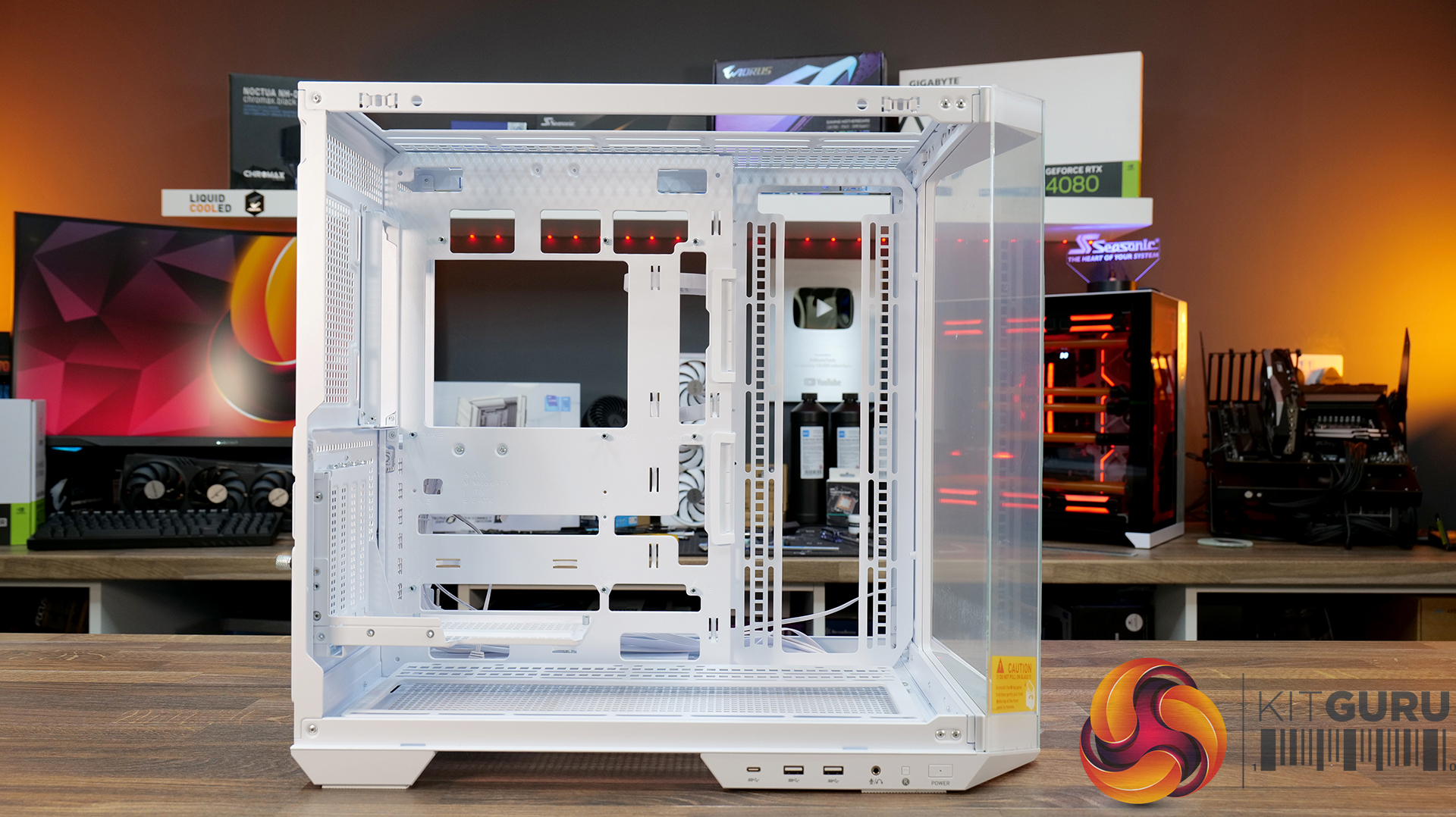

Case – MSI MAG PANO 100L PZ White

Features:

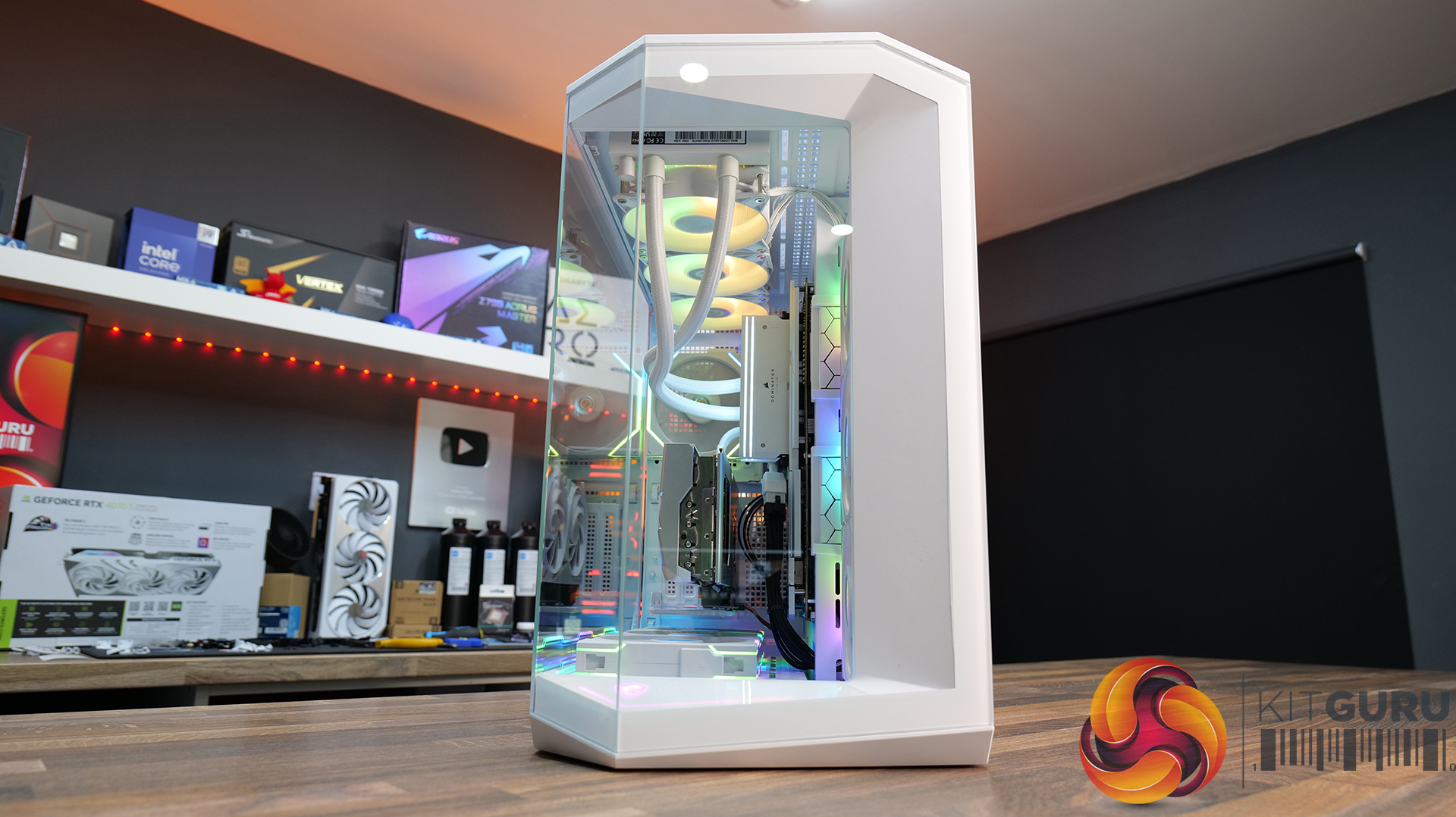

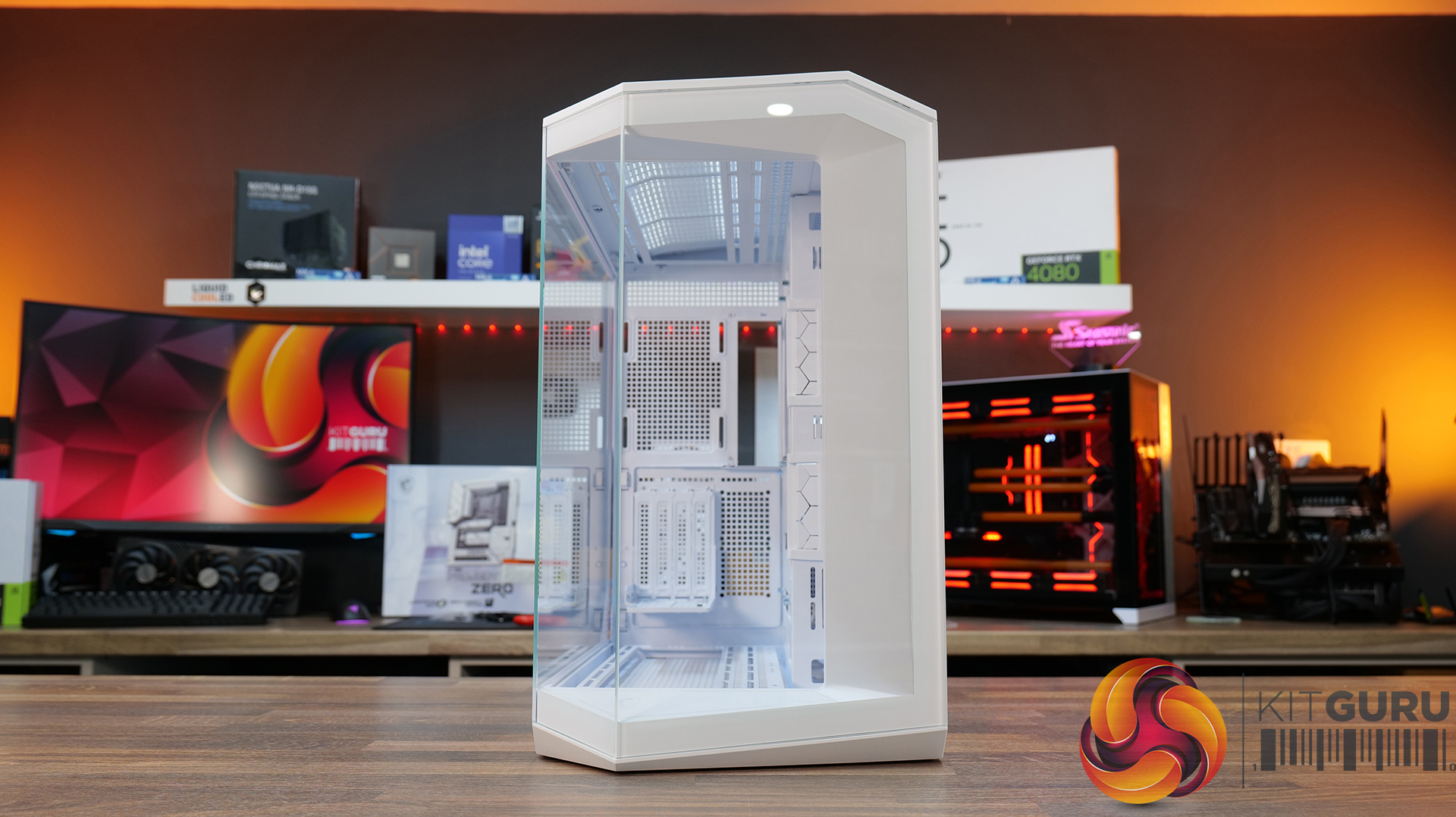

  • 270-degree panoramic glass panels enhance the aesthetics of the internal hardware and provide a pleasingly clean look.

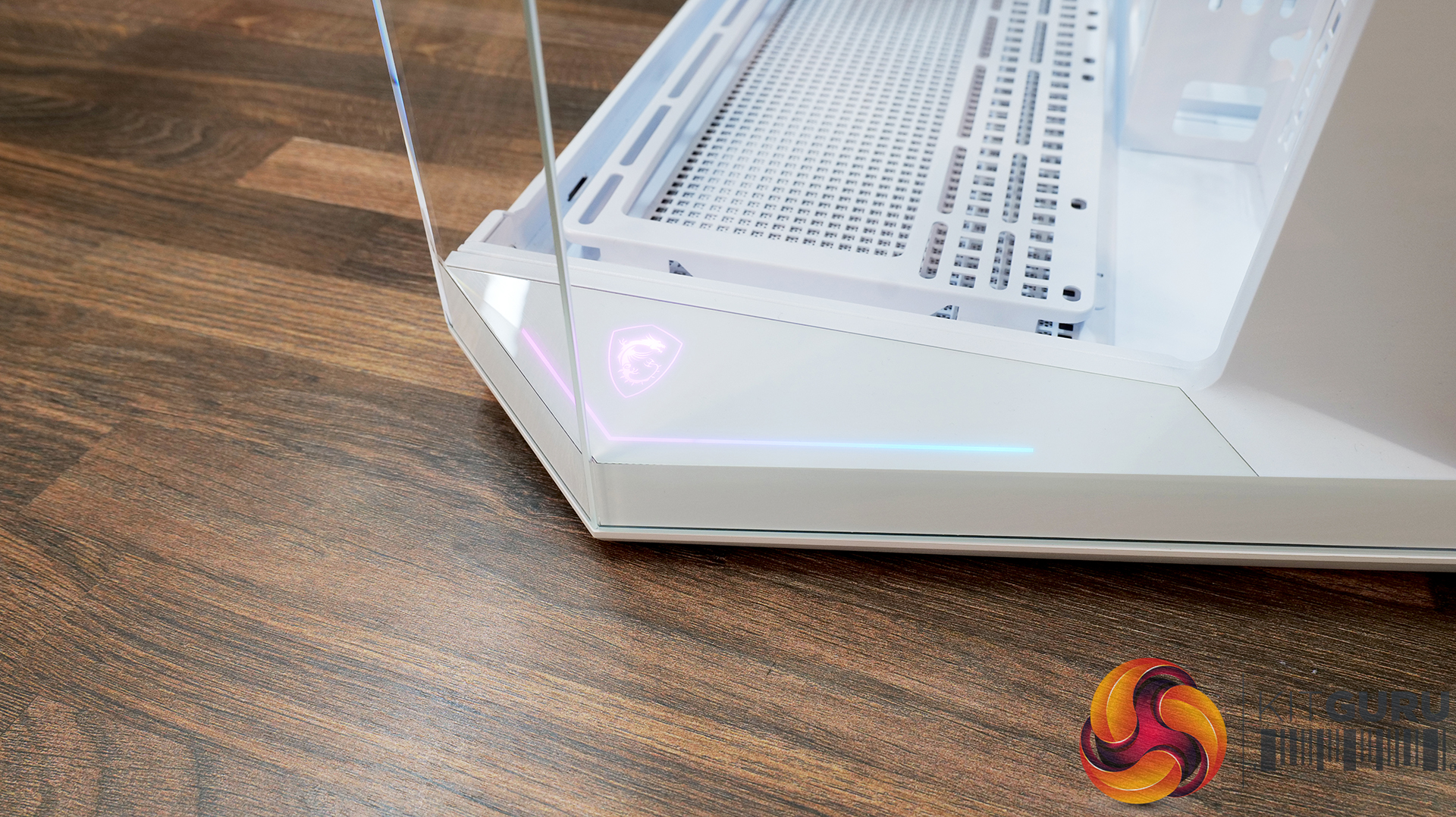

  • The edges of the front glass panel joints are cut at an angle to minimise panel gaps.
  • PANO 100L PZ offers extensive hardware support including back-connect Project Zero motherboards, big graphics cards and a huge choice of cooling options.

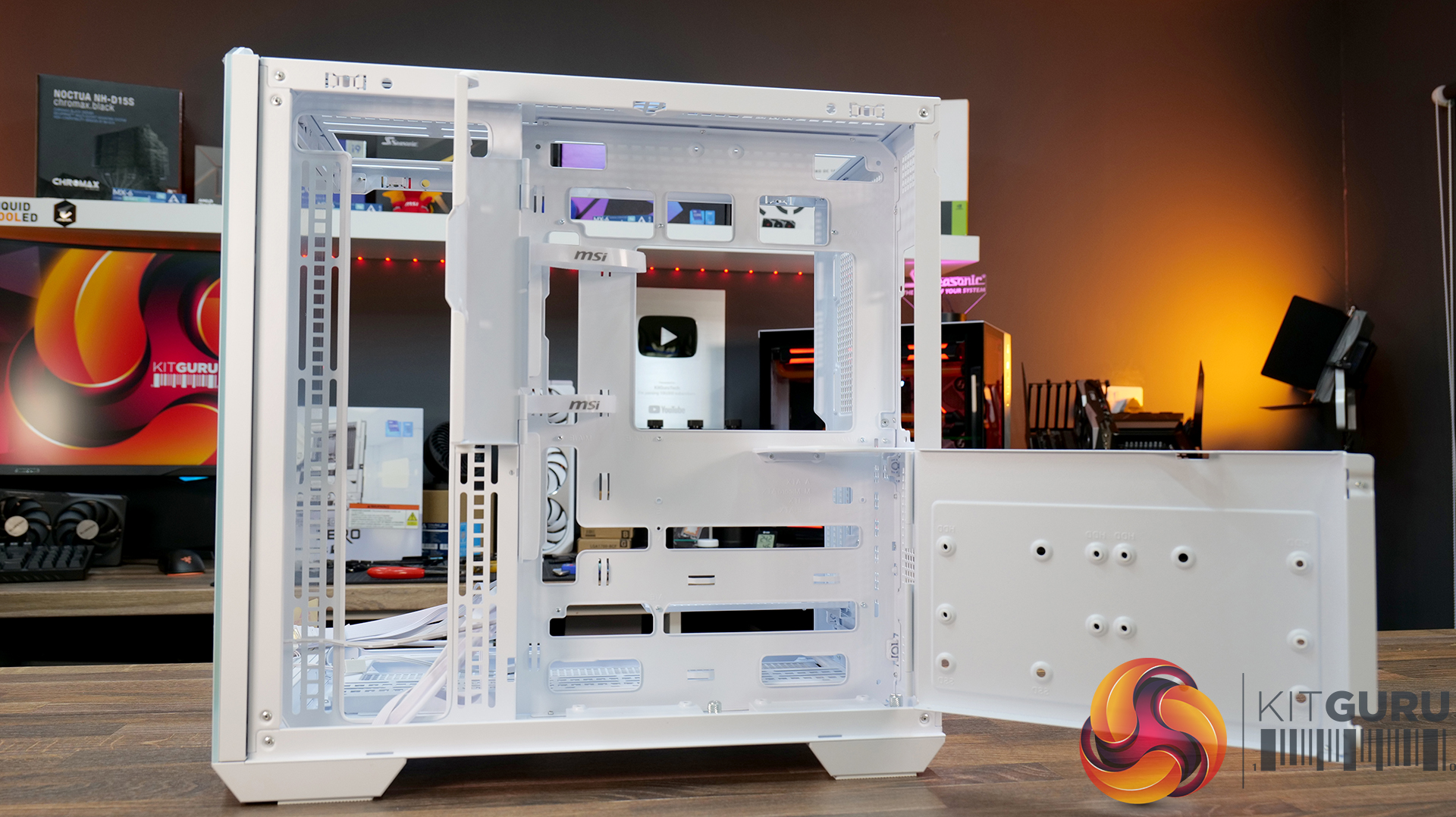

  • It's equipped with 90mm cable routing space, multi-function storage brackets, removable dust filters and quick-release removable panels for unobstructed installation access.

Specifications:

  • Case Type: Mid Tower (Dual Chamber)
  • Dimensions: 7 x 290 x 482 mm
  • Material: Steel / Plastic / Tempered Glass
  • Motherboard Support: Regular: ATX / Micro-ATX / Mini-ITX, Back-connect: ATX / Micro-ATX
  • Expansion Slots: 8 Horizontal / 4 Vertical
  • Storage Bays: 3 x 2.5” / 2 x 2.5”/3.5” combo
  • Max GPU Length: 380mm
  • Max CPU Cooler Height: 166mm
  • Max PSU Size: ATX 200mm
  • Fan Support: (Front) N/A (Top) 3 x 120 mm / 3 x 140 mm (Side) 3 x 120 mm / 2 x 140 mm (Bottom) 3 x 120 mm / 2 x 140 mm / 2 x 160 mm (Rear) 1 x 120 mm
  • Pre-installed fans: N/A
  • Radiator Support: (Top) 120 / 240 / 360 mm (Side) 120 / 240 / 360 mm (Front) N/A (Bottom) 120 / 240 / 360 mm (Rear) 120 mm
  • Dust Filters: R/H Side, Bottom, Top
  • Font I/O: 1 x USB 20Gbps Type-C, 2 x USB 5Gbps Type-A ,1 x Audio-Out / Mic-in ,1 x Reset Button, 1 x Power Button
  • LCD Screen: N/A

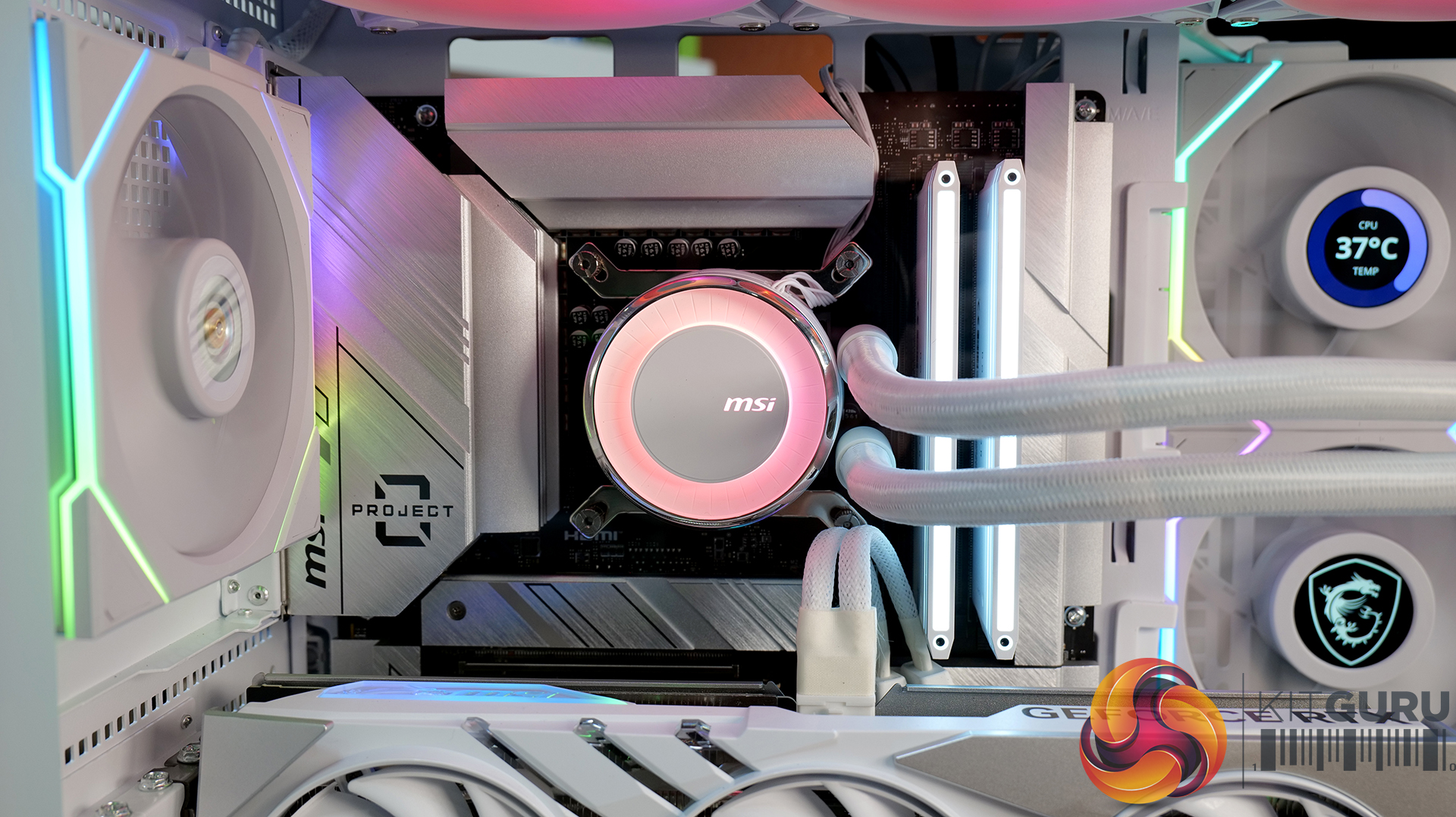

Motherboard – MSI Z790 Project Zero

Features:

  • Z790 Project Zero moves the power, fan and pin header connectors to the rear of the motherboard providing a clean, cable-free front view to enhance the system aesthetics.
  • Manufactured with a 6 layer PCB with 2oz thickened copper as well as extended VRM, M.2 and chipset aluminium heatsinks and high quality 7W/mK MOSFET thermal pads
  • Connectivity includes 2.5G Ethernet networking, Lightning 20G USB Type-C, the latest Wi-Fi 7 wireless networking and GEN5 PCIe support.
  • 14+1+1 DUET Rail Power system with DRMOS 55A Power ICs and 8+8 pin EPS power connectors ready to sustain heavy power loads.

Specifications:

  • Chipset: Intel Z790
  • CPU Support: Intel Core 14th/13th/12th Gen Processors, Pentium Gold and Celeron LGA1700
  • Memory: 4x UDIMM, Max Capacity 256GB, 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  • Audio: Realtek ALC897 Codec 7.1-Channel High Performance Audio
  • Storage: 4x M.2 / 6x SATA 6G
  • LAN: Intel 2.5Gbps LAN
  • Onboard GFX: 1x HDMI 2.1, 1x DisplayPort 1.4
  • Slot: 3x PCI-E X16, 1x PCI-E x1
  • RADI: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB: 4x USB 2.0 (Rear), 4x USB 2.0 (Front) 2x USB 5Gbps Type-A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
  • WLAN & BT: Wi-Fi 7, Bluetooth 5.4, MLO, 4KQAM
  • Internal I/O: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 1x USB4 card connector (JTBT_U4_1, supports RTD3), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports
  • PCB Info: ATX 243.84mm x 304.8mm

Test System Specification

Discuss on our Facebook page HERE.

KitGuru says: Project Zero has certainly cleaned up the motherboard aesthetics and provides a slick look. We just need graphics cards, fans and coolers to catch up now for a completely cable-free look, if that is the goal that Project Zero is working towards.
