As a disclaimer, we installed the AIO on a motherboard using the LGA 1150 socket. The process below reflects that.

Firstly, the mounting plate needs to be attached to the pump. It comes in two halves, and they click together on either side of the pump to form the whole mounting bracket.

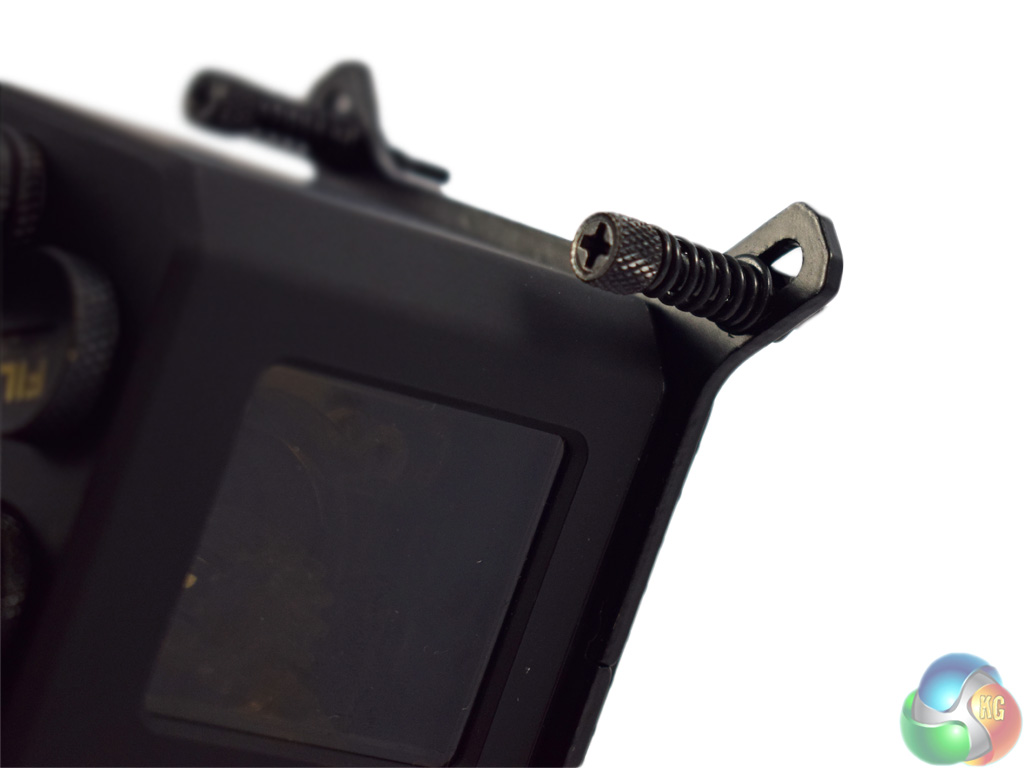

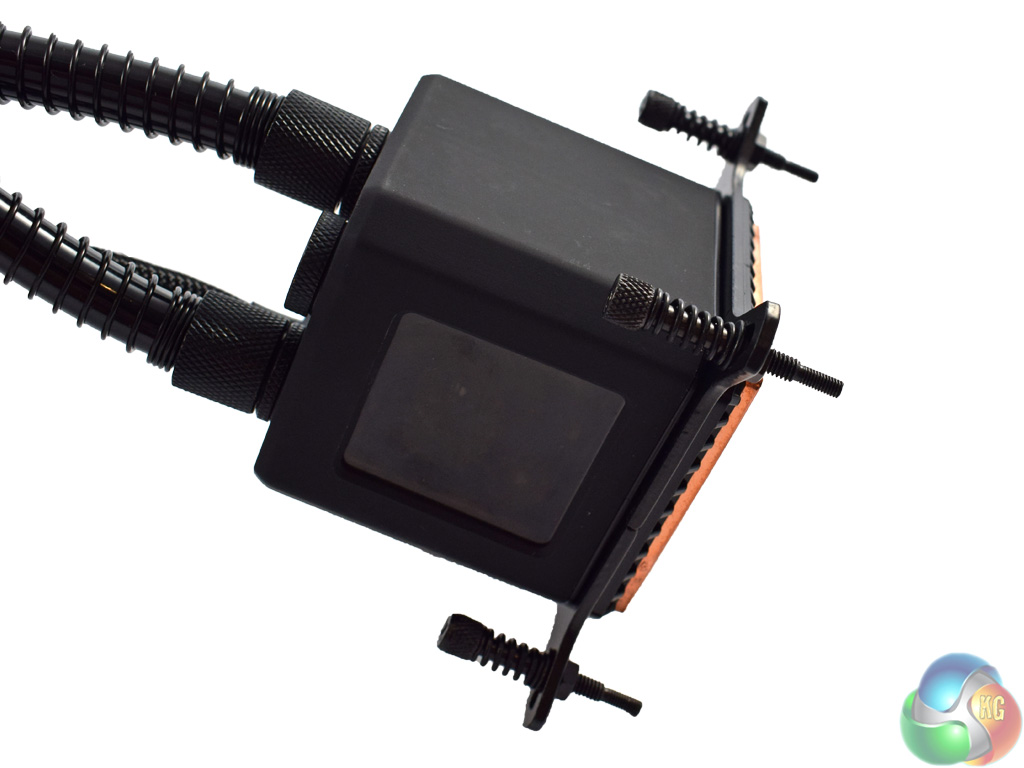

Next, attach the screws to the bracket. Firstly, slide a spring up the screw, and then put a washer underneath that. Fit the screw, spring and all, through the mounting bracket. Next, use a small nut to lock the screw in place from the bottom.

A backplate is included for LGA 1150 sockets, and this needs to be inserted into place behind the motherboard.

Then, all you need to do is screw the pump into the backplate. Job done.
