Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1080p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

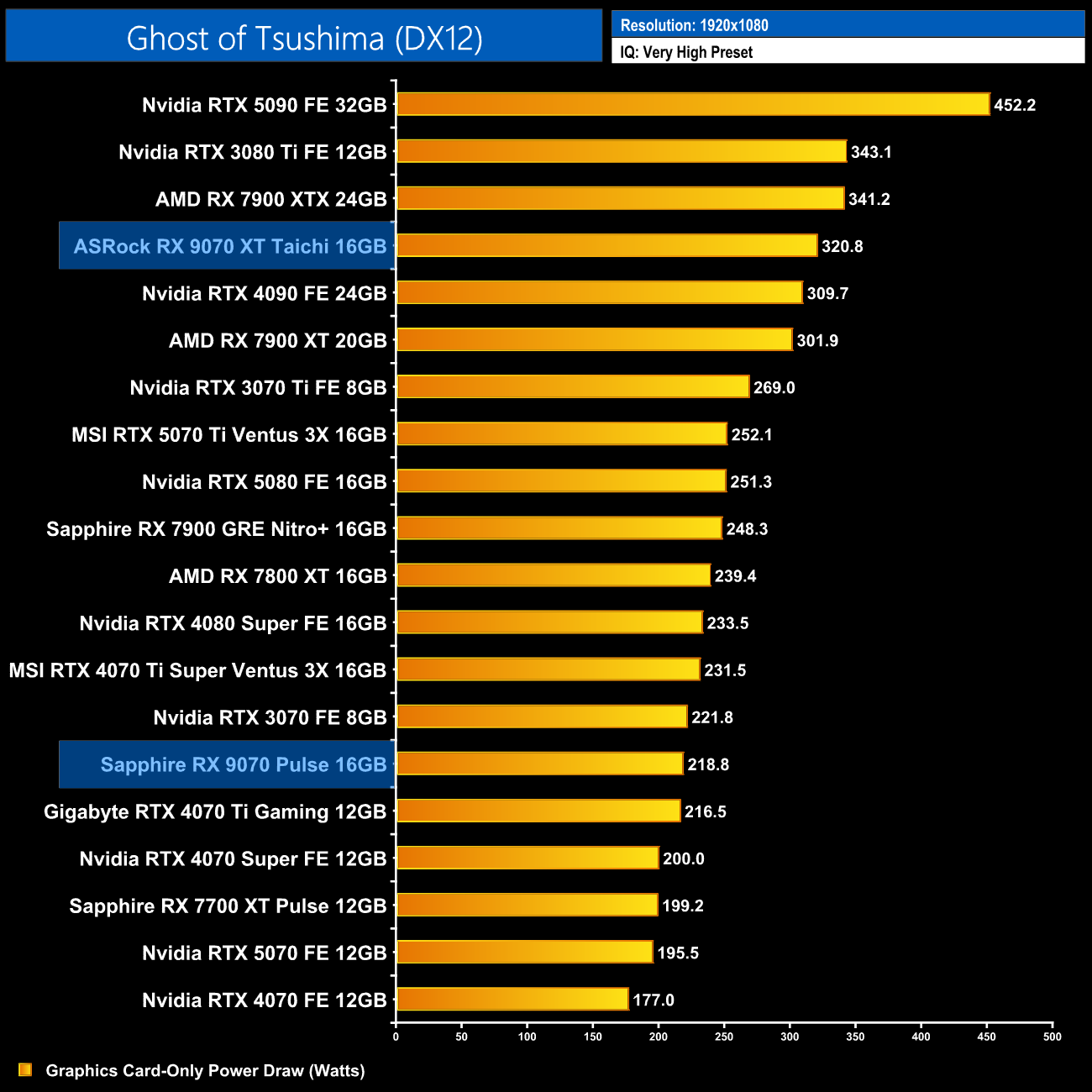

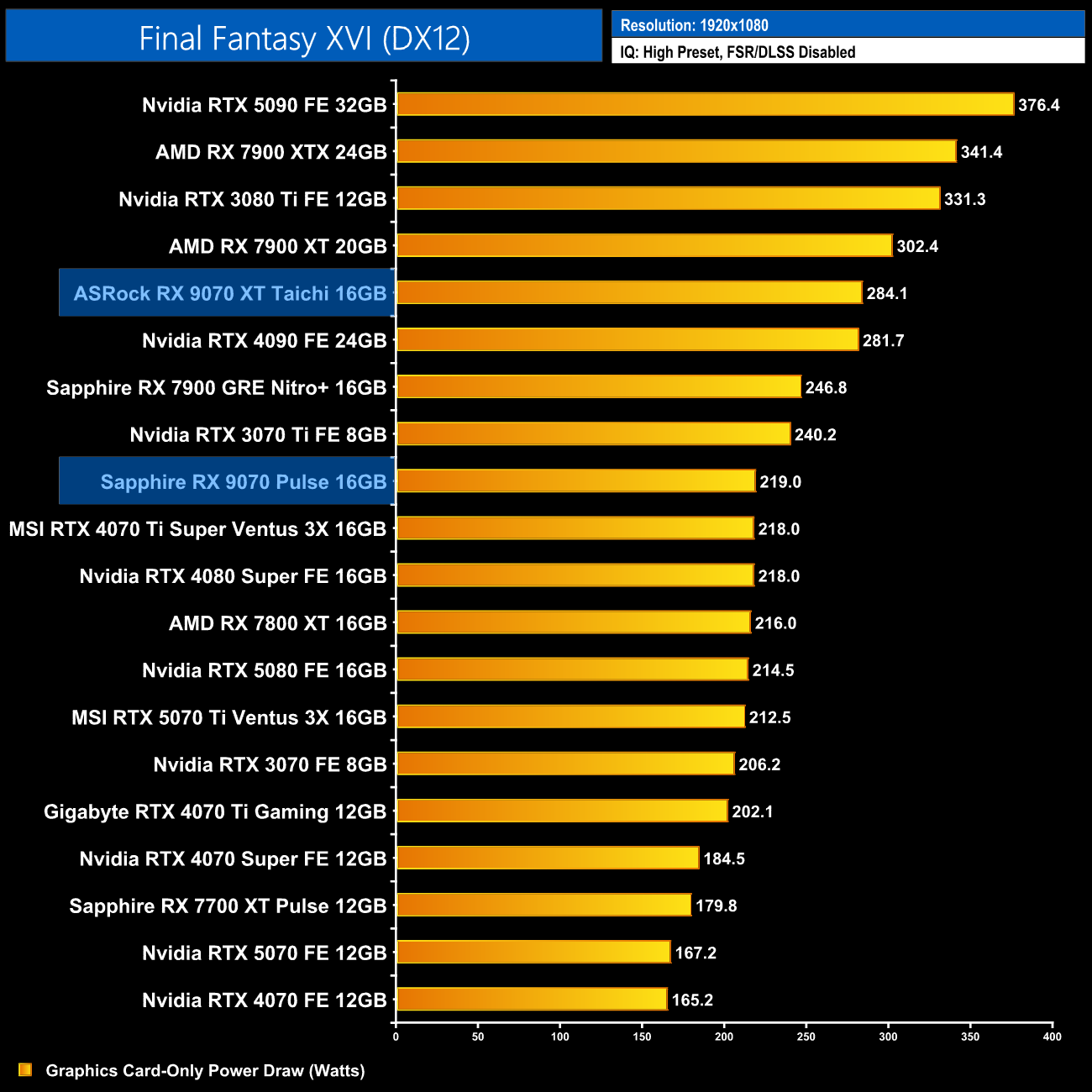

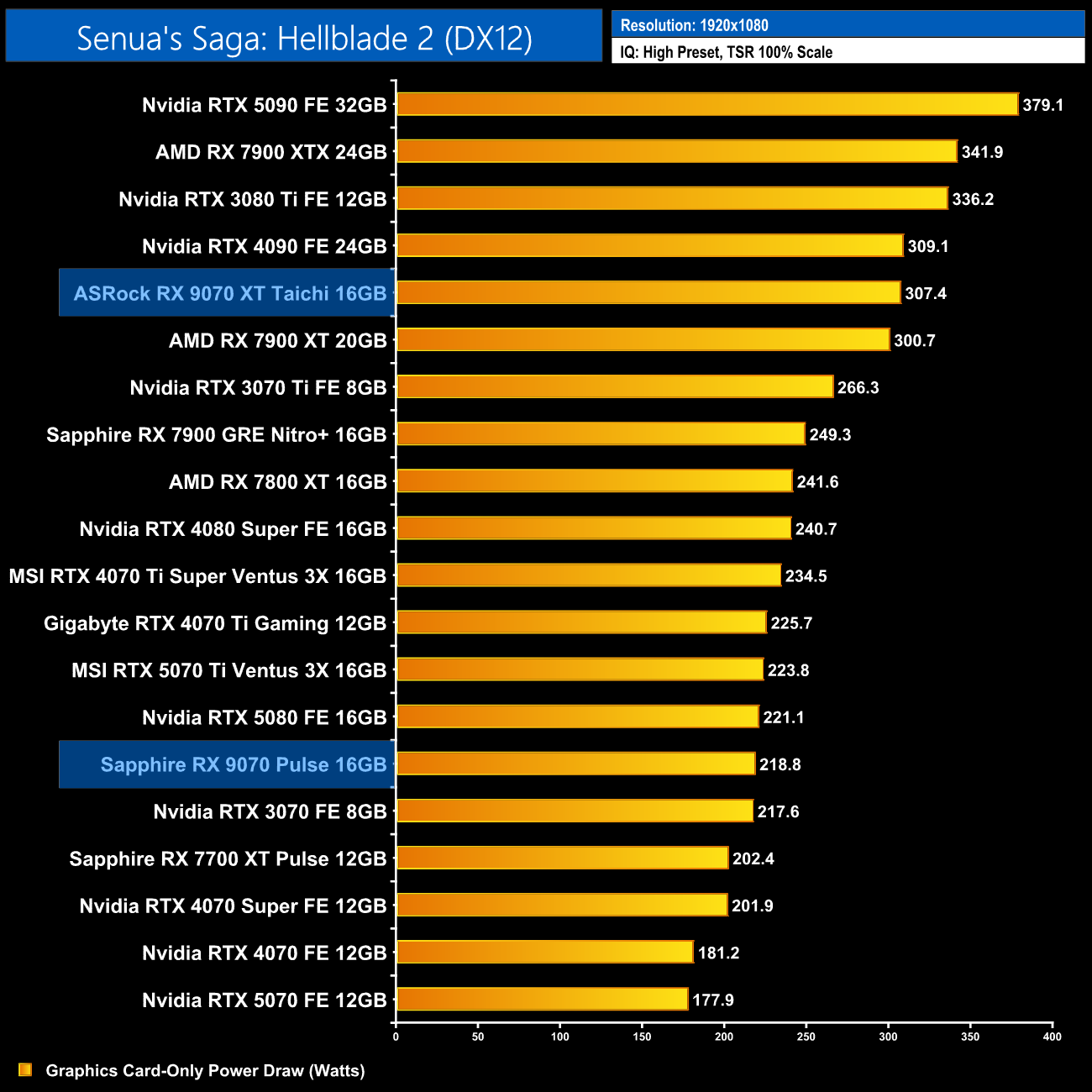

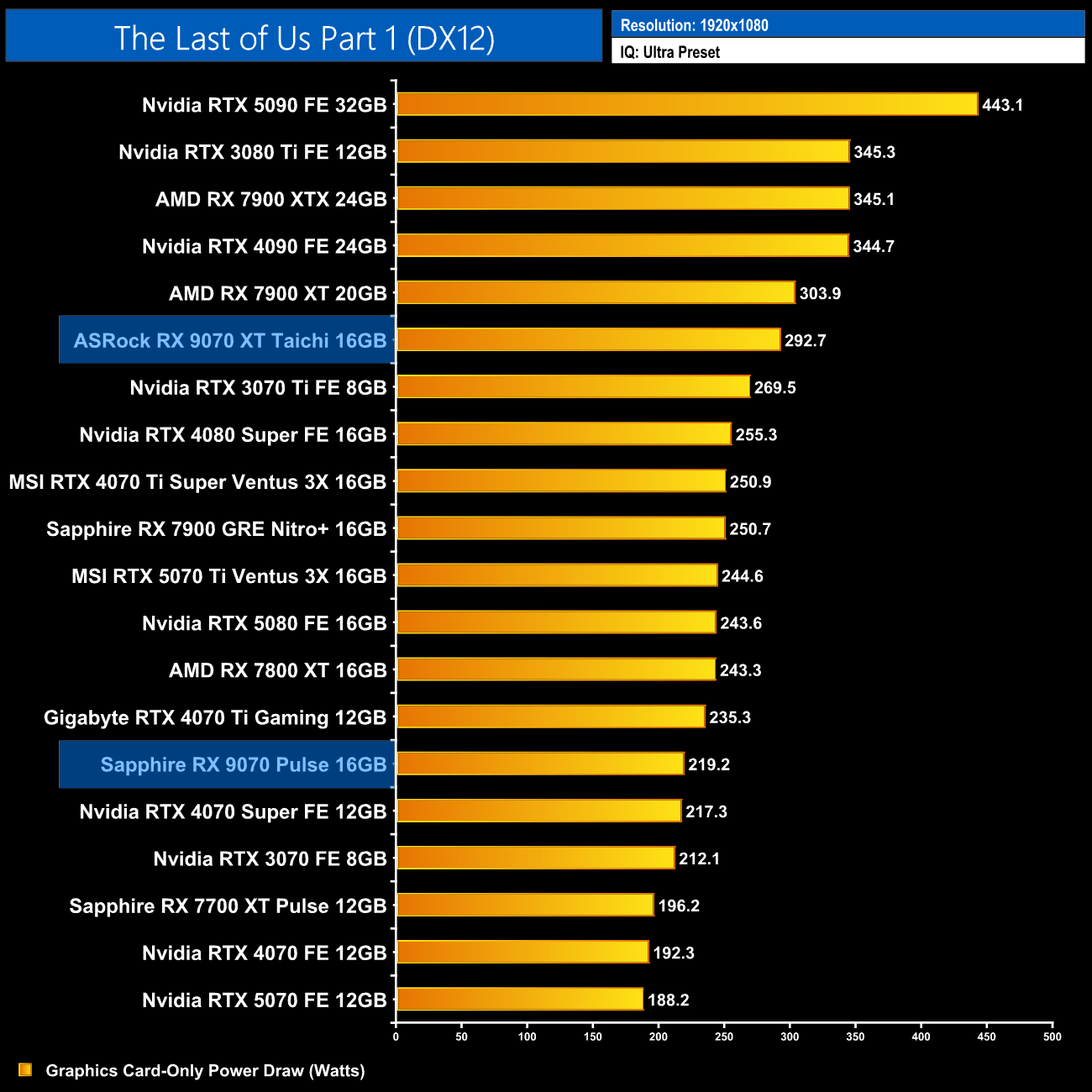

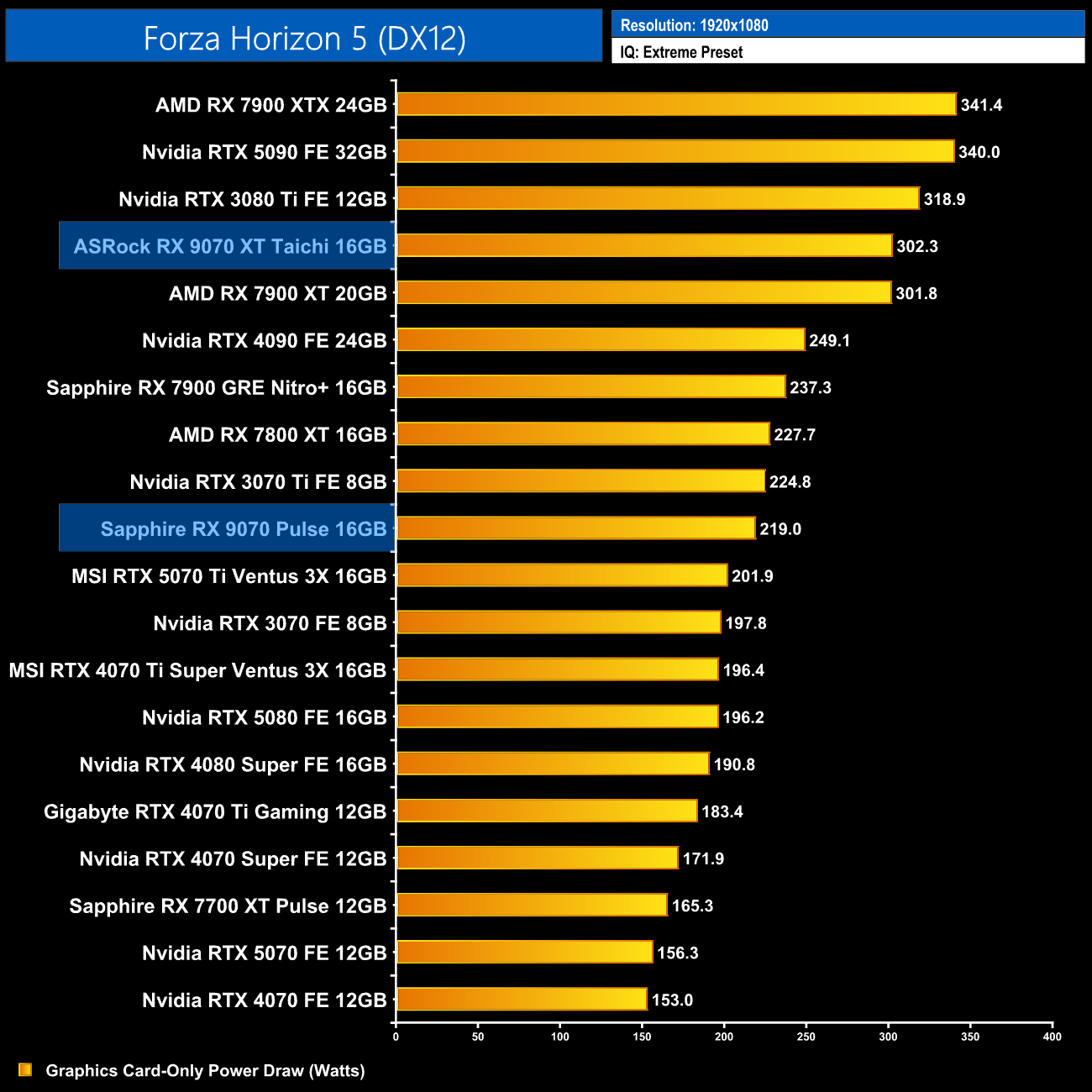

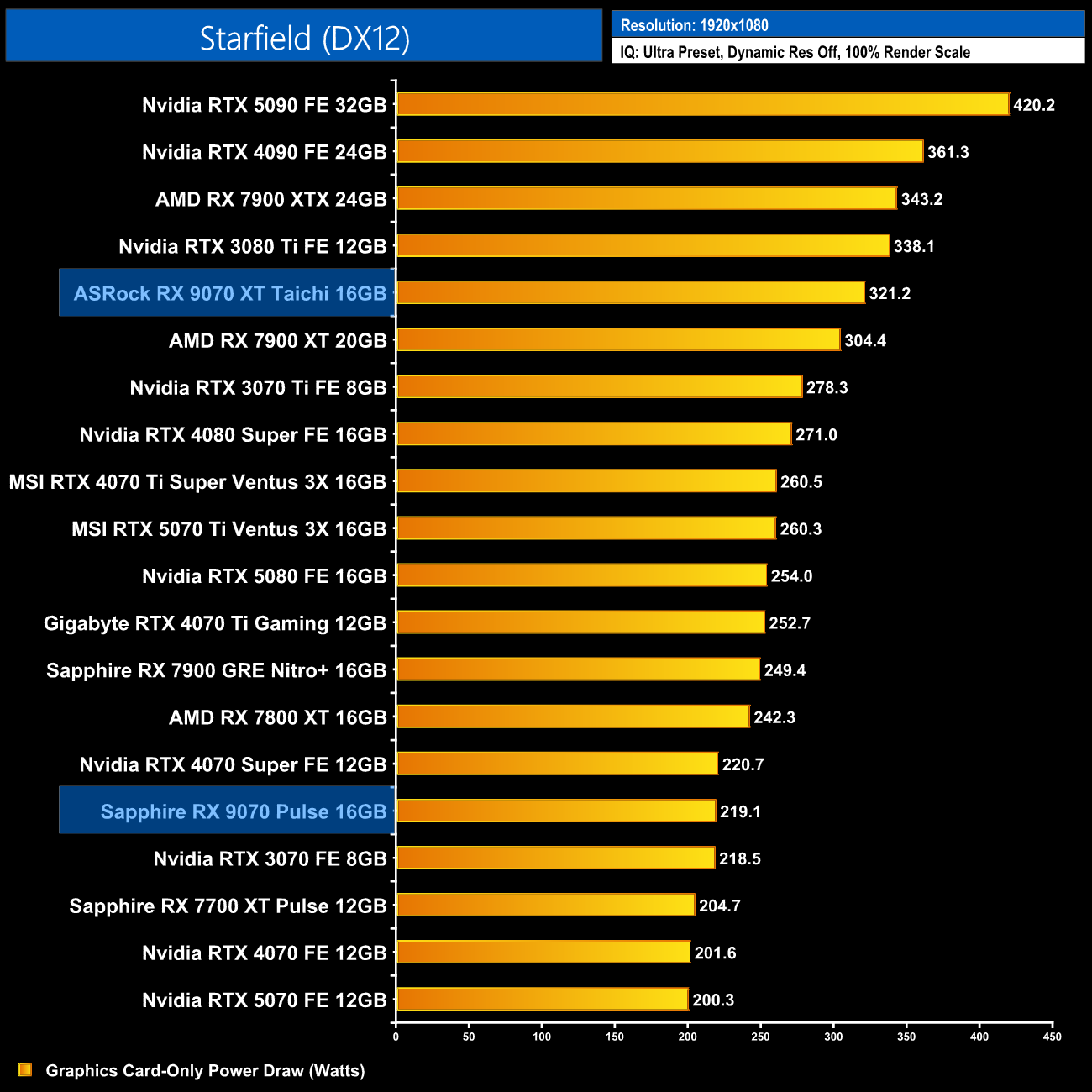

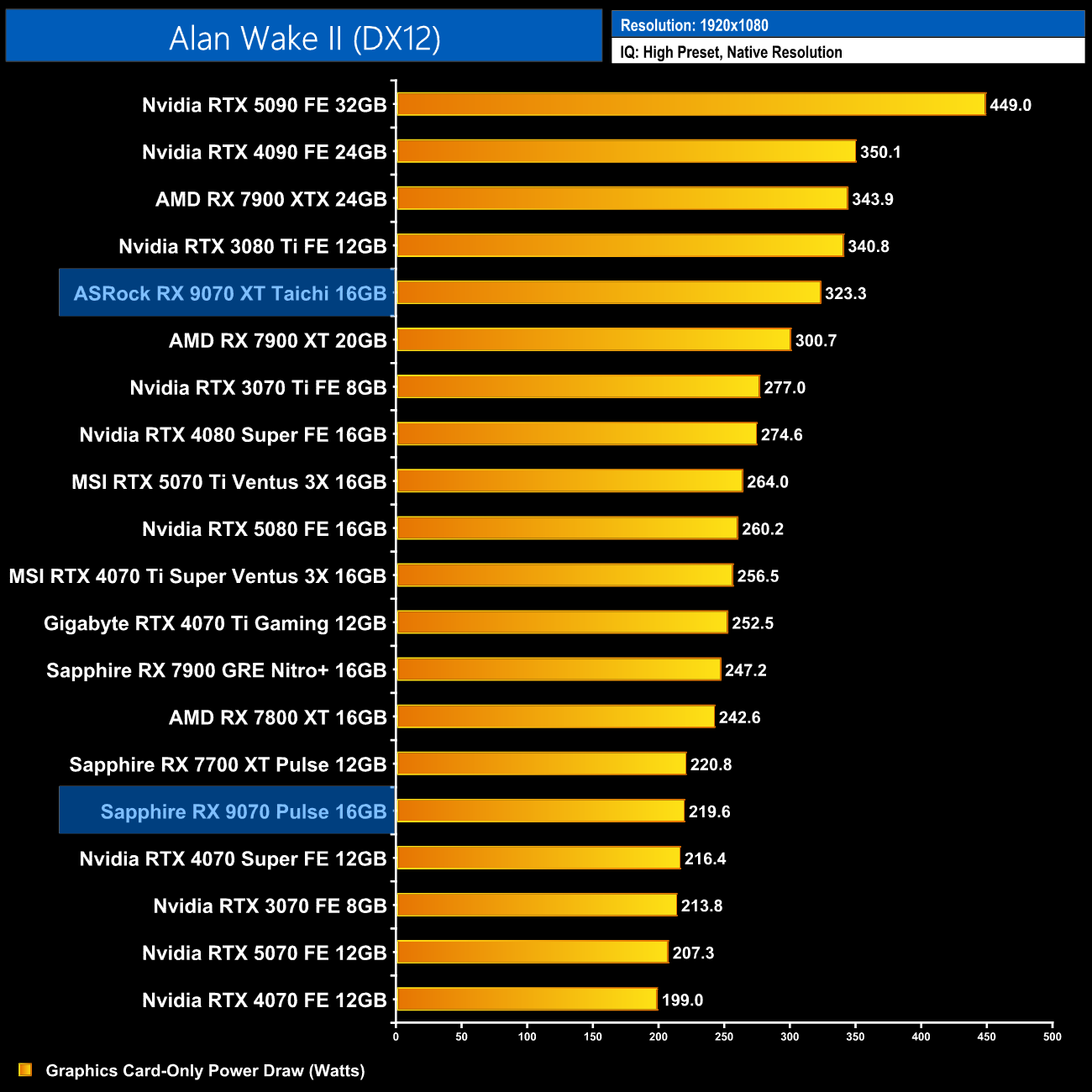

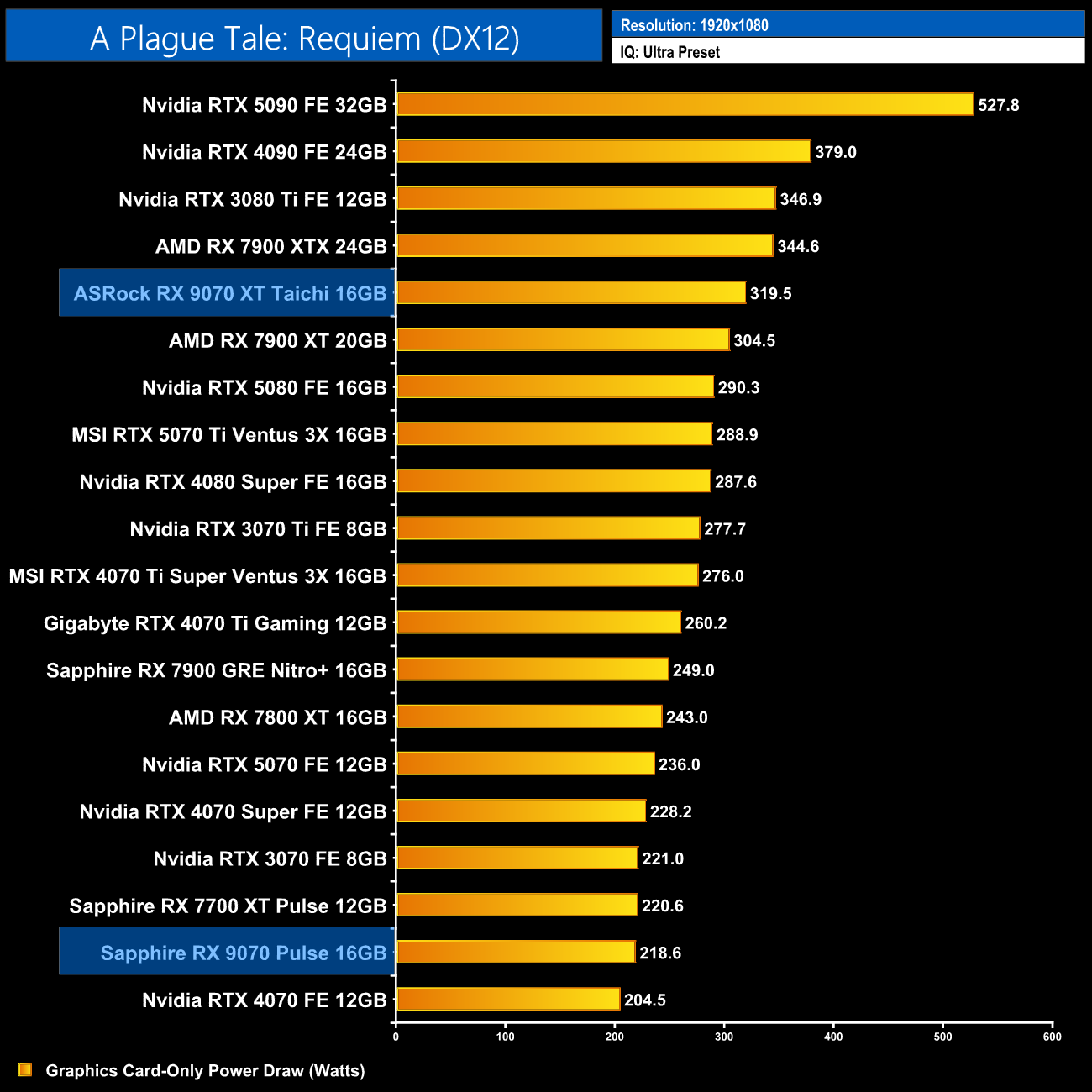

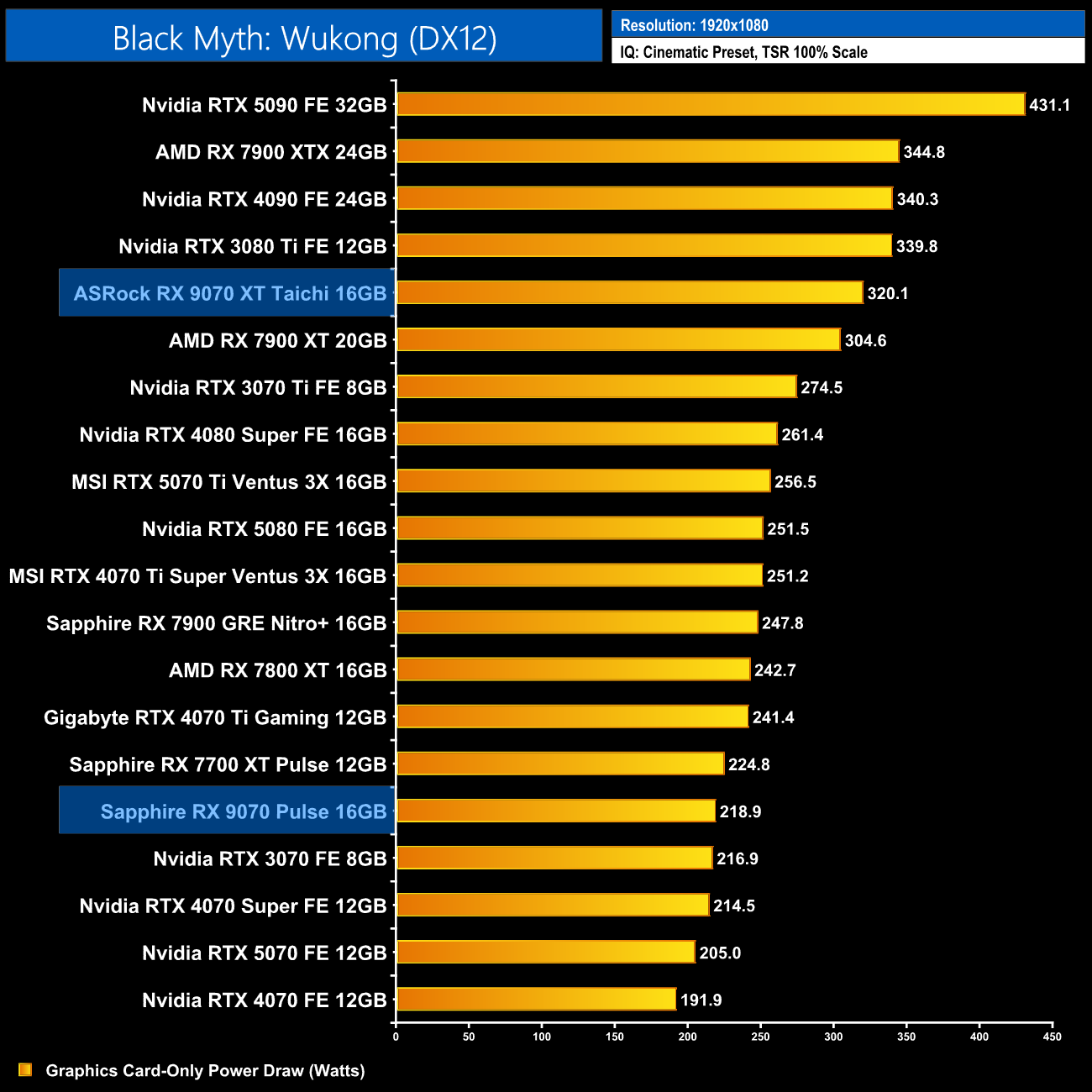

Per-Game Results at 1080p:

Click to enlarge.

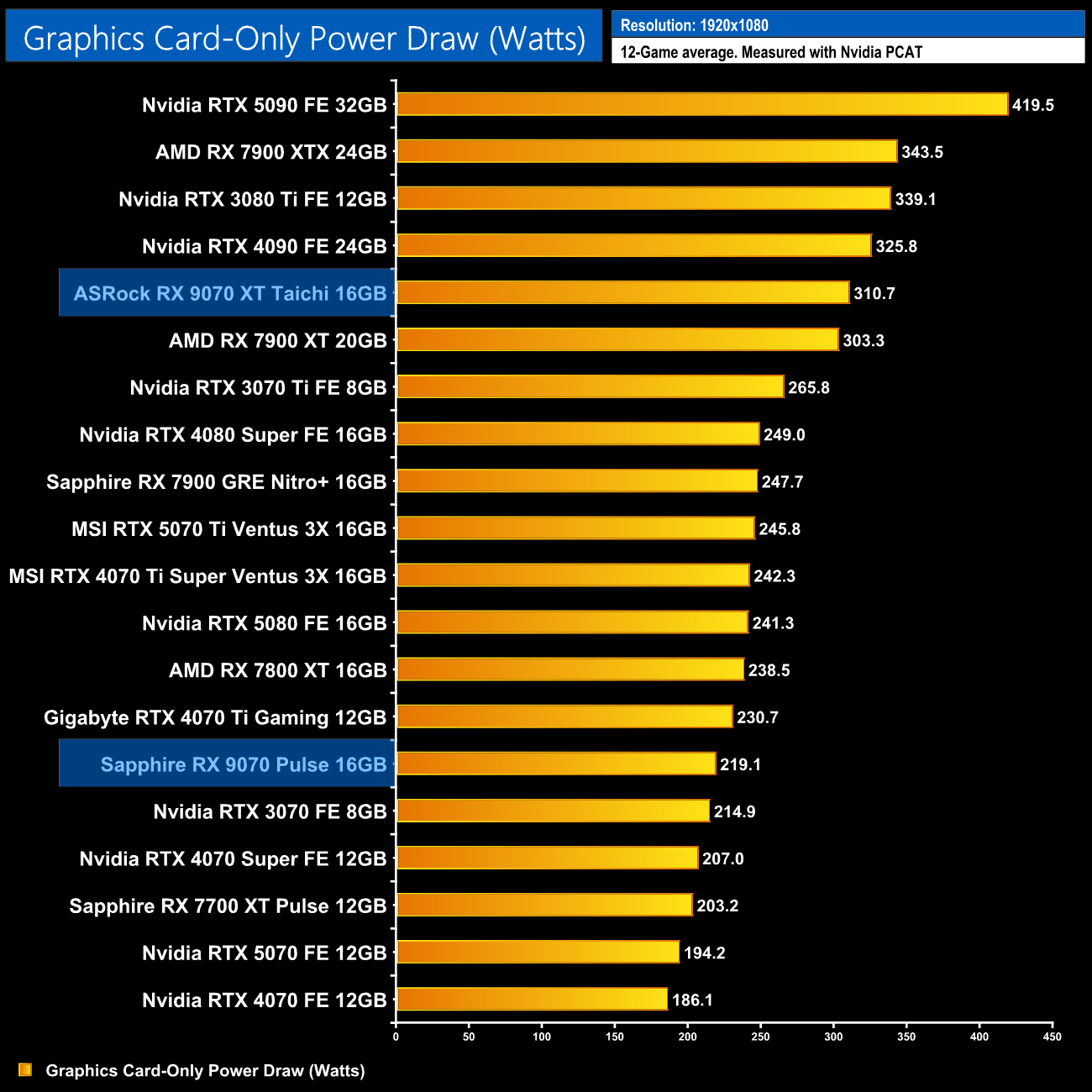

12-Game Average at 1080p:

Power draw for the Taichi averaged 311W at 1080p.

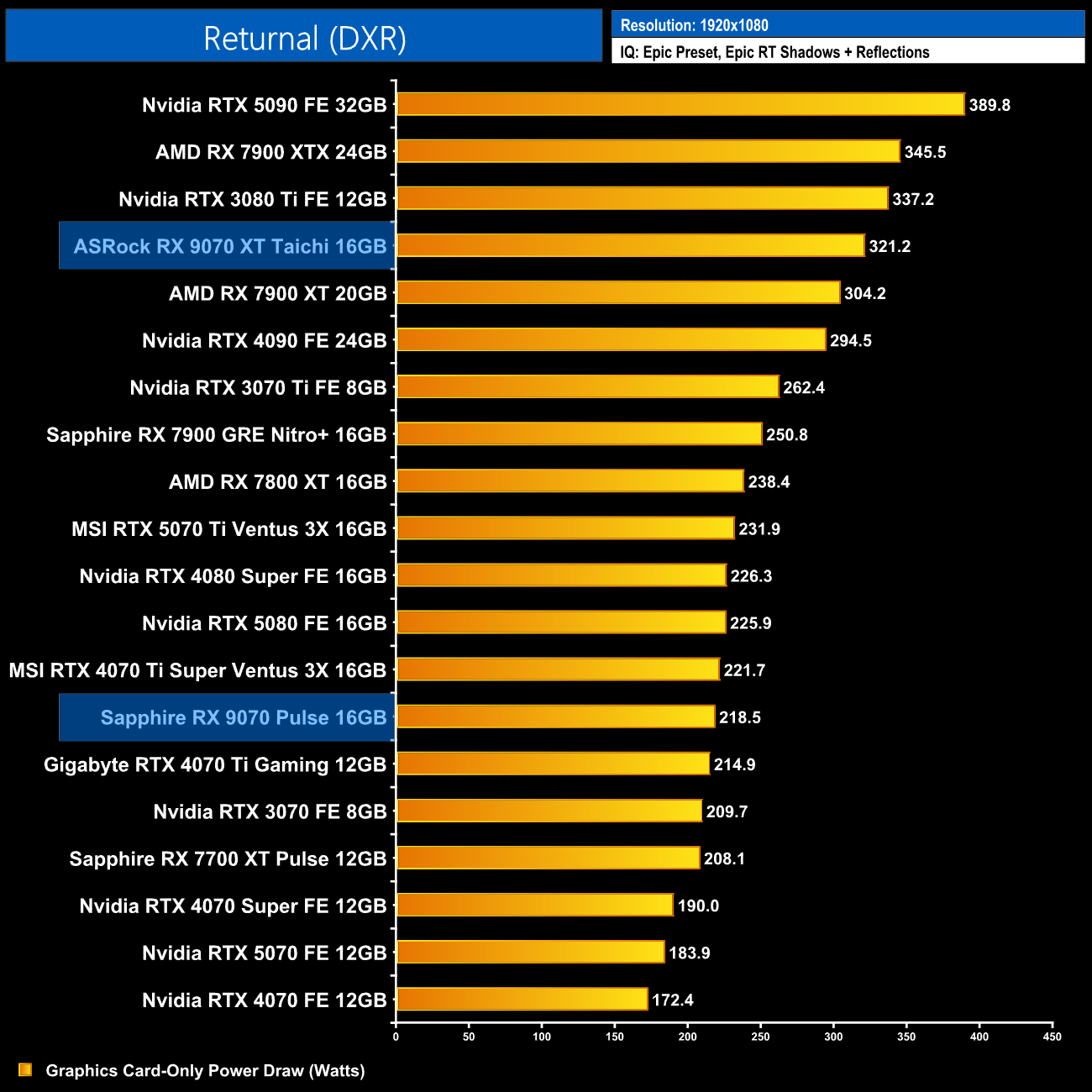

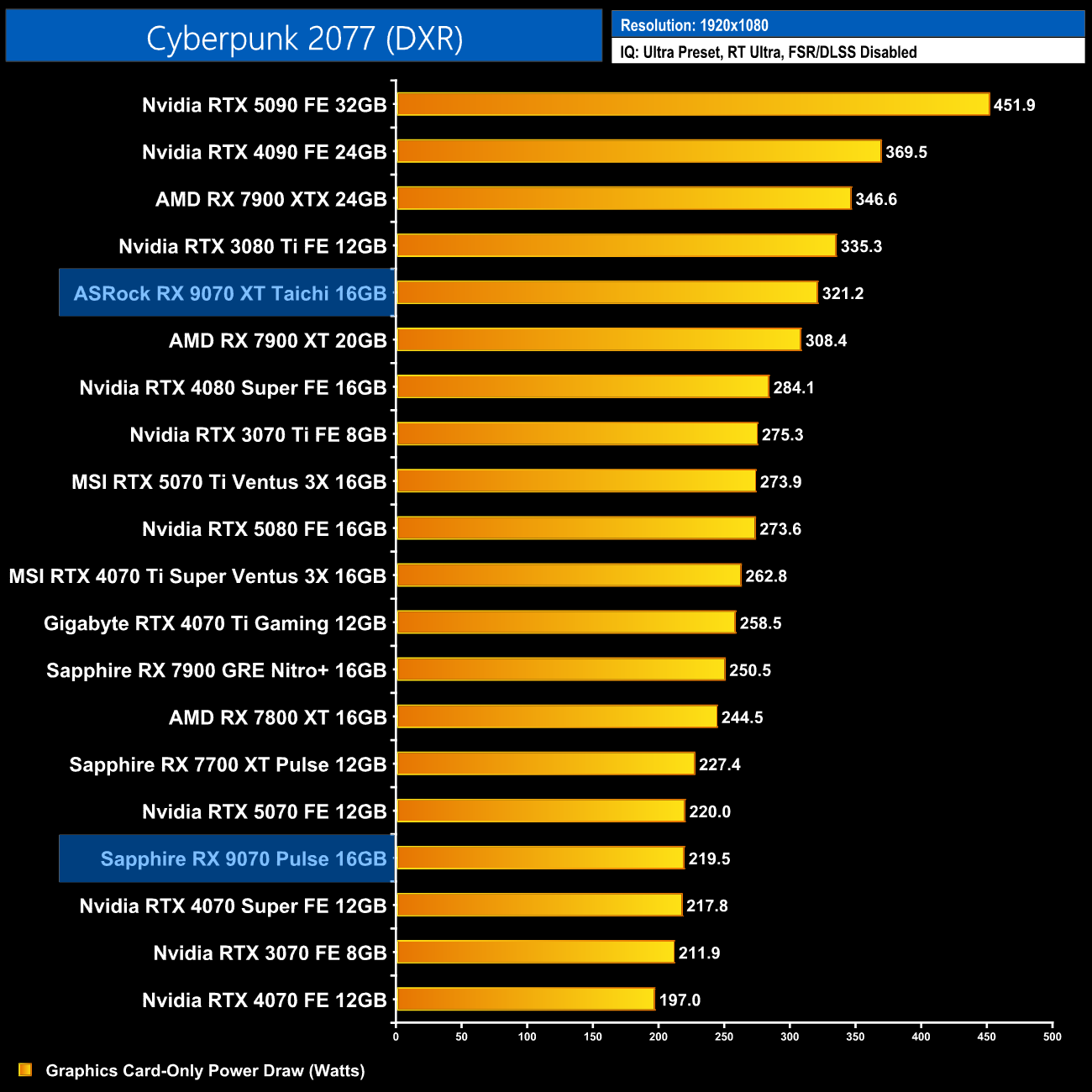

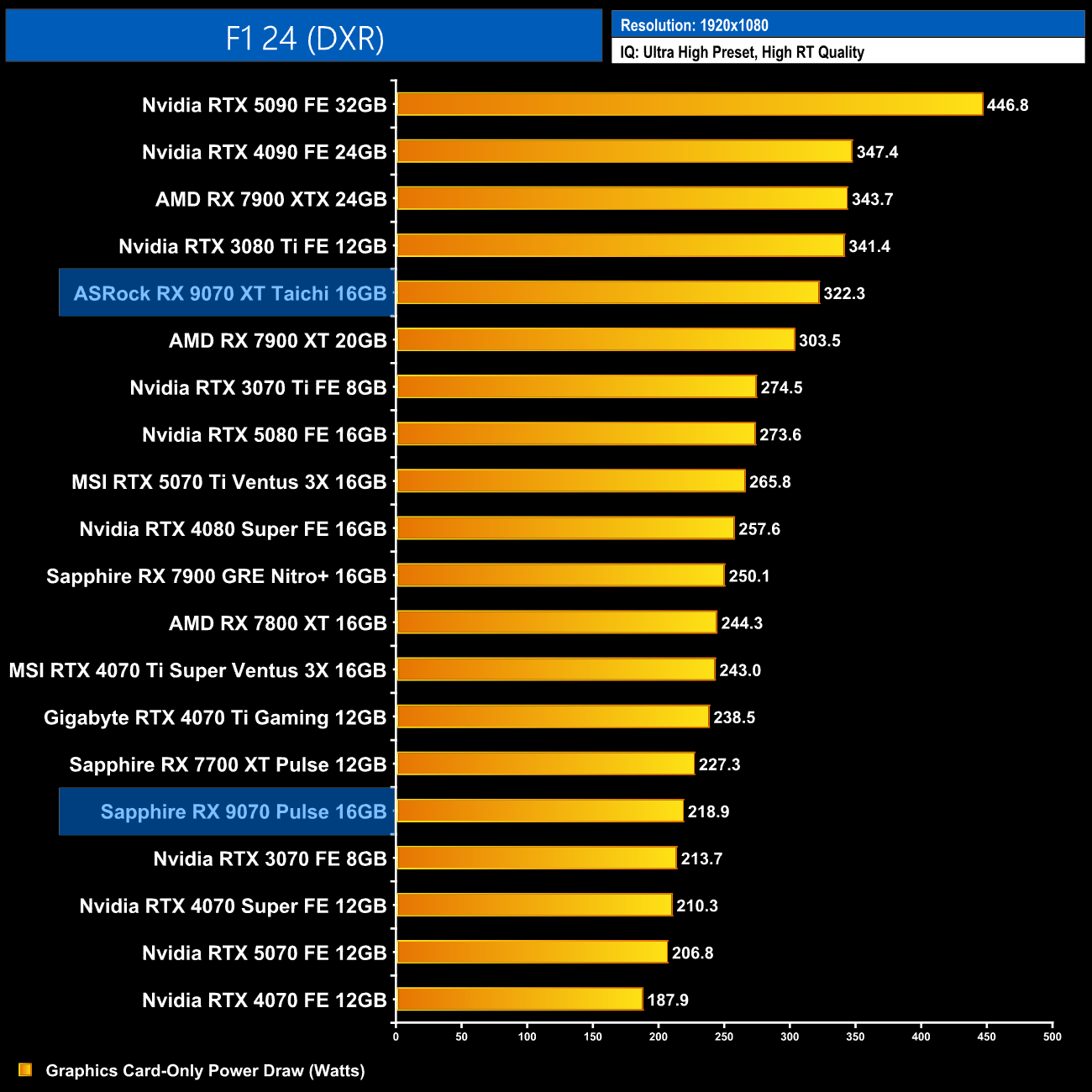

Ray tracing results

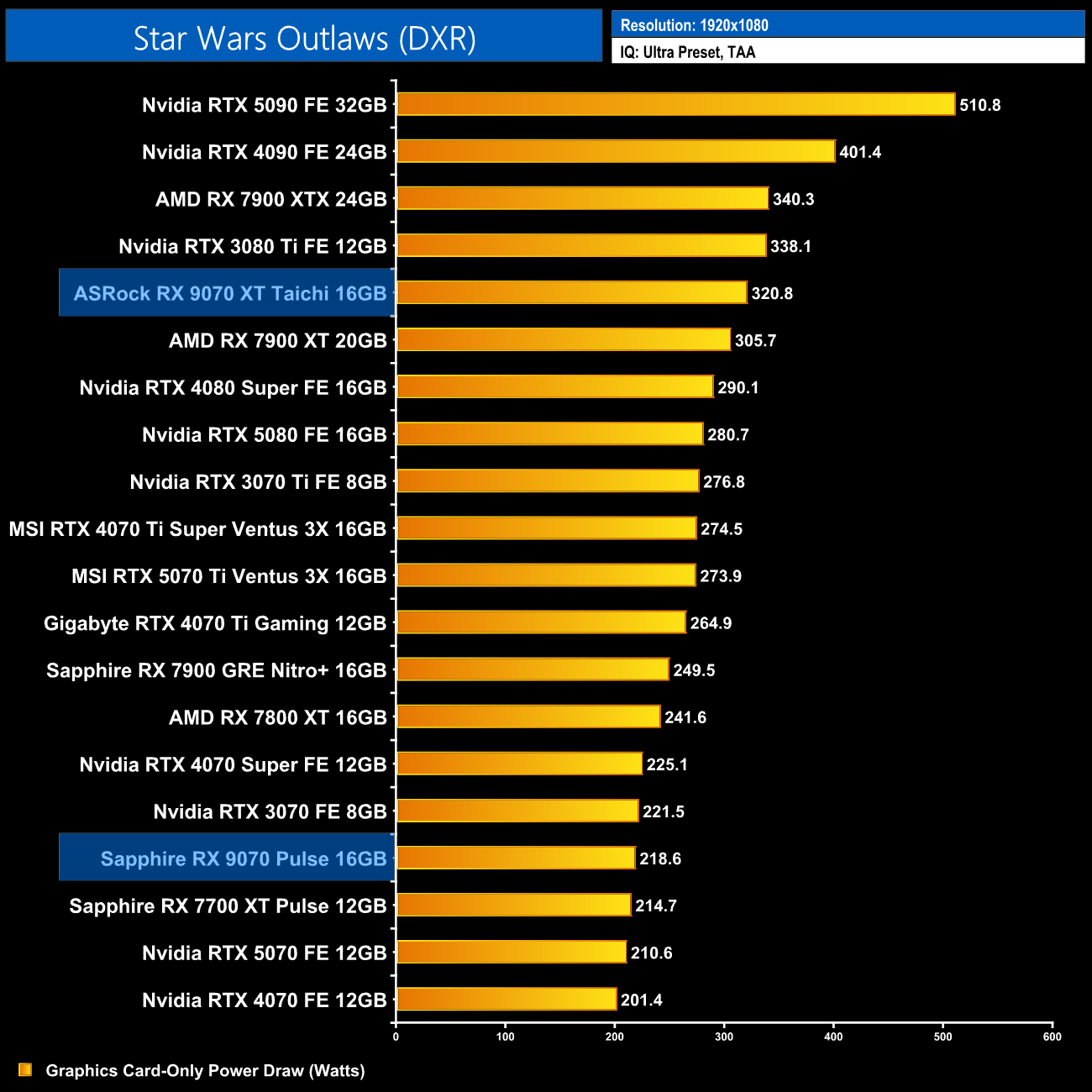

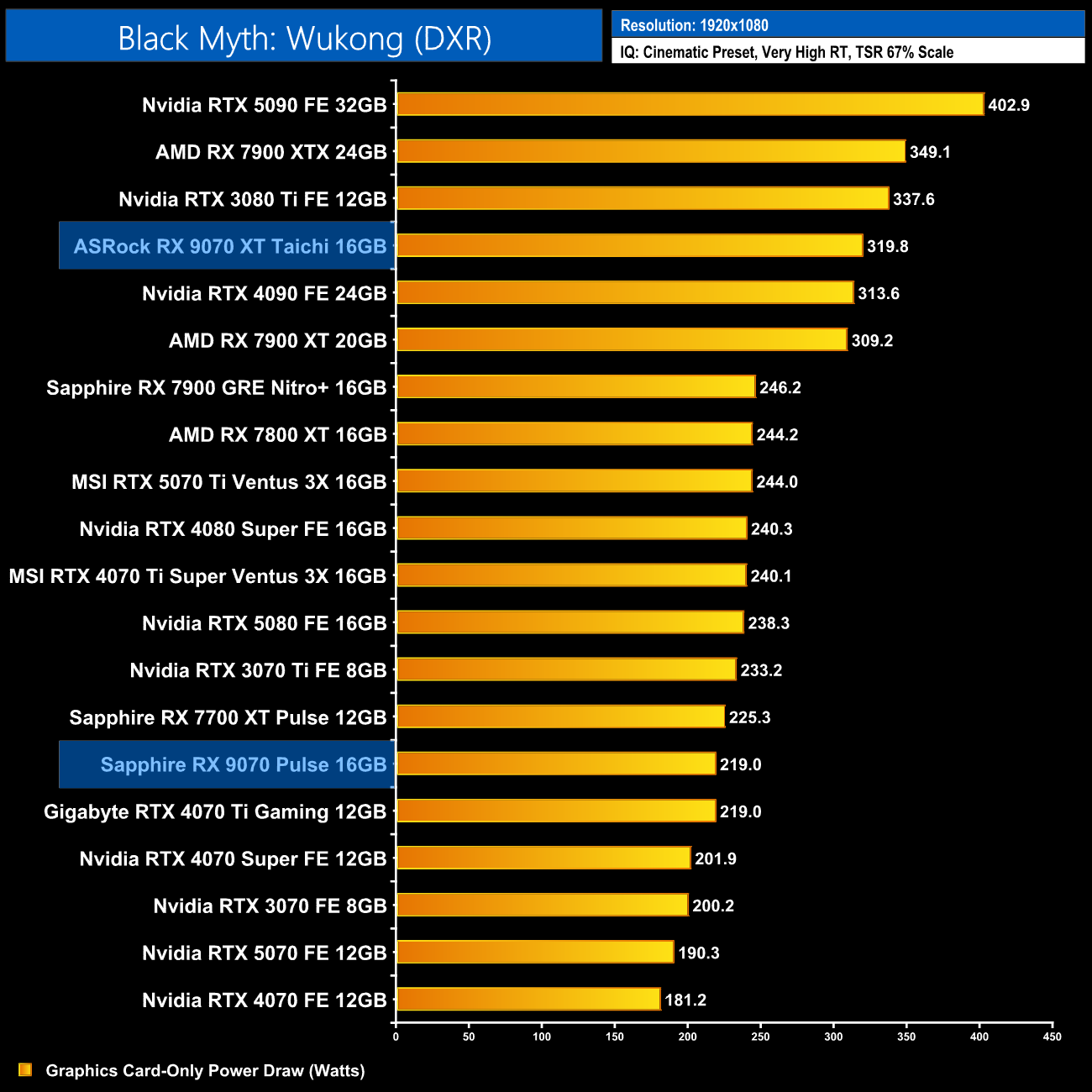

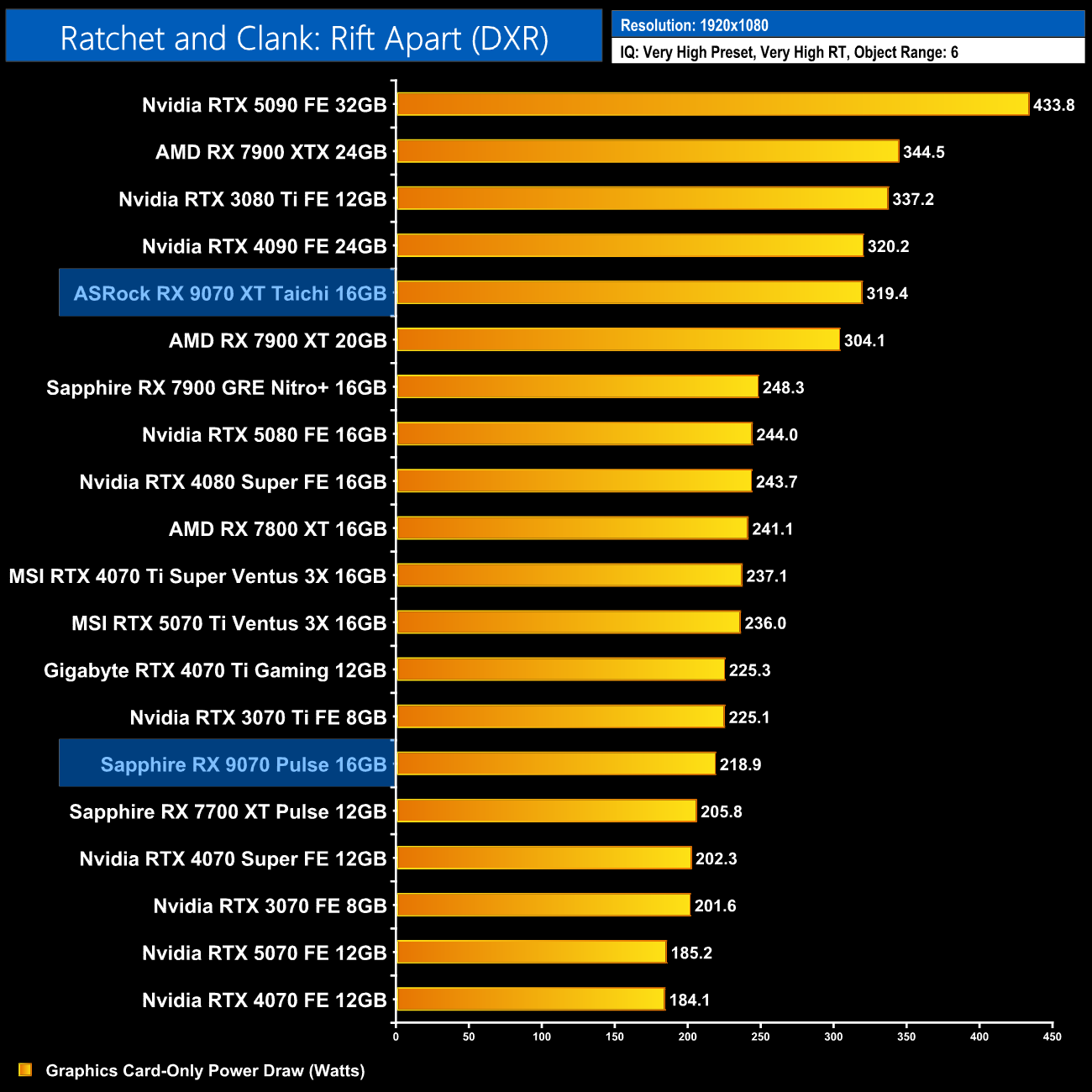

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

8-Game ray tracing average:

This increased to 321W when ray tracing was enabled.
