Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1440p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

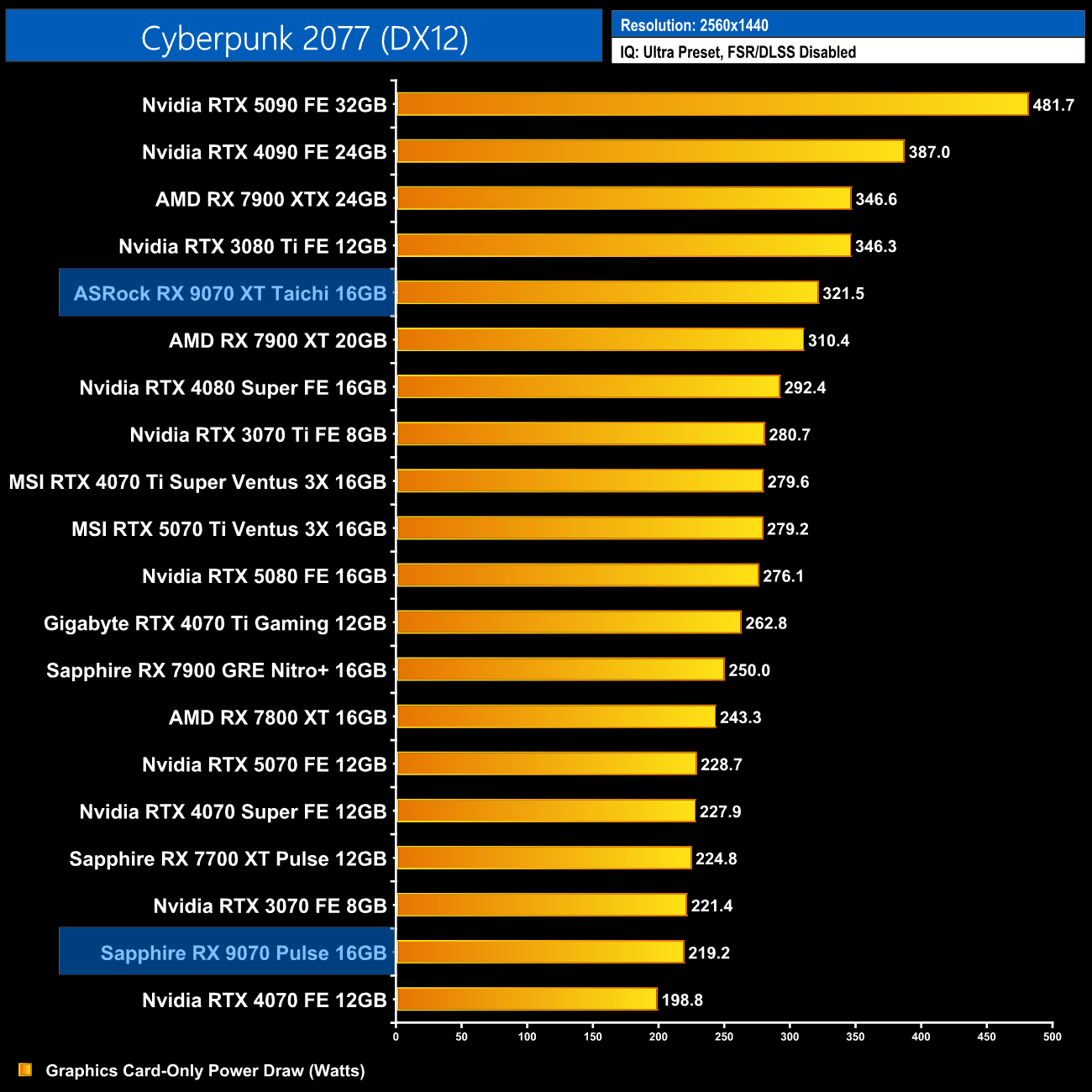

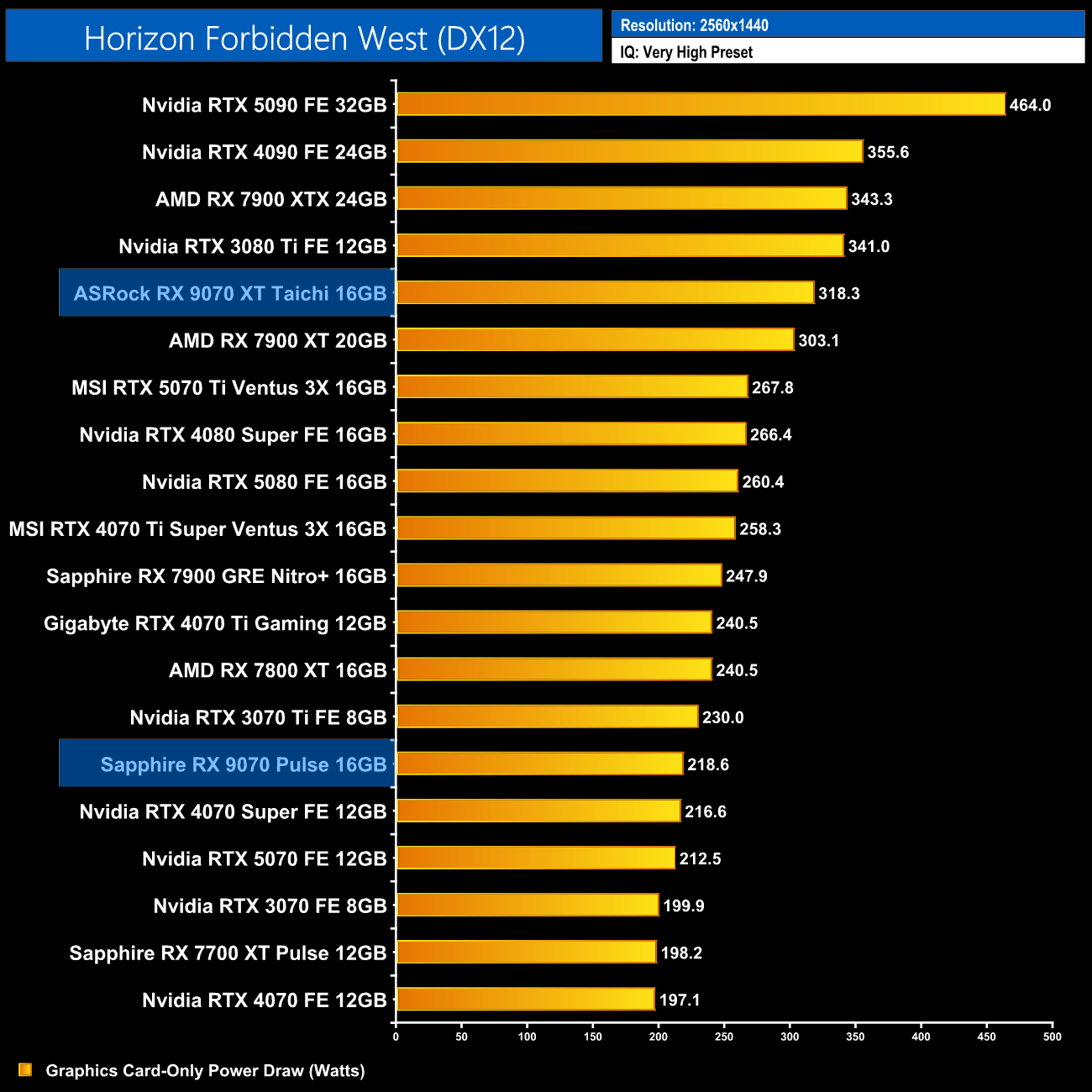

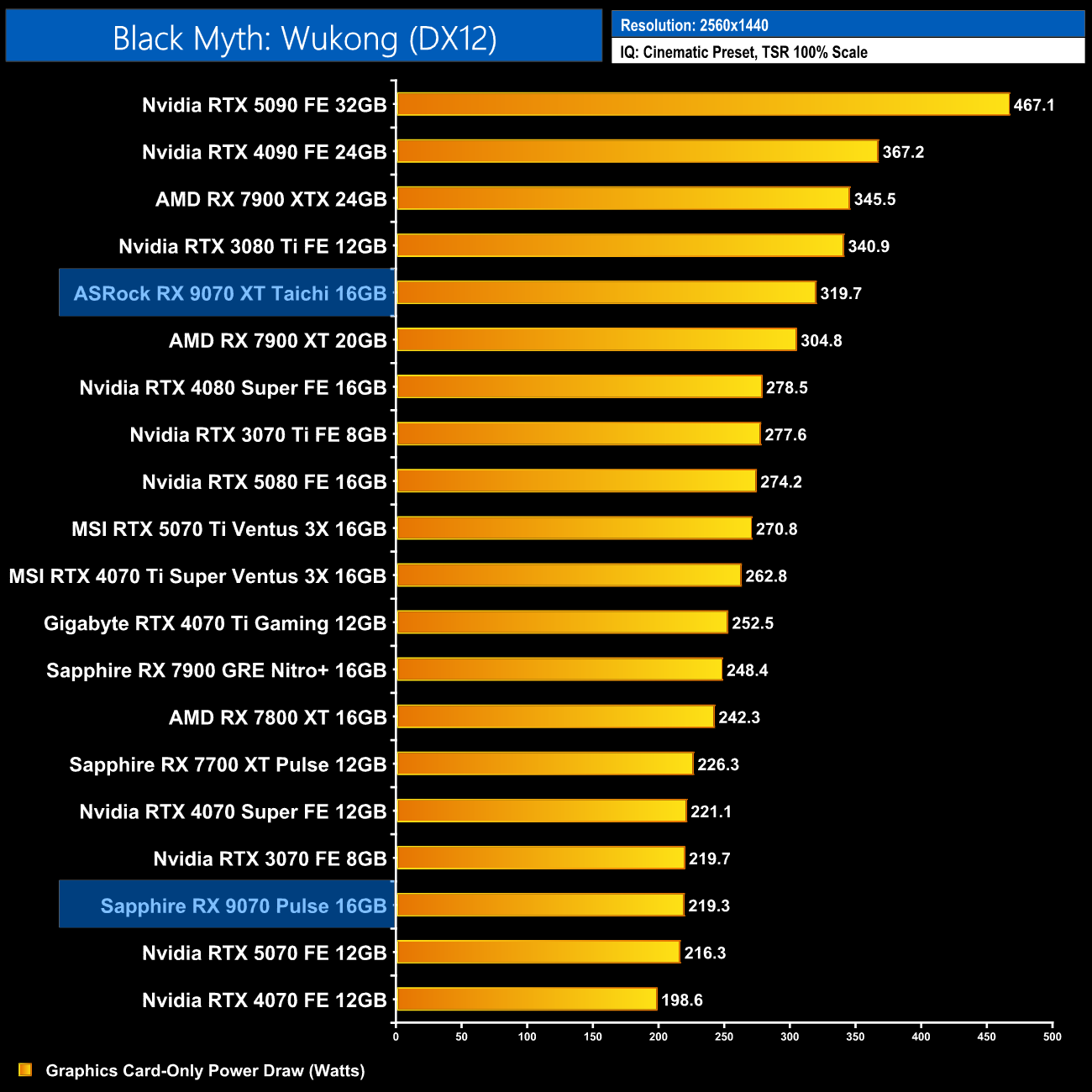

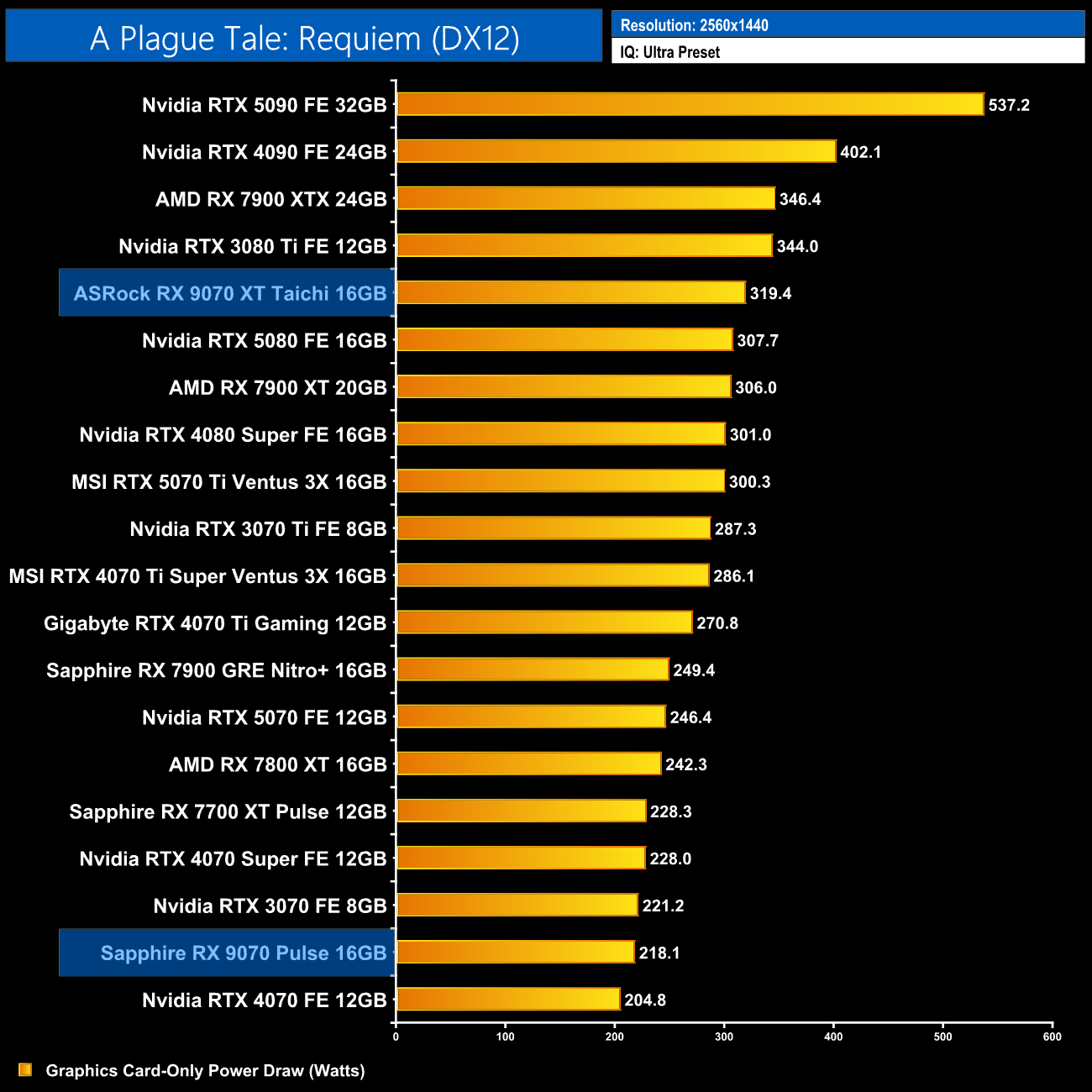

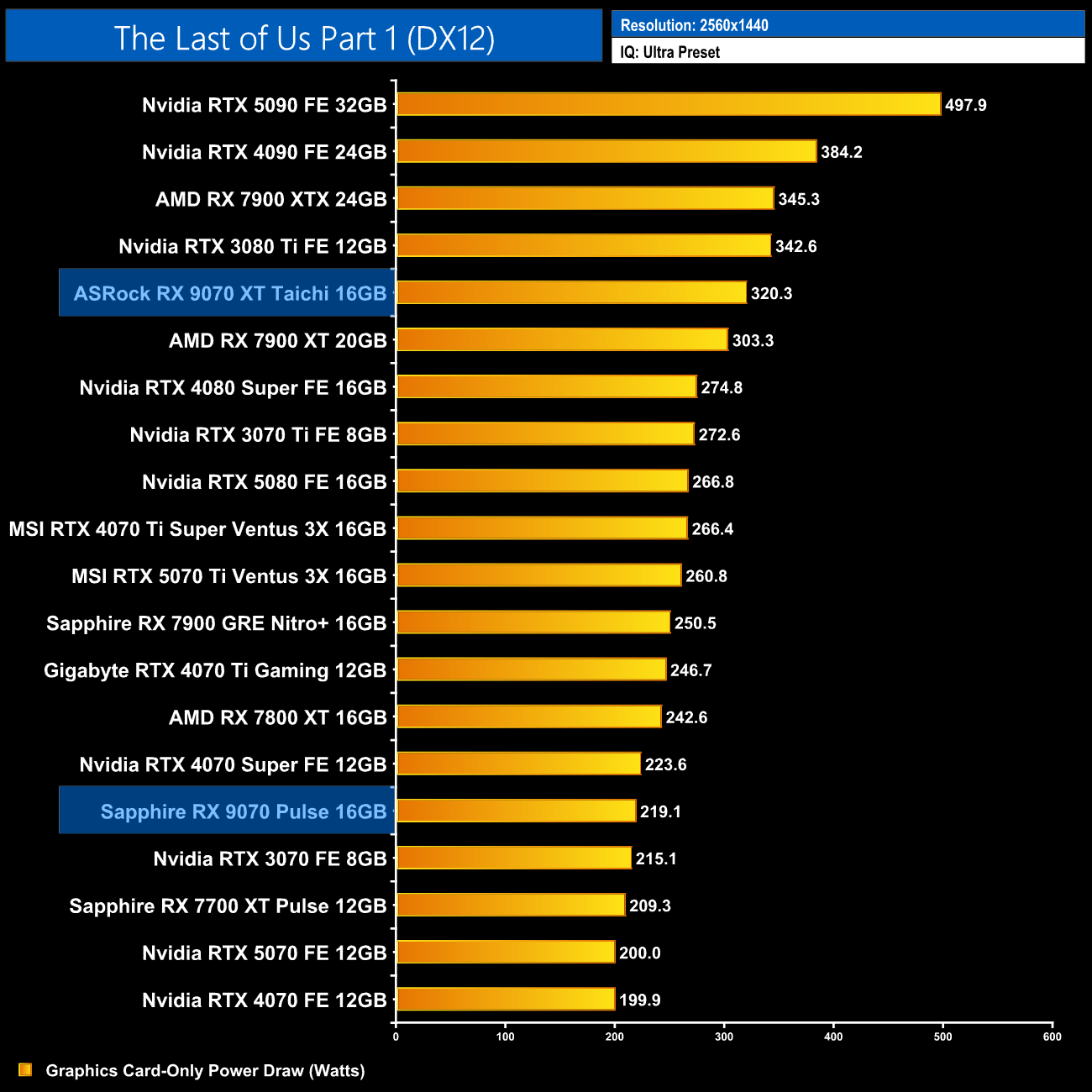

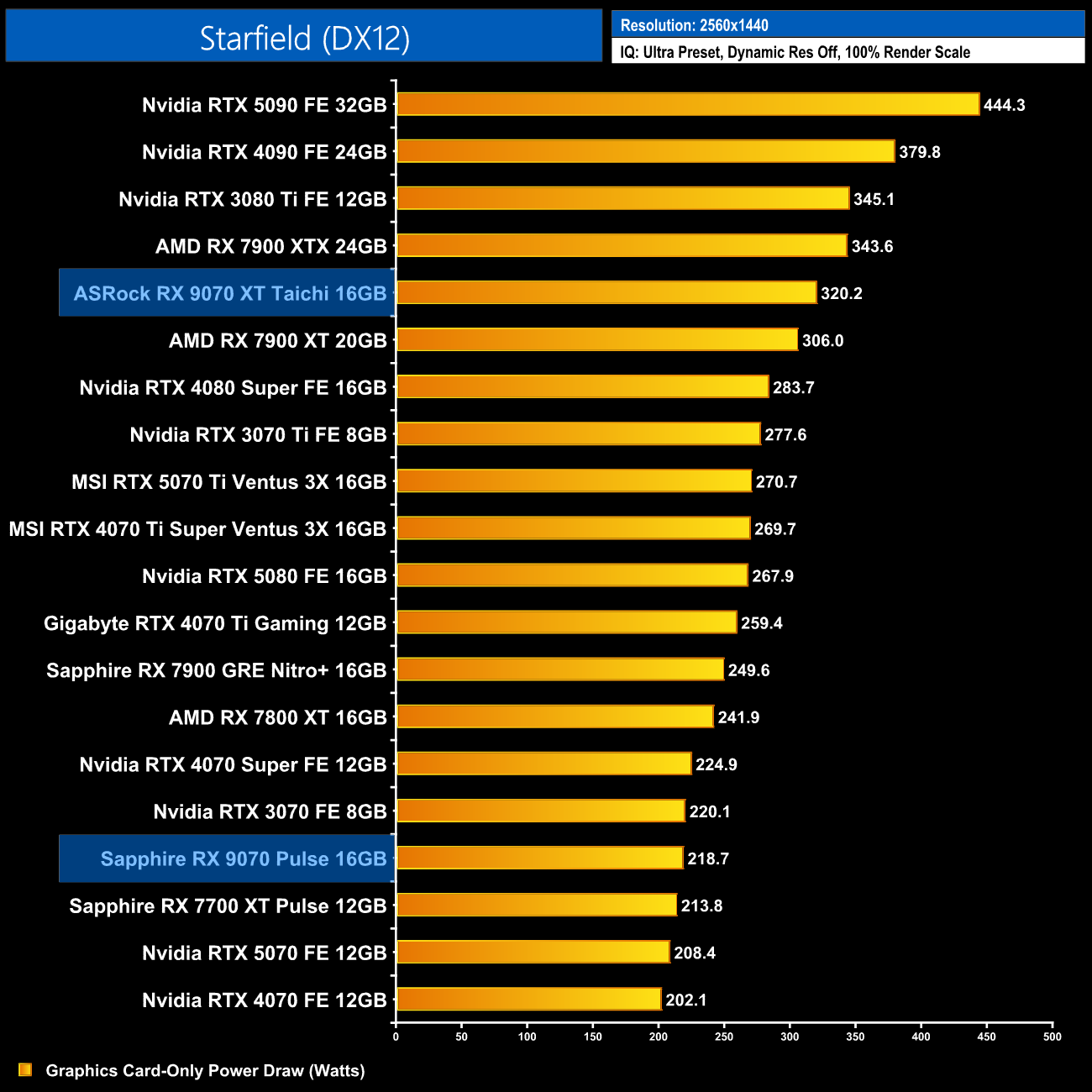

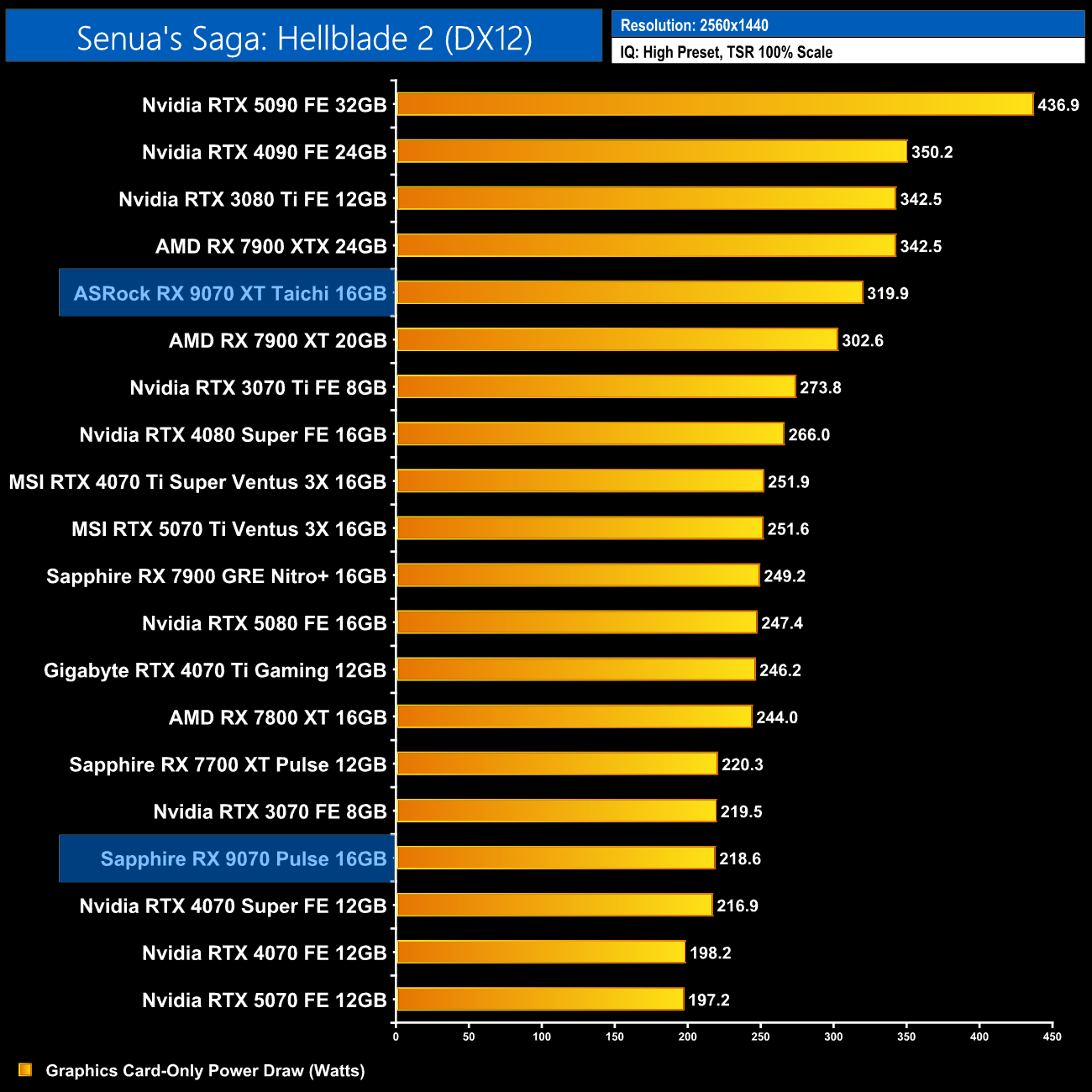

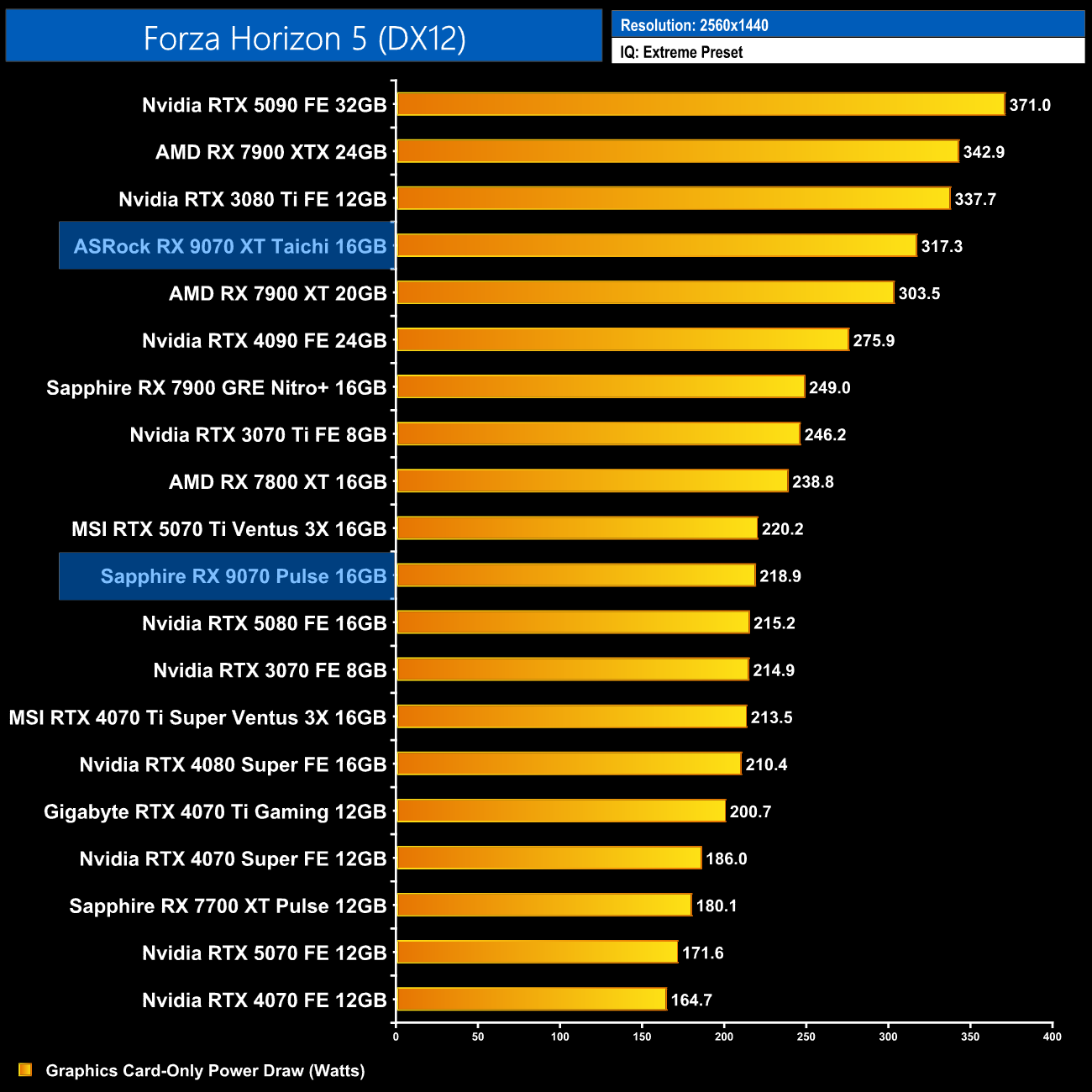

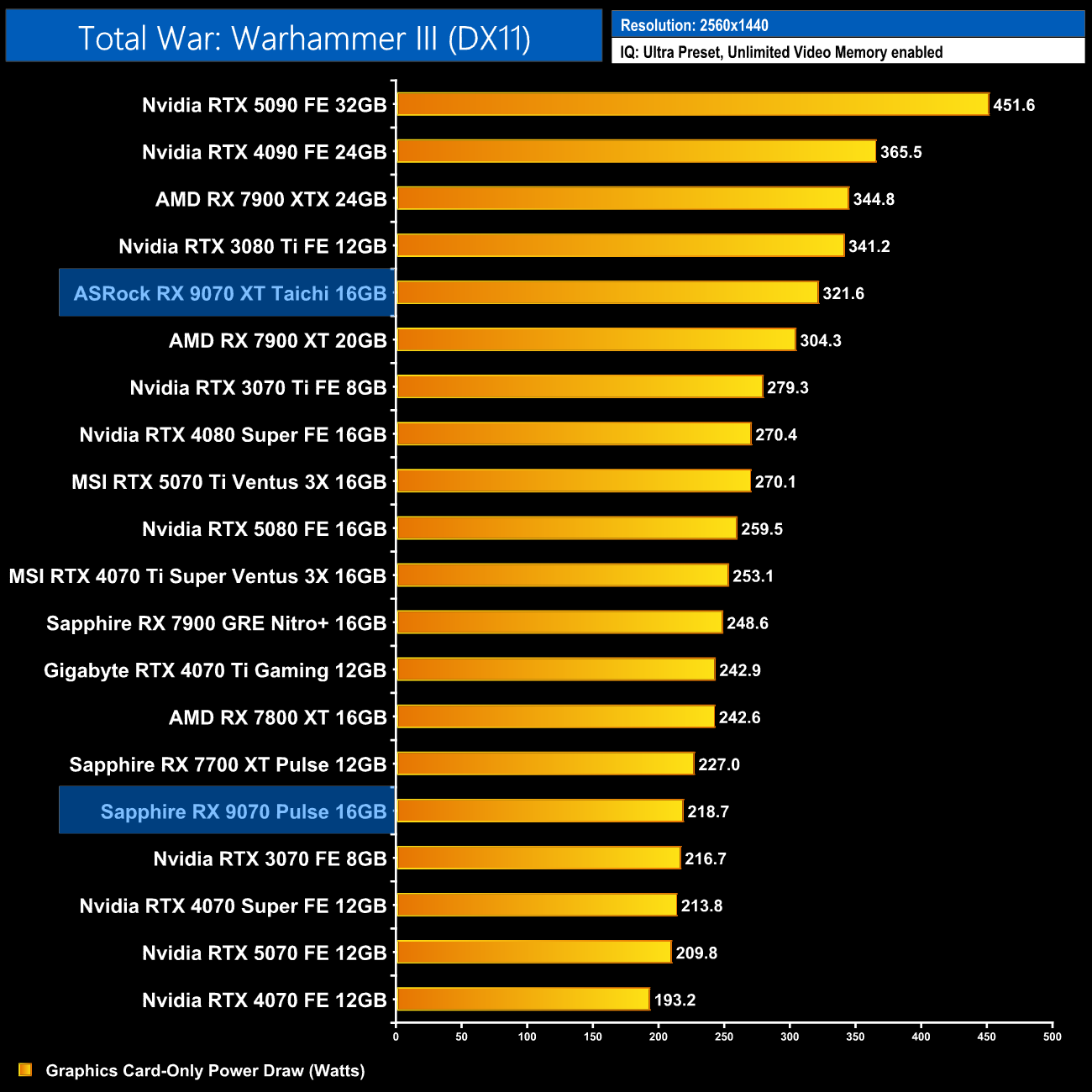

Per-Game Results at 1440p:

Click to enlarge.

12-Game Average at 1440p:

At 1440p, the Taichi pulled 320W on average over the twelve games tested – the reference TBP is 304W, and while the Taichi has a reference clock speed of 2970MHz when using its Quiet BIOS, it seems like ASRock still increased native power draw, Either that or it was just consistently exceeding TBP.

Ray tracing results

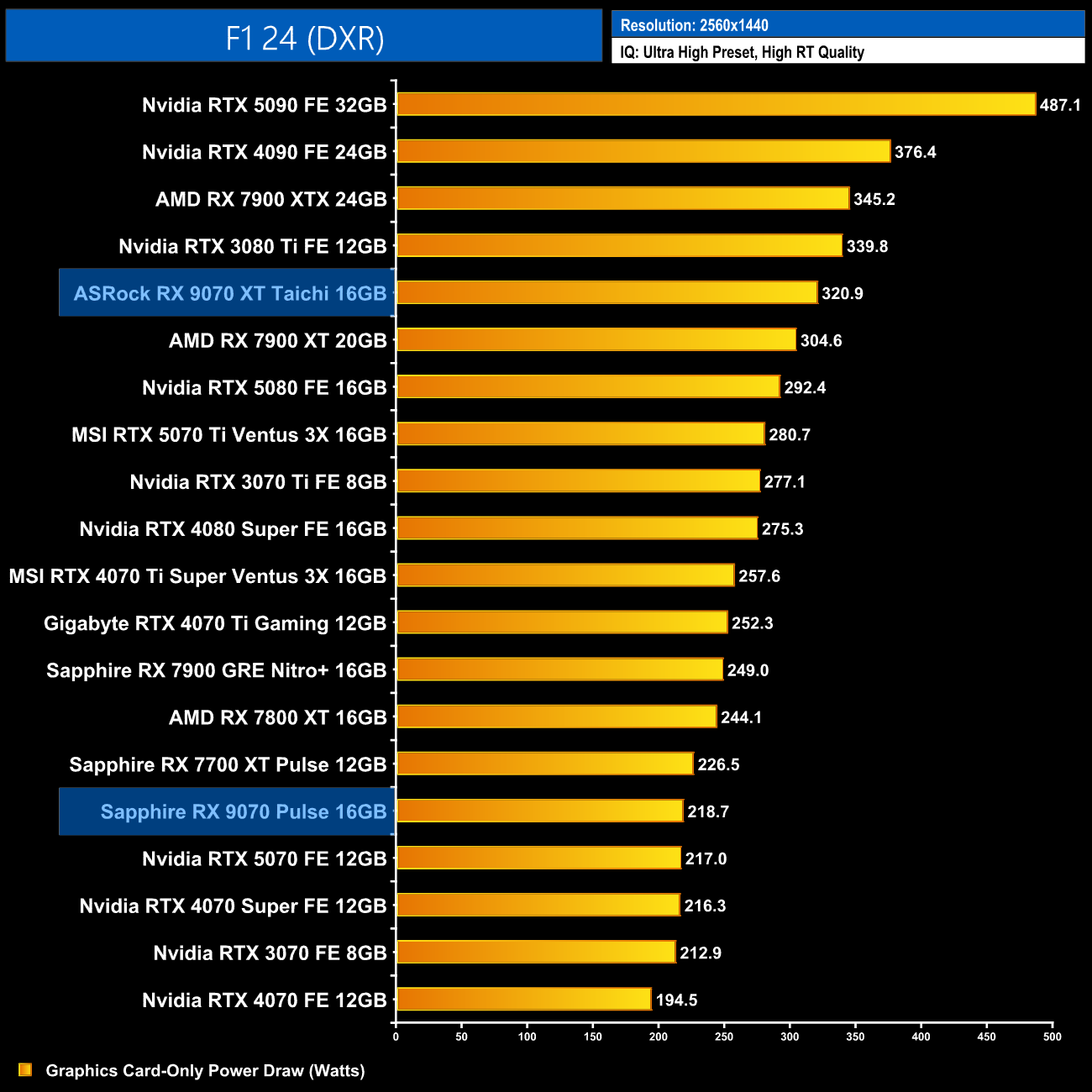

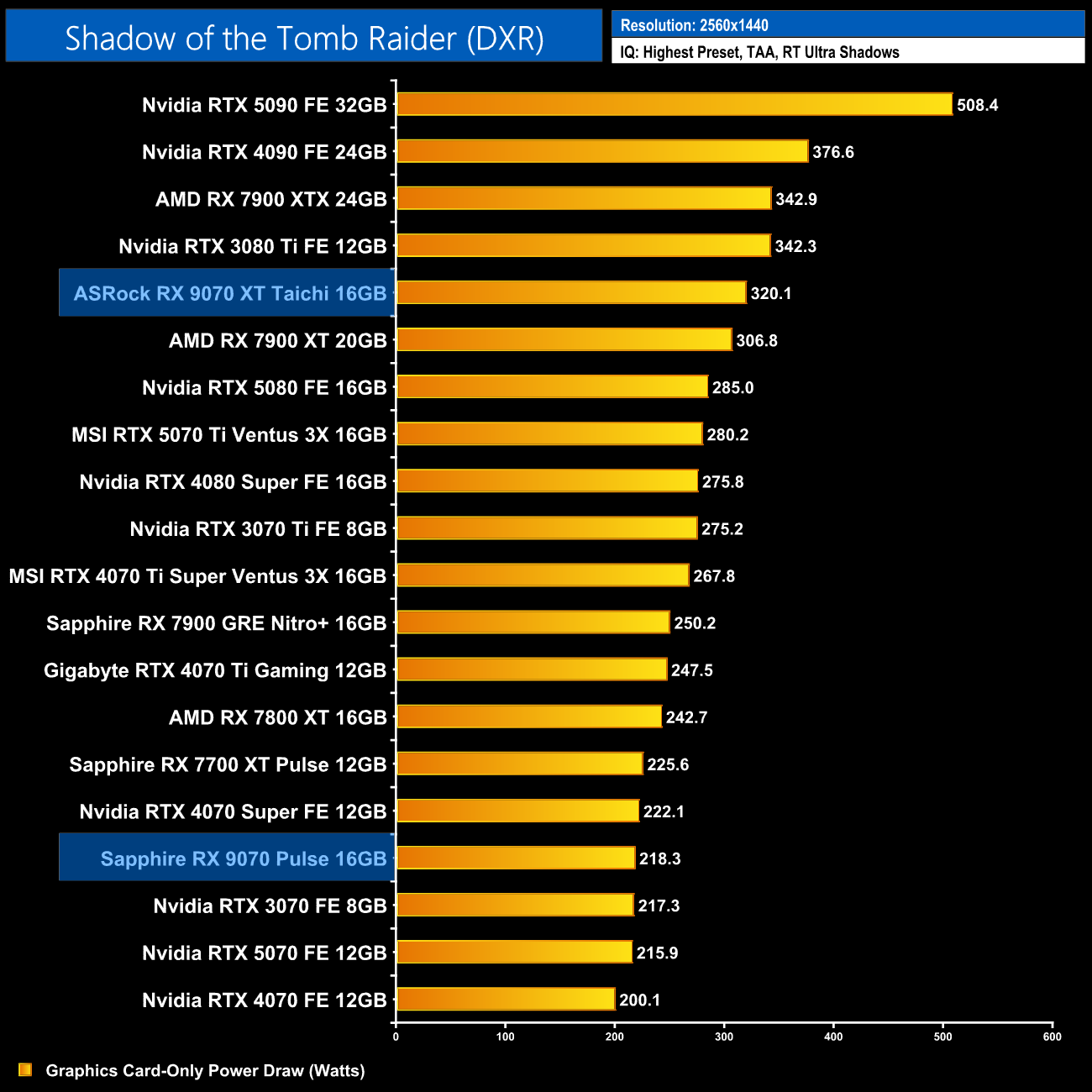

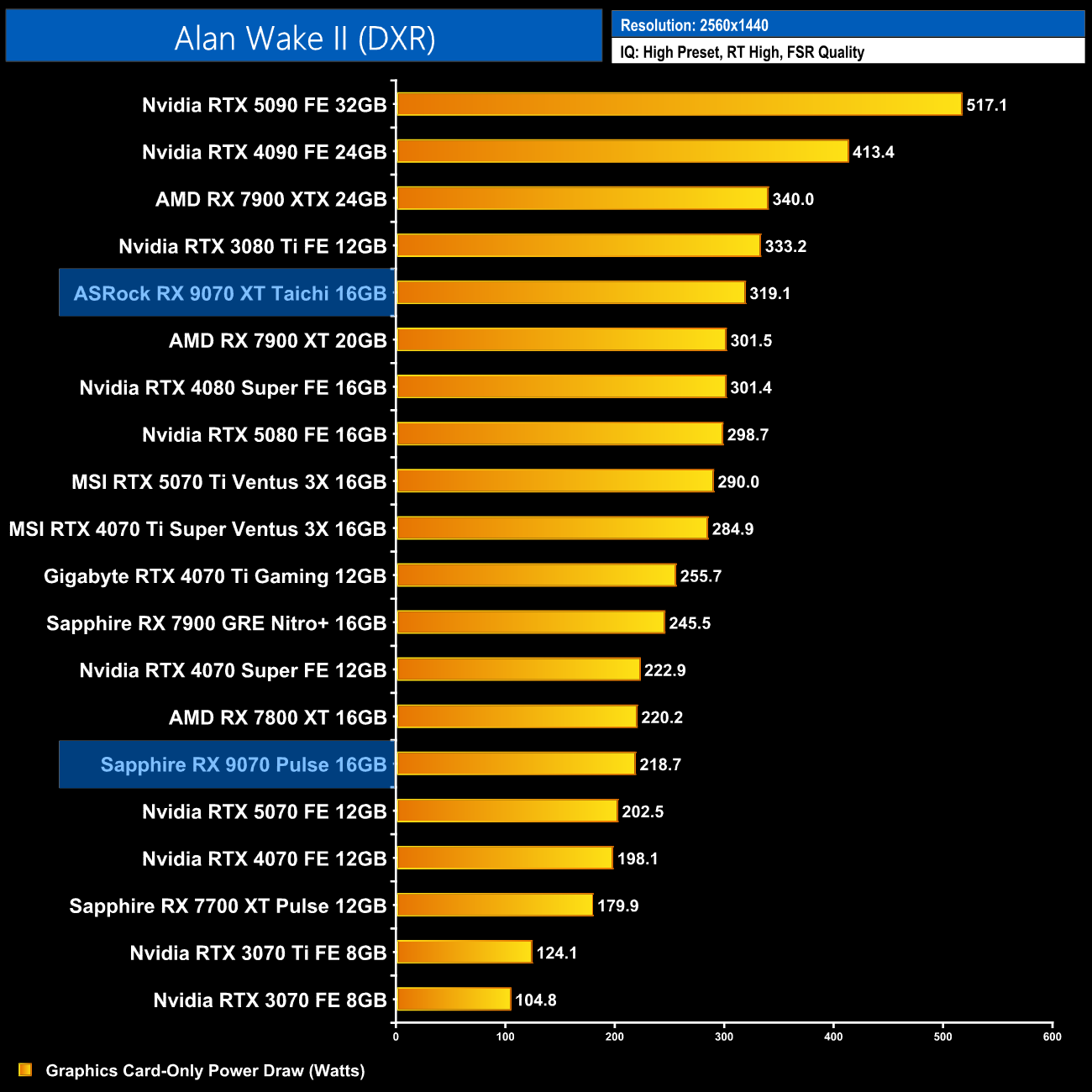

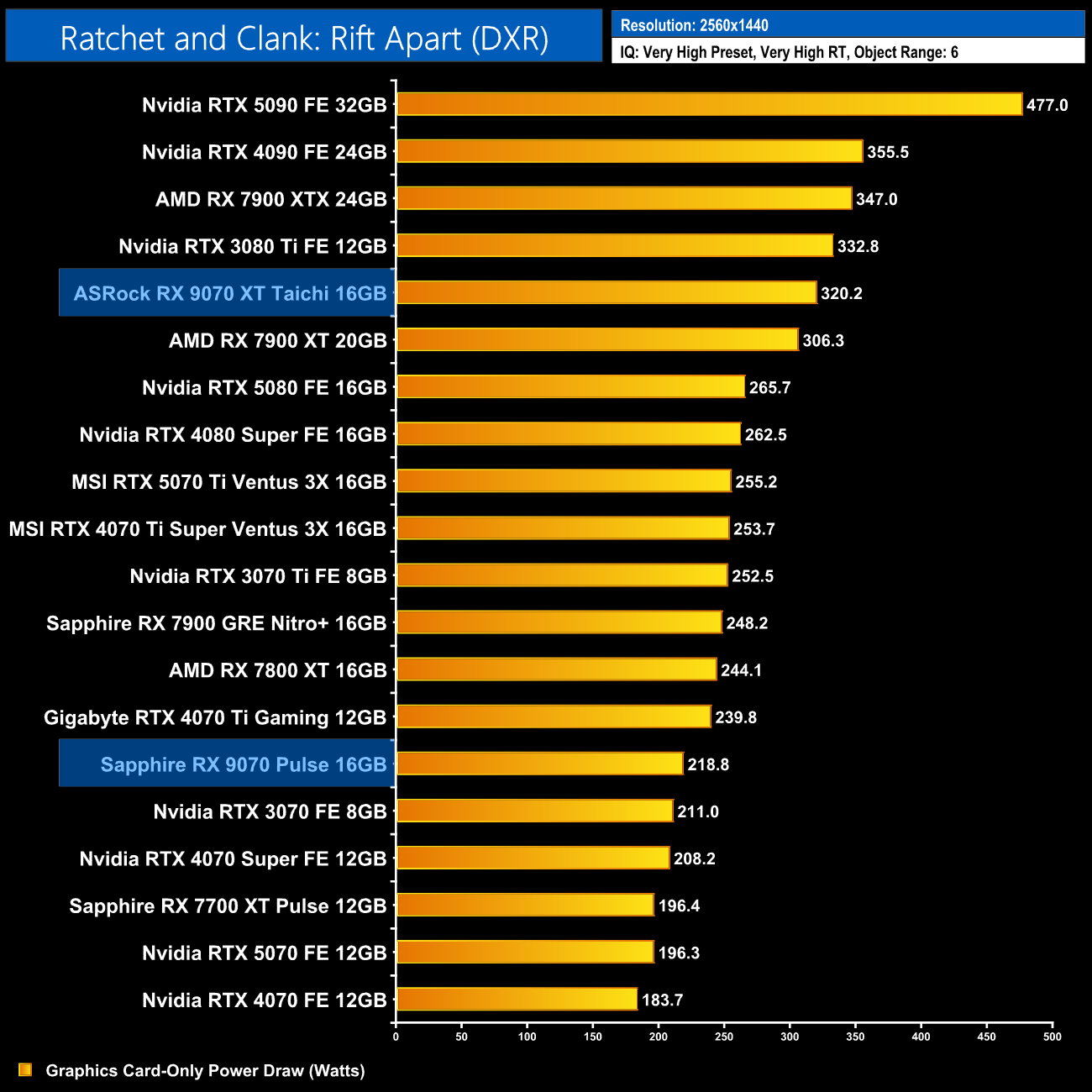

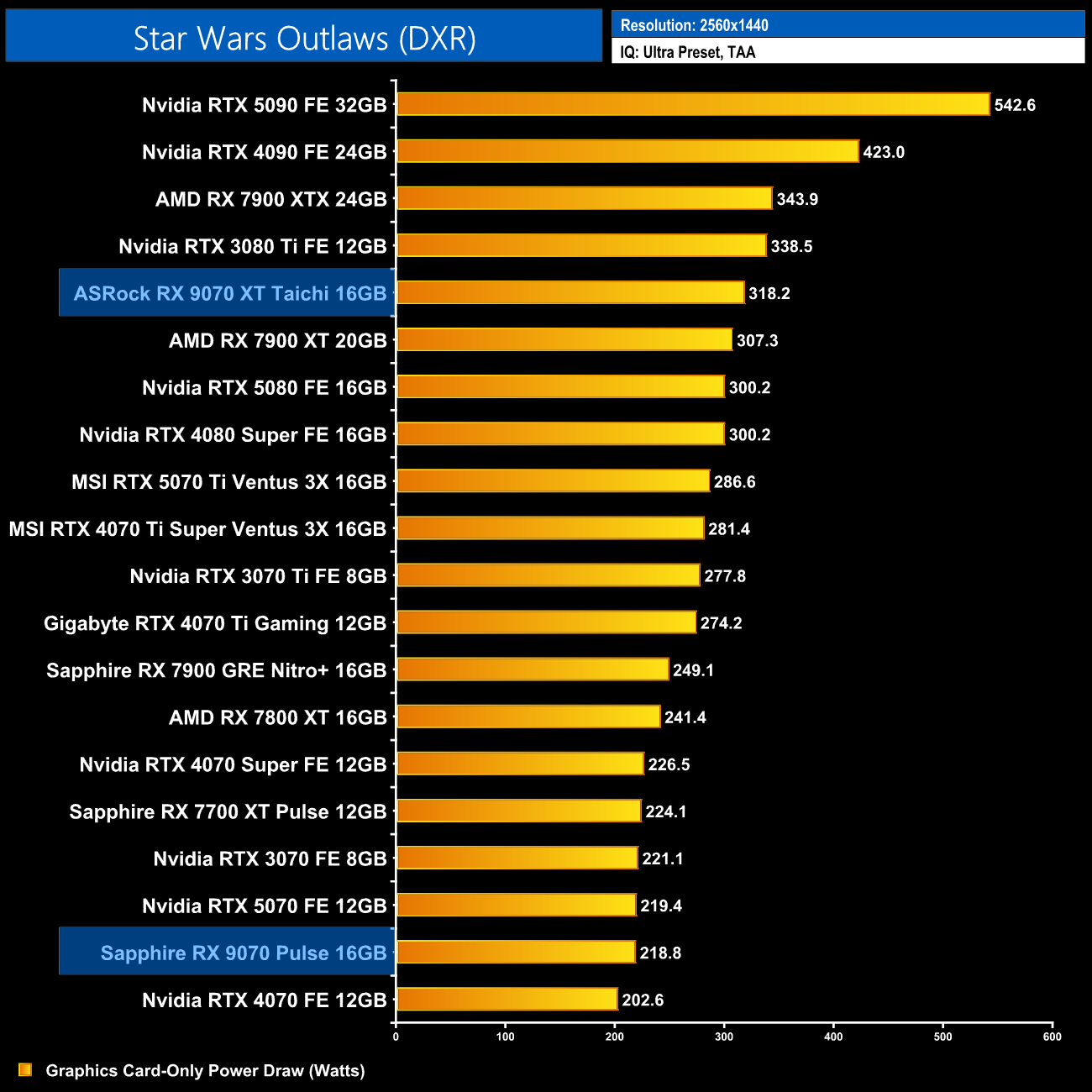

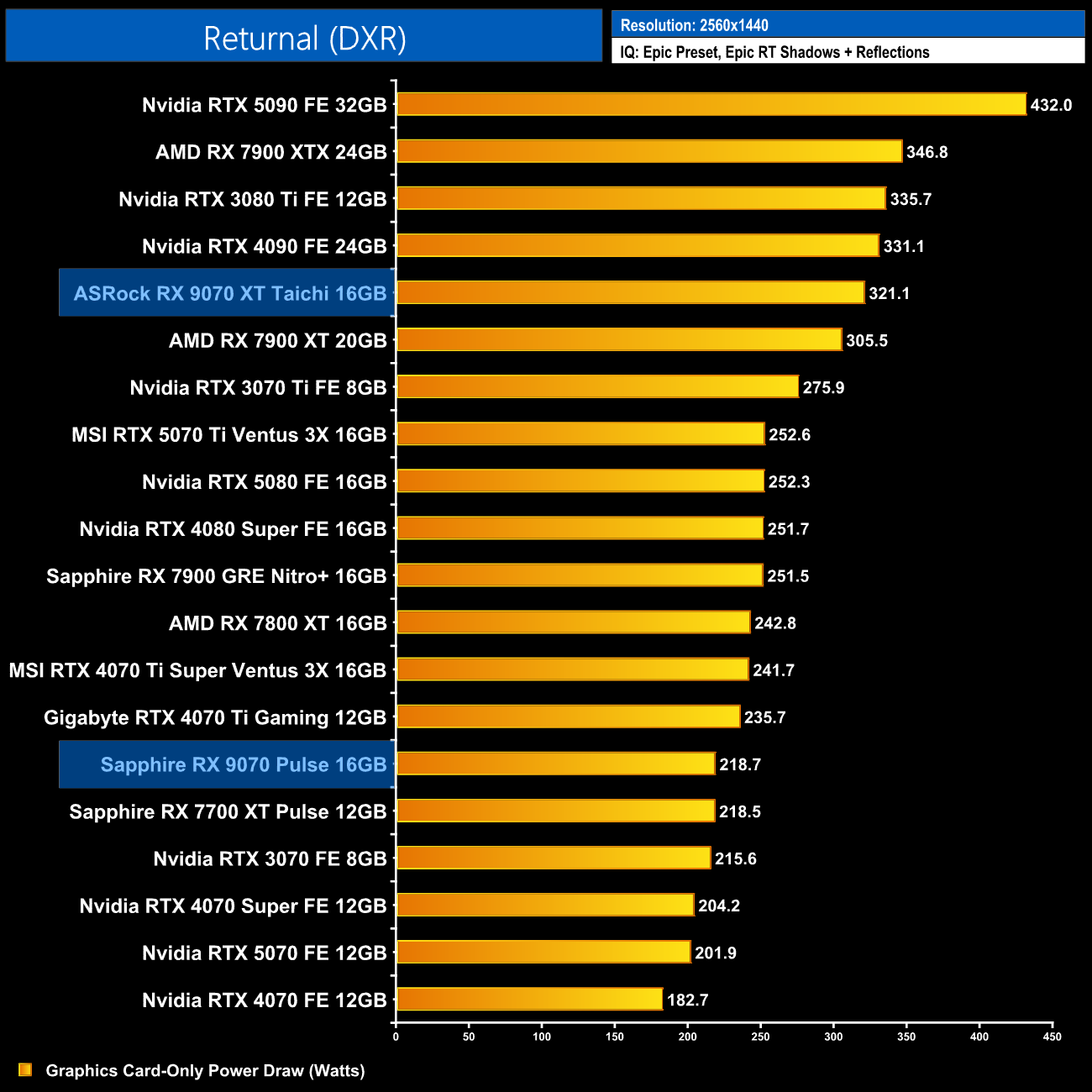

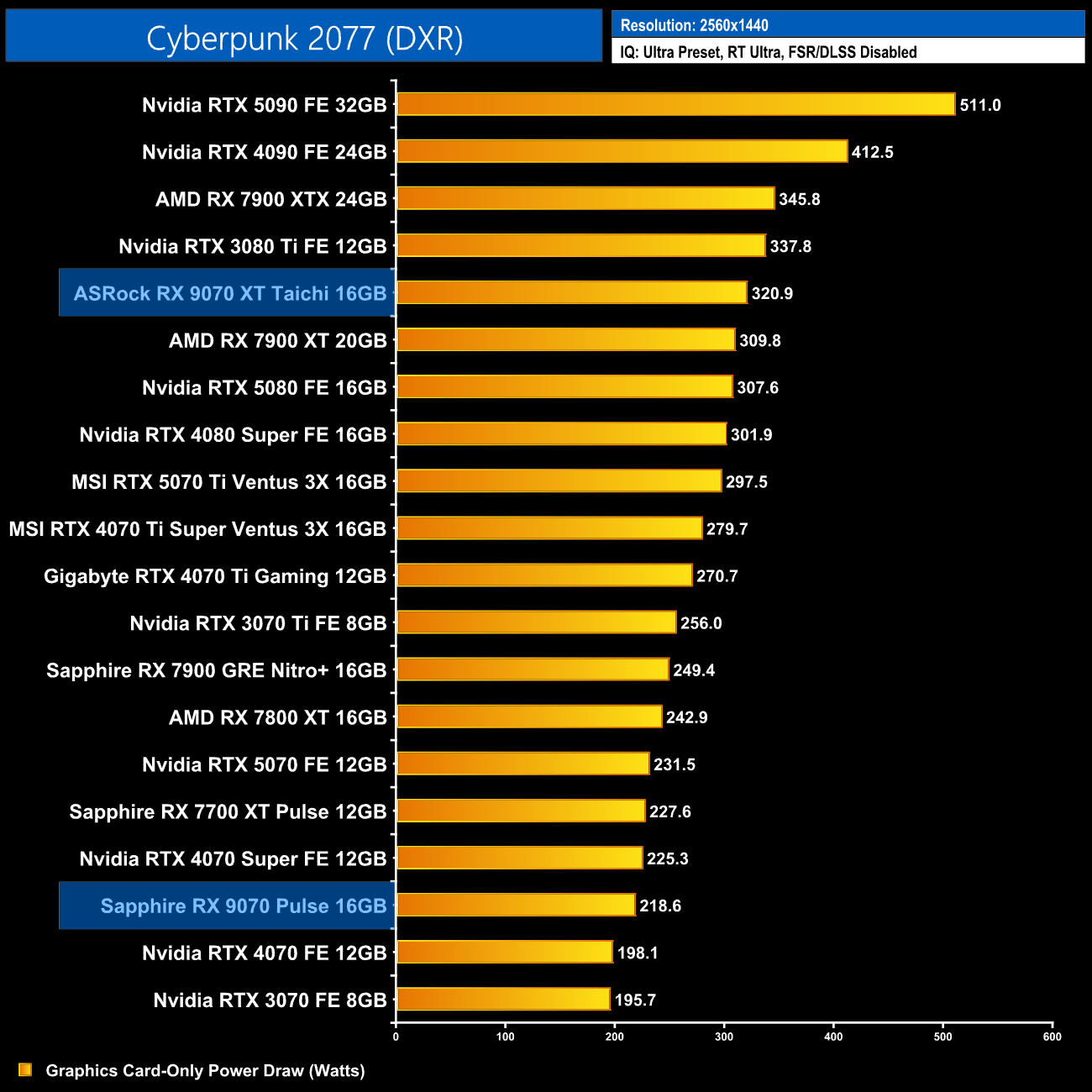

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

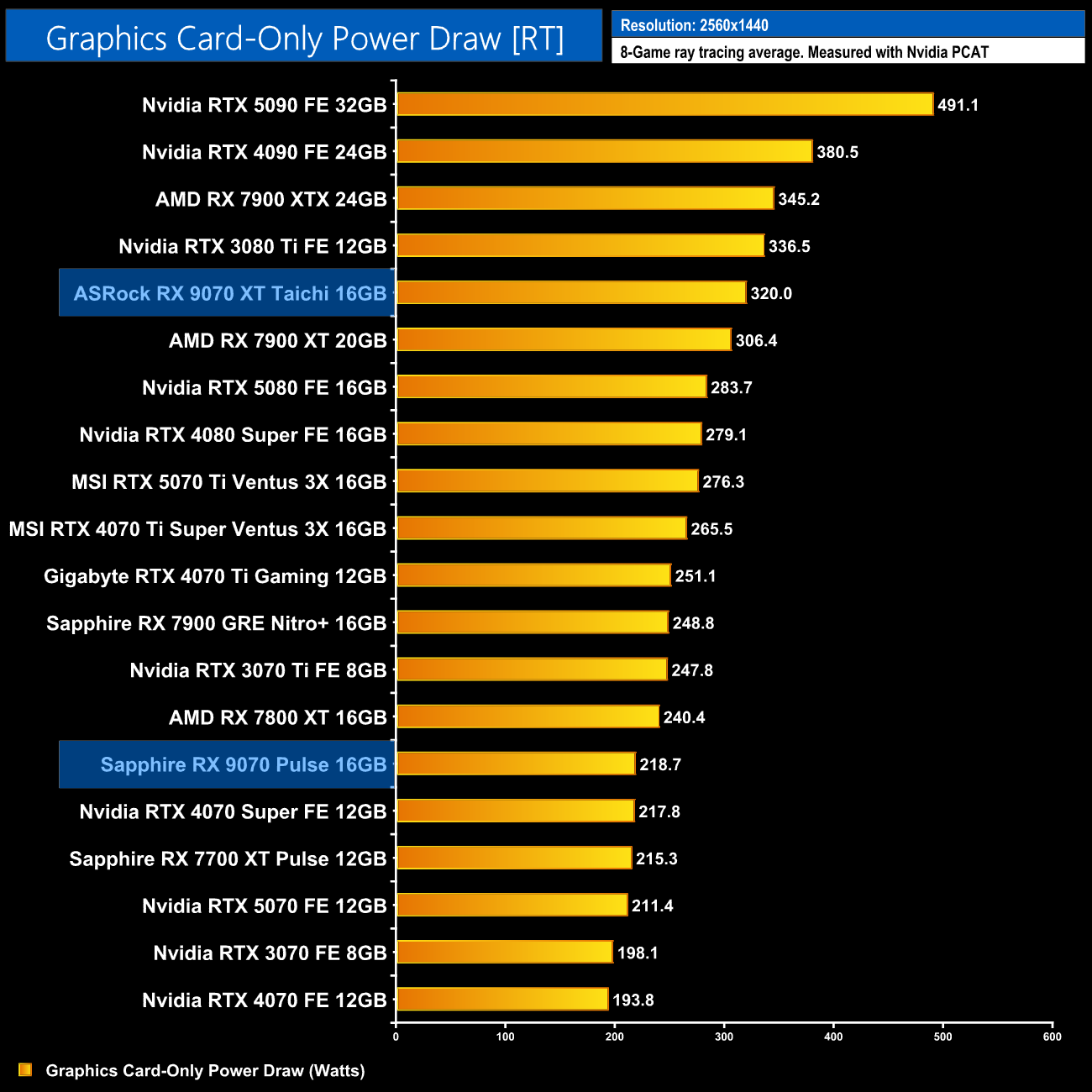

8-Game ray tracing average:

We observed very similar behaviour with ray tracing enabled, too.
