Nvidia RTX 4080 Super Review

Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 2160p (4K). This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

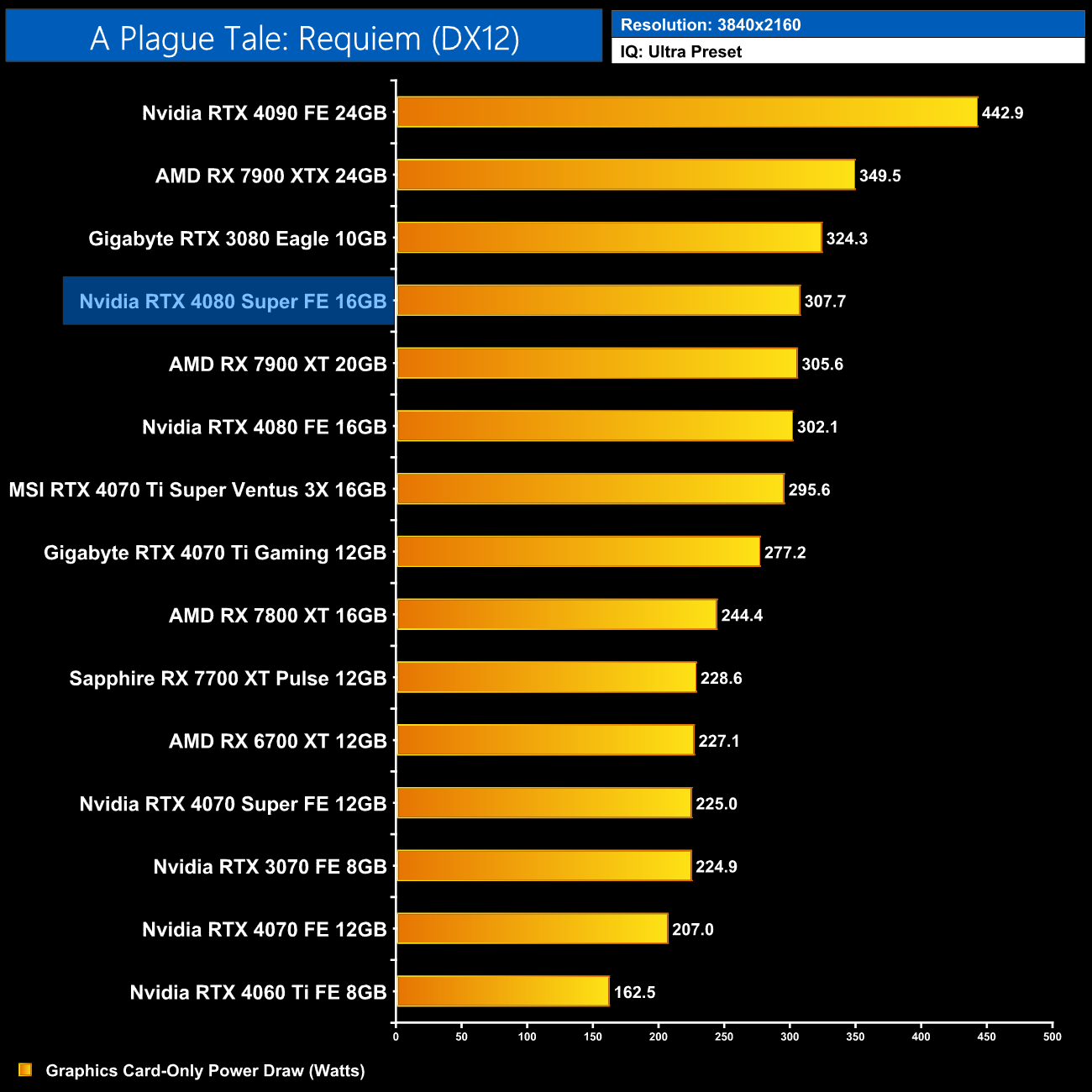

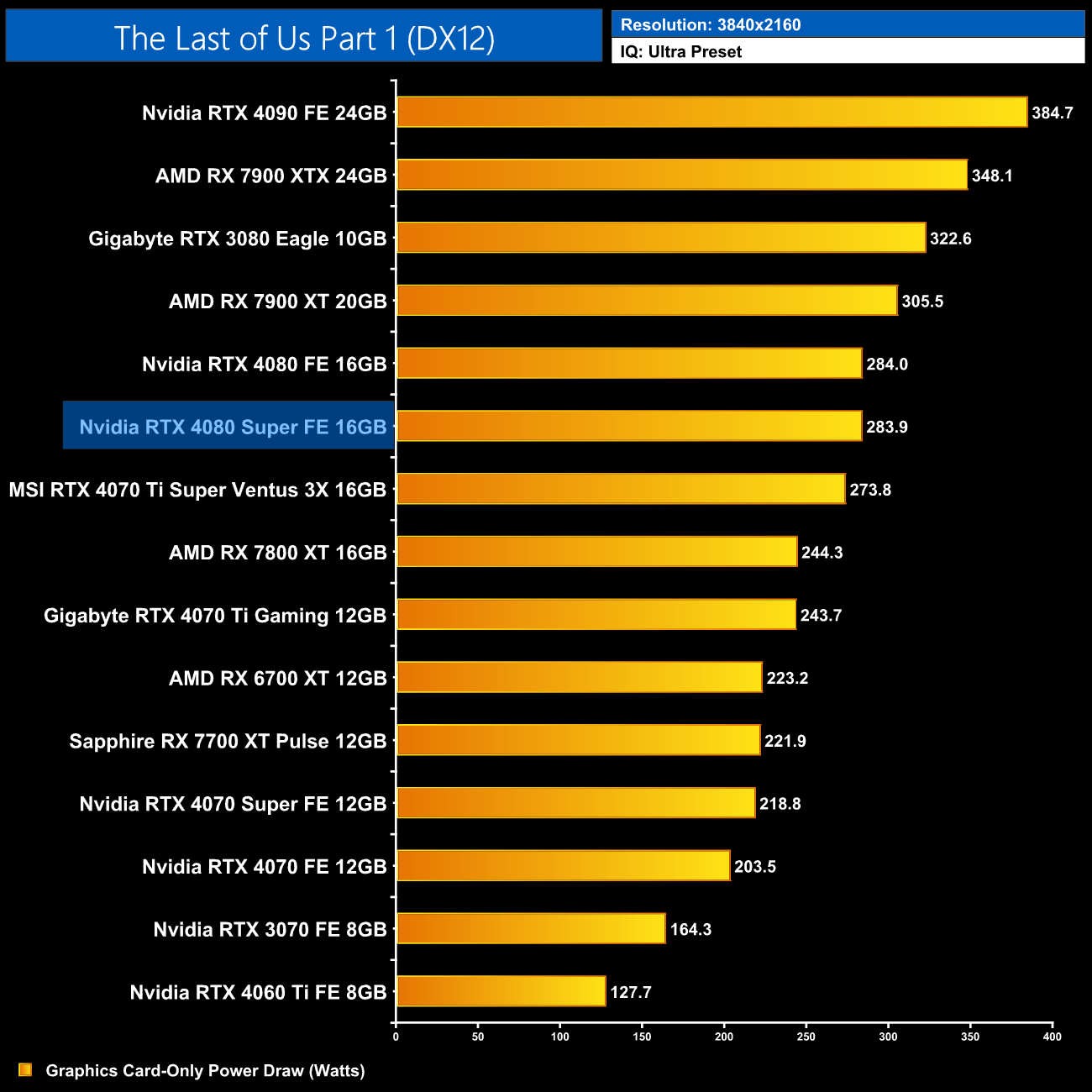

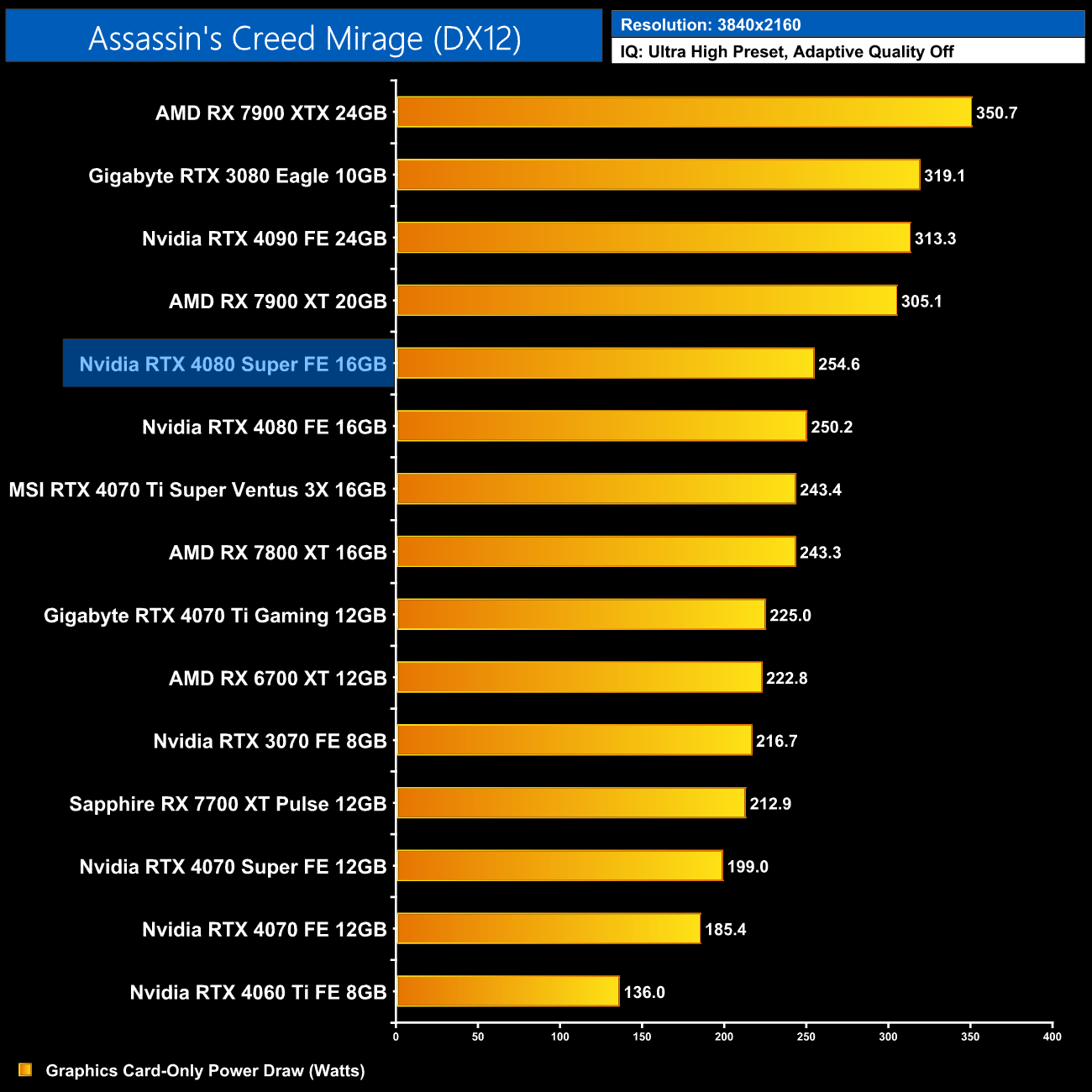

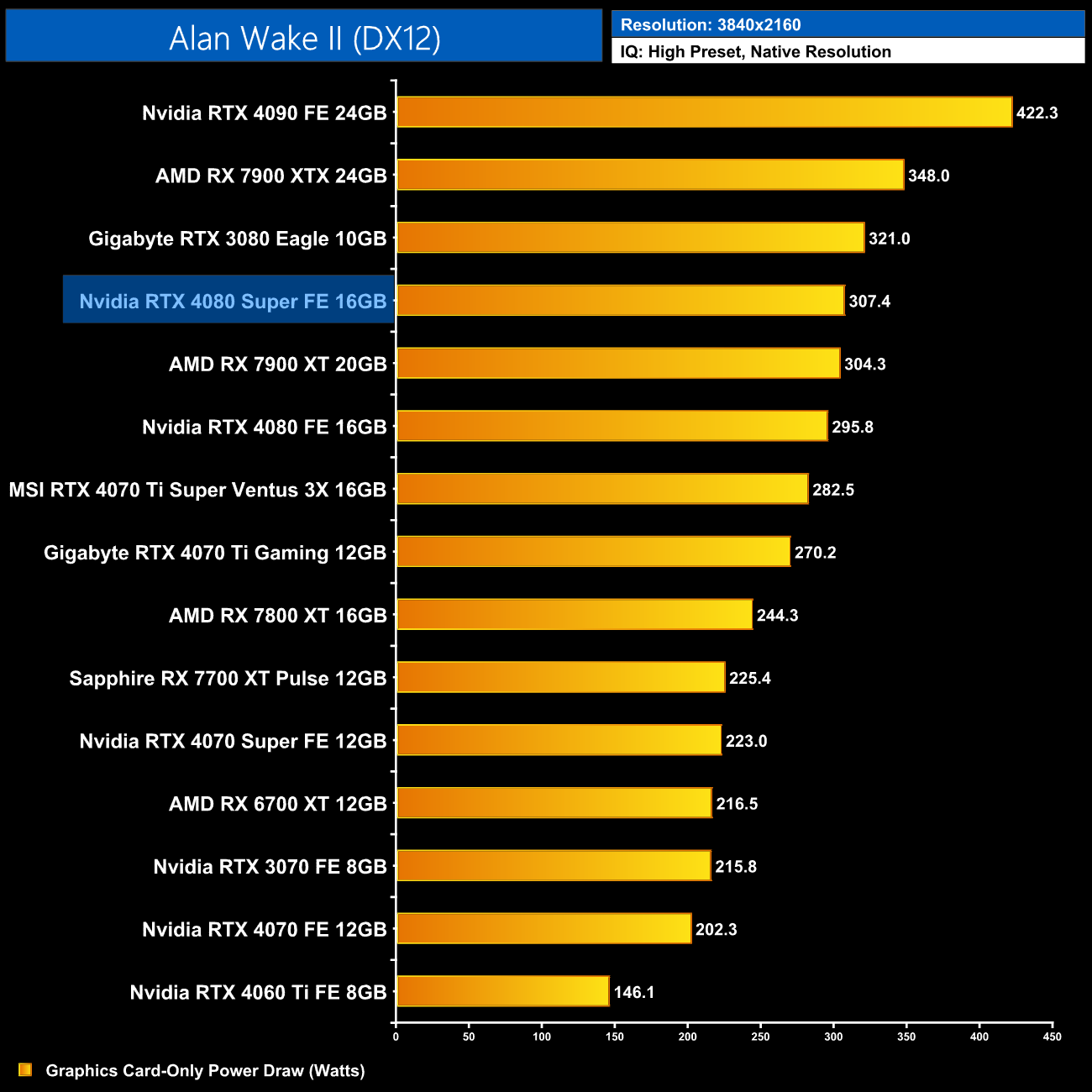

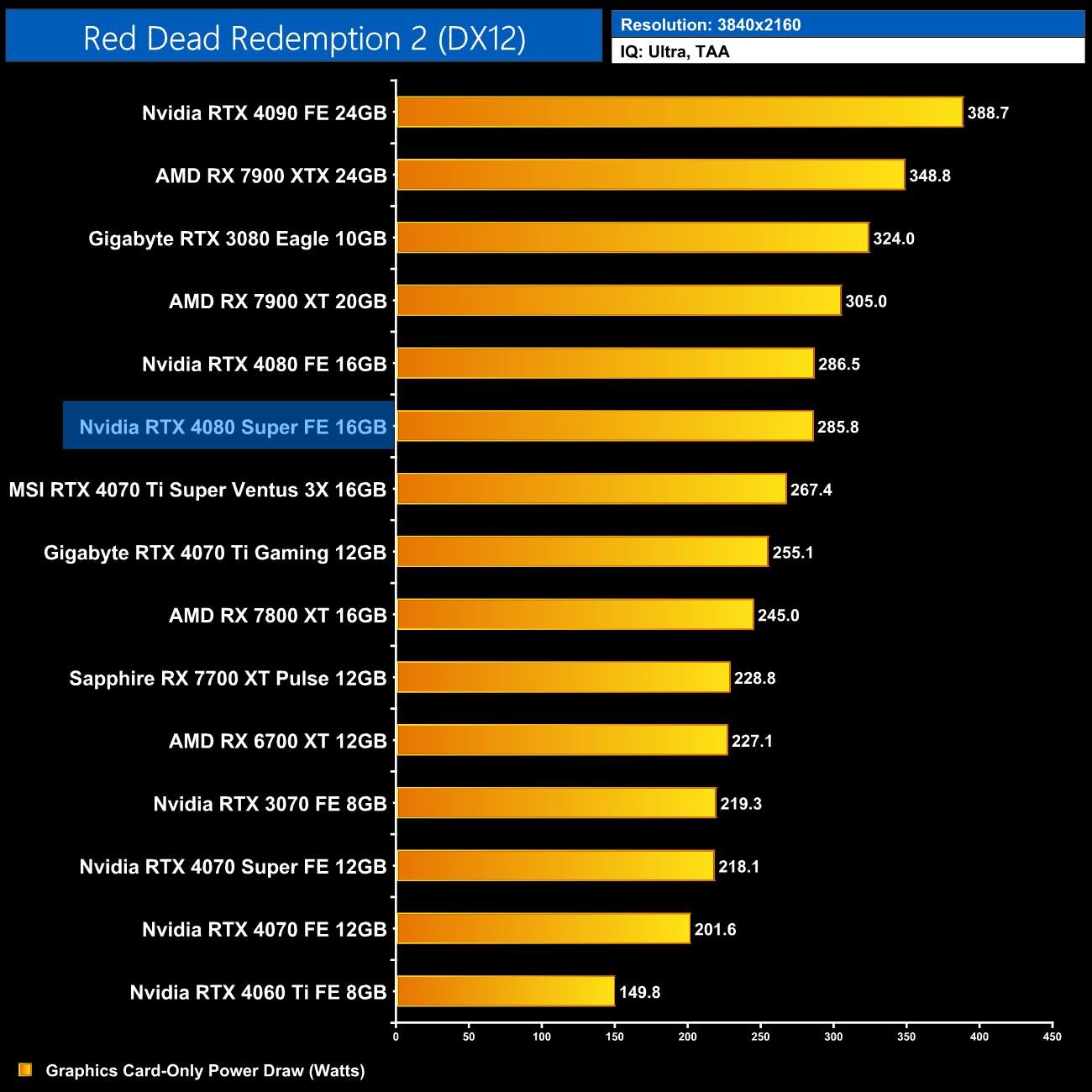

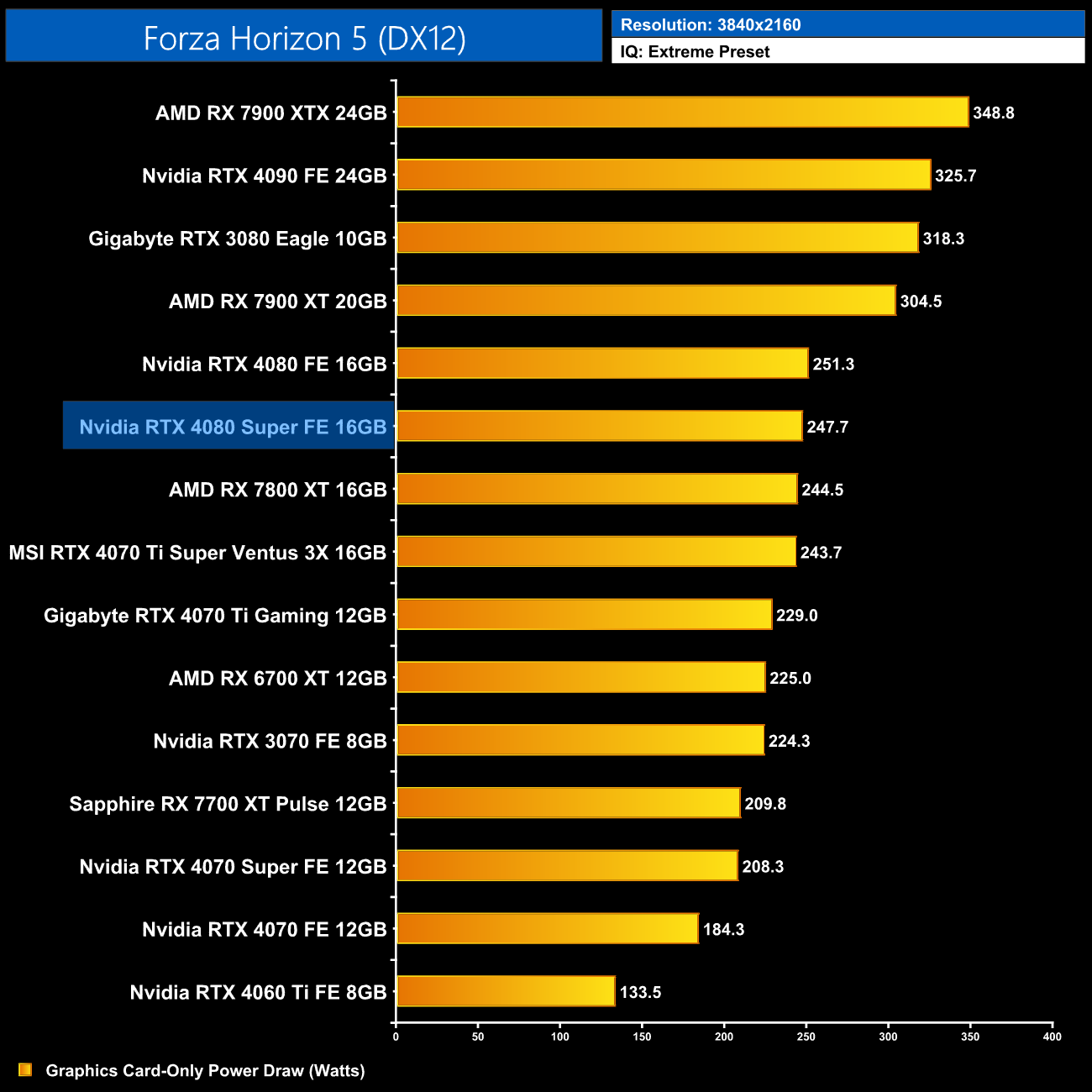

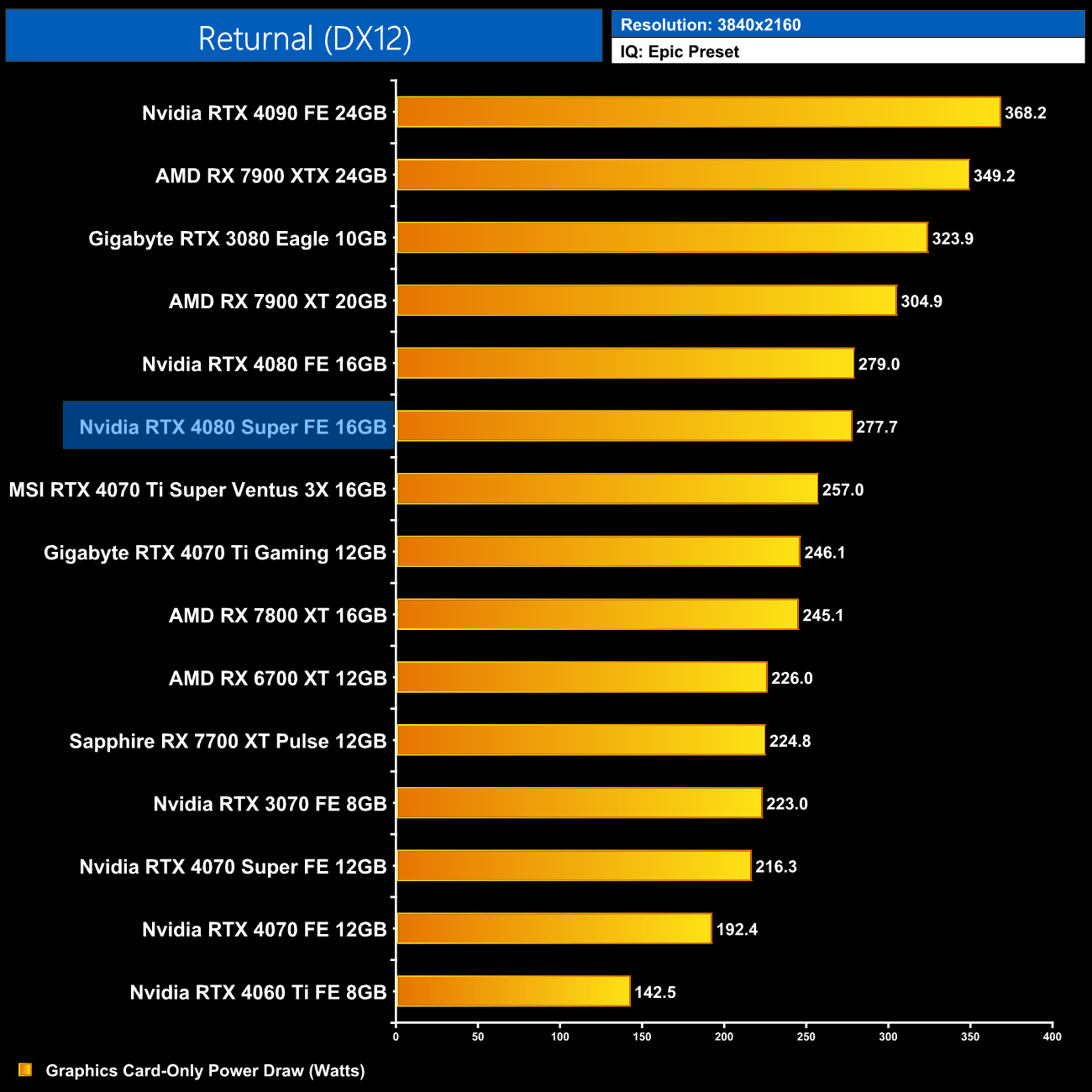

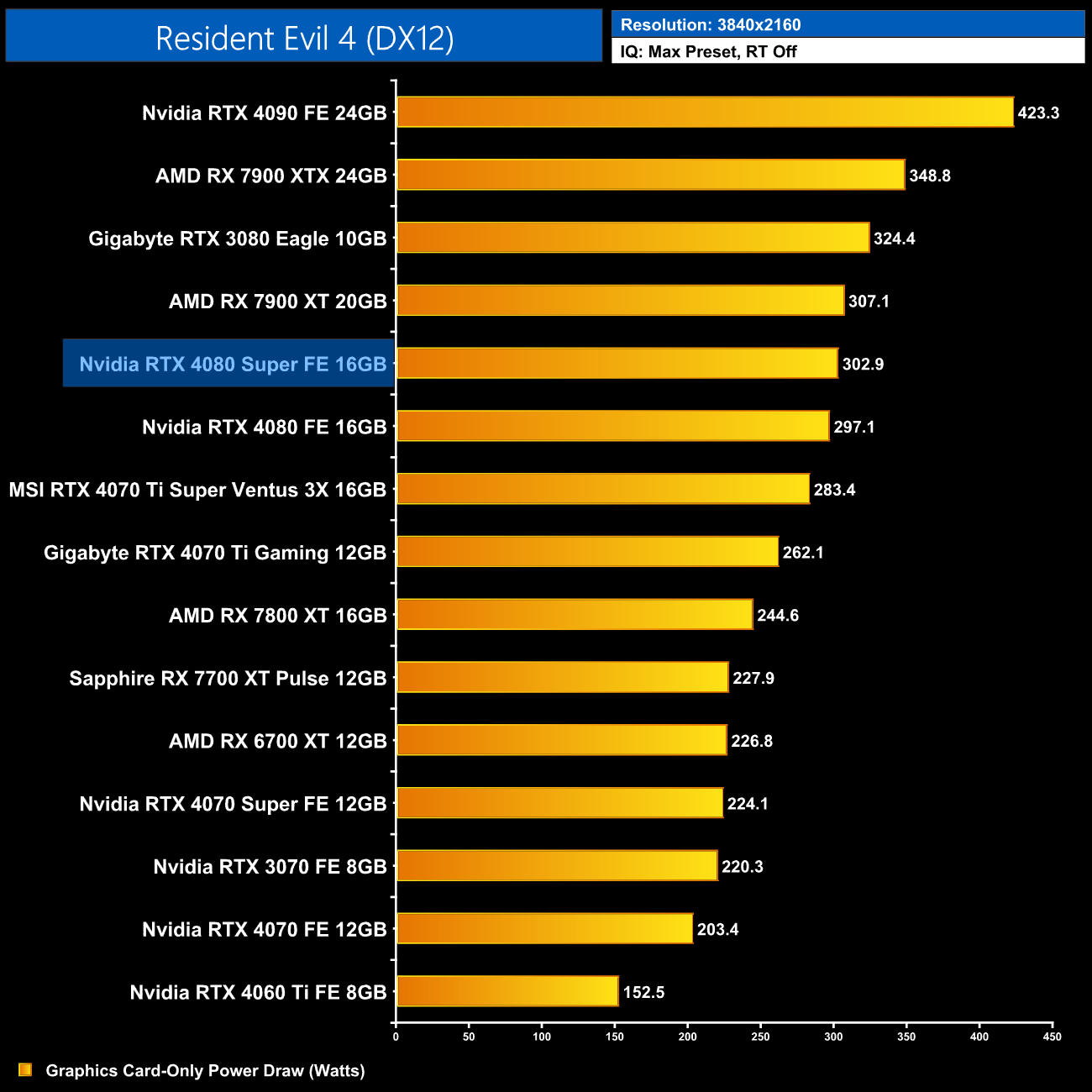

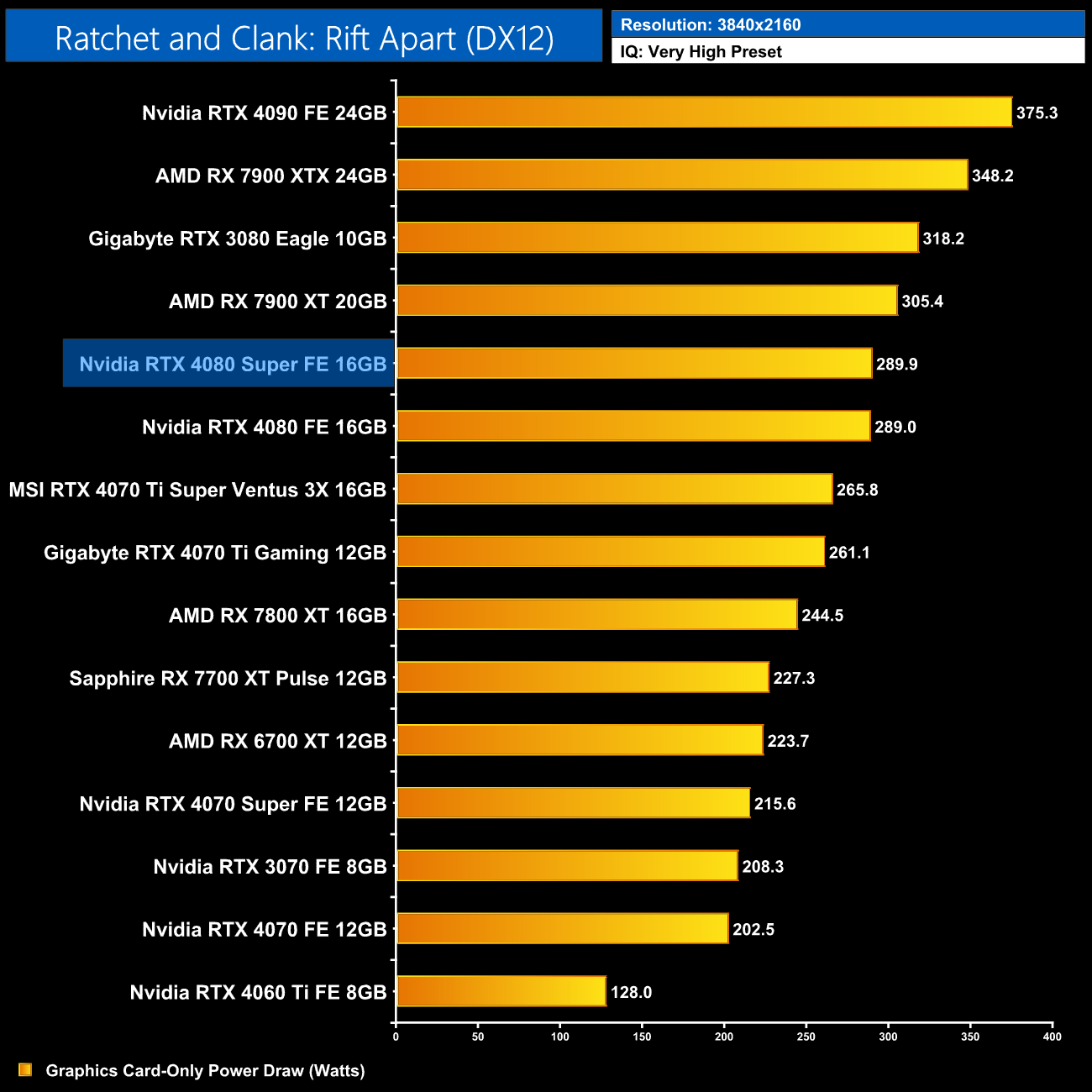

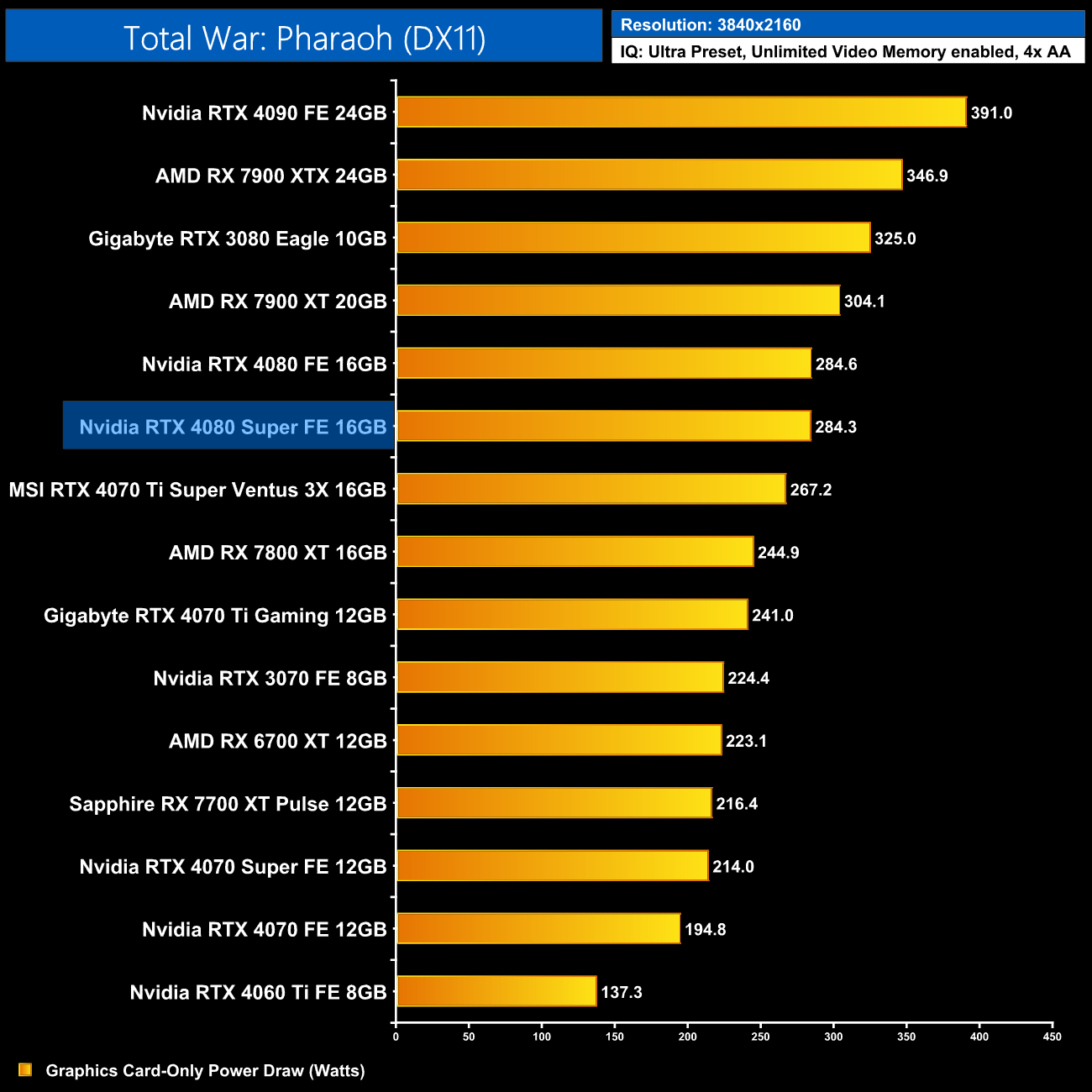

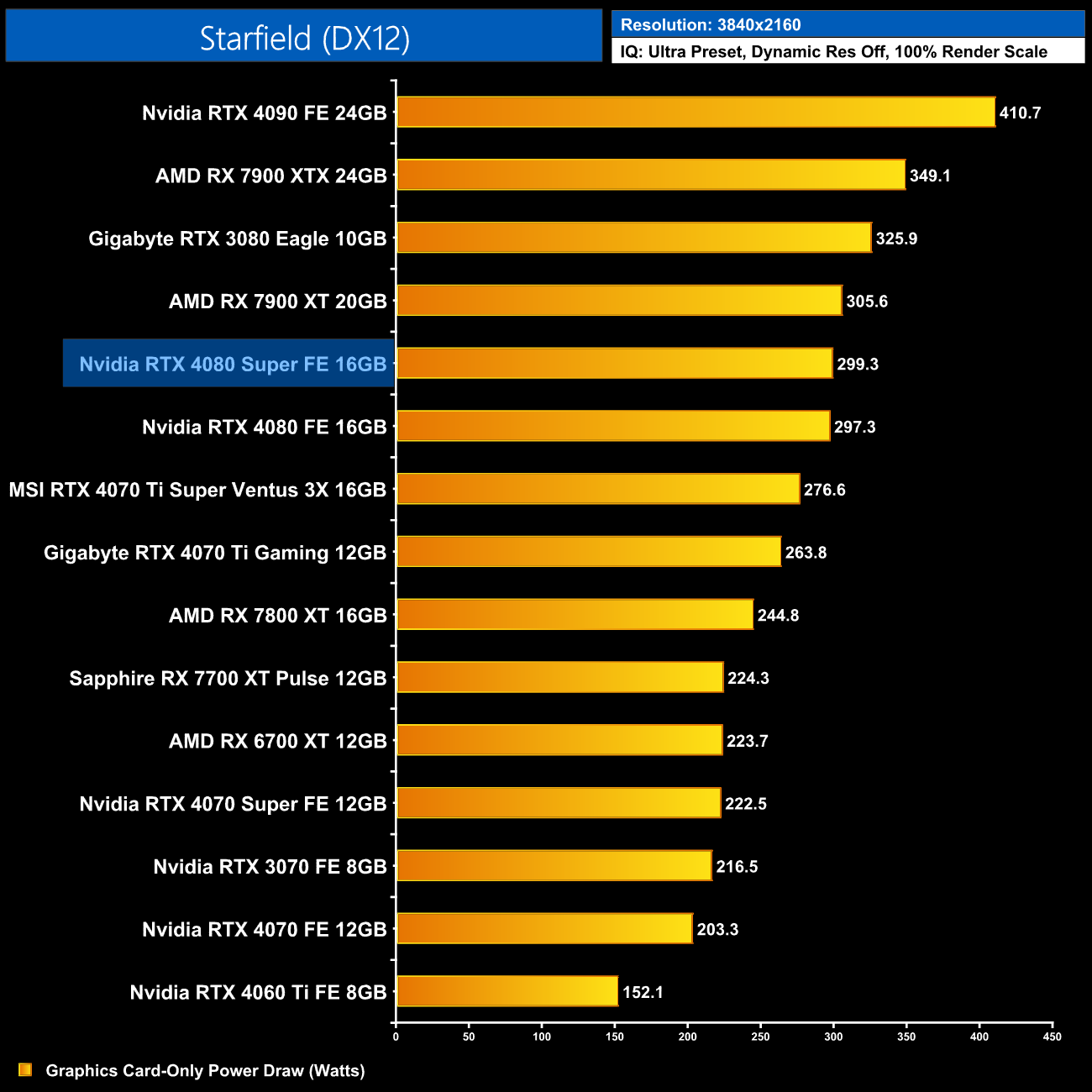

Per-Game Results at 2160p (4K):

Click to enlarge.

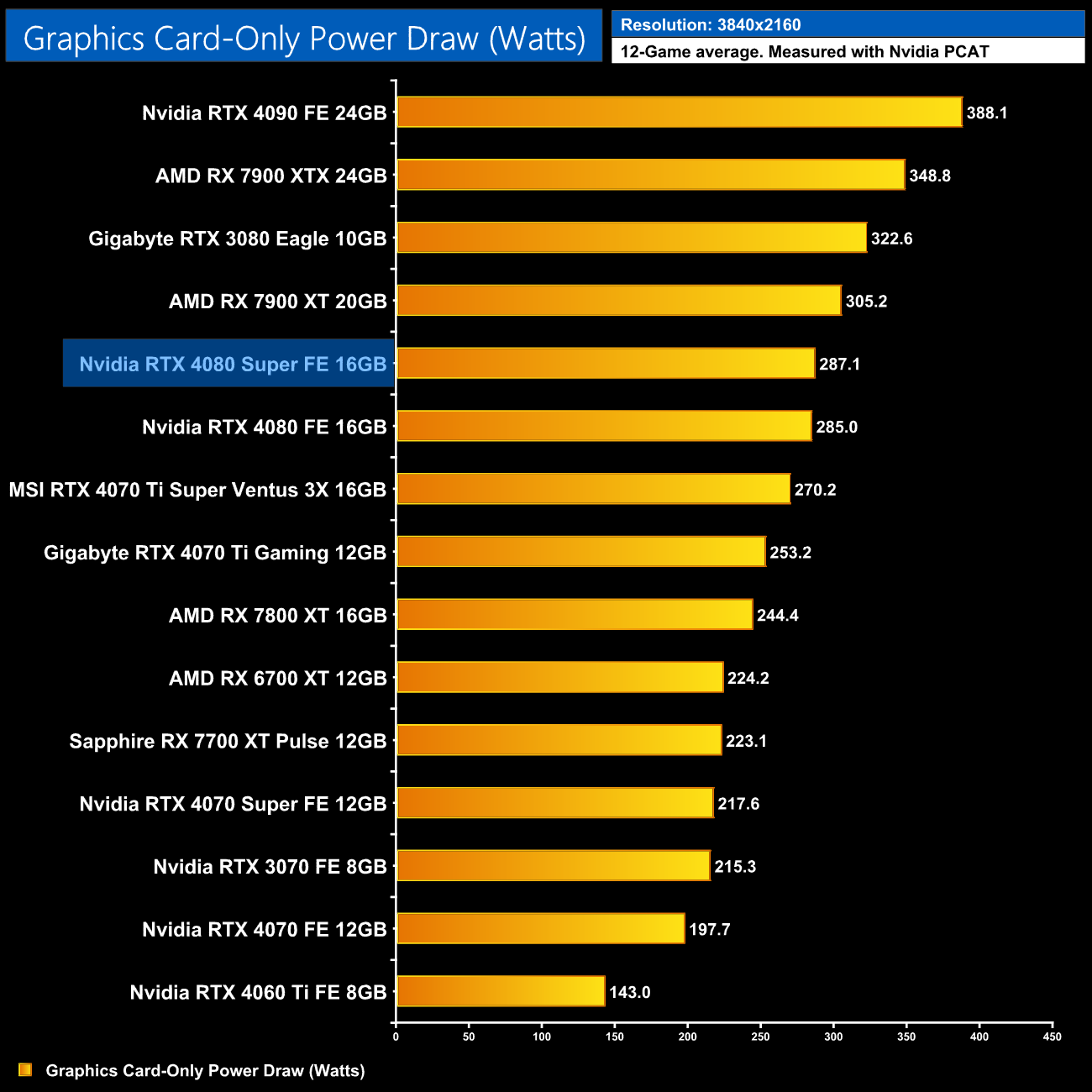

12-Game Average at 2160p (4K):

As for 4K power draw, even at this resolution the average figure of 287.1W is almost 40W below the rated TGP. We see no significant difference compared to the RTX 4080, but it is still a good chunk below the RX 7900 XTX, and about 100W lower than the RTX 4090.

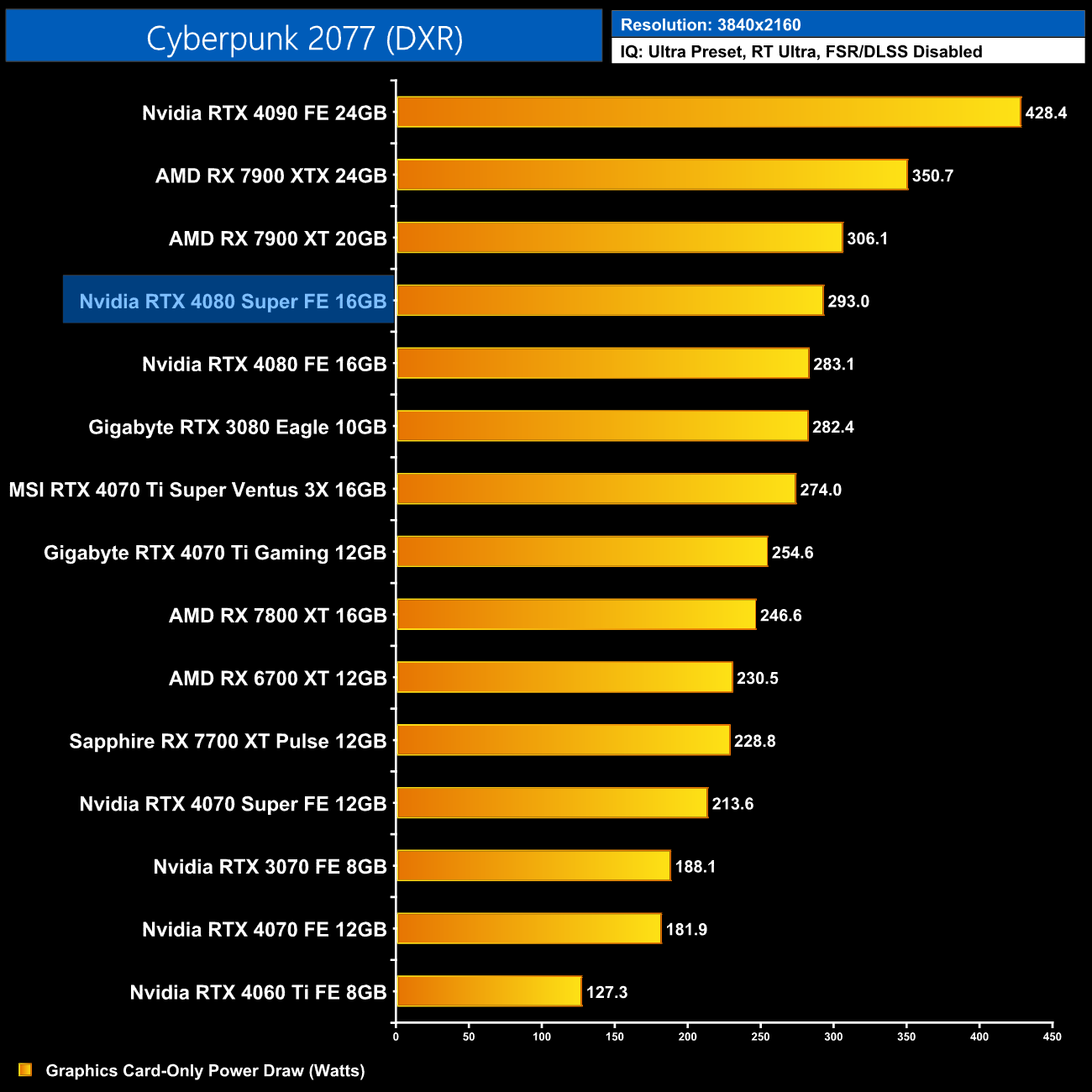

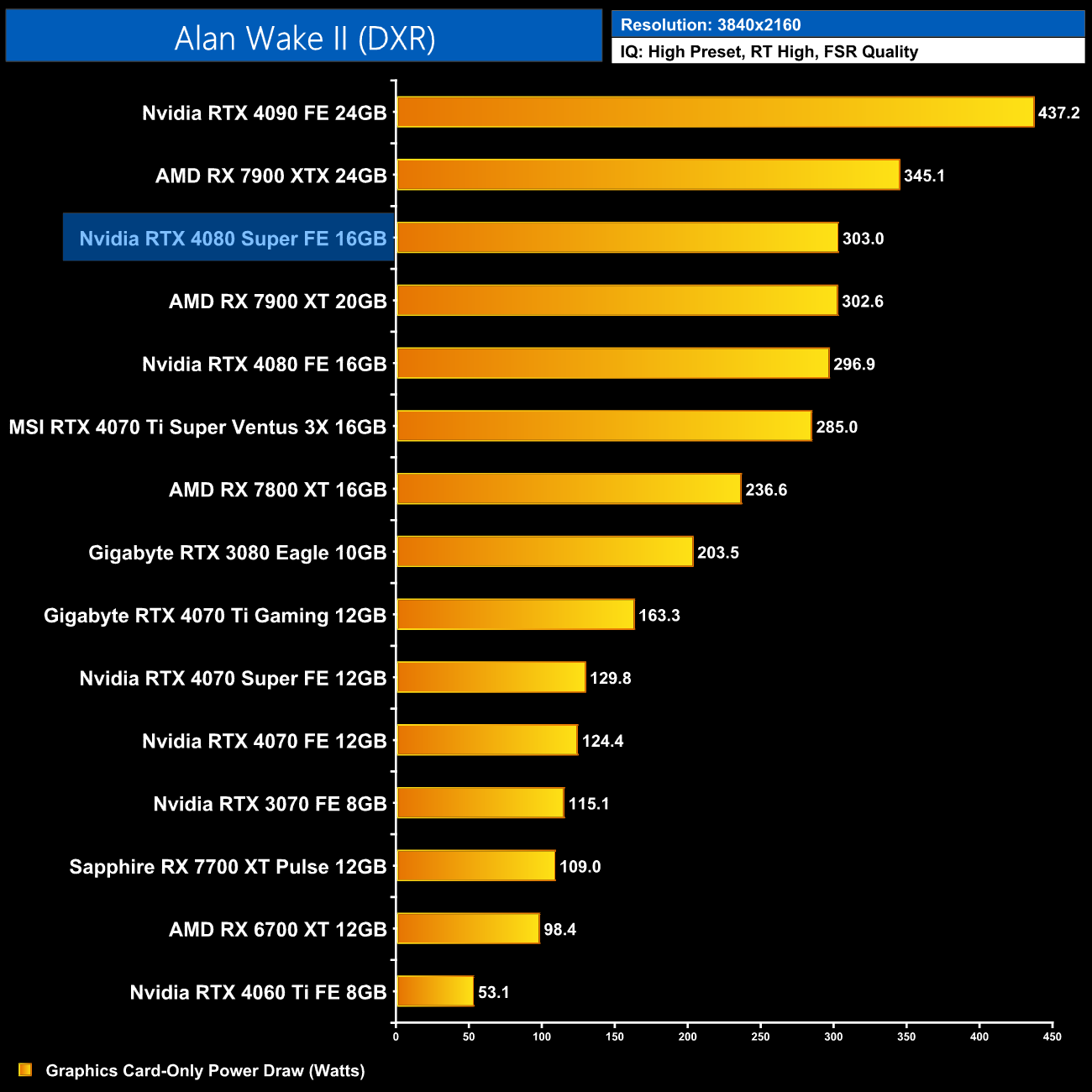

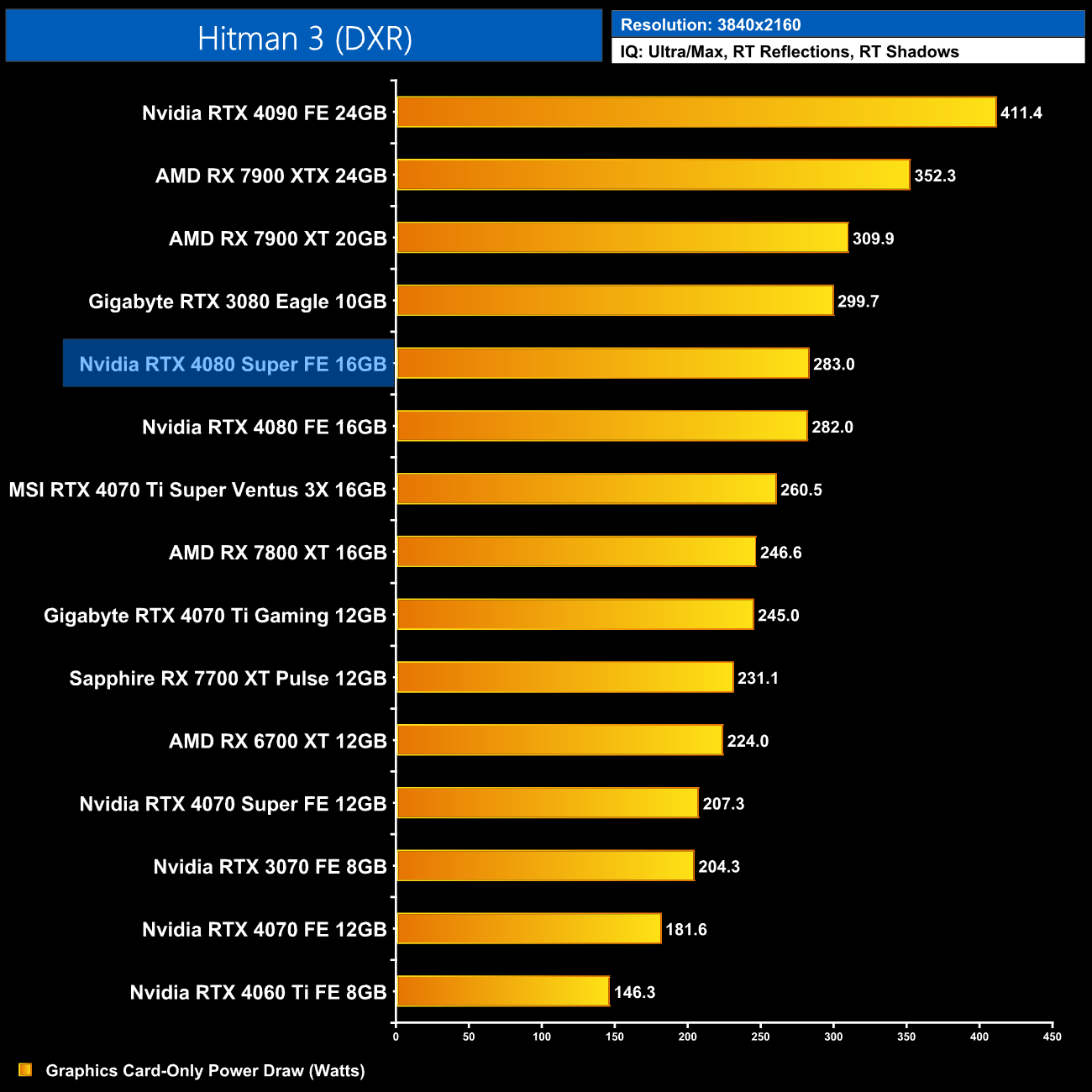

Ray tracing results

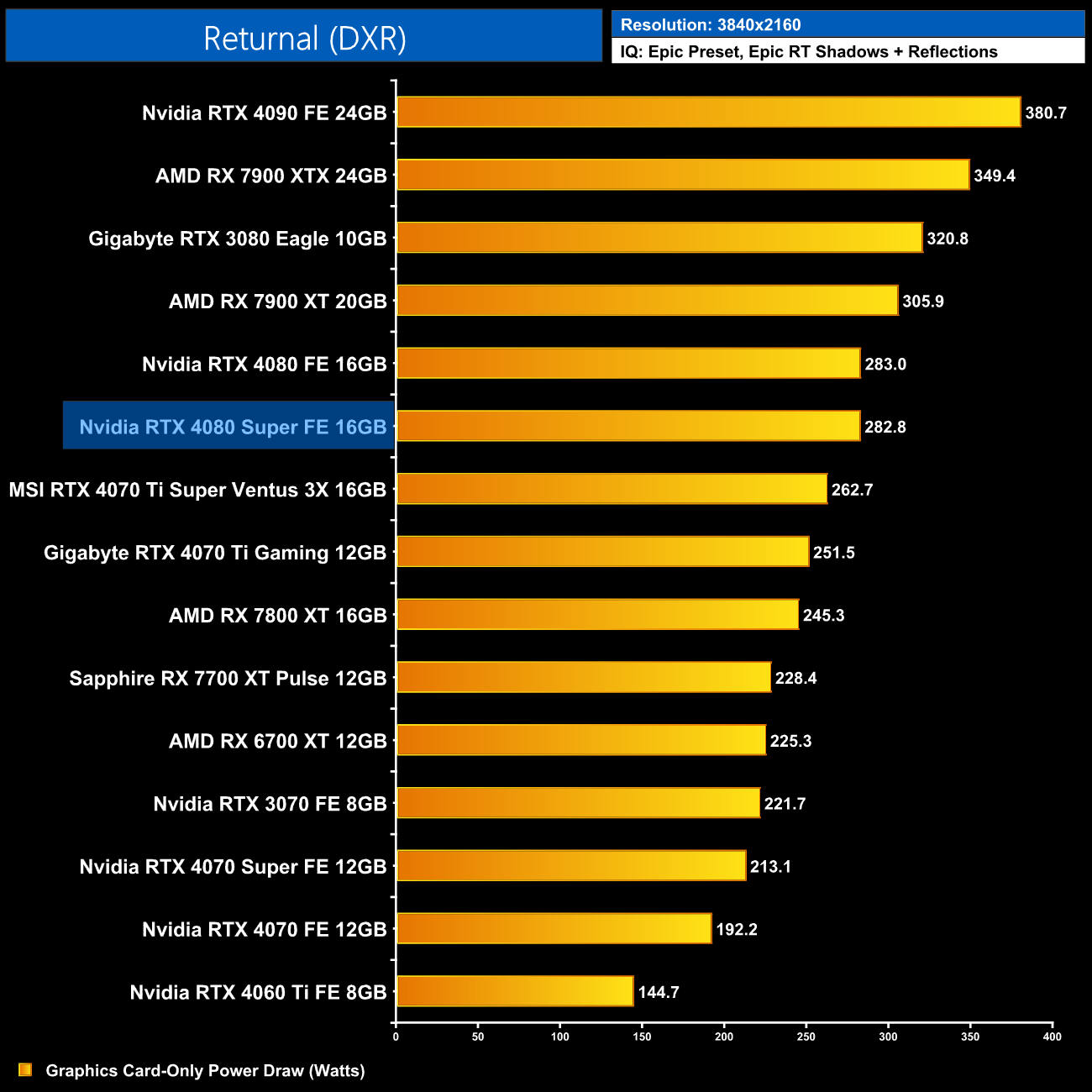

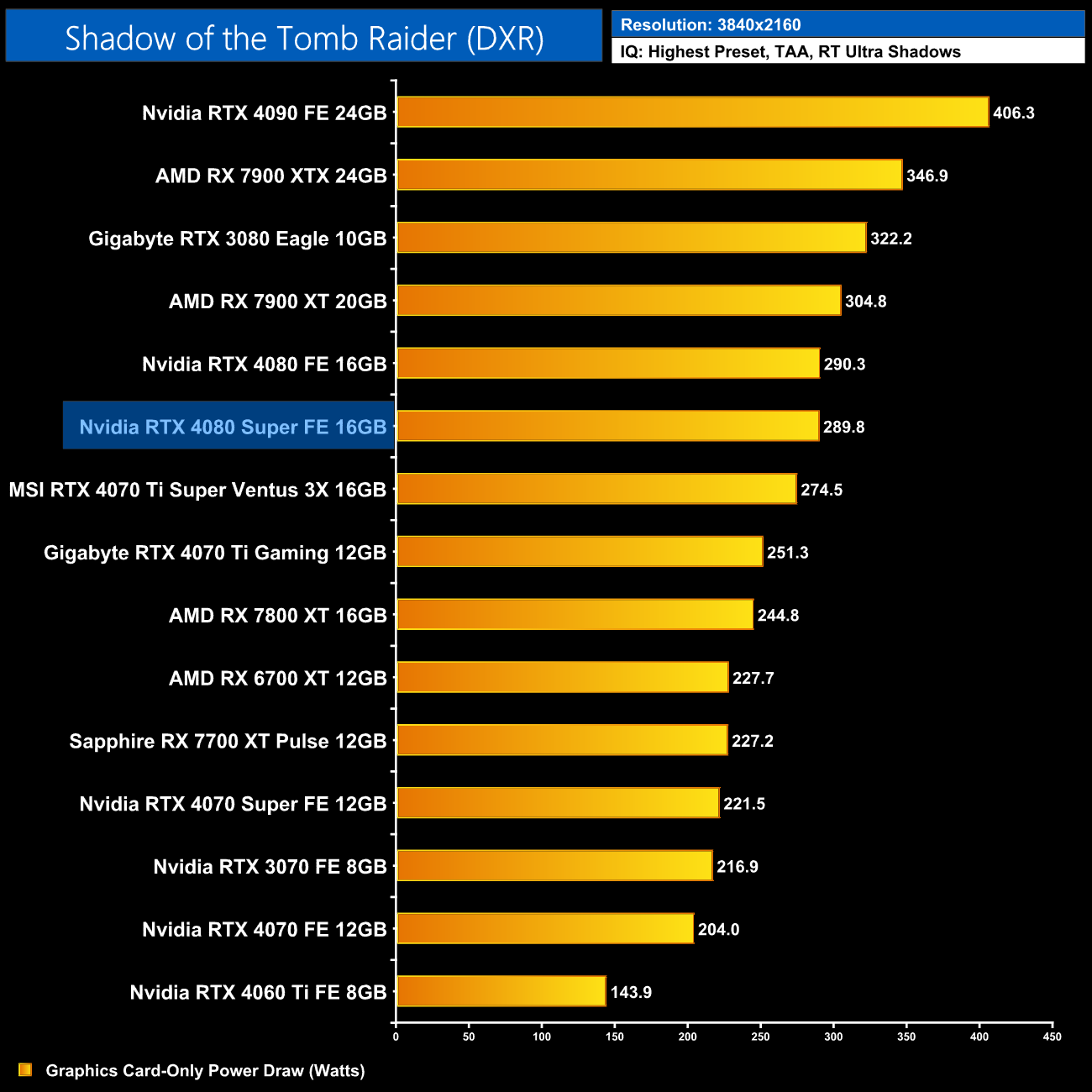

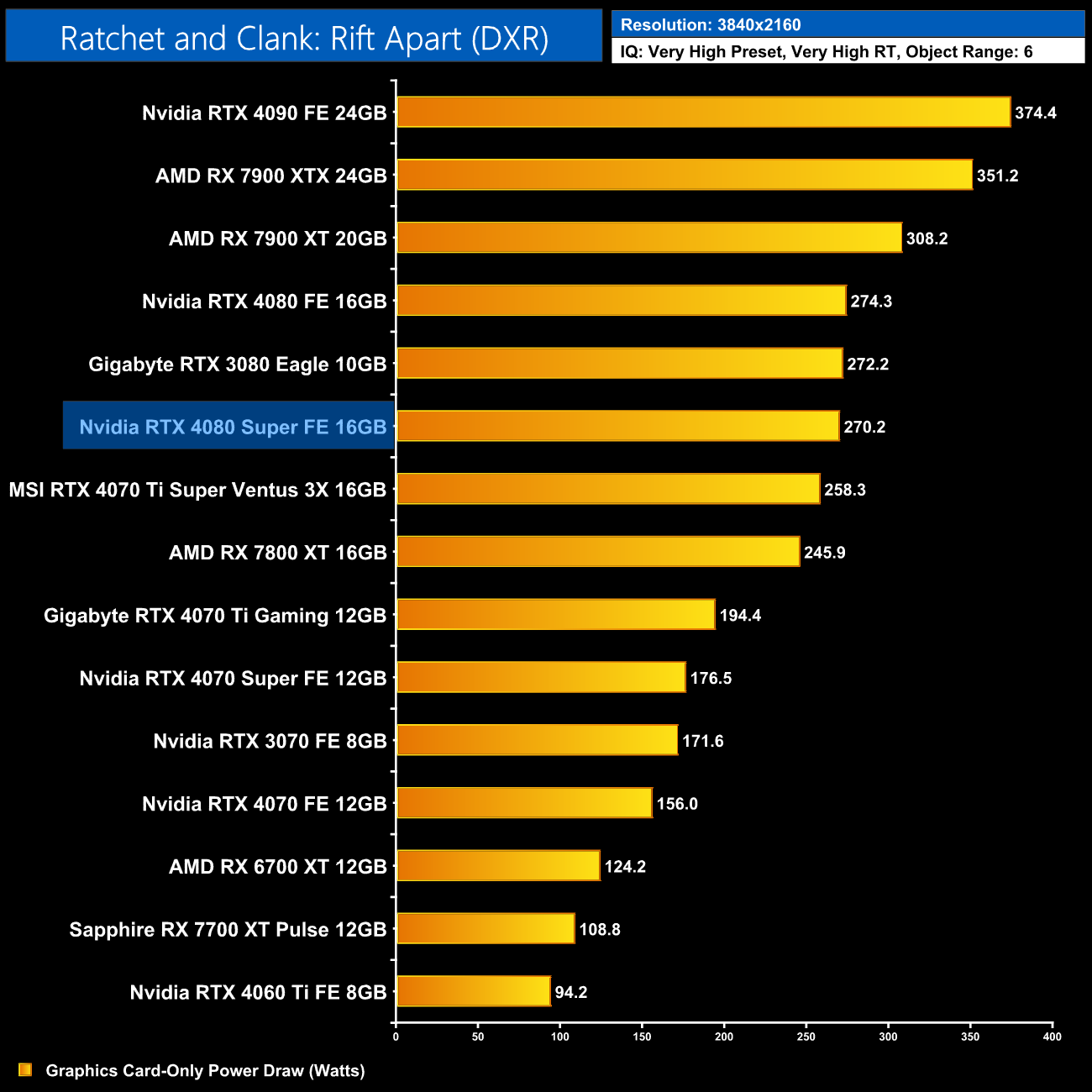

As a bonus, we now include the power figures for all six games we test with ray tracing enabled.

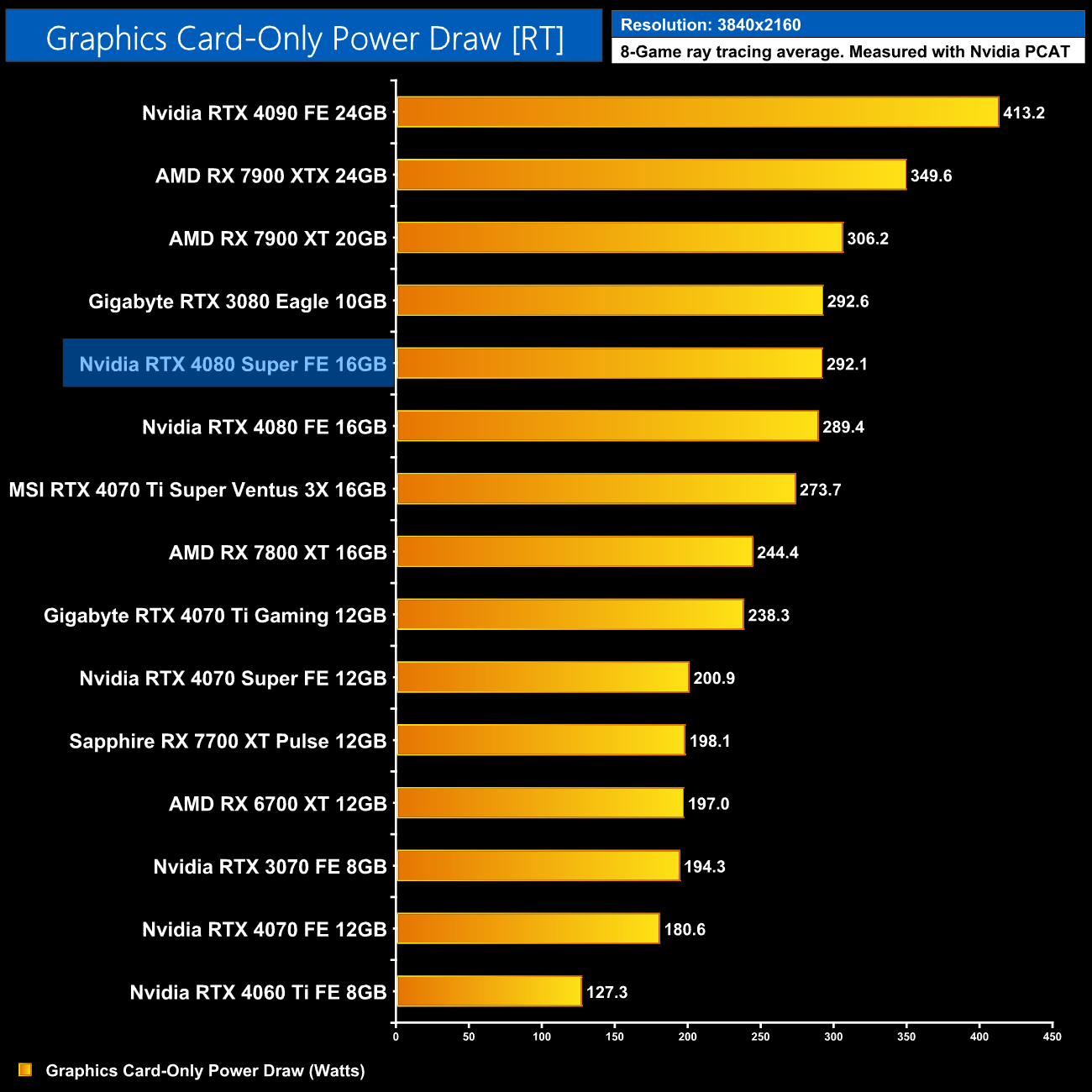

8-Game ray tracing average:
