Using the graphics card-only power draw figures presented earlier in the review, here we present performance per Watt on a per-game basis for all twelve games we tested at 1440p.

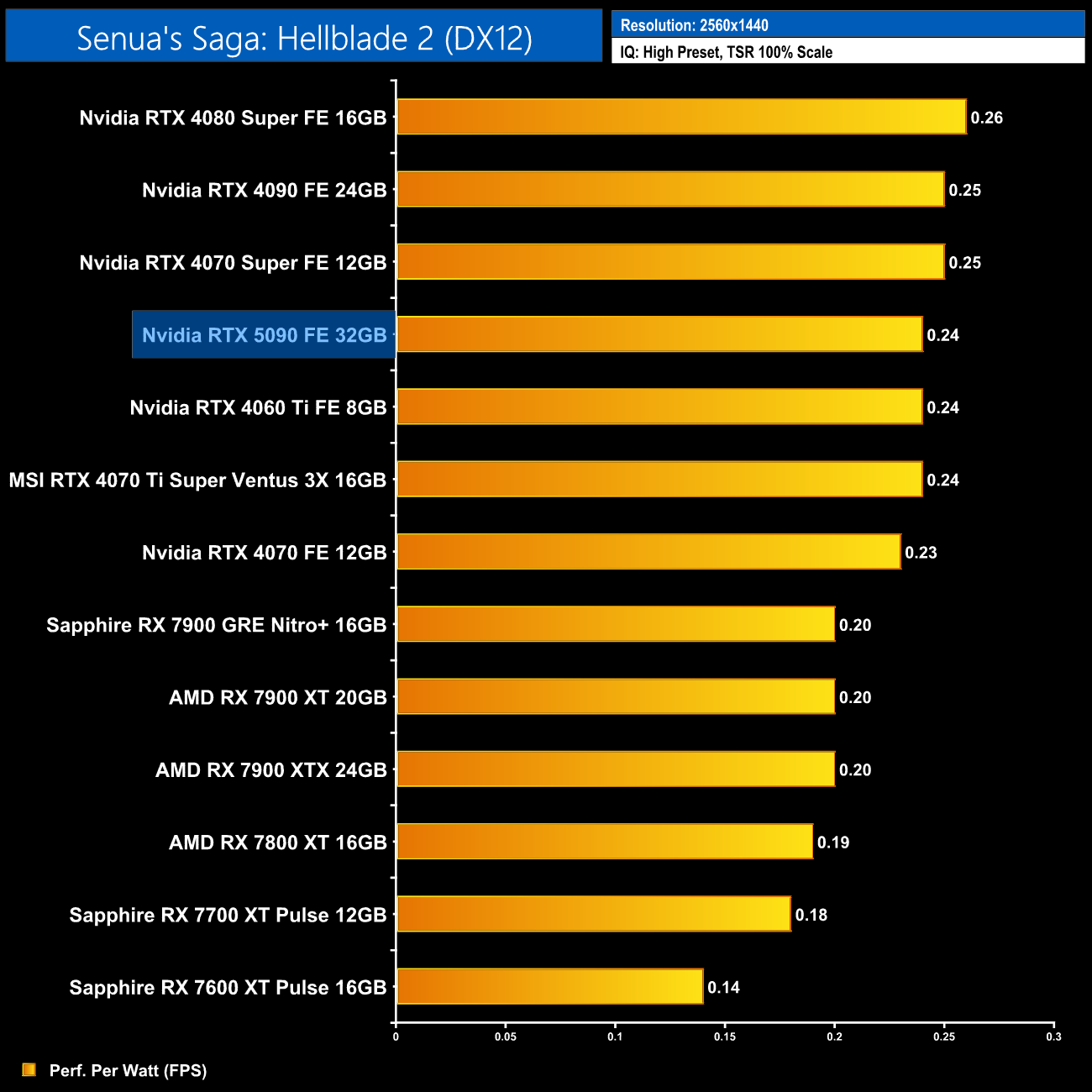

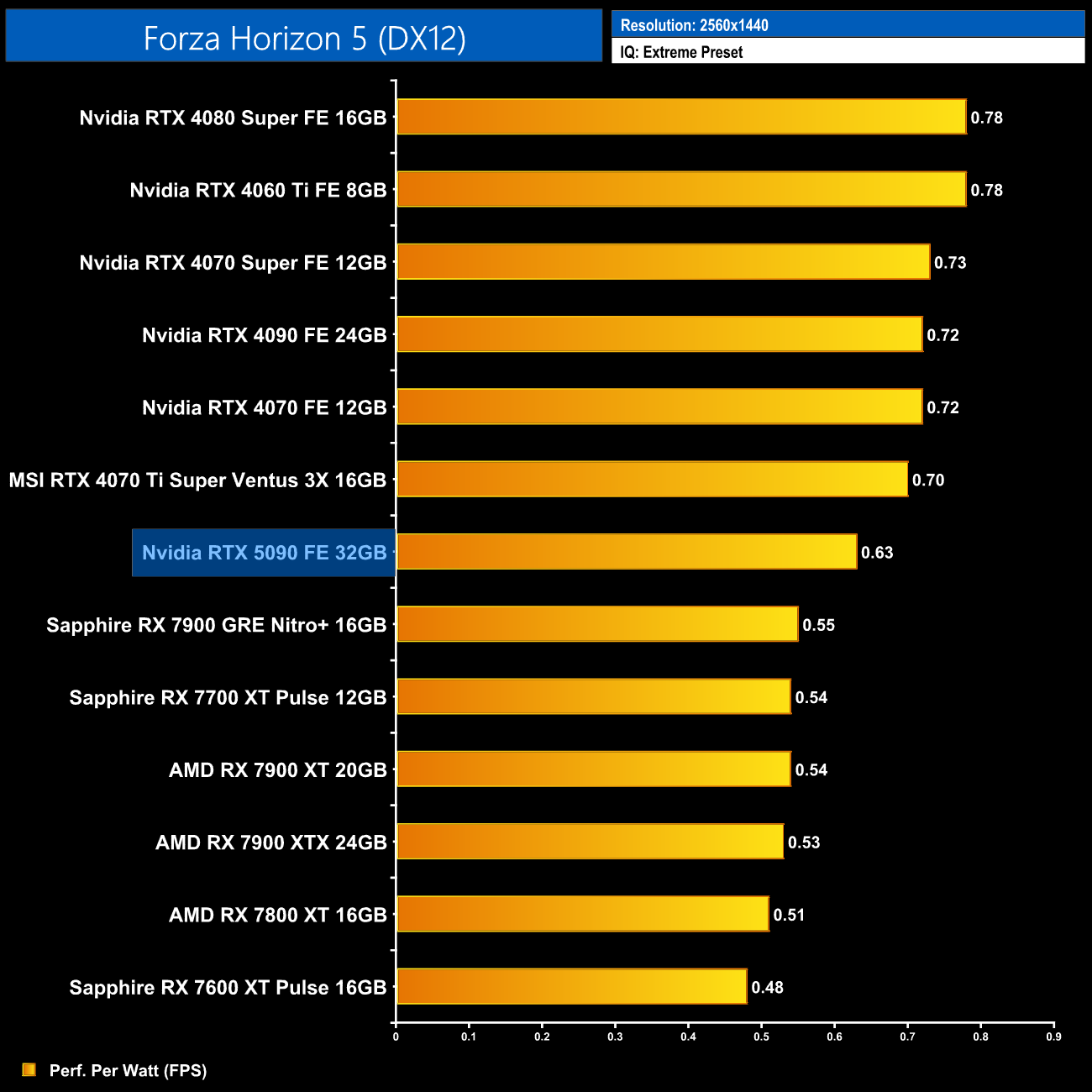

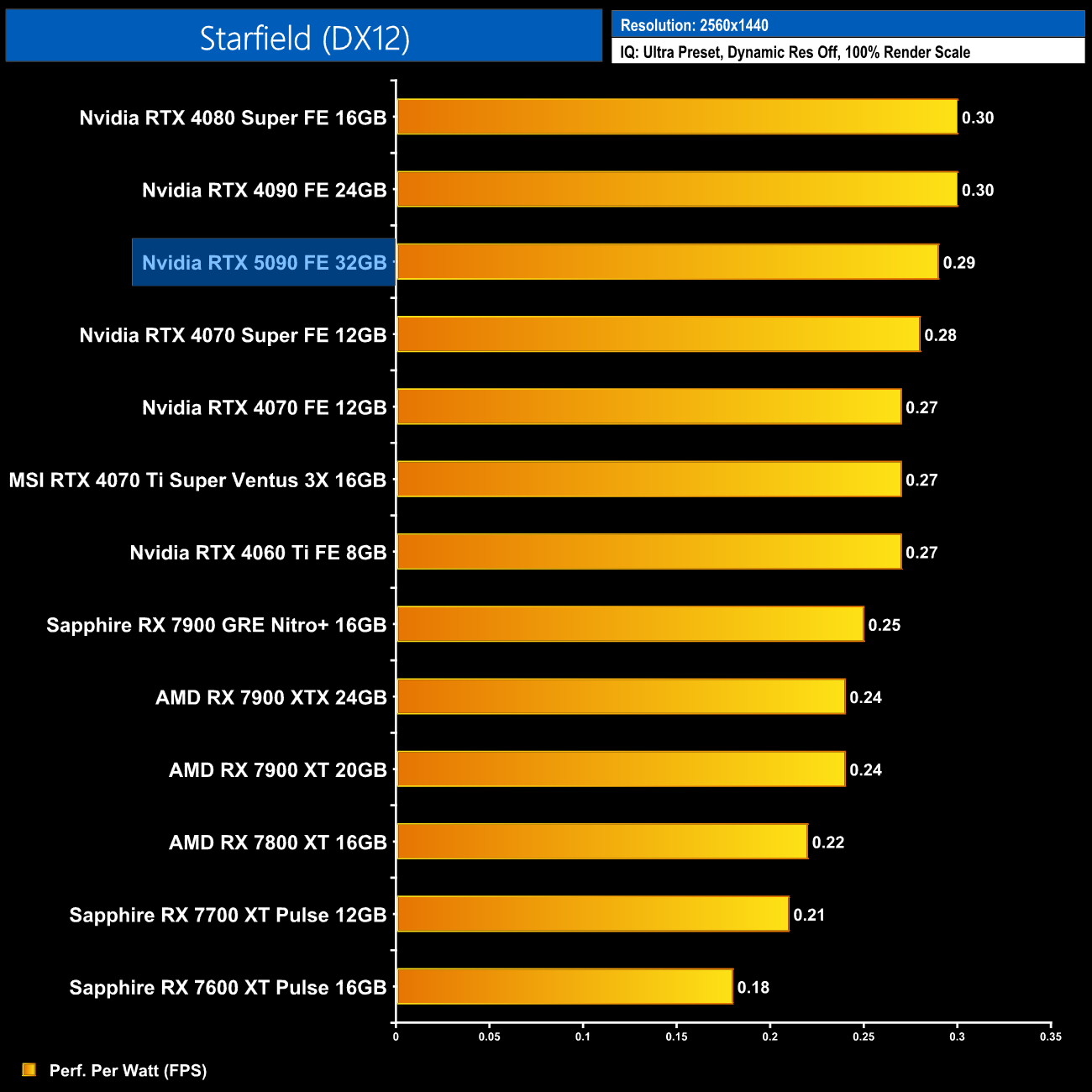

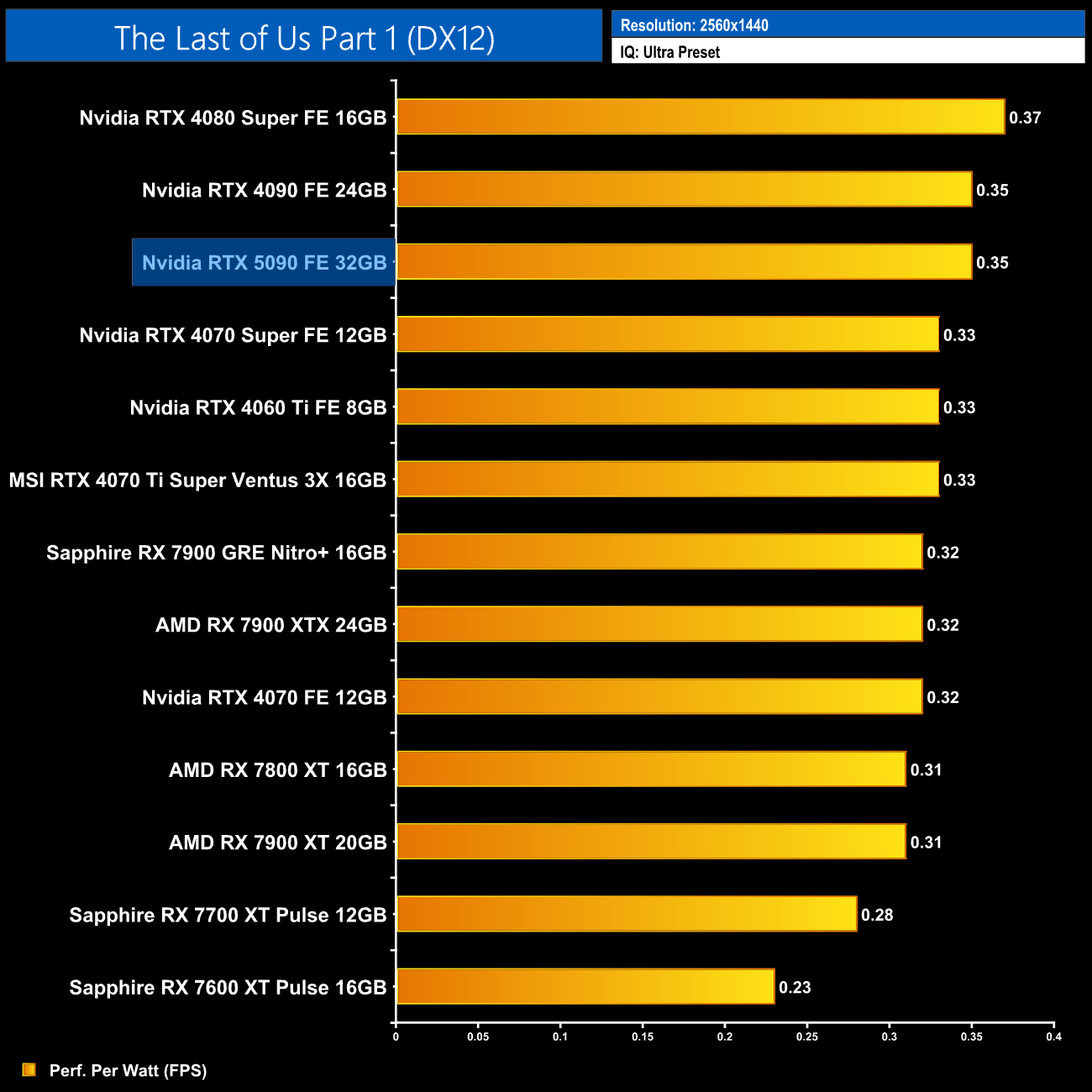

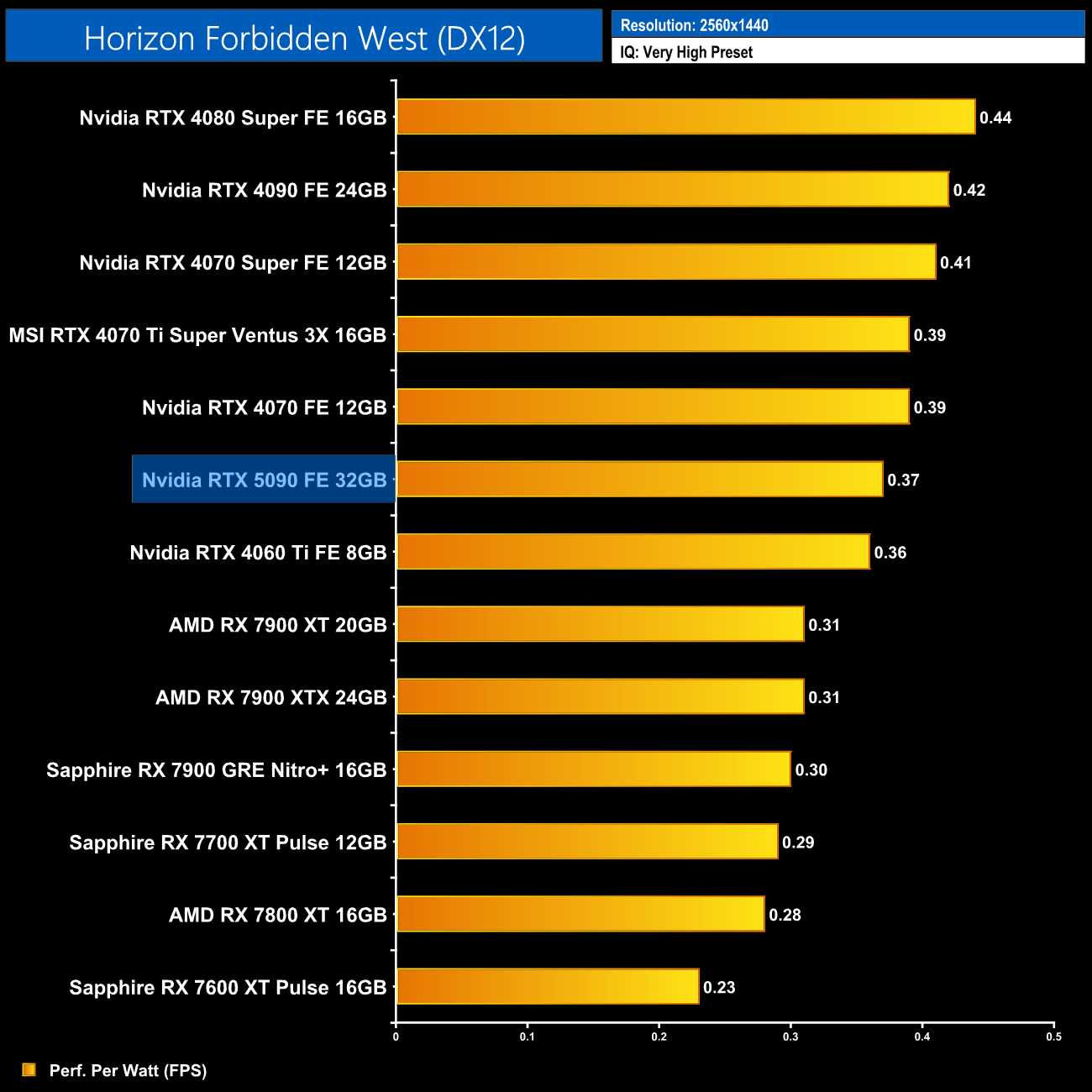

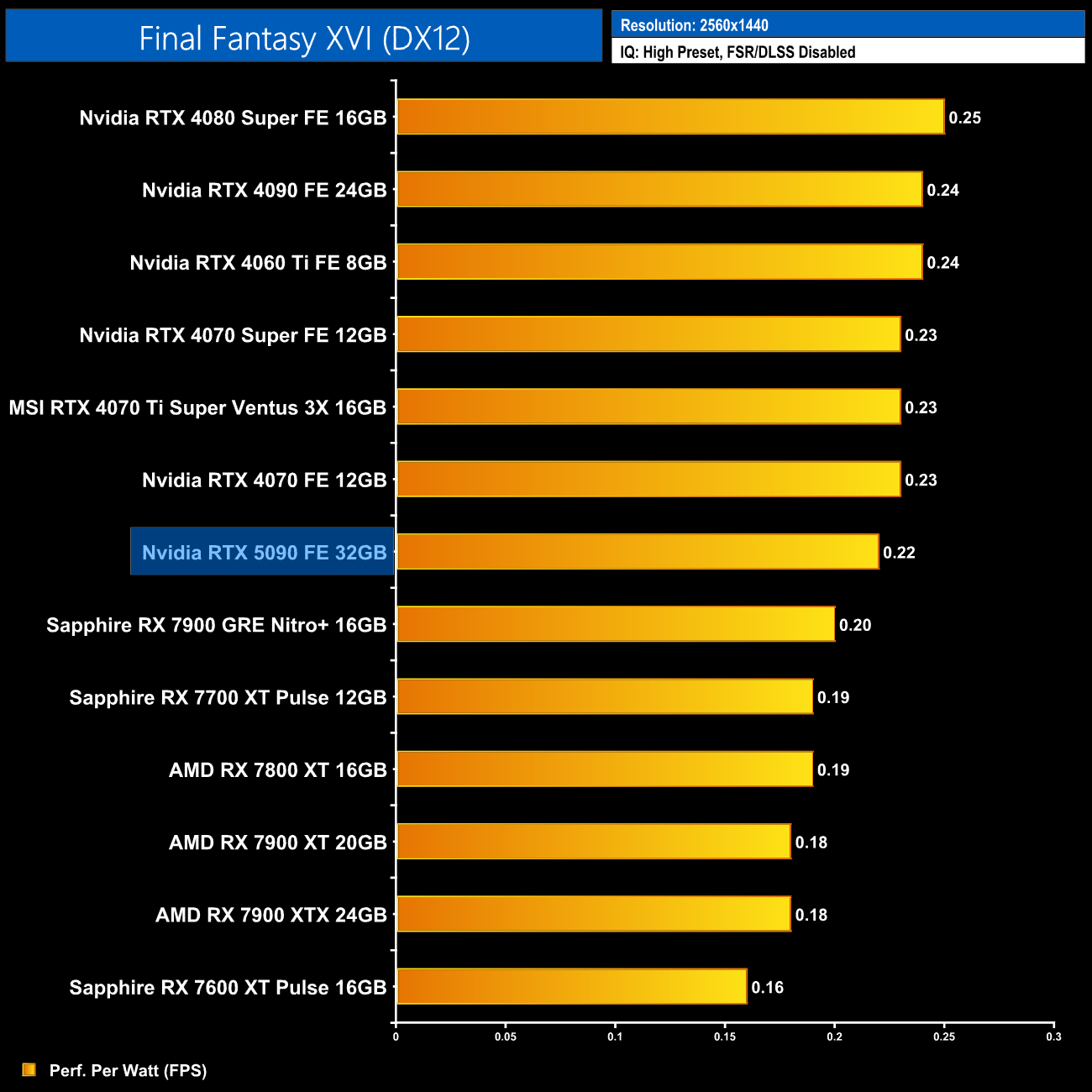

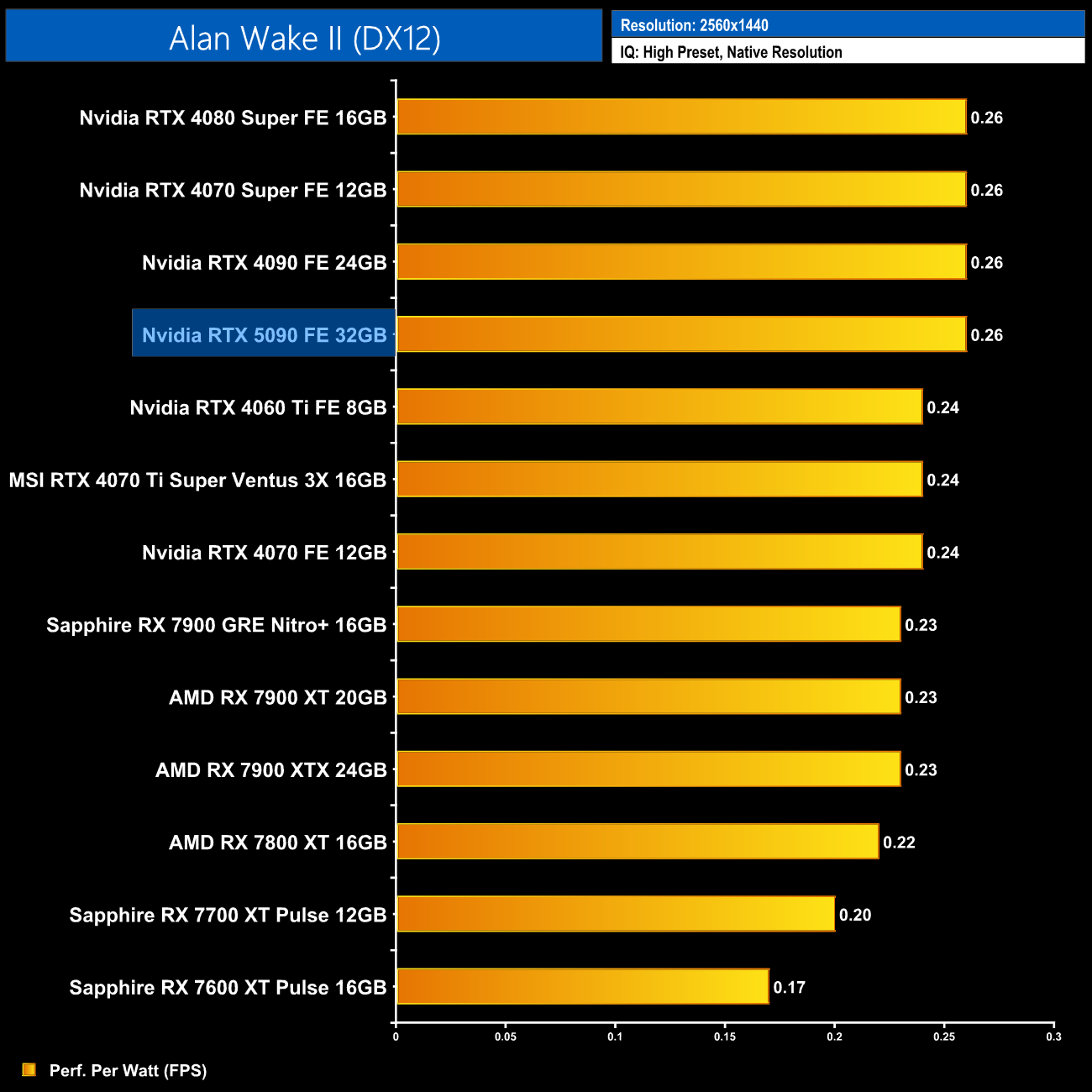

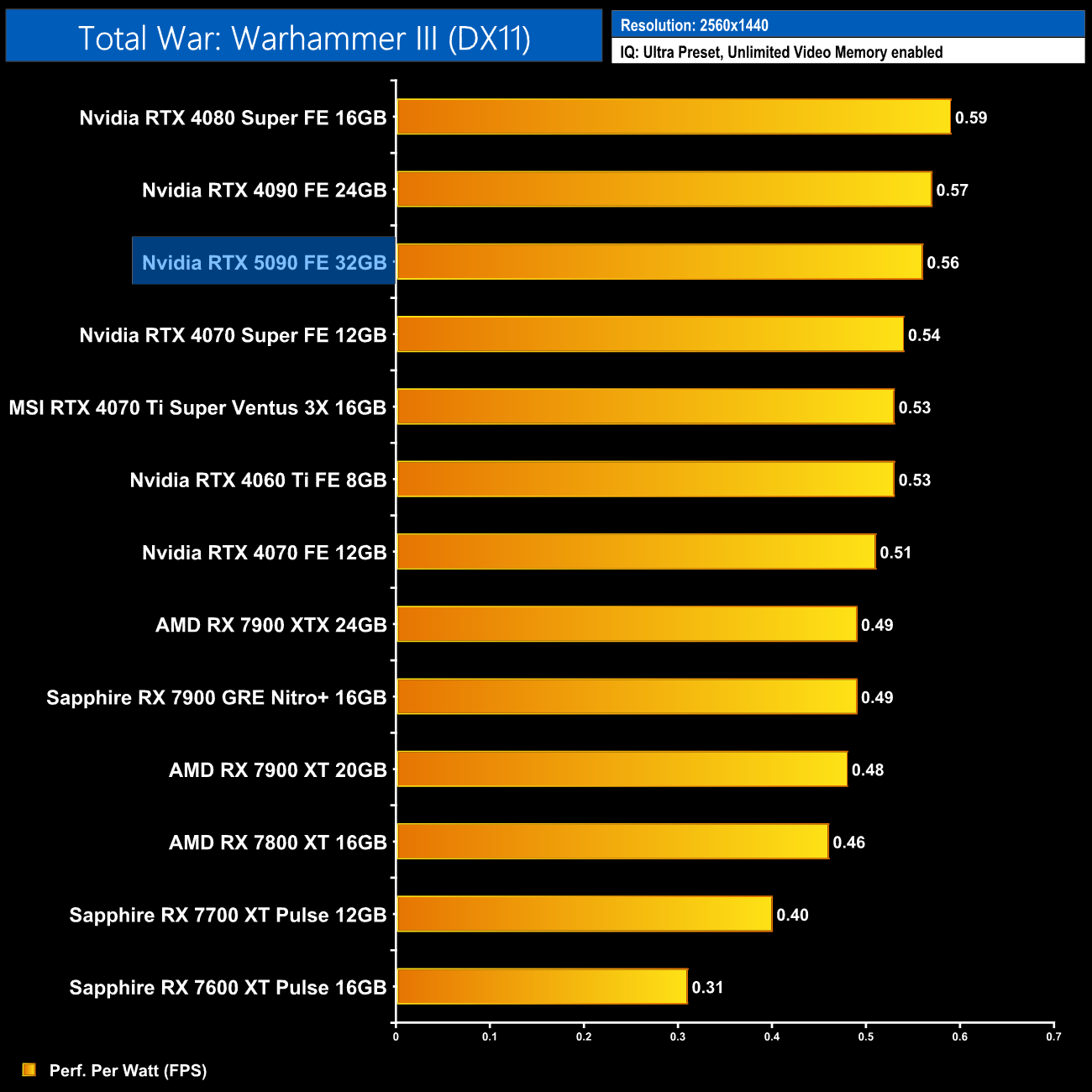

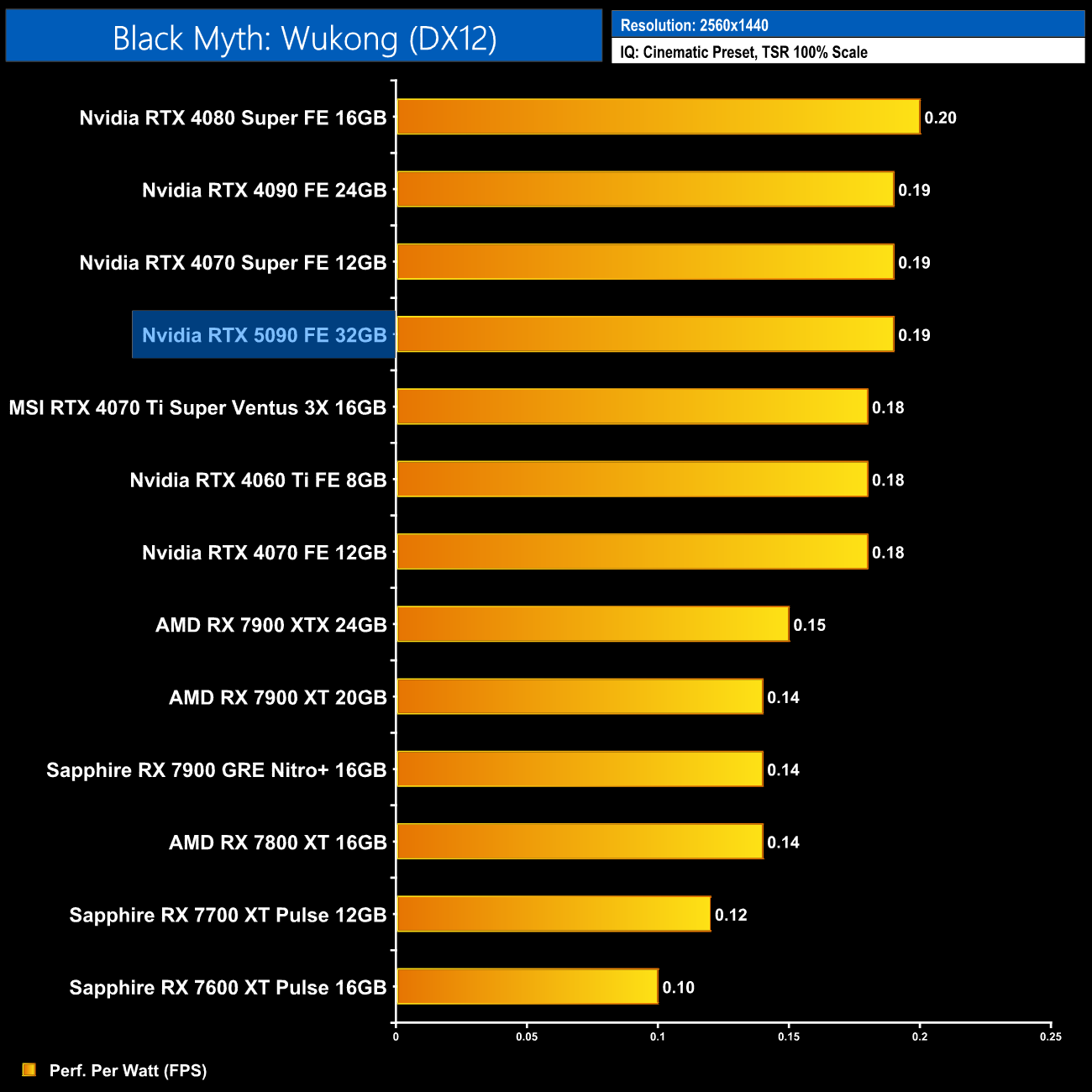

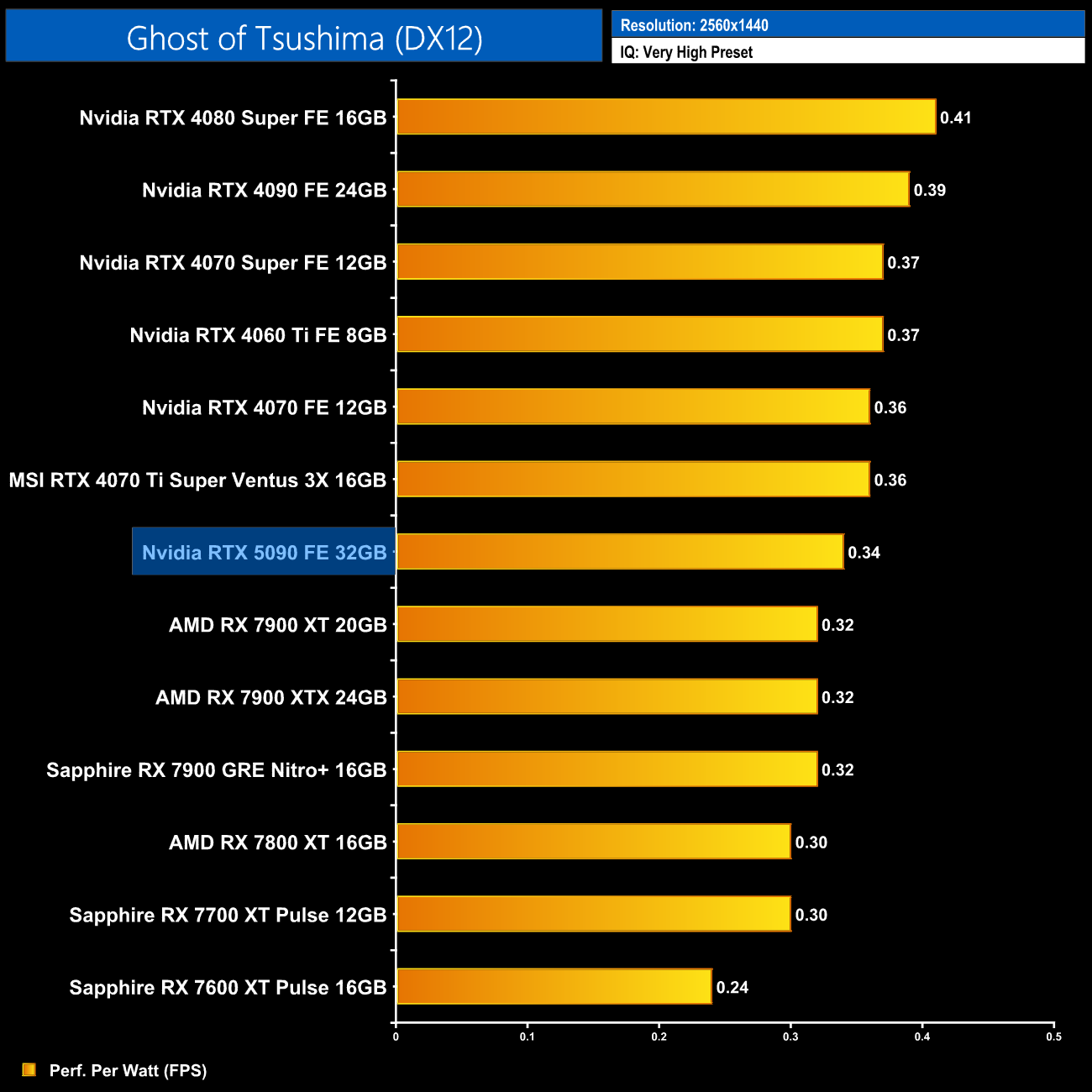

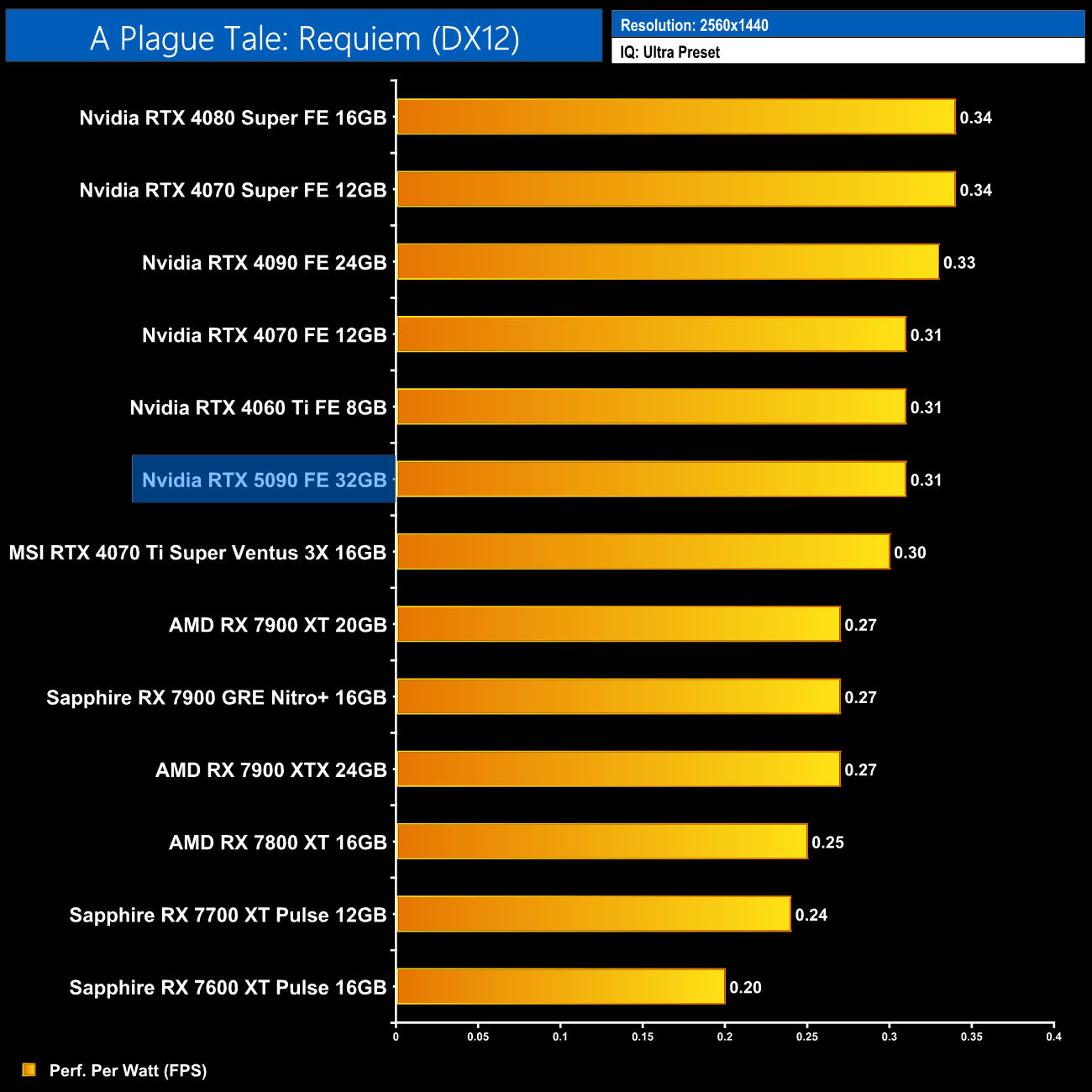

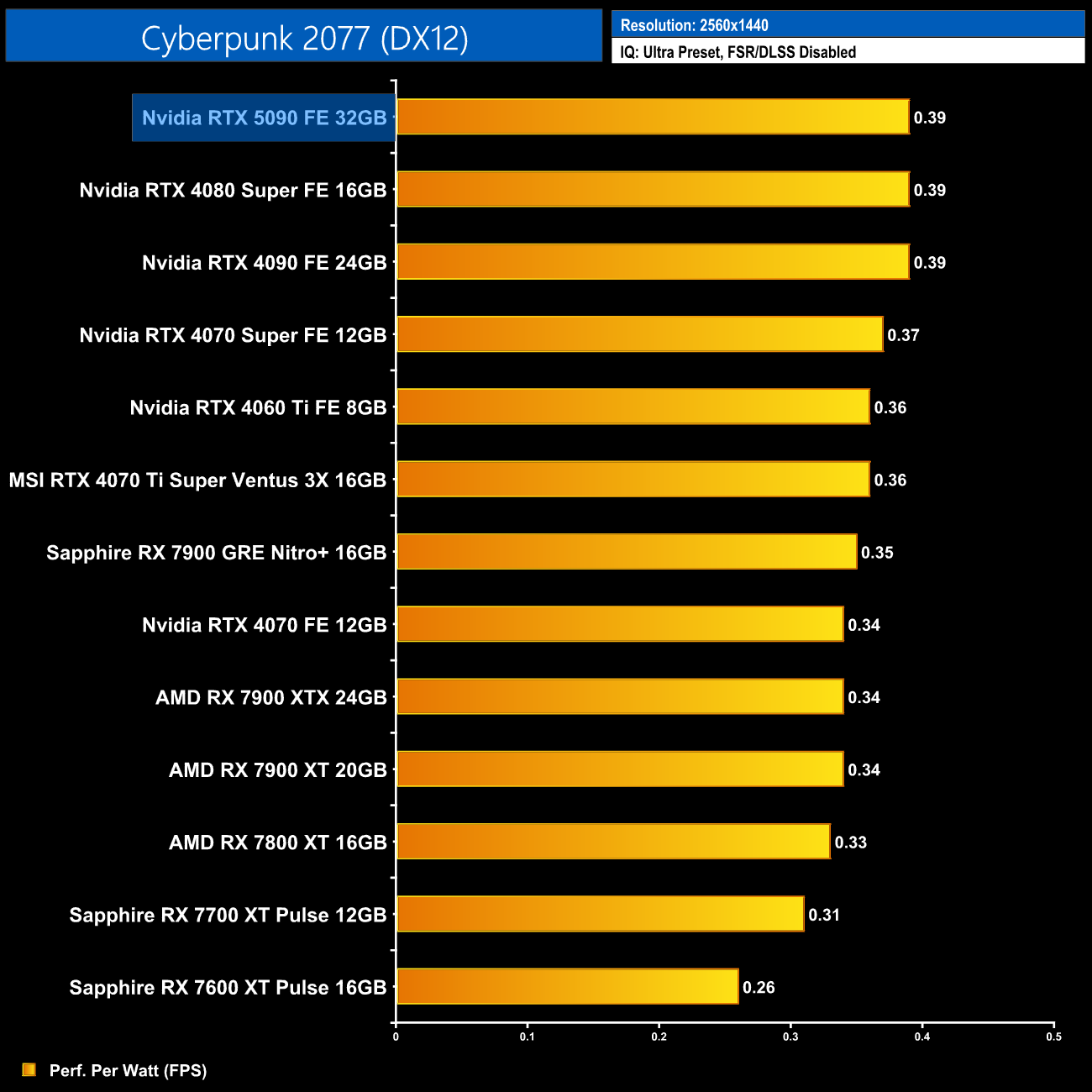

Per-Game Results at 1440p:

Click to enlarge.

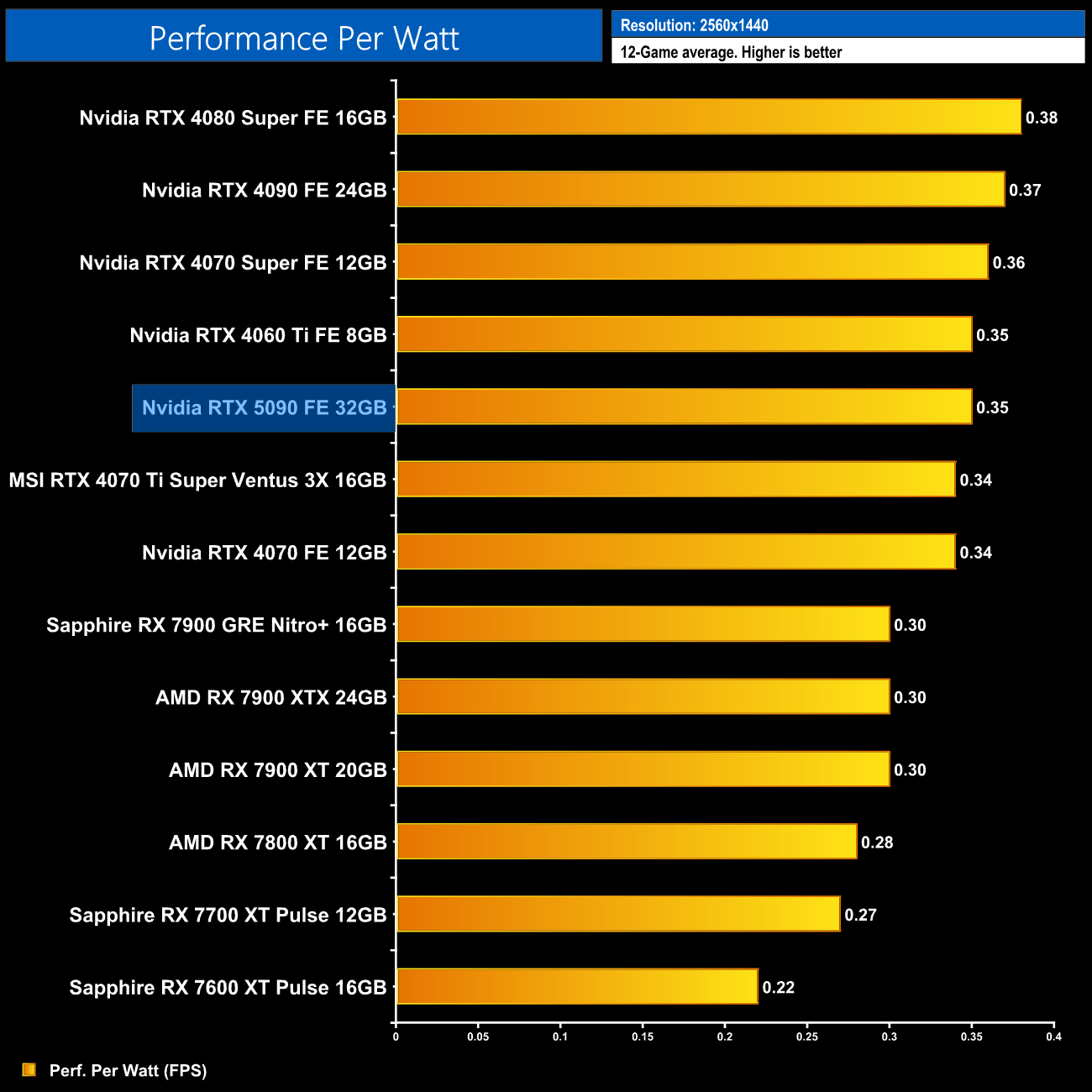

12-Game Average at 1440p:

At 1440p, we can see performance per Watt is on par with the RTX 4060 Ti, but slightly behind the RTX 4090. Compared to the RTX 4080 Super, it marks an 8% reduction in efficiency which is not something I was expecting to see, especially given Nvidia's usual strong messaging around efficiency and performance per Watt.

Ray tracing results

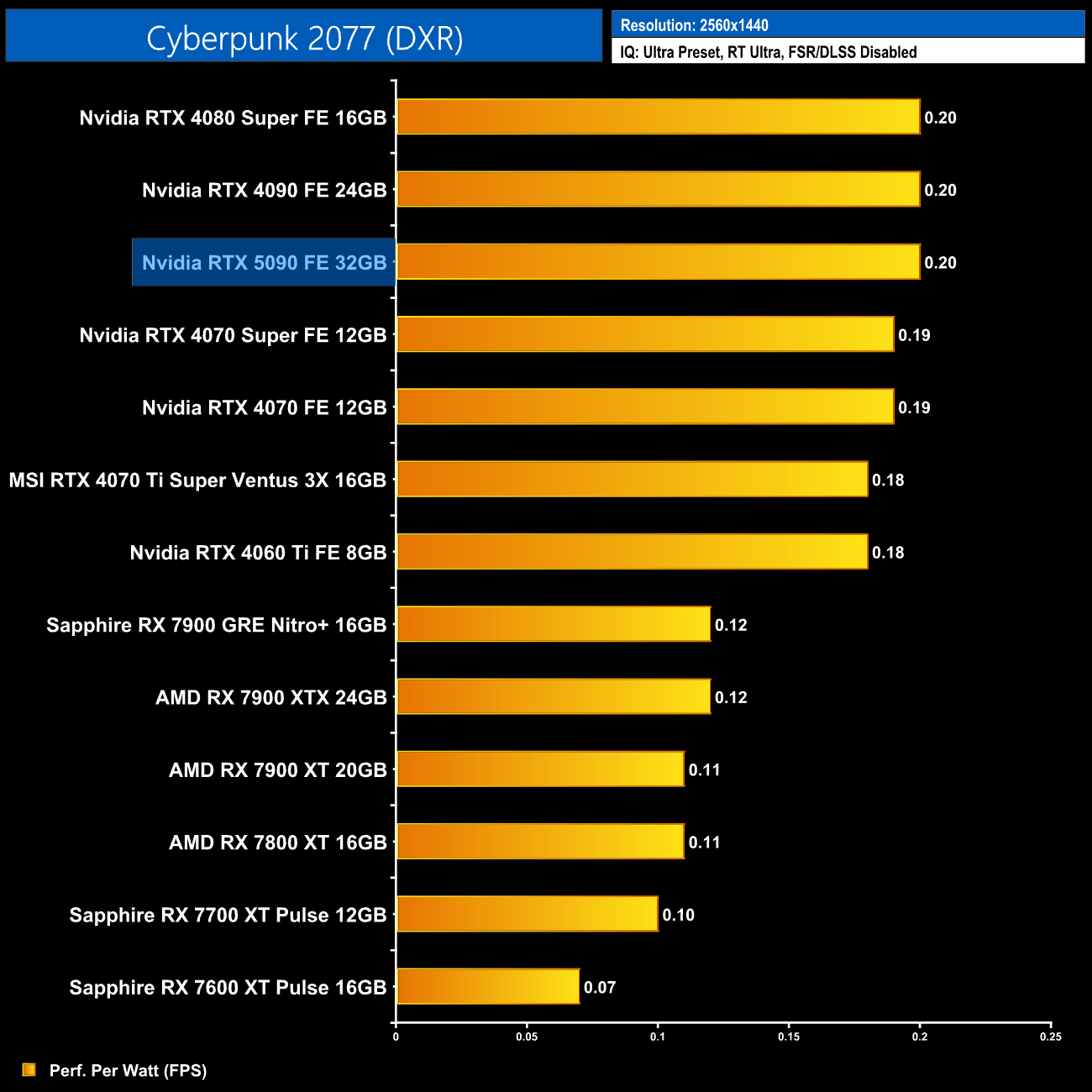

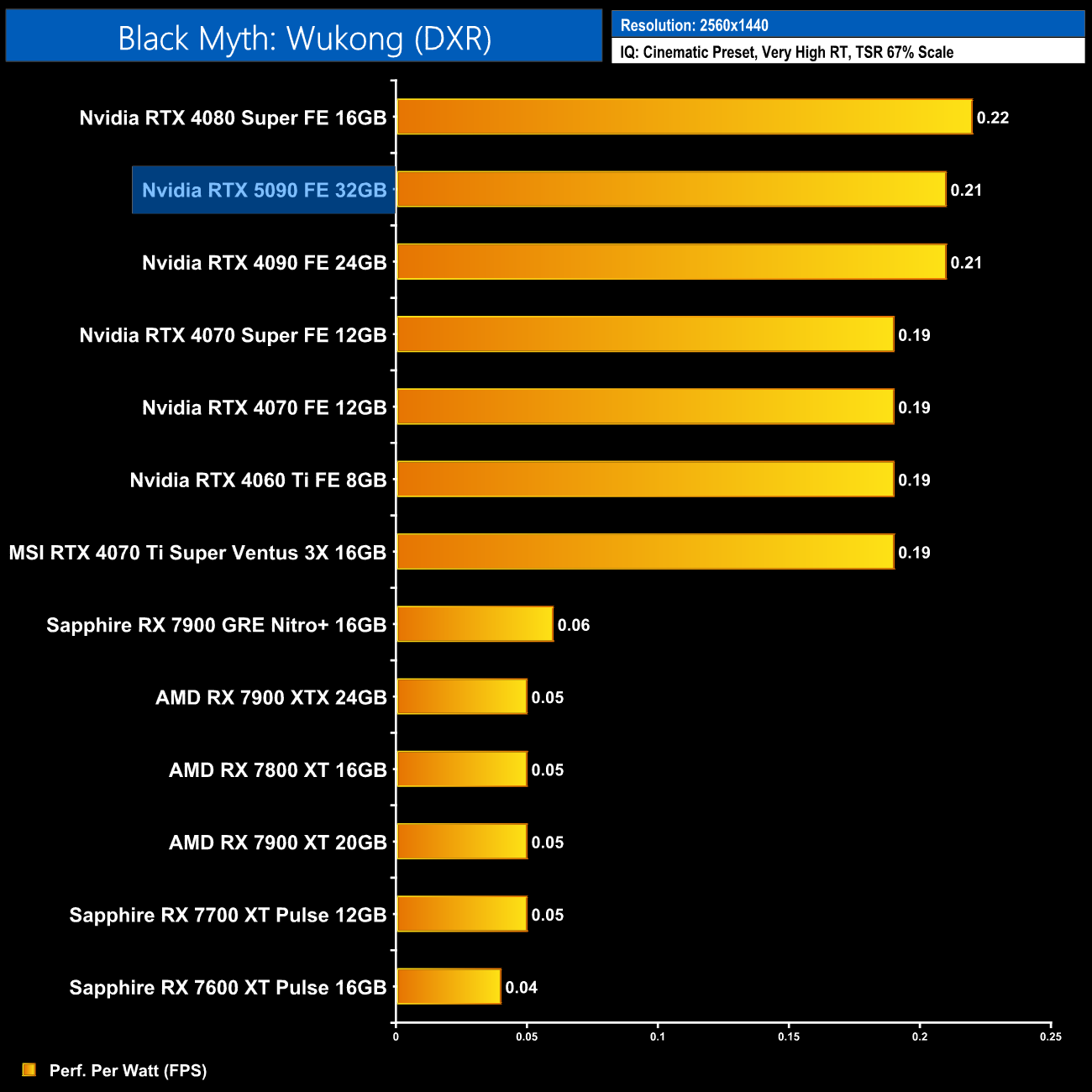

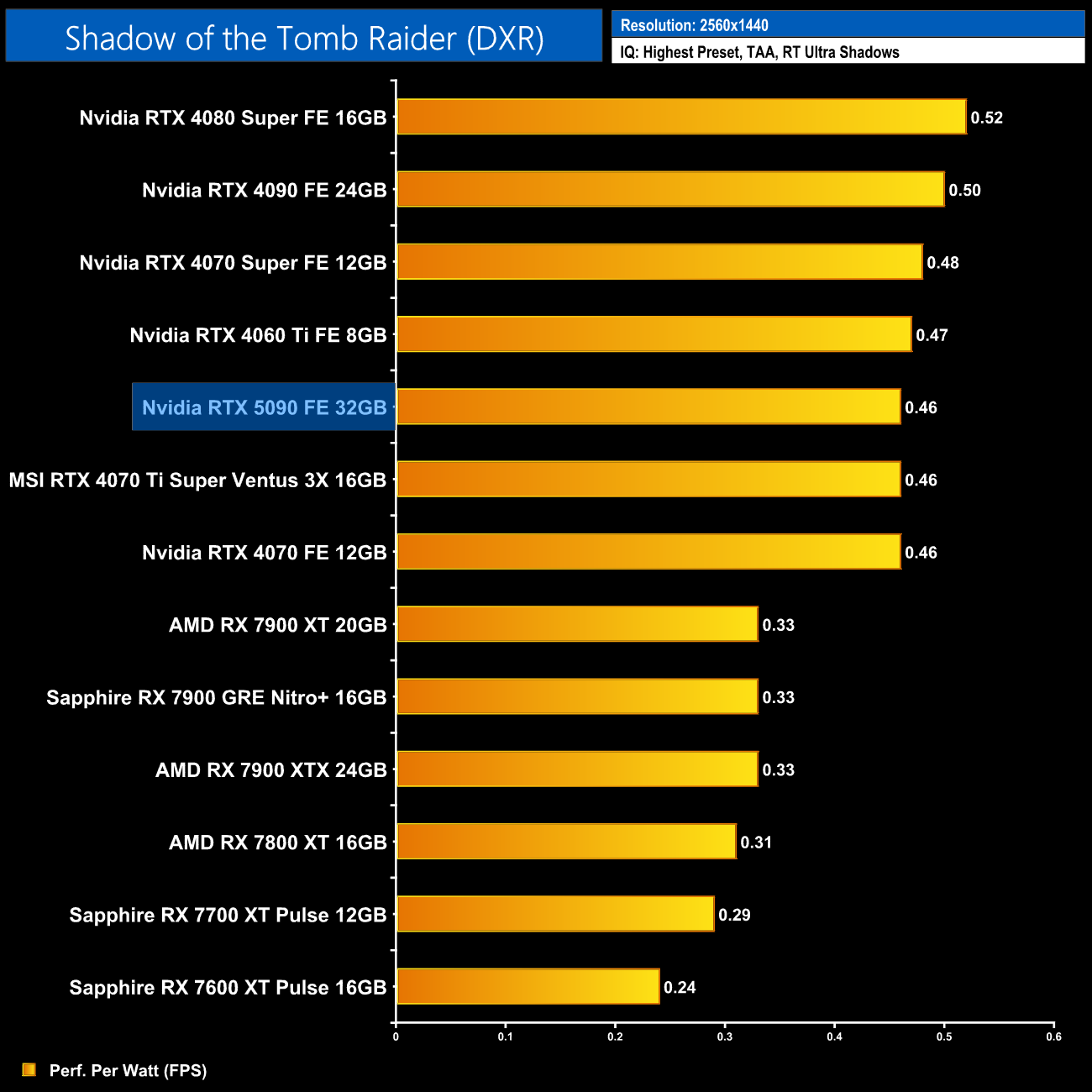

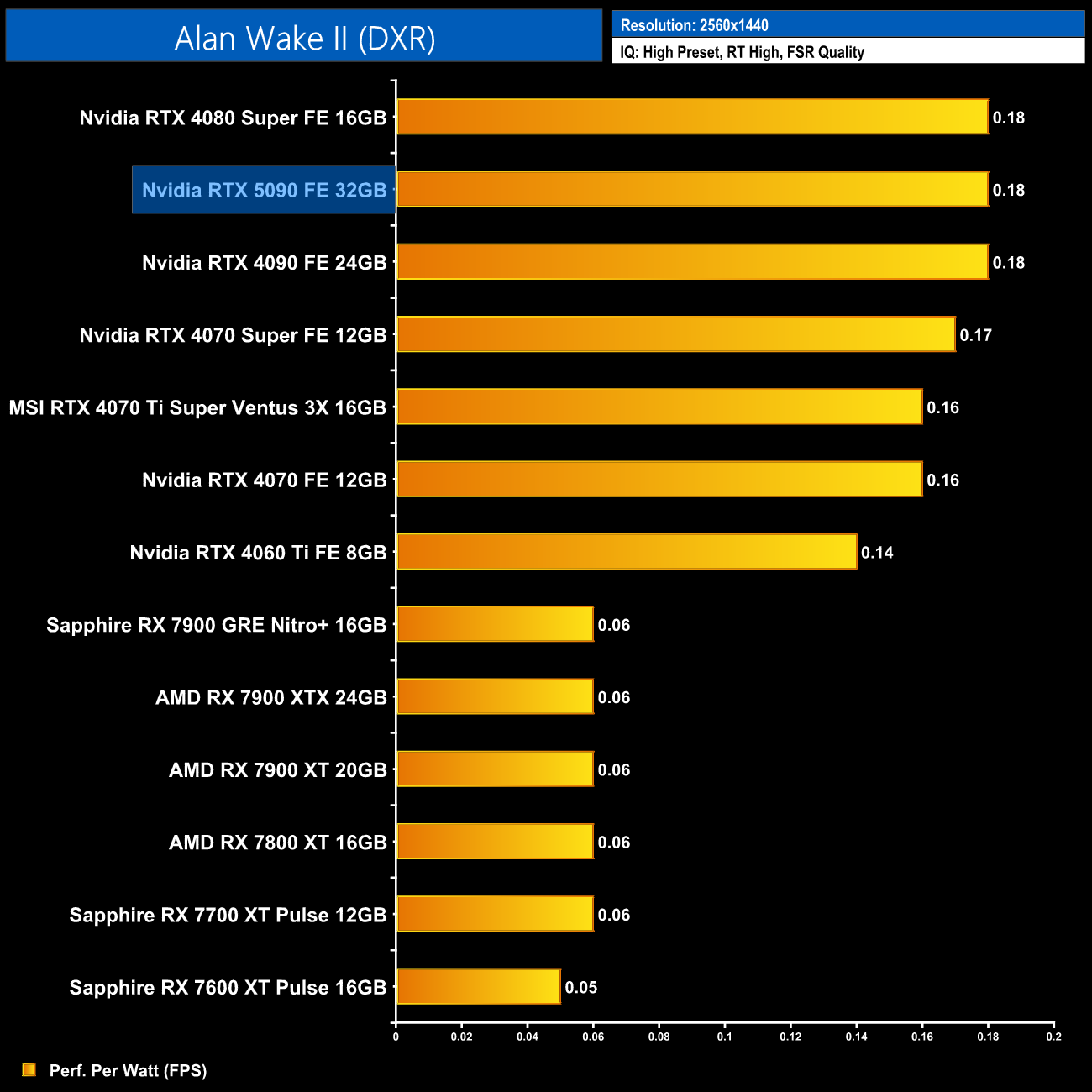

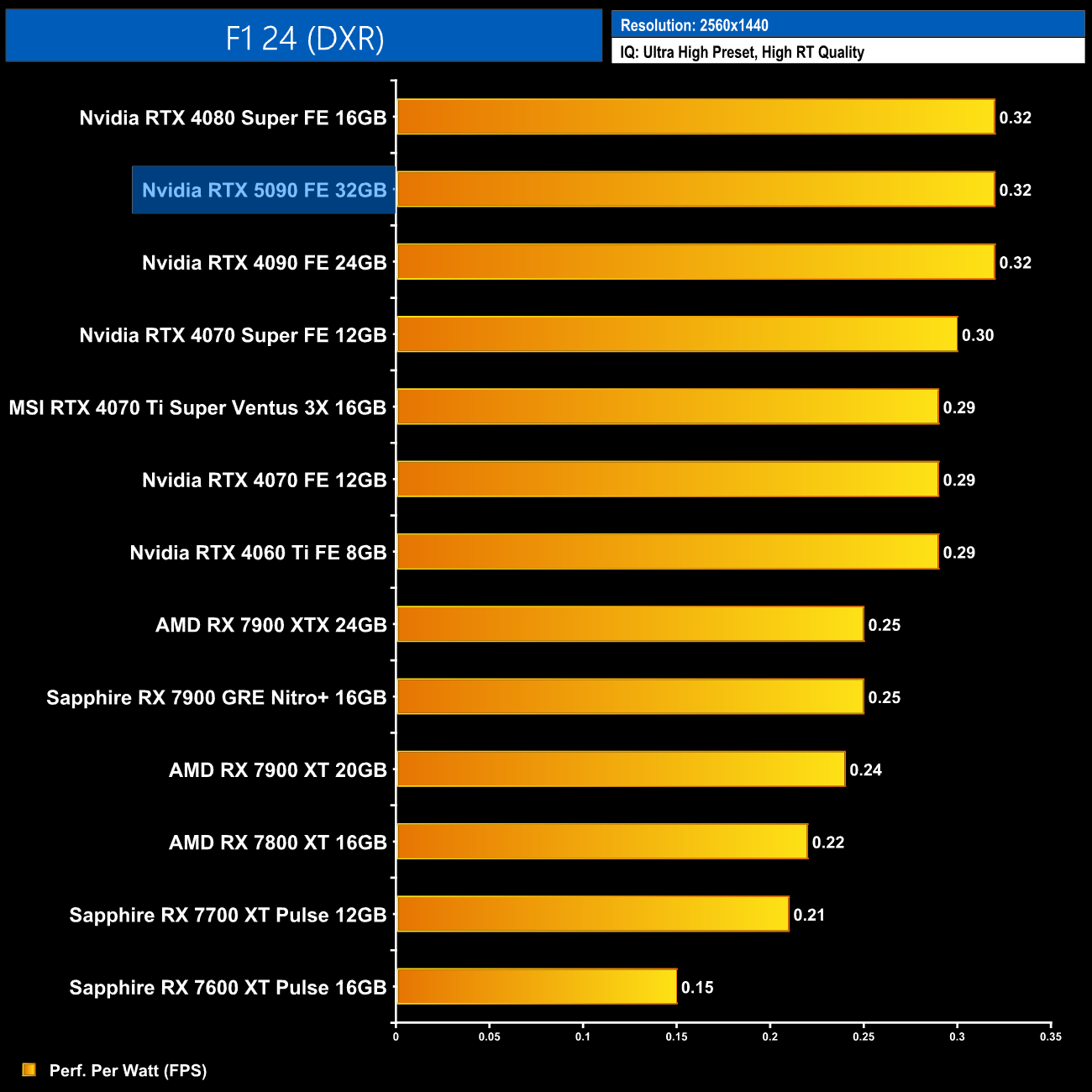

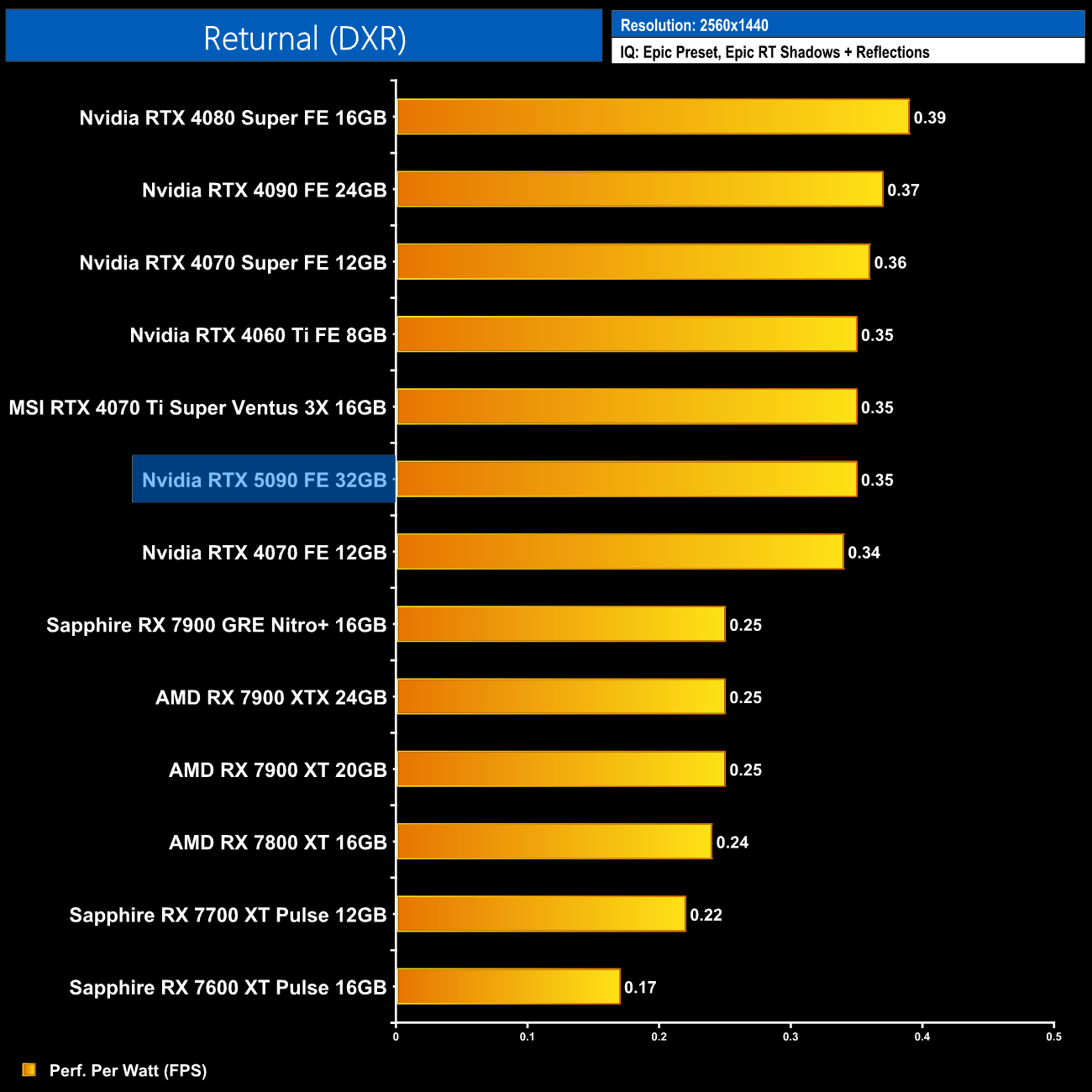

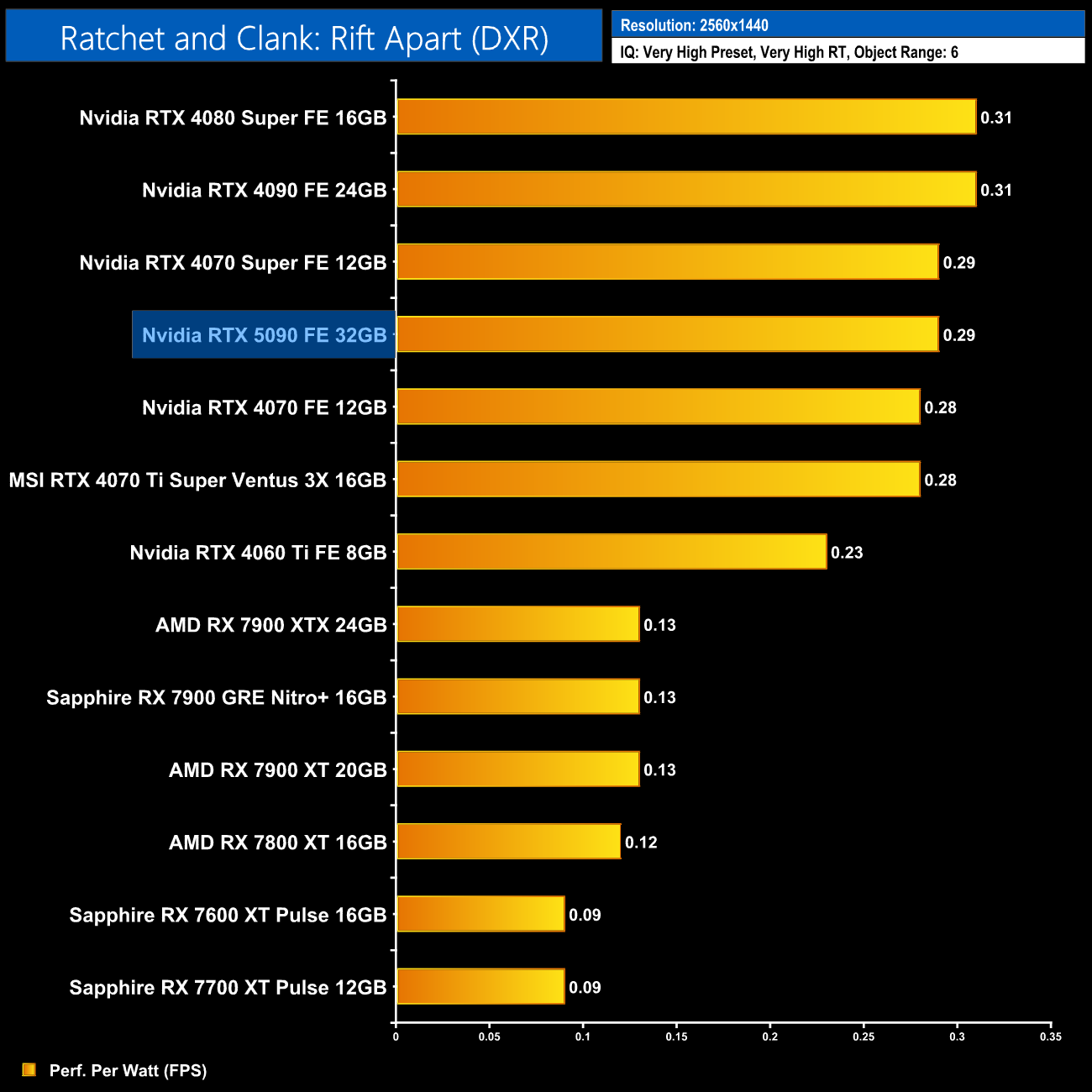

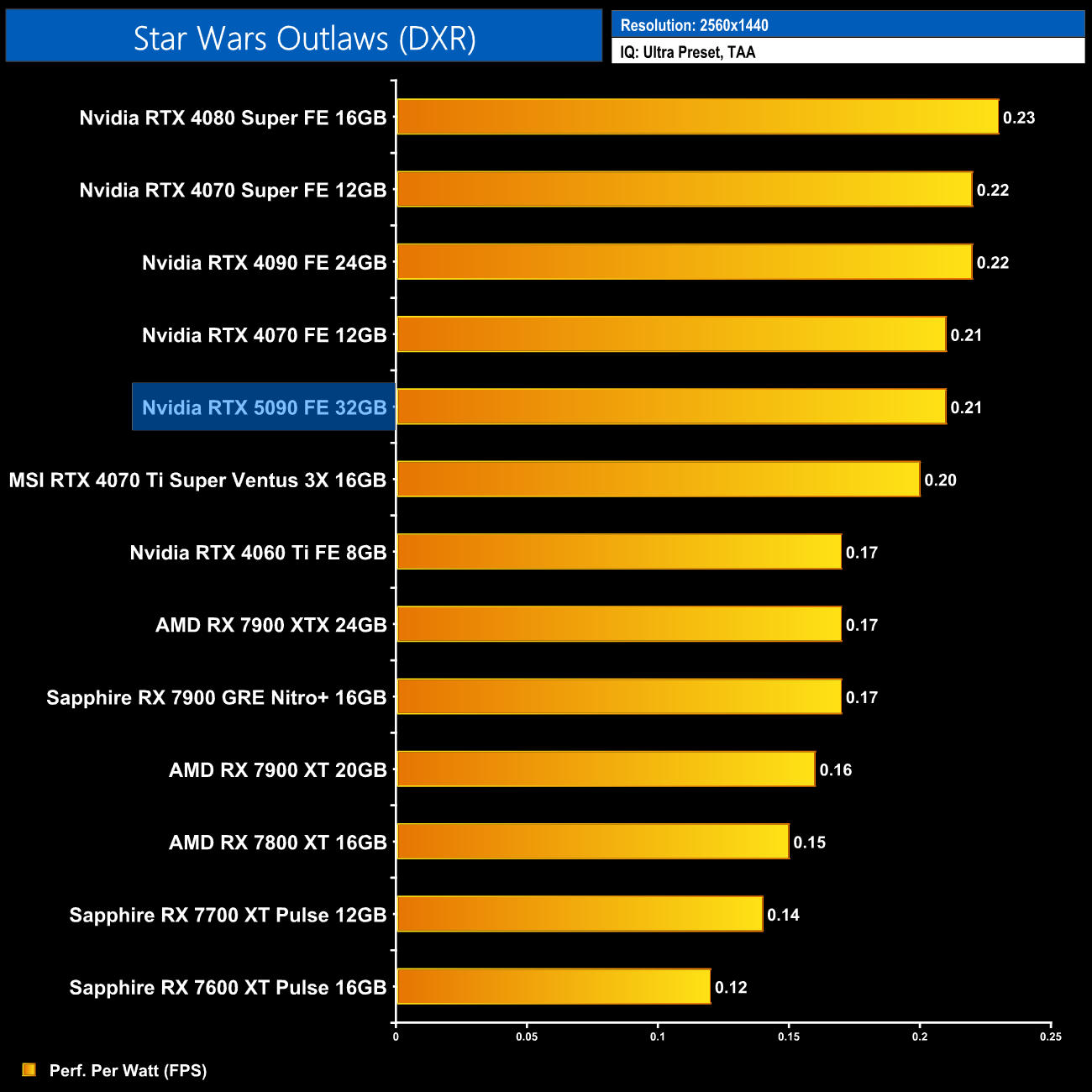

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

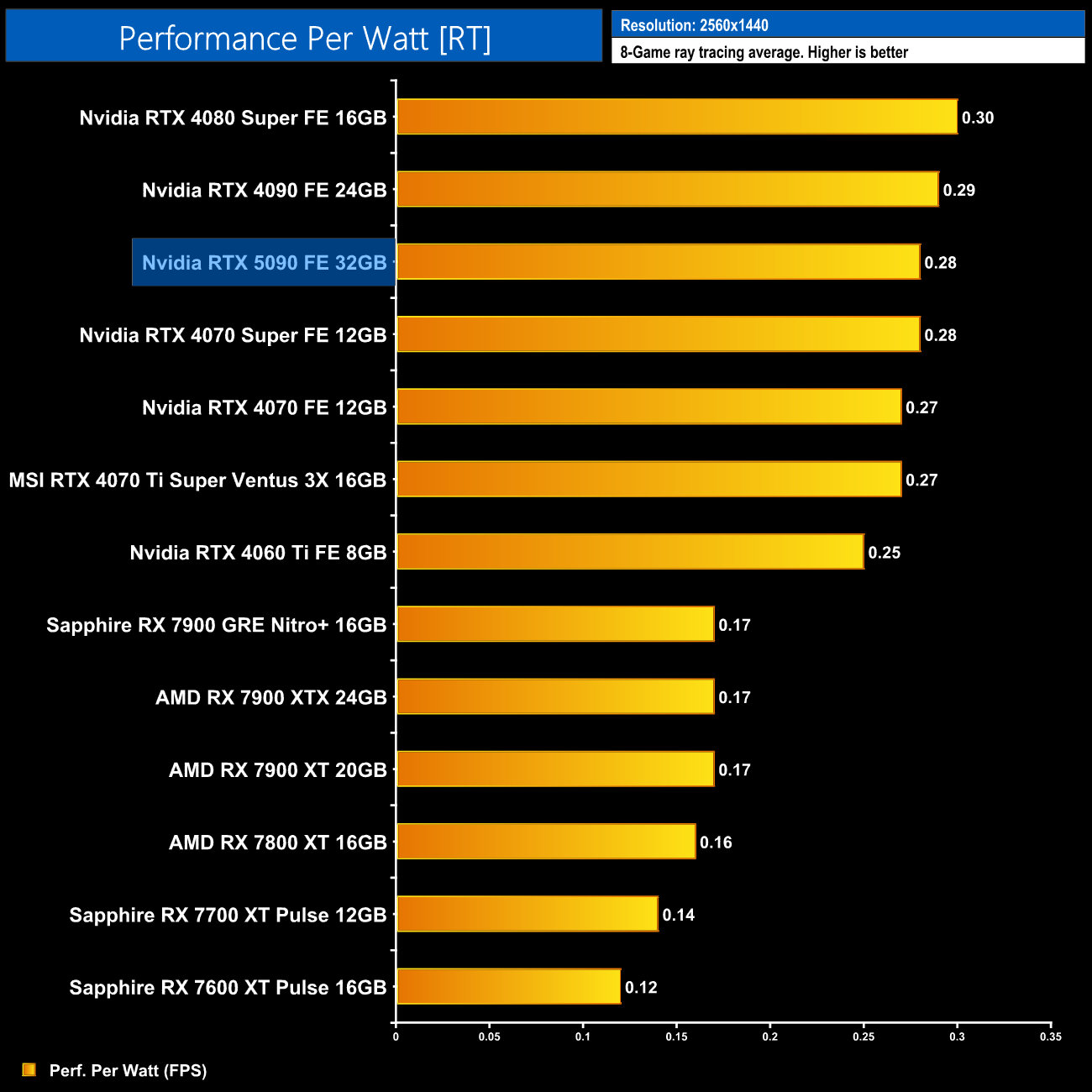

8-Game ray tracing average:

It's much the same at 1440p with RT enabled. The 4080 Super remains the most efficient GPU we've tested.
