Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1080p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

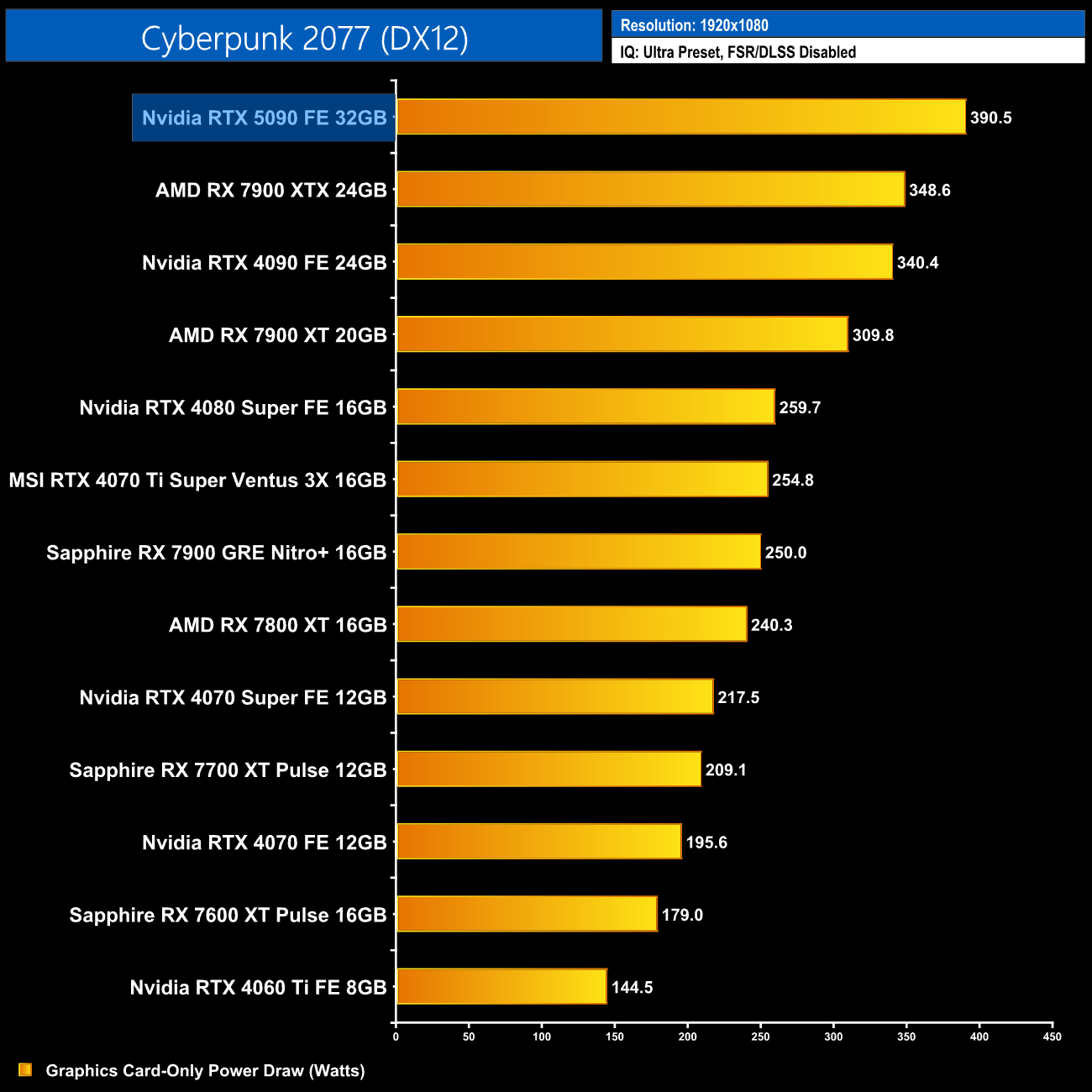

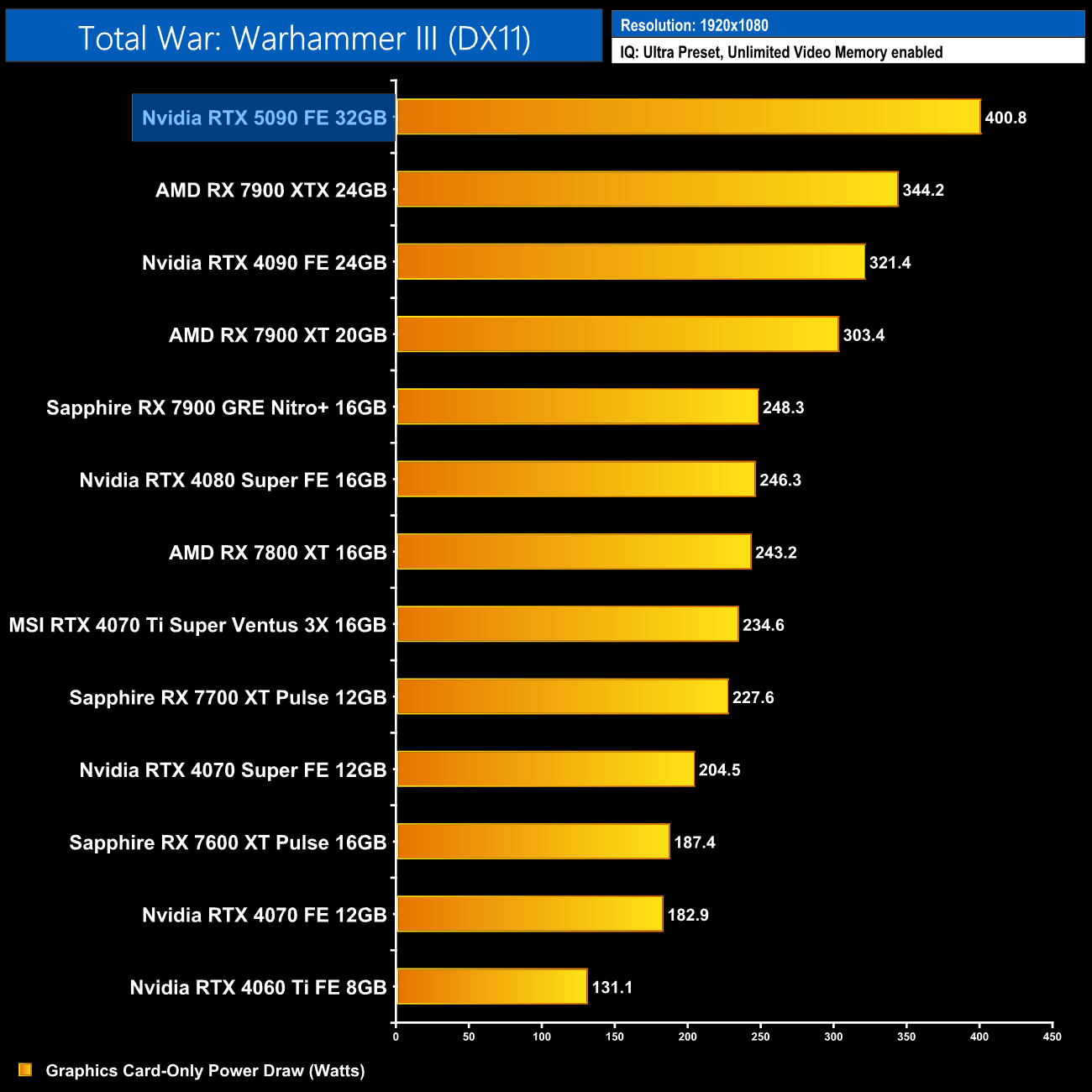

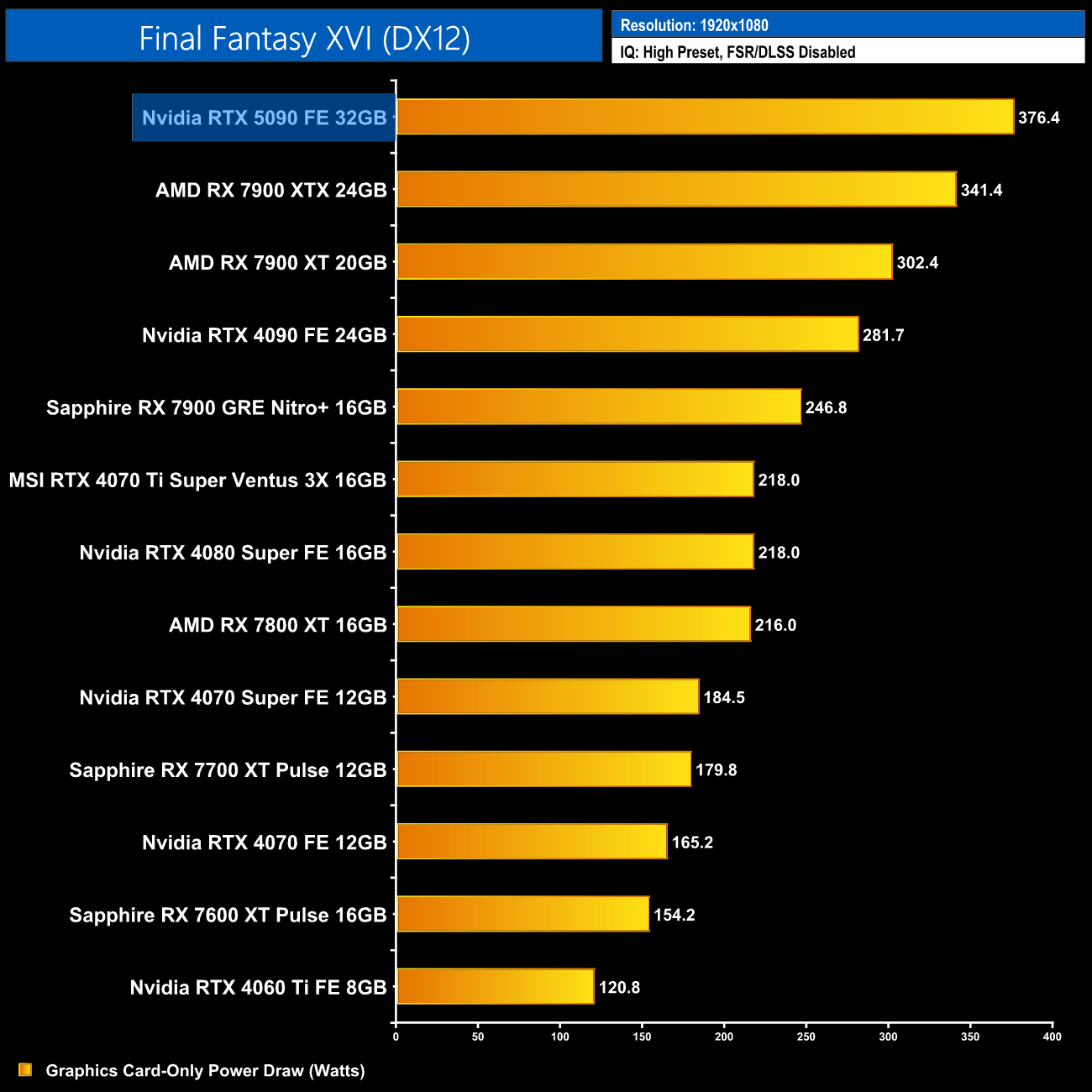

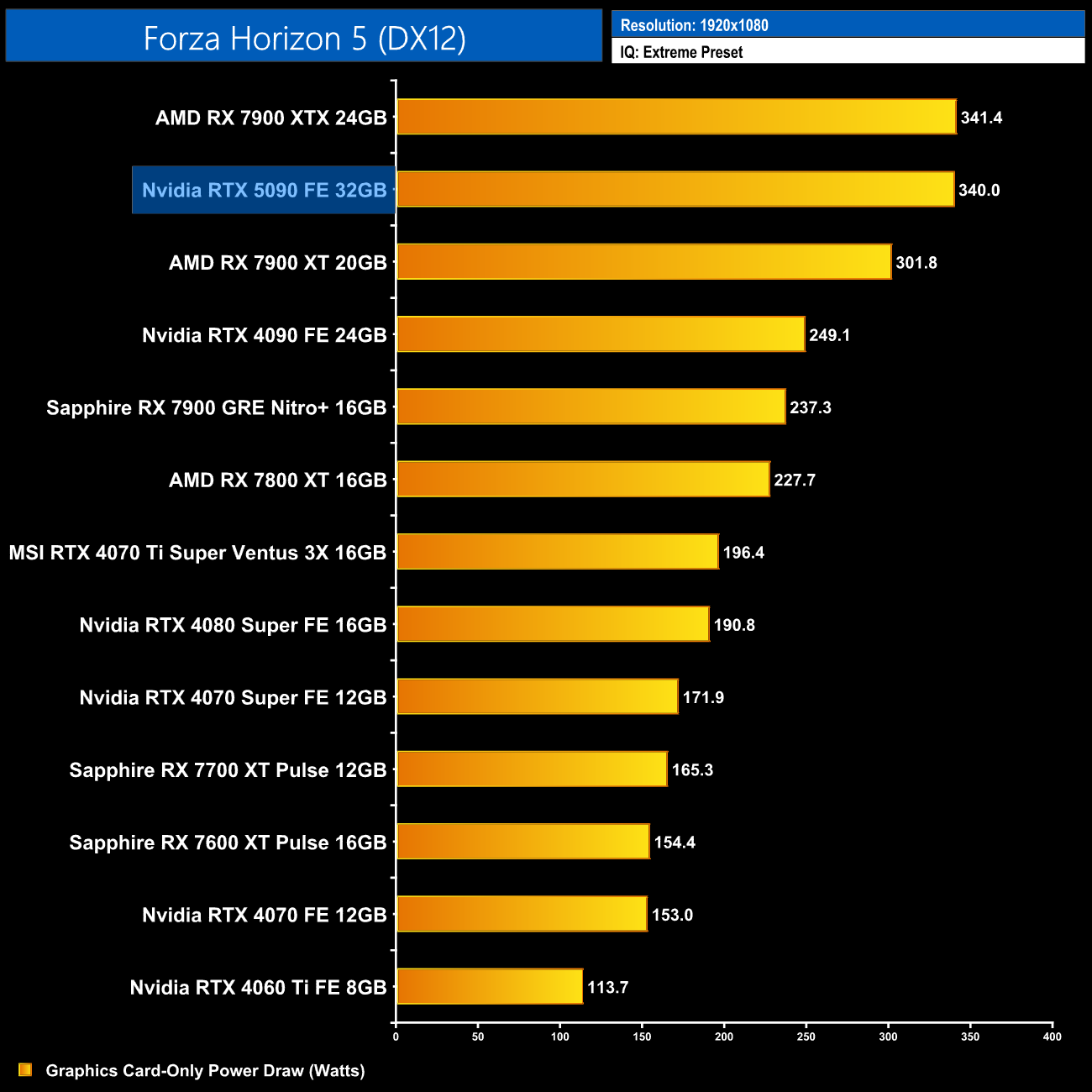

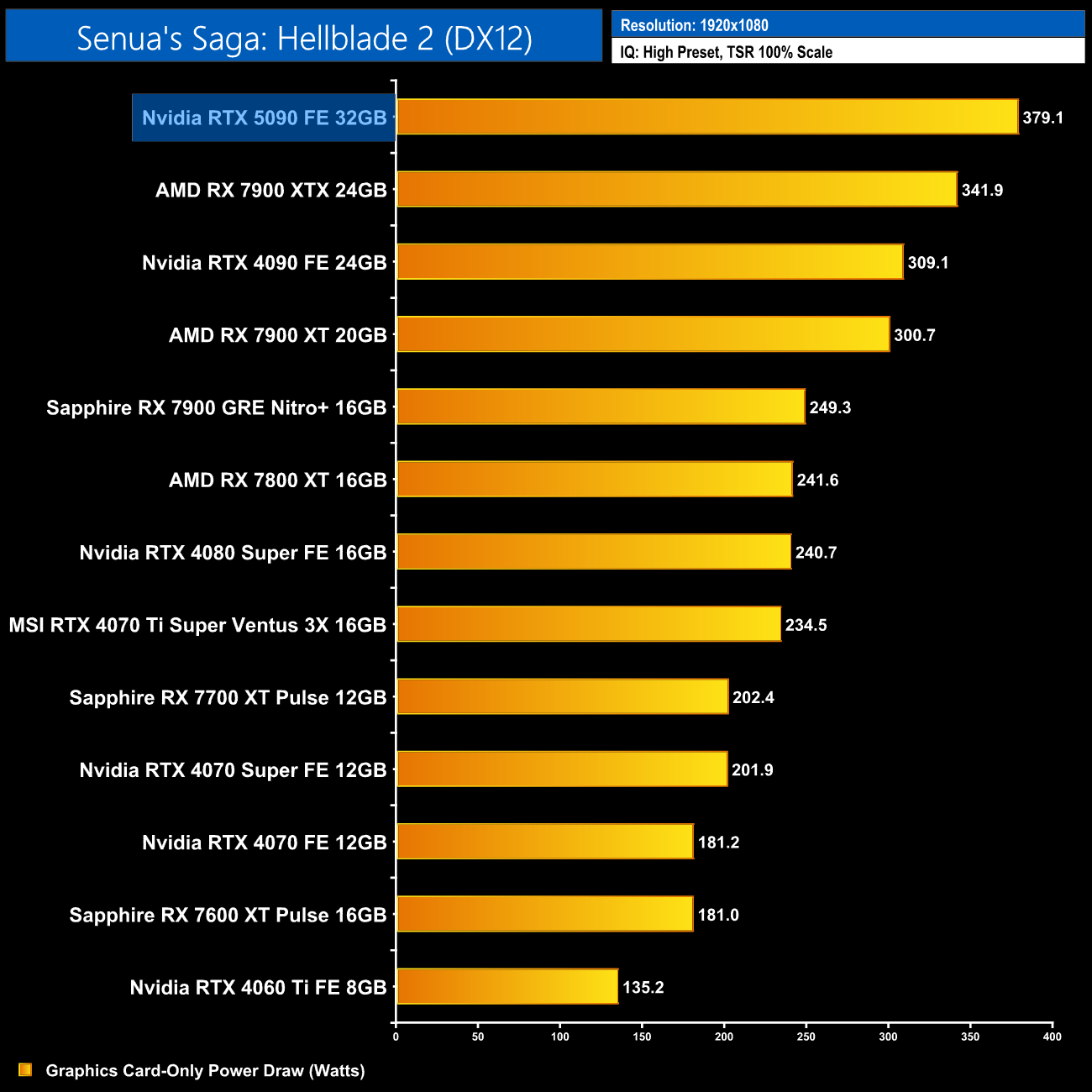

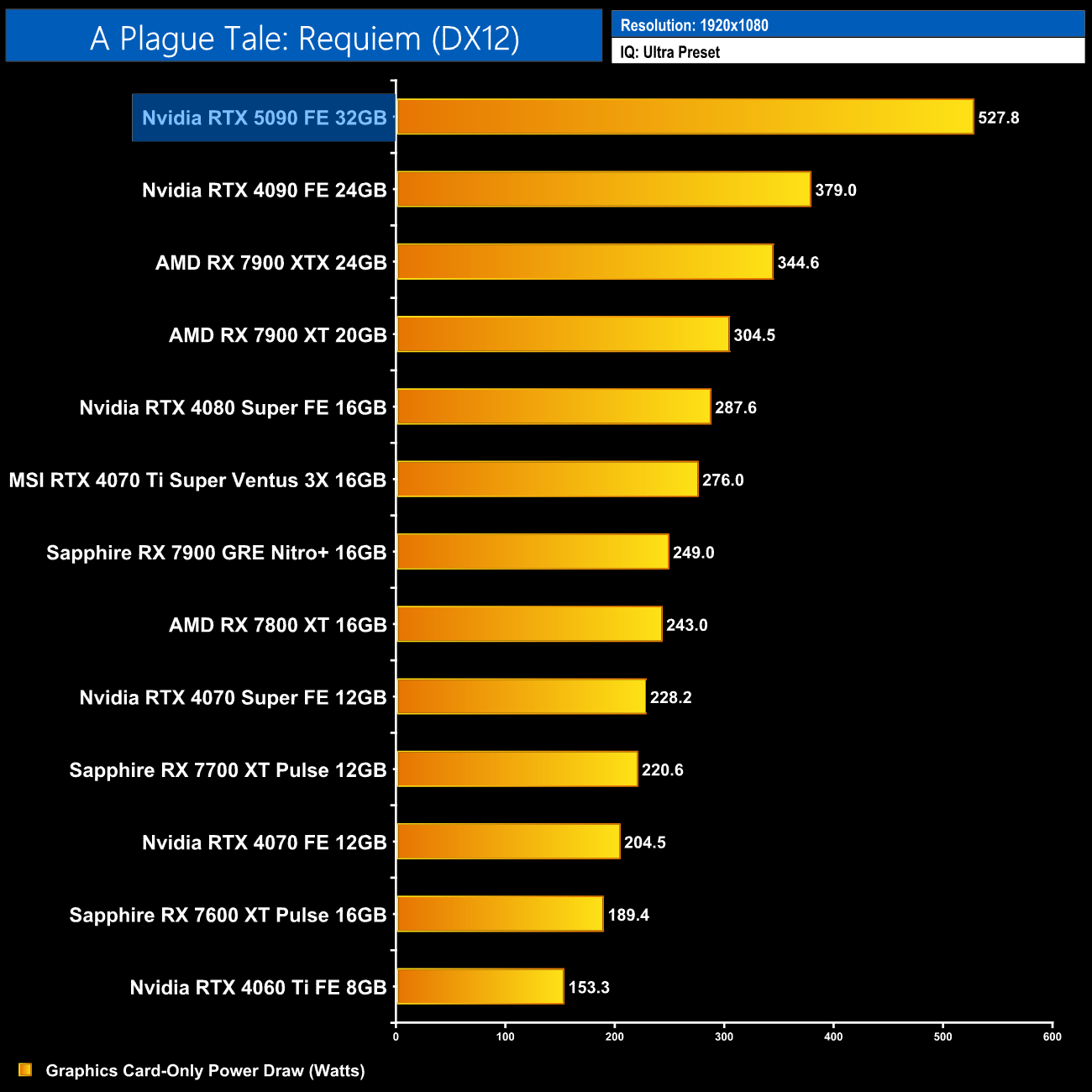

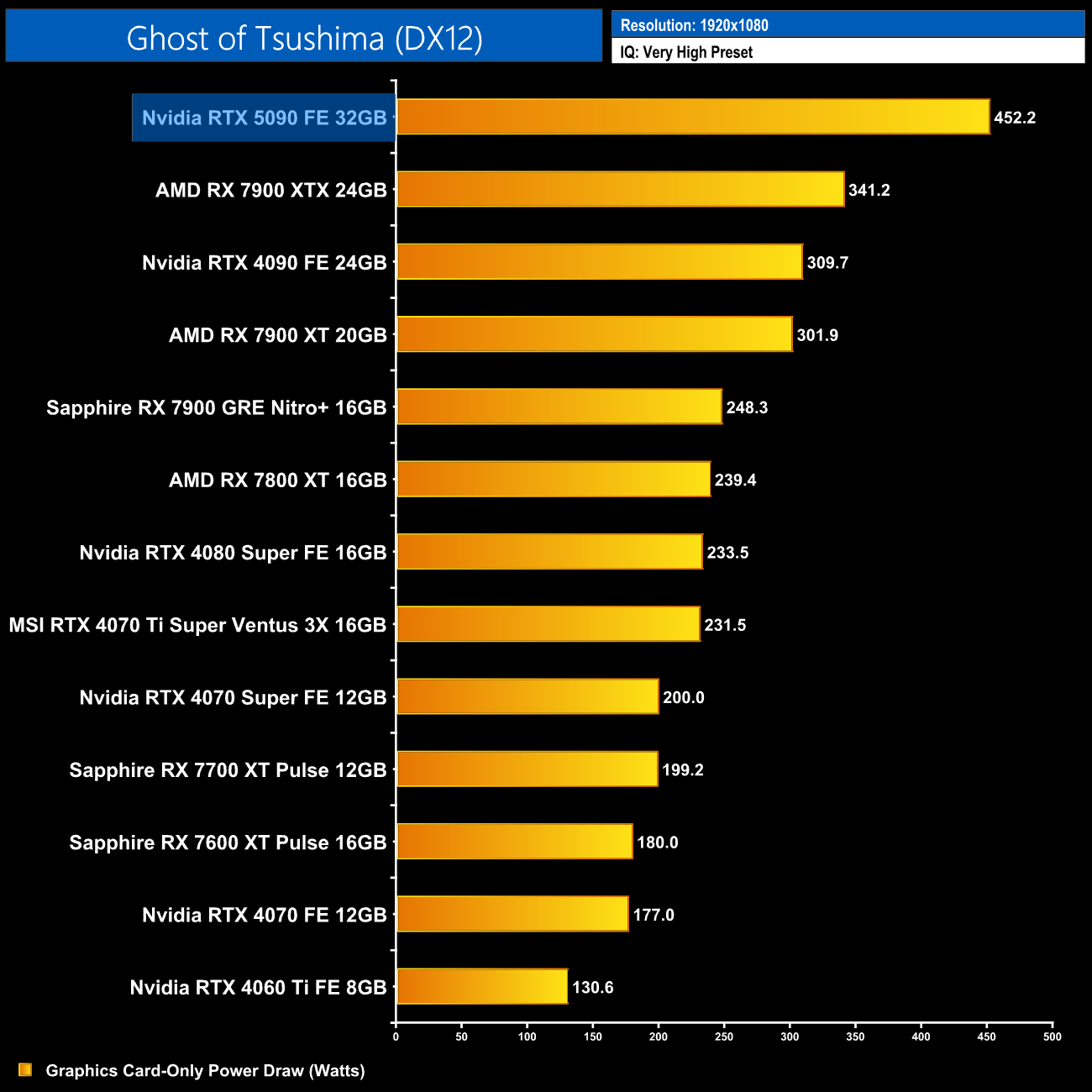

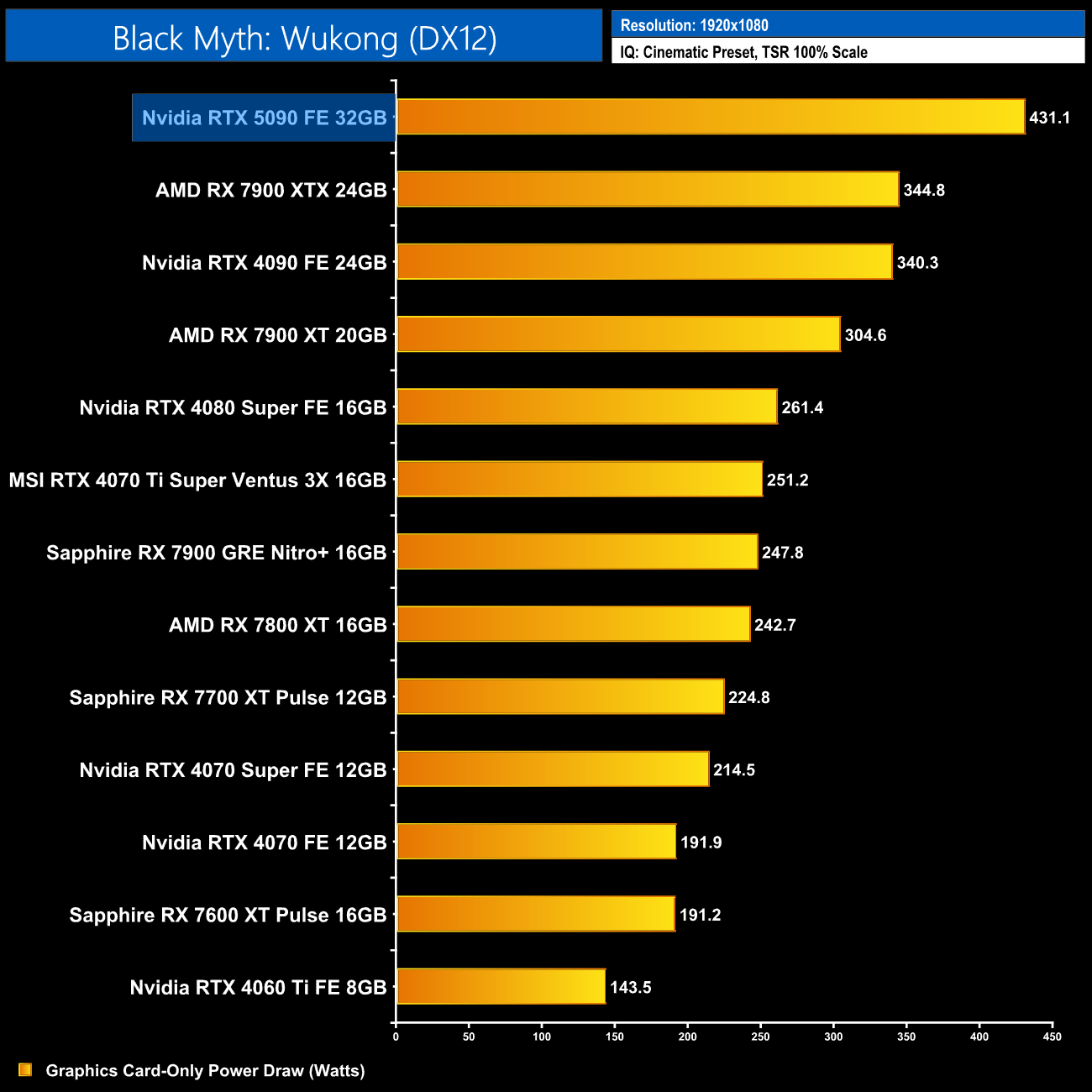

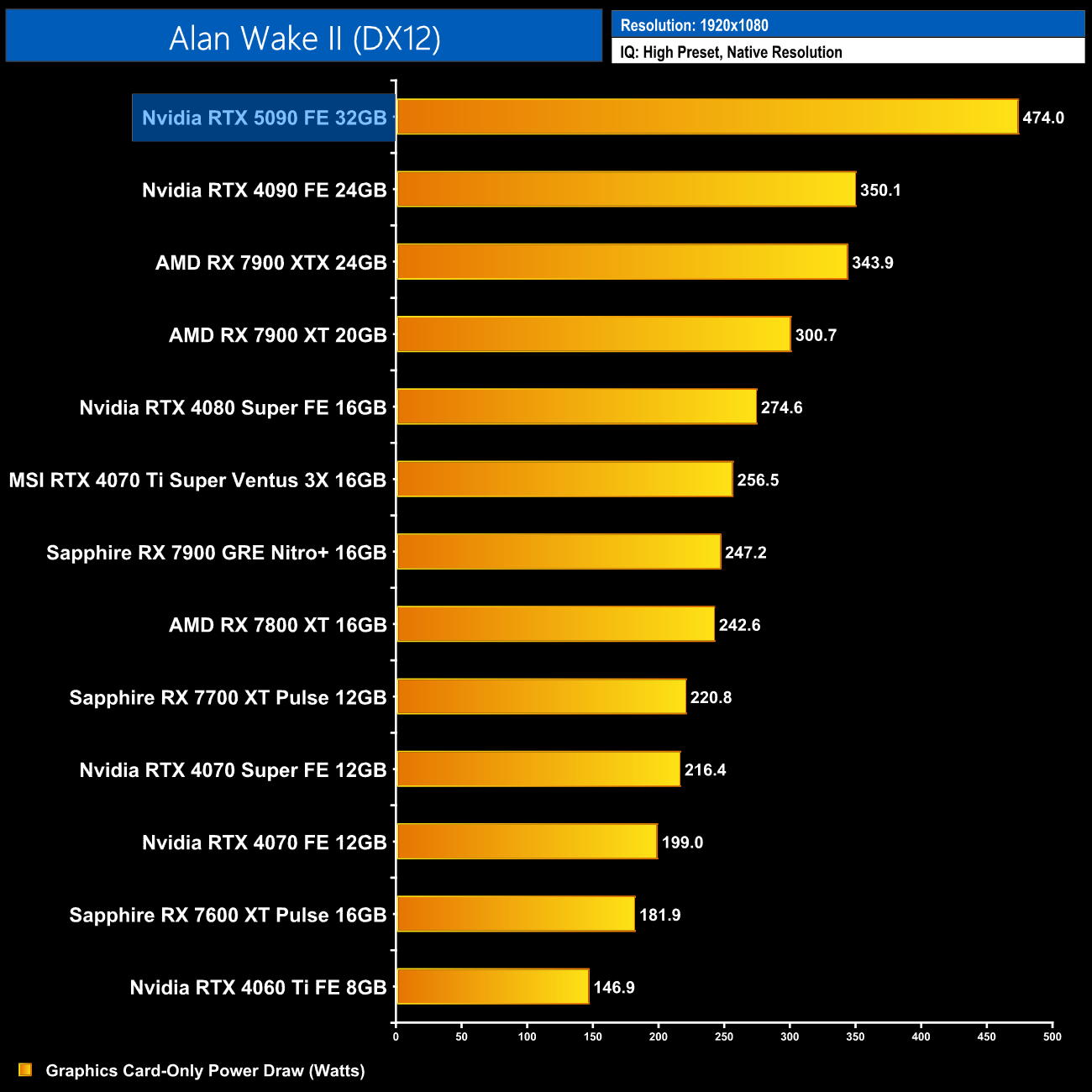

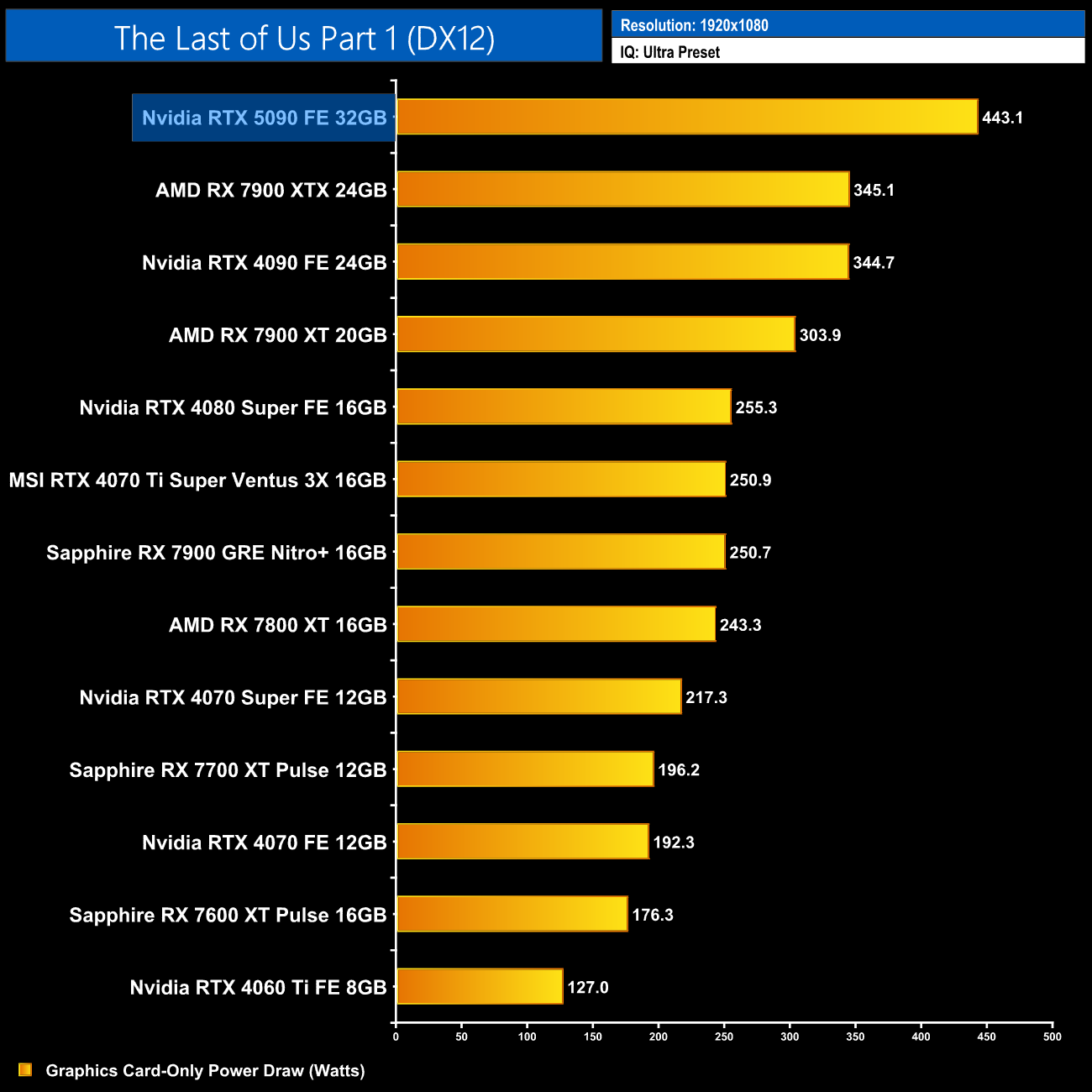

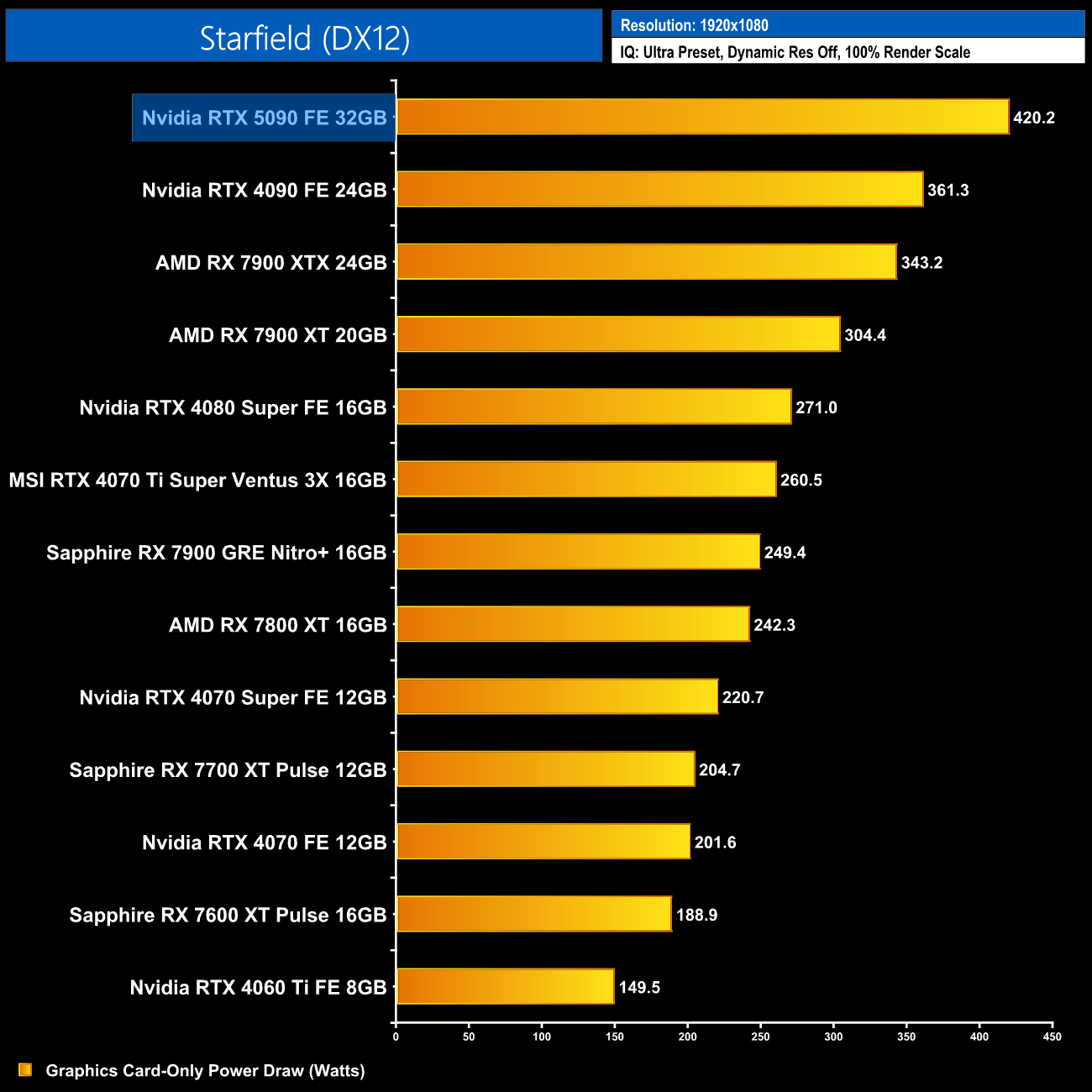

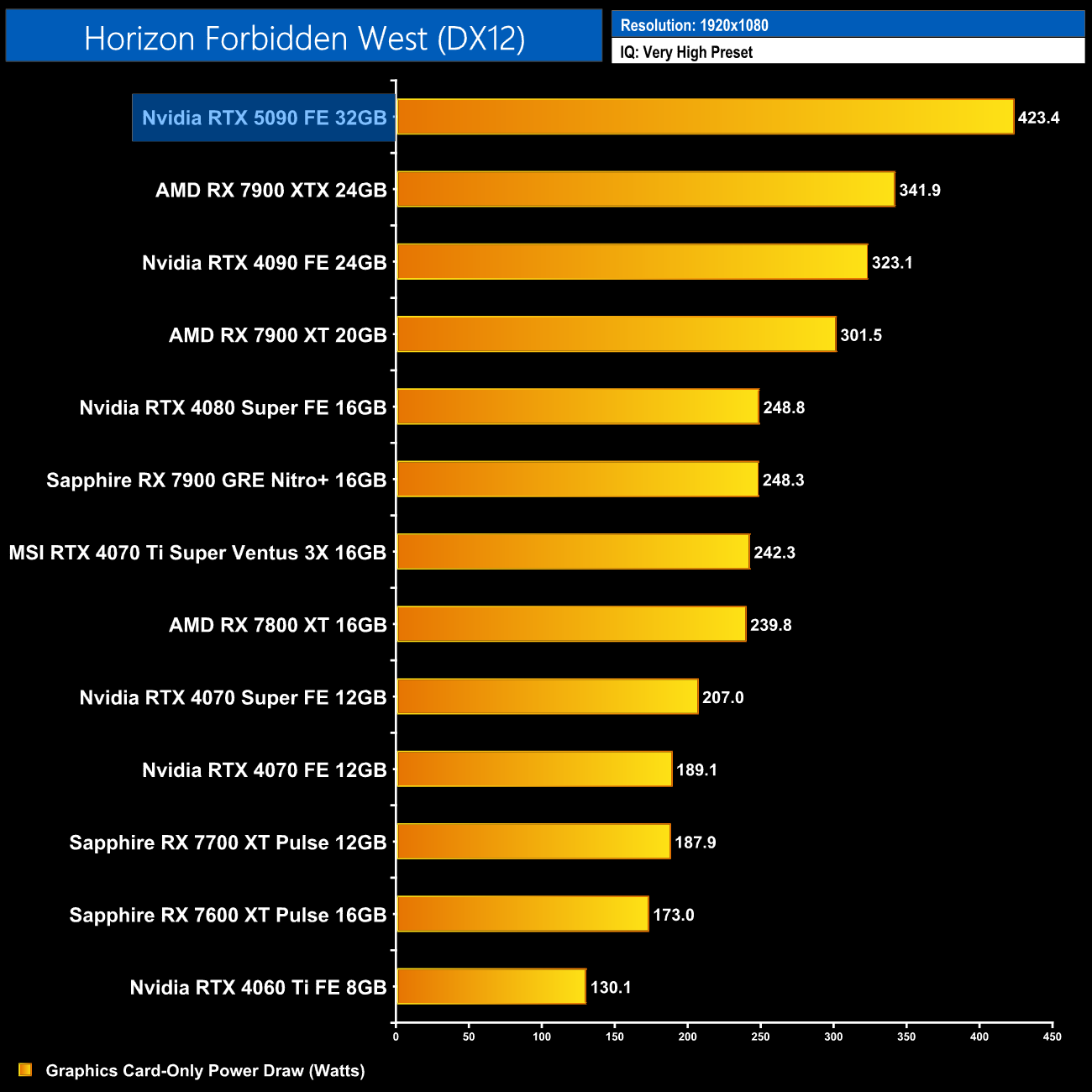

Per-Game Results at 1080p:

Click to enlarge.

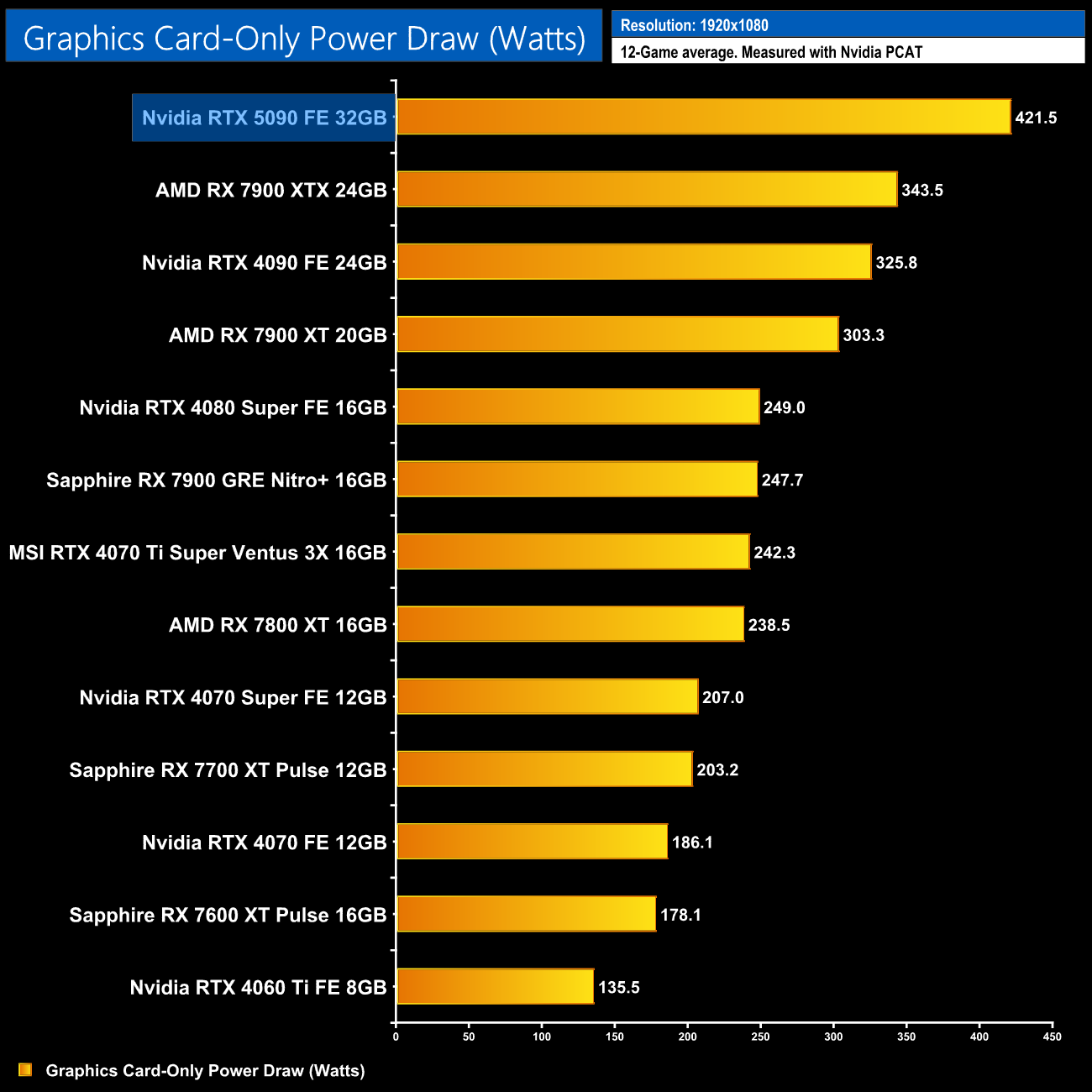

12-Game Average at 1080p:

The power draw data for 1080p isn't especially relevant considering you'd have to be mad to pay nearly two grand for an RTX 5090 to game at Full HD resolution, but we include it nonetheless. As expected, the 5090 does not draw close to its rated TBP at this resolution as GPU load is much lower than 1440p or especially 4K.

Ray tracing results

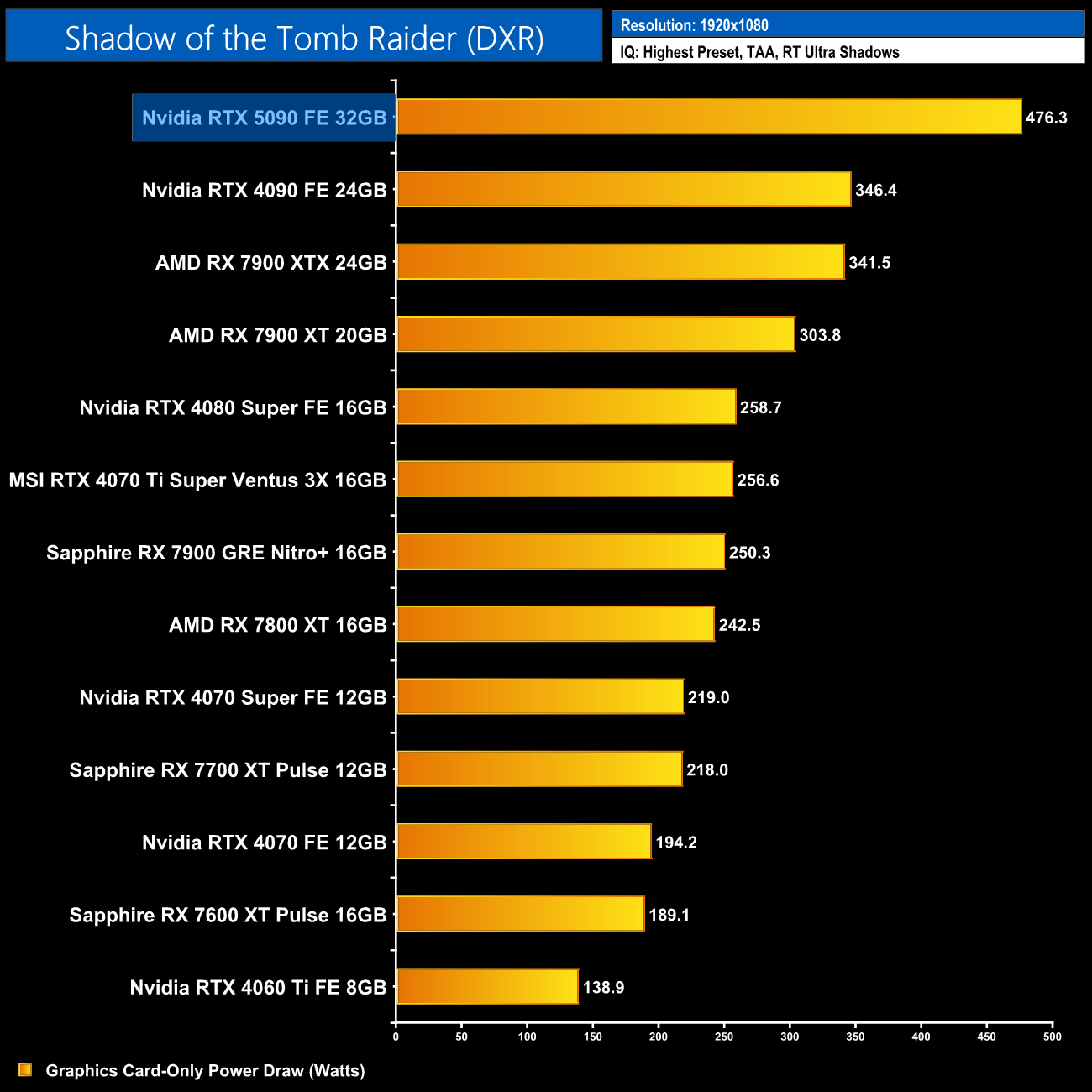

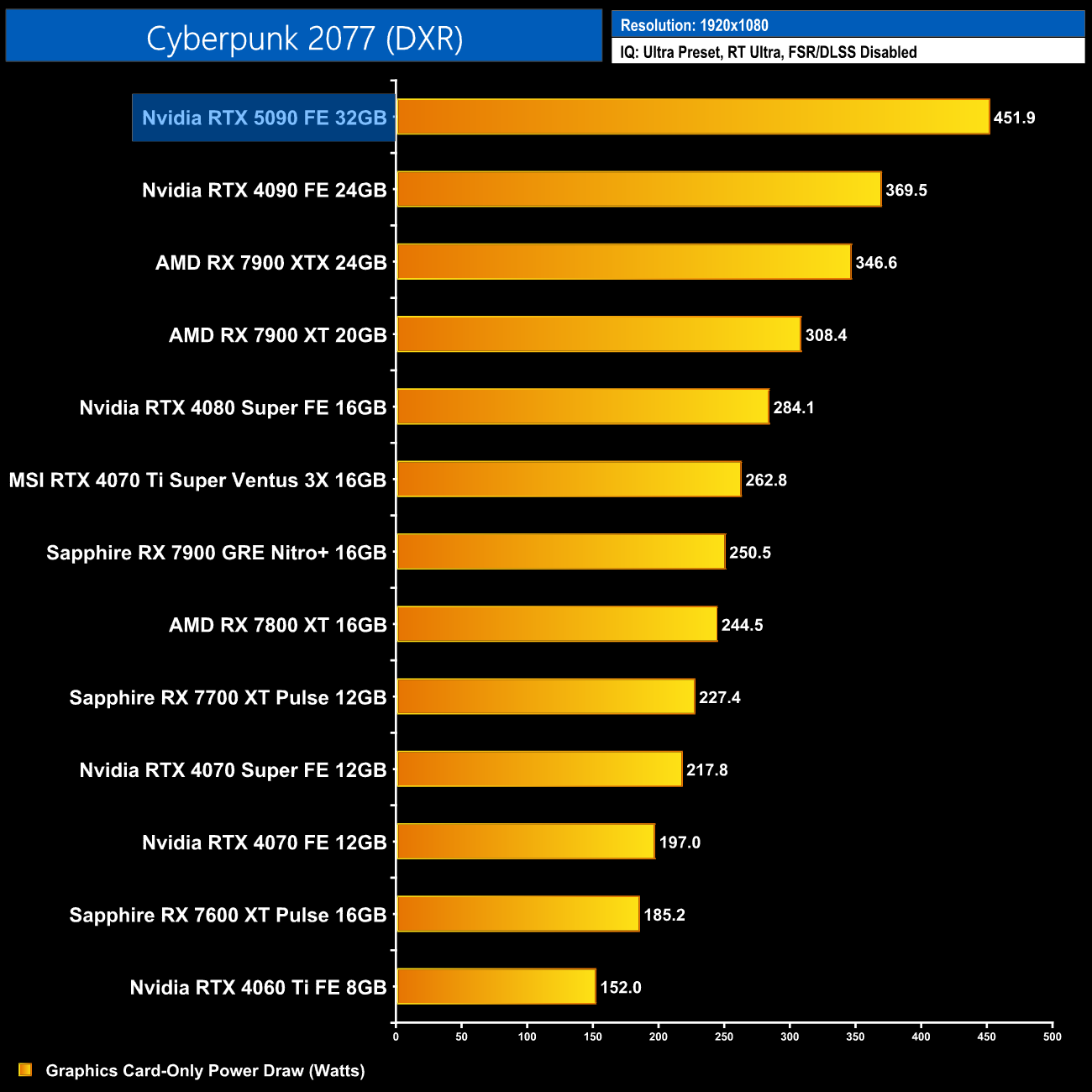

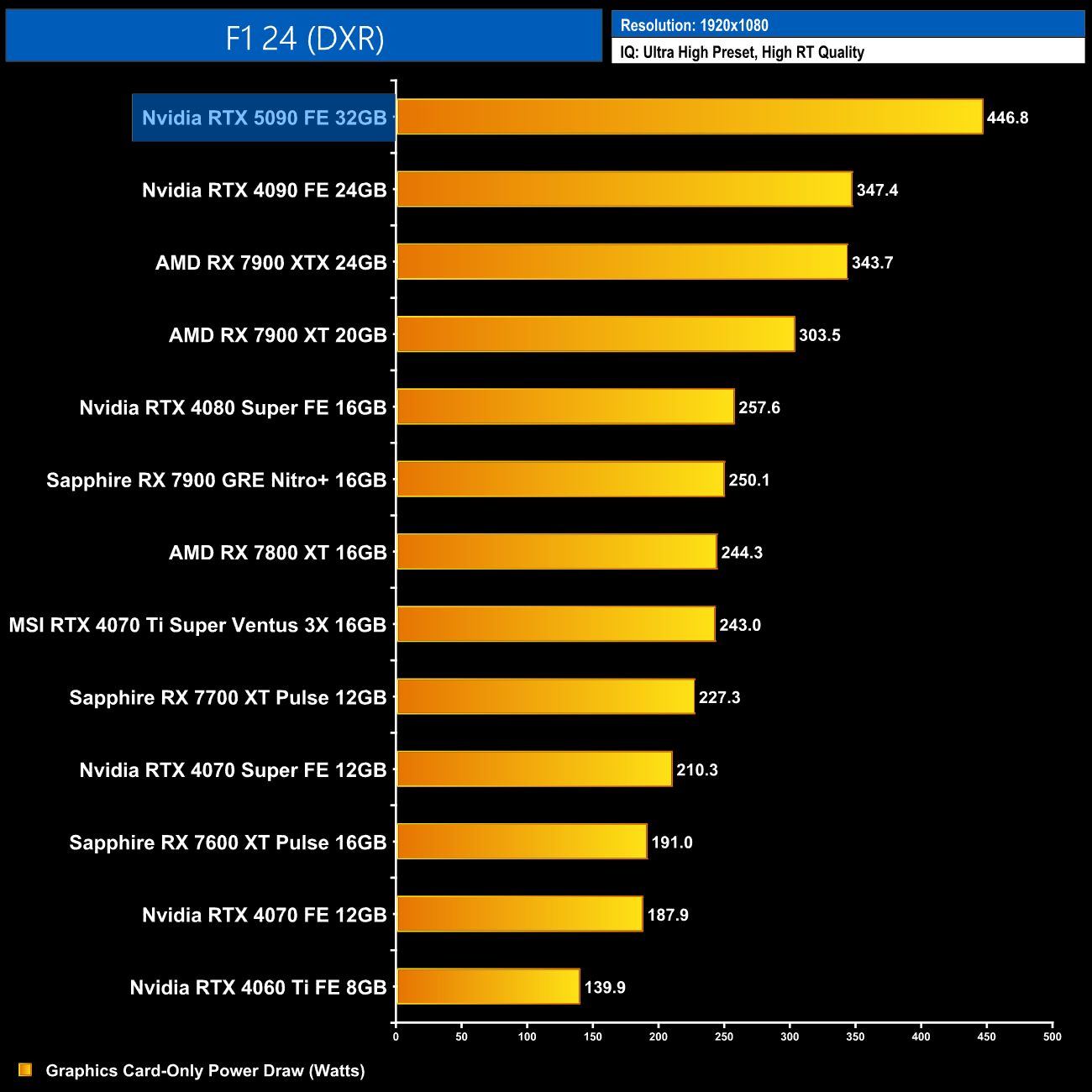

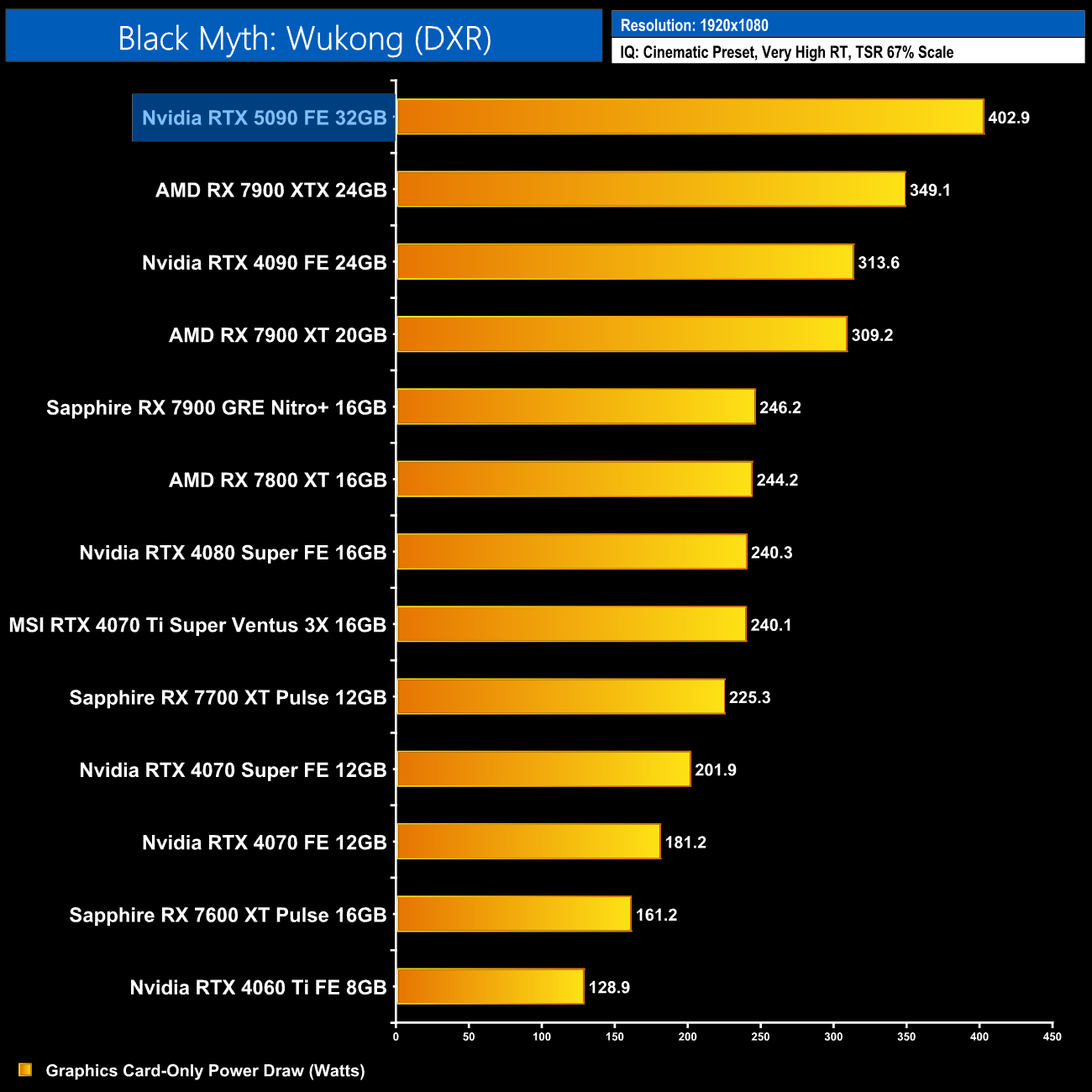

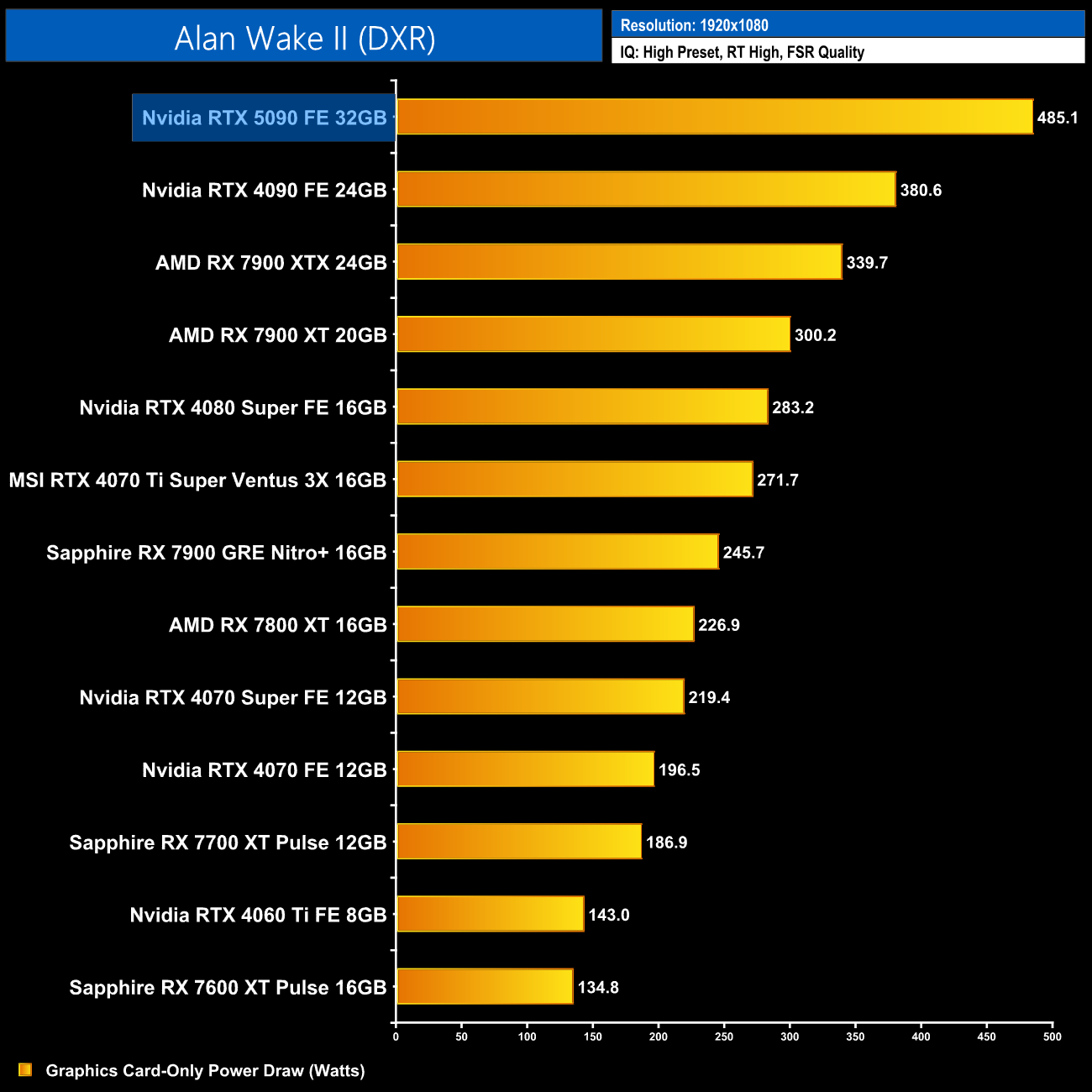

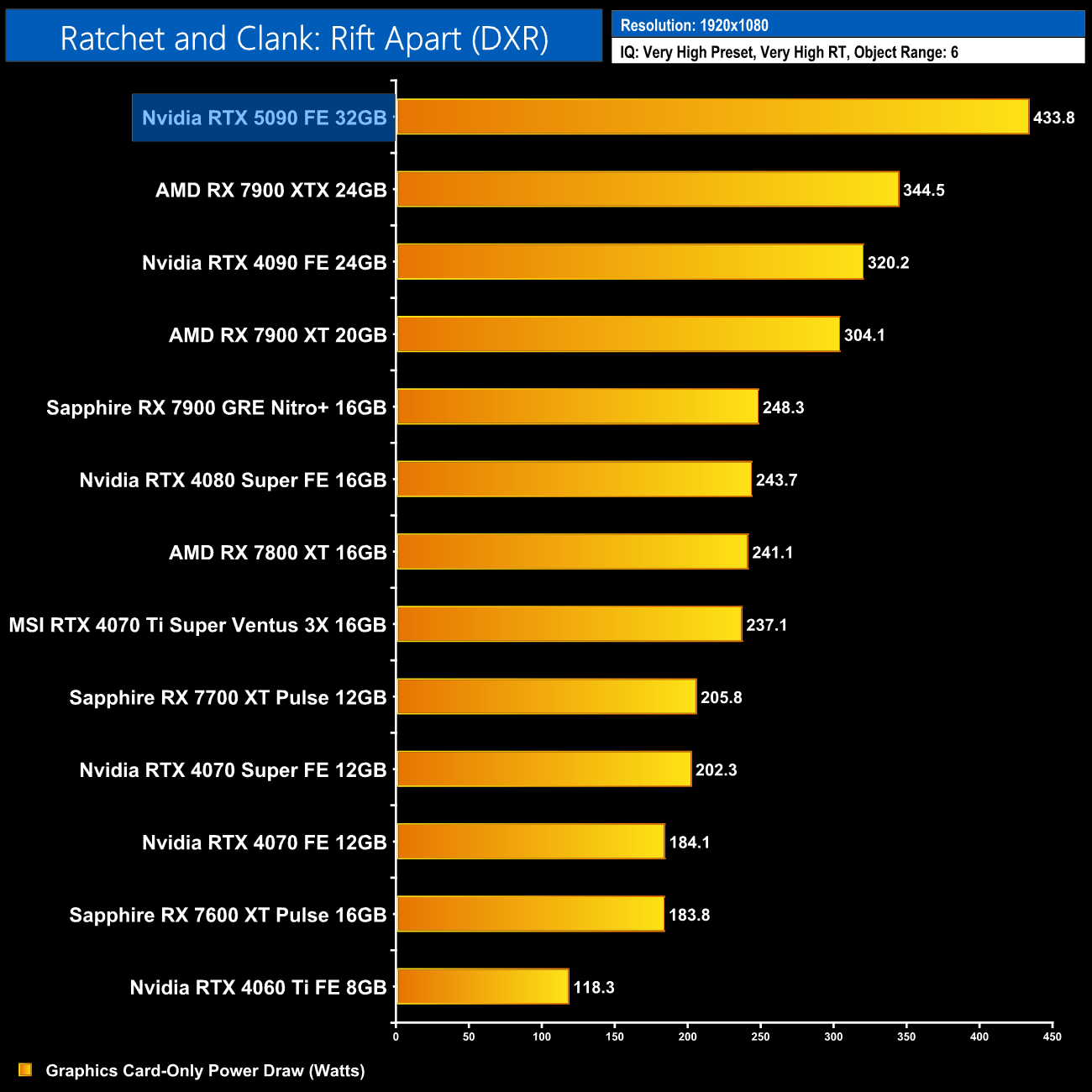

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

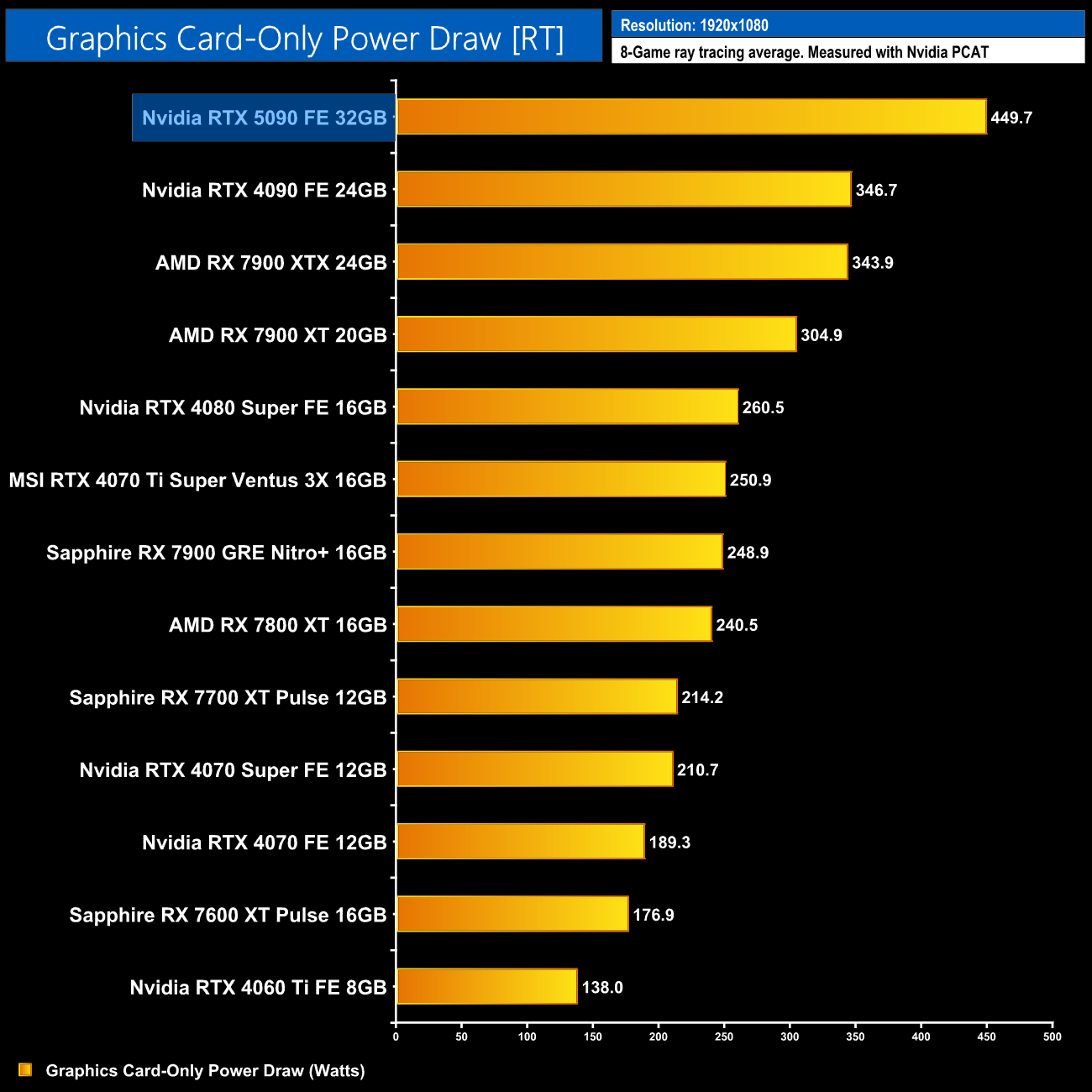

8-Game ray tracing average:

Power does creep up to 450W with ray tracing enabled, even at 1080p, due to the increased load placed on the GPU.
