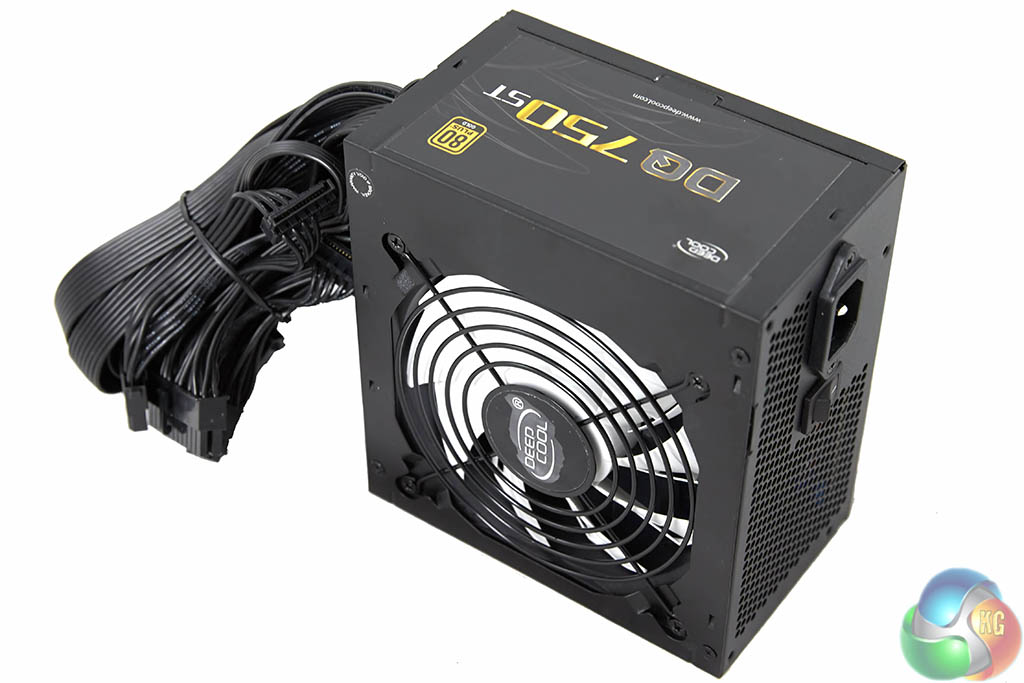

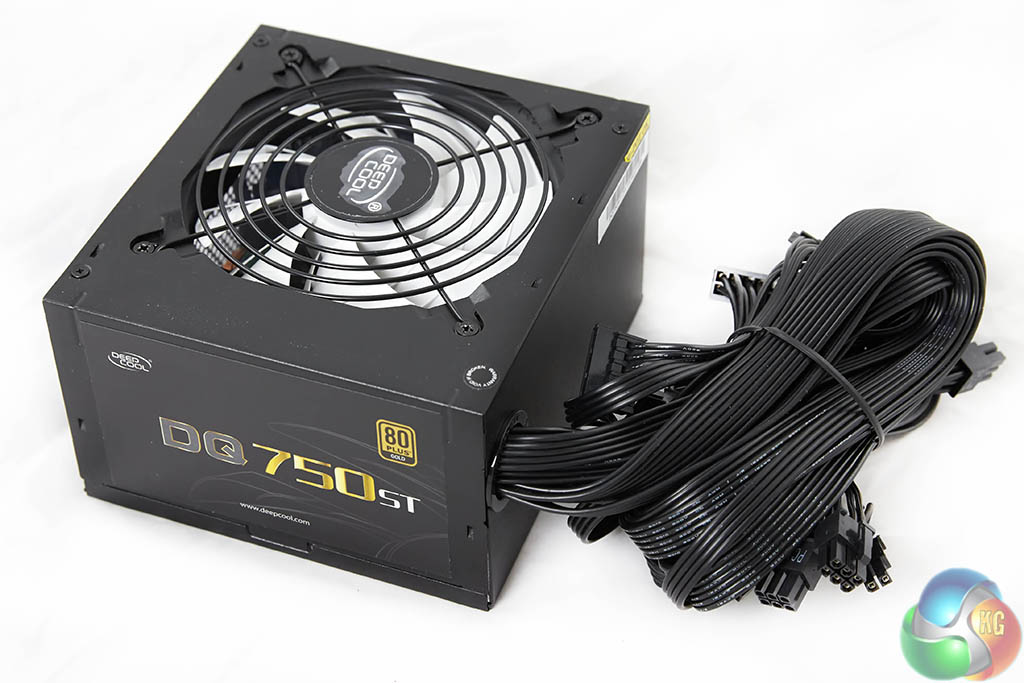

The DeepCool DQ750 ST is a compact design measuring 150x140x86 mm (WxLxH). A large white fan takes centerstage at the top of the chassis behind a black grill.
Finish quality is high and it passed our screwdriver test. This involves running the head of a Philips head driver down the side of the chassis with light to medium force. After all, how many times have you accidentally connected with a power supply during a system build?

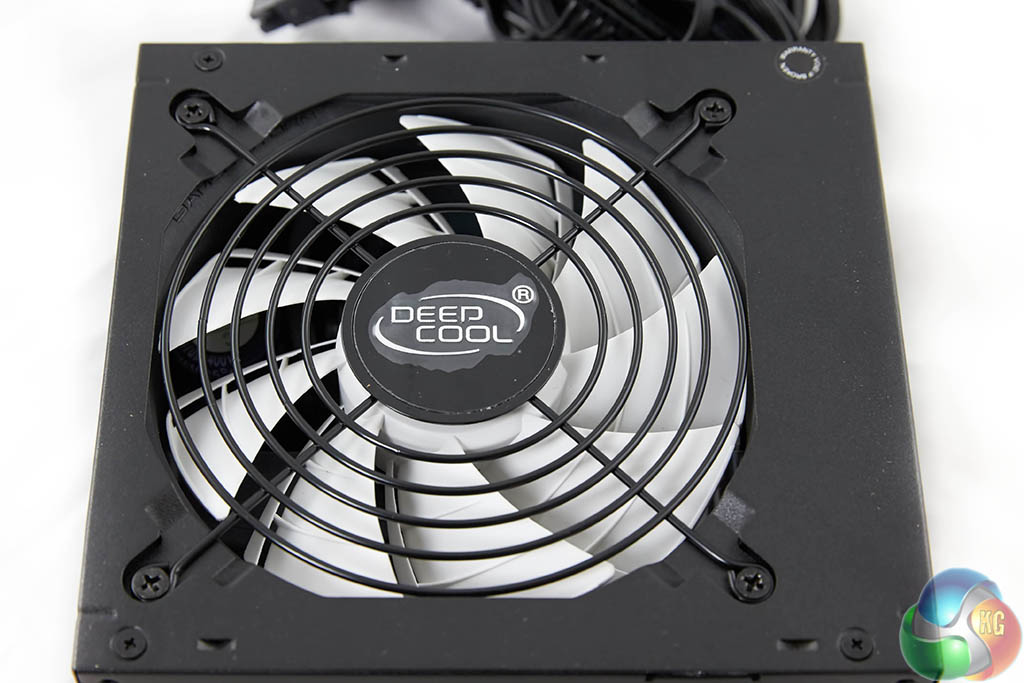

The 120mm fan is hidden behind a grill, shown above. We will look at this in more detail later in the review when we open the power supply.

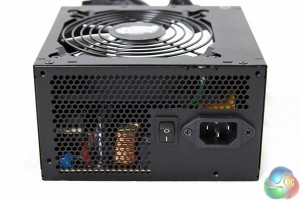

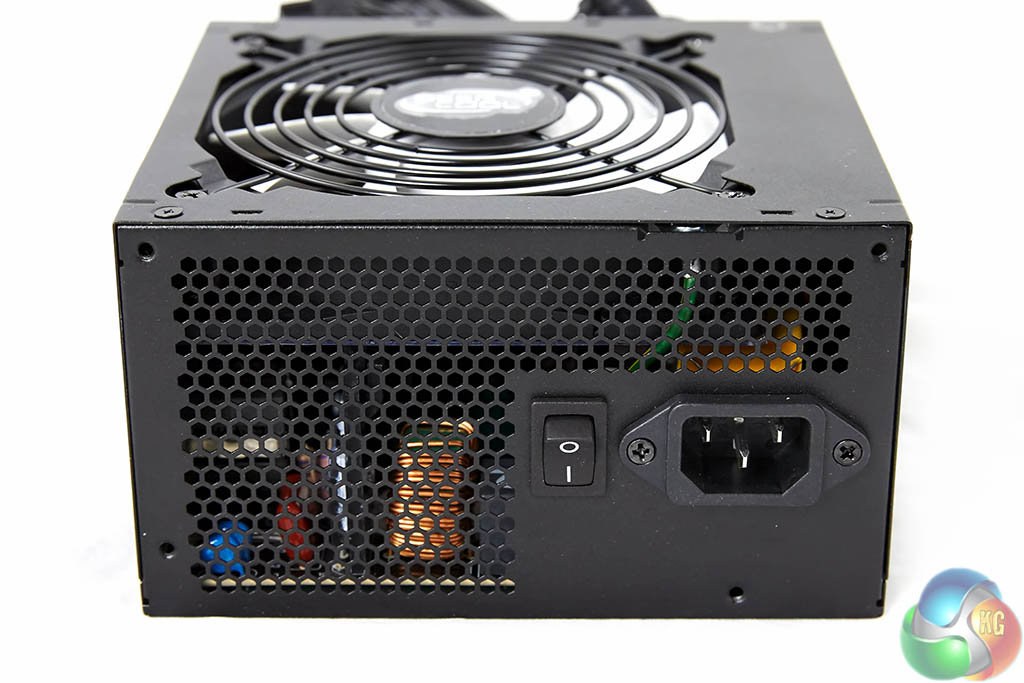

One side of the power supply is vented with a power connector and switch at the side.

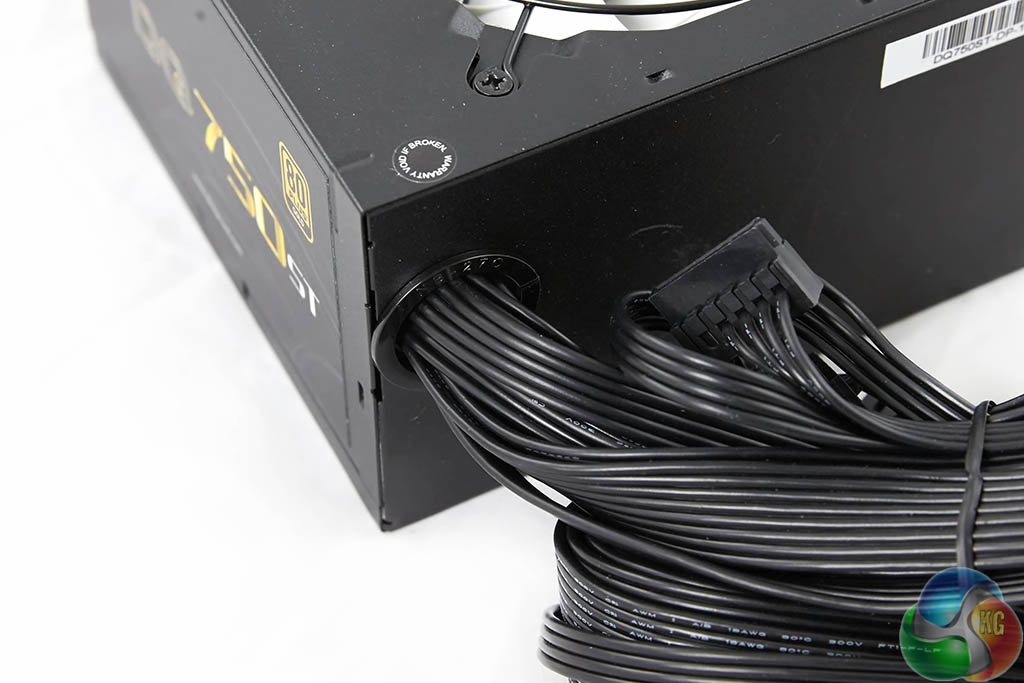

The other side of the power supply is home to the hardwired cabling which emerges from inside a rubber grommet.

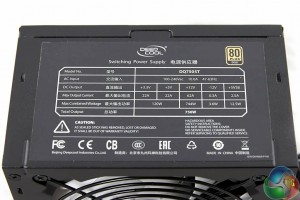

DeepCool DQ750 ST | |||||
DC Output
|
+3.3V
|
+5V
|
+12V |
-12V
|
+5Vsb
|
Max Output
|
22A
|
22A
|
62A |
0.3A
|
2.5A
|
Total Power | 120W | 744W | 3.6W | 12.5W | |
750W |
The DeepCool DQ750 ST power supply can produce 62A from the single +12V rail along with 22A from both the +3.3V and +5V rails.
