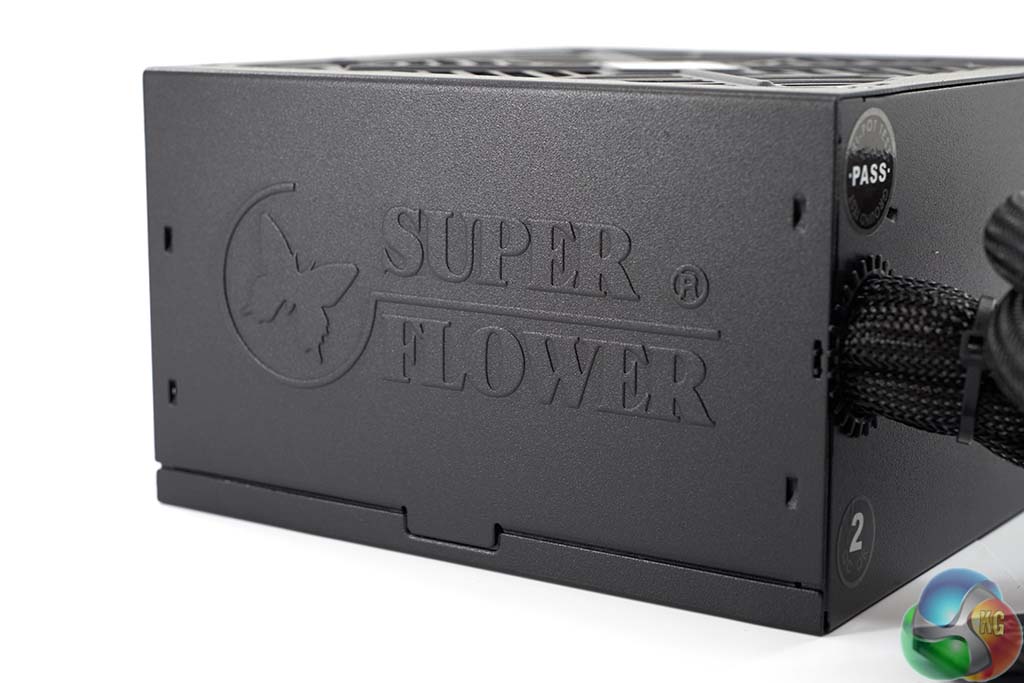

The Superflower Platinum King 650W is a very basic looking power supply with an embossed logo on the side panel.
Build quality is reasonable, if not exceptional. At least there are no gaudy colours on the chassis which can conflict with coordinated system builds.

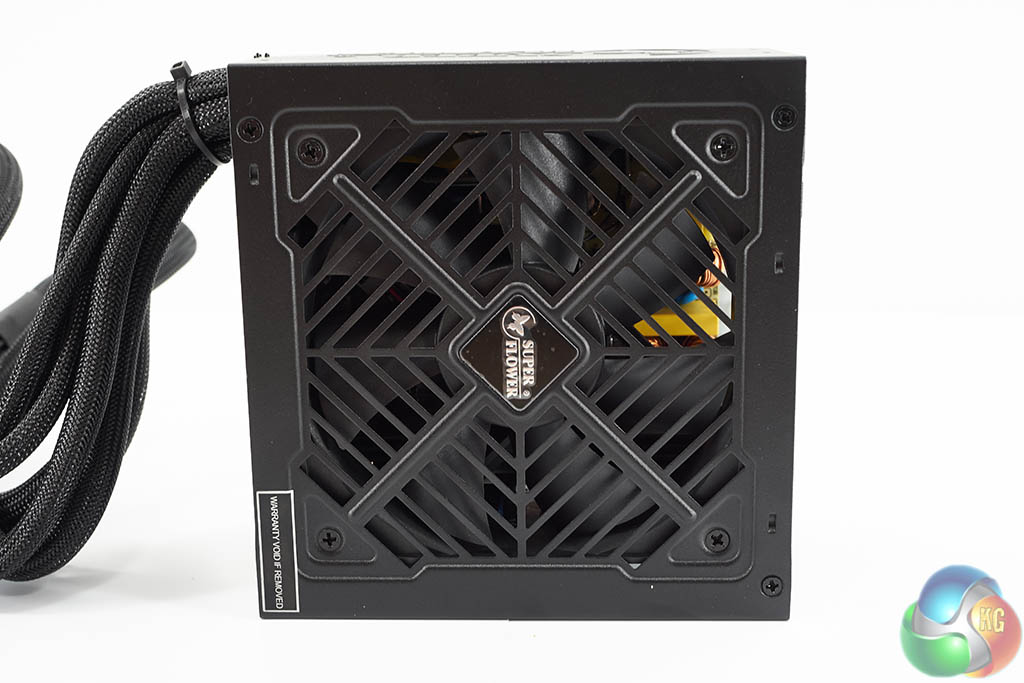

A large 12cm fan takes pride of place behind the grill and company logo.

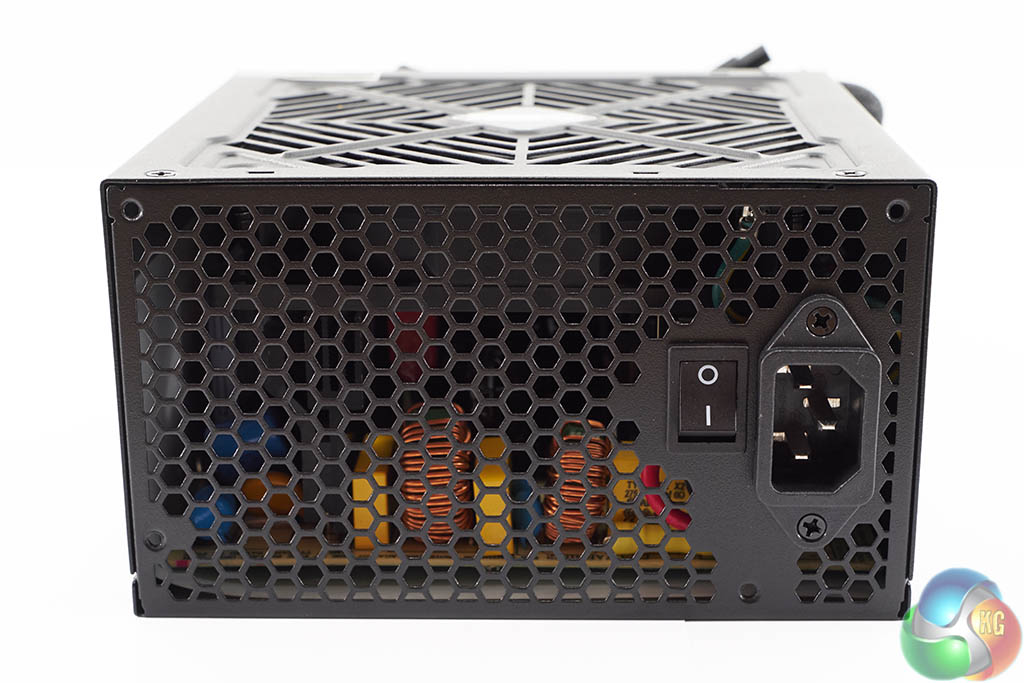

One side of the supply is home to a power switch and connector. Venting aids with air flow.

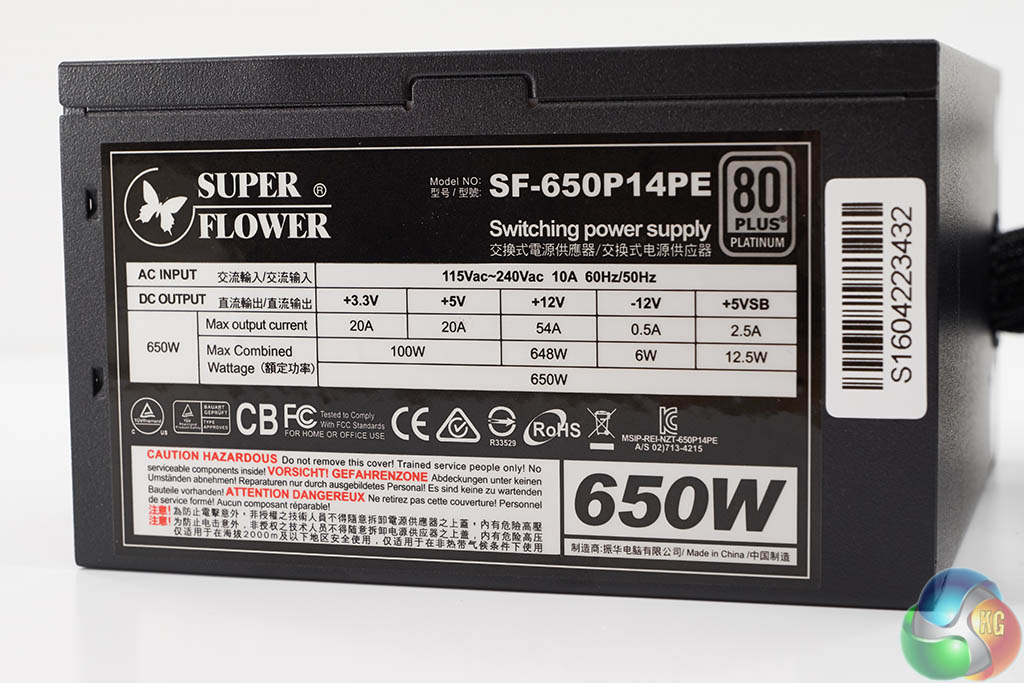

Interesting to see the model number: SF-650P14PE, this is exactly the same model number as the Super Flower Golden King 650W model.
Superflower Platinum King 650W | |||||
DC Output
|
+3.3V
|
+5V
|
+12V |
-12V
|
+5Vsb
|
Max Output
|
20A
|
20A
|
54A |
0.3A
|
2.5A
|
Total Power | 100W | 648W | 6W | 12.5W | |
650W |
Power delivery is pretty much as we would expect from a single rail +12V 650 W PSU.
