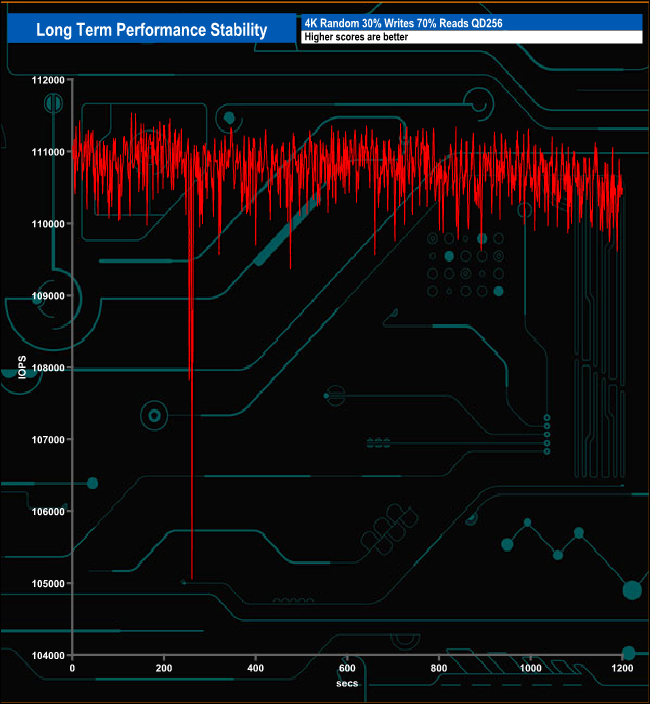

For the long term performance stability test, we set the drive up to run a 20-minute 4K random test with a 30% write, 70% read split, at a Queue Depth of 256 over the entire disk. The Optane SSD DC P5800X averaged 110,743 IOPS for the test with a performance stability of 98%, a figure you should expect from a drive primarily aimed at data centre usage.
