Kingston DataTraveler Max 1TB Flash Drive Review

1. Introduction2. Kingston DataTraveler Max 1TB3. ATTO/CrystalDiskMark/AS SSD4. Backup / Restore5. Throughput6. PCMark 10 Data Drive Benchmark7. Real Life File Transfers8. Closing Thoughts9. View All Pages

To test real life performance of a drive we use a mix of folder/file types and by using the FastCopy utility (which gives a time as well as MB/s result) we record the performance of drive reading from & writing to a 256GB Samsung SSD850 PRO.

We use the following folder/file types:

• 100GB data file.
• 60GB iso image.
• 60GB Steam folder – 29,521 files.
• 50GB File folder – 28,523 files.
• 12GB Movie folder – (15 files – 8 @ .MKV, 4 @ .MOV, 3 @ MP4).
• 10GB Photo folder – (304 files – 171 @ .RAW, 105 @ JPG, 21 @ .CR2, 5 @ .DNG).
• 10GB Audio folder – (1,483 files – 1479 @ MP3, 4 @ .FLAC files).
• 5GB (1.5bn pixel) photo.
• BluRay Movie – 42GB.
• 21GB 8K Movie demos – (11 demos)
• 16GB 4K Raw Movie Clips – (9 MP4V files).
• 4.25GB 3D Printer File Folder – (166 files – 105 @ .STL, 38 @ .FBX, 11 @ .blend, 5 @ .lwo, 4 @ .OBJ, 3@ .3ds).
• 1.5GB AutoCAD File Folder (80 files – 60 @ .DWG and 20 @.DXF).

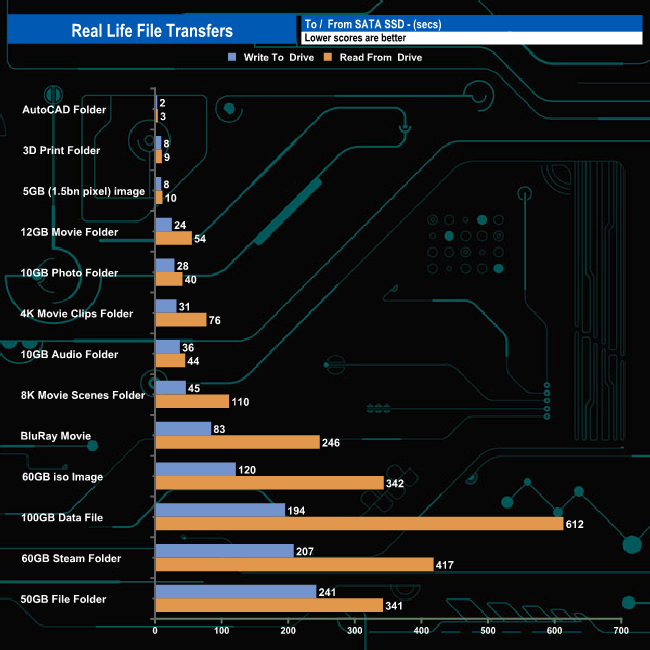

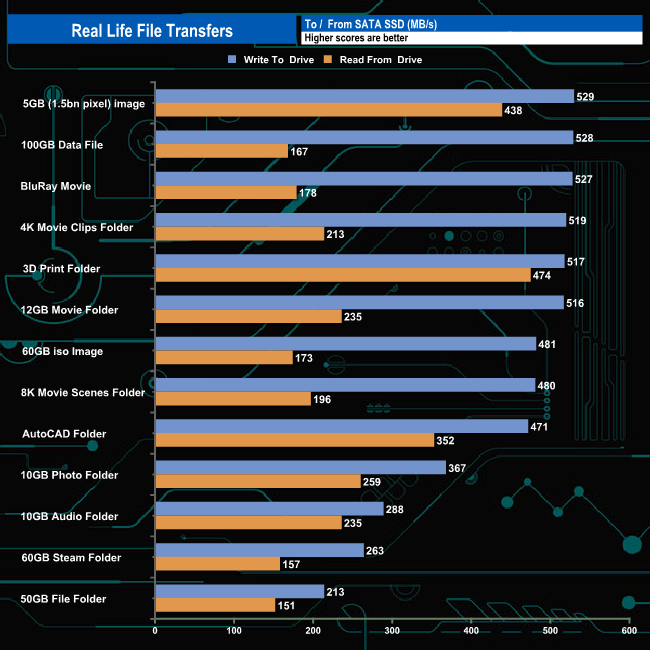

Overall the DataTraveler Max handled our real-life file transfers without any real problem although it has to be said that the transfer rate for the 10GB photo folder was a little lower than we are used to seeing.

To get a measure of how much faster PCIe NVMe drives are than standard SATA SSDs, we use the same files but transfer to and from a 512GB Toshiba OCZ RD400:

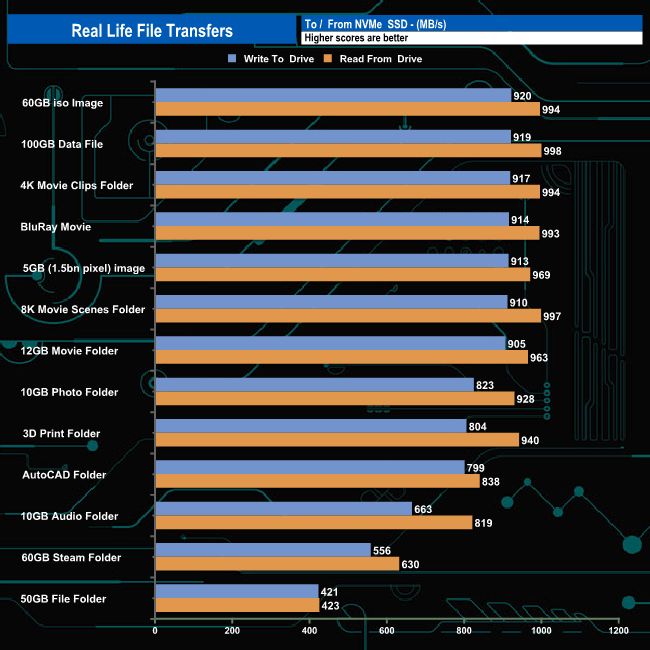

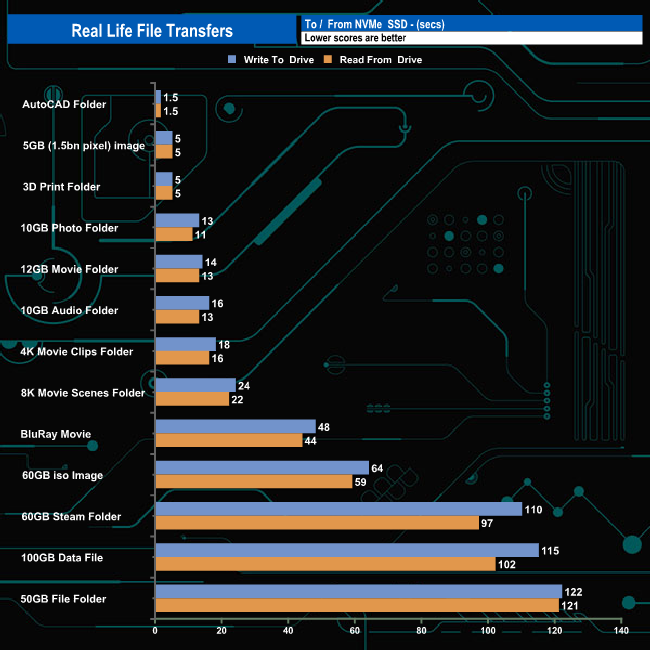

Switching over to transferring the files to and from an NVMe drive gives an idea of just how quick the drive is, with read and write rates of over 900MB/s for seven of the thirteen transfer tests. The 100GB data file transfer had the fastest read figure of 998MB/s while the fastest write performance came from the 60GB iso image.
