Zotac MEK1 Black (i7-7700, GTX 1070Ti) Mini Gaming PC Review

Rating: 8.0.

In this review we take a look at the Zotac MEK1 mini gaming PC. The MEK1 manages to use an ultra-slim Mini ITX form factor without sacrificing performance as it still features an i7-7700 and a GTX 1070 Ti. We tested it across a range of games and benchmarks to see if it is worth the £1439 asking price.

Watch via Vimeo (below) or over on YouTube at 2160p HERE.

Note: if you cannot see the gallery images above then please white-list us in your ad blocker – they can interfere with our display code.

Specifications:

  • CPU: Intel Core i7 7700, Quad Core, 8 threads, clock speed 3.6 GHz, boost clock 4.2Ghz.
  • Memory: 16GB (2x8GB) DDR4 2400 Mhz
  • GPU: GeForce GTX 1070 Ti , GDDR5 , 8GB
  • Storage Drives: 1x 240GB M.2 PCIe NVMe SSD + 1x 1 TB 2.5″ SATA HDD
  • PSU Wattage: 450 W
  • Network: 802.11ac WiFi,Dual Wired Gigabit LAN
  • Operating System: Windows 10 Home (64 bit)
  • Dimensions: 118.01mm Width x 415.15mm Height x 418.32mm Depth

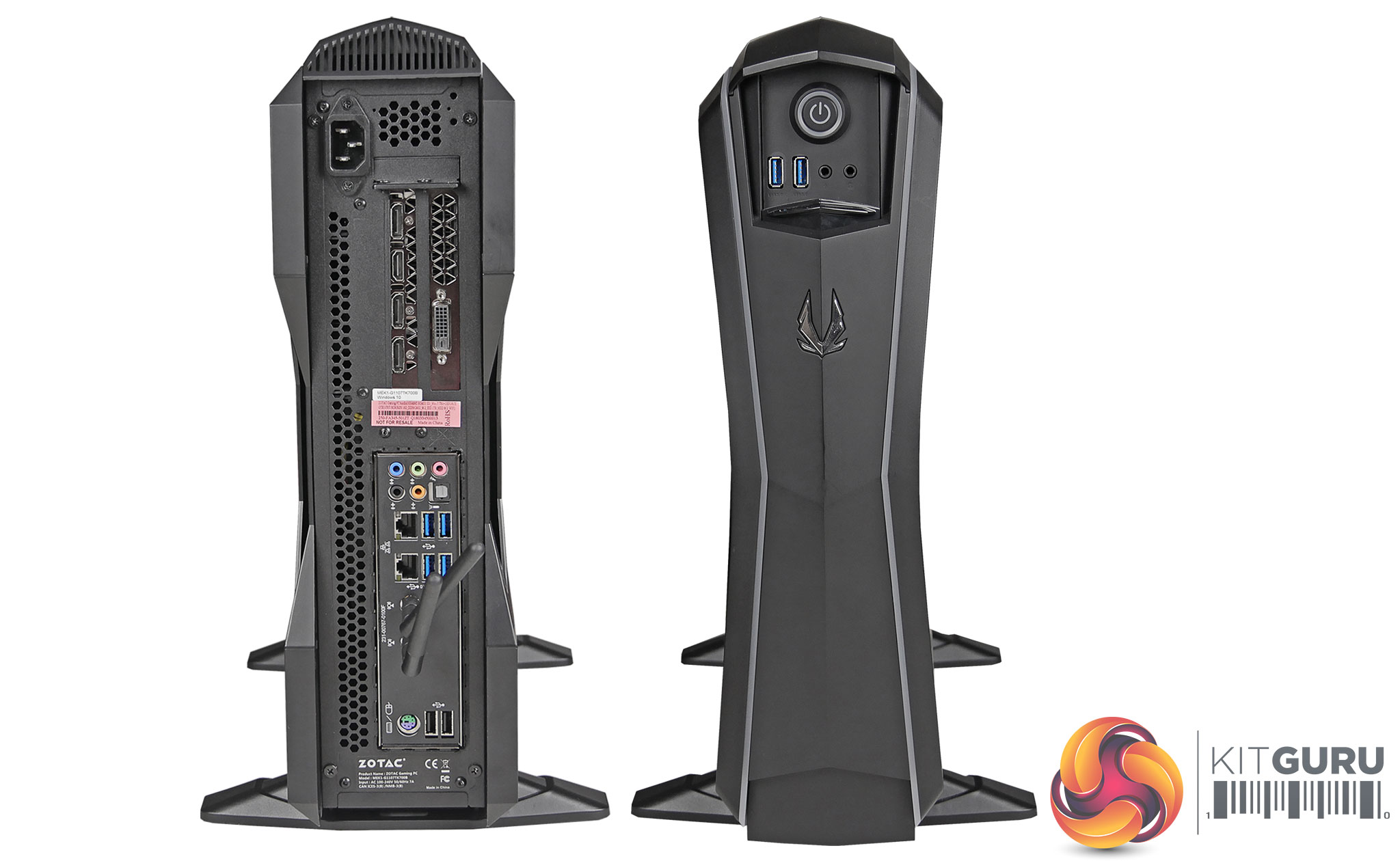

Front Panel:

  • 1 x Headphone
  • 1 x Mic In
  • 1 x Power Button
  • 1 x Power LED
  • 2 x USB 3.0

Rear Panel:

  • 1 x Center/Subwoofer Speaker Out
  • 3 x DisplayPort 1.4
  • 1 x DVI-D DL
  • 1 x HDMI 2.0b
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mains Power Cord Connector
  • 1 x Mic-In
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Rear Speaker Out
  • 2 x RJ-45
  • 1 x S/PDIF-Out (Optical)
  • 2 x USB 2.0
  • 4 x USB 3.0
  • 2 x WiFi Antenna connectors

Box contents:

  • 1 x OS Recovery Disk
  • 1 x Quick Start Guide
  • 2 x Stands
  • 1 x UK Power Cable
  • 1 x USB Flash Drive with Drivers
  • 1 x User Manual
  • 1 x Warranty Card2 x Wi-Fi Antenna
