MSI GS30 Shadow with Gaming Dock Review

Rating: 8.0.

When we previewed the MSI GS30 Shadow and GamingDock at the end of 2014 we were blown away by the combination of Core i7-4870HQ CPU in the laptop and the desktop GTX 980 graphics card in the GamingDock. The concept of using an external dock to add proper gaming graphics to a thin and light laptop worked superbly well and we could hardly wait for the official release of the final package of hardware. We were also keen to learn the price as that has a major impact on the buying decision.

Watch via our VIMEO Channel (below) or over on YOUTUBE


P4890090P4890093P4890096P4890097
P4890106P4890111P4890113P4890115
P4890119P4890121P4890124P4890126
P4890131P4890135P4890139P4890142
P4890144P4890148P4890150P4890151

Specifications:

  • OS: Windows 8.1
  • CPU: Intel core i7 4870HQ (2.5GHz – 3.7GHz) with Iris Pro 5200
  • Display: 13.3” Full HD, anti-glare LCD in LED backlight 1920×1080 16:9
  • Memory Supplied: 2 x 8GB DDR3 1600mhz (Max 16GB)
  • Graphics Chipset: MSI GeForce GTX 980 Gaming Edition PCI-Express Graphics Card (Dock)
  • Graphics Memory: 4096MB GDDR5 (Dock)
  • Storage: 2 x 256GB M.2 SSD
  • Keyboard Type: Single-colour backlight keyboard
  • USB3.0 Ports: 2 (Notebook) 4 (Dock)
  • HDMI Port(s): 1 (Notebook) 2 (Dock)
  • Display Port: 2 (Dock)
  • LAN Port(s): 1
  • Microphone Jack(s): 1 (Notebook) 1 (Dock)
  • Headphone Jack(s) (SPDIF): 1 (Notebook) 1 (Dock)
  • Card Reader: SD4.0 (XC/HC)
  • Audio: -2W Speakers x2
  • LAN: Gb LAN
  • Wireless LAN – 802.1 ac
  • Bluetooth: Bluetooth 4.0
  • Webcam: HD type ([email protected])
  • Dimension: 320 x 227 x 19.8mm (NOTEBOOK)
  • Weight: 1.2kg(w/ battery) (NOTEBOOK)
  • Dimension: 364.4 x 209 x 197.7mm (DOCK)
  • Power Supply: 450W
  • Weight: 4.2kg(w/o VGA, HDD) (DOCK)
  • Warranty : 2 years Collect & Return (1 year Global)

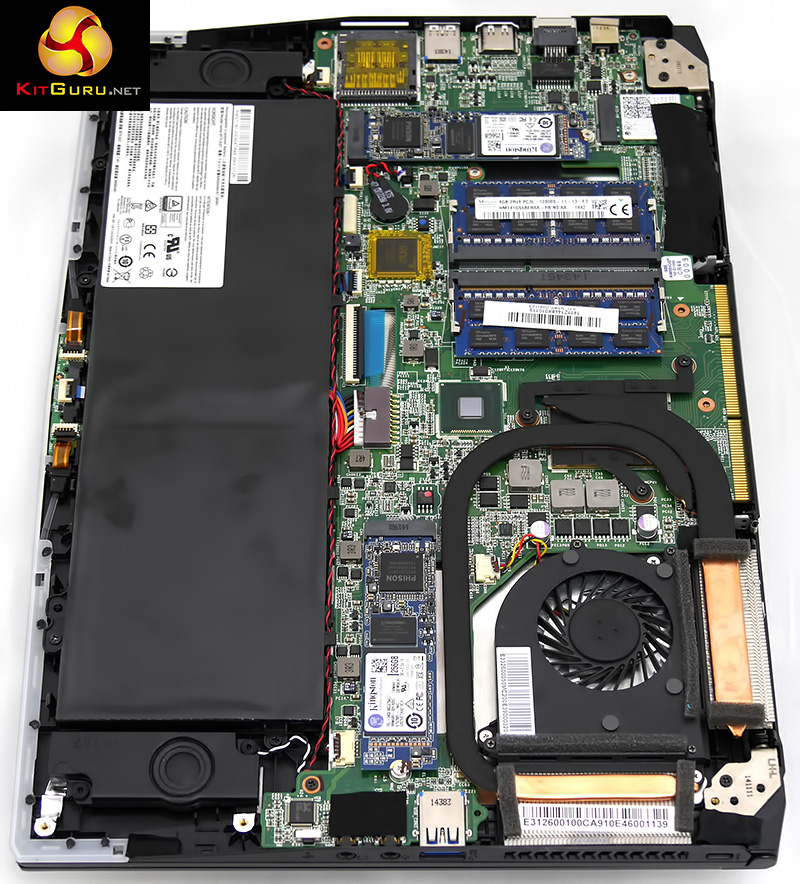

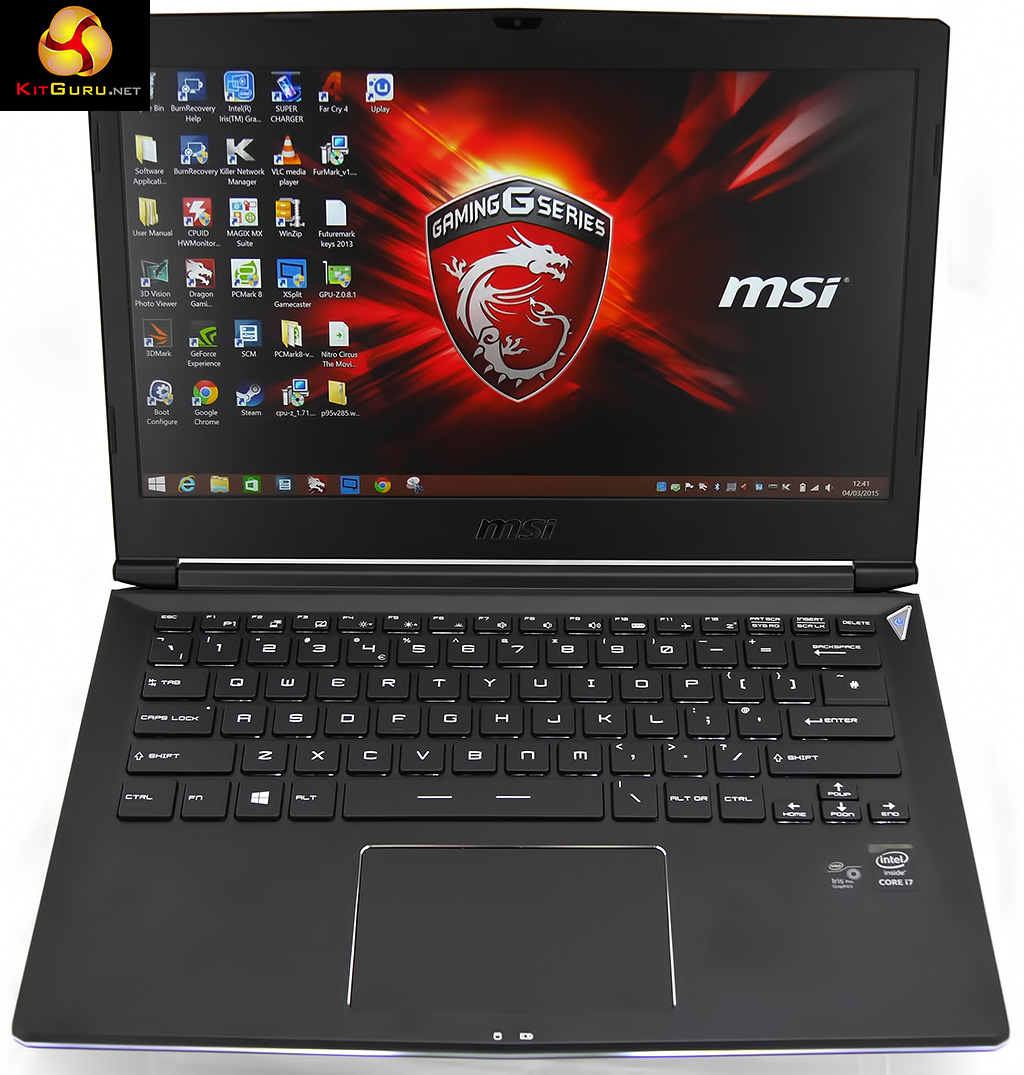

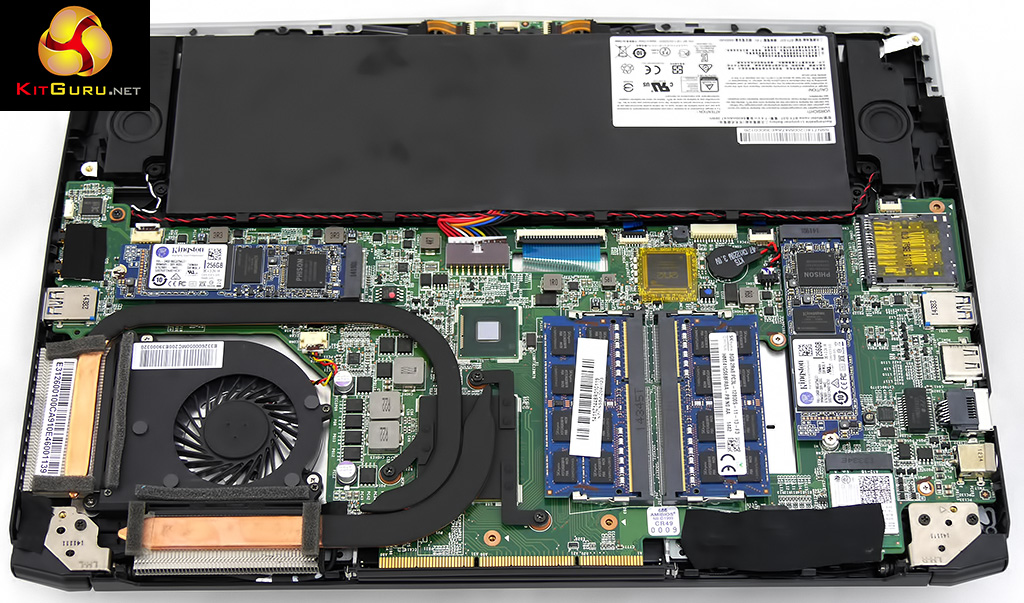

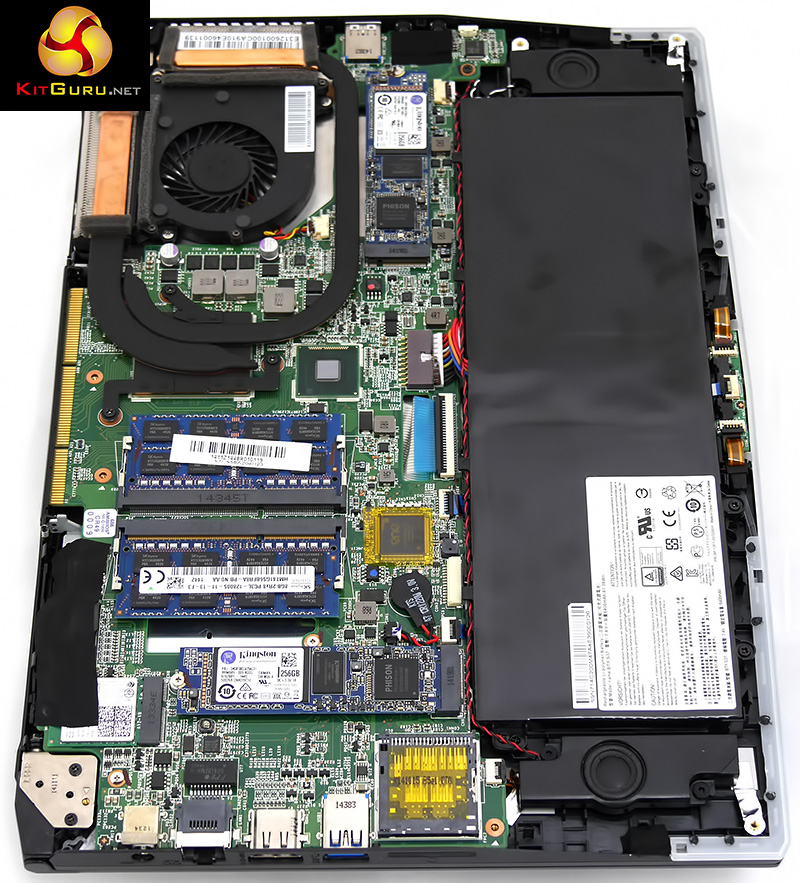

The key features are the Intel Core i7-4870HQ 2.5GHz/3.7GHz, 16GB of DDR3-1600MHz memory and two Kingston 256GB M.2 SSD in RAID 0, along with a thin and light form factor that weighs a mere 1.2kg. On the downside the integrated Intel Iris Pro 5200 graphics fall far short of the mark required to play serious games (although titles such as League of Legends and WOW will work), so MSI’s creation of the GamingDock is a clever move.

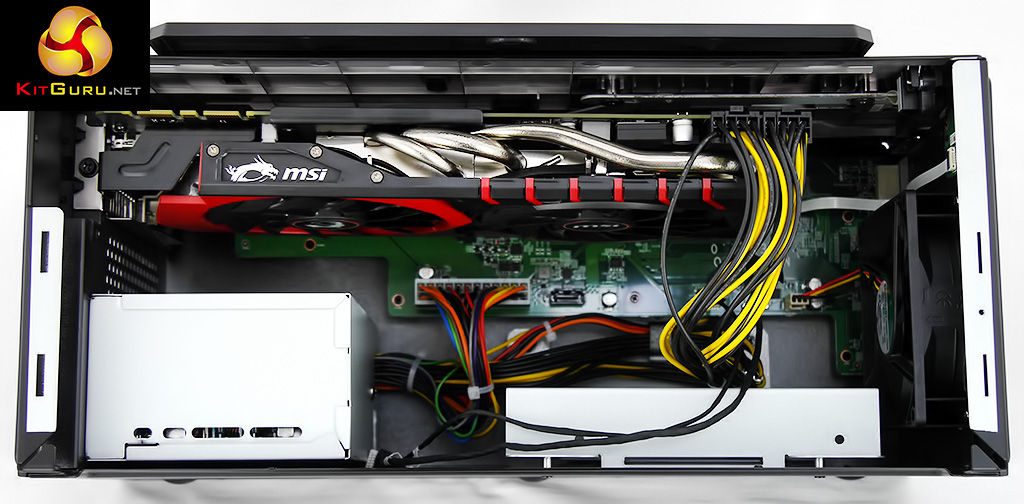

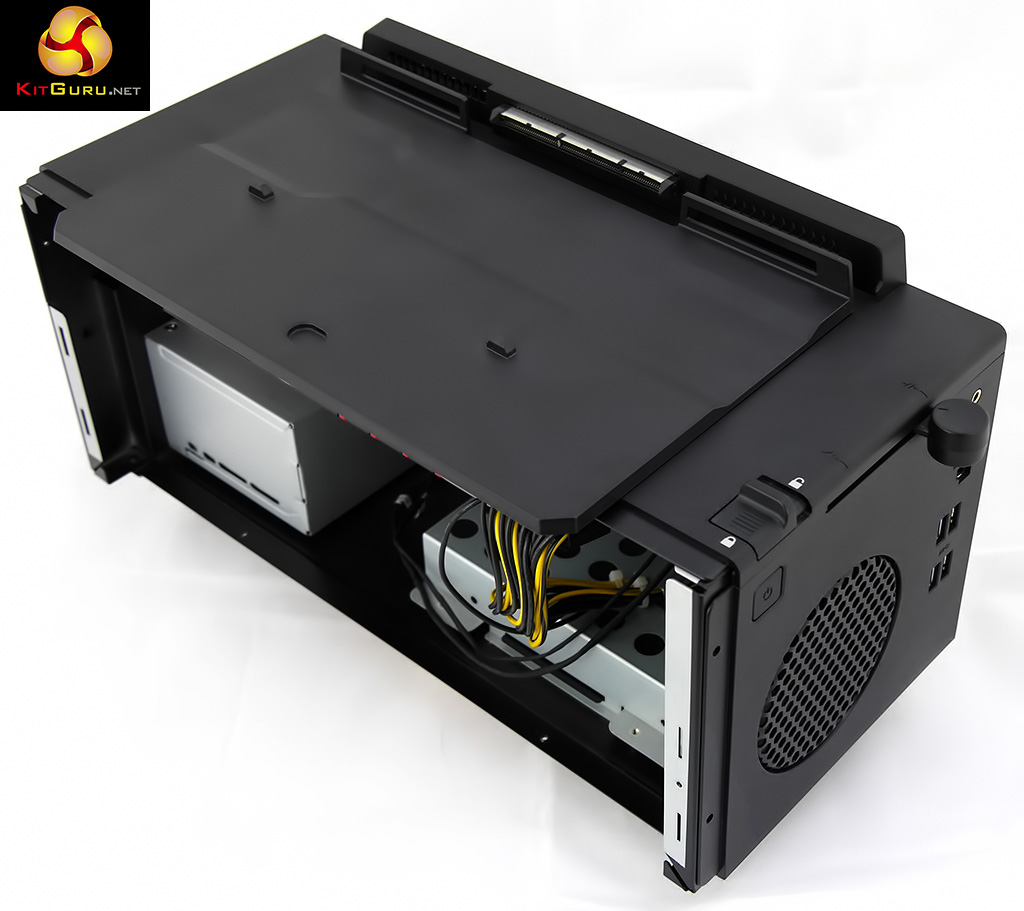

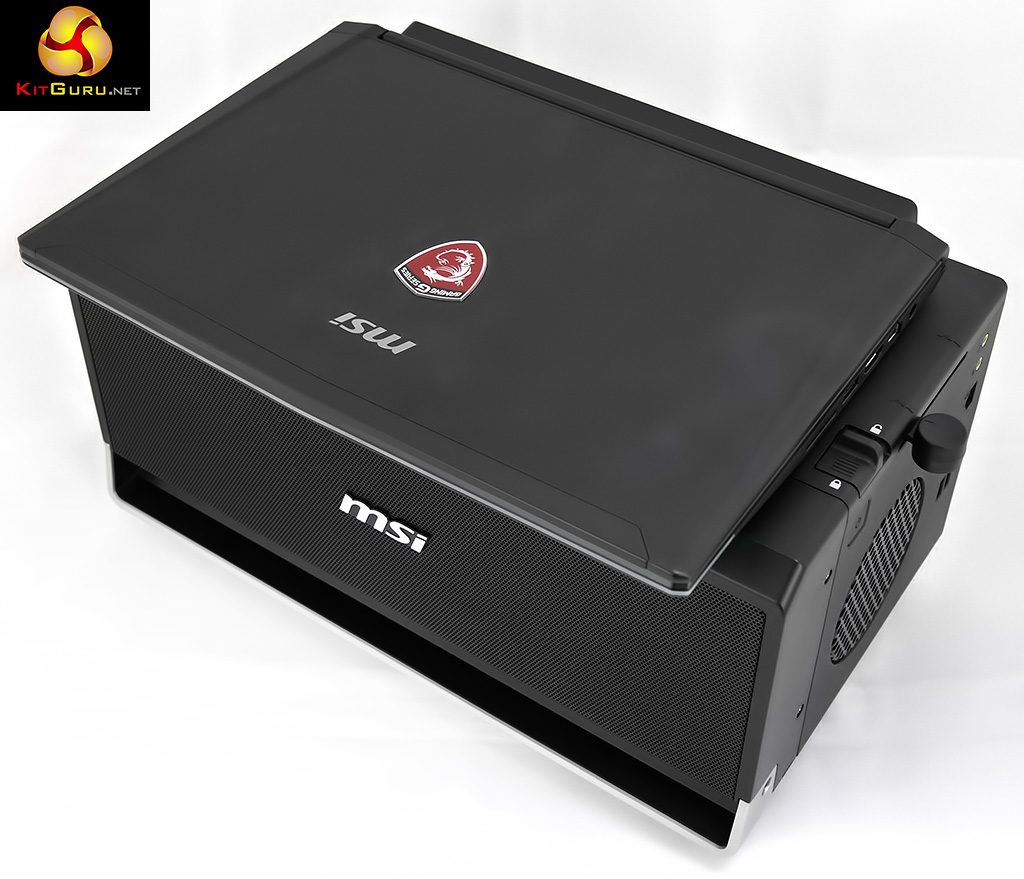

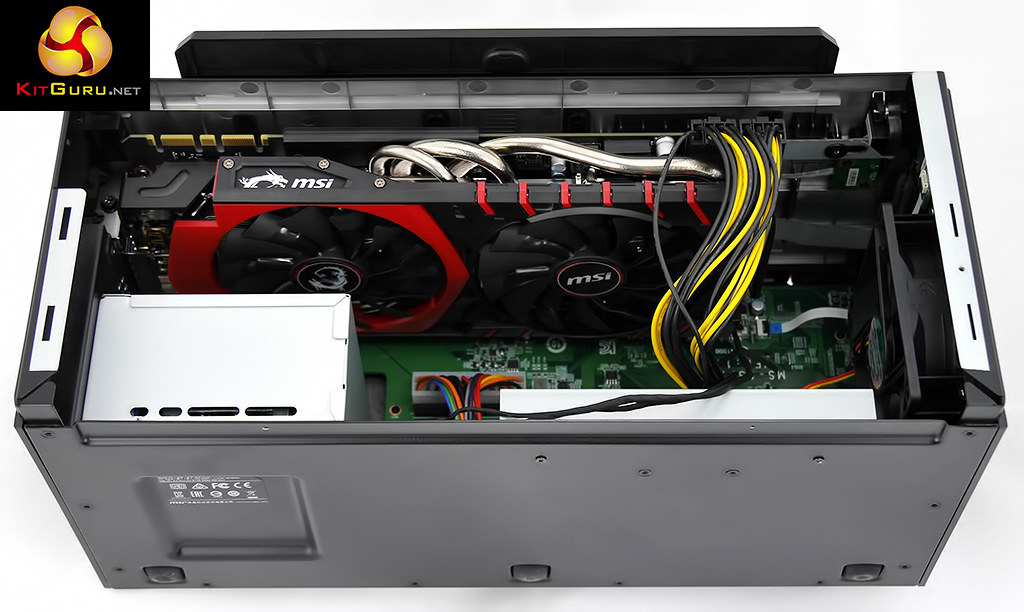

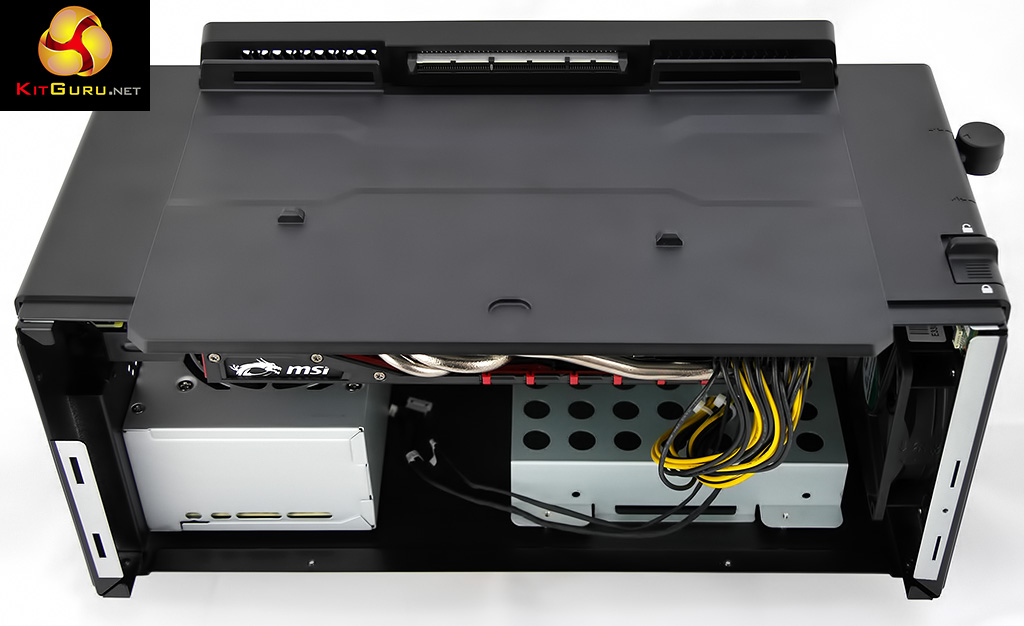

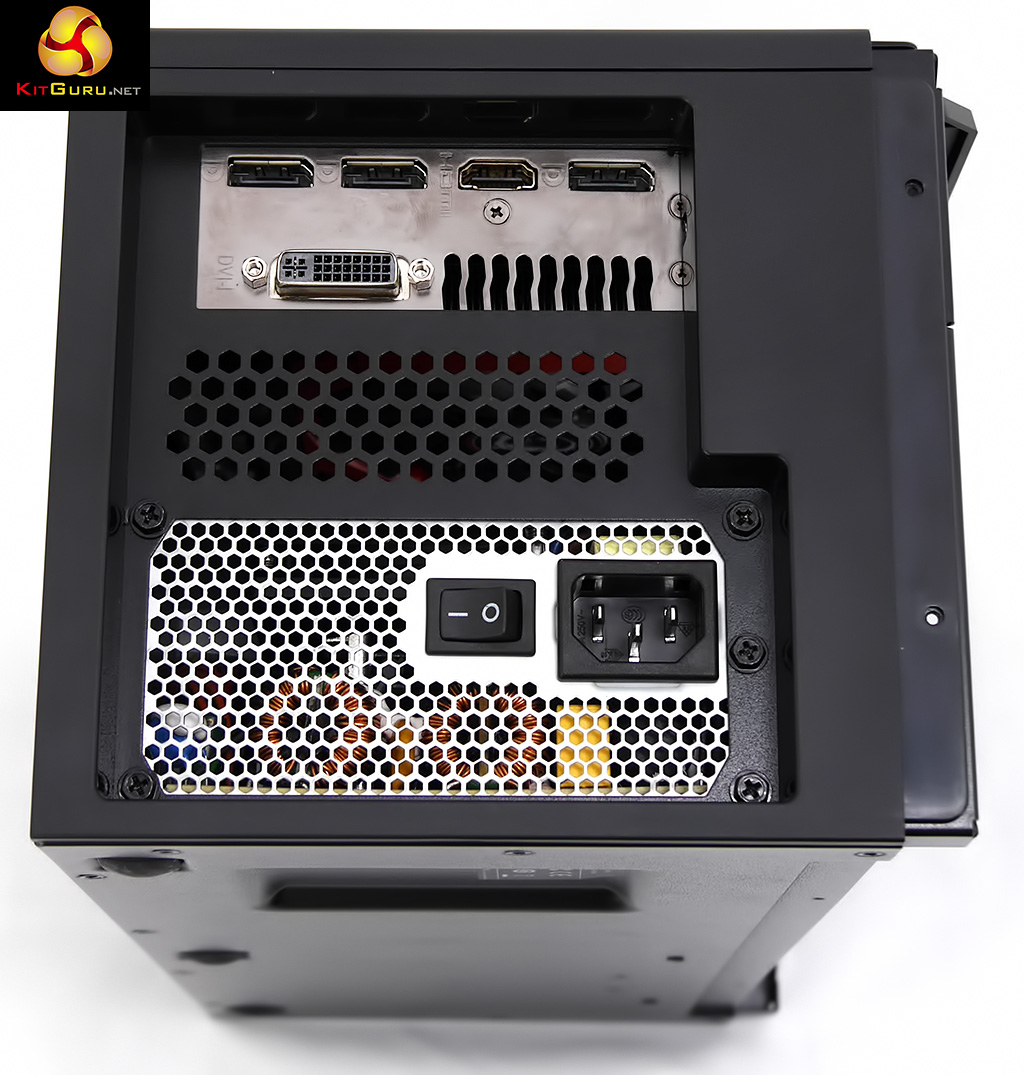

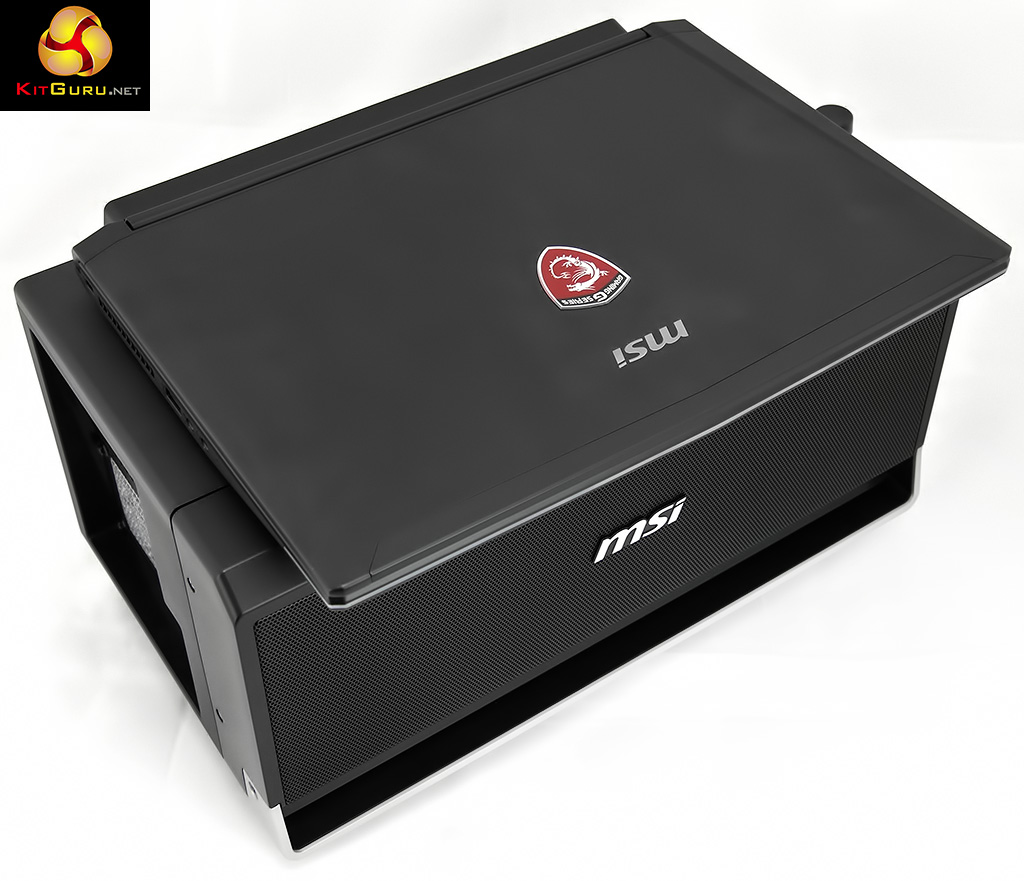

The laptop sits on top of the dock and engages with a PCI Express slot in the rear of the laptop which enables the MSI GTX 980 4GB Twin Frozr graphics card located within the dock. Also contained in the dock is a 450W FPS power supply to feed the necessary juice to the graphics card. We note that the drive bay that contained a 500GB hard drive in the preview system was empty in this retail version.

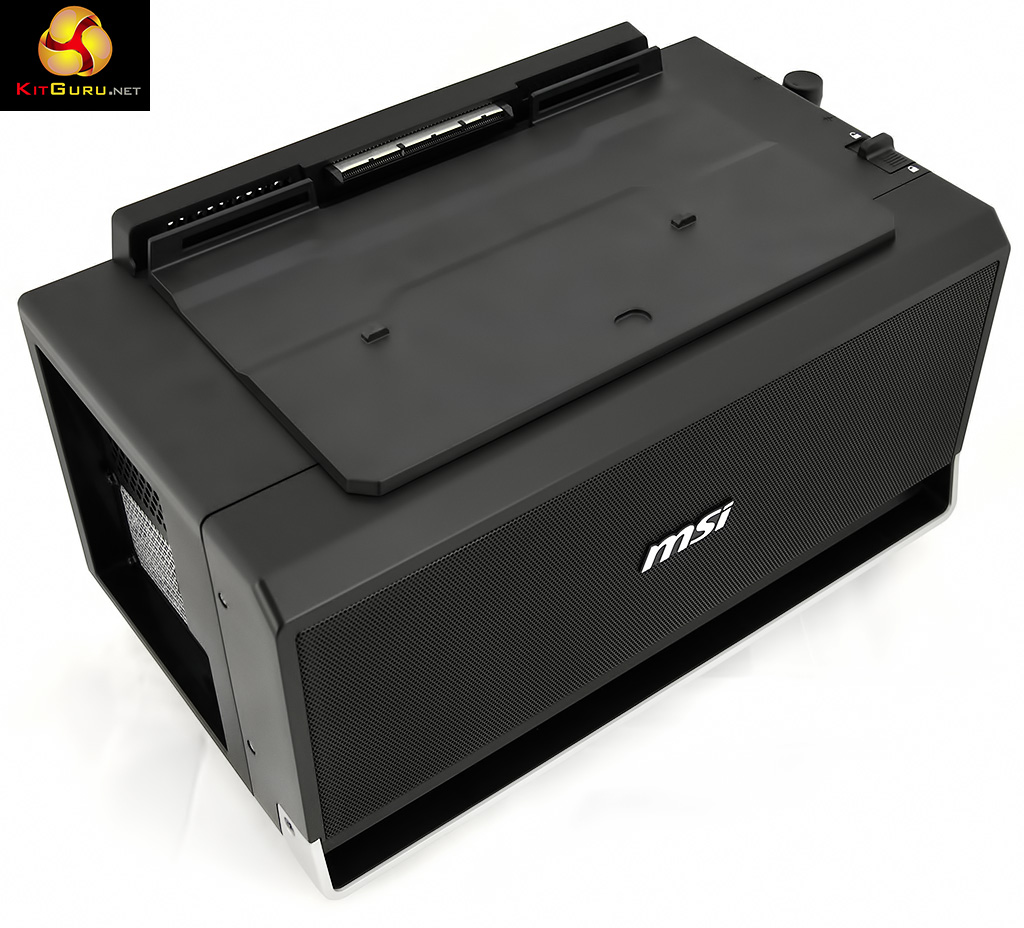

While we like the function of the GamingDock we have to be frank and say that we didn’t much care for the cosmetic styling of this hefty plastic box.

When we assessed the preview system we guessed the price would be somewhere around the £1,950 mark if we allowed £1,200 for the laptop, £300 for the bare dock and £450 for the graphics card. In fact the retail price is £2,195 which sounds rather expensive and suggests the bare laptop costs around £1,450. The maths are somewhat hazy but there is no denying this is a large sum of money.

Performance
Tomb Raider

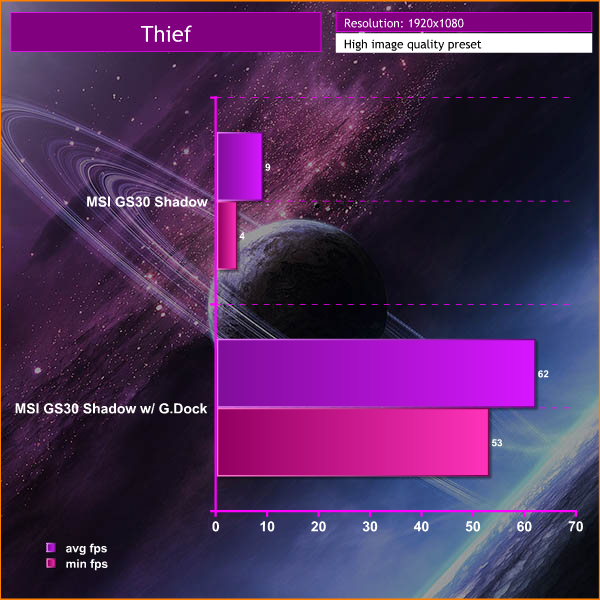

thief
3dmark fire strike

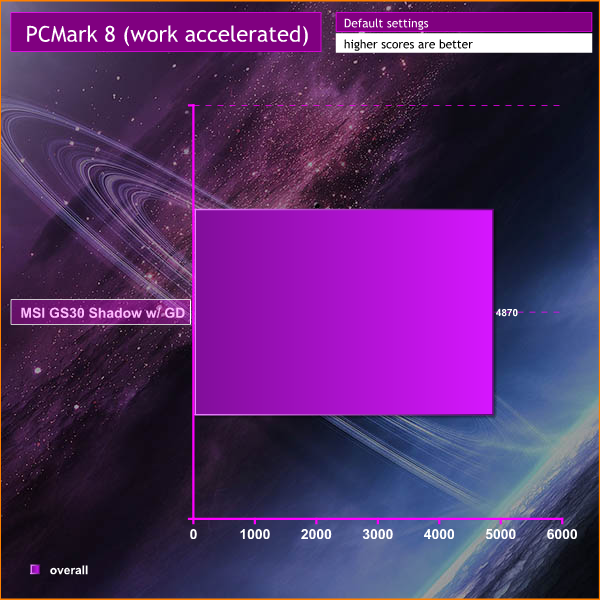

pcmark8
Let’s not beat about the bush. If you play games with the bare GS30 Shadow you are unlikely to see frame rates above 20fps. On the other hand, once you engage the GTX 980 you’ll be able to play any game you like at Full HD with frame rates over 60fps. Core i7 and GTX 980 is a killer combination.

Thermal Dynamics

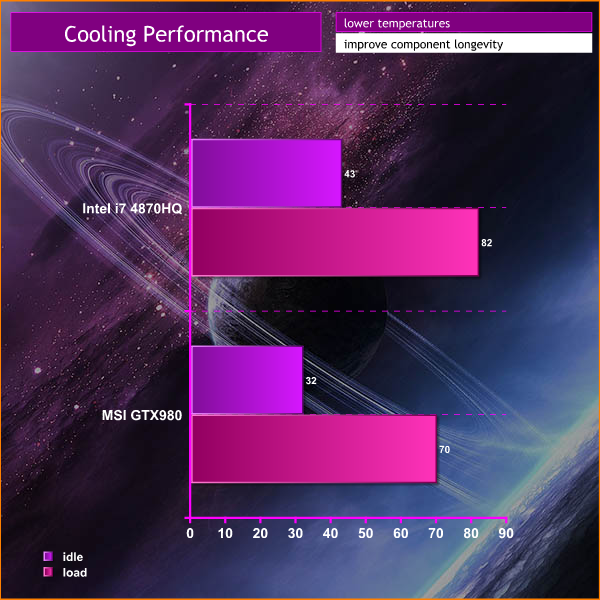

cooling performance

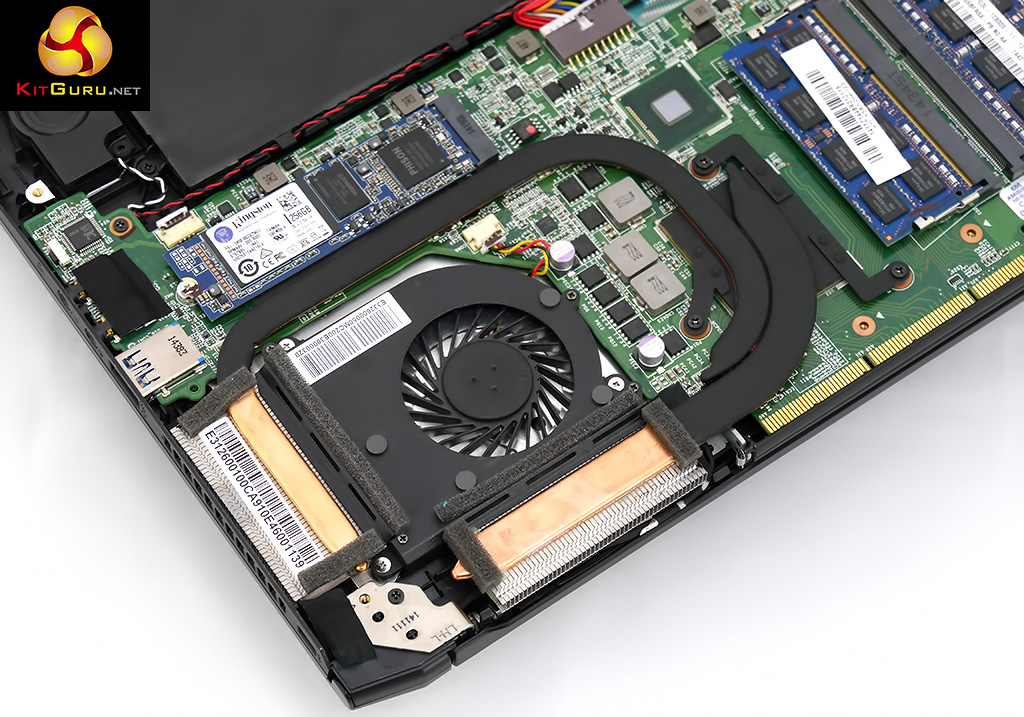

The CPU cooler ejects heat through a narrow slot to the left side of the laptop and the cooler seems to work rather hard for its living. When the system idles the temperature drops to 50 degrees however it runs in the 65-70 degree range at most times. Under load the temperature stops just short of 90 degrees at which point the cooler is howling away.

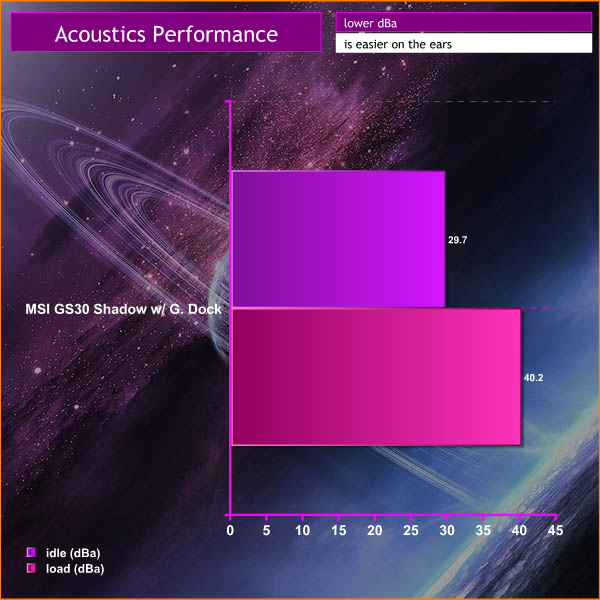

Acoustics Performance
noise

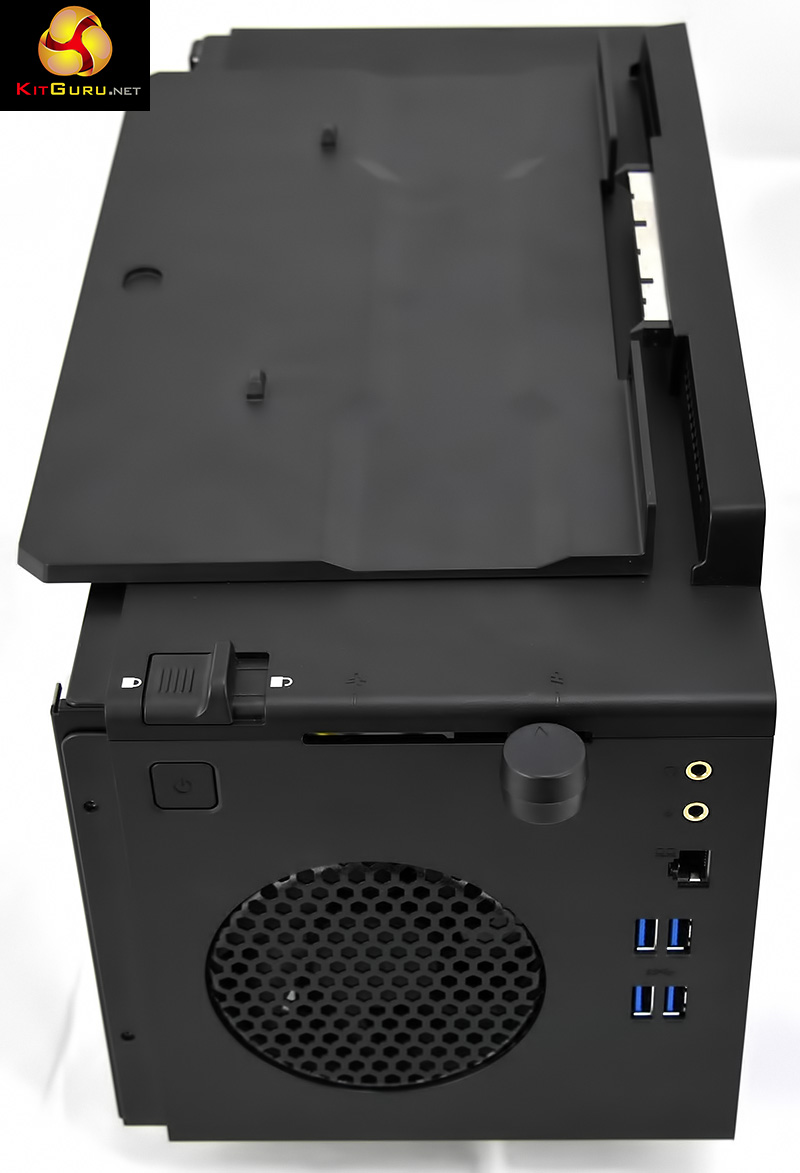

The combination of the 92mm fan in the dock, the power supply fan, the cooling on the graphics card and the CPU cooler in the laptop itself combine to make a fair amount of noise. It certainly isn’t unbearable but it feels as though the GS30 Shadow would benefit from a more effective cooler. It is hard to believe that MSI couldn’t find a quieter power supply for the GamingDock if they worked a little harder.

Battery life
During our preview the battery lasted for 1 hour 58 minutes in continuous loops of PC Mark 8 which equates to four hours of regular heavy usage. We saw a shorter time of 1 hour 19 minutes from the new retail version which could simply be bad luck on our part. This is equivalent to 2 hours 40 minutes. The battery has the same rating so we expect to see a typical thin and light figure that means you will often be looking for your next mains plug.

Closing Thoughts

The concept of leaving the GamingDock at home, waiting for the return of the MSI GS30 Shadow is very appealing. Once the laptop slides into place and the GTX 980 fires into life you are sure to be impressed by the gaming performance that is on tap.

On the downside there is no denying the GamingDock is a hefty and fairly ugly slab of plastic and the noise from the various cooling fans can get rather tedious.

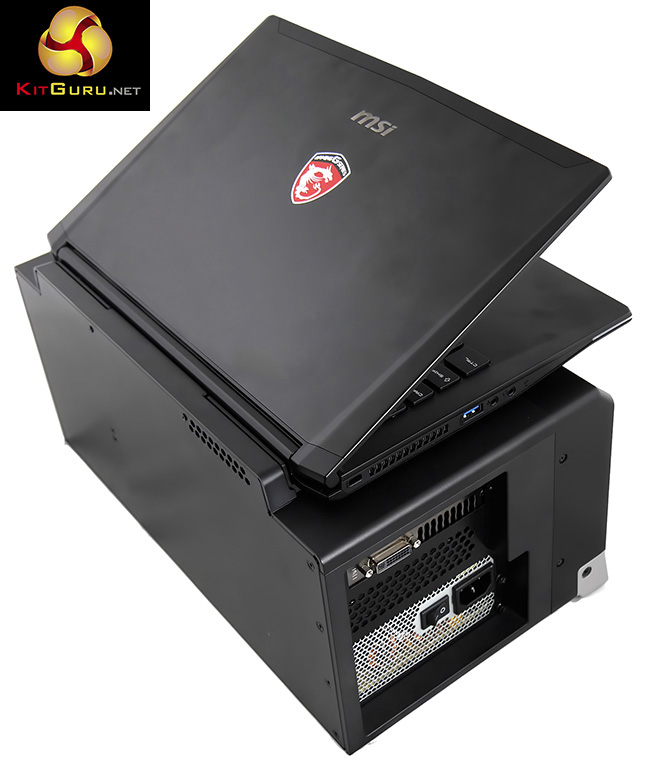

conclusion image
Having said all that the selling price is the major sticking point as £2,195 sounds like a huge amount of money. The price needs to drop below £2,000 and ideally around £1,800, however we’ll have to wait and see how that shakes out over the coming months.

Our final thought on the subject is that the MSI GS30 Shadow and GamingDock looks like a poor deal compared to a combination of MSI GT72 Dominator (Core i7 and GTX 980M) for £1,500 for gaming and a GE60 Apache (Core i5 and GTX 850M) at £700 for day-to-day duties.

Discuss on our Facebook page, over HERE.

Pros:

  • Epic gaming performance from the Core i7 and GTX 980.
  • Flawless PCI Express interface between laptop and dock.
  • Very smart styling.
  • Amazingly low weight of the bare 13-inch laptop.
  • 16GB DDR3.
  • RAID 0 M.2 SSD.
  • Blue/white LEDs on the front edge of the laptop look rather funky.

Cons:

  • It is very expensive
  • Too much noise from the cooling fans.
  • Very hard to admire the styling of the GamingDock.

KitGuru says: If MSI can cut the price of the GS30 Shadow w/ GamingDock, they may well have a winner on their hands.

WORTH BUYING
