The OverclockersUK Infin8 Nebula is formed around an ASUS Z97 Maximus Gene motherboard. The Core i7 processor is overclocked to 4.6ghz.

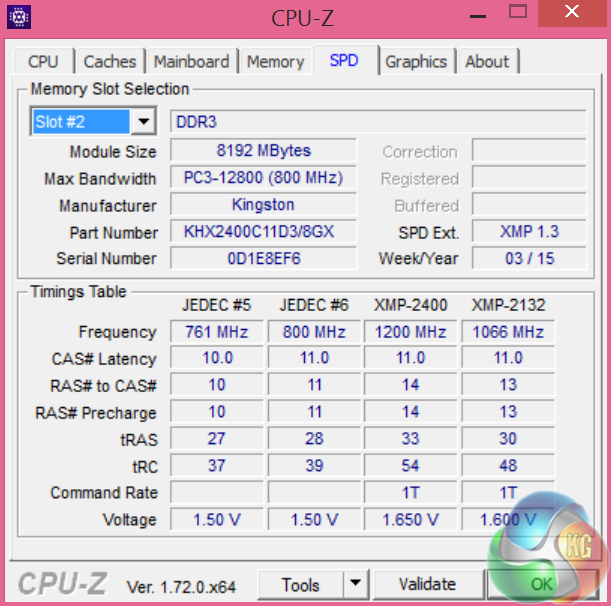

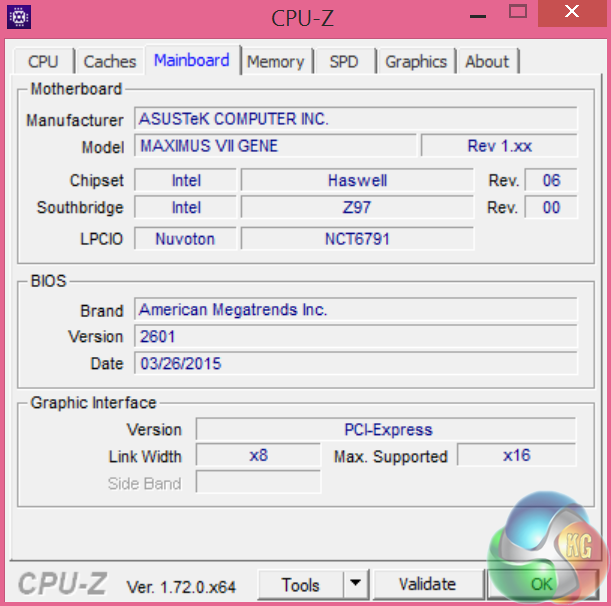

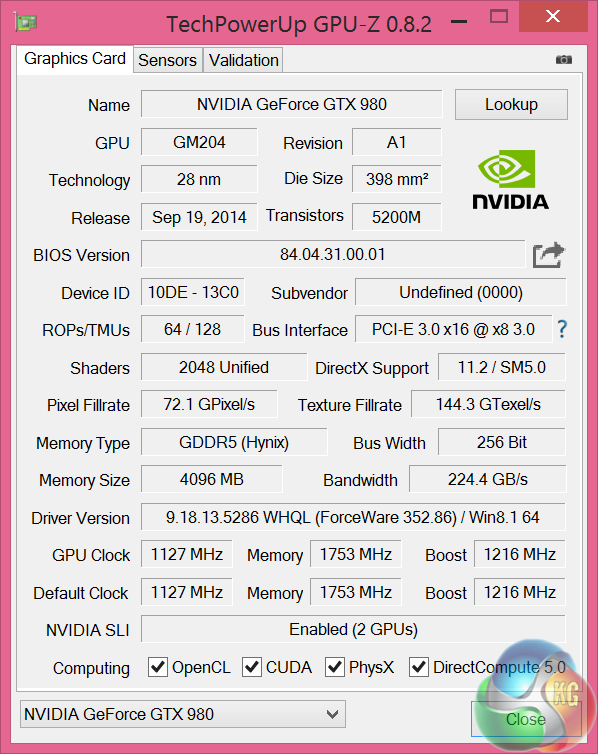

Above an overview of the system in CPUz and GPUz. We can see they are using 16GB of Kingston 2,400mhz memory – a common favourite with system builders this year. Timings are set at 12-13-14-32-2T. Graphics are supplied by two GTX980's running in SLI, at 1,127 mhz core speed.

OverclockersUK Infin8 Nebula Specifications:

• Case: Phanteks Enthoo Mini XL Tower Case – Black with RGB LED Strip
• CPU: Intel Core i7 4790K Haswell (Socket 1150) Quad Core, Eight Thread Processor, Watercooled and Overclocked to at least 4.6GHz
• Motherboard: Asus Z97 Maximus Gene (Socket 1150) ATX DDR3 Motherboard
• RAM: Up to 16GB (2x8GB) 2400MHz Dual Channel DDR3 Kit
• Graphics: 2 x Nvidia GeForce GTX 980 4096MB Graphics Cards in SLI & Watercooled
• Cooling: Full Custom Watercooling Loop with choice of watercooling fluid colours
• Primary Drive: Samsung 850 Evo Series 250GB Solid State Drive (Options Available)
• Secondary Drive: Seagate Barracuda 3TB SATA-III Hard Drive (Options Available)
• Audio: 7.1 Channel HD Audio with SPDIF I/O
• Operating System: Microsoft Windows 8.1 64-Bit (Options Available)
• Power Supply: Super Flower Leadex 850W 80+ Gold Rated Power Supply

We are featuring results today with an Asus PQ321QE Ultra HD 4K screen running at 4K 3840 x 2160 resolution.

Room ambient was held at 23c throughout testing.

Comparison Systems (for specific synthetic test compares):

PCSpecialist Predator X99 System
Case: Carbide AIR 540
Power Supply: Corsair 1000W RM
CPU: Intel Core i7 5820K @ 4.4ghz
Motherboard: Asus X99-S
RAM: 16GB Kingston HyperX Predator 2,400mhz
SSD: 240GB Kingston HyperX 3K
Graphics Card: AMD R9 295X2
Cooling: Corsair H100i Hydro

CyberPower Achilles Pro
Case: InWin 904 Chassis
Power Supply: Corsair 750W Modular
CPU: Intel Core i5 4690
Motherboard: Gigabyte Z87 Gaming 3
RAM: 8GB DDR3 Kingston
SSD: 256GB Plextor PCI-E SSD
Graphics Card: Gigabyte GTX780 2GB GPU
Cooling: Cooler Master Seidon

AWD Ignis Aqua 290X 250D Mini ITX PC
Case: Corsair 250D Mini ITX
Power Supply: XFX XTR 650W Gold Certified Power Supply
CPU: Intel Core I5 4670K Overclocked @ 4.0Ghz (Liquid Cooled with XSPC Raystorm)
Motherboard: Gigabyte Z87N-Wifi Motherboard
RAM: 8GB DDR3 2400MHz Dual Channel Kit
Hard Drive: Seagate 1TB 7200RPM Hard Drive
SSD – Samsung 840 EVO 120GB Solid State Drive
Graphics Card: Radeon R9 290X (Liquid Cooled with R9 290x Block)
Sound: Realtek 7.1 High Definition Channel Sound (On-Board)
Optical Drive: N/A
Cooling: Custom XSPC Watercooling

Hazer Mini Gaming PC
Case: Bitfenix Colossus M Micro ATX Case – Black
Power Supply: Corsair VS450 450W Power Supply
Motherboard: Gigabyte GA-H81M-S2PV Motherboard
Processor: Intel Core i3 4130 3.4GHz Dual Core Processor
Graphics: Nvidia GTX 750 Ti 2GB Graphics Card
Audio: Onboard 7.1 Surround Sound Audio
Optical Drive: 24x DVD Re-Writer
SSD: Kingston SSDNow V300 60GB SATA3 6Gbs Solid State Drive
HDD: 1TB SATA3 6Gbs Hard Drive
Memory: Kingston HyperX 8GB 1600MHz Memory

Mesh Elite Mini Gamer Plus:
Power Supply: 750W Cooler Master GX RS-750, 85% Eff’, 80 PLUS Bronze, SLI/CrossFire.
Motherboard: MSI Z87I WIFI – Mini-ITX Motherboard Socket 1150.
Processor:  i7-4770K Quad Core Processor (3.5GHz, 8MB Cache) @ 4.2ghz.
Memory: 16GB DDR3 1866MHz Memory (2x8GB) Kit.
Graphics: 4GB AMD Radeon™ R9 290 – 4GD5 Gaming Series Graphics.
SSD: 240GB SSD – Solid State Drive.
HDD: 2TB SATA III 6Gb/s, 7200rpm, 64MB Cache, 8ms Hard Drive.

PCSpecialist Vanquish 230X:
Processor: Intel Core i5-4670K @ 4.2GHz
Memory: 16GB Kingston HyperX BEAST @ 2400MHz
Motherboard: ASUS Z87-A Motherboard
SSD: 120GB Kingston HyperX 3K SSD
HDD: 1TB SATA III 6Gb/s HDD
Graphics: 3GB AMD Radeon 280X Graphics
Cooler: CoolerMaster Seidon 120M Liquid Cooler
Power Supply: Corsair TX650M Modular PSU

Intel E5 2687W x 2
Motherboard: Asus Z9 PE-D8 WS
Coolers: Corsair H80 x2
Memory: 64GB Kingston Predator 1,600mhz 9-9-9-24 1T
Graphics Card: Sapphire HD7970 6GB Toxic Edition (1,200mhz core 1,600mhz memory).
Power Supply: Seasonic 1000W Platinum Modular
Optical Drive: Asus BluRay Drive
Chassis: Lian Li X2000FN
Monitors: Dell U3011, 3x Ilyama ProLite E2472HDD
Boot Drive: Corsair 240GB Neutron GTX SSD
Secondary Drive: Corsair 240GB Neutron SSD

Intel E5 2660
Motherboard: Gigabyte X79S-UP5-WIFI
Cooler: Corsair H100
Memory: 16GB G.Skill ARES 2,133mhz @ 9-11-10-28
Graphics Card: Sapphire HD7970 6GB Toxic Edition (1,200mhz core 1,600mhz memory).
Power Supply: Corsair AX1200
Optical Drive: Asus BluRay Drive
Chassis: Lian Li X2000a
Boot Drive: Intel 510 120GB
Secondary Drive: Patriot 240GB WildFire

Intel i7 3960X EE
Motherboard: Asus P9X79 WS WorkStation
Cooler: Corsair H100
Memory: 8GB Corsair Dominator GT8 2400mhz memory
Graphics Card: Sapphire HD7970 6GB Toxic Edition (1,200mhz core 1,600mhz memory).
Power Supply: ADATA 1200W
Optical Drive: Asus BluRay Drive
Chassis: Cooler Master Cosmos 2
Boot Drive: Crucial C300 128GB SSD
Secondary Drive: Patriot 240GB Pyro SE

Intel i7 3820
Motherboard: ASRock Extreme4-M
Cooler: Intel reference cooler
Memory: 8GB Corsair GTX8 @ 2133mhz
Power Supply: ADATA 1200W
Chassis: Lian Li PC60
Boot Drive: Crucial C300
Secondary Drive: Patriot Pyro SE 240GB

Intel i5 3570K @ 4.2 – OCUK Prodigy Arctic Gaming System
Motherboard: ASRock Z77E-ITX Intel Z77
Cooler: Coolit Liquid
Memory: Corsair Vengeance White 8GB (2x4GB) DDR3 PC3-12800C9 1600MHz Dual Channel Kit
Power Supply: OCZ ZS 750W PSU
Chassis: Bitfenix Prodigy Mini ITX Case – White
Boot Drive: OCZ Vertex 4 128GB
Secondary Drive: 1TB HDD

AMD FX 8150 Black Edition
Processor: AMD FX 8150 Black Edition
Motherboard: Gigabyte 990FXA-UD7
Cooler: Noctua NH D14
Memory: G-SKill Ripjaws 1600mhz 8GB (2x 4GB)
Power Supply: ADATA 1200W
Chassis: SilverStone Raven 3
Boot Drive: Intel 40GB SSD
Secondary Drive: Patriot 120GB WildFire

Intel Core i7 990X
Processor: Intel Core i7 990x
Cooler: Corsair H100
Motherboard: Gigabyte G1 Assassin
Memory: Kingston HyperX 6GB
Drives: Crucial RealSSD C300 256GB
Power Supply: Corsair AX1200
Chassis: Antec Twelve Hundred

Core i7 970 @ 4.6ghz
Graphics: Sapphire HD7970 6GB Toxic Edition (1,200mhz core 1,600mhz memory).
Cooling: Coolit Vantage
Motherboard: MSI X58A-GD65
Chassis: Thermaltake Level 10 GT
Power Supply: Corsair AX1200
Memory: 6GB ADATA @ 2133mhz 9-10-9-32
Storage: Kingston SSDNow V+ 512GB Gen 2 SSD (Storage) / Crucial RealSSD C300 256GB (OS boot)

Intel Core i7 2700k
Processor: Intel Core i7 2700k
Cooling: ThermalTake Frio OCK
Motherboard: Gigabyte GA-Z68AP-D3 Z68 Motherboard
Chassis: Silverstone Raven 3.
Power Supply: Corsair 850W.
Memory: Corsair 1600mhz memory
Storage: Intel 80GB SSD (boot) / Patriot Wildfire 120GB SSD.

Intel Core i7 2600k
Processor: Intel Core i7 2600k
Motherboard: ASRock Fatal1ty Z68 Professional Gen 3
Cooler: Intel XTS-100H
Memory: ADATA 1600mhz DDR3 8GB (2x4GB)
Power Supply: Thermaltake Toughpower 850W
Boot Drive: Intel 510 SSD 250GB

Intel Core i5 2500k
Processor: Intel Core i7 2500k
Motherboard: Gigabyte GA-Z68AP-D3 Z68 Motherboard
Cooler: Arctic Cooling Freezer Xtreme Rev.2 CPU Cooler
Memory: Corsair 1600mhz memory 8GB (2x4GB)
Power Supply: Corsair 850W.
Boot Drive: Patriot Pyro 120GB SSD.

AMD Phenom II X6 1100T
Processor: AMD Phenom II X6 1100T
Motherboard: Gigabyte 990FXA-UD7
Cooler: Noctua NH D14
Memory: G-SKill Ripjaws 1600mhz 8GB (2x 4GB)
Power Supply: ADATA 1200W
Chassis: SilverStone Raven 3
Boot Drive: Intel 40GB SSD
Secondary Drive: Patriot 120GB WildFire.

Software:
3DMark 11
3DMark
Cinebench R11.5 64 bit
Cinebench R15
FRAPS Professional
Unigine Heaven Benchmark
Unigine Valley Benchmark
CrystalDiskMark
Cyberlink PowerDVD Ultra 11
Cyberlink MediaEspresso
Atto Disk Benchmark
CrystalDiskMark
SiSoft Sandra

Games:
Tomb Raider
Witcher 3: Wild Hunt
Grid AutoSport
Grand Theft Auto 5

All the latest BIOS updates and drivers are used during testing. We perform generally under real world conditions, meaning KitGuru tests games across five closely matched runs and then average out the results to get an accurate median figure. If we use scripted benchmarks, they are mentioned on the relevant page.

Some game descriptions edited with courtesy from Wikipedia.
