Elgato HD60 X Capture Card Review

Rating: 8.5.

Today we're taking a look at the Elgato HD60 X, the latest capture card in the streaming giant's line-up. This new version will retail for £189.99, making it the same price as the 3-year-old HD60 S+ – but has much even changed to warrant an upgrade? That's what we will find out today with a close look at the features on offer, image quality and more…


00:00 Introduction
00:51 Elgato HD60X
01:49 Unboxing
02:09 Testing/ Details
04:00 4k/30 testing
05:20 1440p / 1080p testing and bit rates
07:09 HDR passthrough / SDR recordings
07:30 Supported resolutions / capture
07:41 Variable refresh rate support
08:00 4k Capture utility
11:09 Closing Thoughts

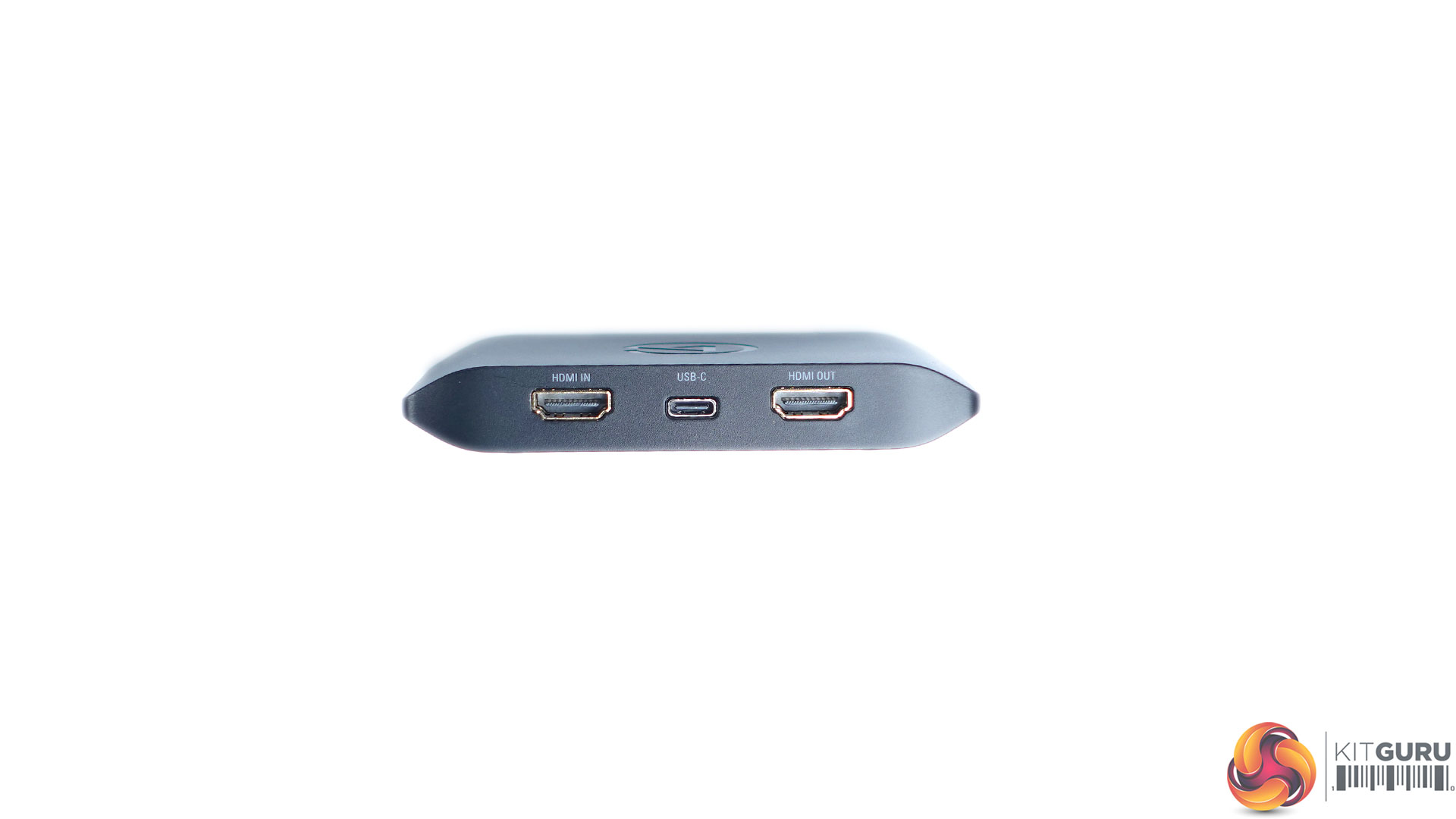

  • Input: HDMI 2.0
  • Output: HDMI 2.0
  • Lag-free passthrough up to 2160p 60, 1440p120, VRR, HDR
  • Capture resolutions: 2160p30, 1440p60, 1080p60, 1080p30, 1080i, 720p60, 576p, 480p
  • HDR 10-bit passthrough (up to 4K60) / capture (up to 1080p60)
  • HDR capture is currently only available on Windows
  • Dimensions: 11.2 x 7.2 x 1.8 cm
  • Weight: 91g
  • In the box: HD60x, HDMI 2.0 cable, USB 3.0 C-to-A Cable

The Elgato HD60 X will retail for £189.99.

Discuss on our Facebook page HERE.


  • New design for a cleaner aesthetic.
  • Support for VRR compatible TVs / consoles.
  • 4K 30 recording support.
  • Support for 4K 60 HDR passthrough.
  • Support for 1440p 120 passthrough.
  • Play in HDR and record in SDR.
  • Small, lightweight, good for streamers on the go.


  • Only 4:2:0 recording (but still looks great).
  • 4K/30 recordings are only possible with 4K/30 source.
  • Only 1 HDMI cable included.
  • No real stand out features compared to the HD60 S+.

KitGuru says: Although not much has changed from the HD60 S+, we now have VRR support and can record 4K/30 (with limitations) – and as this is the same price as the HD60s+, it will simply replace it in the line-up. If you're new to streaming the HD60X is worth buying, but if you already have the HD60 S+, unless you really need those new features (VRR and 4K 30 recording) then you might want to wait for Elgato's future offerings.
