Rise of the Tomb Raider PC Game analysis

Back in 2013, the Tomb Raider reboot impressed us all on the PC side with its graphical features- the game even went on to become one of our ‘go to‘ benchmarks for GPU reviews. Now, after a brief stint as a Xbox exclusive, the sequel ‘Rise of the Tomb Raider' has landed on the PC but does the port live up to the same standard as the original? Let's find out!

2016-01-29_00001

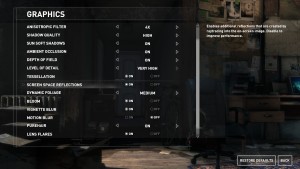

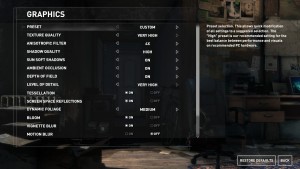

2016-01-29_000042016-01-29_00005

Right off the bat, Rise of the Tomb Raider offers an impressive graphics options suite. In the display options menu, you can crank the refresh rate all the way up and switch between FXAA, SMAA, SMAA x2 and SMAA x4.

In the graphics options menu, you have preset options all of the way up to ‘Very High' with separate sliders for things like textures, shadows and ambient occlusion. Everything that you would expect is present but there are three options that are worth talking about in a bit more detail.

2016-01-28_00008

First off, the ‘Level of Detail' slider controls how complex the geometry of the world is, making for more realistic environments and shapes for buildings, cliffs and rocks. ‘Dynamic Foliage' is another important setting as this controls how the objects in the world react to weather effects, so if you want all of the plant life in the world to react realistically to the weather, this is the setting to go to.

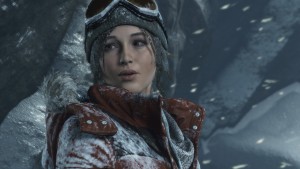

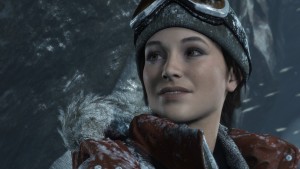

2016-01-29_00006 2016-01-29_00018

Finally, we come up to ‘Pure Hair', which replaces TressFX from the original 2013 Tomb Raider. Back then, TressFX was the setting that would hurt your framerate the most so for these tests today, I will be running benchmarks with Pure Hair ON and OFF to show the difference in performance. You can see the graphical difference in the two screenshots above. Pure Hair is ON in the left and OFF in the right.

I tested Rise of the Tomb Raider on a system featuring an Intel Core i7 5820K, 16GB of Crucial Ballistix 2400MHz RAM, an Asus X99A motherboard and a Samsung 950 Evo 1TB SSD. I don't review graphics cards for KitGuru but for the purposes of these tests the hardware team have sent me an MSI GTX 970 4G, an XFX R9 390x Ghost Edition and a Sapphire R9 290 Vapor-X to go along with my own Reference GTX 980Ti.

On the Nvidia side, I used driver version 361.75 and for the AMD cards, I used Radeon Software version 16.1. It is worth noting that Nvidia's driver contains specific optimizations for Rise of the Tomb Raider while AMD has yet to release their own driver update for this game at the time of writing. None of the graphics cards in this test were overclocked.

Rise of the Tomb Raider does not have its own inbuilt benchmark tool so for this test, I ran through the opening of the game featuring Lara scaling up a mountain until an avalanche hits. I chose this scene in particular as it does a great job of showing off the game's weather effects, lighting, shadows and textures while also being easy to repeat due to its cinematic nature. I have played quite a bit further than this and can confirm that it is one of the more graphically intense parts of the game.

As you can see in the options menu screenshots above, I am running a slightly modified version of the ‘Very High' preset for this benchmark, with SMAA on but Motion Blur switched off.

1080p results:

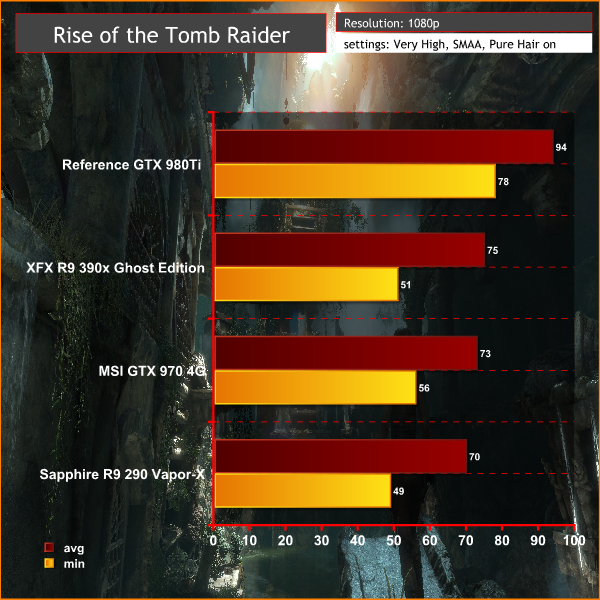

Tomb Raider 1080p Pure Hair ON

Tomb Raider 1080p Pure Hair OFF

1440p results:

Tomb Raider 1440p Pure Hair ON

Tomb Raider 1440p Pure Hair OFF

As you can see, Rise of the Tomb Raider is a demanding game both with Pure Hair switched on and off. On average, turning on Pure Hair will cost you around five frames per second but minimum frame rates don't tend to take much of a hit so even on the R9 290, you should be able to hold above 30 frames per second at 1440p.

2016-01-28_00011

While Rise of the Tomb Raider is demanding, I would argue that it has every right to be as right now it is one of, if not the best-looking game on PC in terms of graphics even without being completely ‘maxed out'.

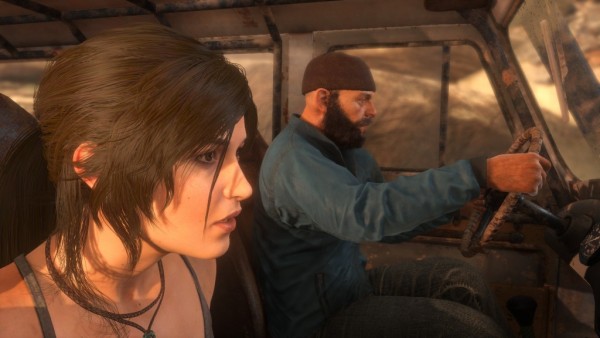

2016-01-28_00002

Both indoor and outdoor scenes feature some of the best lighting and shadows I have seen in a game for a long time and you can tell that a lot of effort has also been put into the character animations and textures. However, do keep in mind that this is a third-person game, designed with the camera placed at a specific distance from textures. If you angle the camera to be right up against a rock or an object, then you will start to see some blur.

The game is pretty but I haven't just spent all of my time admiring Lara's hair or staring off into the horizon. I have spent around 14 hours in Rise of the Tomb Raider and I am happy to say that it is an improvement over the original in terms of exploration.

There are a lot more secrets and hidden tombs to be found in this game. However, you will find some early on that you can't access without having a specific tool so you may find yourself fast traveling around a bit to go back to tombs you had to miss along the way.

It is also worth noting that if the controls are what put you off of the 2013 Tomb Raider reboot, then you may not find much of an improvement here. Lara still handles pretty much exactly the same- which can be a bit ‘janky' at times. There is also still a large focus on cinematic sequences and quick-time events though not quite to the same extent.

Overall, if you enjoyed the 2013 Tomb Raider, then I am confident that you will enjoy this sequel. The story is longer, the tombs are better and there is an actual world to explore here this time around.

KitGuru Says: Rise of the Tomb Raider is an excellent showcase for just what PC hardware is capable of graphically. On top of that, Crystal Dynamics has done an excellent job designing a more explorable world this time around. Have any of you tried out Rise of the Tomb Raider yet? How is the game running for you?

Become a Patron!

Check Also

Valorant open beta now live on Xbox Series X/S and PS5

Riot Games has been working away on Valorant for a couple of years now, securing …

15 comments

  1. Poorly optimised and broken SLI for most people. Testing should be done from the Russian base and onwards as most users are finding huge frame rate dips after reaching those areas whilst the earlier sections are fine.

  2. Ah really? Because I was thinking about buying a GTX 970 to get TR for free.

  3. You will be ok at high setting for 1080p 60hz with a 970.

    The issue for me and a lot of others is at 4k using SLi 980ti etc.

  4. Ah, well, I don’t have a 4k monitor, so that should be fine.

  5. Sold one of my Ti’s and just bought a 40in 4k monitor. Timing sucks eh!! 😉 😀

  6. You should be fine, while there are a few reports of people getting poor performance I did play through the game well past the Russian base searching for a good/easily repeatable benchmarking point and I did not run in to any issues.

    I did not test 4K performance or SLI though, so that could be a different story.

  7. I’m running 2x GTX 970 SLI and the frame rate is identical for single card and SLI, SLI also causes flickering with water, shadows and snow mainly the avalanche.

  8. SLI fix (apparently)…

    To get it working, you need to create a custom profile. You do this using the Nvidia Inspector Tool, where you can search for the Rise of the Tomb Raider profile and change its SLI bits (DX11) to 0x080002F5. Once that’s done, press on the magnifier icon and this will reveal Nvidia’s Undefined Options. Search for 0x00A0694B and set it to 0x00000001.

  9. pcper..

    http://www.pcper.com/reviews/Graphics-Cards/Rise-Tomb-Raider-AMD-and-NVIDIA-Performance-Results/Flagship-GPUs
    http://www.pcper.com/files/imagecache/article_max_width/review/2016-01-29/RoTR_2560x1440_PER.png
    http://www.pcper.com/files/imagecache/article_max_width/review/2016-01-29/RoTR_3840x2160_PER.png
    http://www.pcper.com/files/imagecache/article_max_width/review/2016-01-29/RoTR_2560x1440_PER_0.png
    http://www.pcper.com/files/imagecache/article_max_width/review/2016-01-29/RoTR_3840x2160_PER_0.png

    tpu..
    http://tpucdn.com/reviews/Performance_Analysis/Rise_of_the_Tomb_Raider/images/1920_1080.png
    http://tpucdn.com/reviews/Performance_Analysis/Rise_of_the_Tomb_Raider/images/2560_1440.png
    http://tpucdn.com/reviews/Performance_Analysis/Rise_of_the_Tomb_Raider/images/3840_2160.png

  10. Yes, this actually does work well on a few systems ive tested, although many people are reporting it doesn’t work with their configuration. Certainly worth a shot, although its quite surprising that considering this is an Nvidia ‘partner’ title that they didn’t get this sorted for the launch.

  11. The game is totally weird in my opinion. Yeah, it looks nice and visuals are great, but the engine is weird. It uses basically as much as VRAM you give to it. I saw it use 4094MB on GTX970 and 6.2GB on R9 390. It’s kinda un-optimized, but maybe AMD drivers will make that a bit better. I just don’t buy the whole driver thing. “Wait for AMD drivers, it’s not fair to test it without the proper “game ready” drivers”. Bloody driver hype was made when Nvidia made their “Game Ready” bullshit on GeForce.com. If the AMD or Nvidia does not release a specific driver for a game and that game performs good, that’s what I call a good and stable driver, not “Game (fu****’) Ready” driver. 🙂

  12. I think we are at the point where we need to admit that SLI is just not worth it. The games you actually want to run SLI on never seem to be optimized for it.
    Running an evga 680 classified for this game, and running on max with about mid 50’s fps at the soviet base, no drops on max with everything on except fog. My buddy is running 670’s sli and is having constant problems.
    It’s just the way it is.. sli is a failed dream.

  13. To get SLI to work with up to 95% scaling you will need the NVIDIA Inspector Tool. Search for Rise of the Tomb Raider’s profile and change its SLI bits (DX11) to 0x080002F5. Then, press on the magnifier icon in order to reveal NVIDIA’s Undefined options. Search for 0x00A0694B and set it to 0x00000001. The full article if your interested http://www.dsogaming.com/news/rise-of-the-tomb-raider-sli-fix-found-offering-95-sli-scaling-on-two-nvidia-gpus/.

    Why Nvidia hasn’t already done this and released a driver hotfix, is beyond me. But hey, if a small quick tweak can get it working right, I’ll take it.

  14. Disappointing that there’s no built in benchmark. I wonder why they dropped it.

  15. ReturnoftheBrotha .

    I know i’m late, but I have 32GB 1866Mhz DDR3, Intel 4820K, R9 390 (8GB) and a Plextor M6 Pro SSD. This game was as fast as heck with all settings maxed out and I had room to spare! Oh yeah – my CPU is OC’d to 4Ghz.

    I am on this because I am undecided between a Ryzen 1700/x or a 5820K. The plus side on AMD is future upgrades without changing everything, newer chip/tech and lower power. On the Intel side, lower cost to buy – as of now. I am leaning toward going back to AMD…
