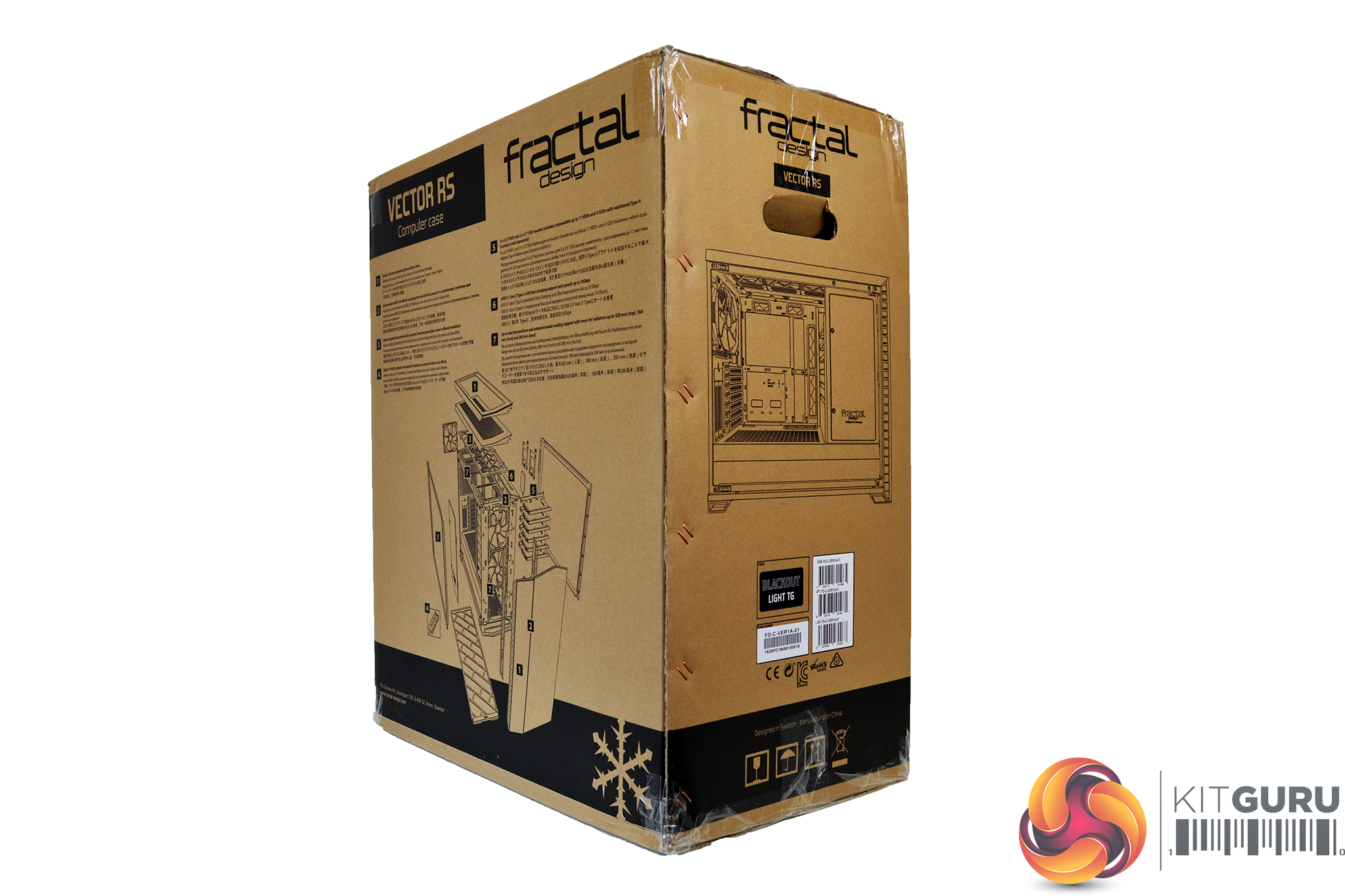

The Vector RS comes packaged in a large, brown cardboard box. The front displays a large image of the case with logos scattered around the edges. On the rear of the box is an exploded diagram and key features listed in various languages.

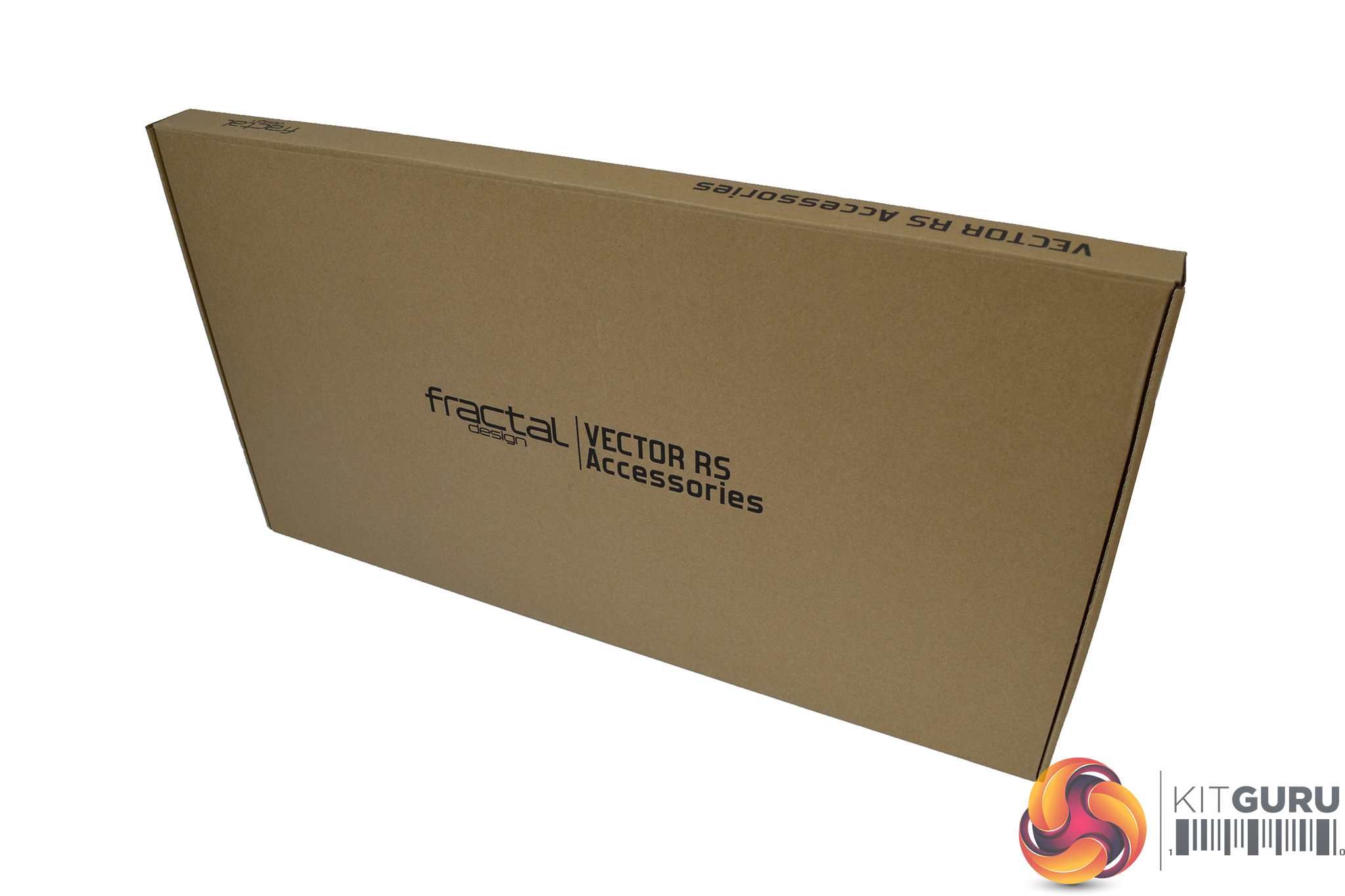

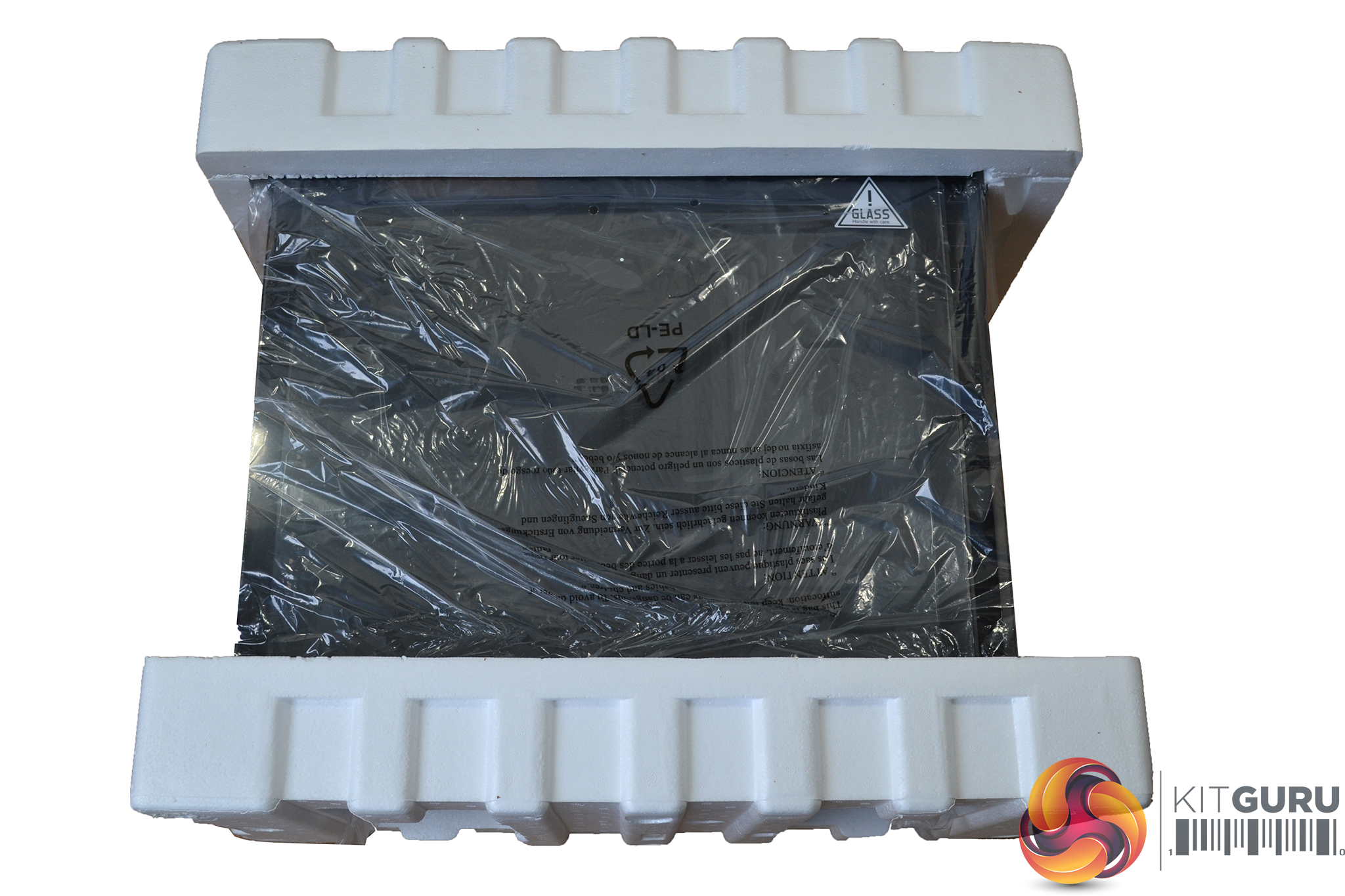

Internal packaging consists of plastic wrapping which covers the whole case – thick polystyrene protects the top and bottom ensuring the case is protected during transit. A second box is found inside containing accessories.

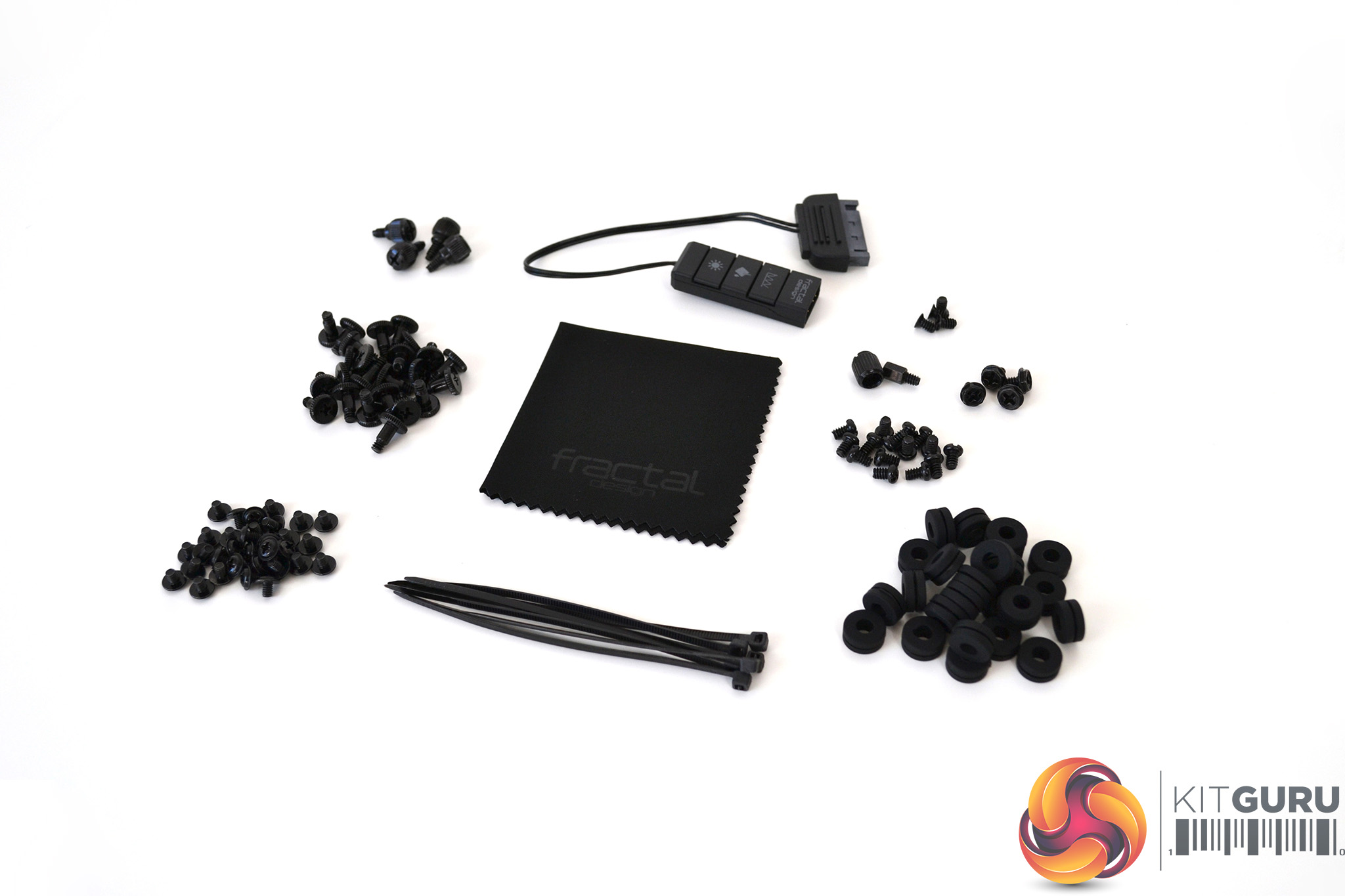

Inside the accessory box, there is an optional vented top panel with filter and a selection of screws, rubber grommets, zip ties, a cleaning cloth and an RGB LED controller.

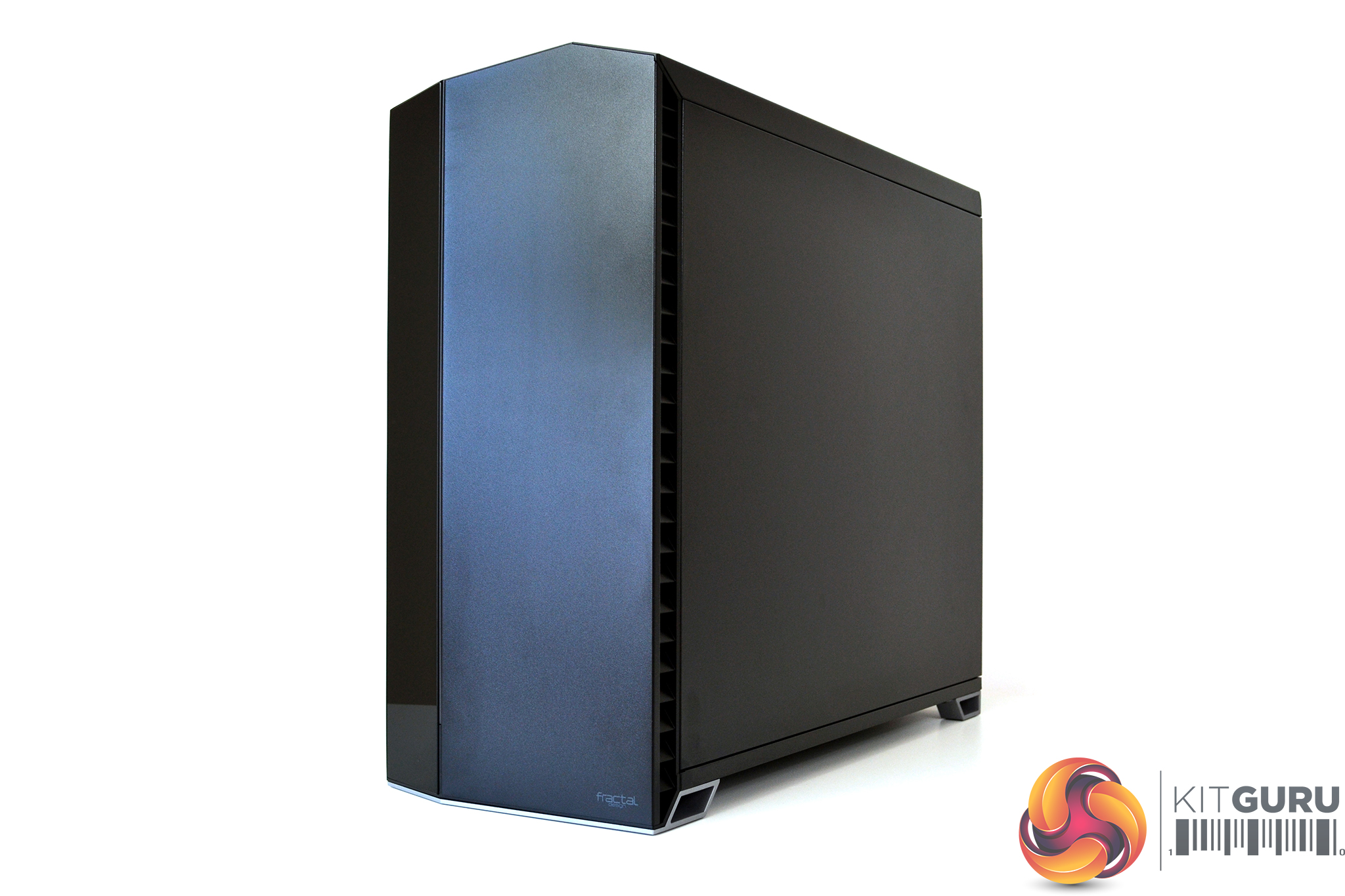

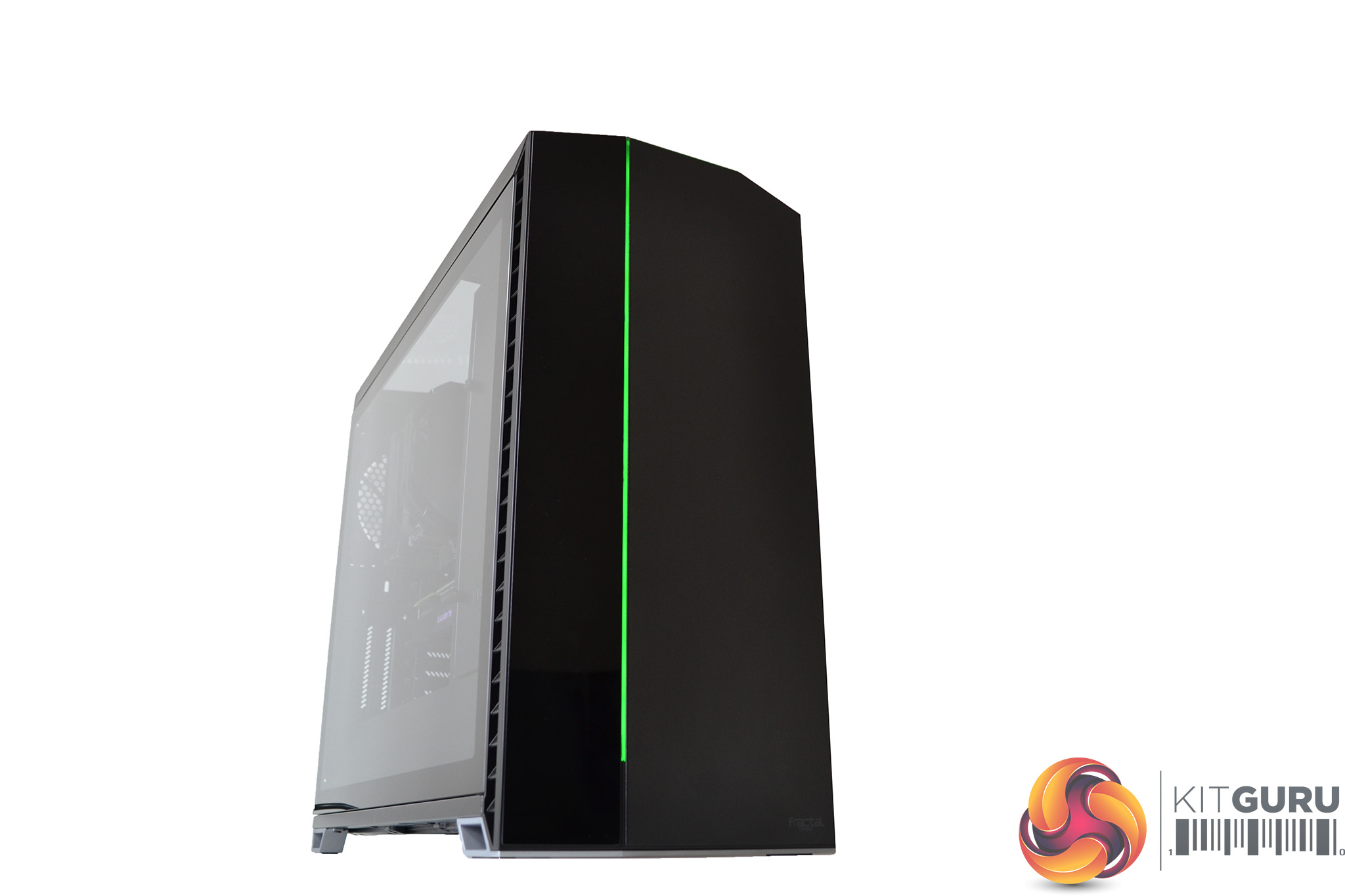

A minimalist approach to the design of the font panel is complemented by a thin RBG LED strip spanning vertically. An angular profile combined with varied panel materials gives the Vector RS a sleek understated look.
The exterior of the Vector RS is made up of a mixture of steel, plastic and tempered glass panels – all of which seem high quality. All panels fit together and line up well with consistent panel gaps.

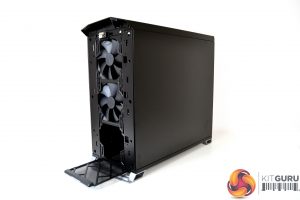

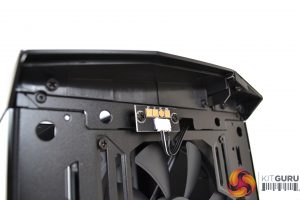

A touch contact LED connection has been installed on the front panel, meaning the front panel is tether free, allowing quick removal and access to fans and filters behind.

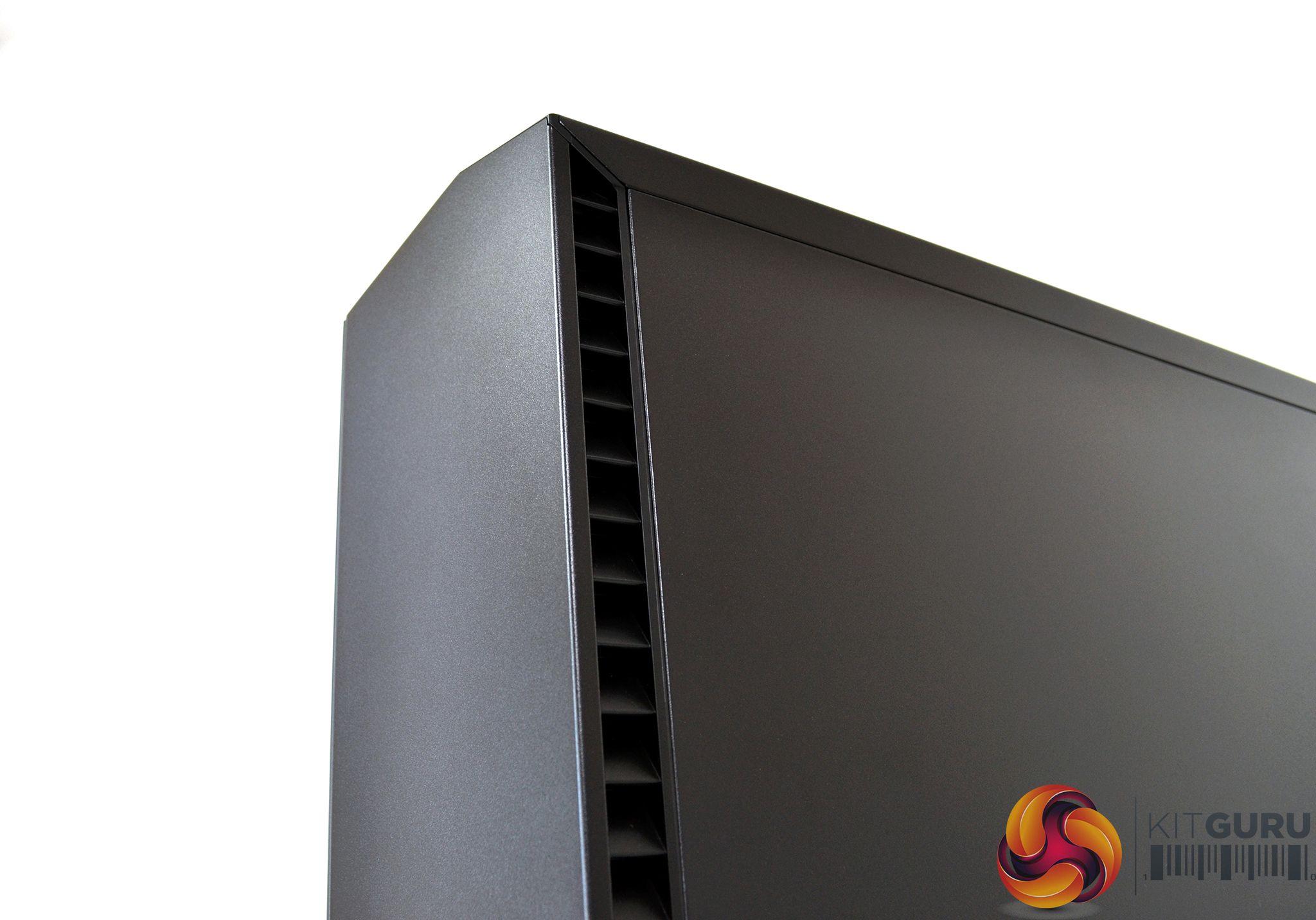

Front ventilation consists of counter angled intakes on either side of the front panel which are designed to trap noise with minimal airflow resistance according to Fractal Design. The side vents are approximately 18mm wide and fitted with removable dust filters.

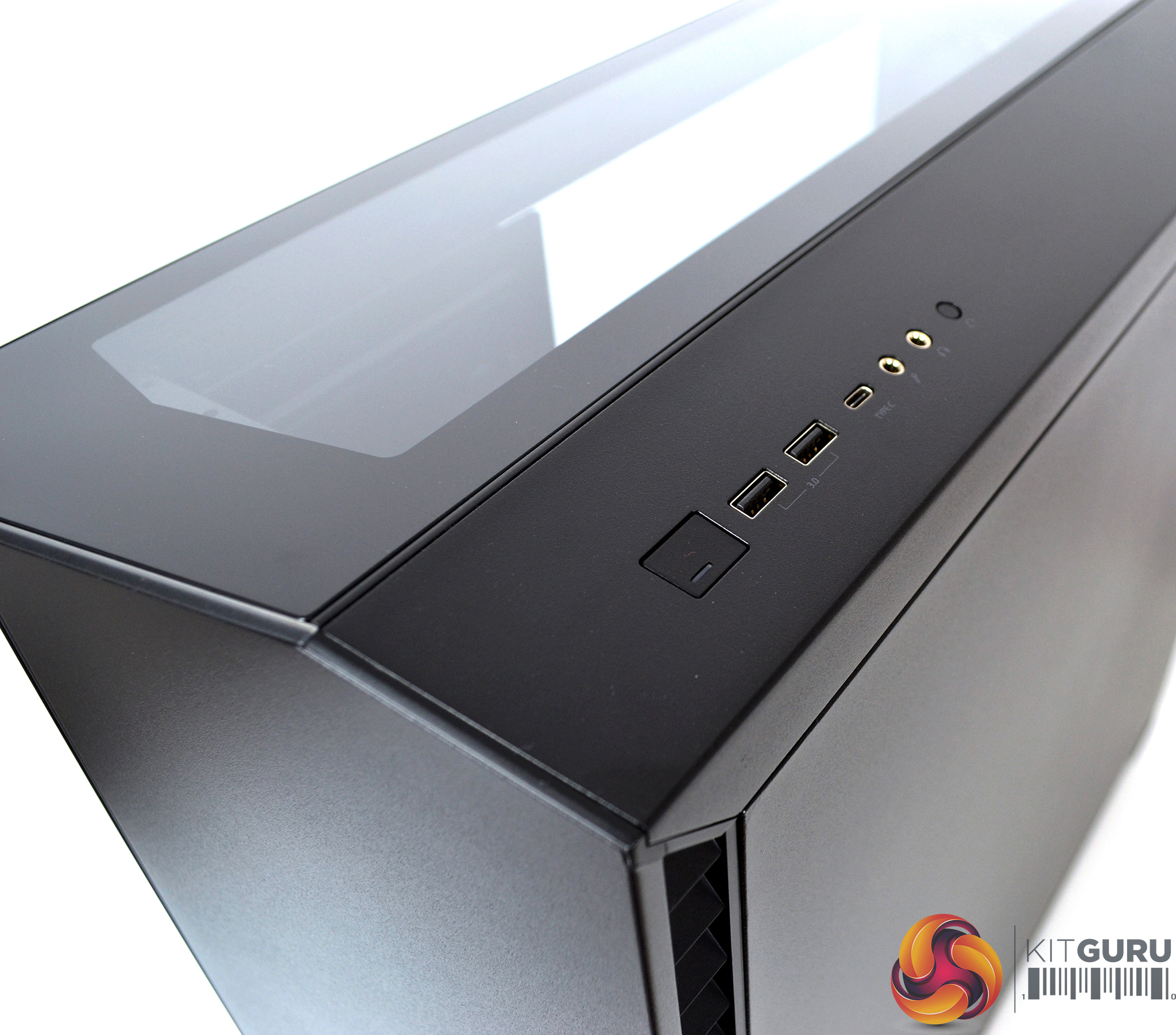

The front I/O is located in the top right-hand panel and consists of two USB 3.0 Type-A ports, a single USB 3.1 Gen 2 Type-C port, 3.5mm headphone and mic jacks, a large power button and reset button. It’s nice to see the inclusion of the Type-C, which should be expected on a case in this price range.

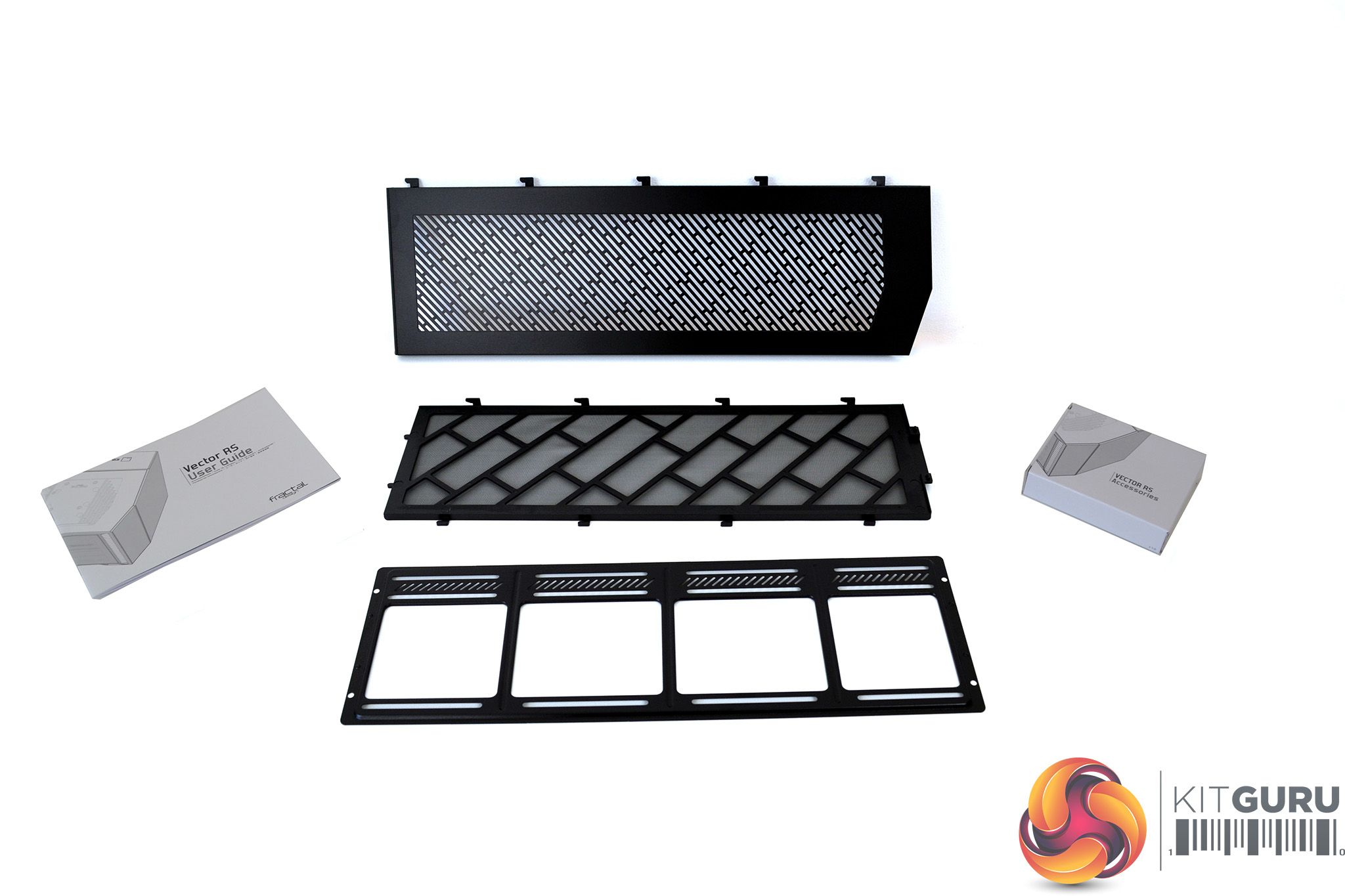

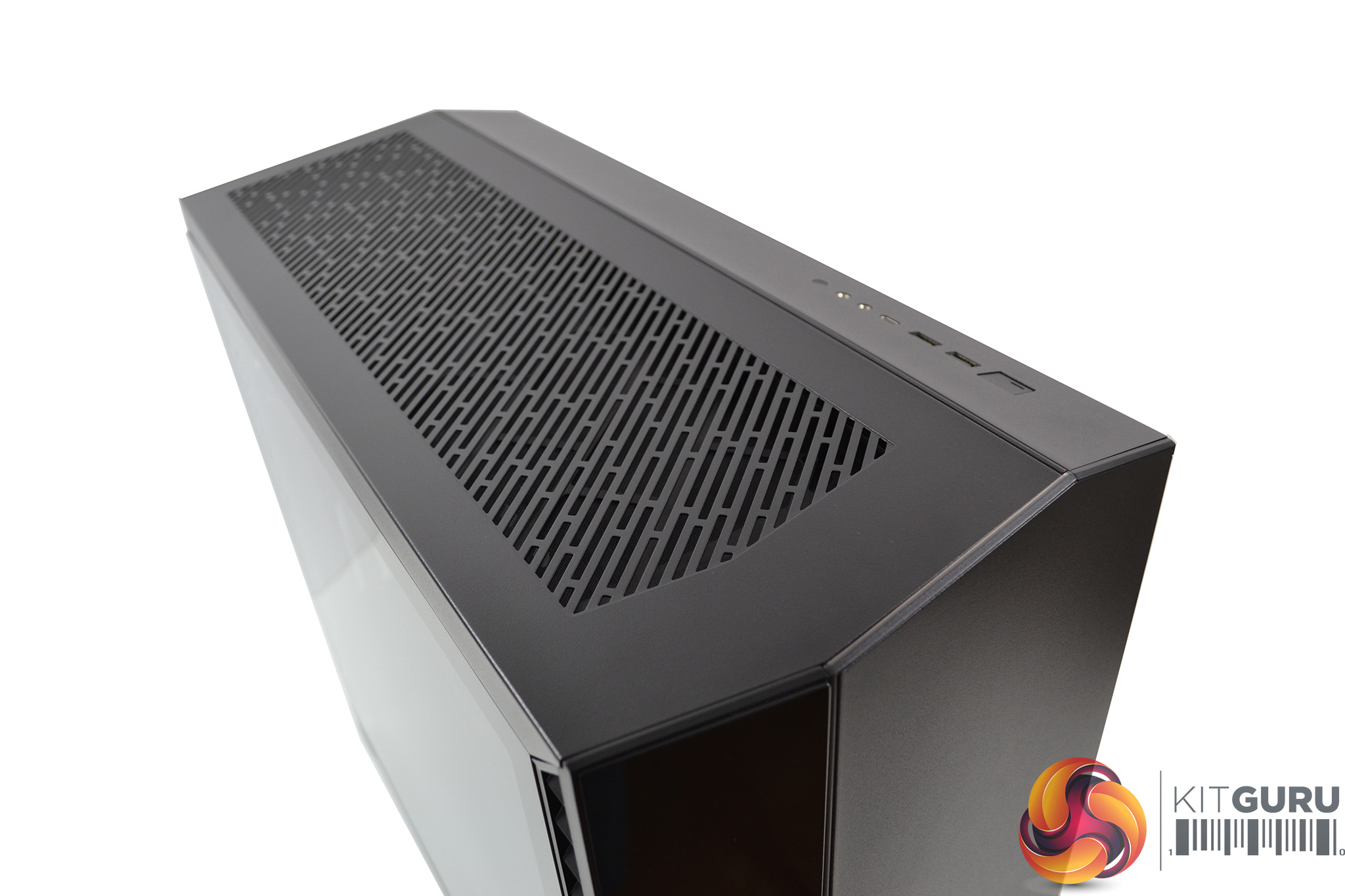

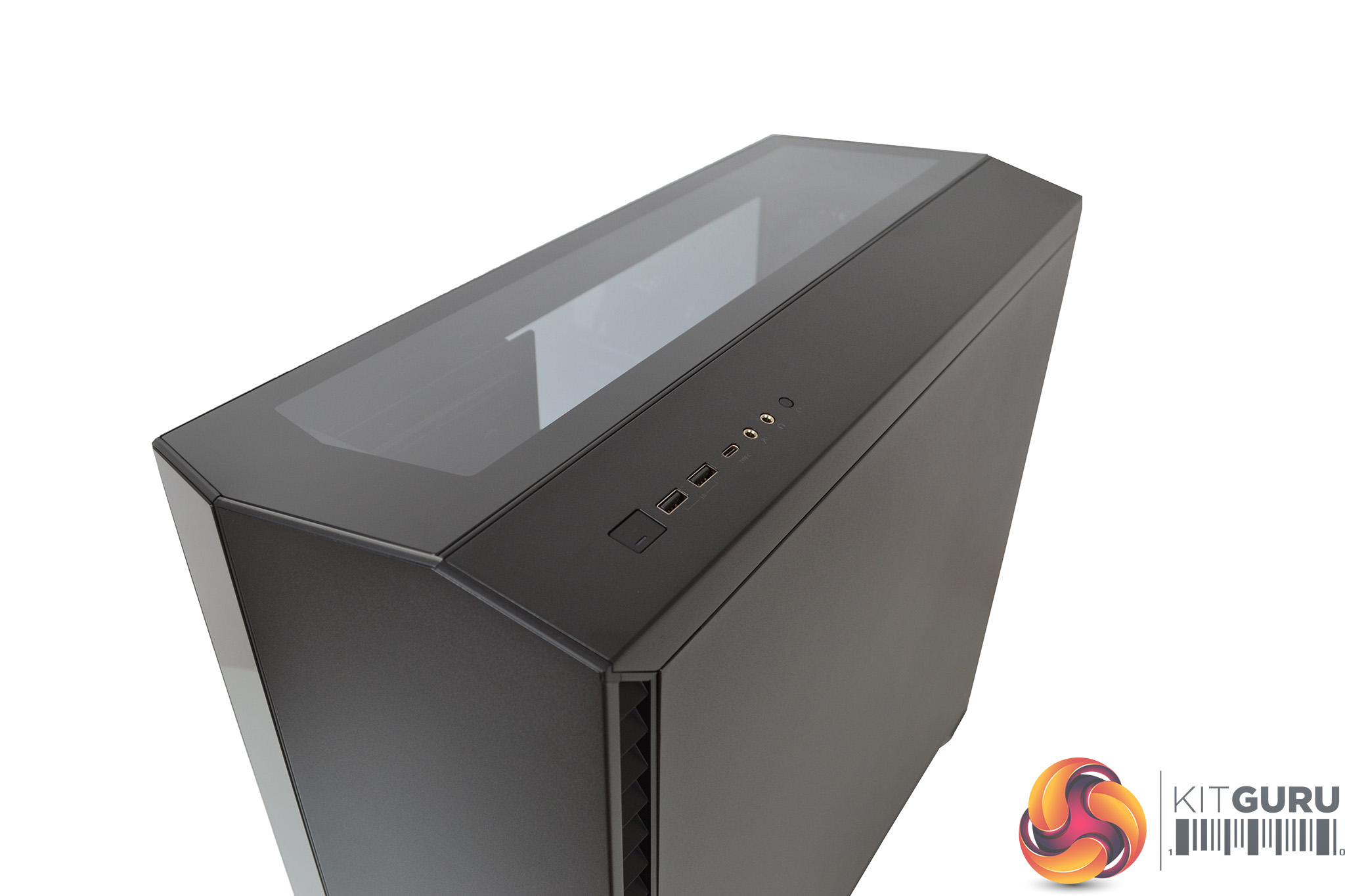

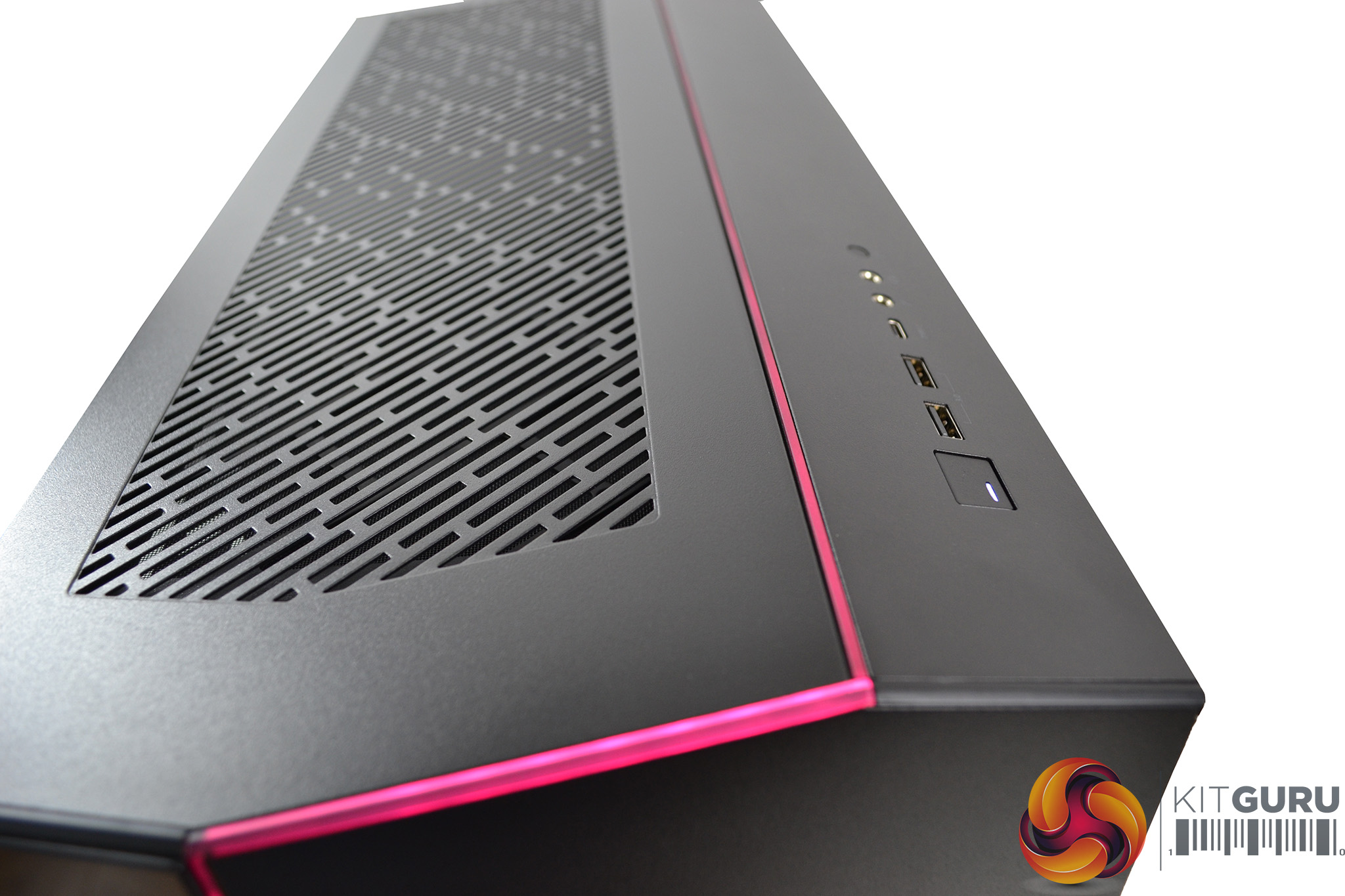

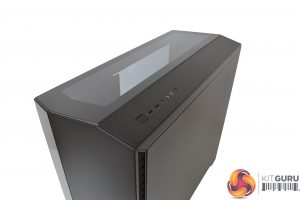

Fractal Design has implemented an interchangeable top panel in the Vector RS. You have the choice of either a stylish tempered glass panel, which is pre-installed, or this can be swapped for the alternative high-flow ventilated panel for additional cooling support with an optional filter.

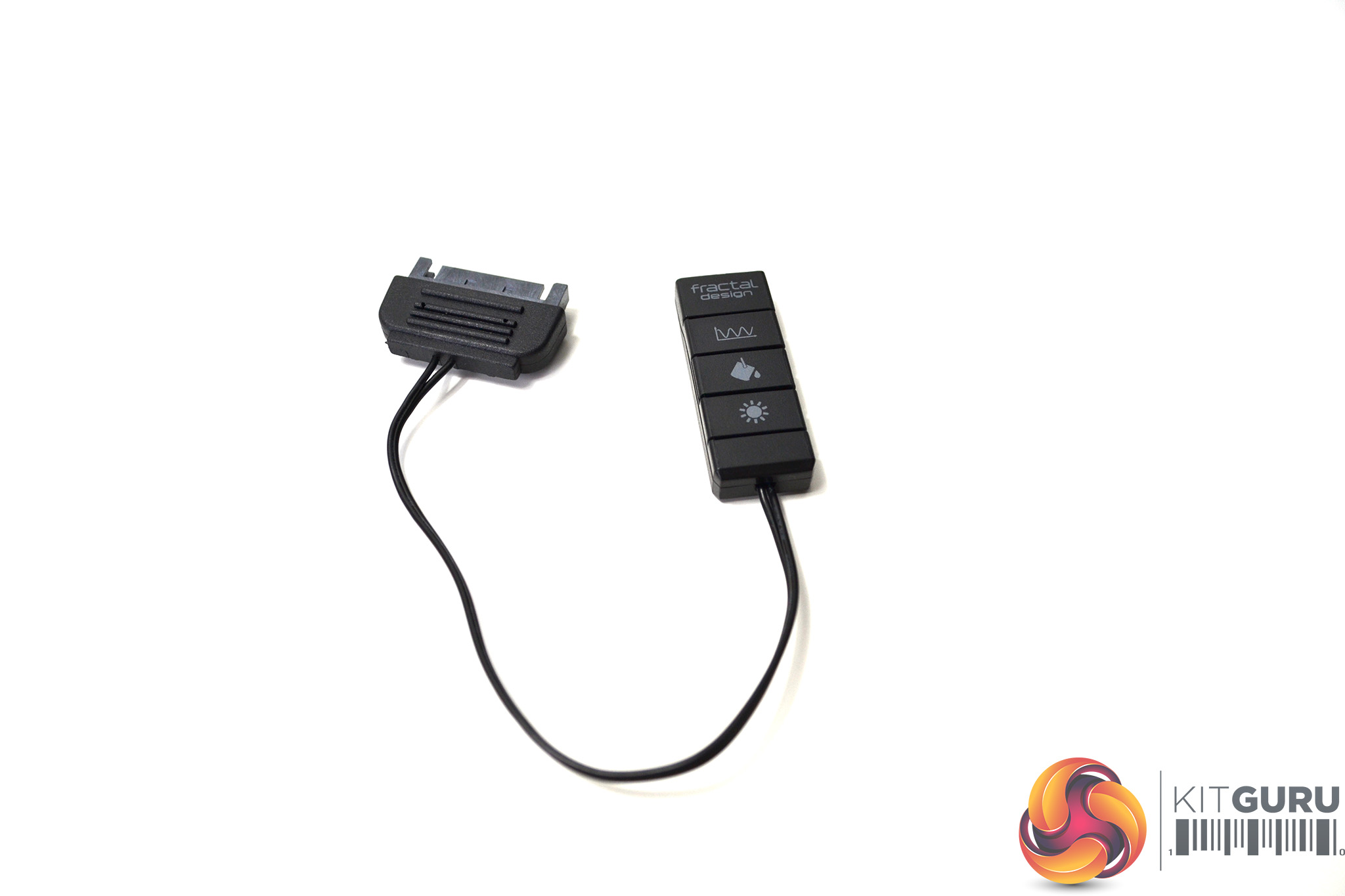

The addressable RGB LED strip which spans the front panel continues through the top panel with either of the interchangeable panels fitted. The RGB strip can be controlled by connecting to your motherboard or via the included Adjust R1 RGB controller.

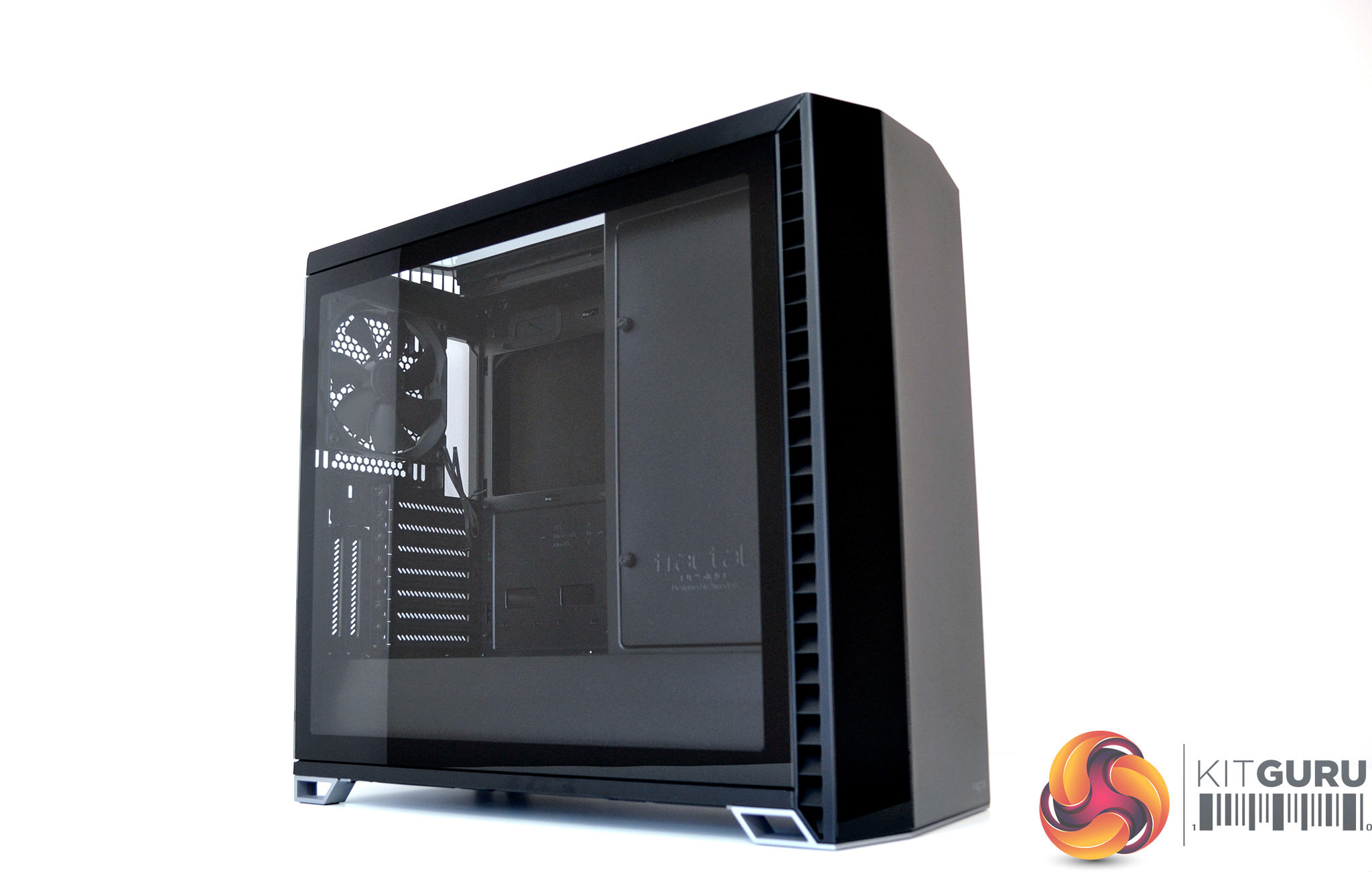

A seamless scratch resistant tempered glass side panel with a choice of either dark or light tinted versions are available. Our sample has the light tint version, which gives you a great view of the interior.

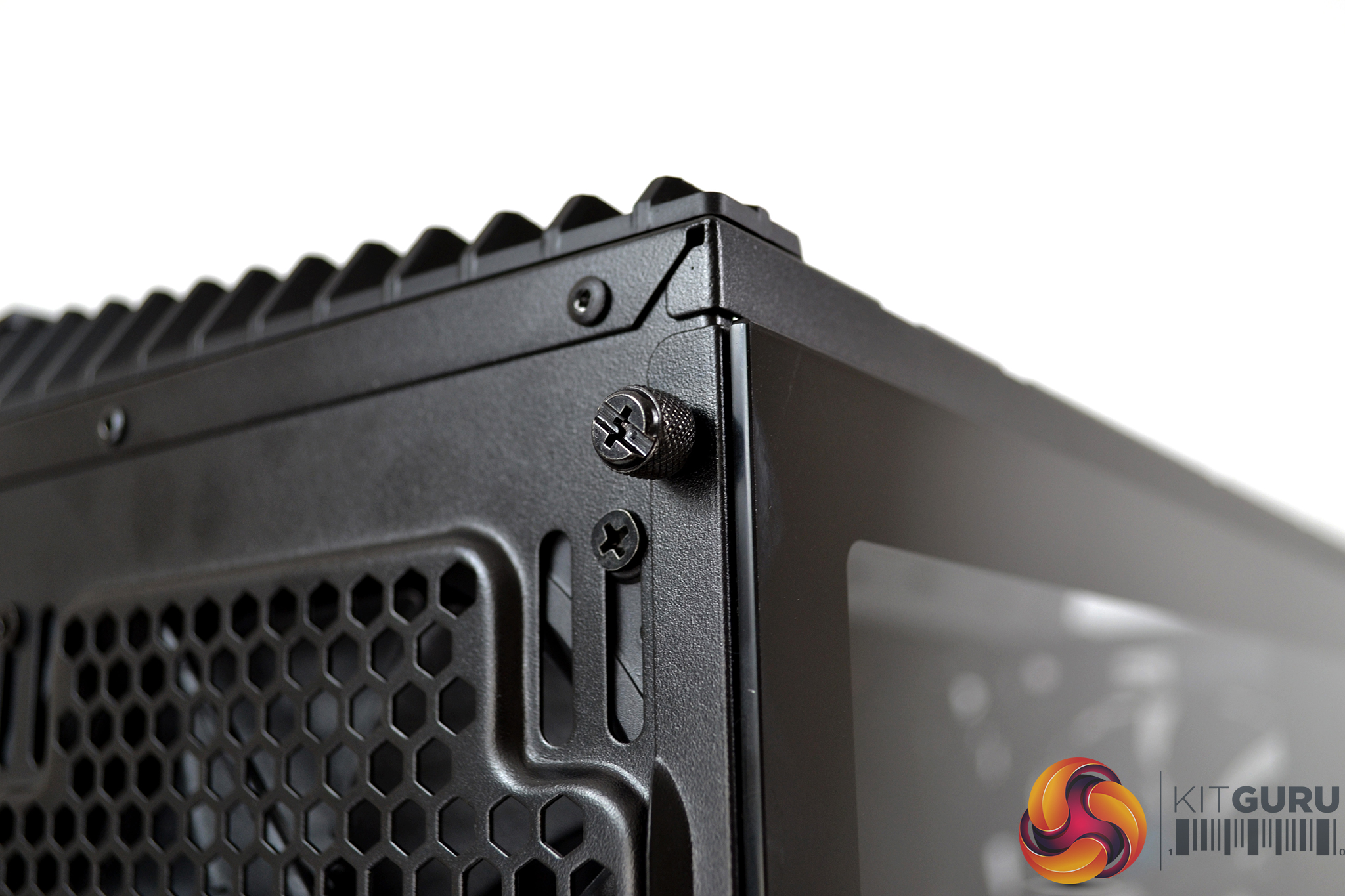

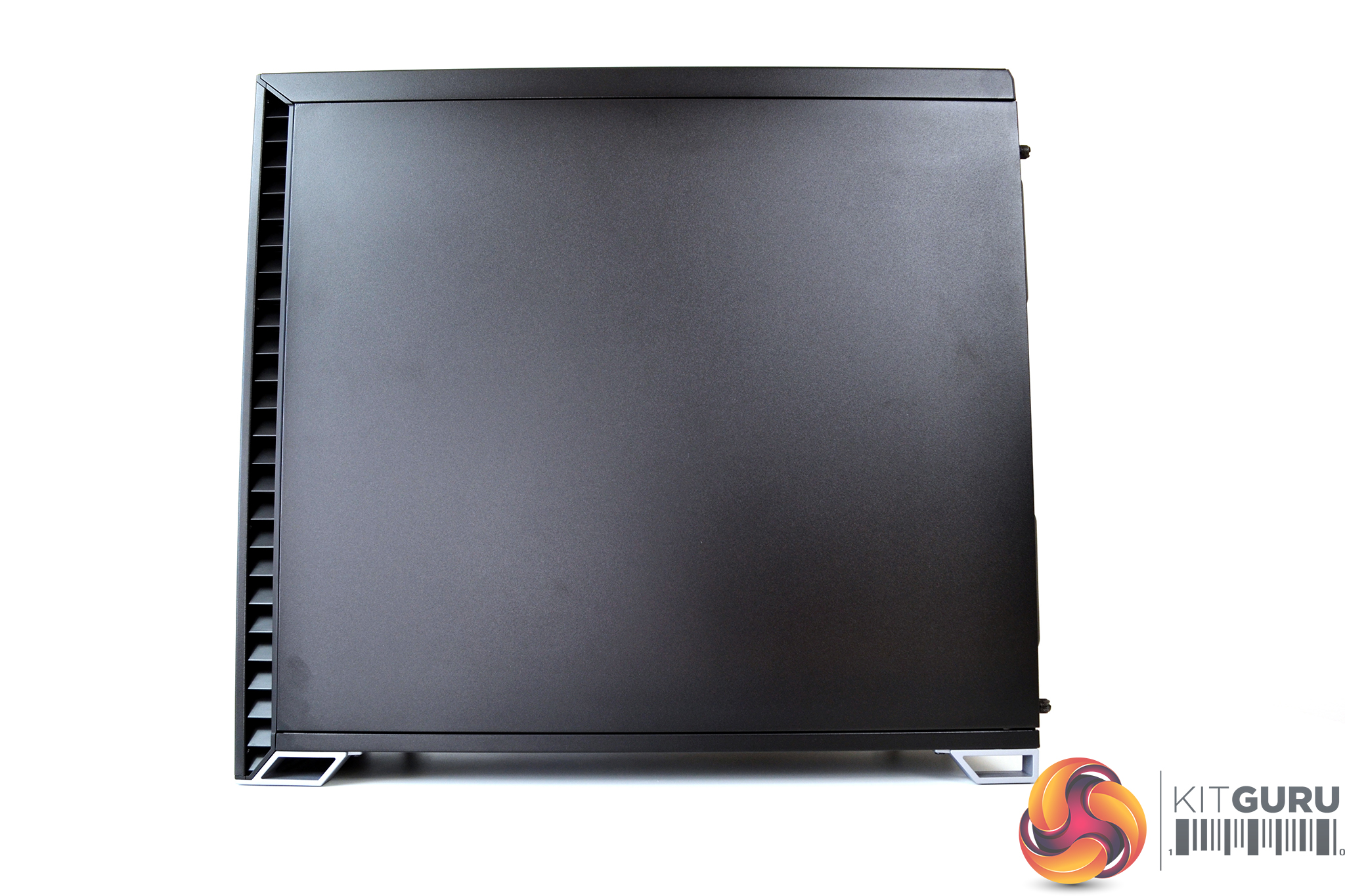

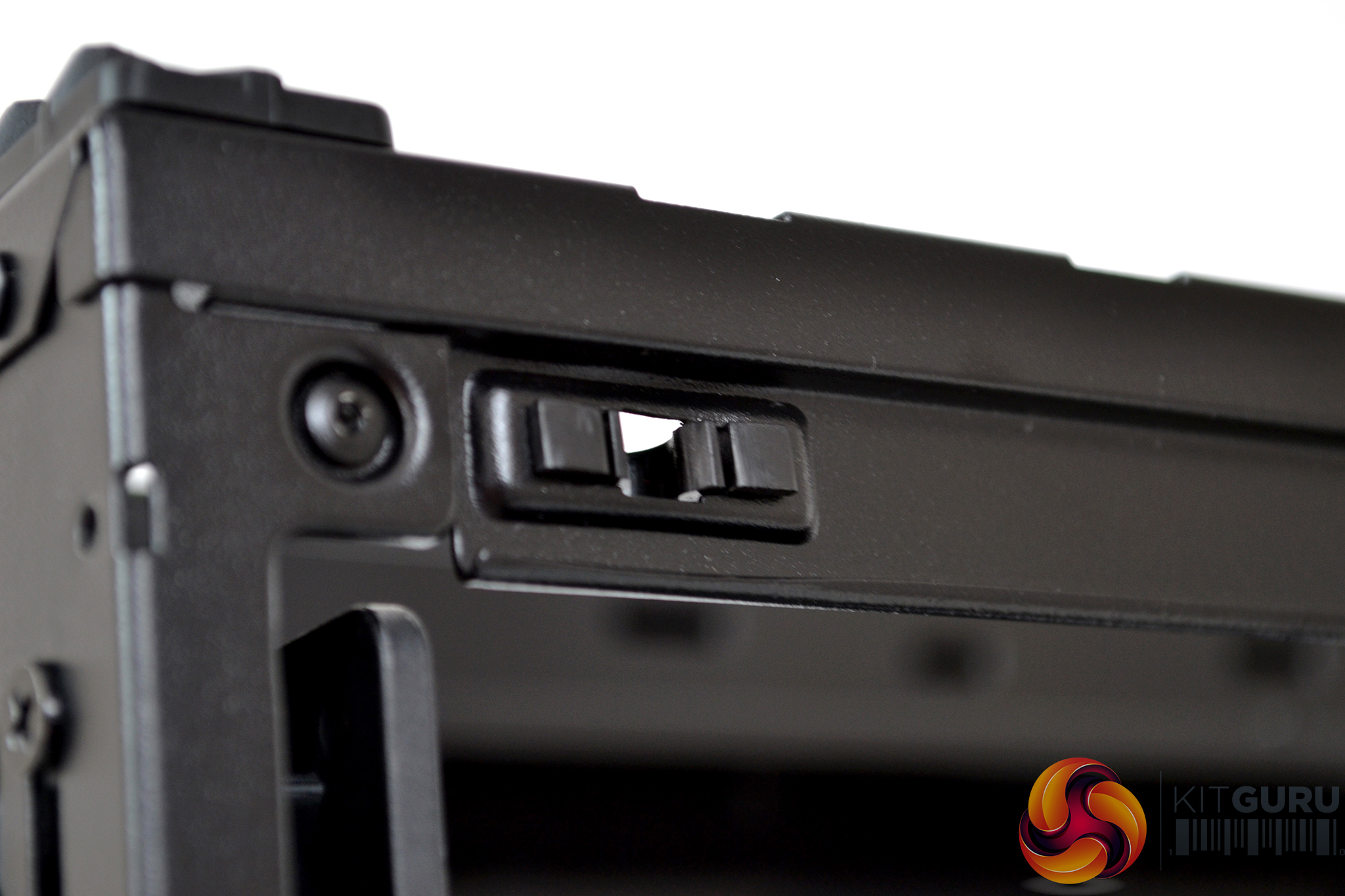

Both the left tempered glass and right steel side panels feature a tool free push-to-lock latching mechanism with optional thumbscrews to secure the panels during transit.

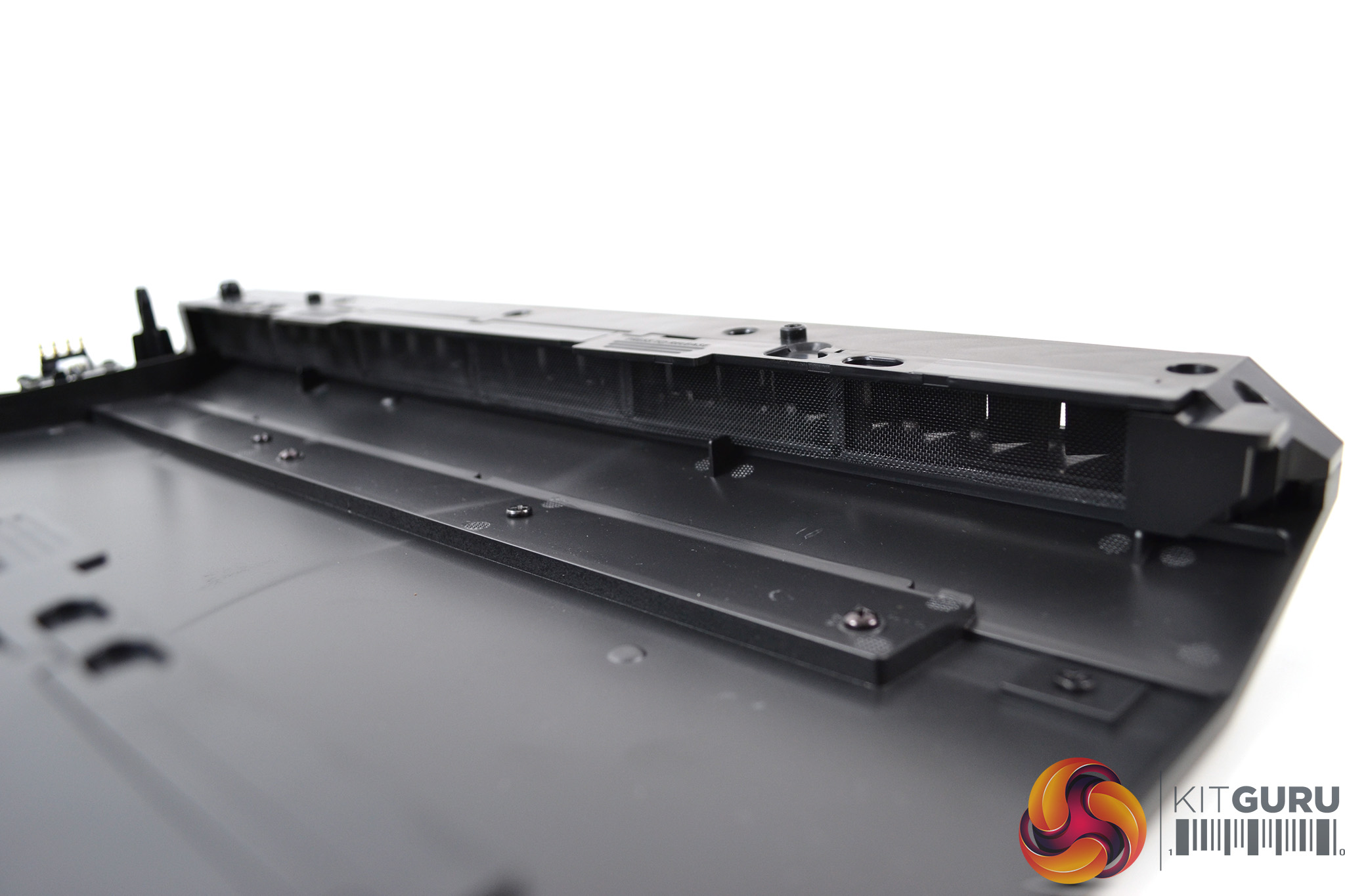

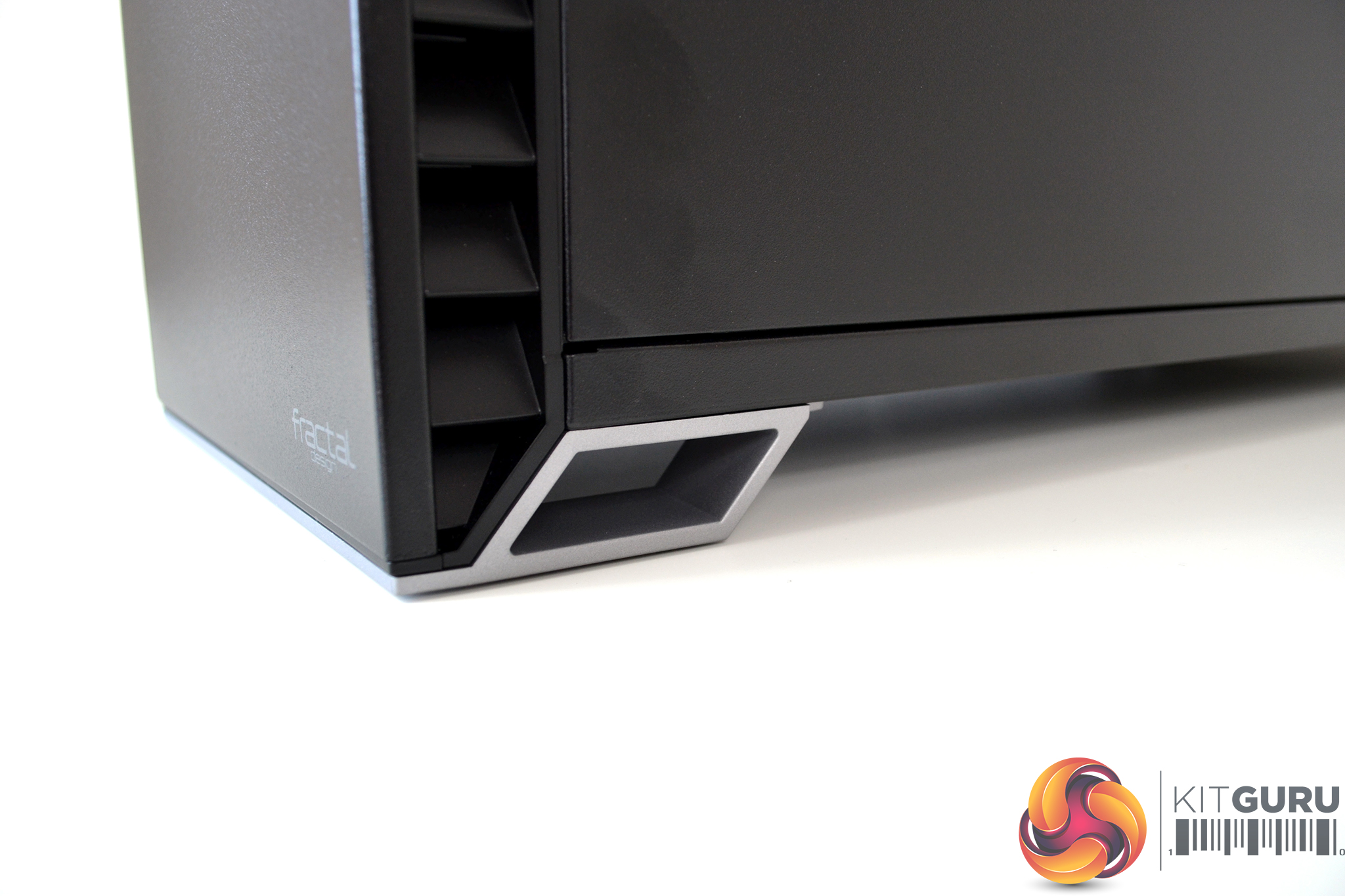

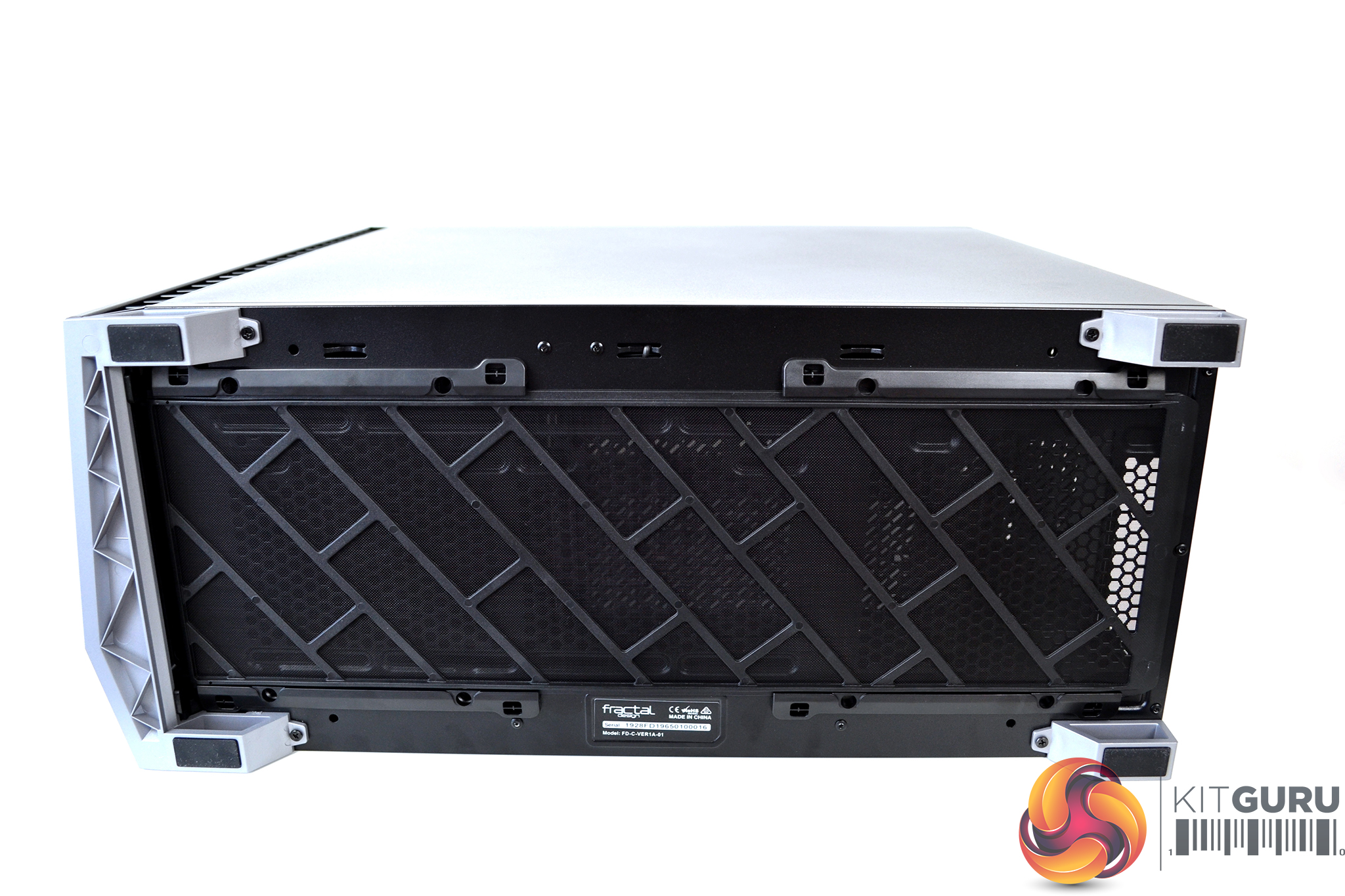

The case floor features vents for the power supply and two 120mm/140mm fans or up to a 280mm radiator. The whole panel is then covered by a filter which is removable from the front. The case feet are finished in silver and adopt the angular design.

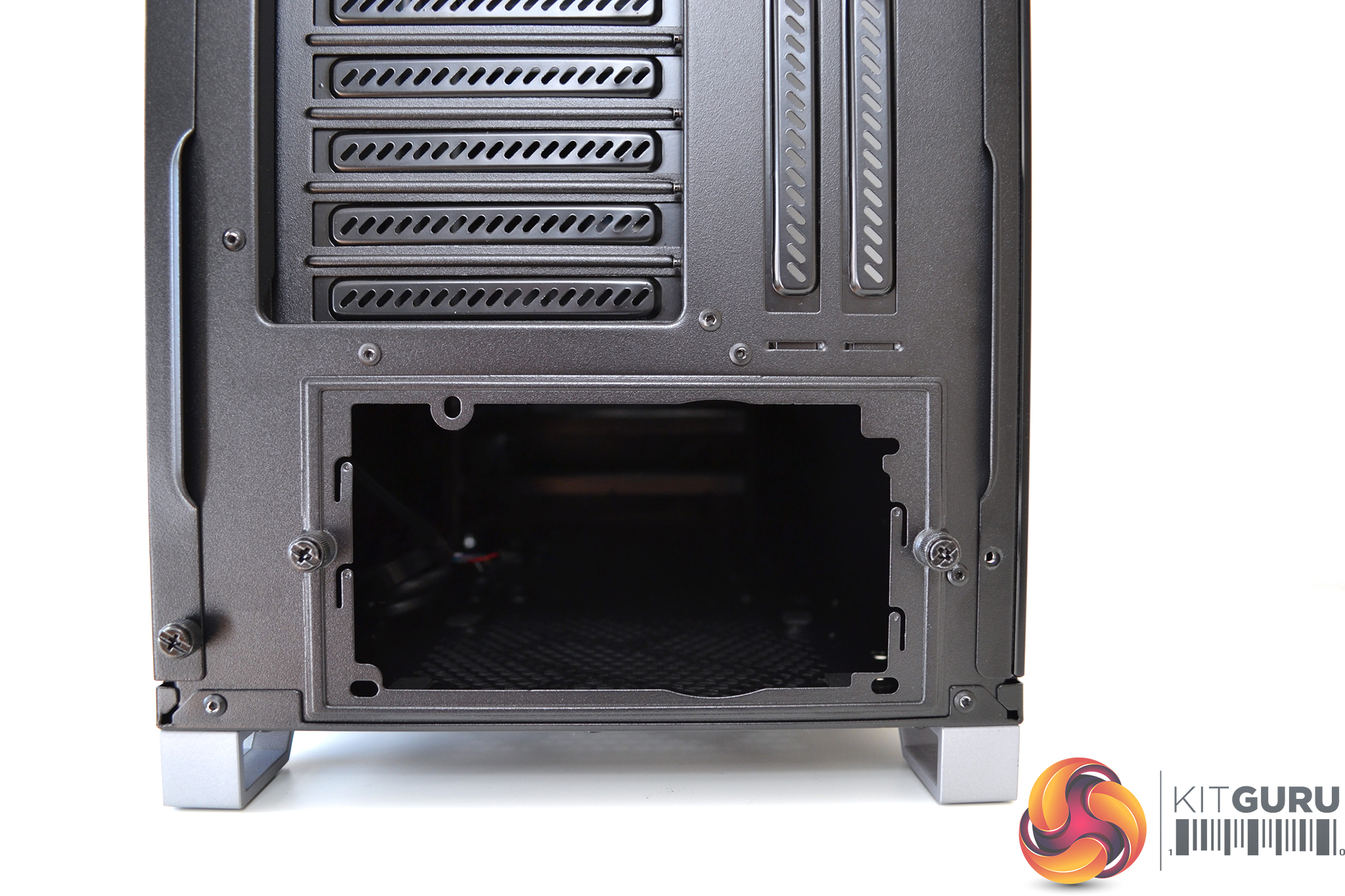

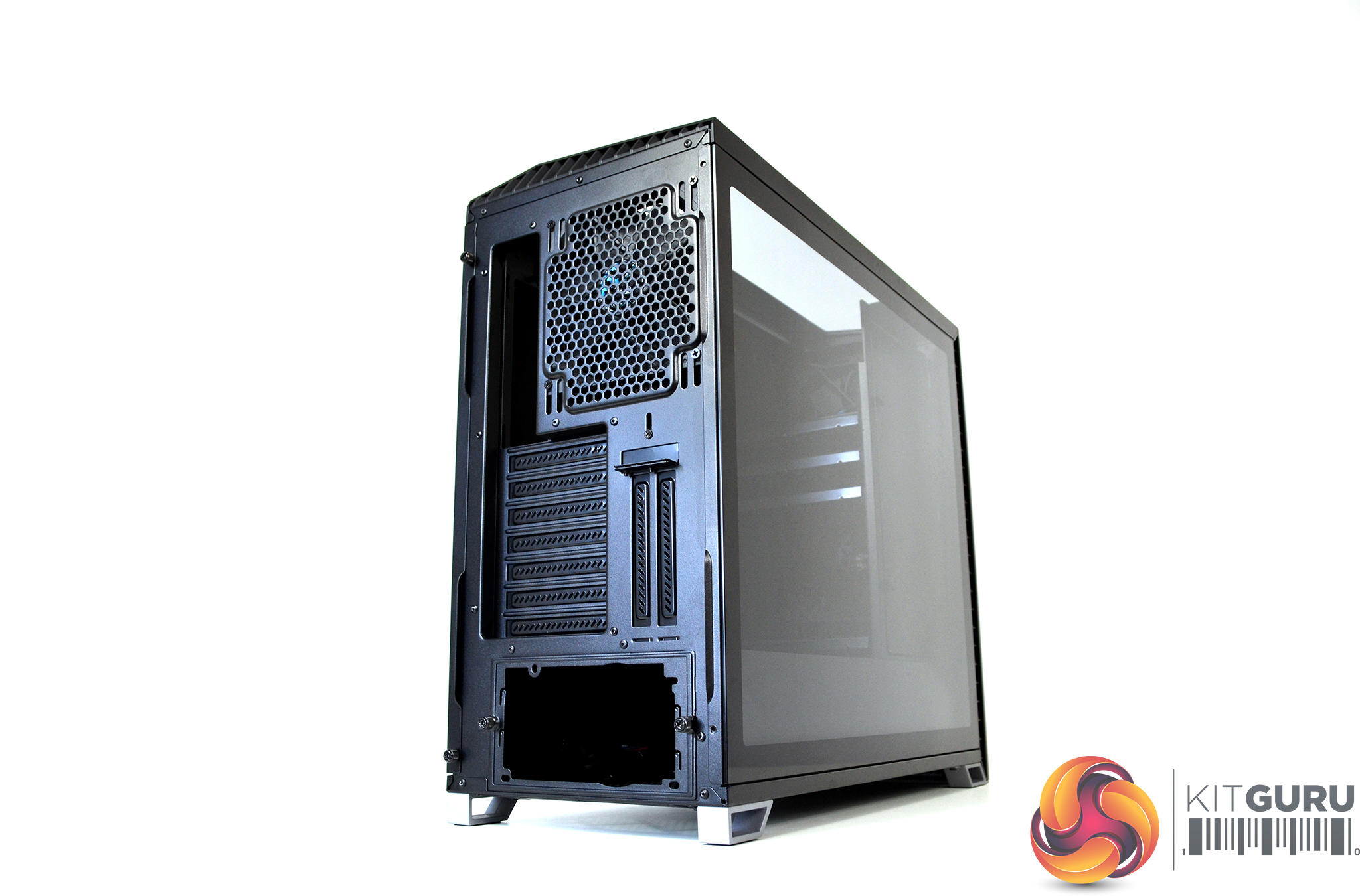

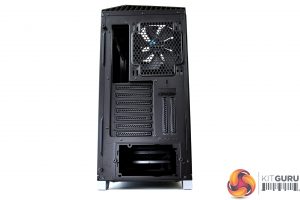

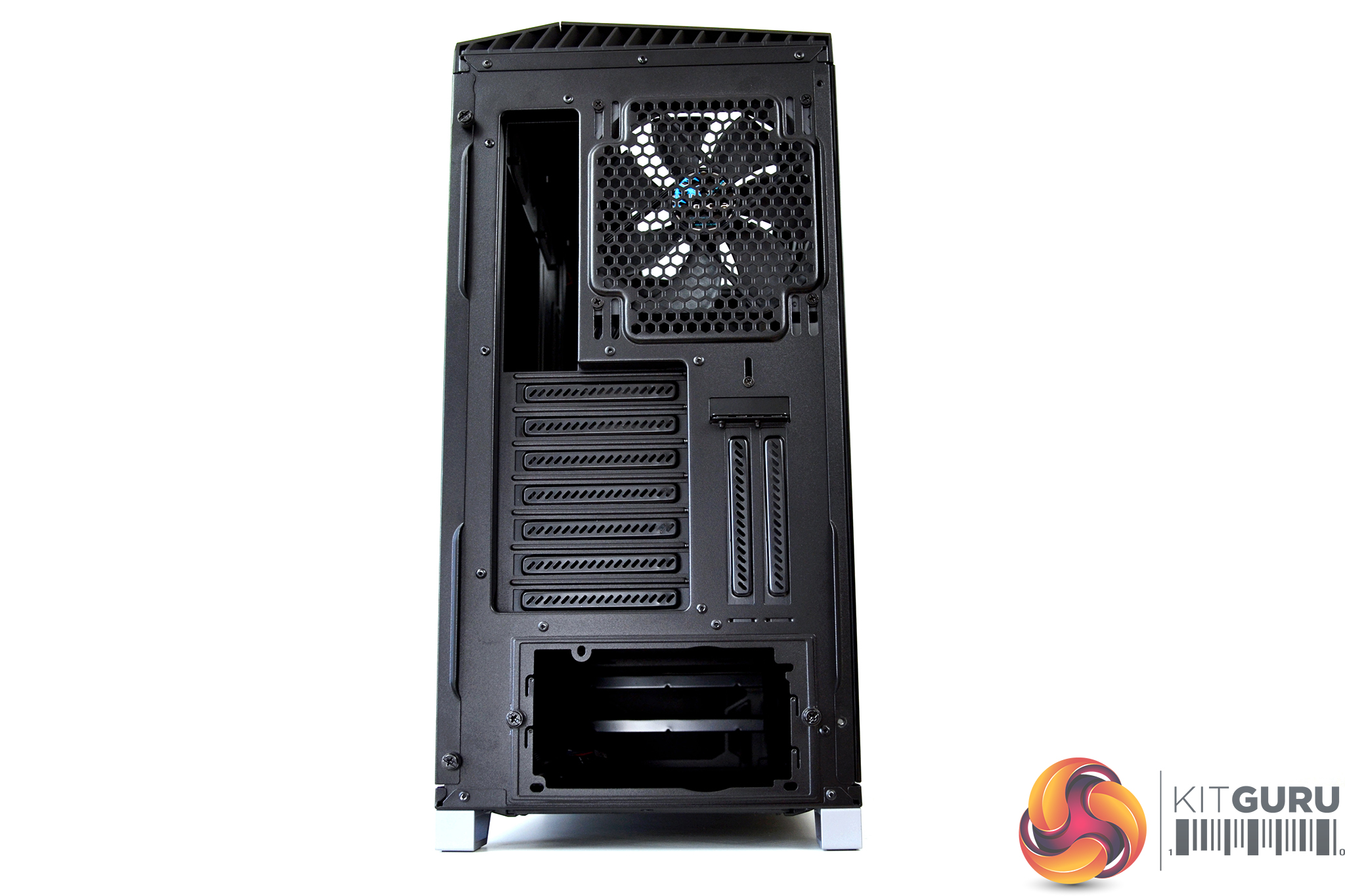

At the rear are seven PCI-e slots with two extra slots for vertical GPU mounting, a single 120mm/140 fan mounting and the usual rear I/O and PSU cut outs. The PSU cut out has a removable mounting bracket for simple power supply installation.
In our opinion, the exterior of the Vector RS is visually pleasing. Fractal Design has done a great job in keeping their usual minimalist approach to design while adding just the right amount of RGB lighting for a stylish classy look.
