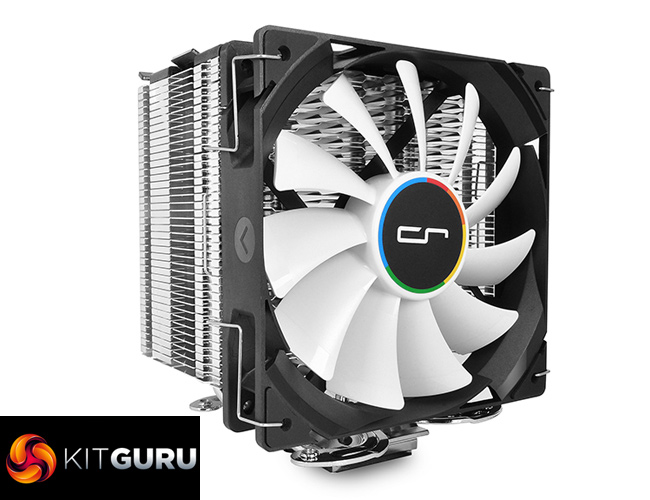

Cryorig H7 Air Cooler Review

Rating: 9.0.

Billed as a ‘Hyper 212 EVO’ killer, I have been itching to review the Cryorig H7 for a long time now. On the face of it, it does not look that special, measuring just 145mm tall and utilising a mere 3 heatpipes. But is its appearance deceiving? We will find out.

The ‘budget air cooling’ market segment is a competitive area, and manufacturers have long been trying to hit the price-to-performance sweet-spot. Previously, we have seen the Cooler Master Hyper 212 EVO dominate in this segment, but today we assess the performance of the Cryorig H7, priced at £36.95. Read on for the full review, where we look at the cooler’s features, installation process and performance before giving our final verdict.


Specification

Heatsink:

  • Dimension (with fan): L98 mm x W123 mm x H145 mm
  • Weight (with fan): 711 g
  • Weight (without fan): 577 g
  • Heatpipes: 6mm heatpipe x 3 units
  • Fin T: 0.4 mm ; Gap = 2.2 mm
  • Front Fin: 40 pcs
  • Copper Base: C1100 Pure copper nickel plated
  • RAM Tolerance Height: Limitless
  • TDP: 140 W

Fan:

  • Dimensions: L120 mm x W120 mm x H25.4 mm
  • Weight: 134 g
  • Rated Speed: 330 ~ 1600 RPM ±10 %
  • Noise Level: 10 ~ 25 dBA
  • Air Flow: 49 CFM
  • Air Pressure: 1.65 mmH2O
  • Ampere: 0.16 A
