Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1440p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

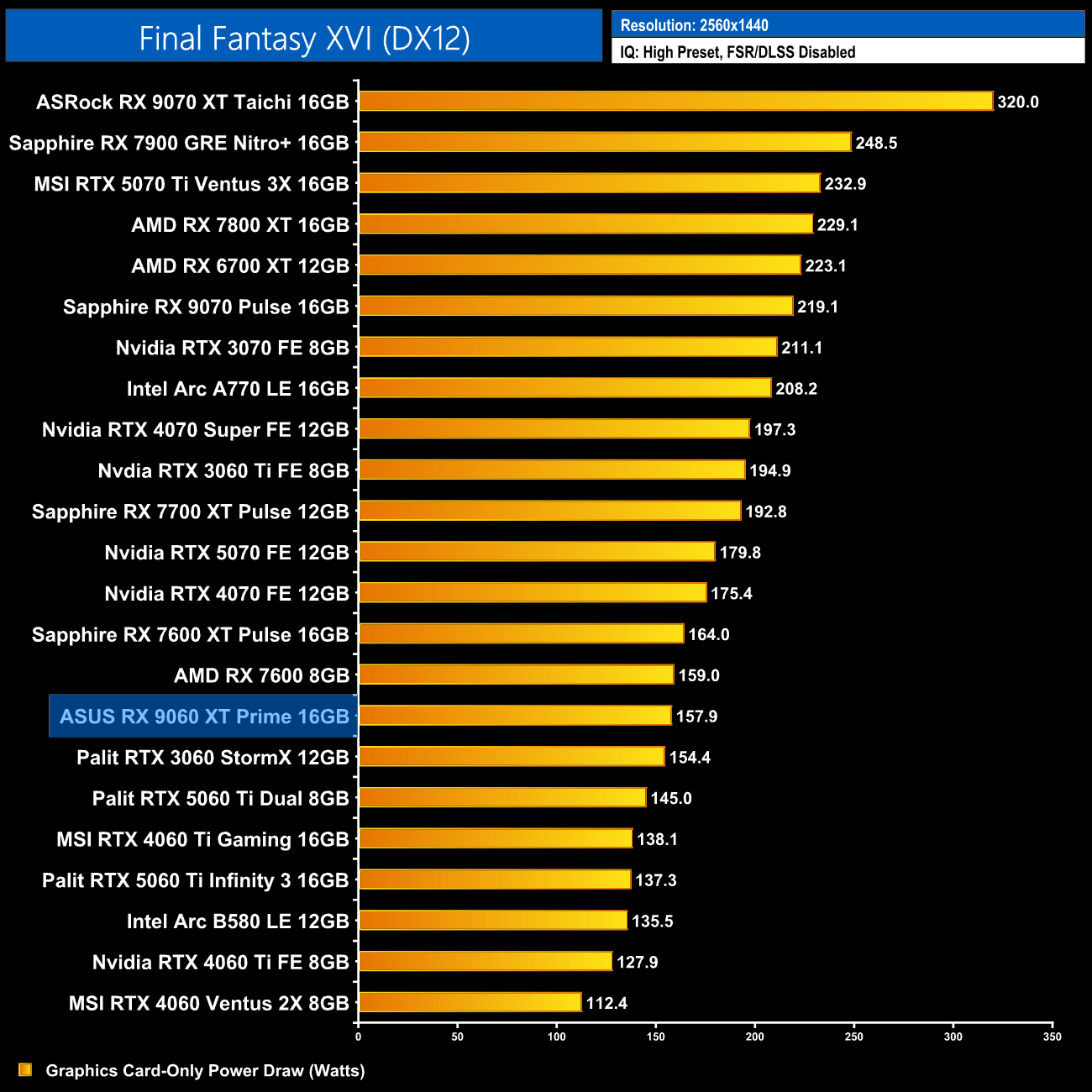

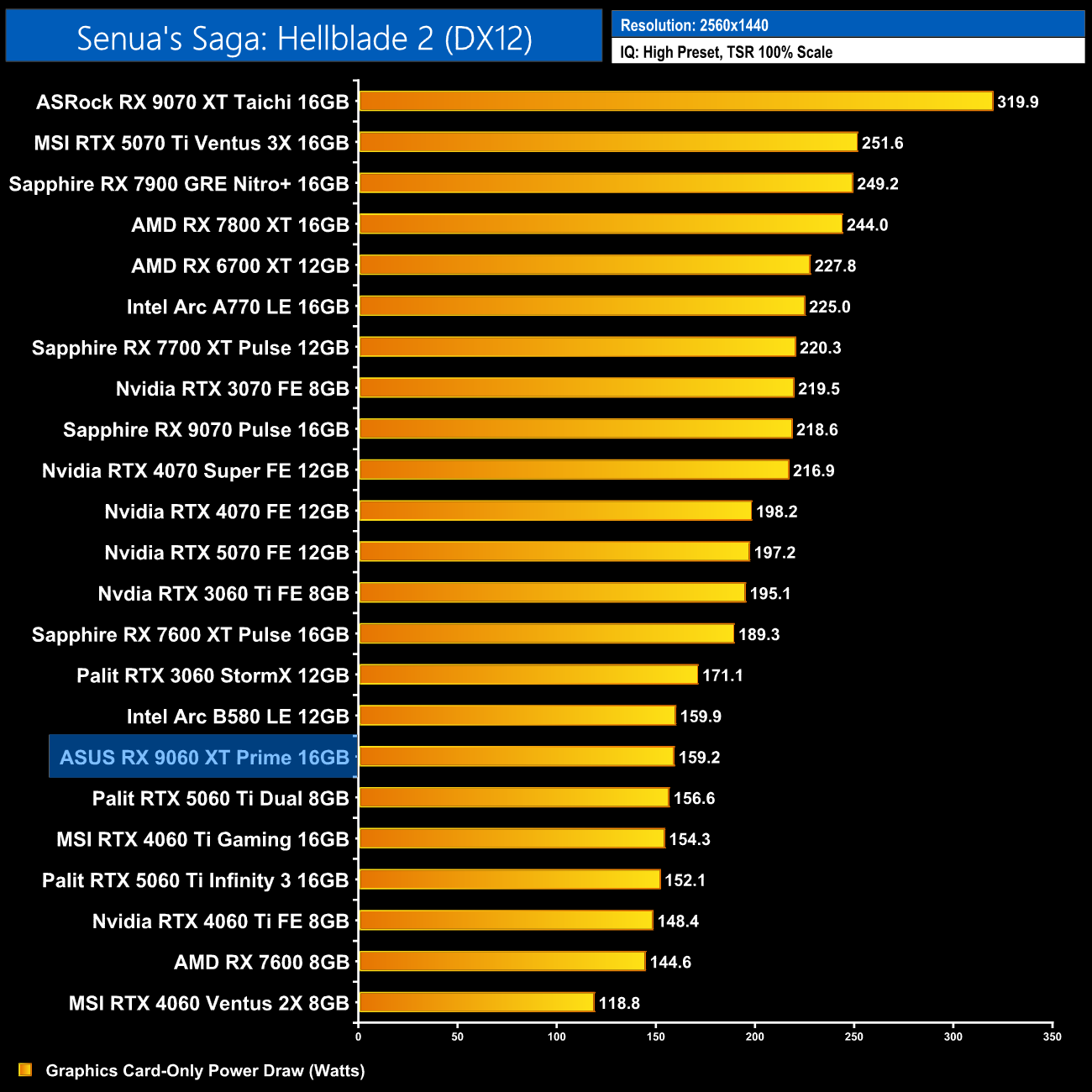

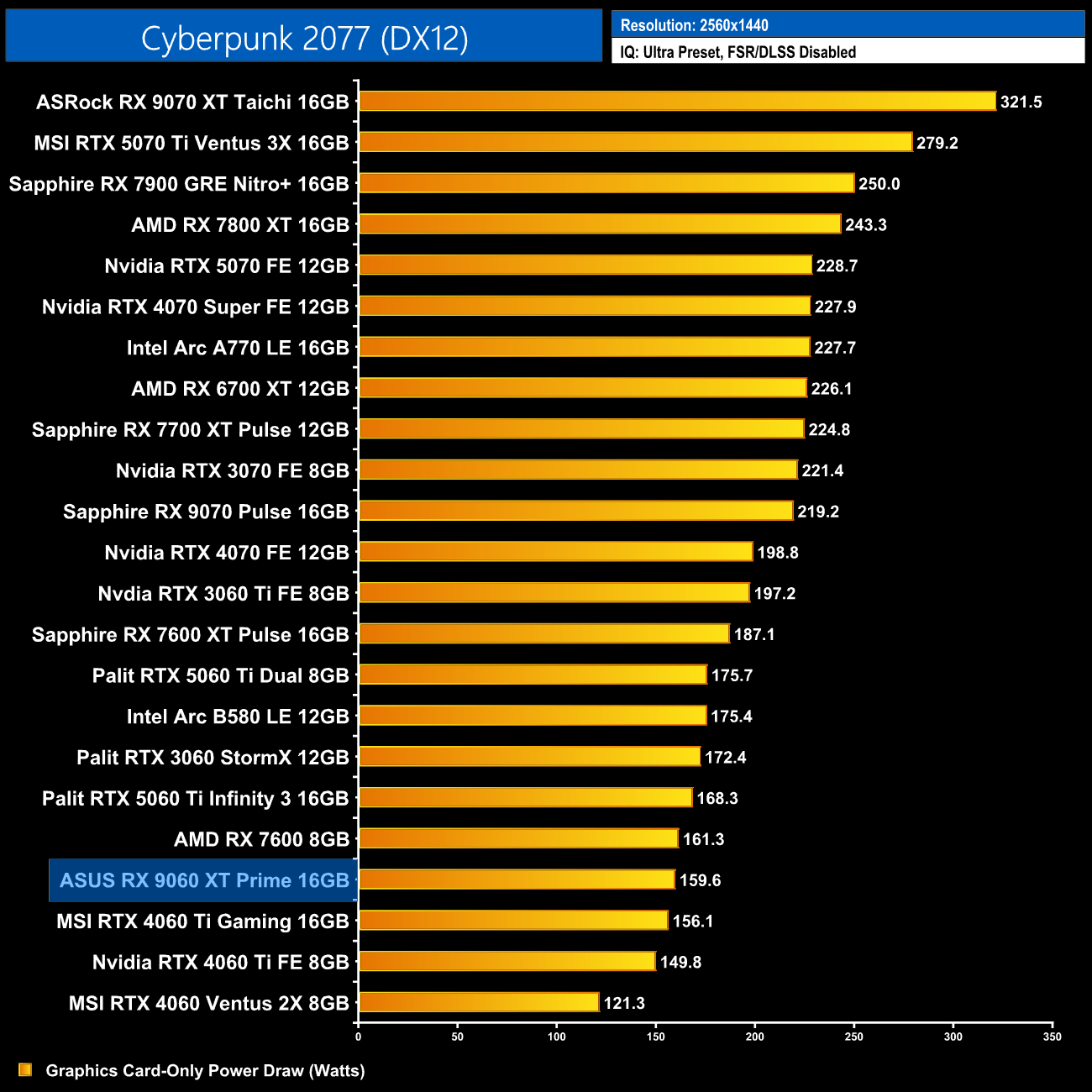

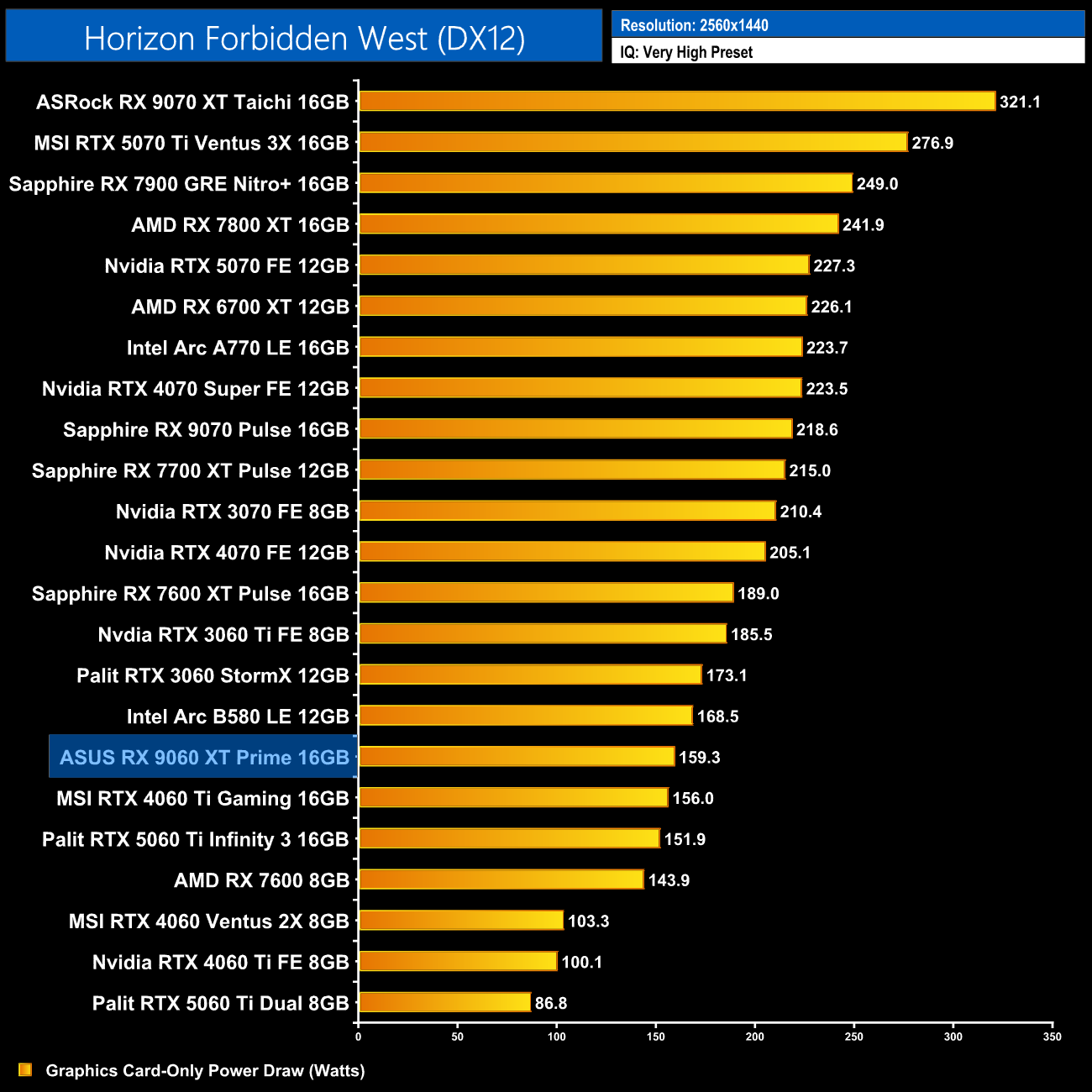

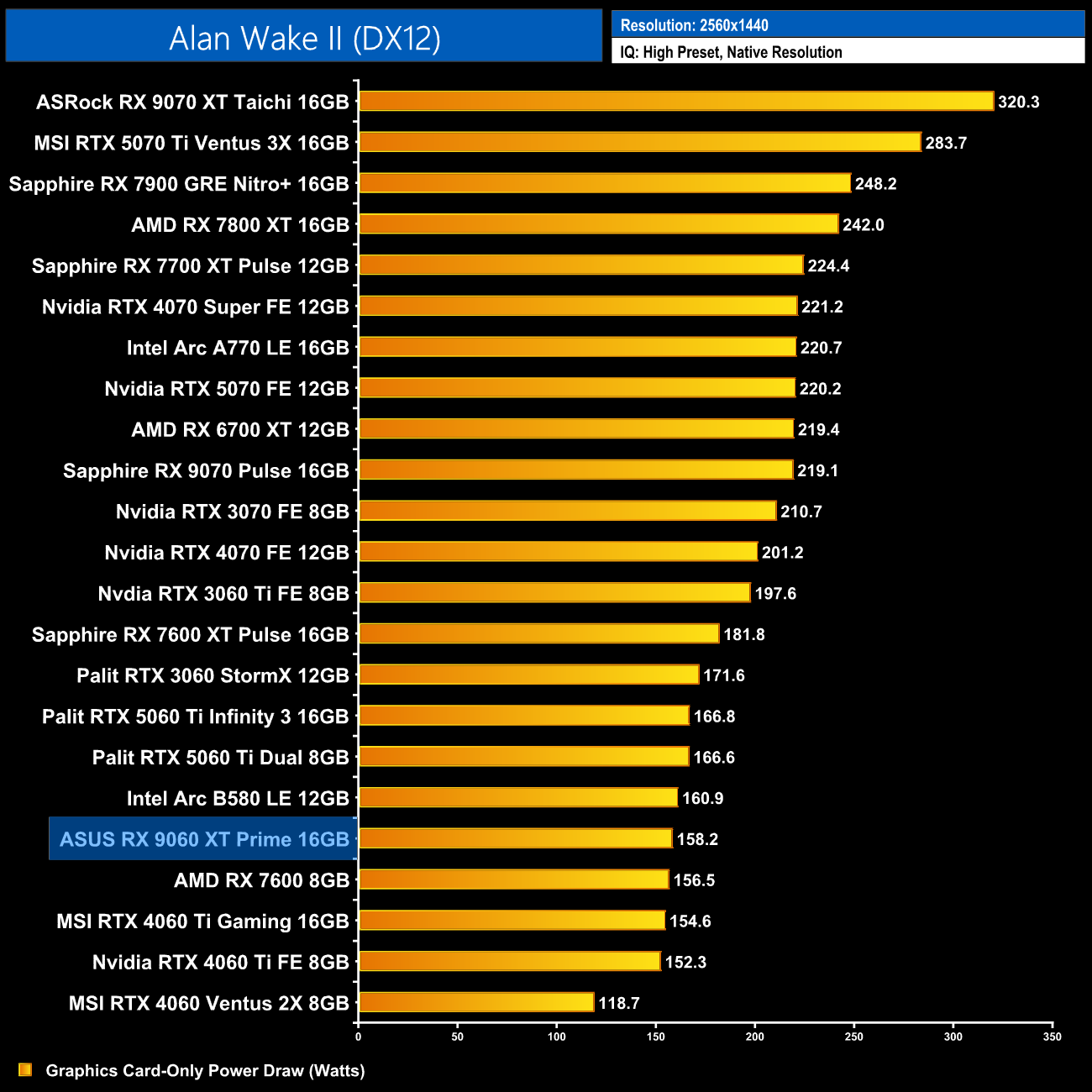

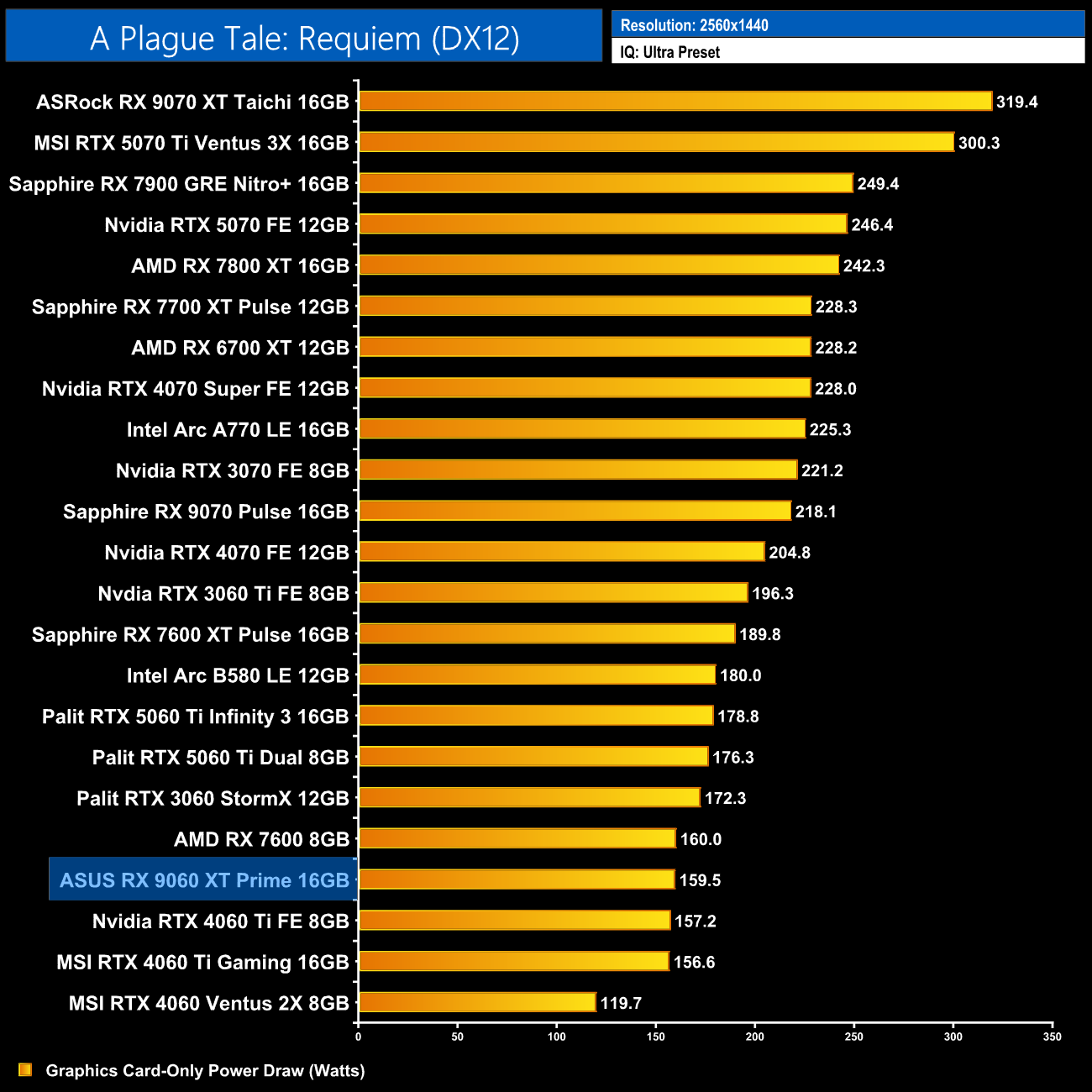

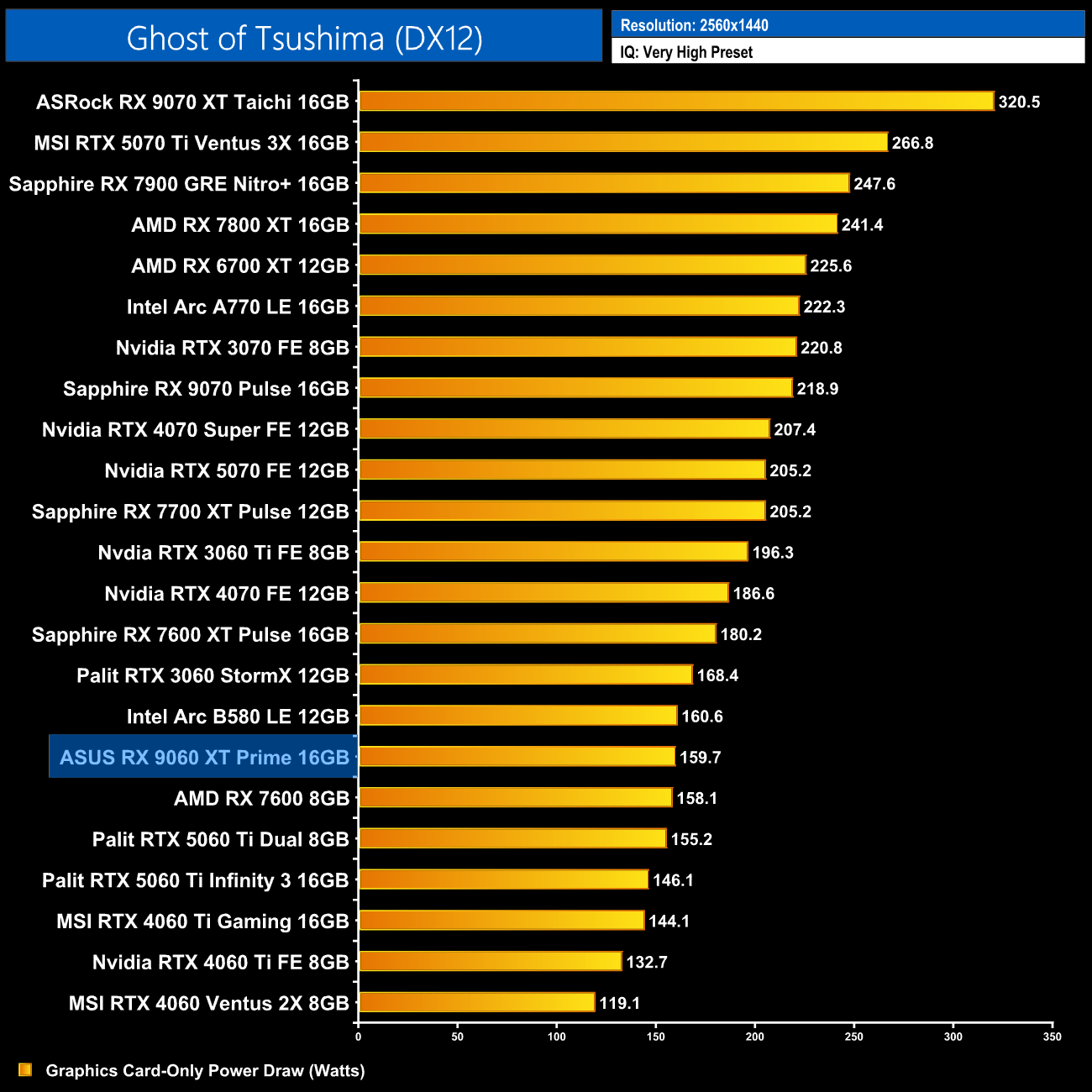

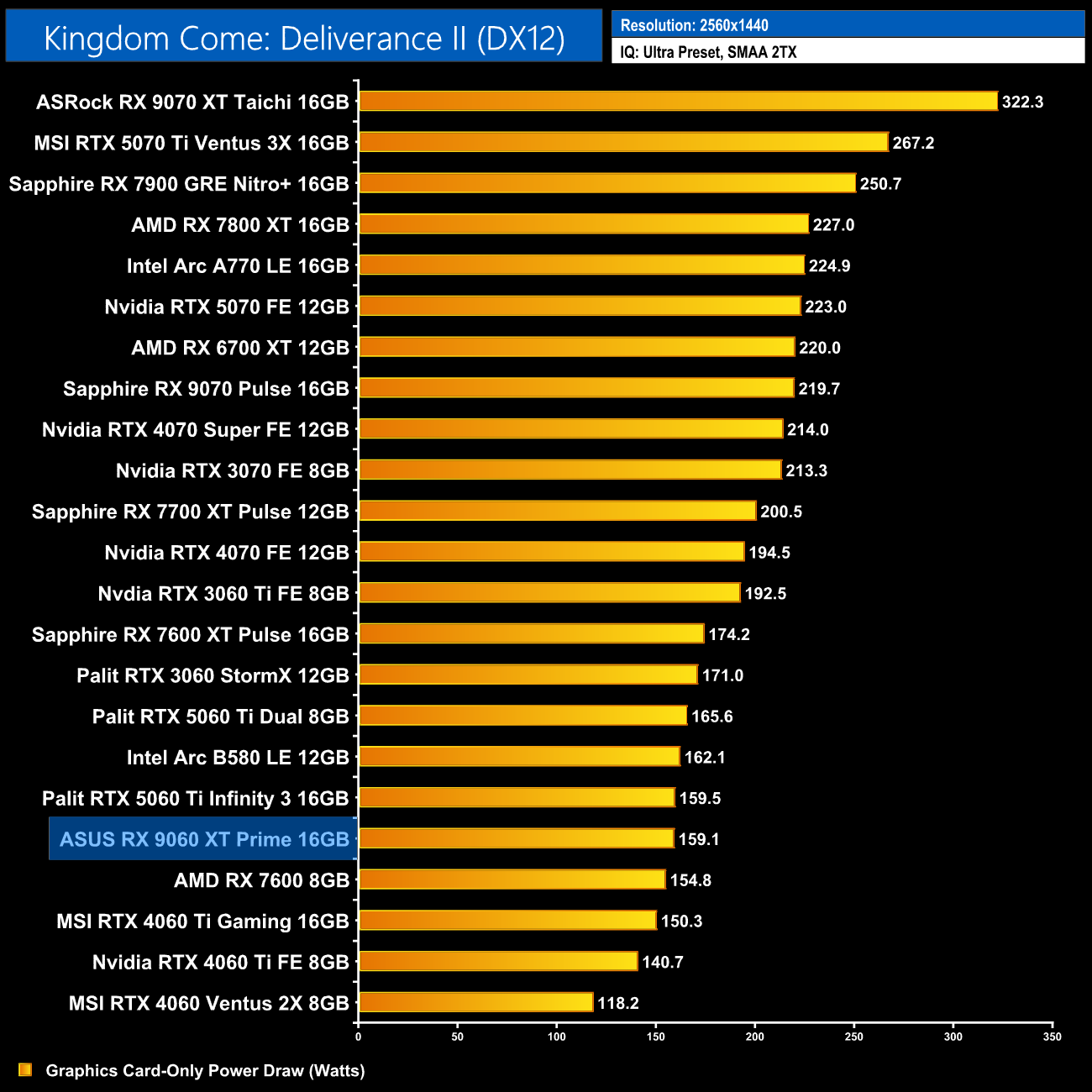

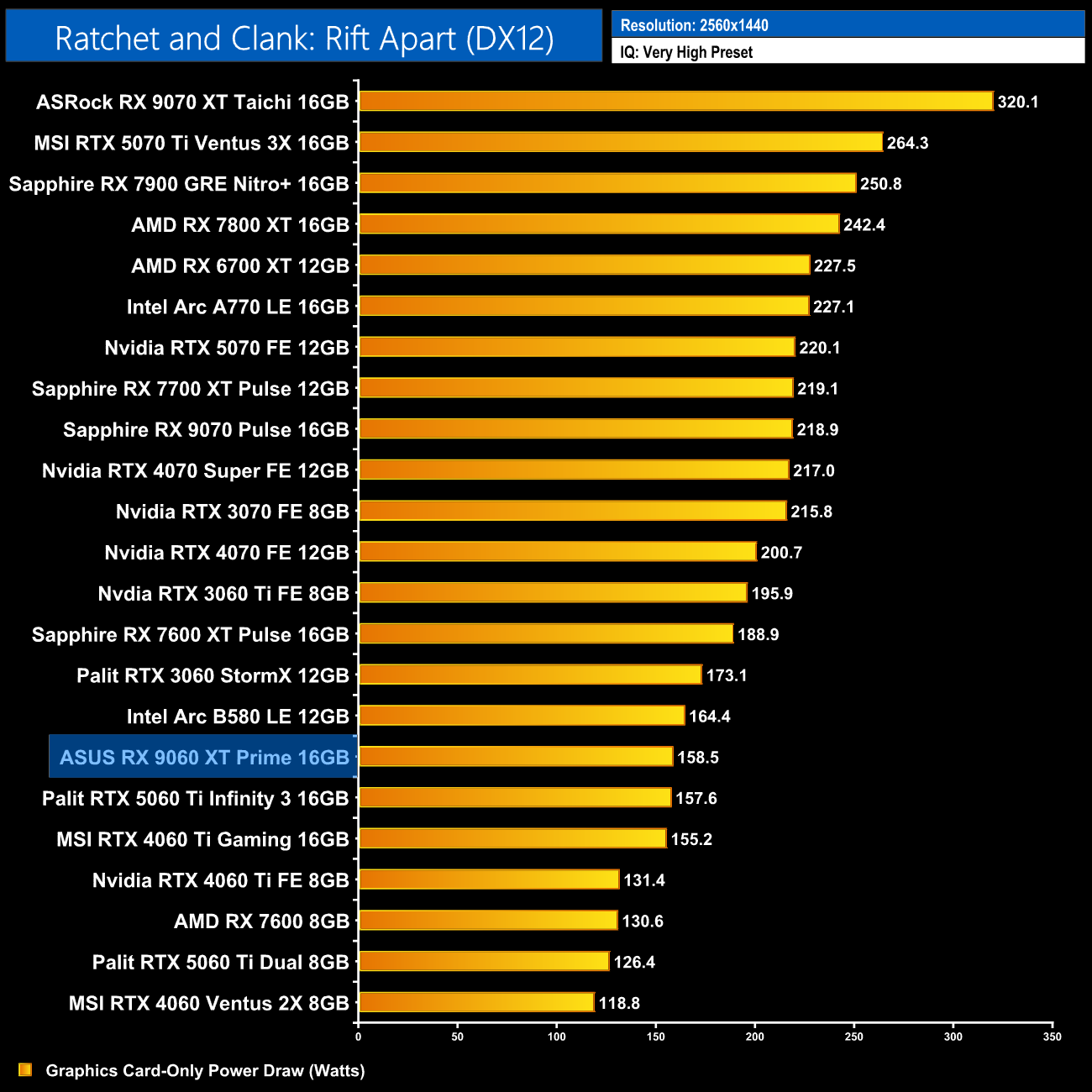

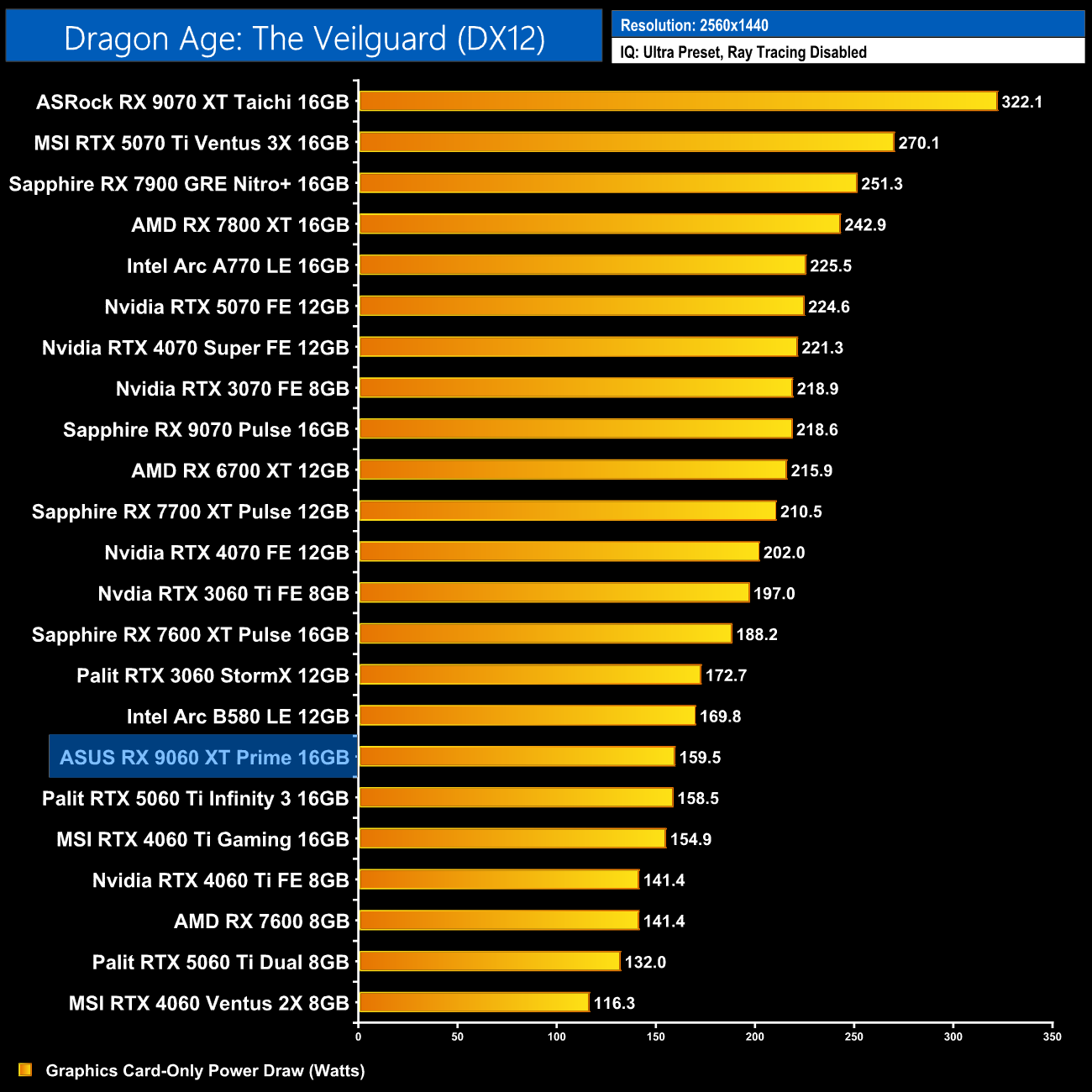

Per-Game Results at 1440p:

Click to enlarge.

12-Game Average at 1440p:

1440p power draw doesn't change much, still just below the rated limit, averaging 159.1W over my testing, so power draw is very similar to the RTX 5060 Ti 16GB as you can see.

Ray tracing results

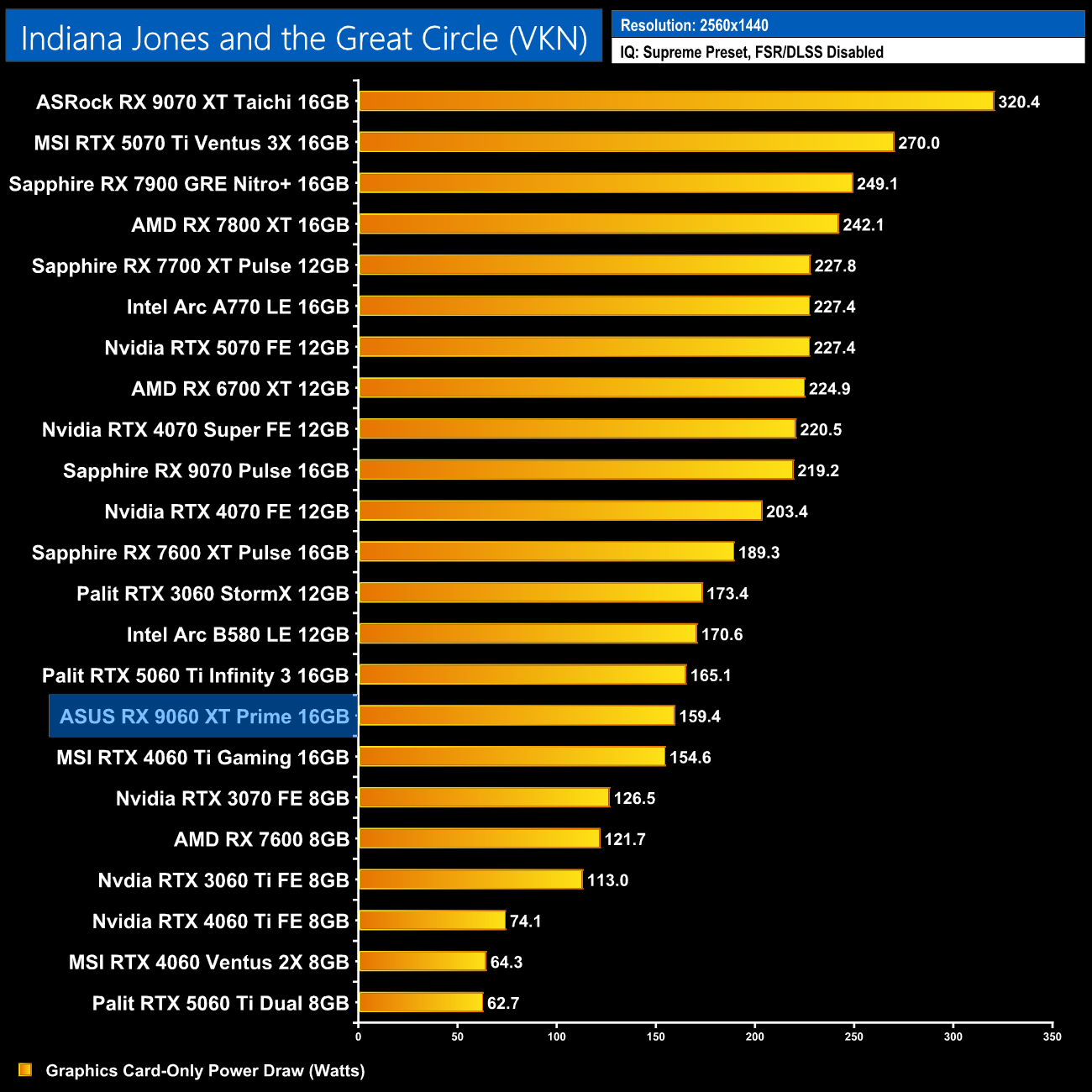

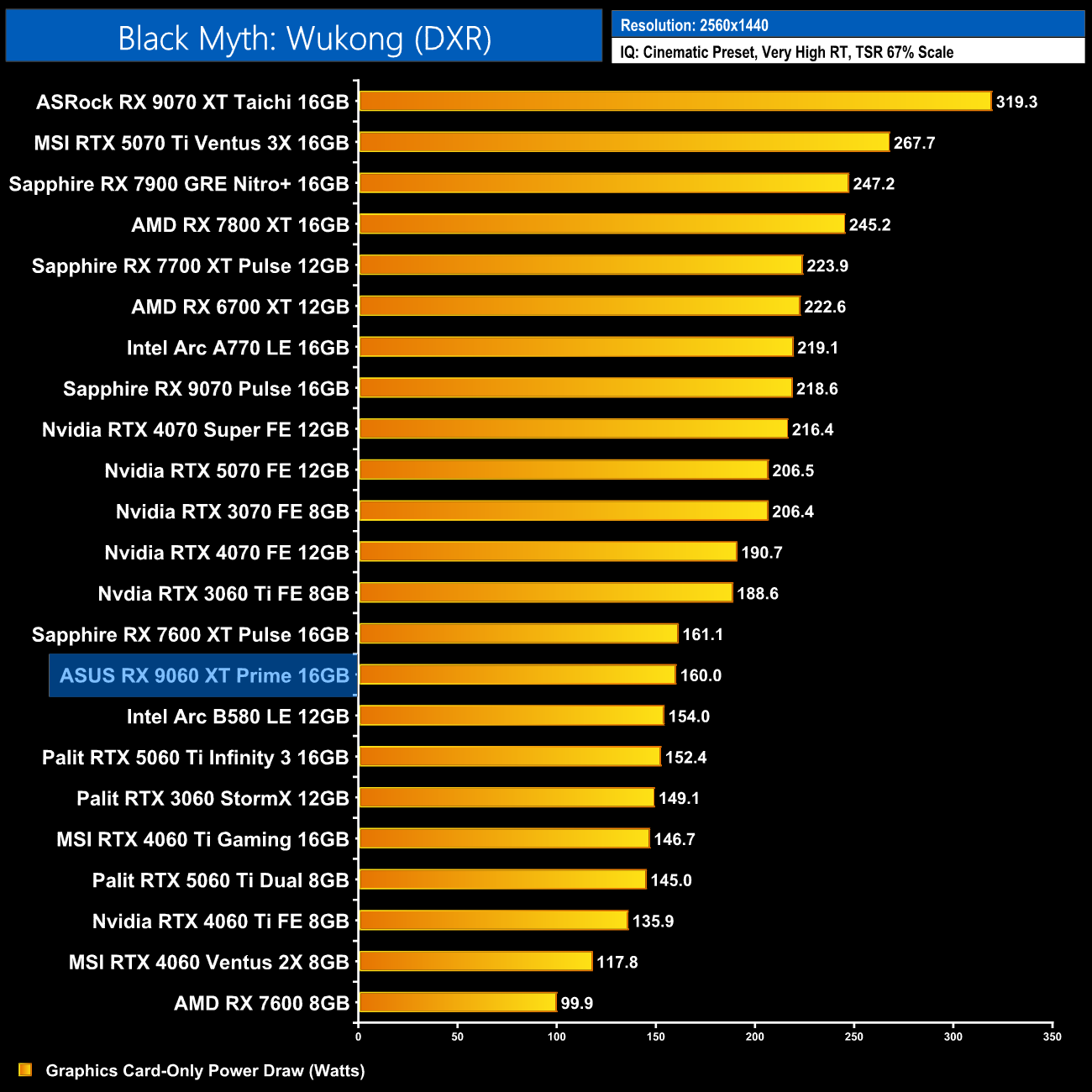

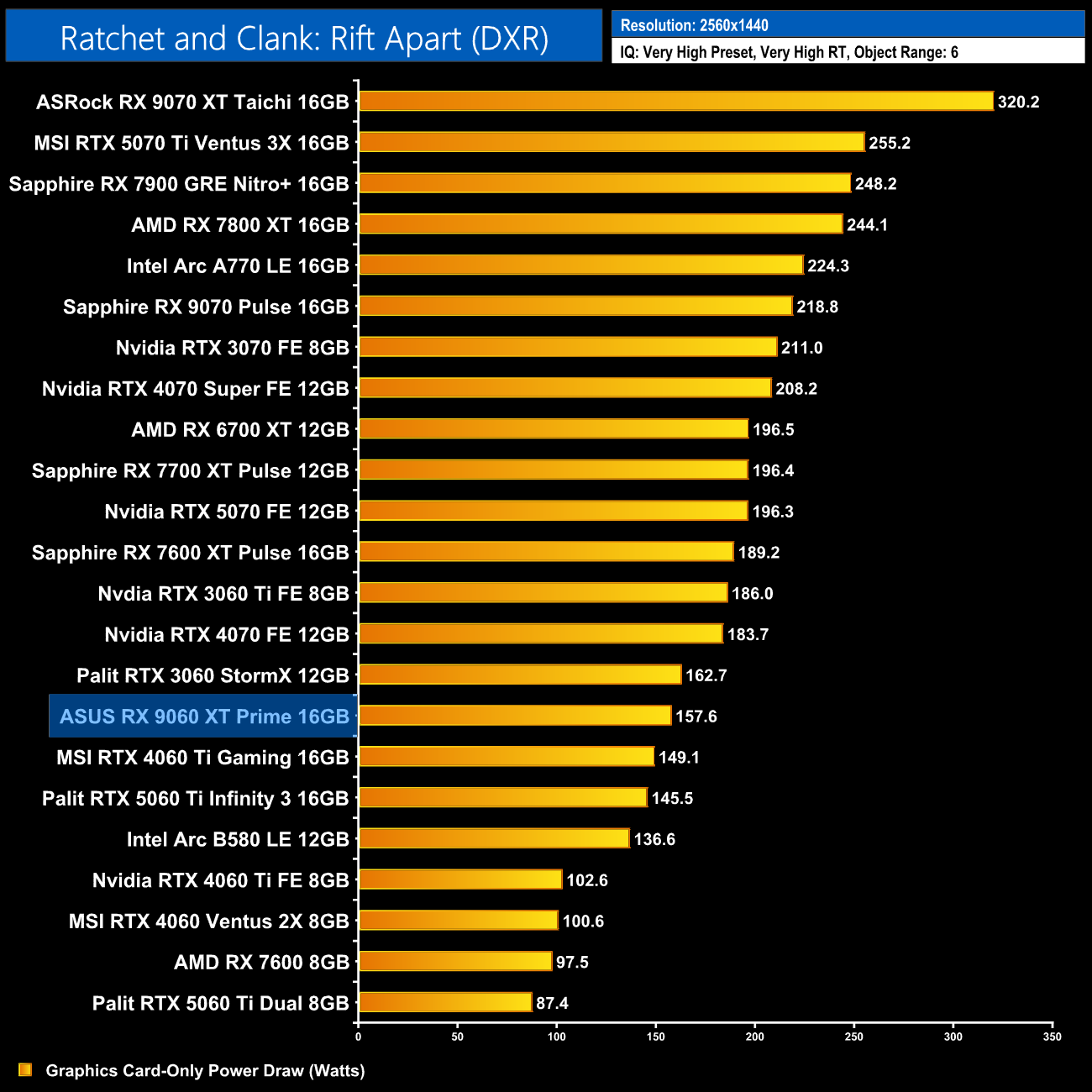

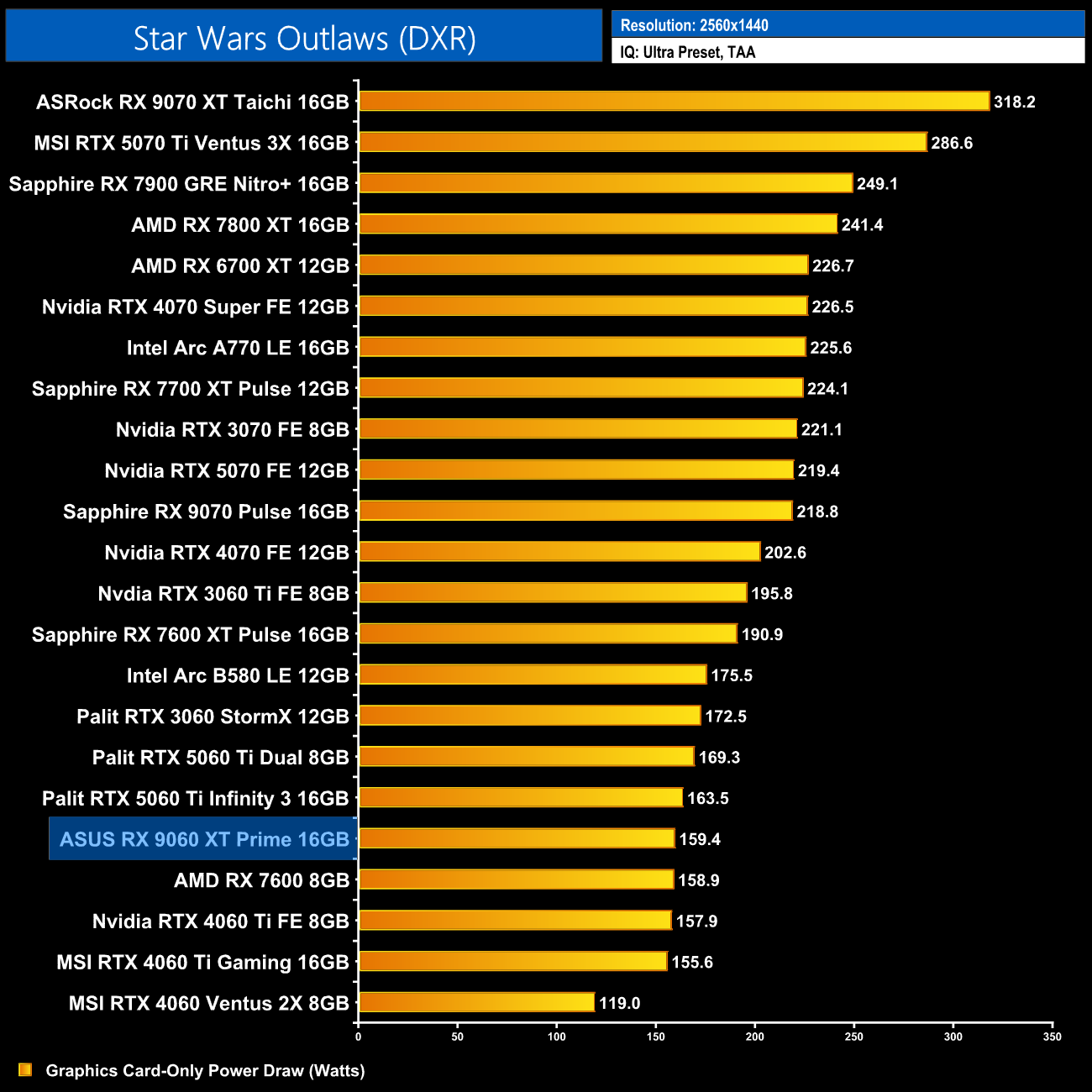

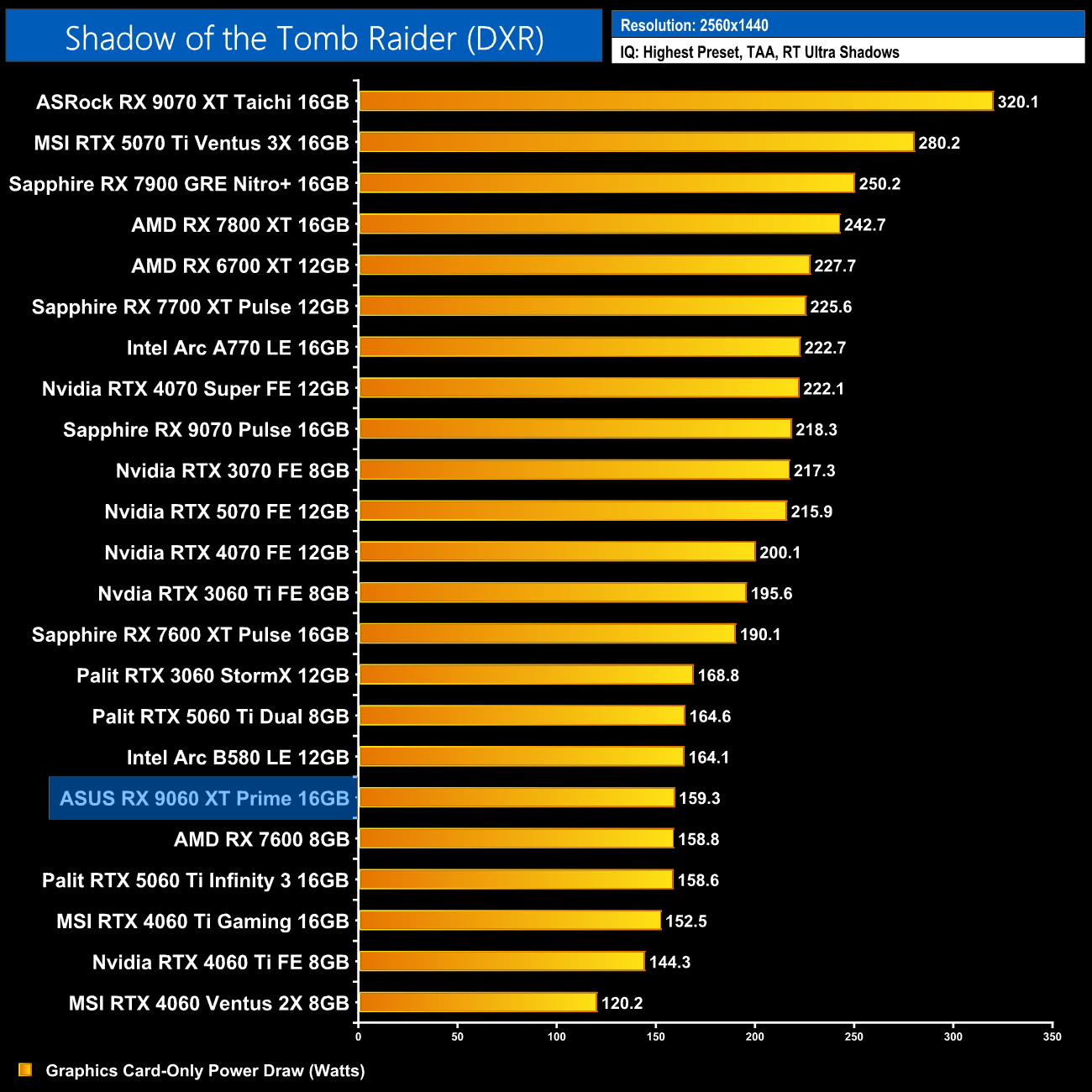

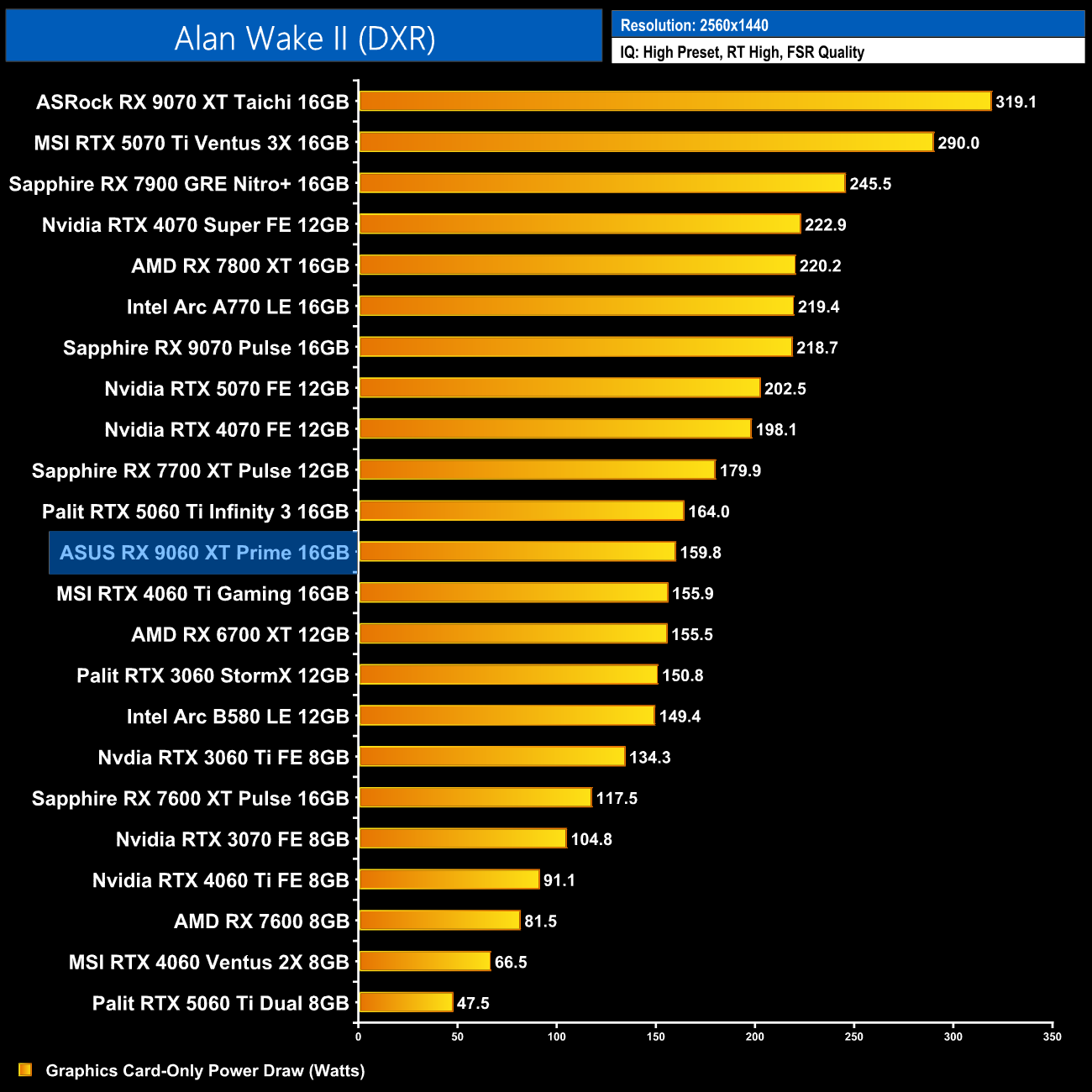

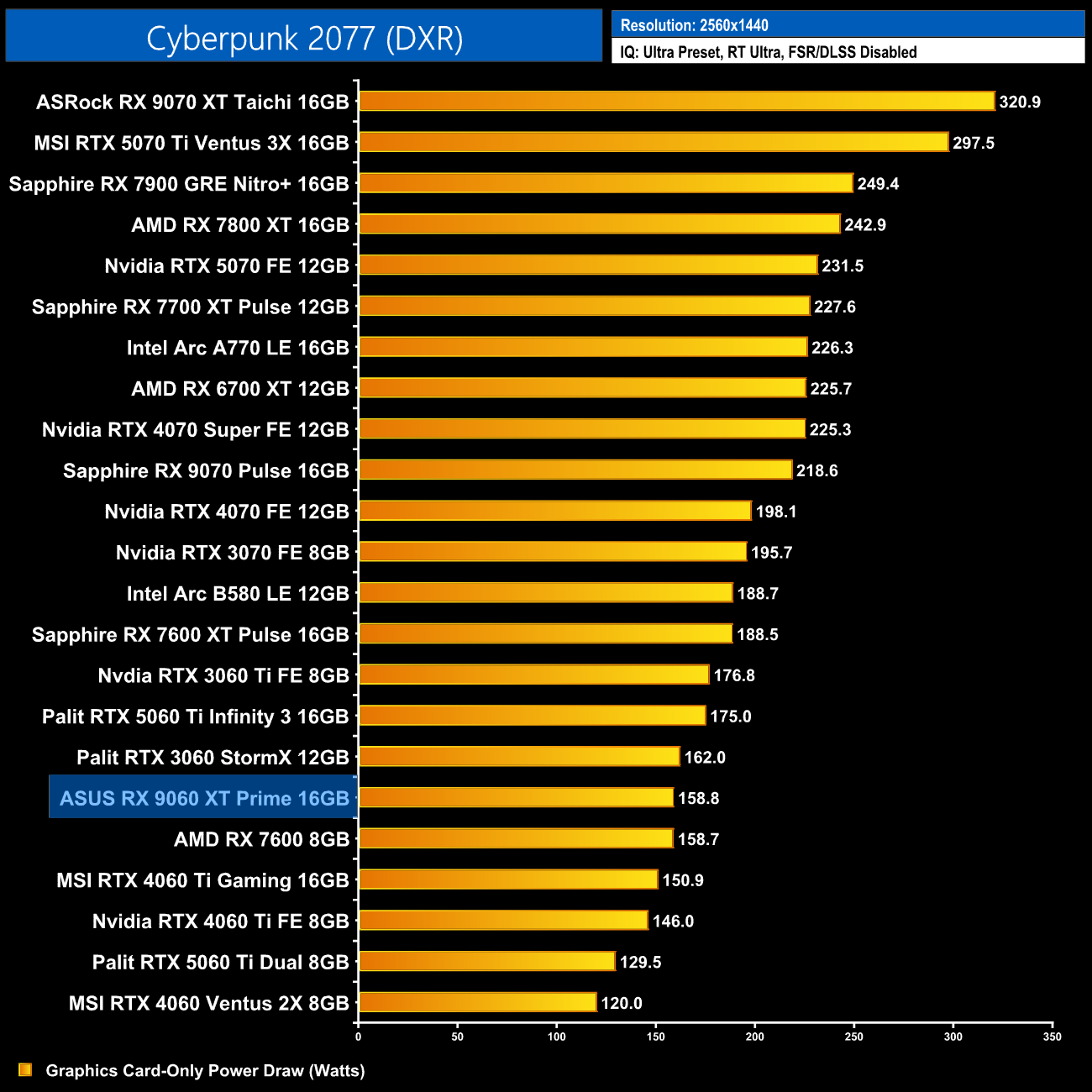

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

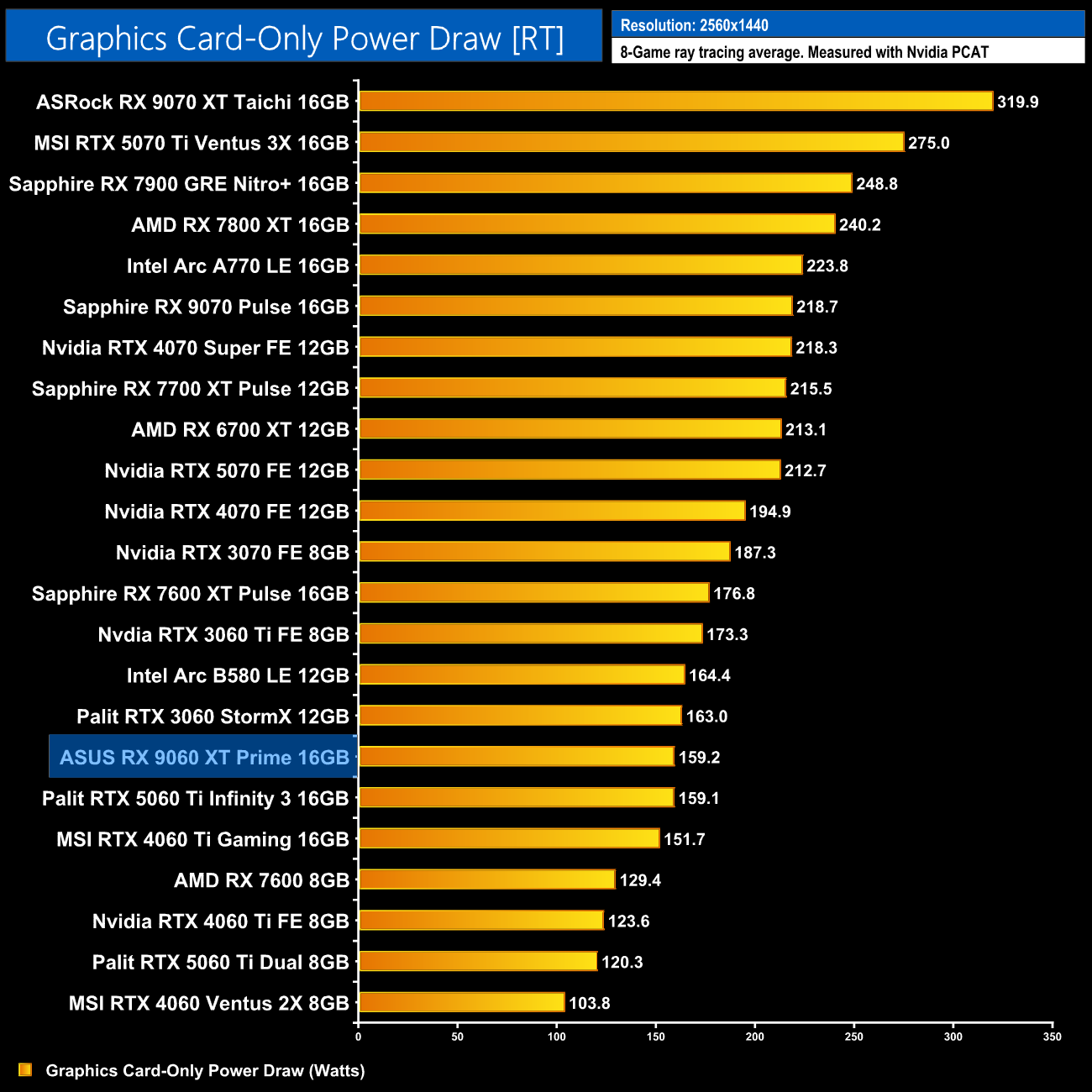

8-Game ray tracing average:

And again, the same can be send for our 8-game ray tracing average.
