Intel Arc A770 Limited Edition Review

Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 2160p (4K). This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

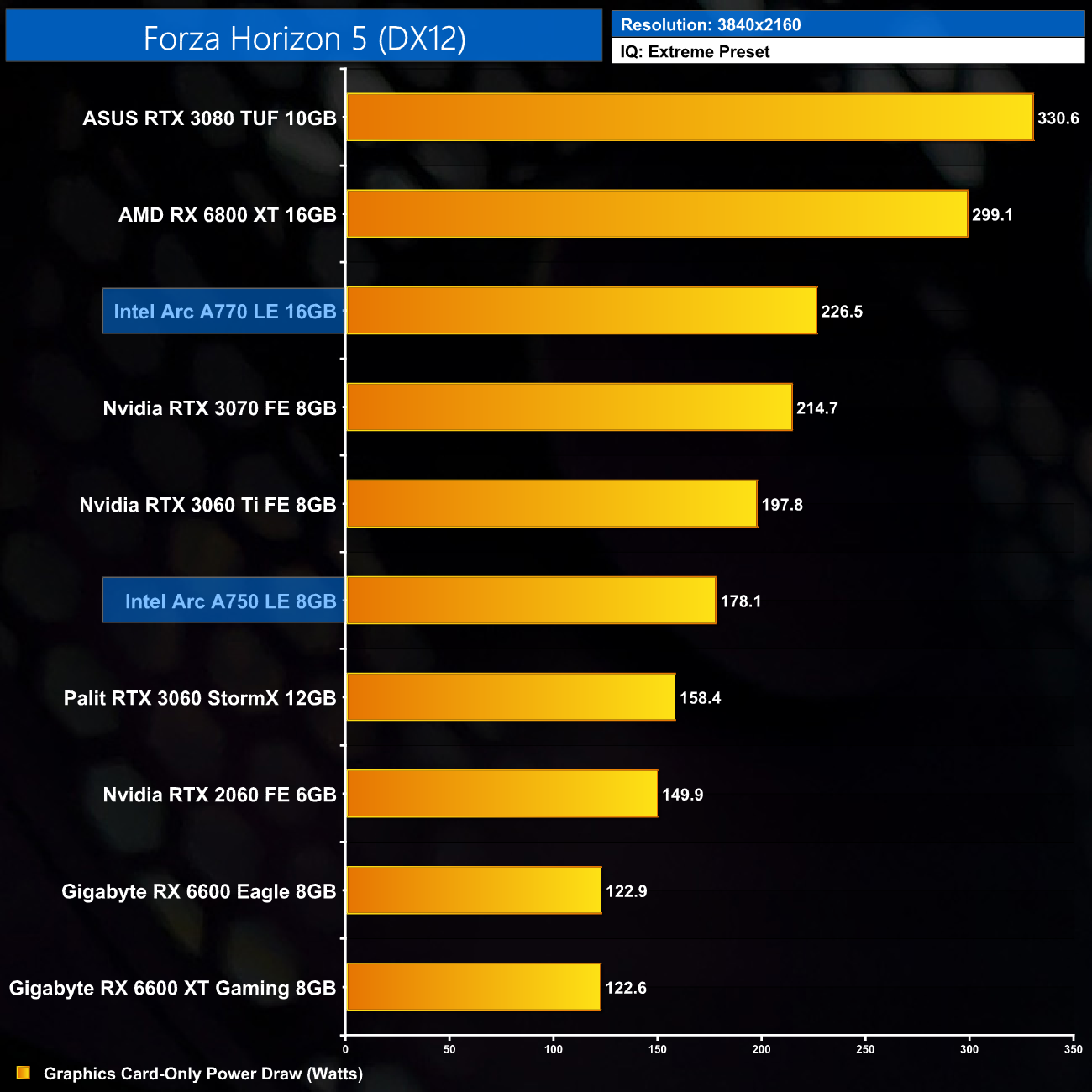

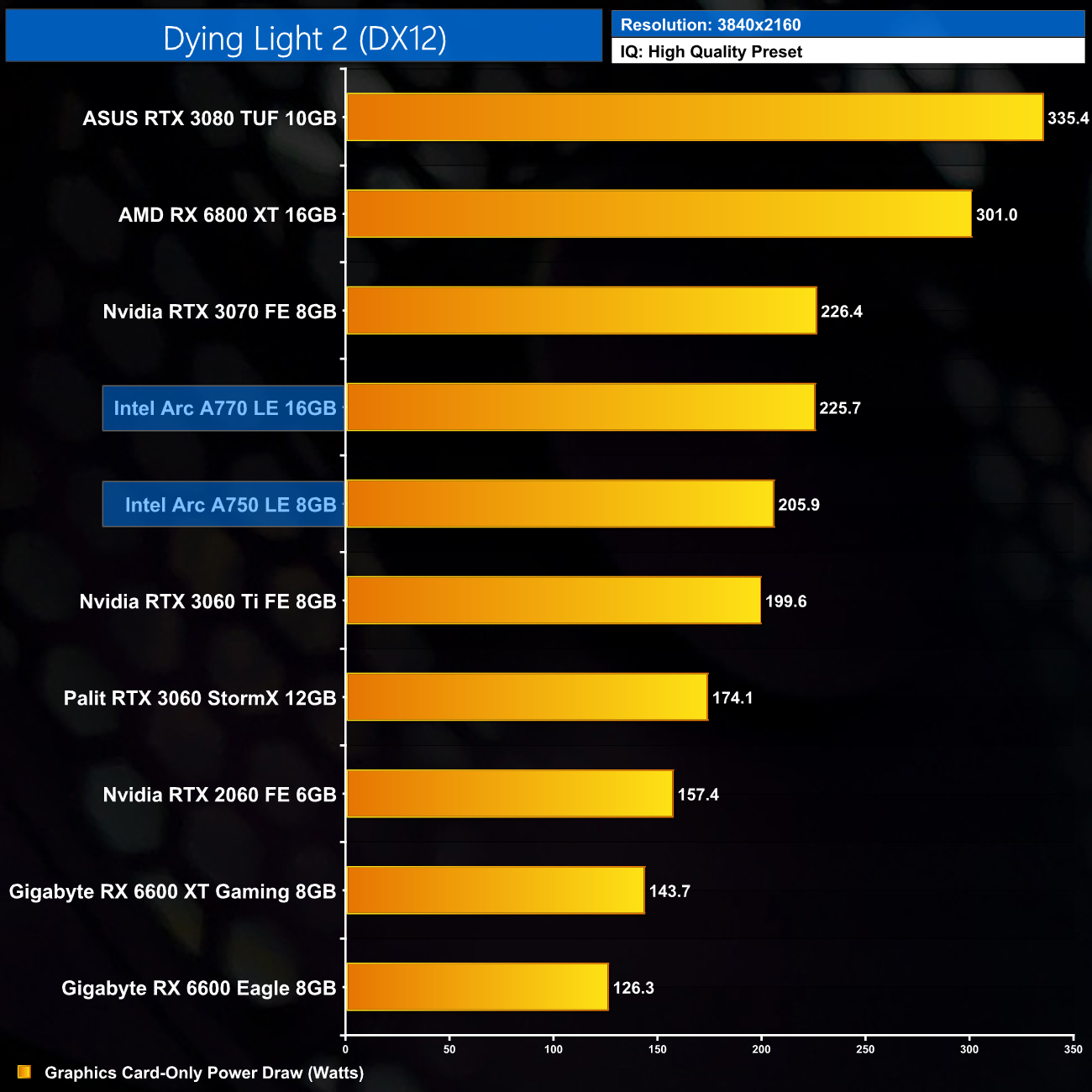

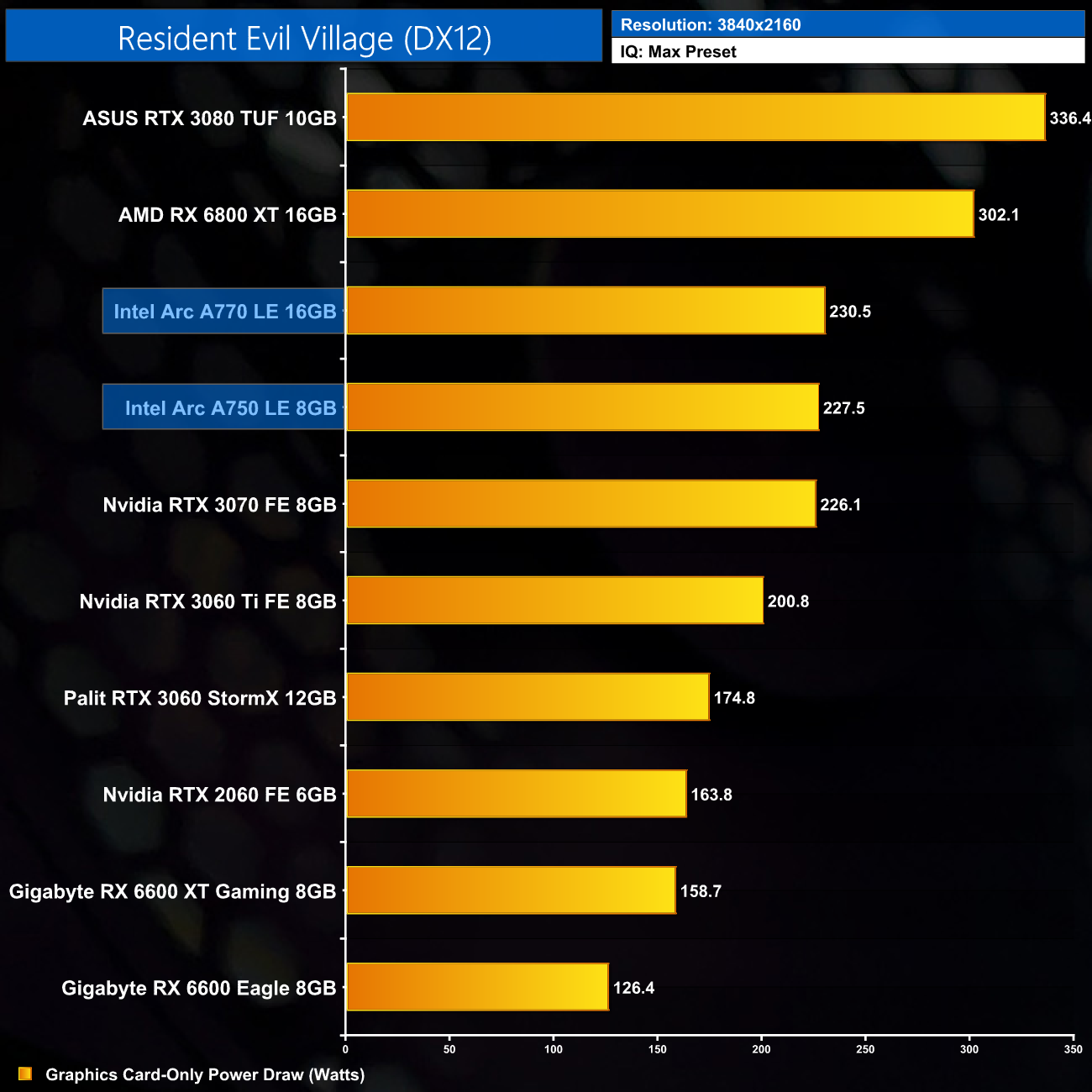

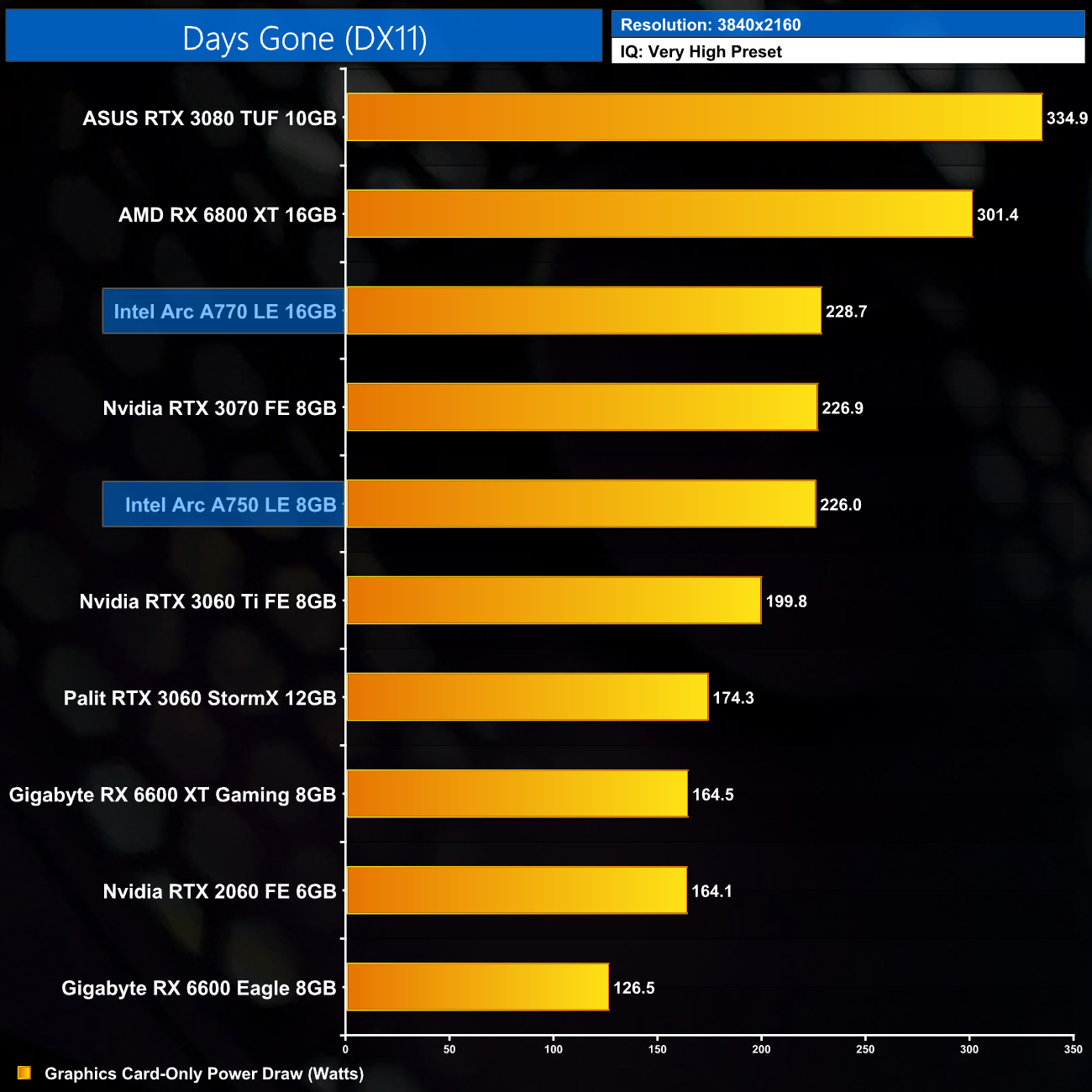

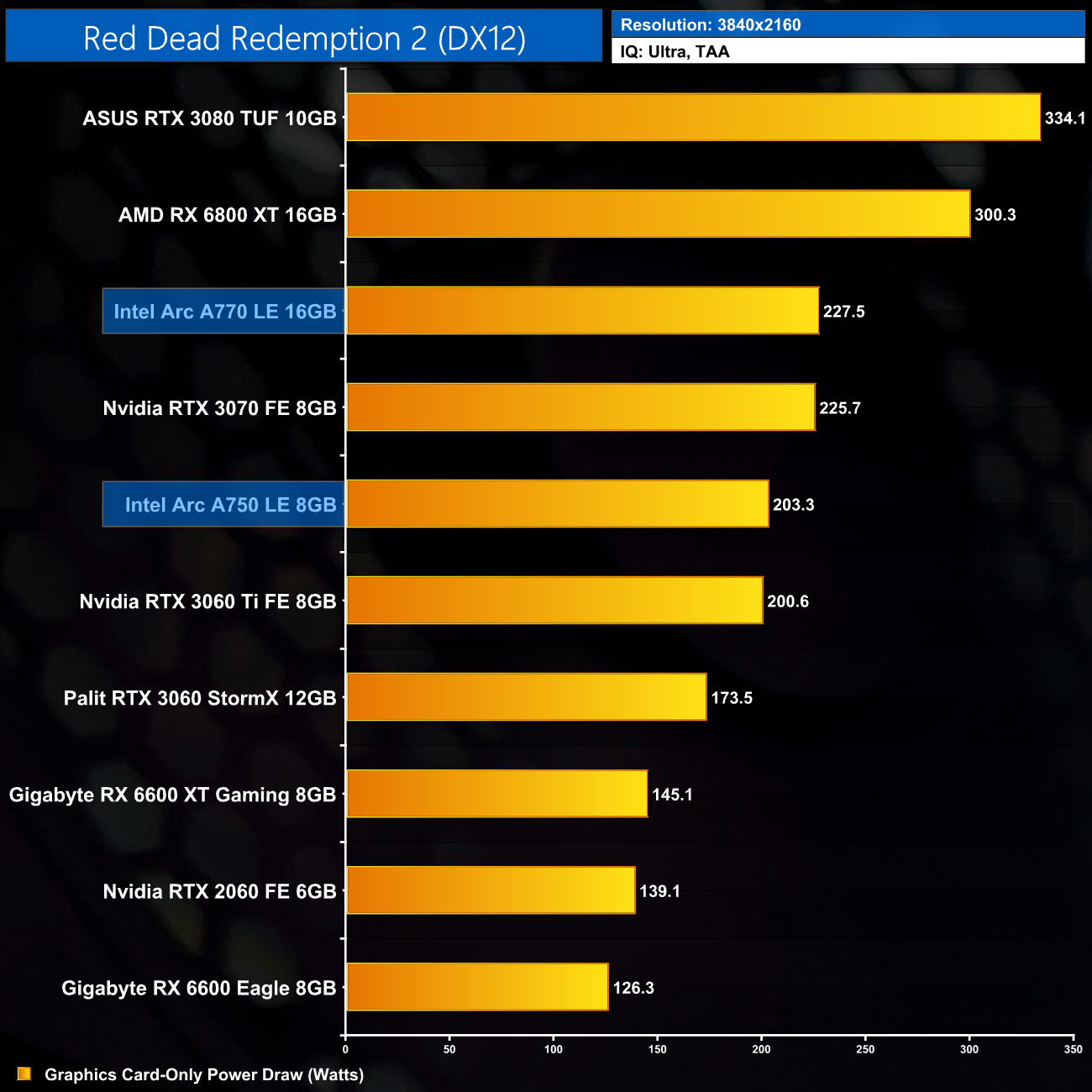

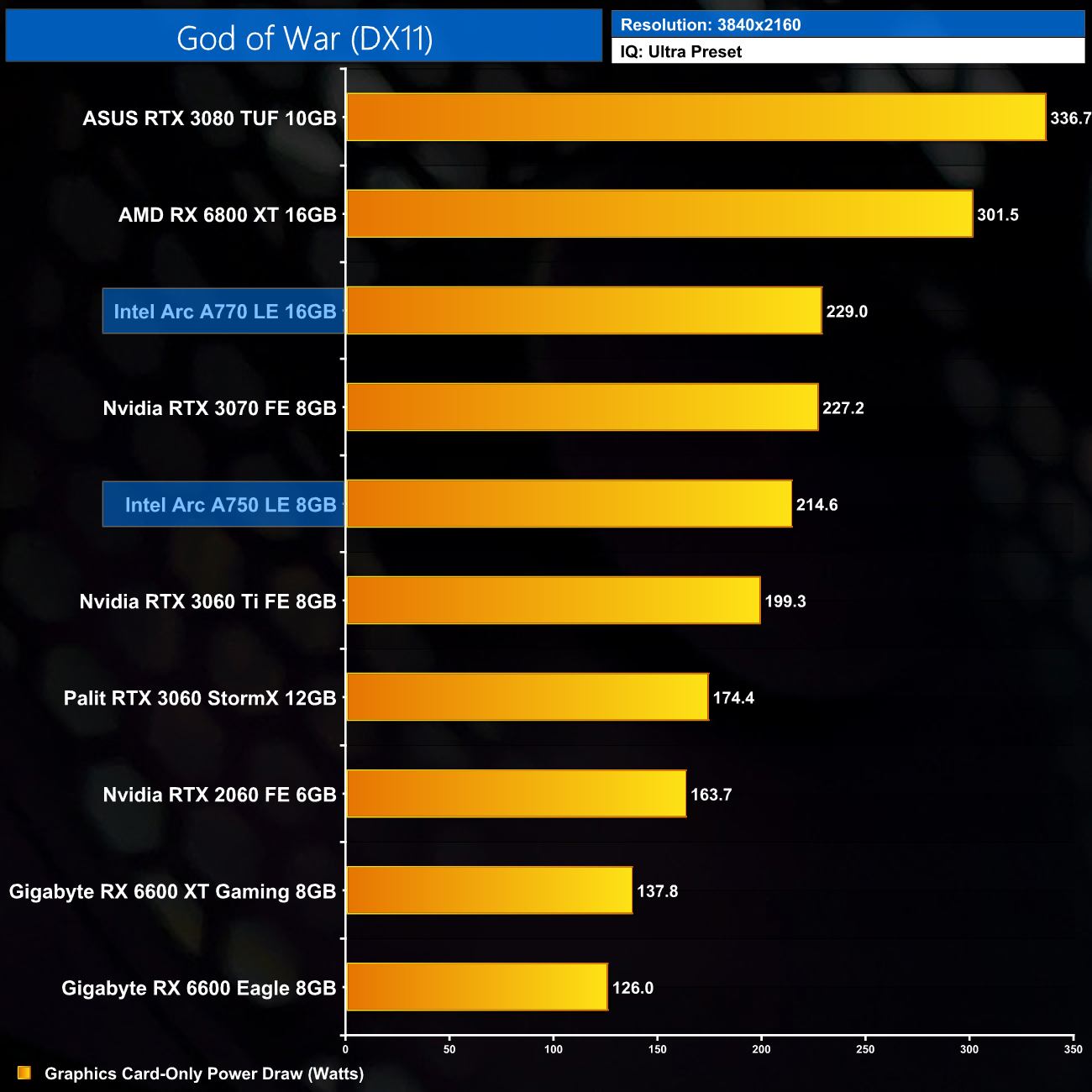

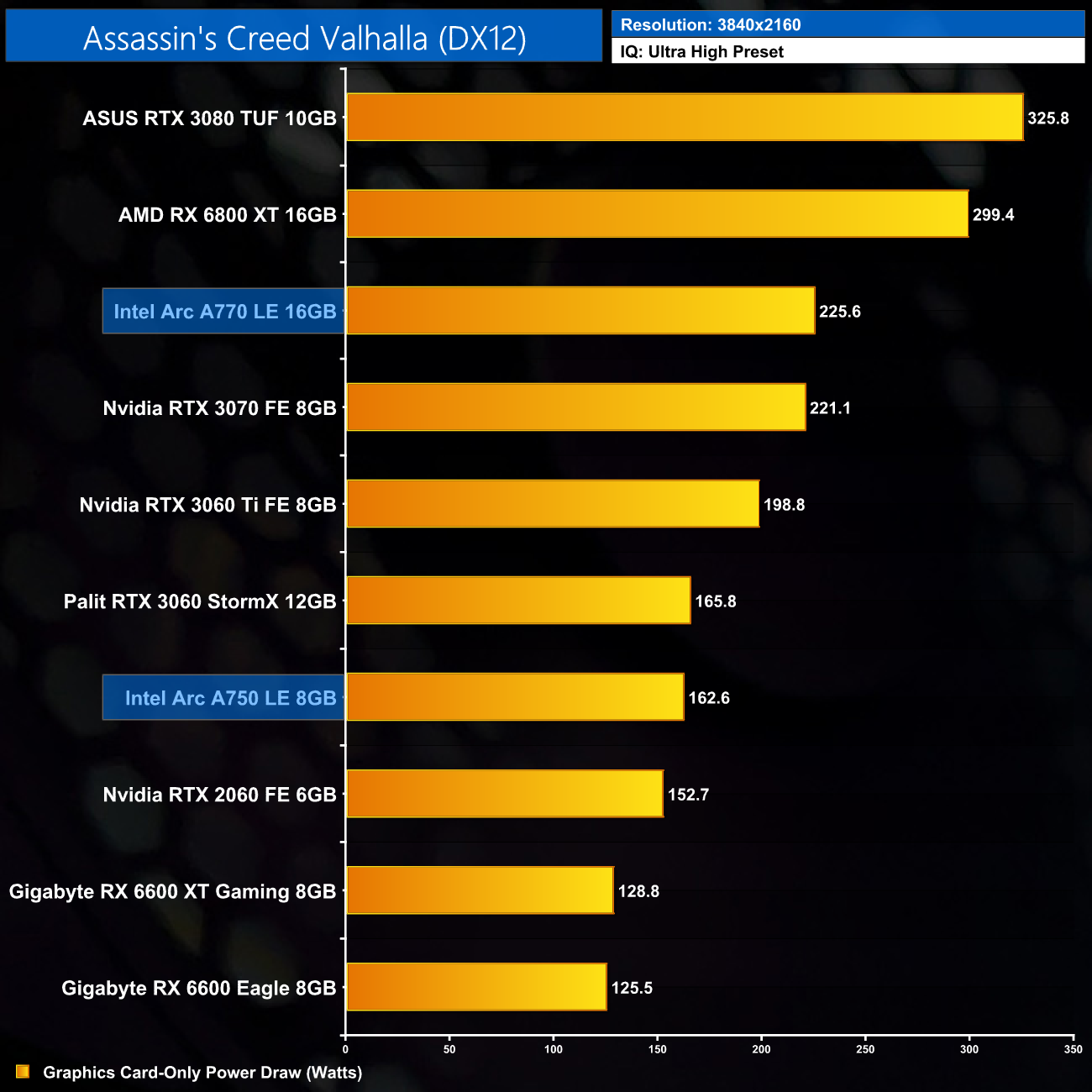

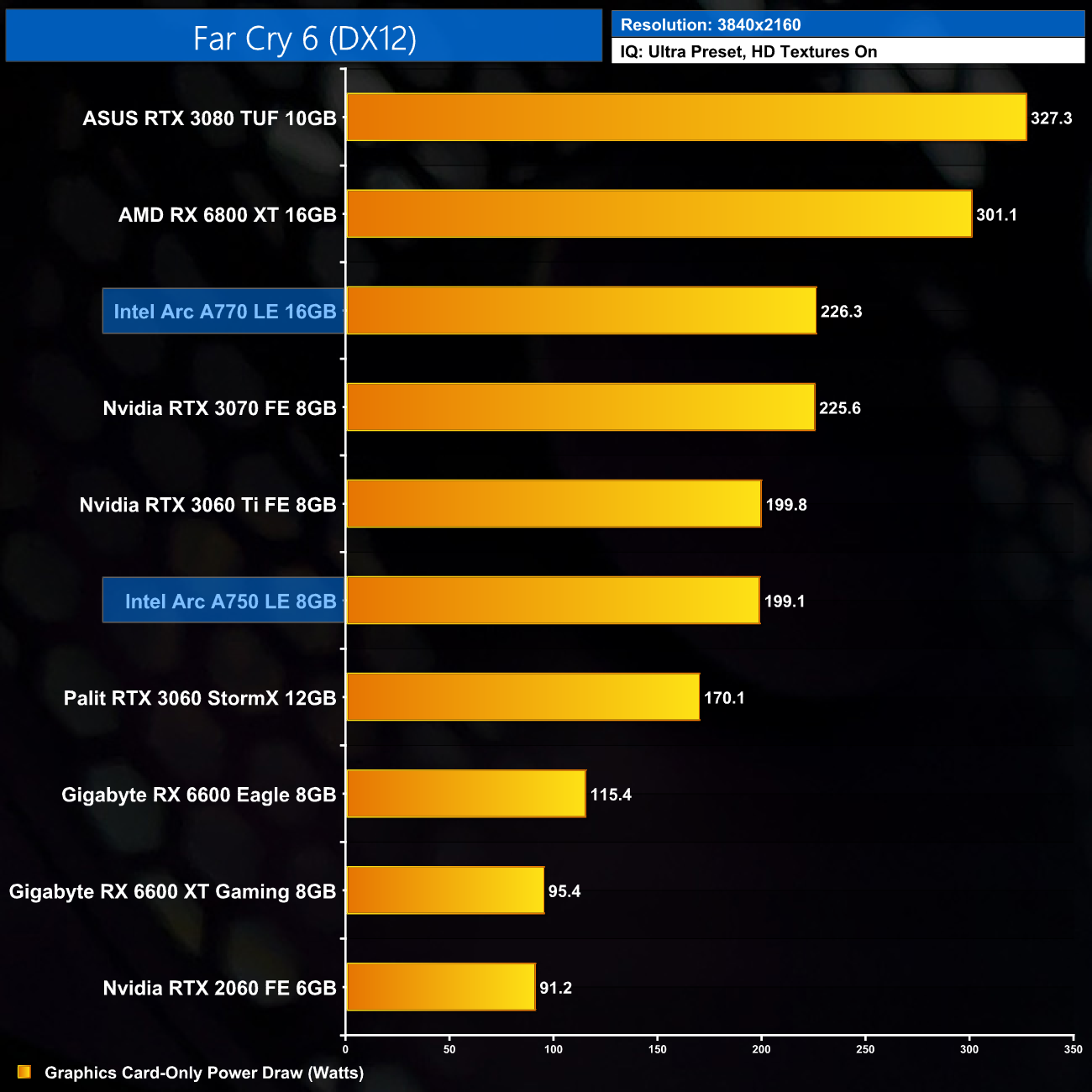

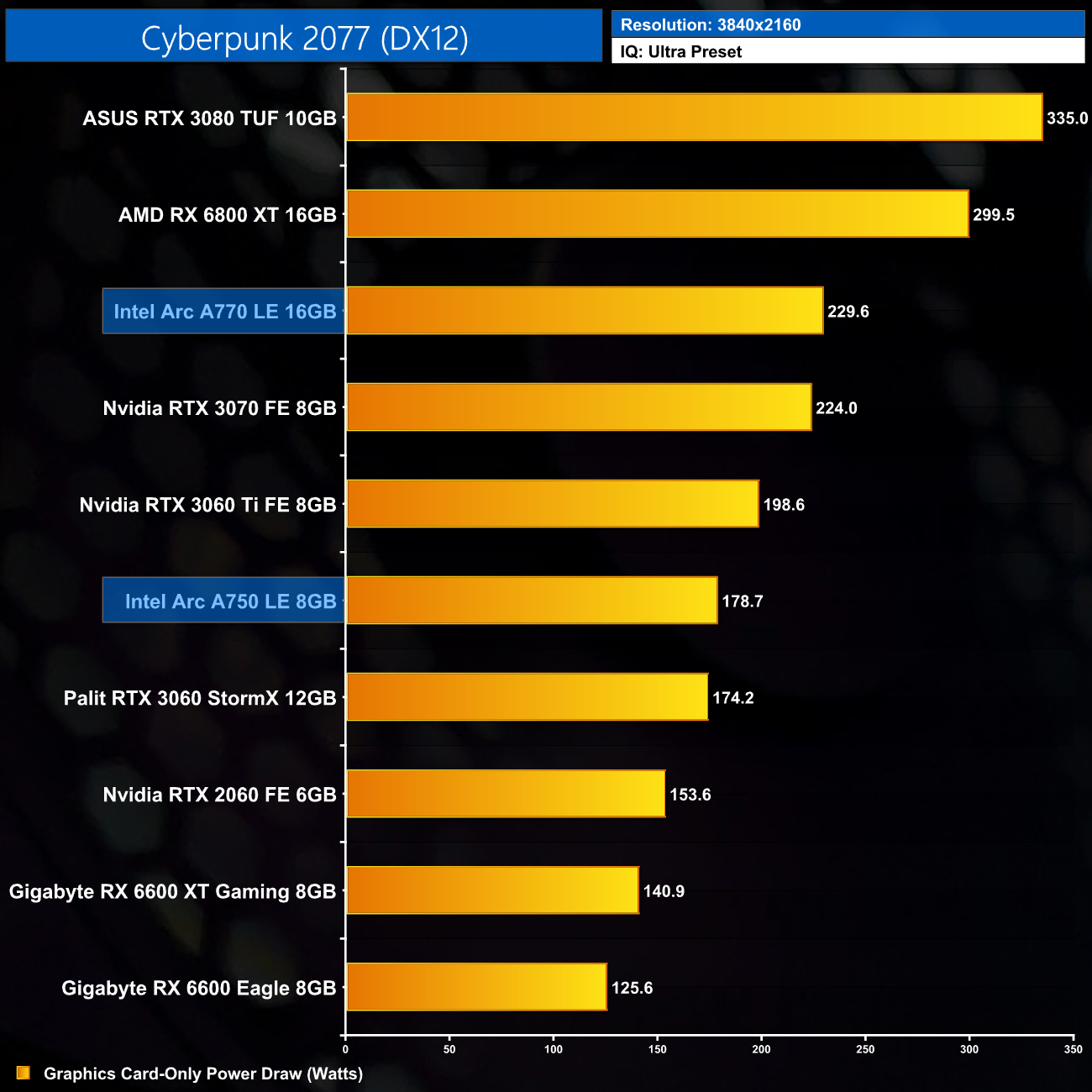

Per-Game Results at 2160p (4K):

Click to enlarge.

Lastly, 4K power draw is fairly consistent across the board, with the A770 drawing an average of 227.6W over the ten games we tested.
