Toshiba N300 8TB HDD Review

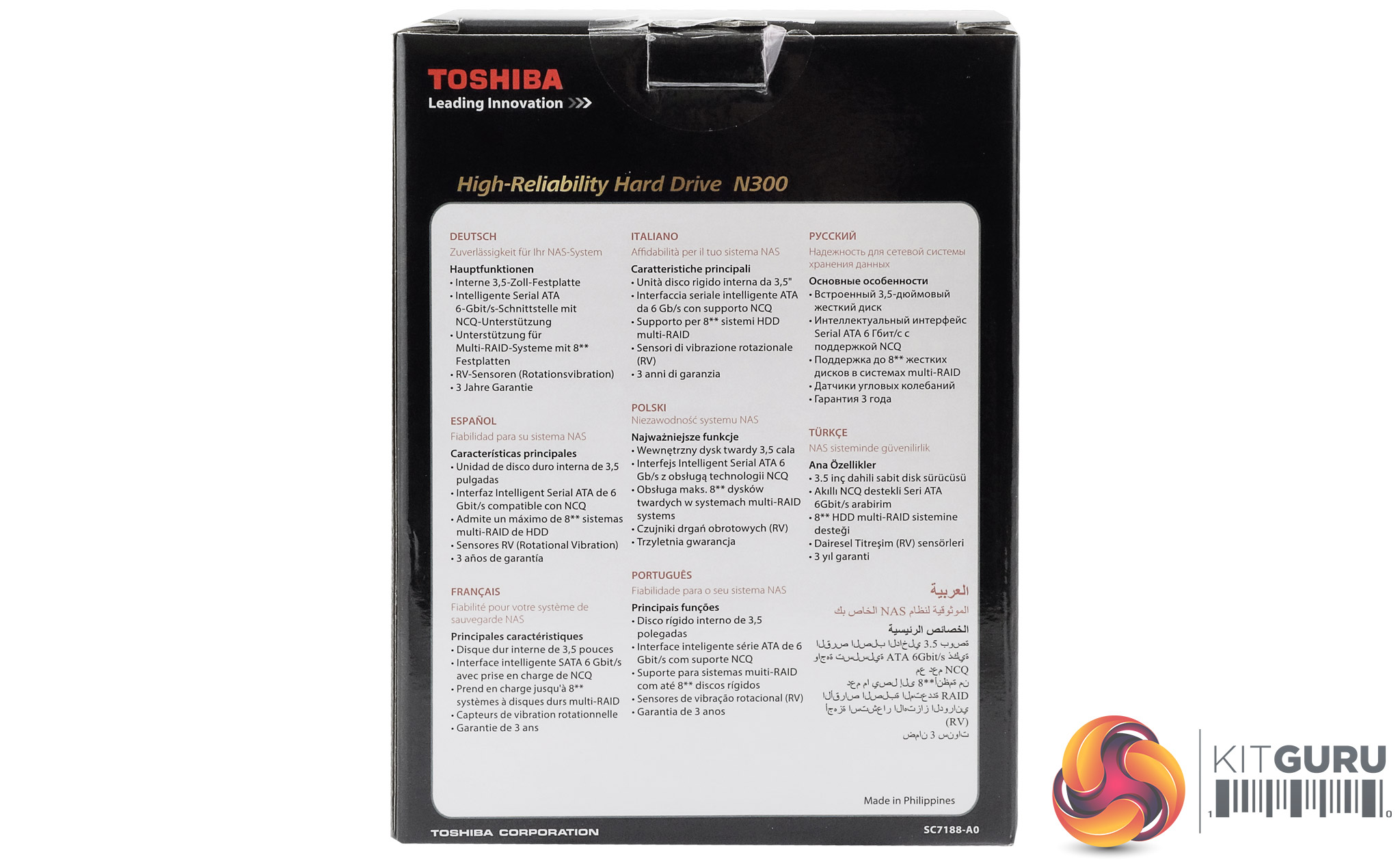

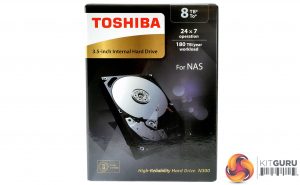

The Toshiba N300 uses the same box styling as both the P300 and the X300 with an image of an open drive on the front together with good clear descriptions of its capacity, spin speed, cache and usage. The back of the box has a panel of multilingual statements of the drive’s features.

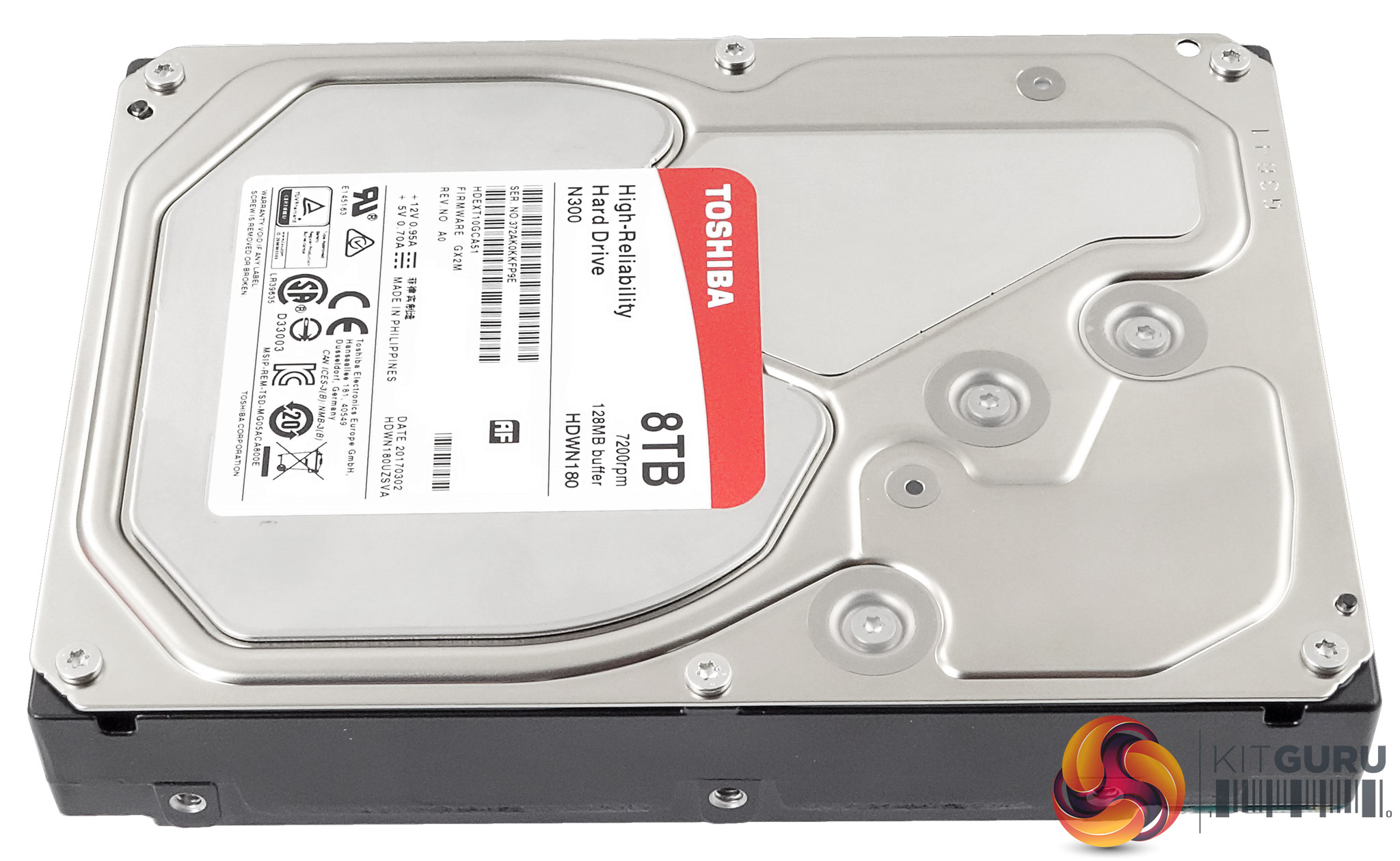

Built on a standard 3.5in format, the 8TB N300 uses six 1.33TB platters (discs) with twelve read/write heads. The drive features several technologies designed to increase reliability in a multi-disk environment.

The N300 series feature a 128MB cache and uses Toshiba’s Dynamic Cache Technology to optimise cache allocation during read/writes to maintain high performance. The drives also have Toshiba Stable Platter technology which helps minimise the effects of system vibration by the use of a tied spindle motor which secures the motor drive shaft at both ends.

Also helping the fight against vibration are built in sensors which detect shock and rotational vibration and compensate for both. RV (rotational vibration) may not seem much of a problem when you only have a couple of drives in the same enclosure but when there are six or more drives in the same box it can become a real issue.

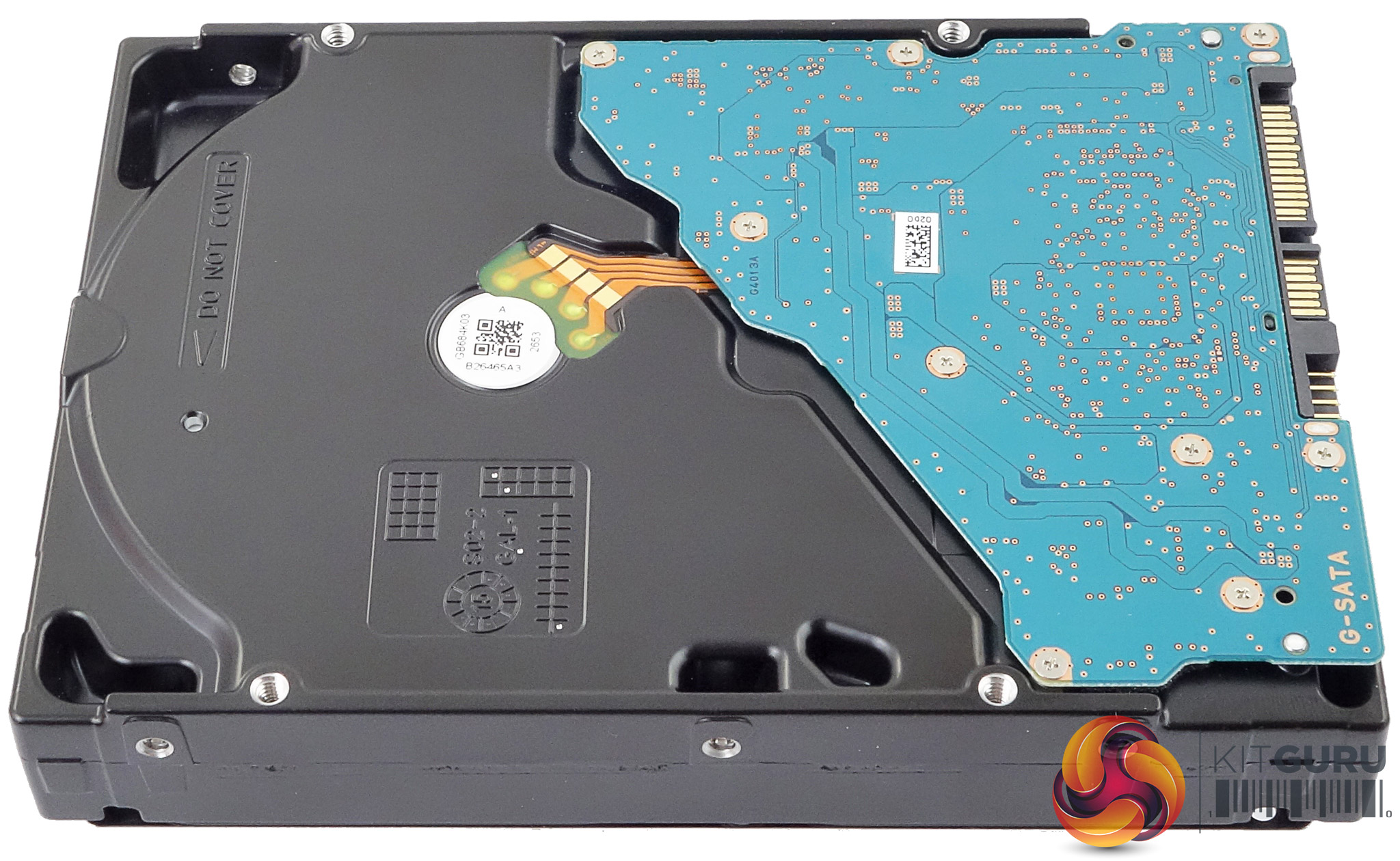

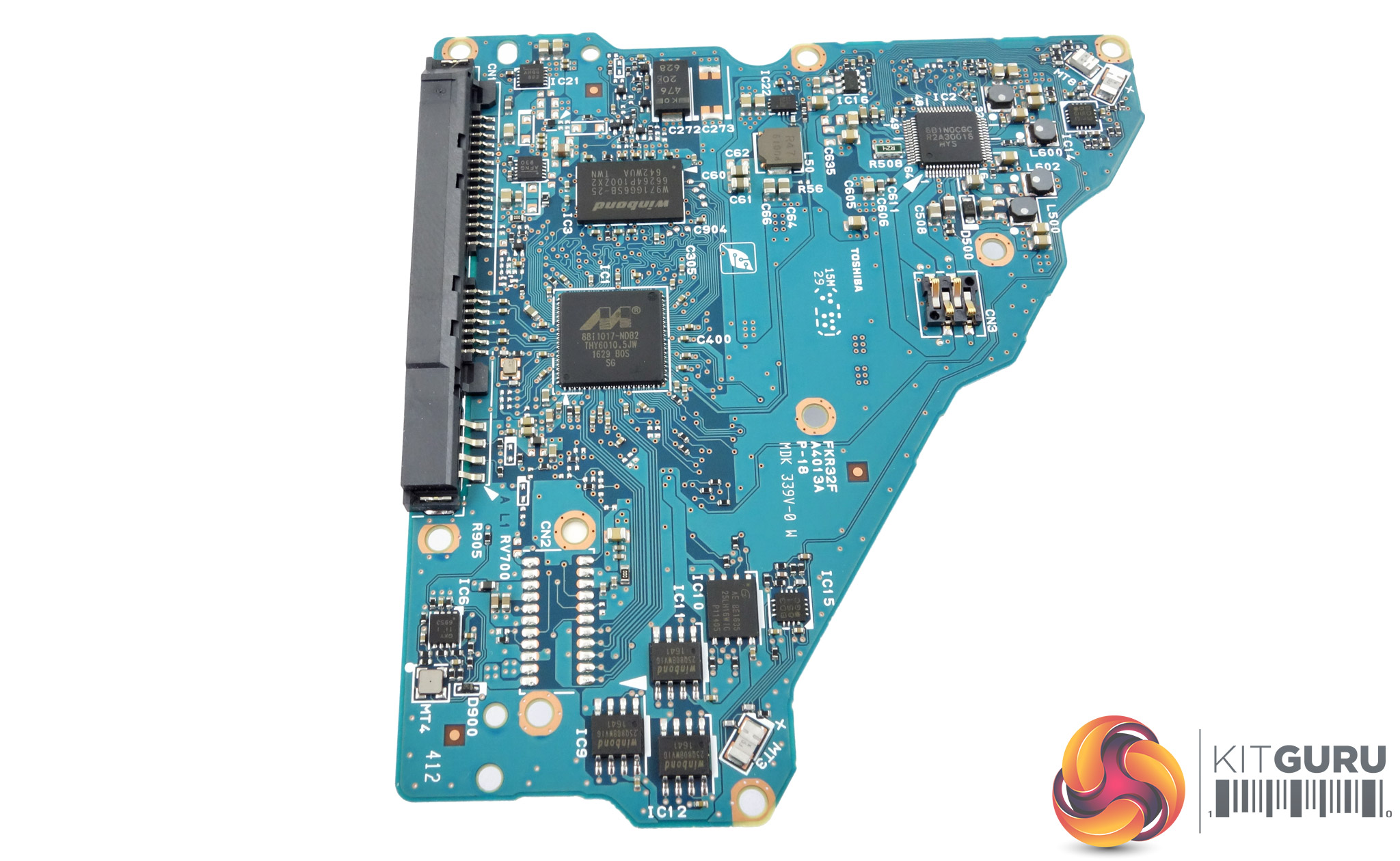

A quick look at the underside of the PCB reveals a Marvell 88i1017-NBD2 storage controller, a Winbond DDR2-800 DRAM chip and a spindle controller coded 601NCCGC.
