Antec EDGE 750W PSU Review


DSCF3523

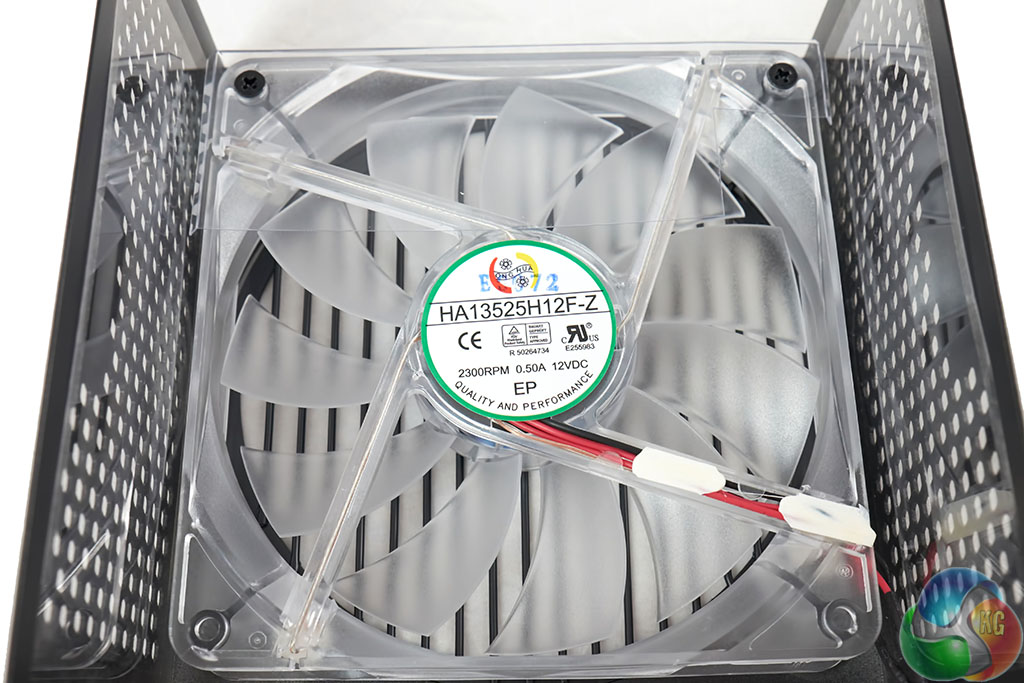

Antec are using a ONG HUA 135mm fan rated 0.50A with a maximum rotational speed of 2,300 rpm. This is a high grade fluid dynamic bearing fan.
DSCF3530DSCF3531

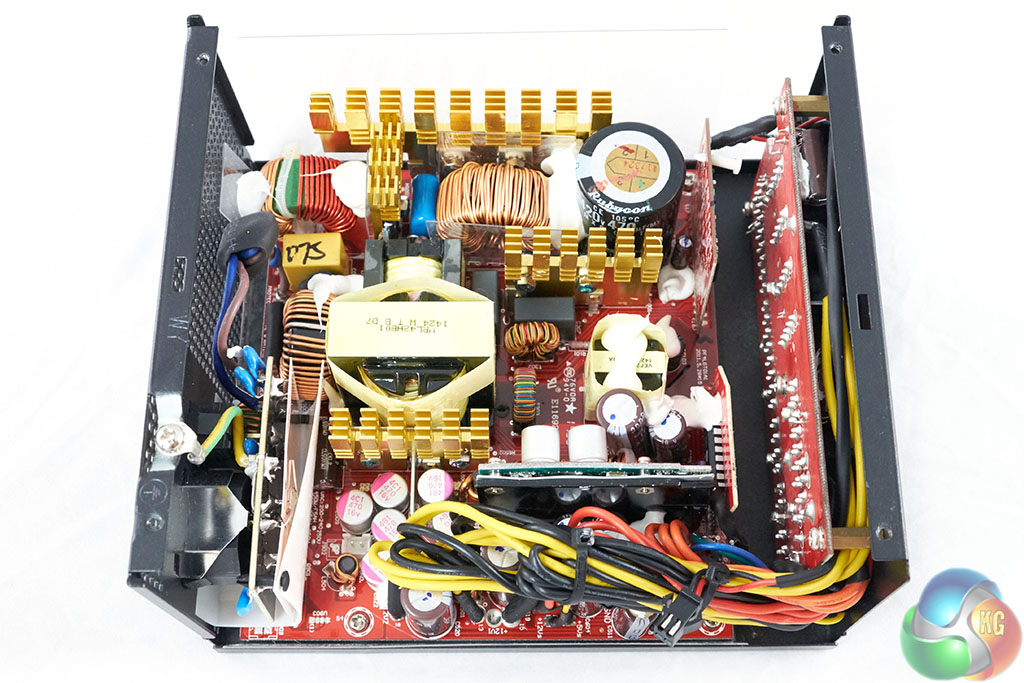

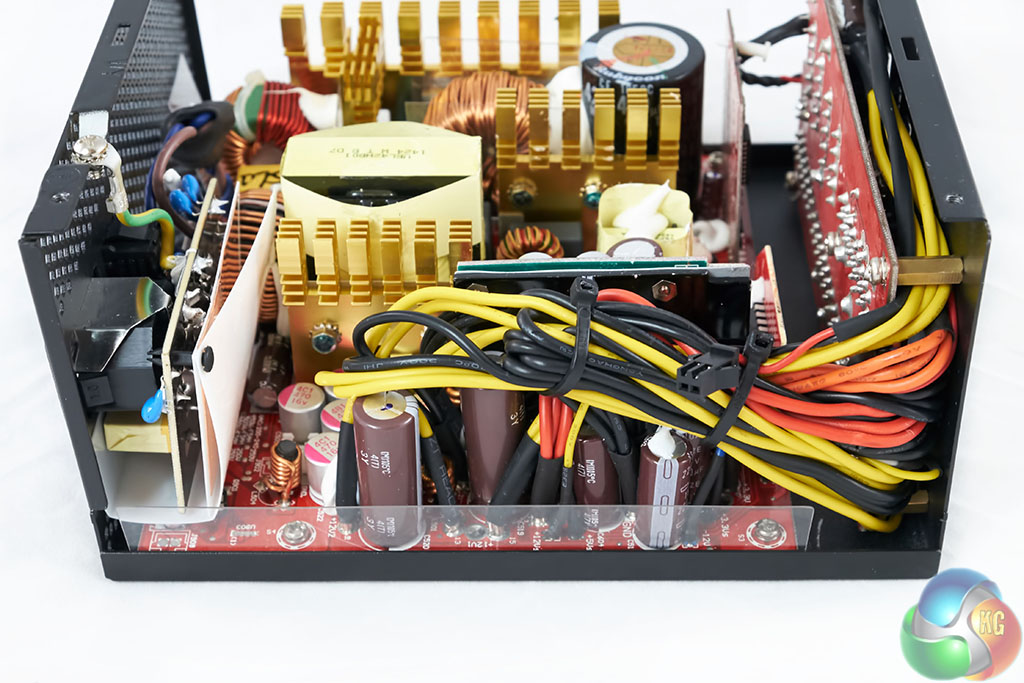

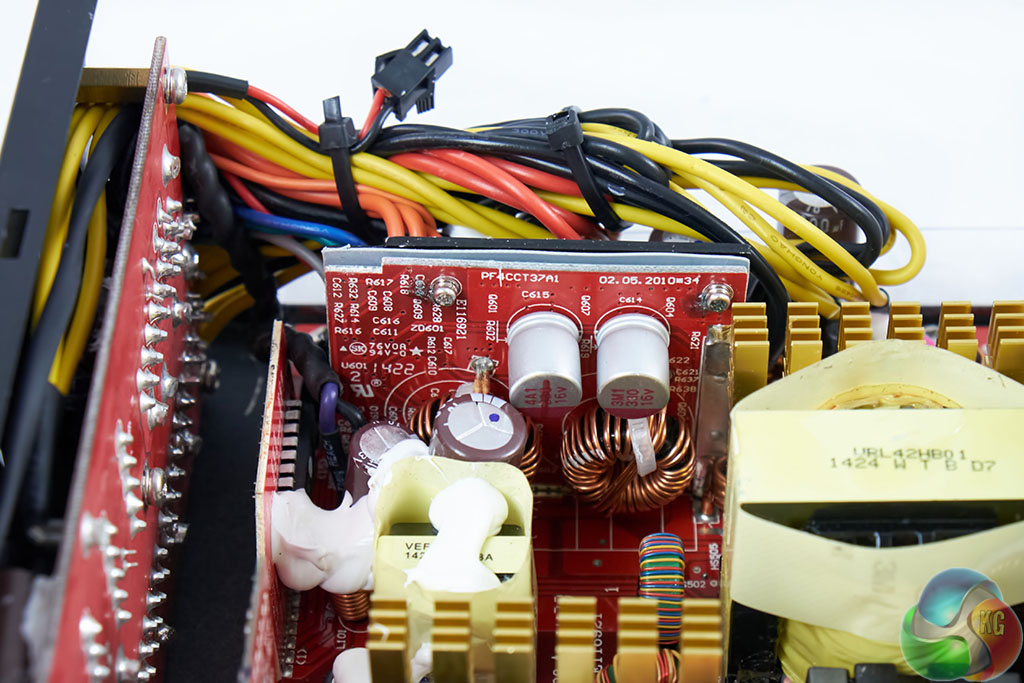

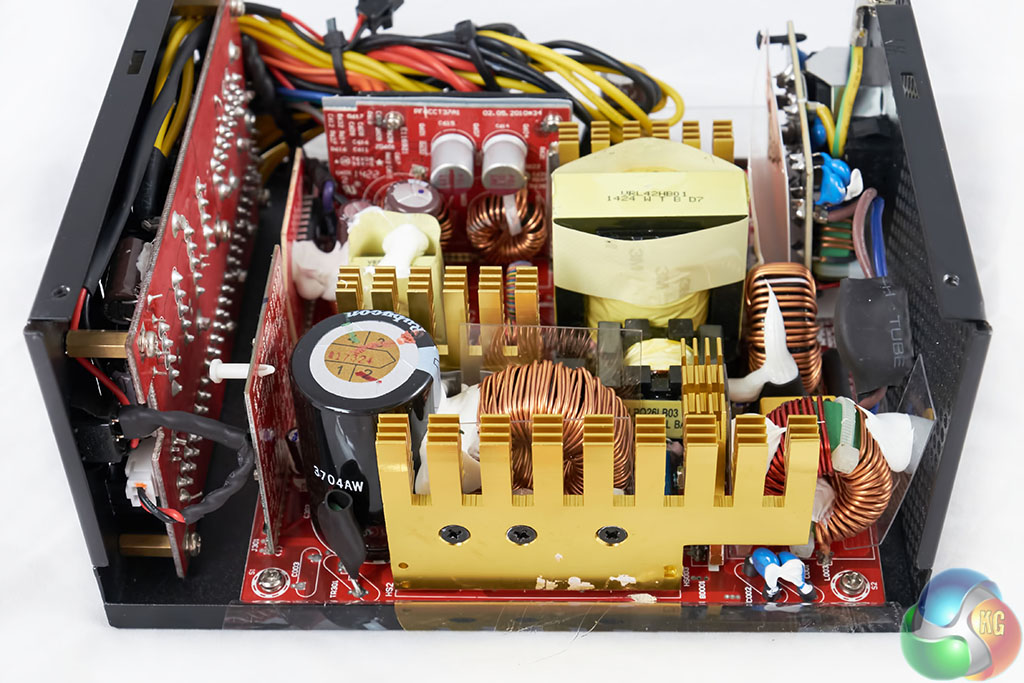

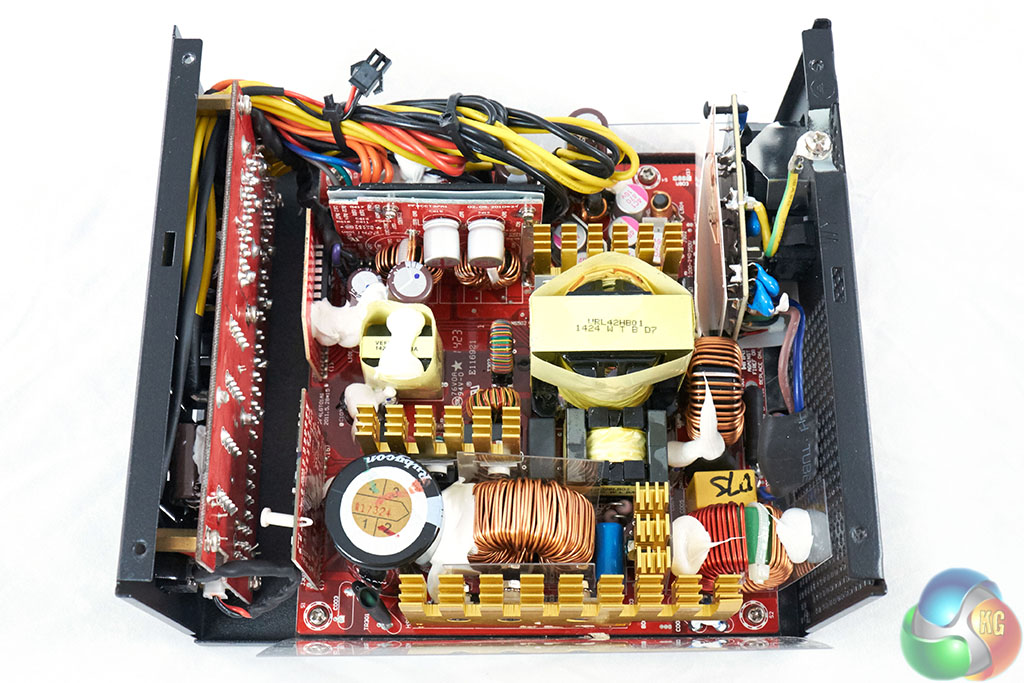

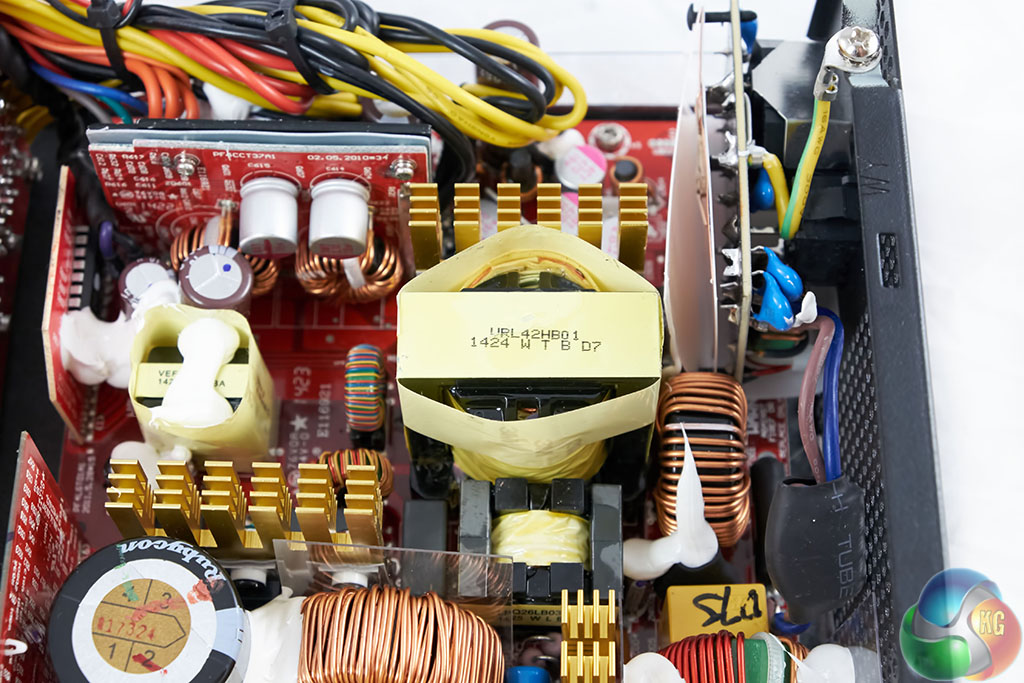

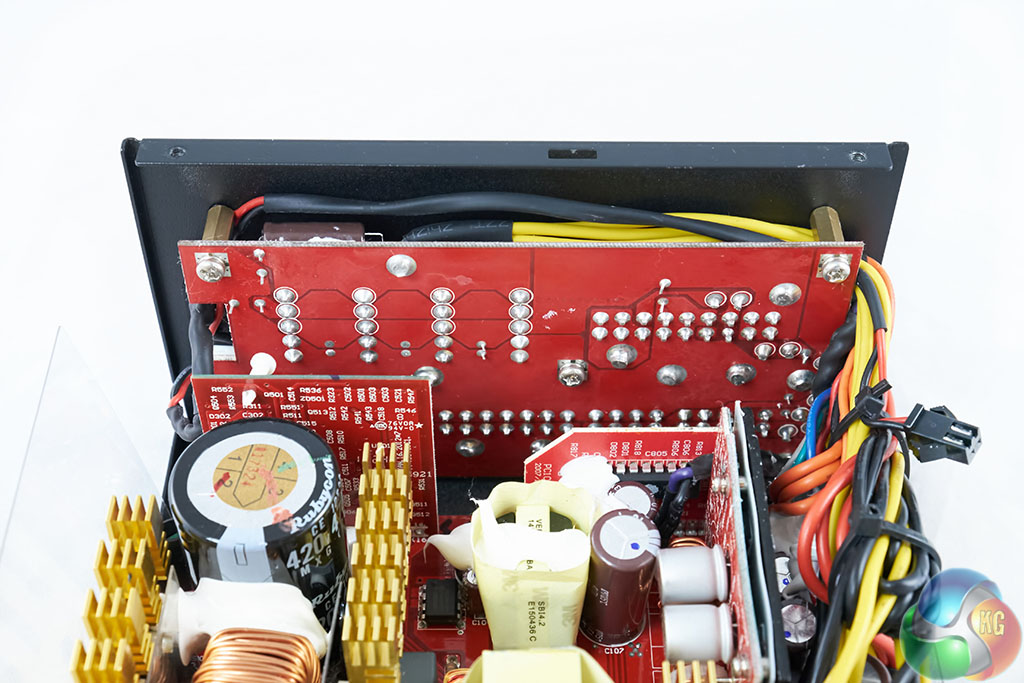

This is the same platform that Seasonic use in their S12-G/G Series power supplies – there are changes however. This is a resonant LLC primary topology with a synchronous rectification secondary and DC-DC VRM’s for the production of the minor rails. Soldering quality is excellent, as we would expect from Seasonic.
DSCF3532DSCF3534
DSCF3538DSCF3539
DSCF3541DSCF3548

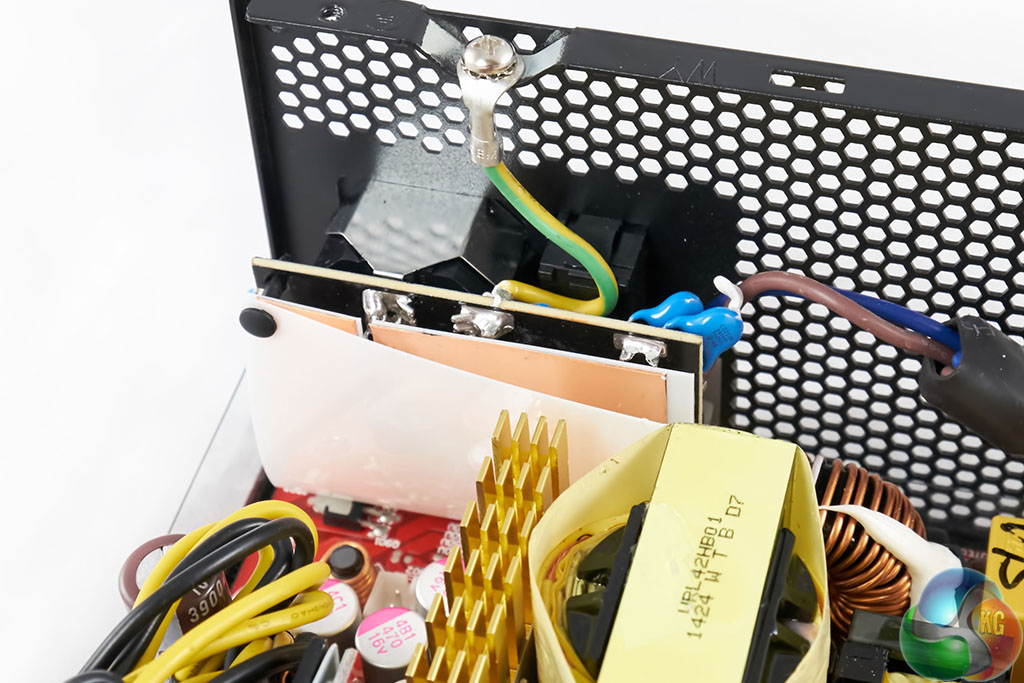

The filtering stage starts with a coil, alongside X and Y Capacitors – it continues onto the main PCB.
DSCF3536DSCF3545

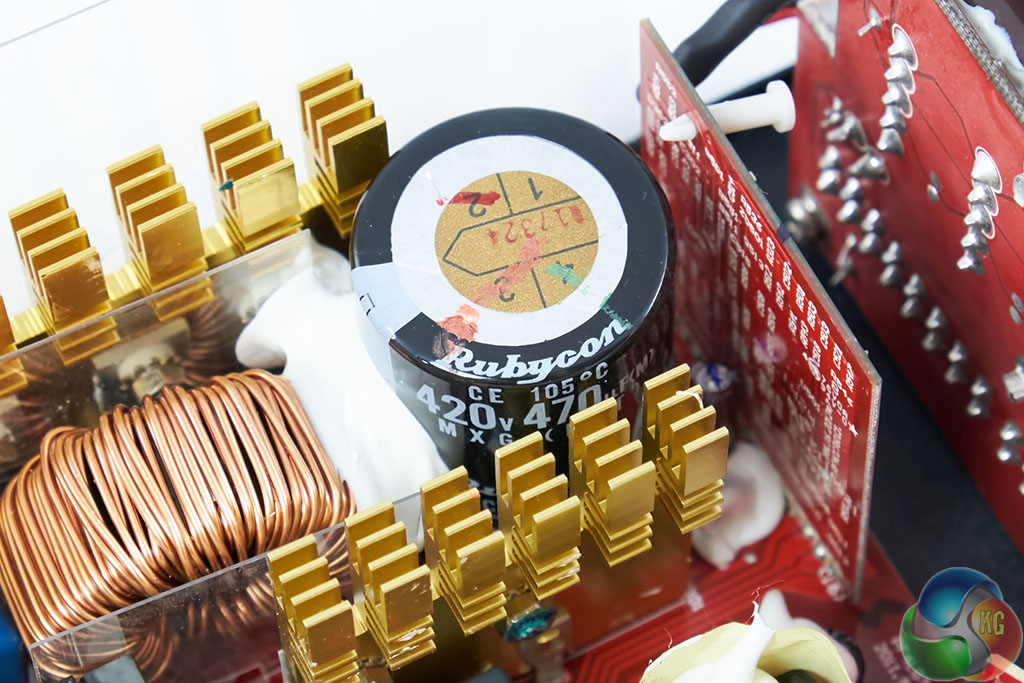

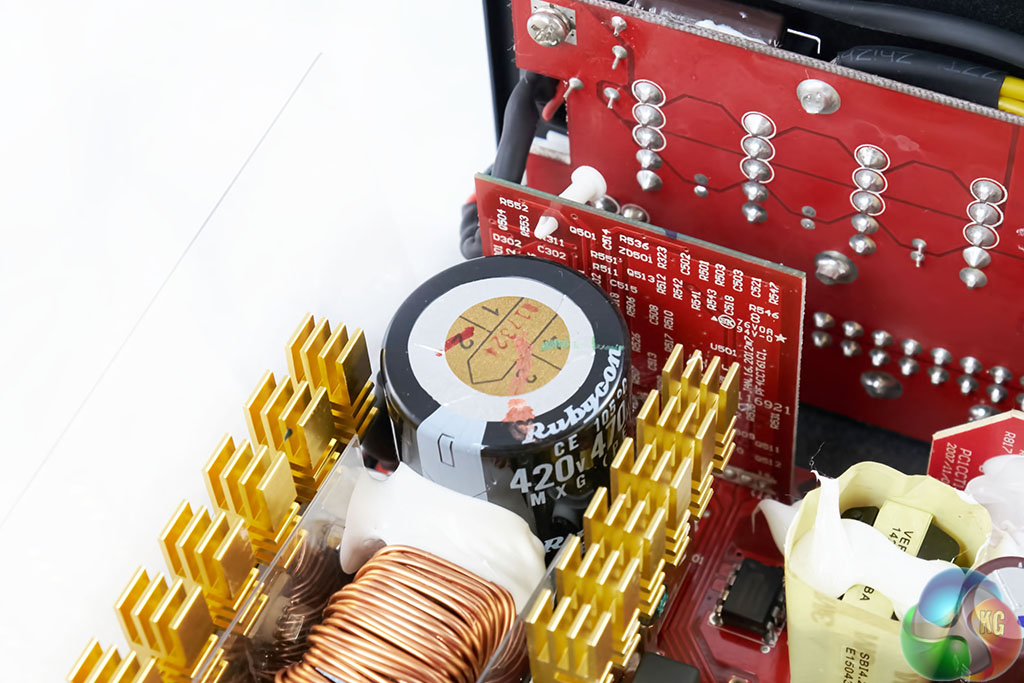

The main primary capacitor is Japanese – by Rubycon (one of the best on the market). It is rated 420V 470uF 105C. Other capacitors on the board are by leading Japanese company Nippon Chemi Con.
