Cooler Master MasterWatt Maker 1200 PSU Review

1. Introduction2. Cooler Master MasterWatt Maker 1200 (Software / Bundle & Cabling)3. Cooler Master MasterWatt Maker 1200 (External)4. Cooler Master MasterWatt Maker 1200 (Internal)5. Testing Methodology and Results6. Closing Thoughts7. View All Pages

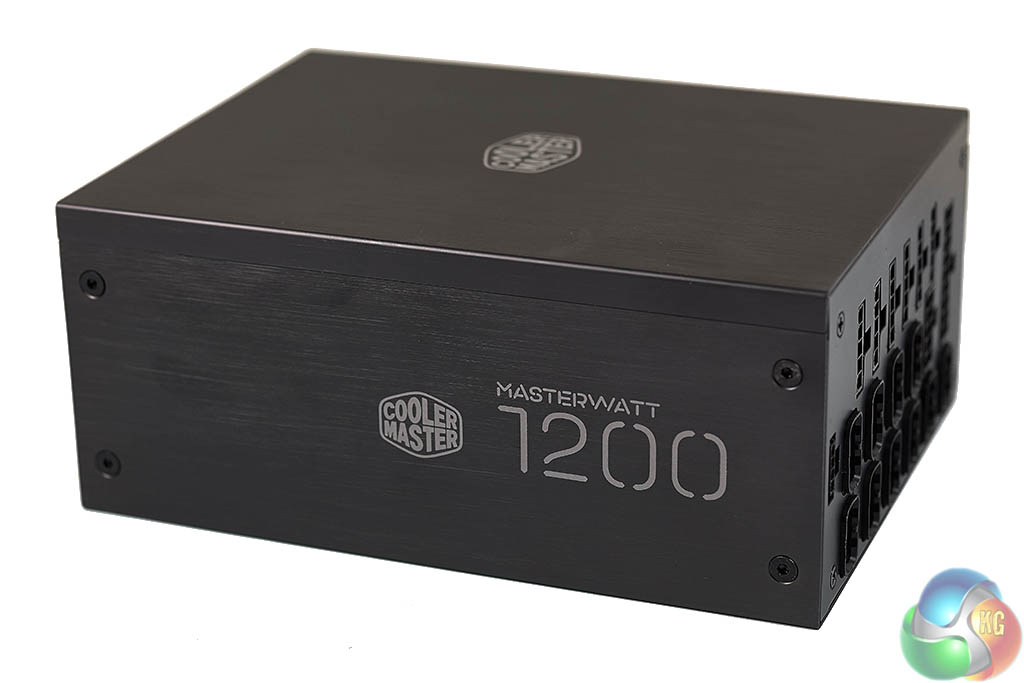

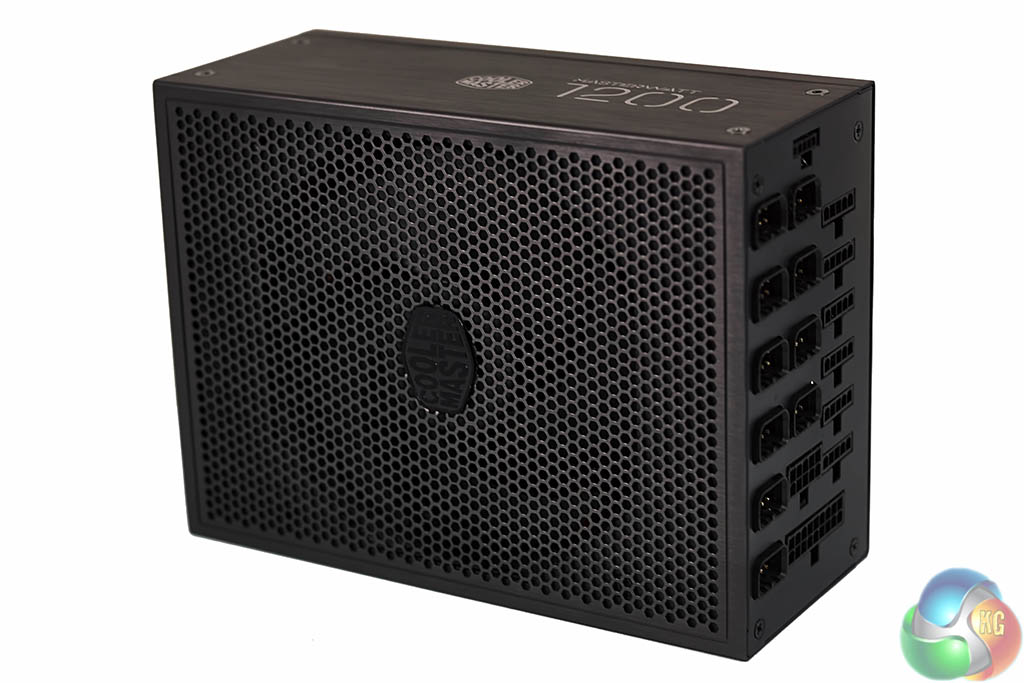

The Cooler Master MasterWatt Maker 1200 is certainly very attractively designed. The brushed aluminium finish is eye catching yet quite simplistic looking. I tend to prefer simple looking power supplies which don't feature multi coloured stickers. One tick for Cooler Master.

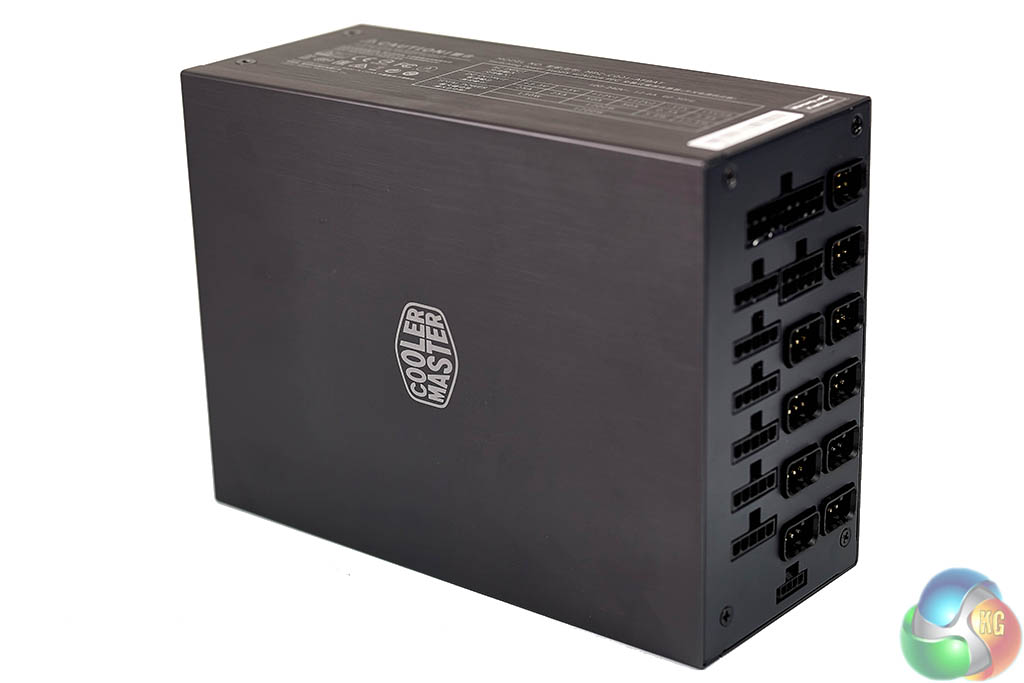

It really is a fantastic looking unit, from all angles. Branding is simple, yet effective too.

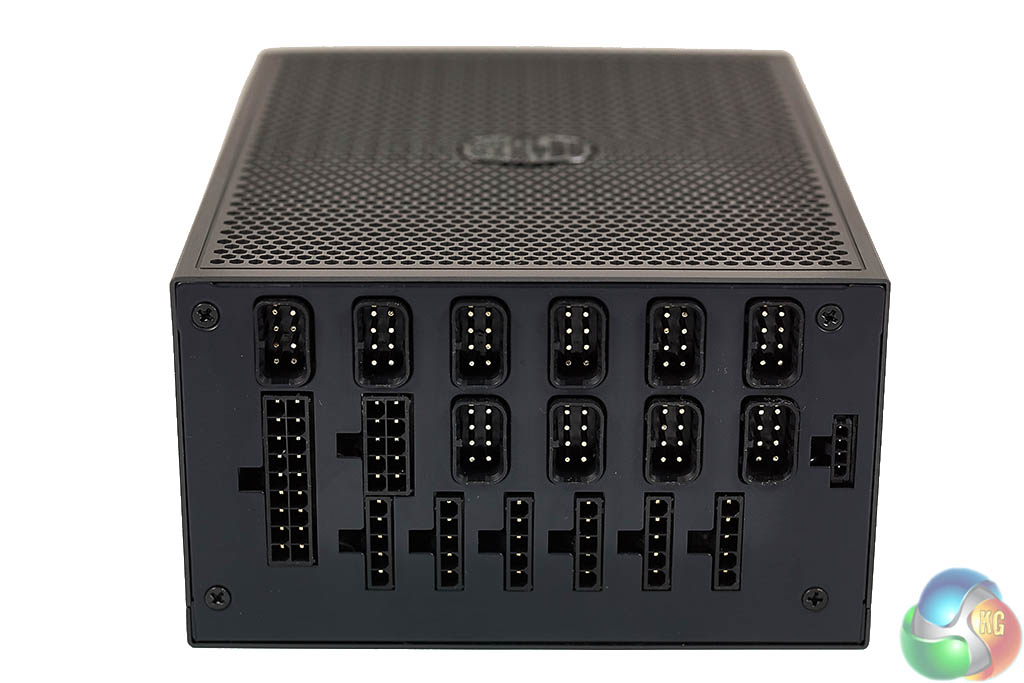

The modular panel is home to custom designed sockets which feature thicker pins, able to deal with increased amperage. A good safety measure from Cooler Master.

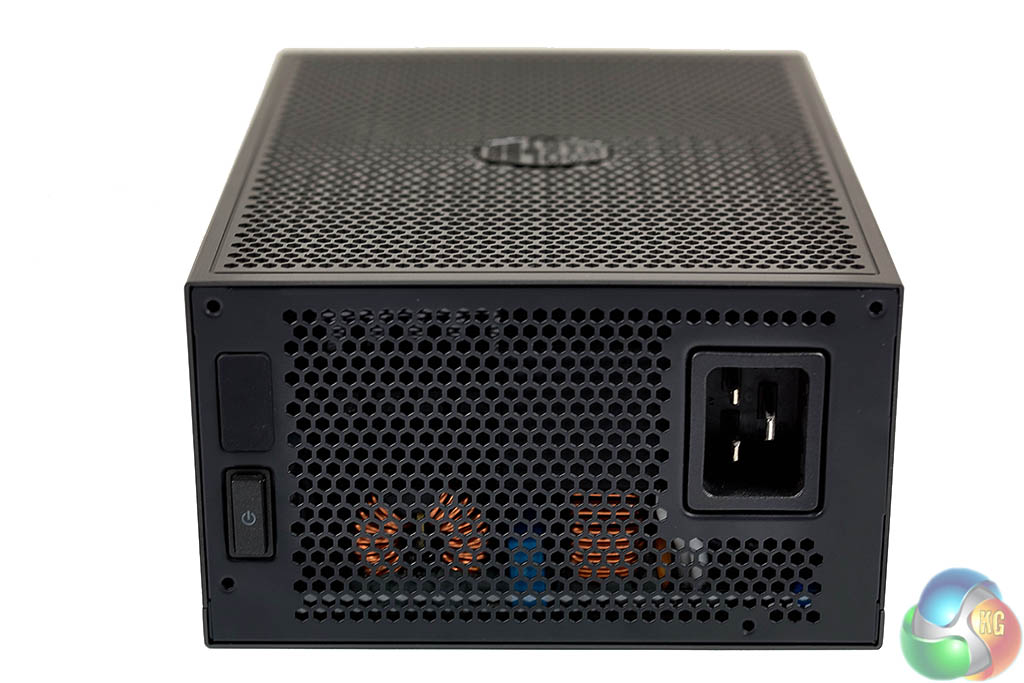

The socket for the BlueTooth module is above the power switch. They are using a push button spring switch instead of a rocker switch. The power connector is on the other side.

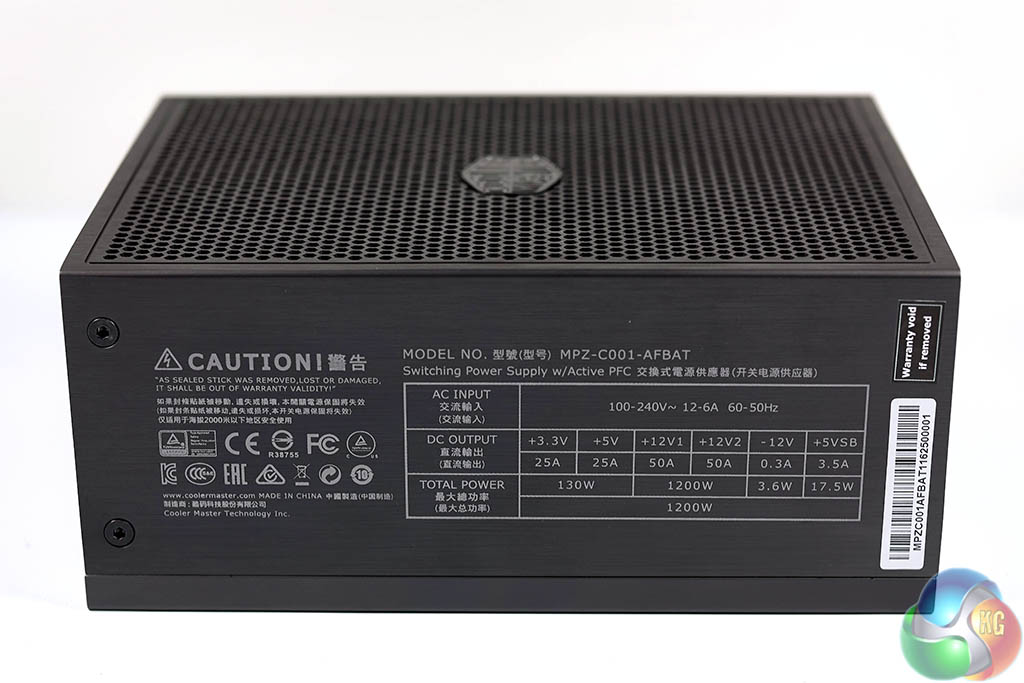

Cooler Master MasterWatt Maker 1200
DC Output	+3.3V	+5V	+12V1	+12V2	-12V	+5Vsb
Max Output	25A	25A	50A	50A	0.3A	3.5A
Total Power	130W		1200W		3.6W	17.5W
	1200W

There is plenty of power on tap for the most demanding systems, with 50A available to both +12V1 and +12V2.
