Seasonic S12G-450 Power Supply Review

ACC_5152_DxO
Seasonic are using a 7 blade, 120mm JAMICON Dual Ball Bearing Brushless Fan, 12V 0.35A (Model KF1225B1HR-R) in the S12G-450 power supply. These are reasonably high quality fans.
ACC_5156_DxOACC_5160_DxO
ACC_5175_DxO

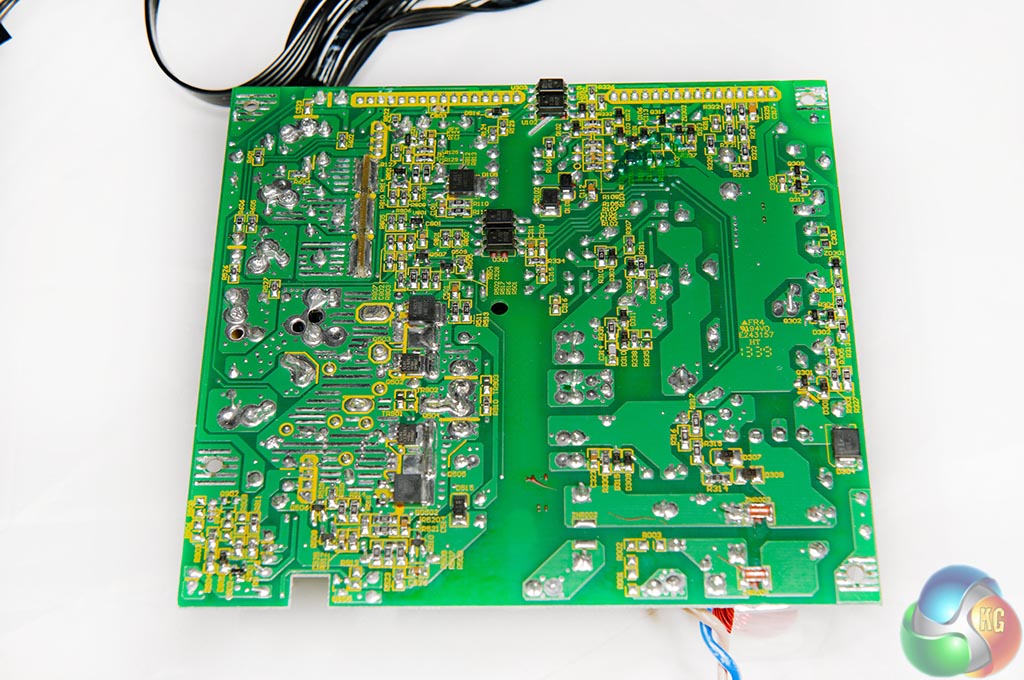

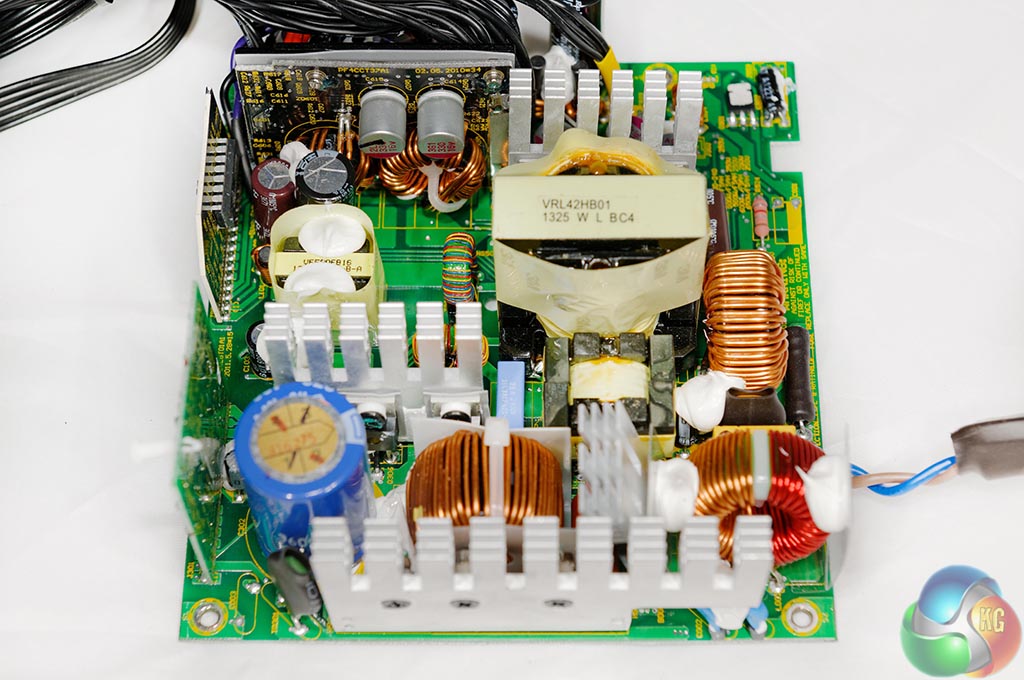

The build quality is excellent and the overall design is very similar to the G Series units we have tested in the past. Obviously there is no modular PCB on one side of the chassis. Soldering quality on the main PCB is also at a very high standard.
ACC_5153_DxO

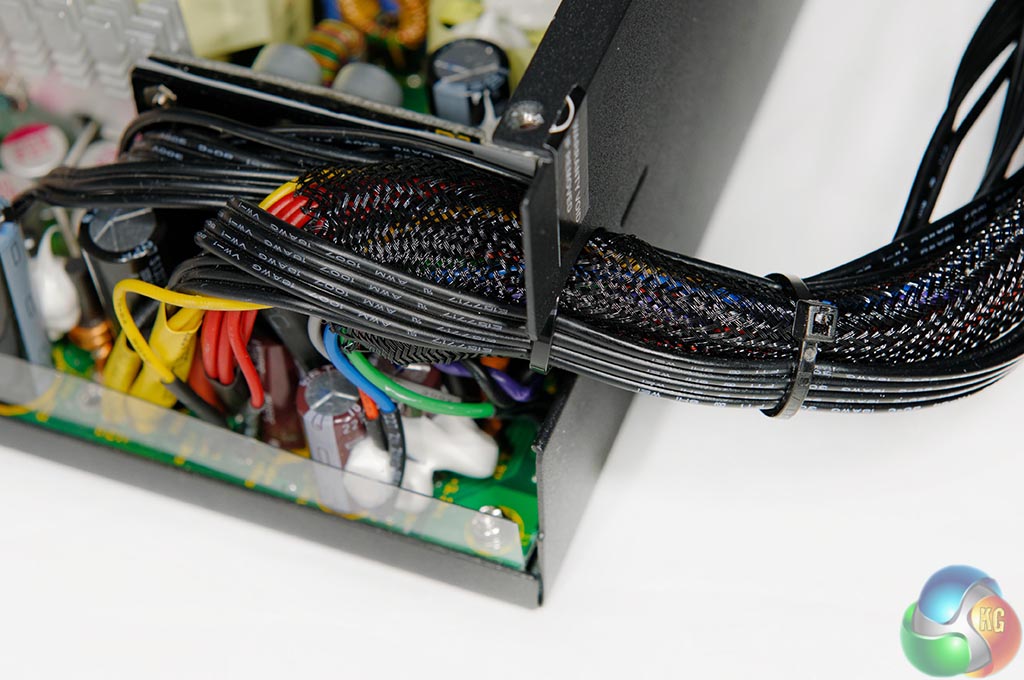

The non modular cables run into the chassis and are tied down in several places to protect them against fraying.
ACC_5154_DxOACC_5158_DxO

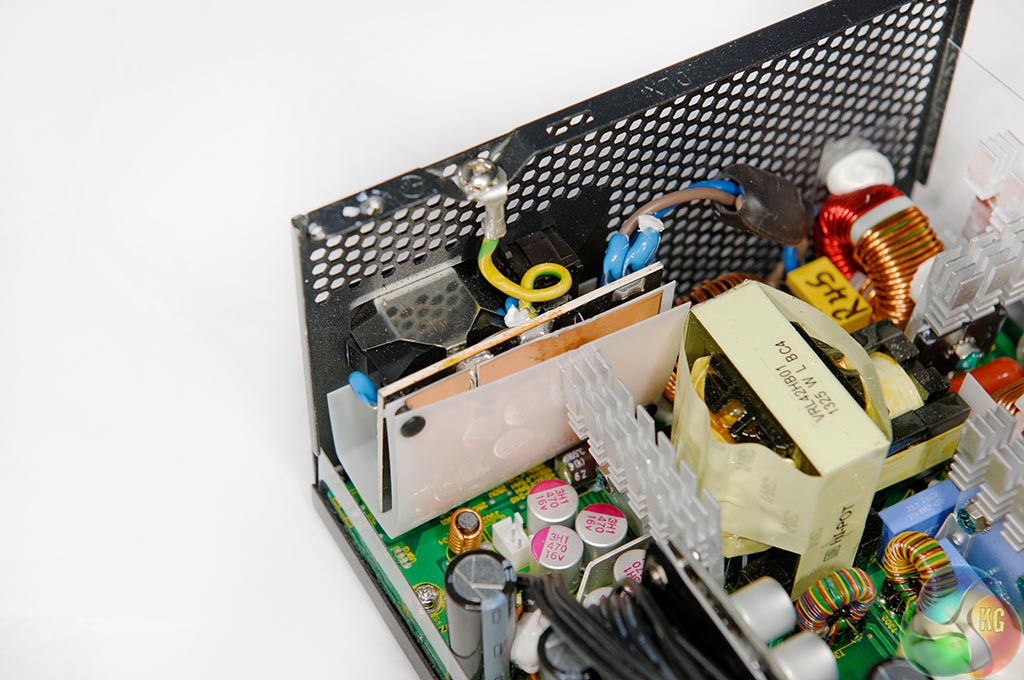

Filtering starts with an X cap, four Y caps and a coil. On the main board is a TVS diode, two Y caps, an X cap and two coils.
ACC_5162_DxO

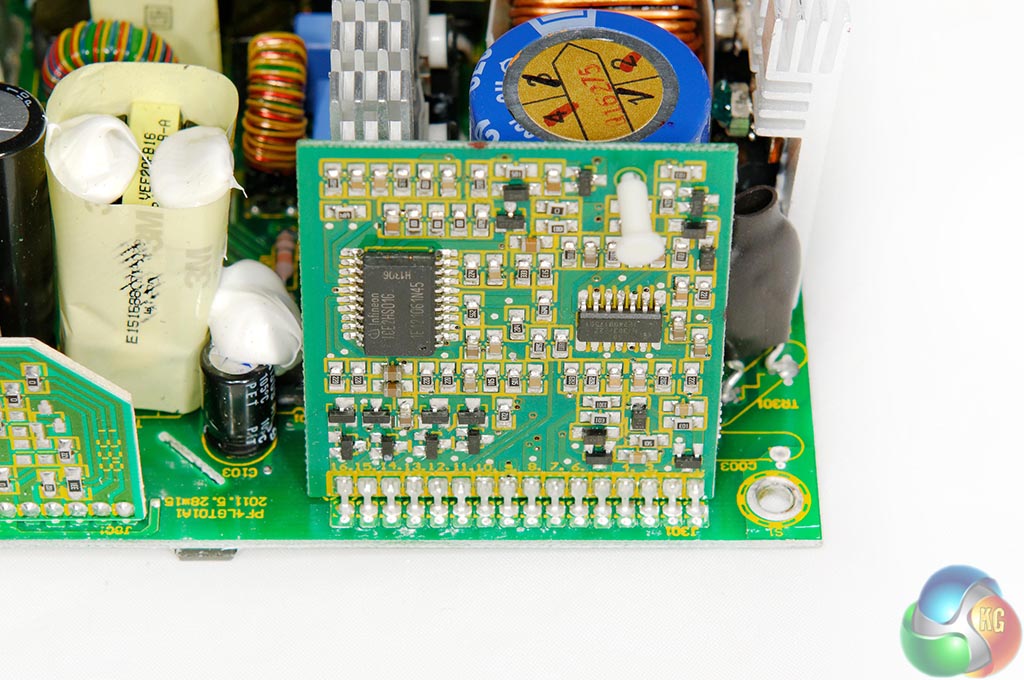

The daughtercard above holds the PWM controller, which is an Infineon ICE2Hs01G.
ACC_5168_DxOACC_5177_DxO

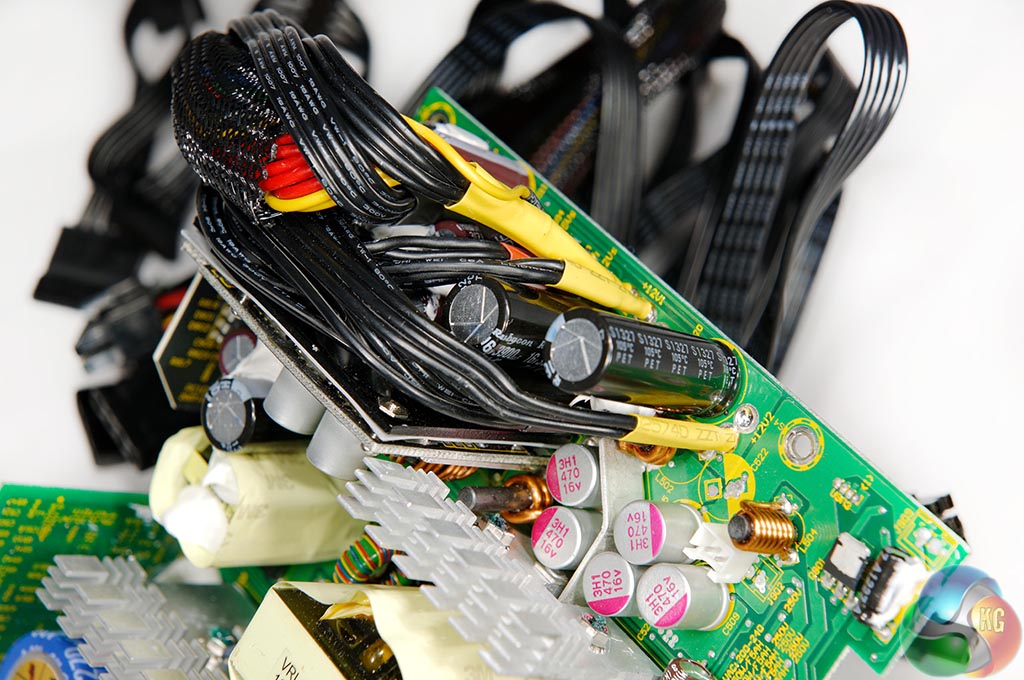

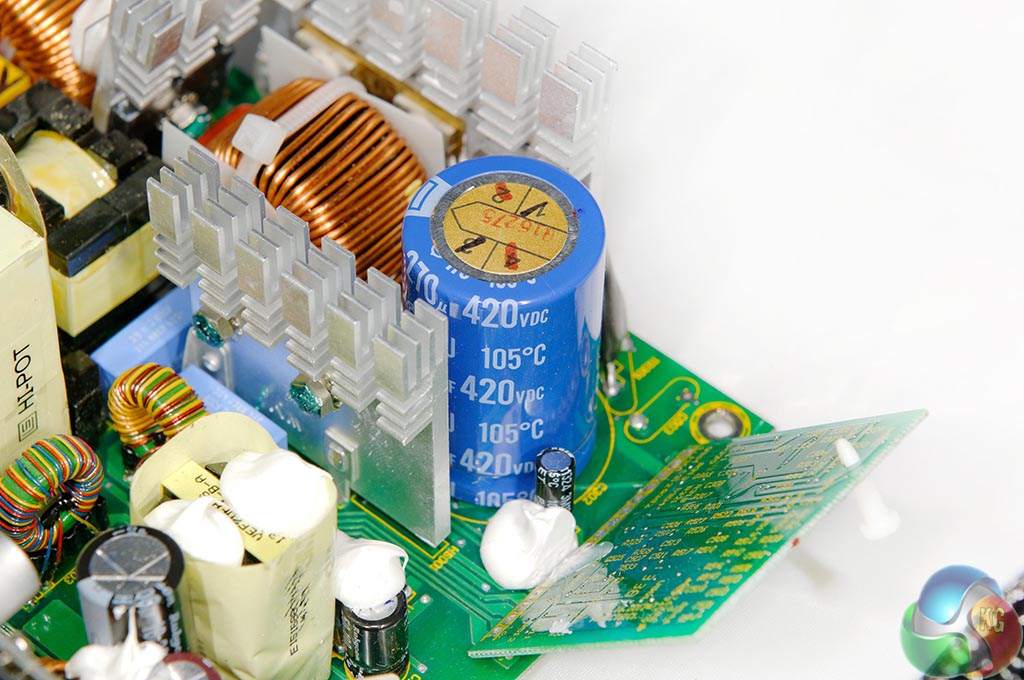

Seasonic are using high grade Japanese capacitors throughout the primary and secondary stages. All capacitors are rated 105c.
