Seasonic Snow Silent 750W PSU Review


AS7V0161

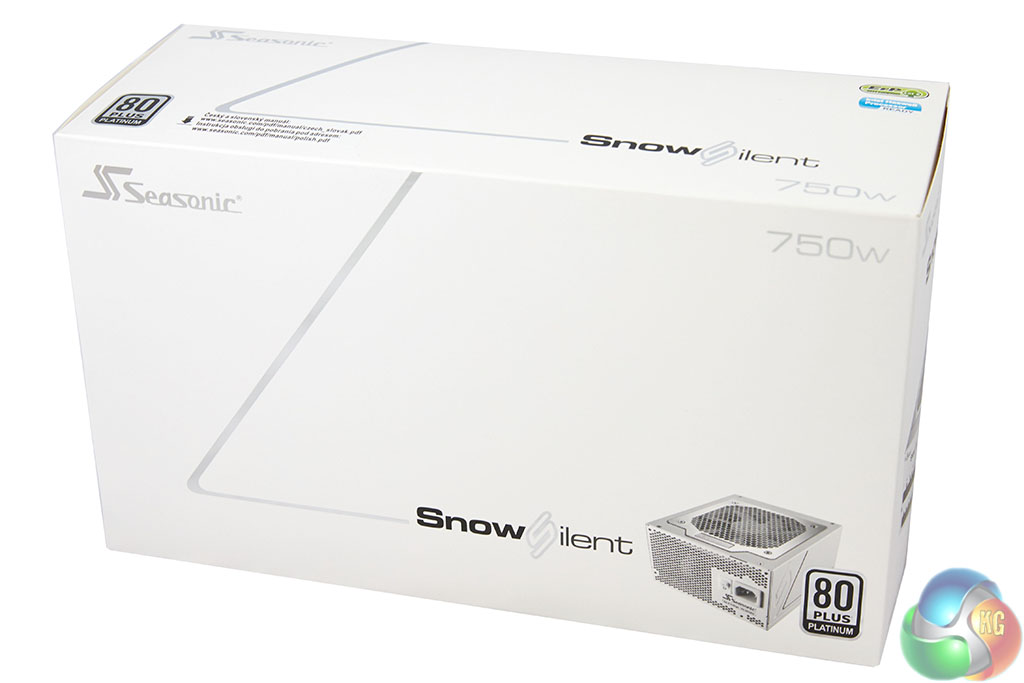

The packaging is very plain – obviously white, to match the design ethic of this unit. There is a small image of the power supply visible in the bottom corner of the box.
AS7V0168AS7V0175

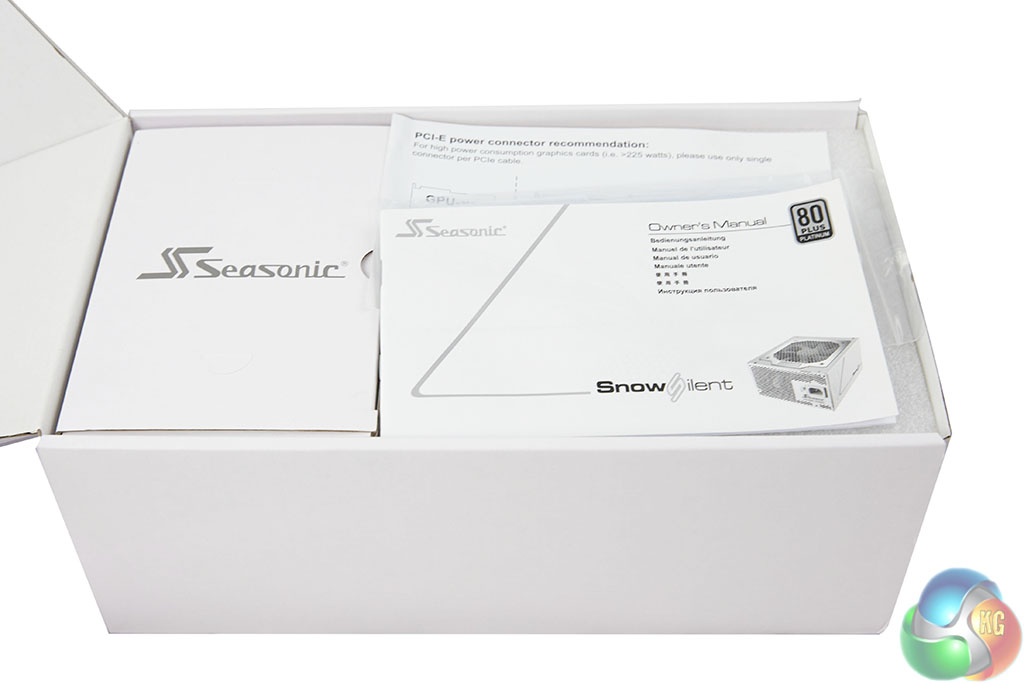

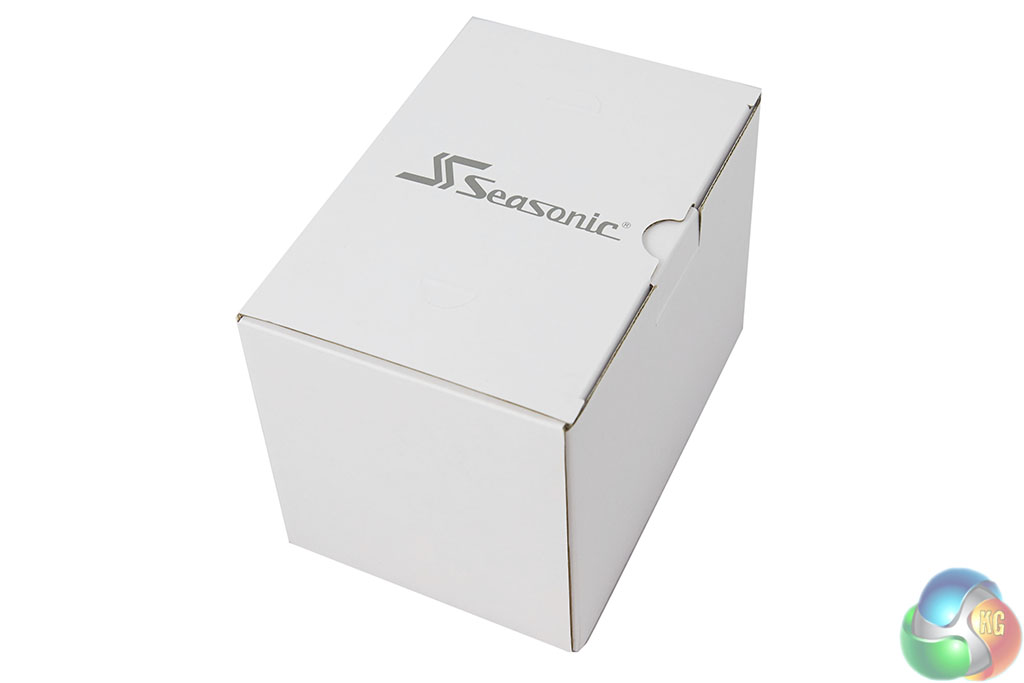

Inside the power supply is protected between thick foam panels. The cables are all stored in a cardboard box at one side of the box.
AS7V0182

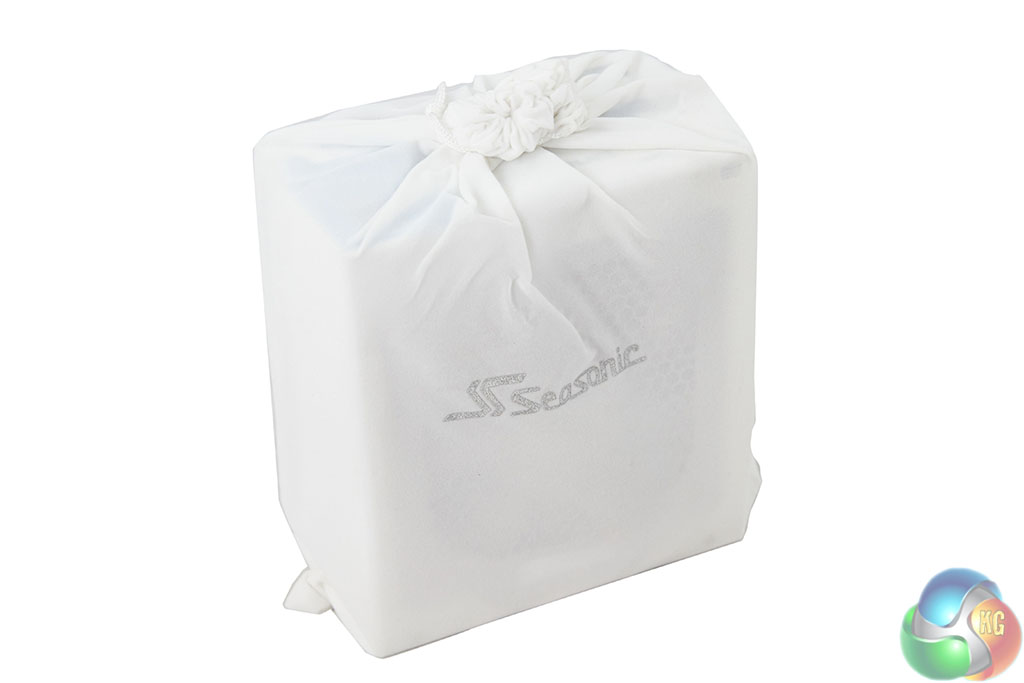

The power supply is wrapped inside a soft, white, felt bag.
AS7V0172

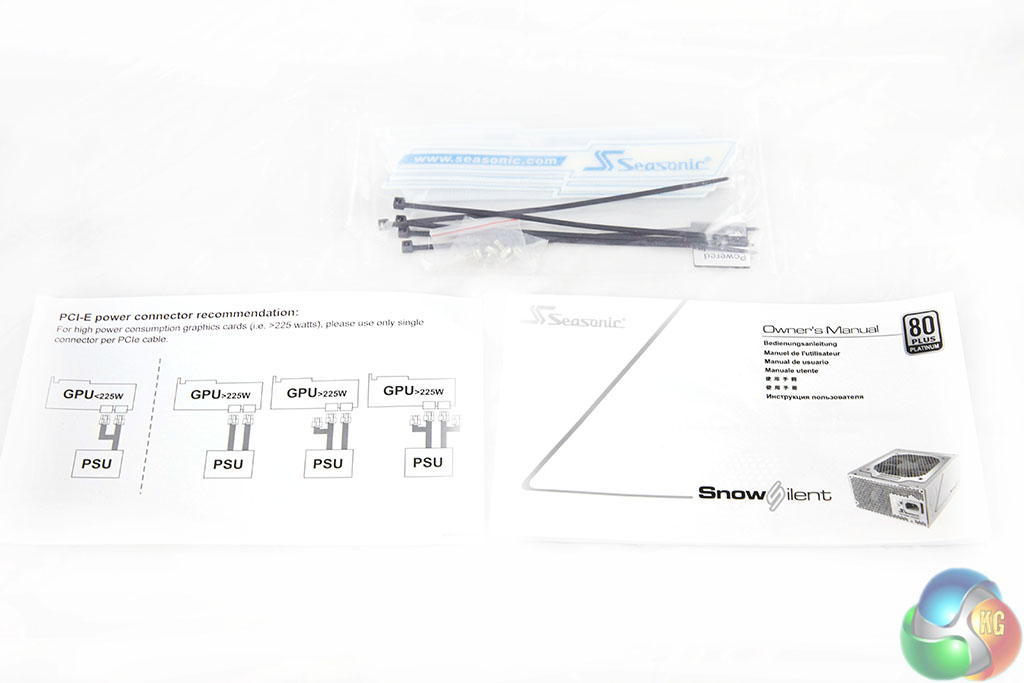

Seasonic bundle a user manual, cable ties, and mounting screws. They also include a reference sheet to help with cable connection to graphics cards. Basically if you are using a graphics card which takes more than 225watts under load then use two separate PCIe power cables rather than two headers on a single cable.
AS7V0179

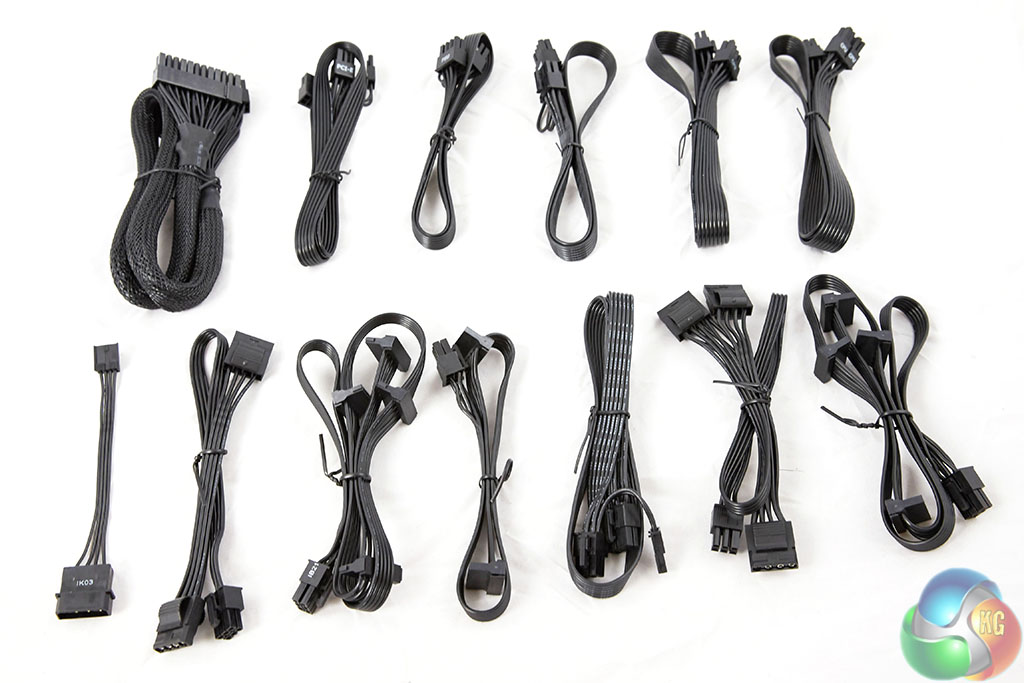

The main motherboard power cable is sleeved, however all other cables are the flat ‘ribbon’ style, which proves popular with system builders who have to route a plethora of cables behind a motherboard tray. The quality of all the cables is excellent.

Cable Connectors
MB 20+4 pin x1 (610mm)
CPU 4+4 pin x1 (650mm)
CPU 8 pin x1 (650mm)
PCI E 8 pin (6 pin +2) x4 (600mm)
SATA x8 (530mm+150mm+150mm)
SATA x2 (530mm+150mm)
MOLEX x3 (550mm+150mm+150mm)
MOLEX x2 (350mm+150mm)

The cables are all high grade flat ribbon style to help with the routing phase of the system build. The main MB 20+4 cable is sleeved. There are a total of 10 SATA connectors, meaning this power supply is also ideal for a massive storage server system. Those running an SLi or Crossfire rig will be happy to note a total of four 6+2 pin PCI e connectors. The Snow Silent 1050W model has eight PCI e connectors.
