PCMark 8’s Consistency test provides a huge amount of performance data, so here we’ve looked a little closer at how the WD SN750 Heatsink Edition performs in each of the benchmarks test suites.

Adobe Creative Cloud

The drive suffers during the rigours of the Degradation and Steady State phases of the Adobe C.C. test with all the test traces having problems with the exception of the After Effects trace. However the drive recovers well, particularly during the Photoshop Light and Heavy trace runs.

Microsoft Office

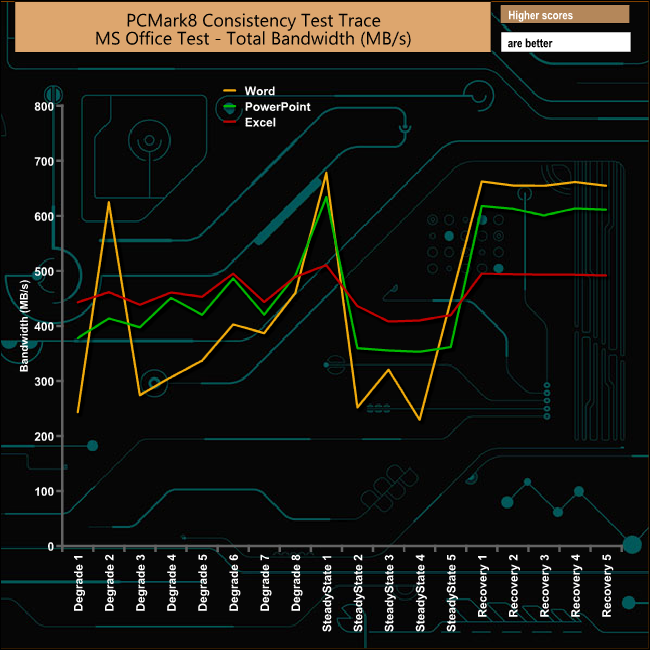

Although the drive doesn’t handle any of the Microsoft office tests particularly well it does recover from the ordeal pretty well.

Casual Gaming

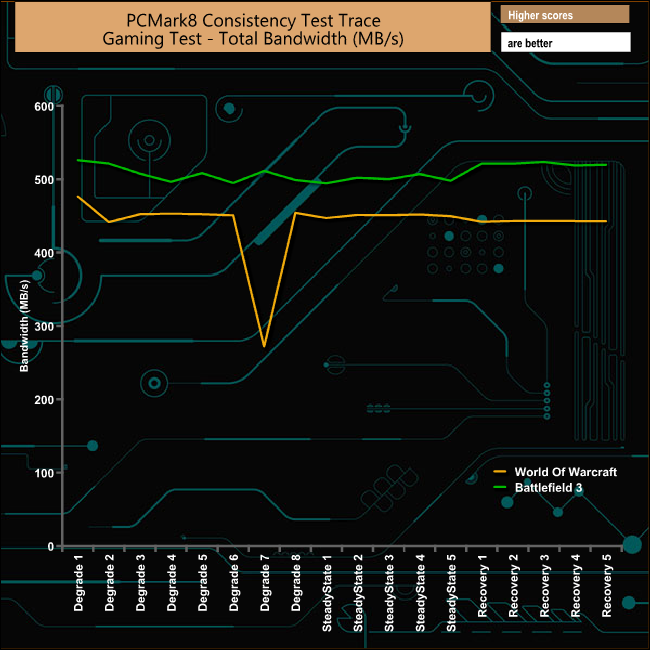

Apart from the dramatic dip in the bandwidth in the World Of Warcraft test during the seventh Degradation run the drive handles the two casual gaming test traces very well.
