4K Random Read v QD Performance

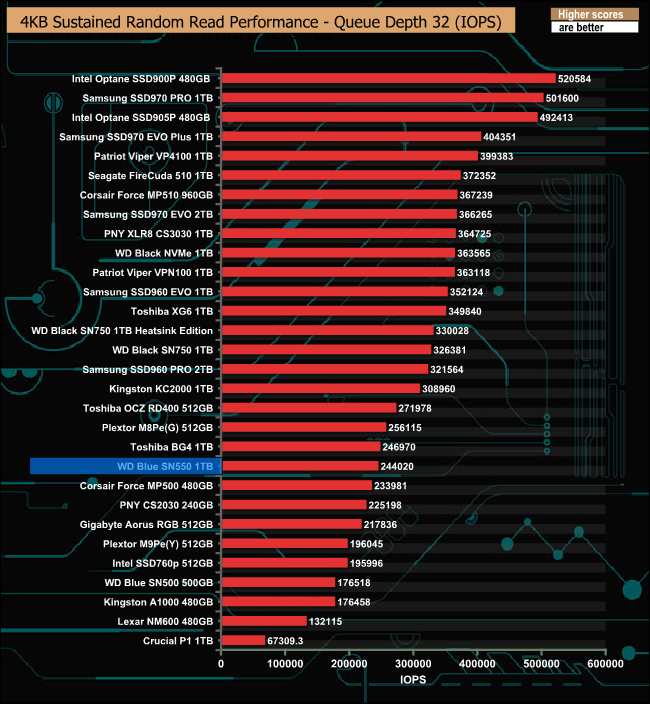

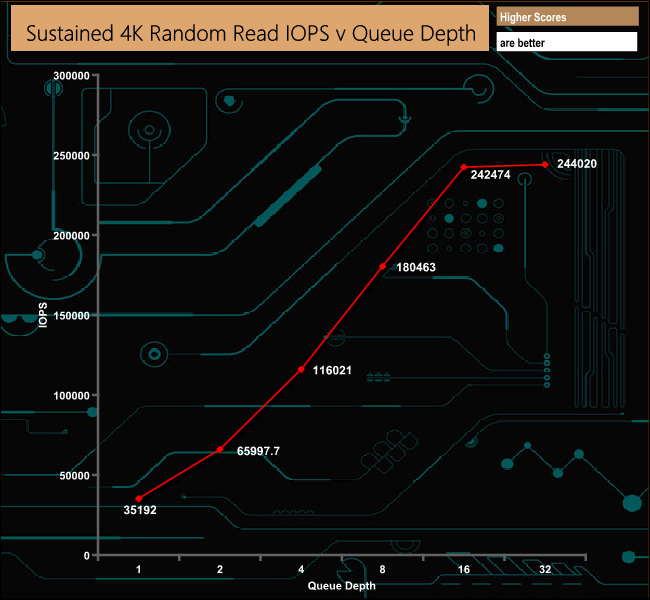

The official 4K random read rating for the 1TB SN550 is up to 410,000 IOPS. This maximum figure was obtained by testing the drive at a QD of 32 using 8 threads. However, our standard 4K random testing is done with 4 threads, so we couldn't match that maximum IOPS figure, The best figure we got was 244,020 IOPS at a QD of 32. We did, however, run some quick tests at QD32 8T getting a figure of 424,903.3 IOPS, even faster than the official maximum.

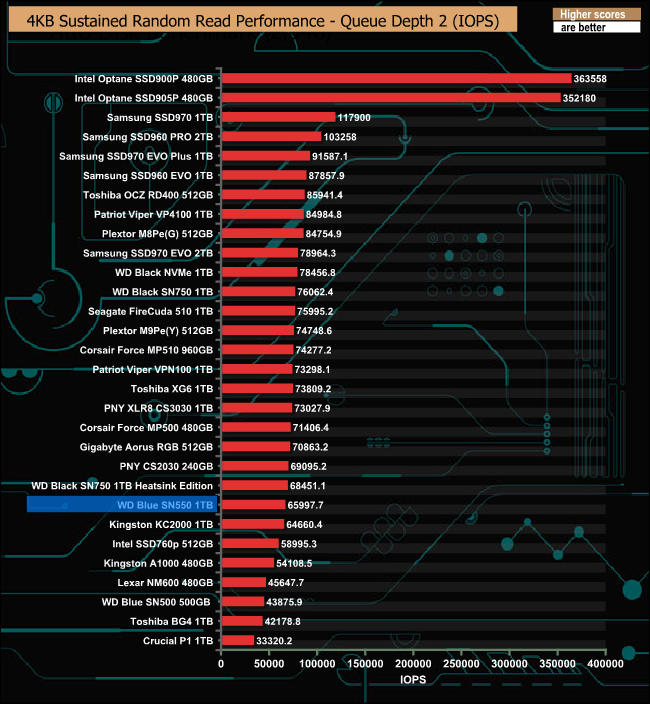

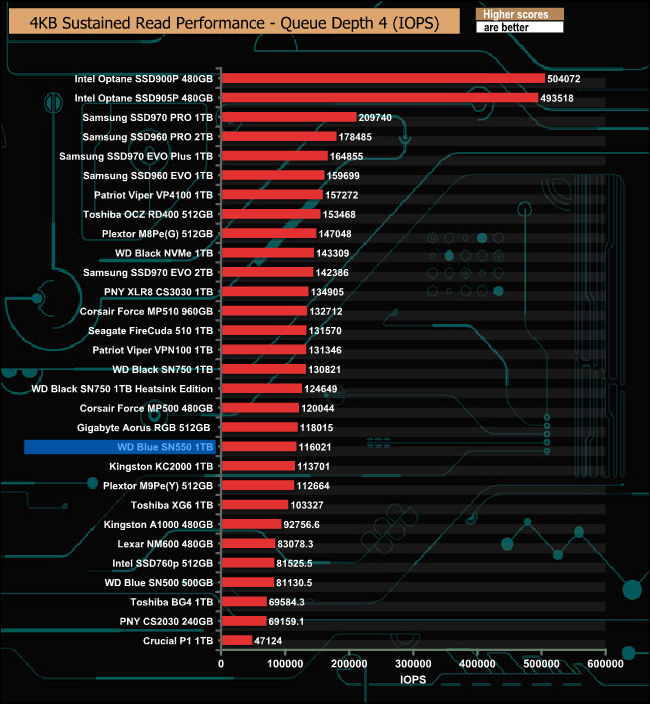

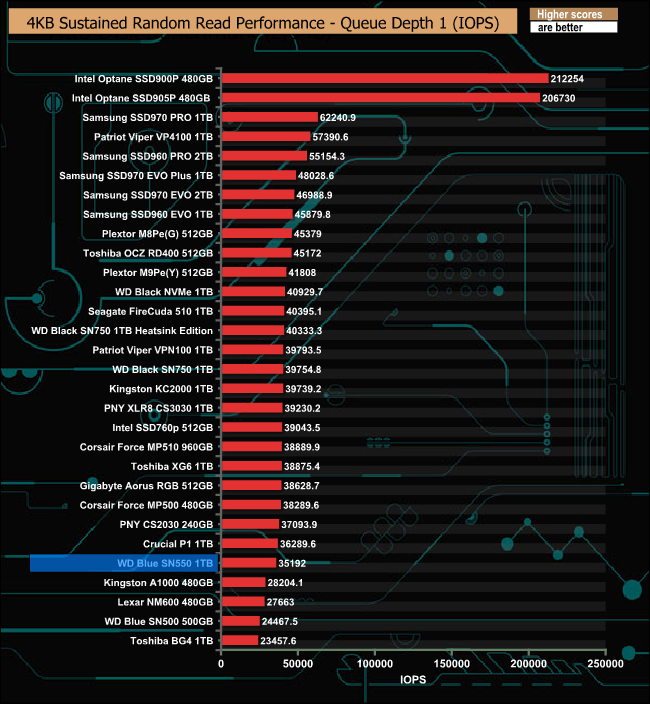

4K Random Read v QD Performance Compared.

Thanks to the PCIe x4 interface that the SN550 uses instead of the x2 interface employed by the SN500, the SN550 is much faster throughout the tested queue depths.
