To test real life file/folder performance we use a number of different file/folder combinations to test the read and write performance of the NAS device. Using the FastCopy utility to get a MB/s and time taken for each transfer, the data is written from and read back to a 240GB SSD.
We use the following file/folder types:
- 100GB data file.

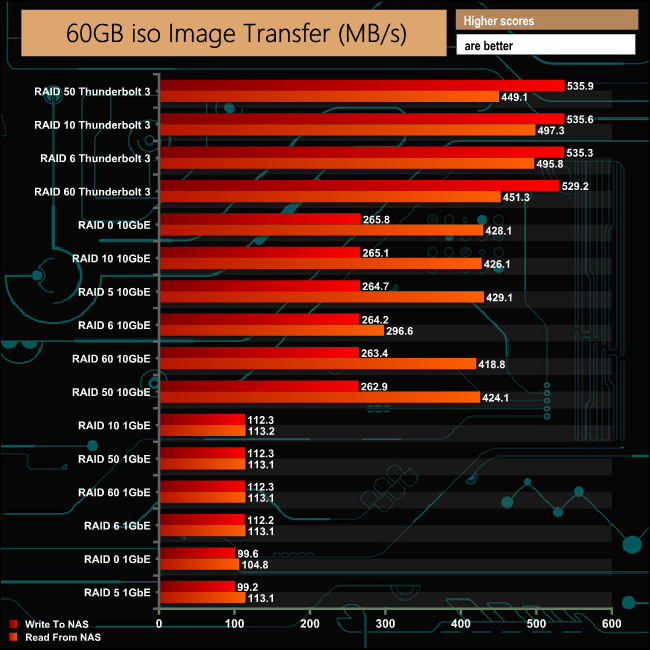

- 60GB ISO image.

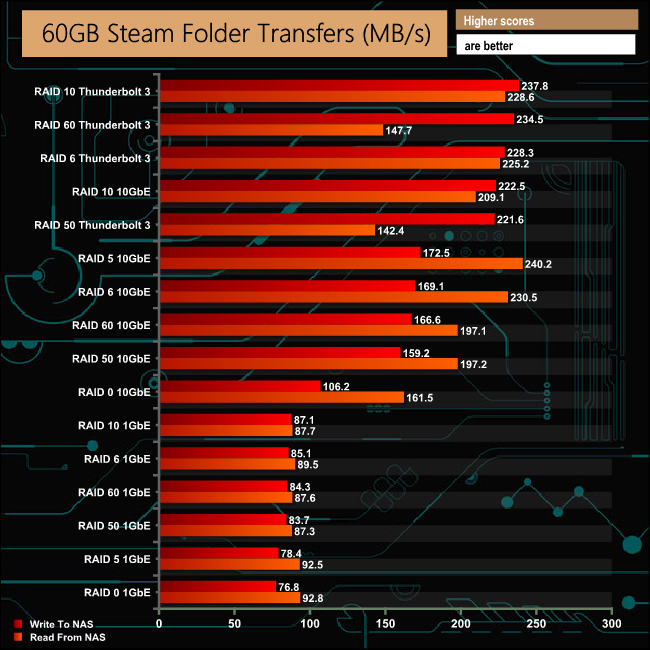

- 60GB Steam folder: 29,521 files.

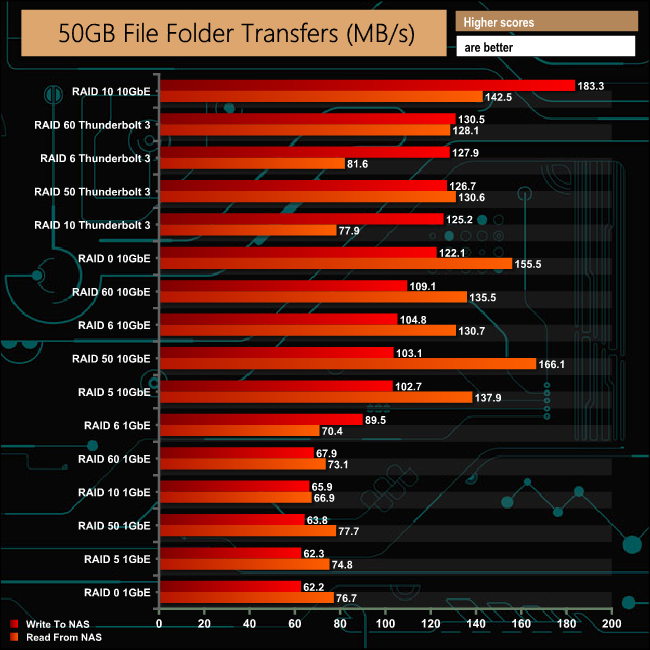

- 50GB Files folder: 28,523 files.

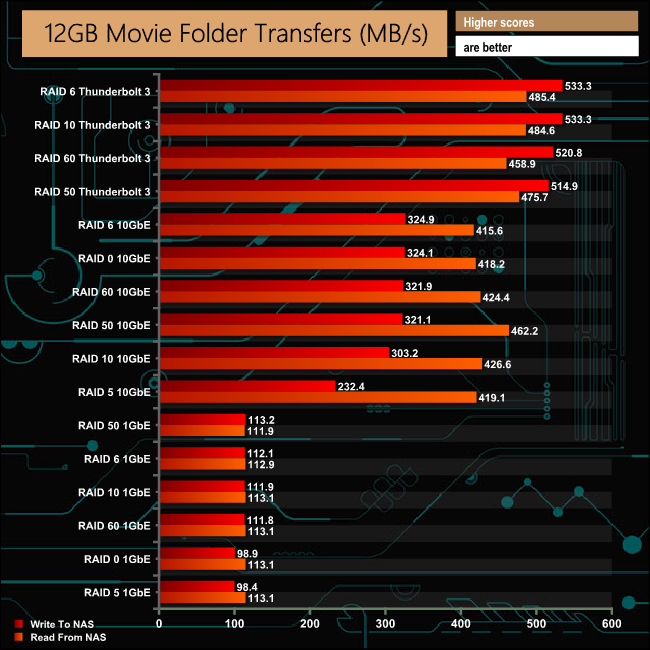

- 12GB Movie folder: 24 files – mix of Blu-ray and 4K files.

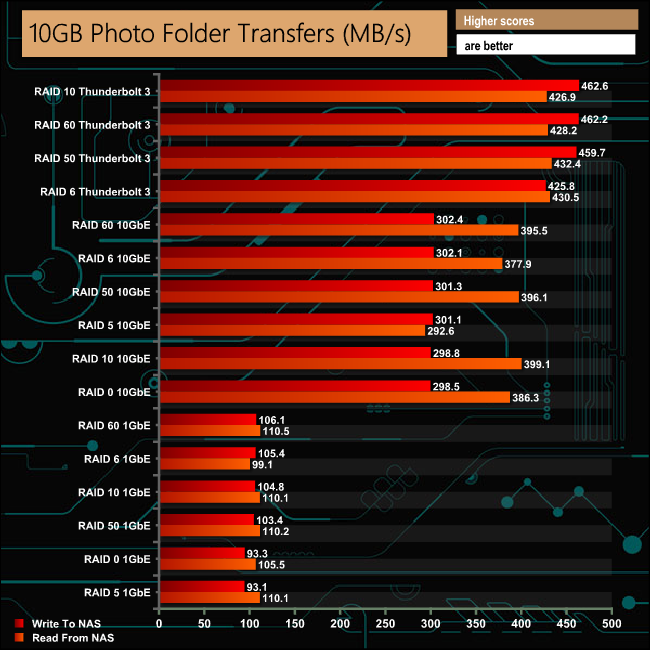

- 10GB Photo folder: 621 files – mix of .png, .raw and .jpeg images.

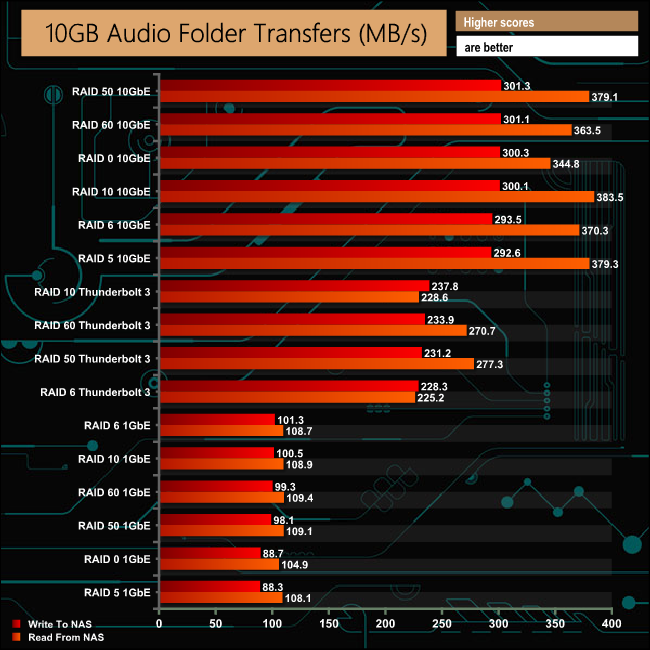

- 10GB Audio folder: 1,483 files – mix of .mp3 and .flac files.

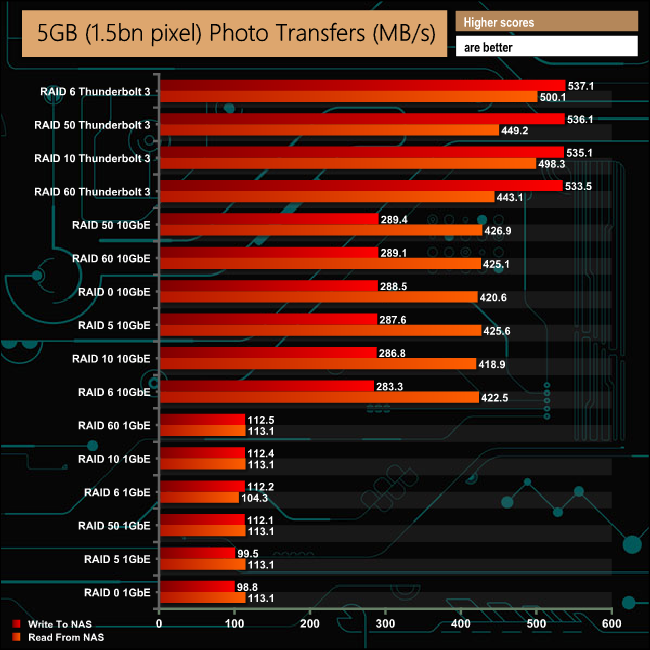

- 5GB (1.5m pixel) image.

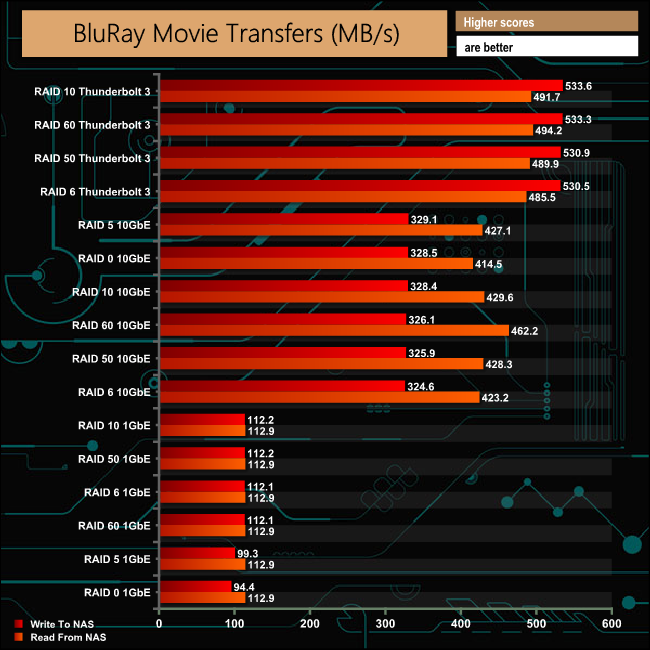

- BluRay Movie.
Click to enlarge.
When it came to dealing with our real life file transfers, the TVS-872XT didn’t miss a beat and handled the tests very efficiently.
