To test real-life file/folder performance we use a number of different file/folder combinations to test the read and write performance of the NAS device. Using the FastCopy utility to get an MB/s and time taken for each transfer, the data is written from and read back to a 240GB SSD.

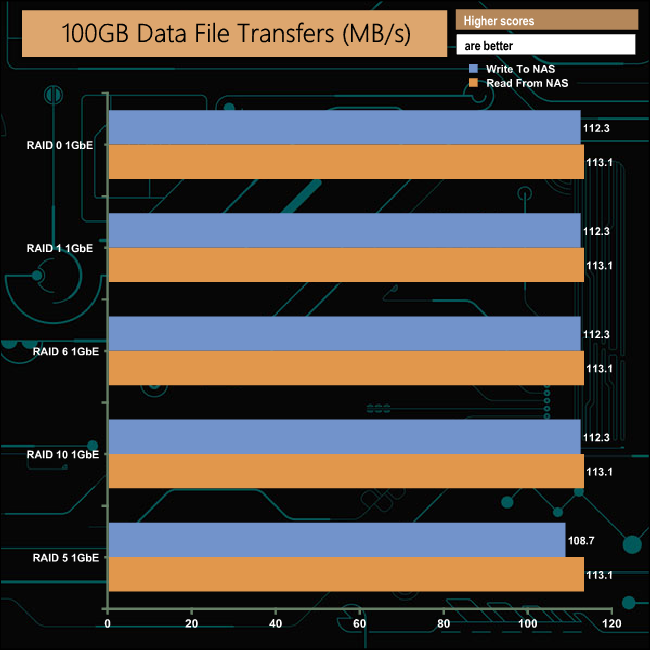

100GB data file.

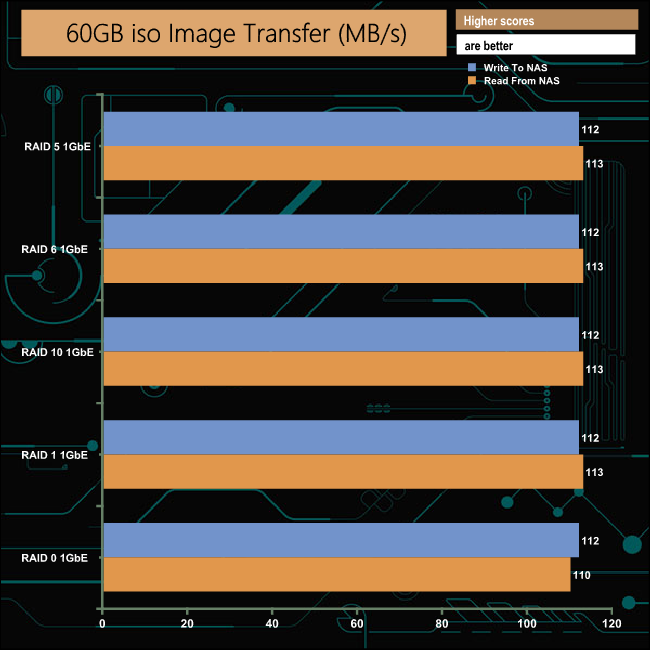

60GB iso image.

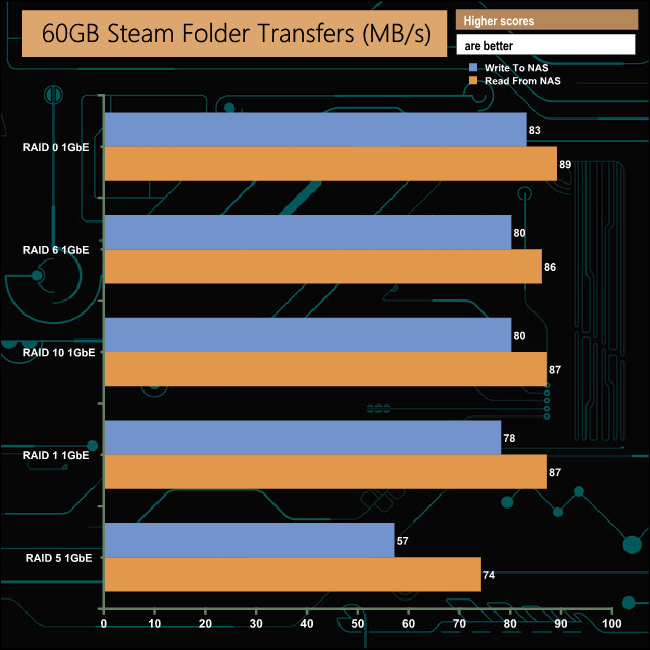

60GB Steam folder – 29,521 files.

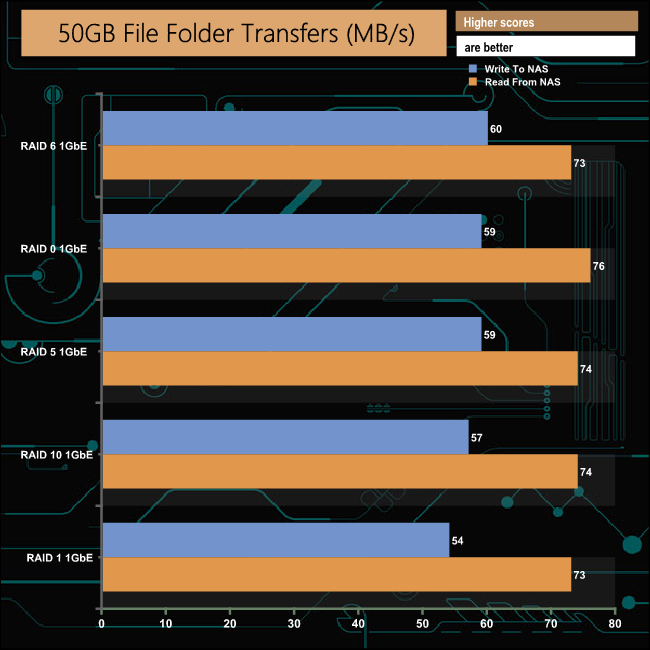

50GB File folder – 28,523 files.

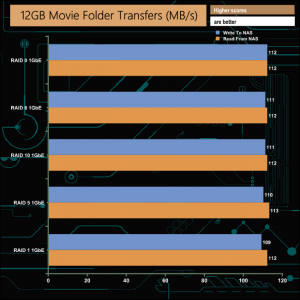

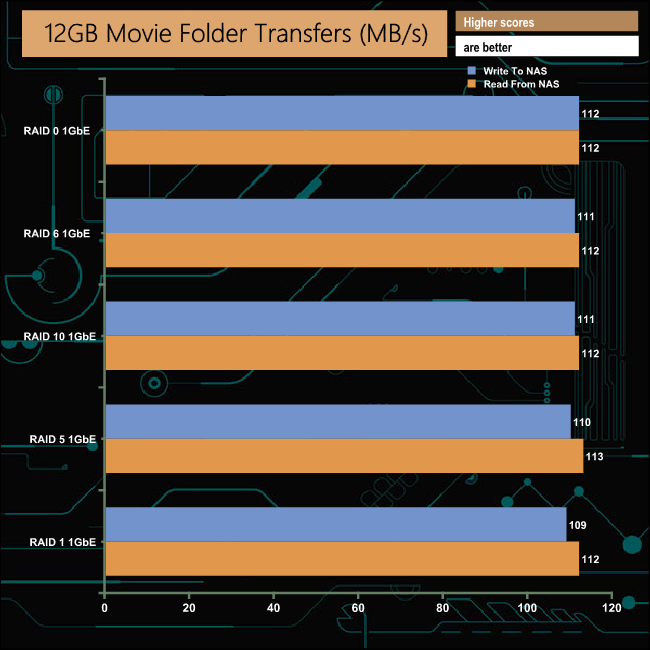

12GB Movie folder – (15 files – 8 @ .MKV, 4 @ .MOV, 3 @ MP4).

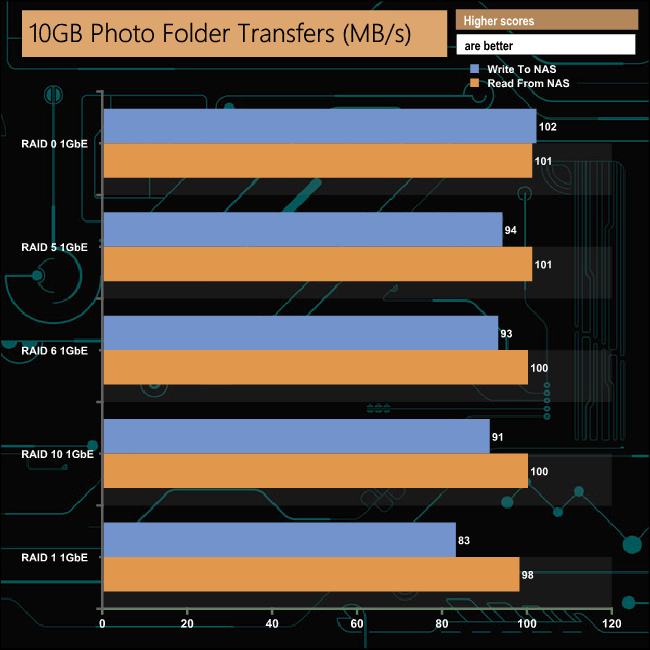

10GB Photo folder – (304 files – 171 @ .RAW, 105 @ JPG, 21 @ .CR2, 5 @ .DNG).

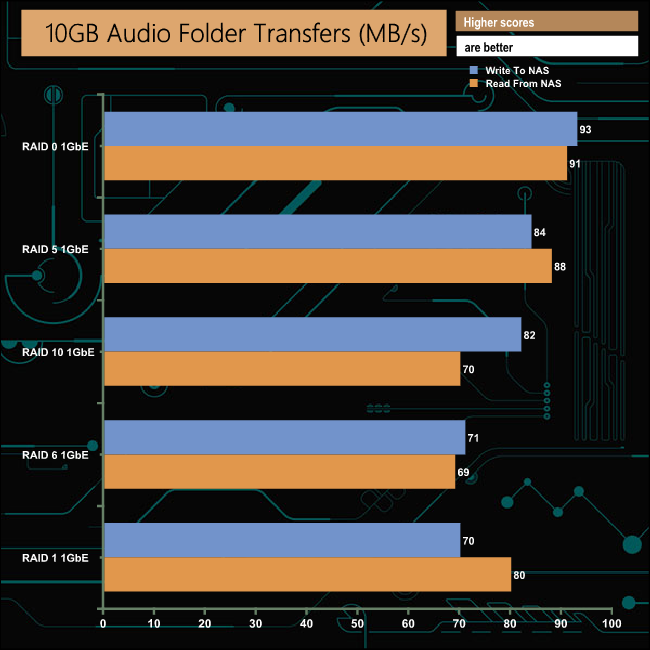

10GB Audio folder – (1,483 files – 1479 @ MP3, 4 @ .FLAC files).

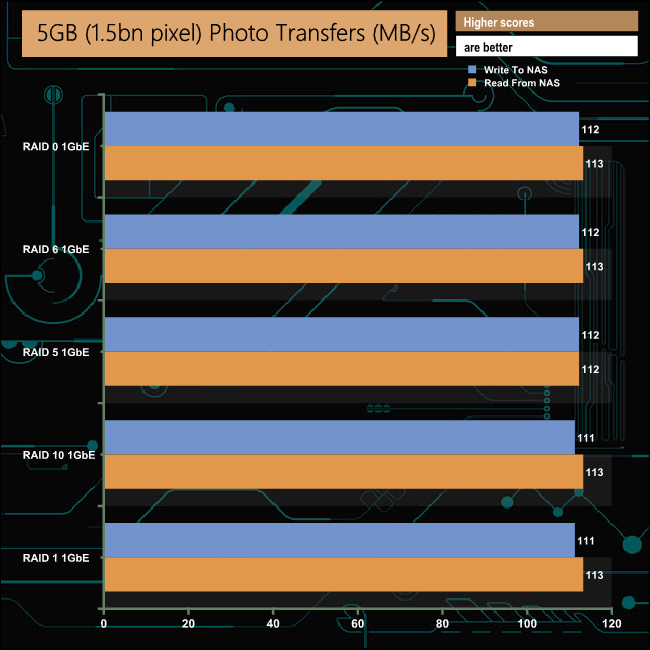

5GB (1.5bn pixel) photo.

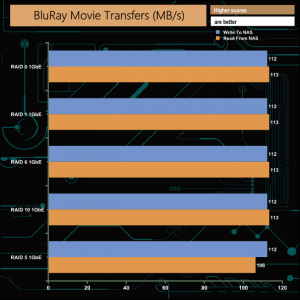

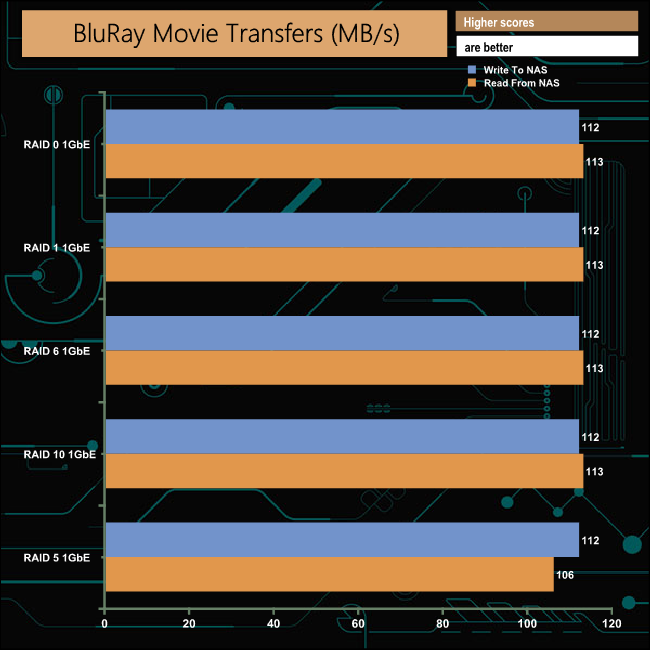

BluRay Movie – 42GB.
21GB 8K Movie demos – (11 demos)

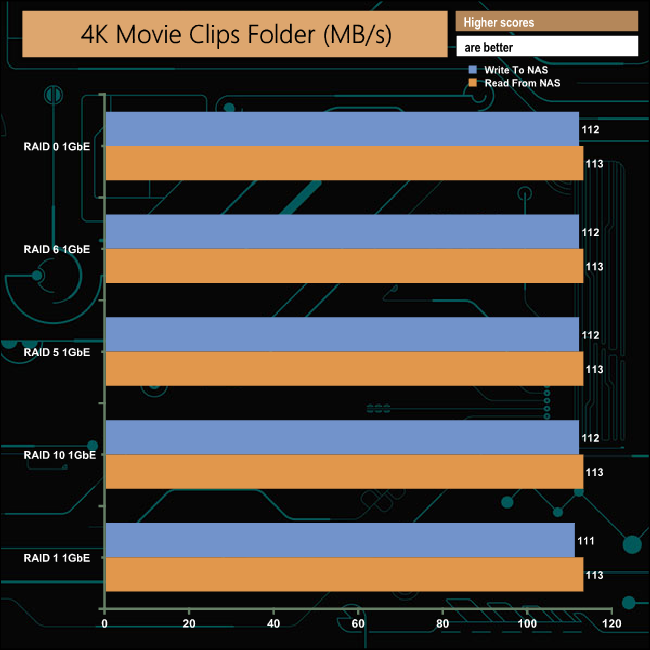

16GB 4K Raw Movie Clips – (9 MP4V files).

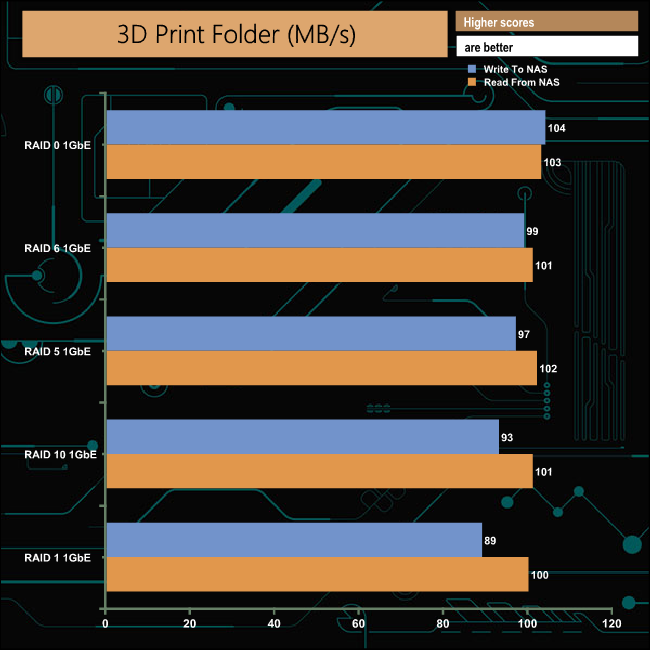

4.25GB 3D Printer File Folder – (166 files – 105 @ .STL, 38 @ .FBX, 11 @ .blend, 5 @ .lwo, 4 @ .OBJ, 3@ .3ds).

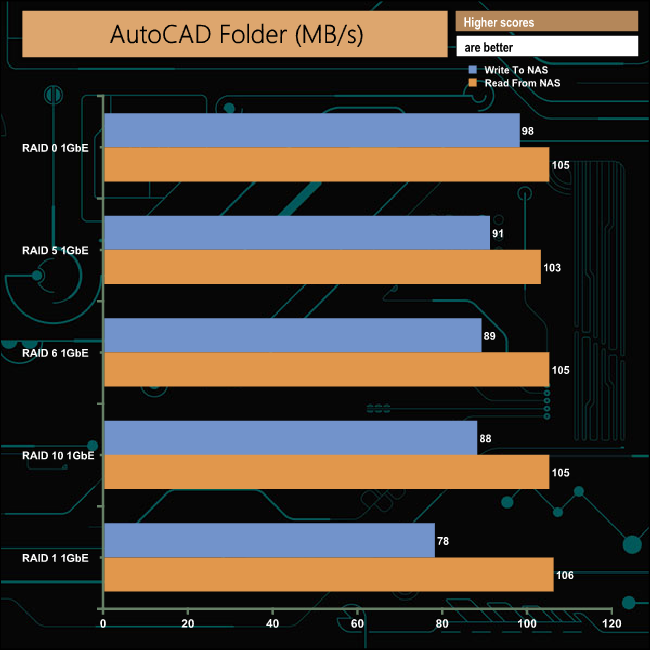

1.5GB AutoCAD File Folder (80 files – 60 @ .DWG and 20 @.DXF).












When it came to dealing with our real-life file and folder tests, the DS920+ showed pretty consistent performance across the tested arrays.
