Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1080p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

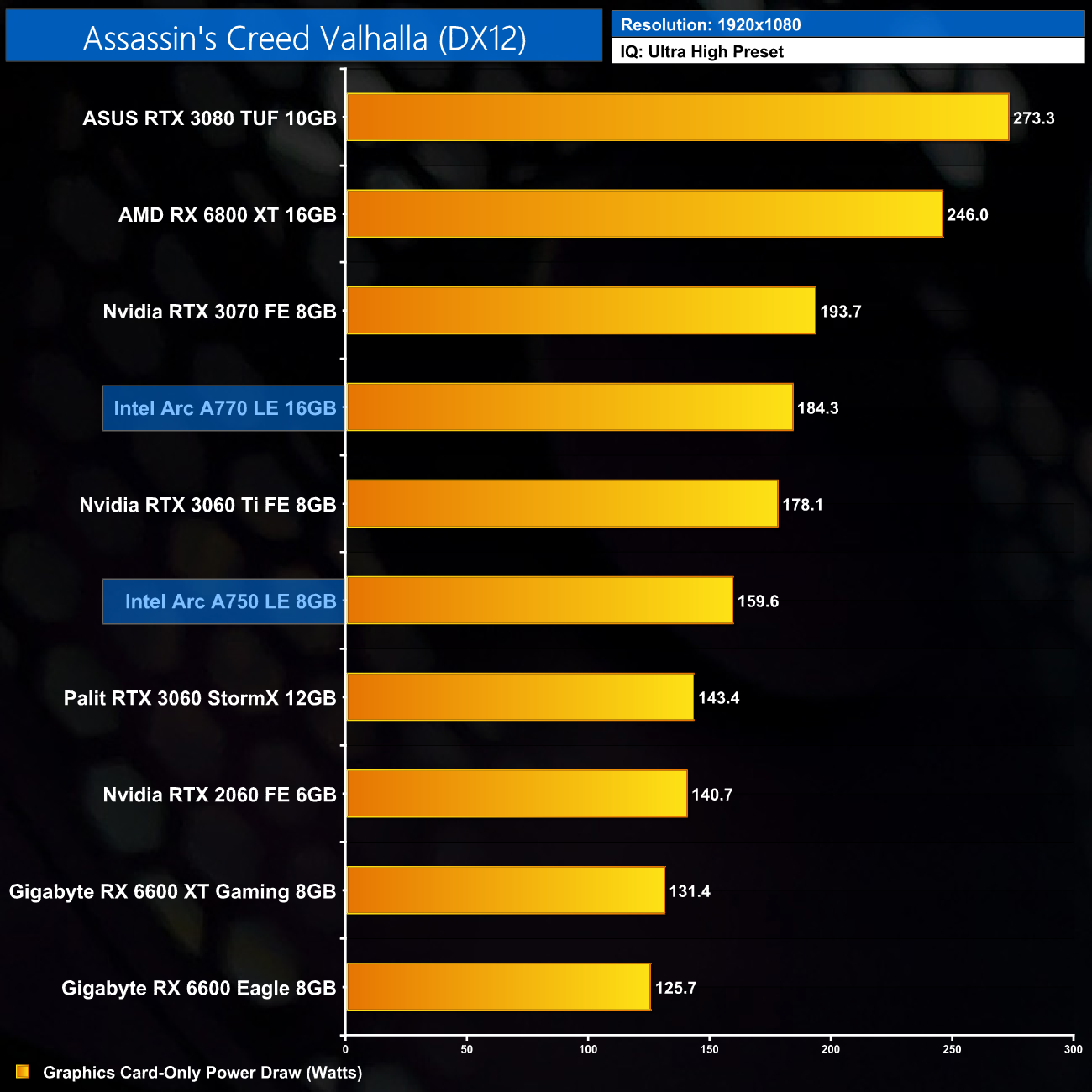

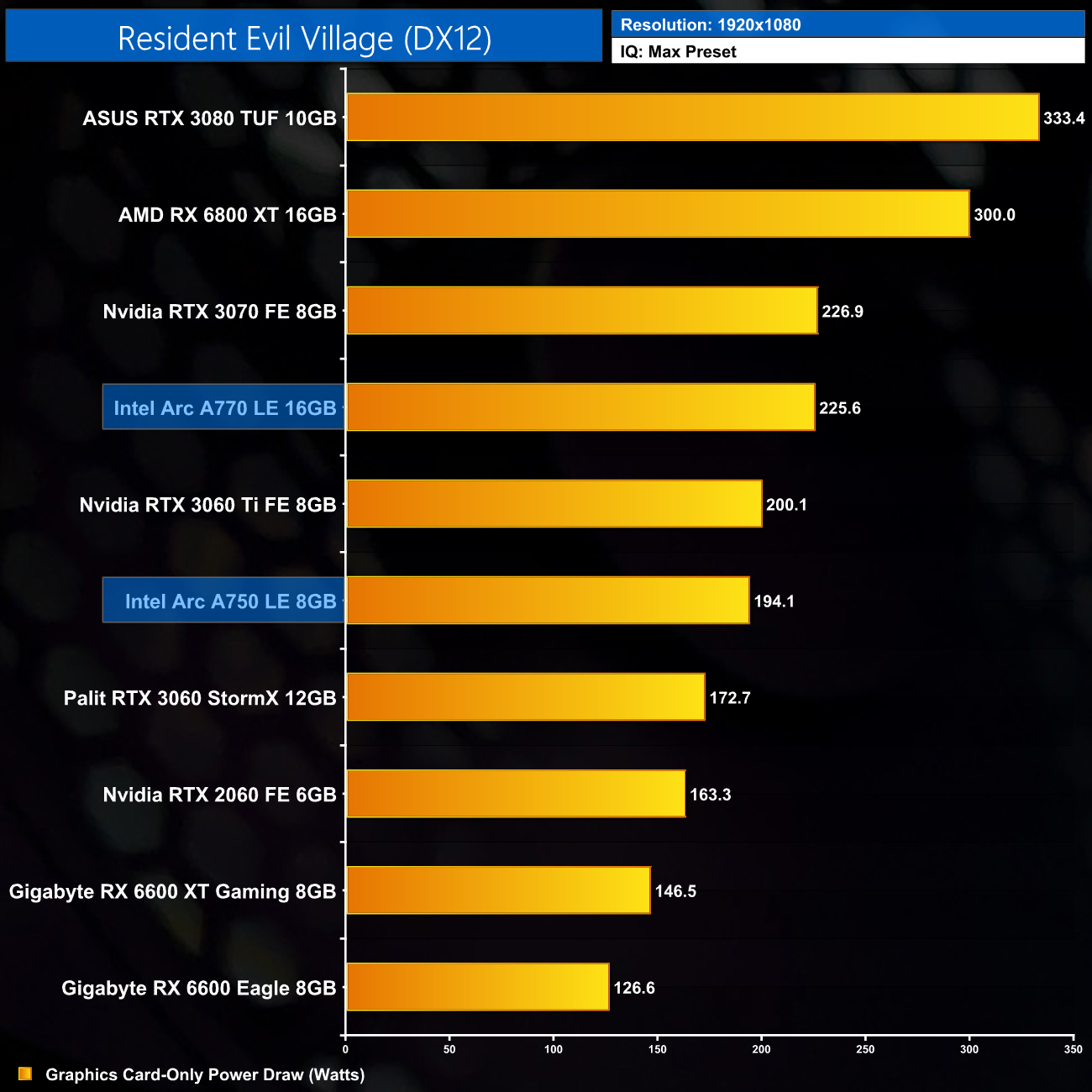

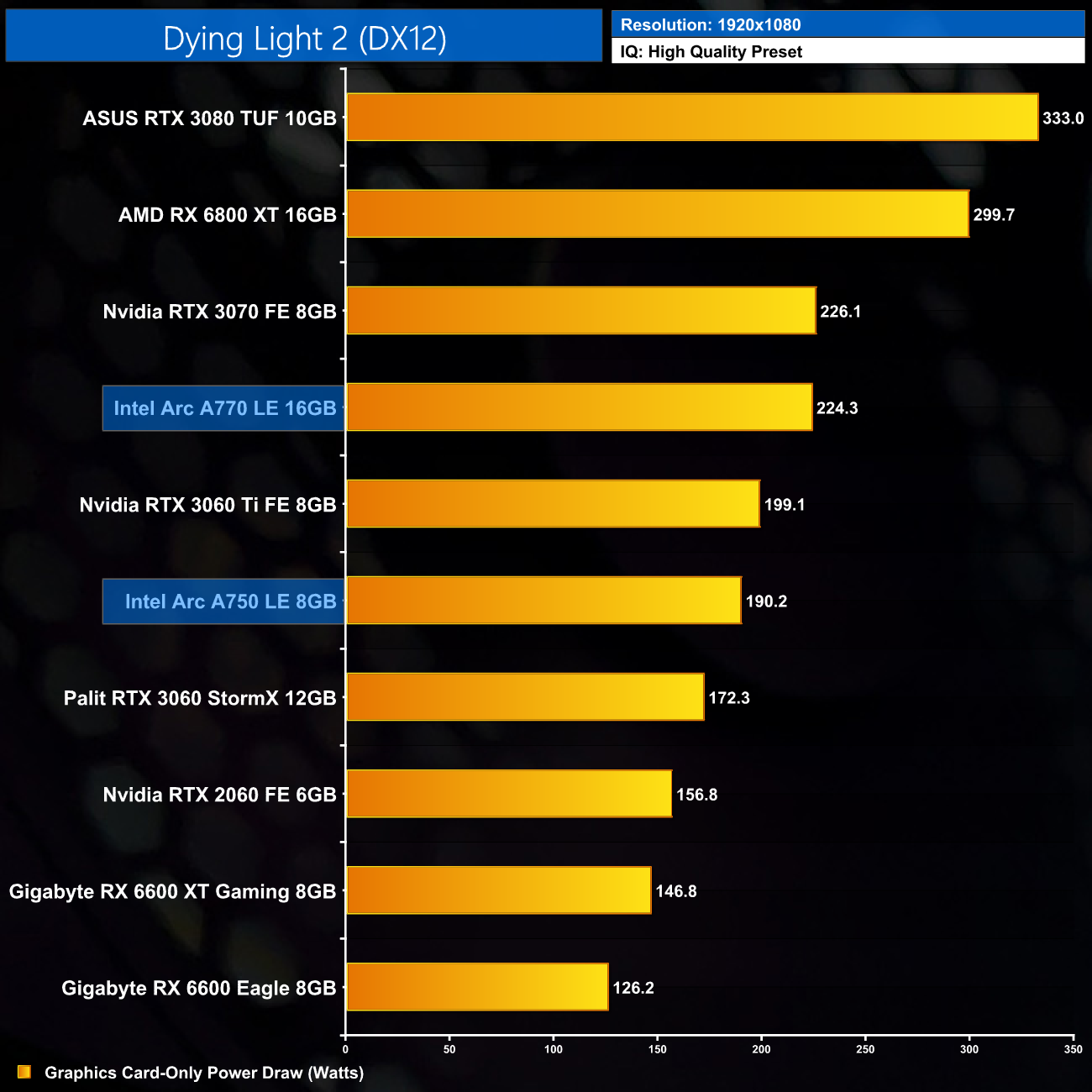

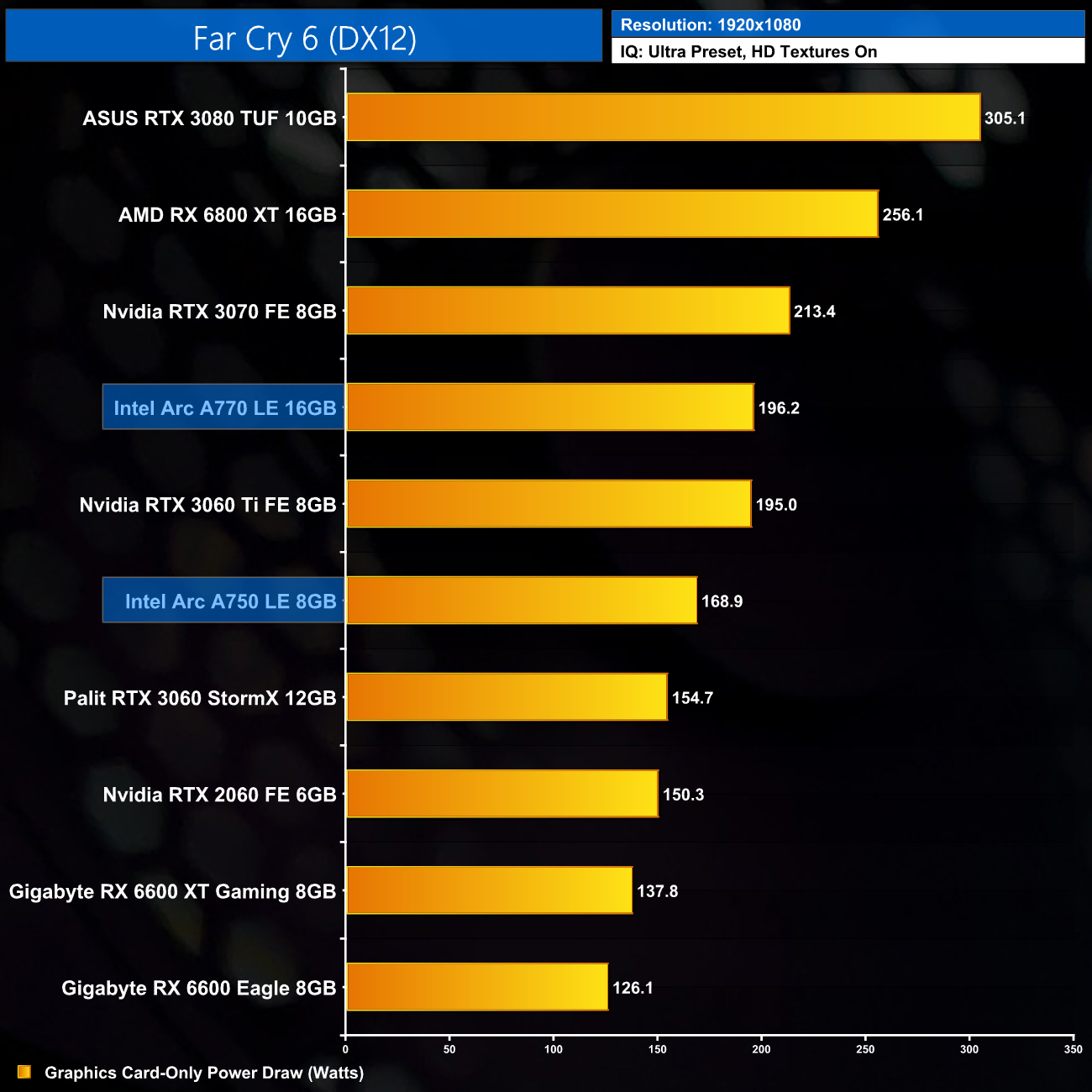

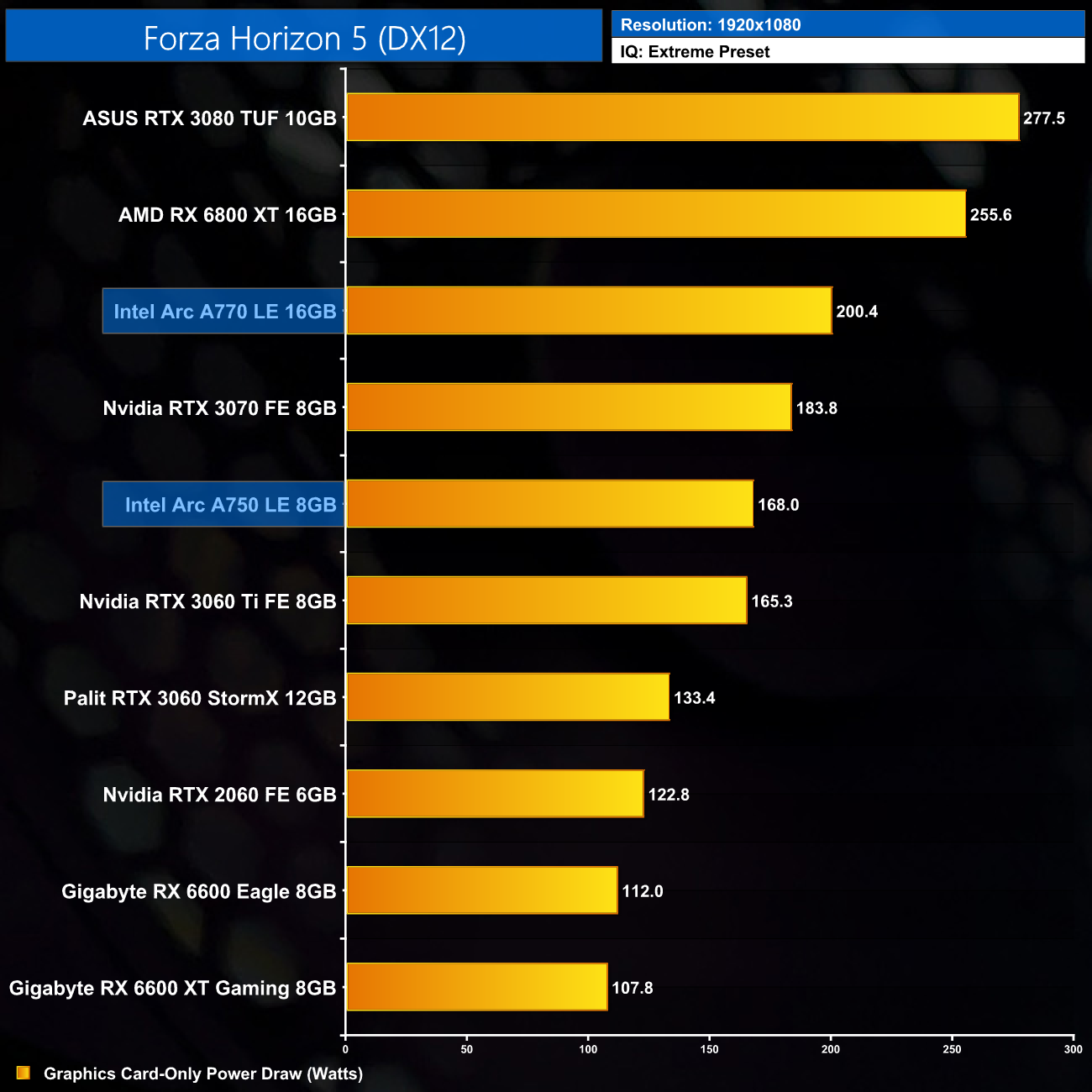

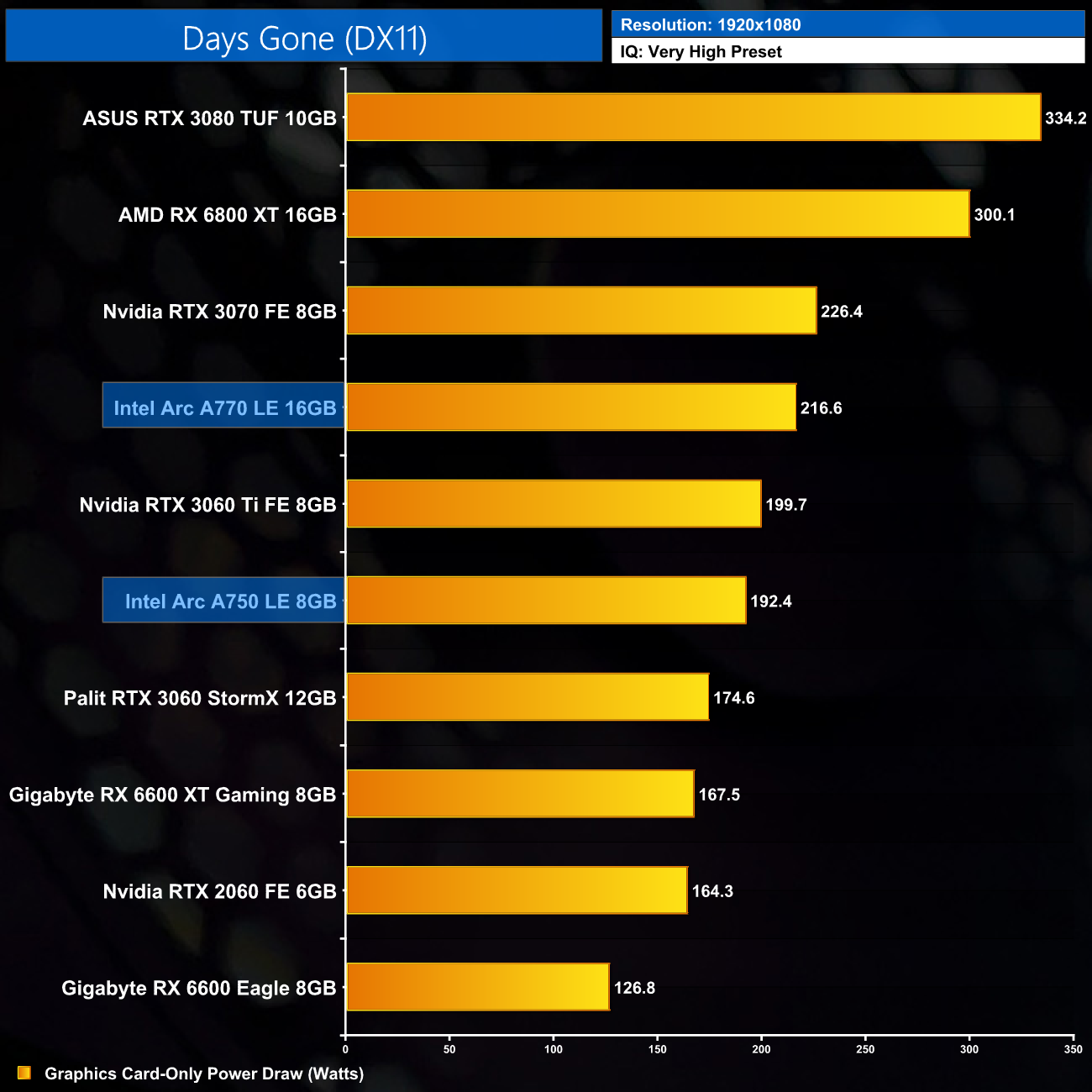

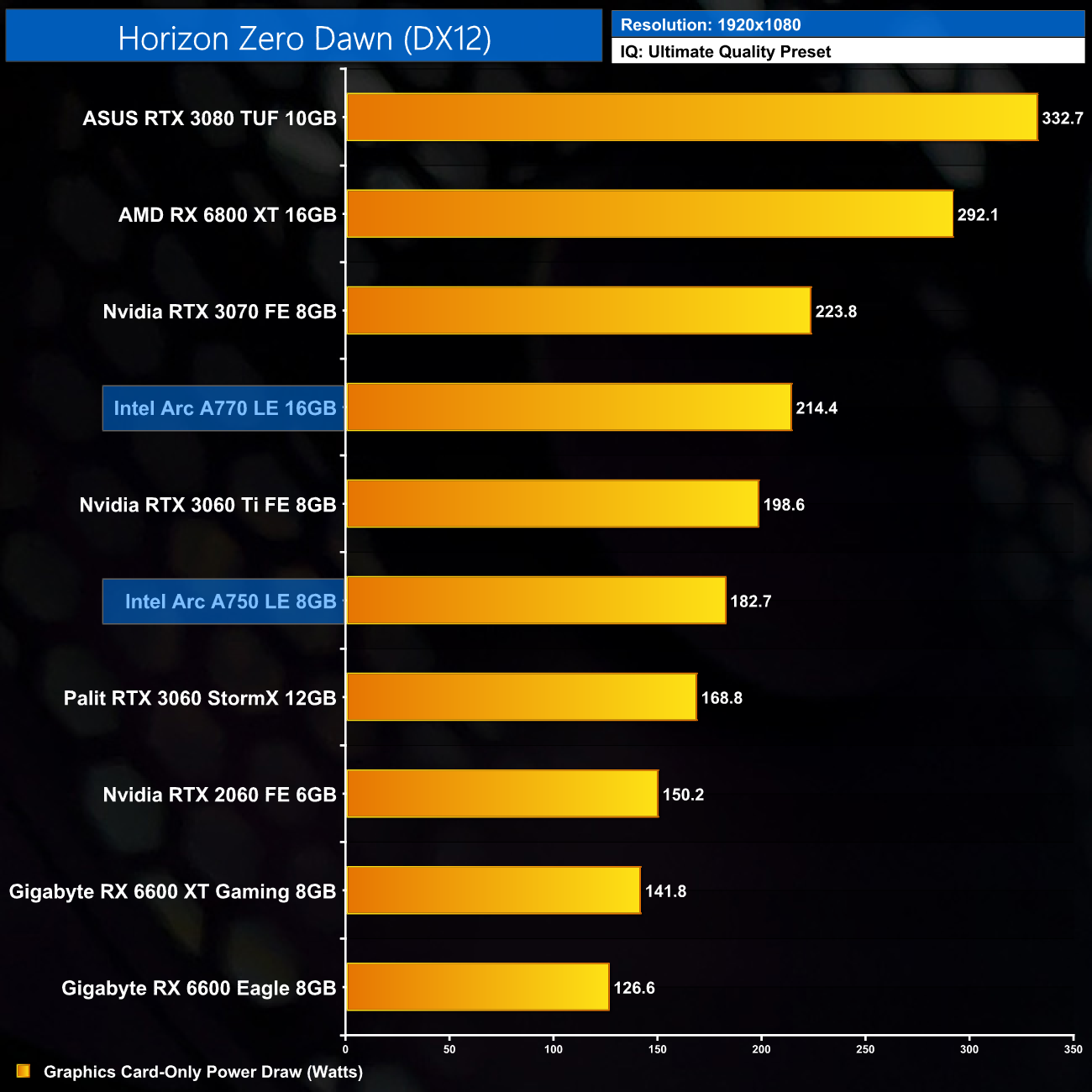

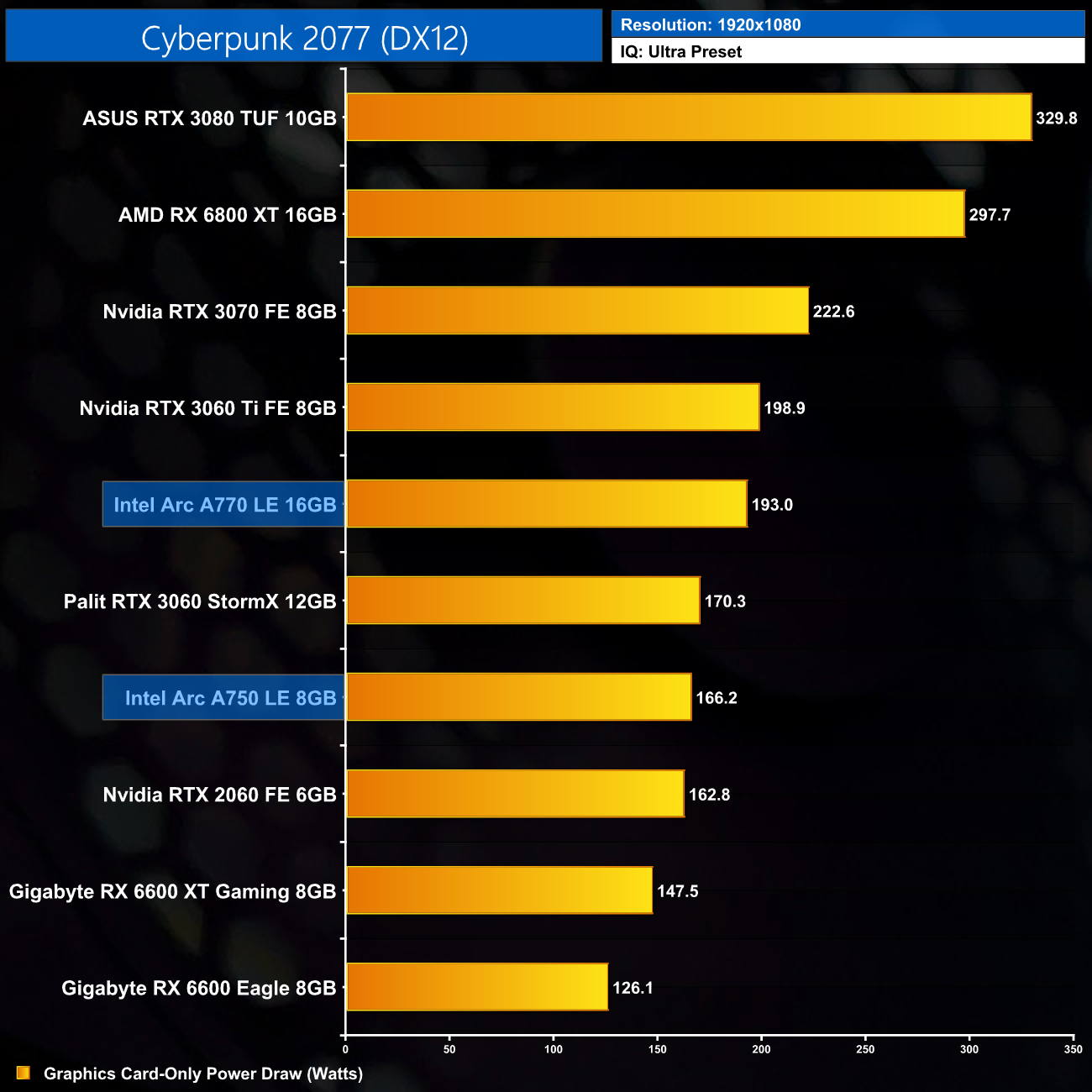

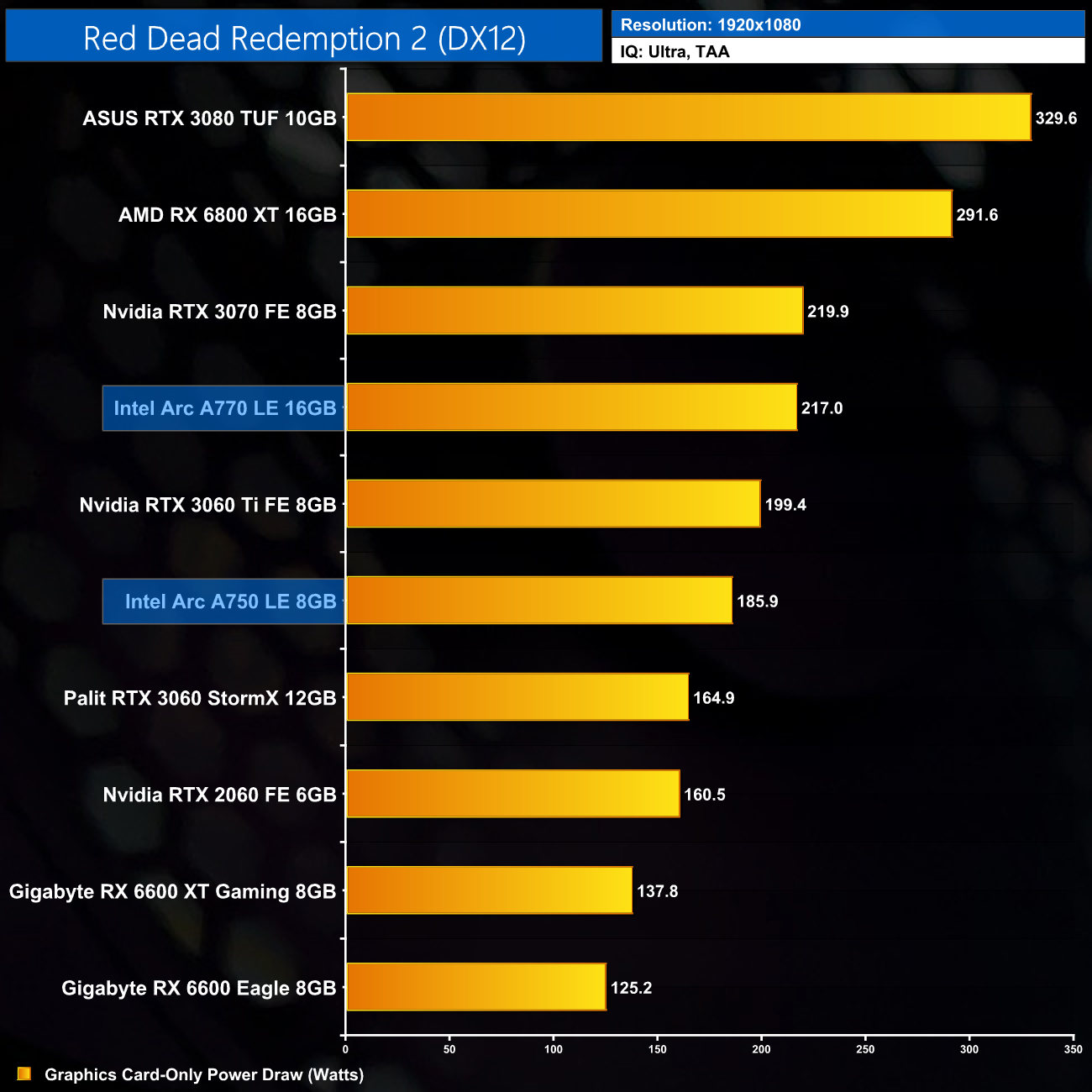

Per-Game Results at 1080p:

Click to enlarge.

Power draw for the A770 isn't far off the rated 225W figure. It does vary from game to game, as you can see above, but we see an average power draw of 208.2W at 1080p.
