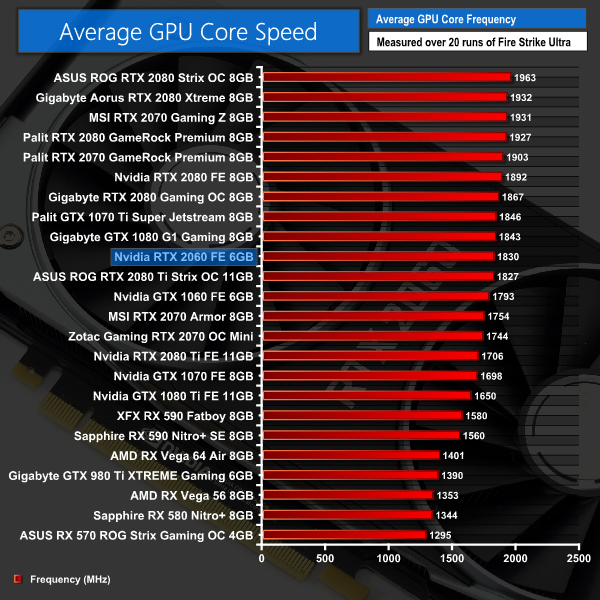

Here we present the average clock speed for each graphics card while running the 3DMark Fire Strike Ultra stress test 20 times. We use GPU-Z in tandem with the Powenetics Project to record the GPU core frequency during the Fire Strike Ultra runs – at the end, we are left with around 4300 data entries.

We calculate the average core frequency during the entire 20-run test to present here.

As a reminder, the RTX 2060 Founders Edition is a reference clocked card – unlike the other 20-series card, the Founders does not come factory overclocked. Even so, we saw GPU Boost raise the core frequency well beyond the rated 1680MHz boost clock – in fact, the average operating frequency was exactly 150MHz faster than that.

That's all completely automatic behaviour, too, so I would expect there to be plenty of heavily factory overclocked partner cards available – the headroom is definitely there. We will also look at manual overclocking later in the review.
