Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 1440p. This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

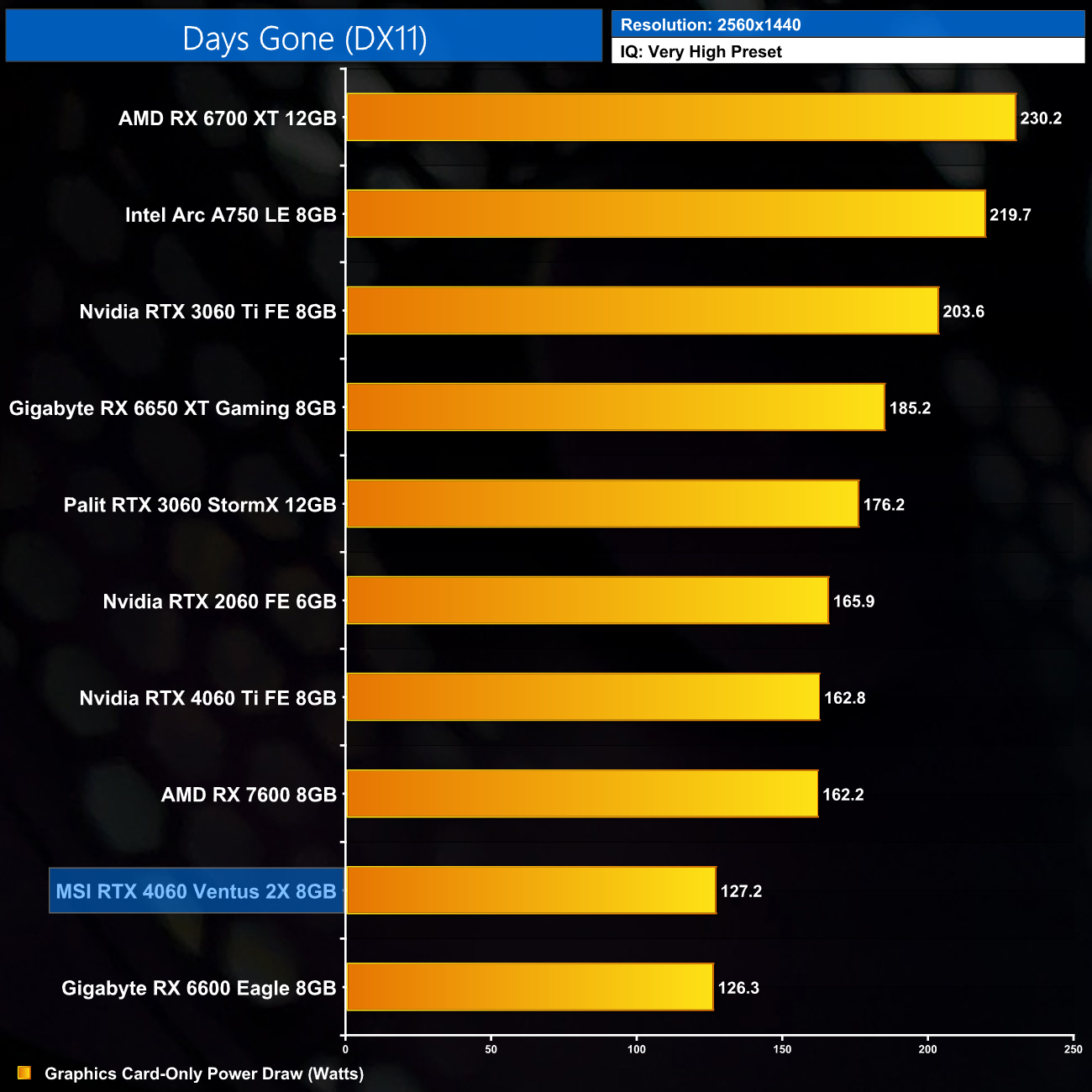

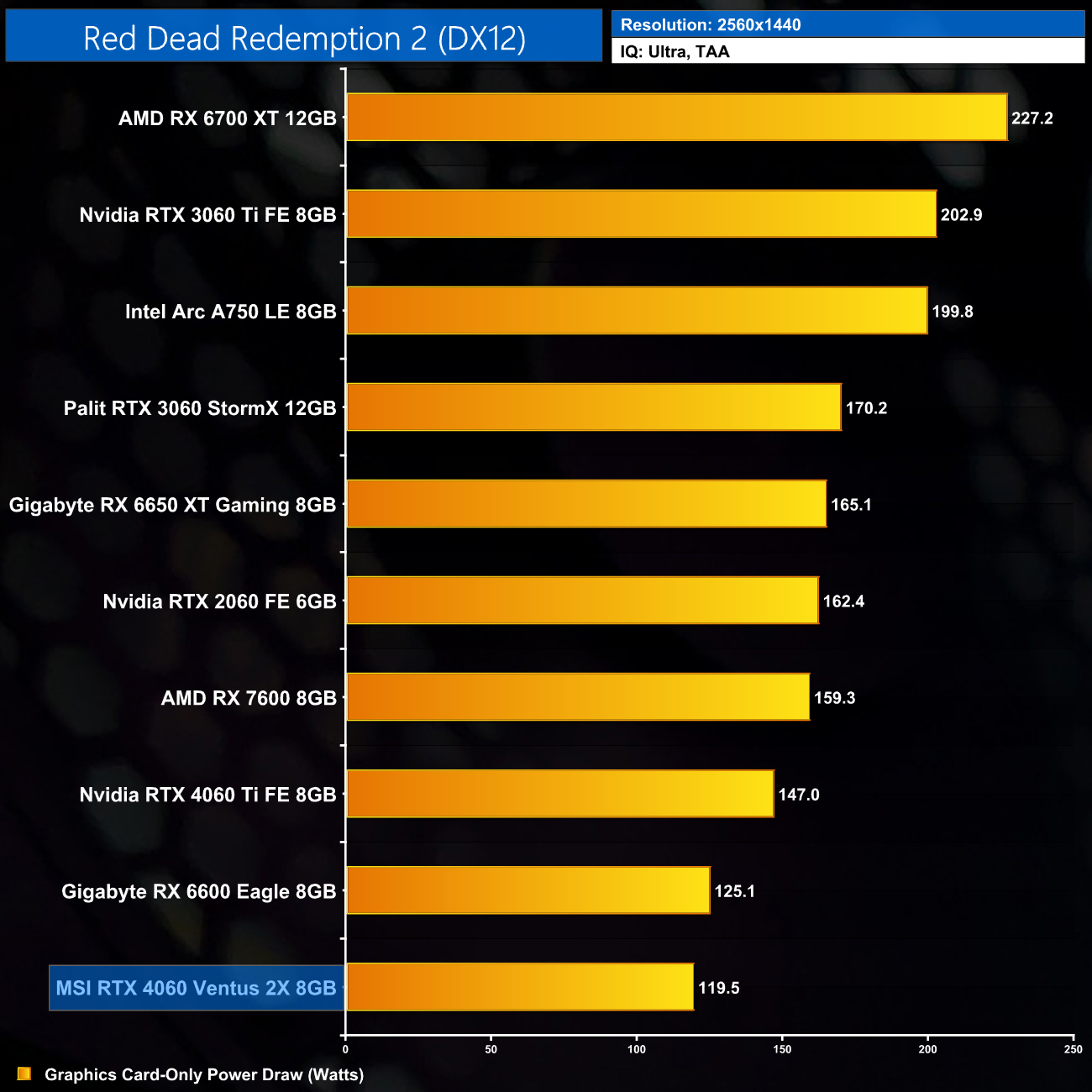

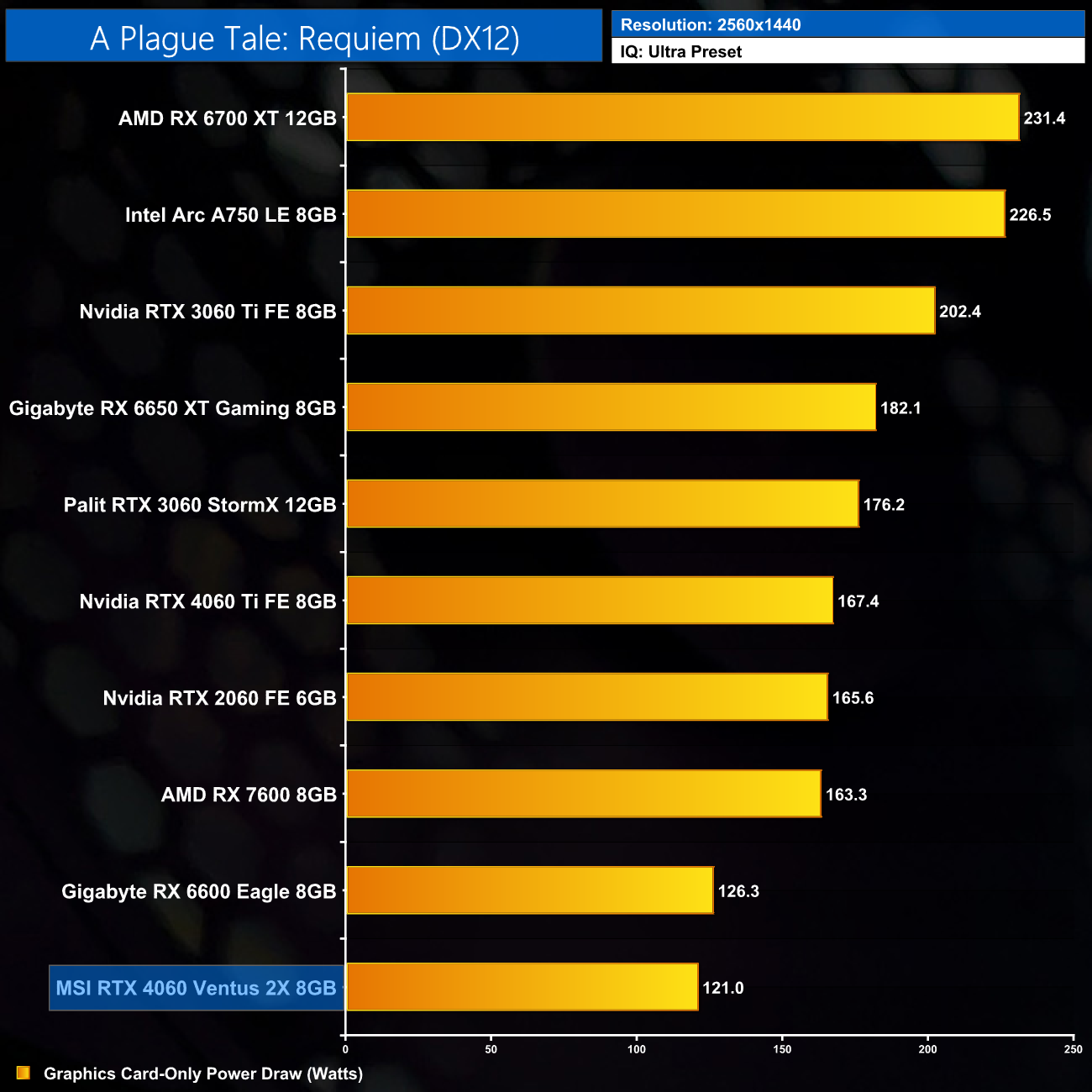

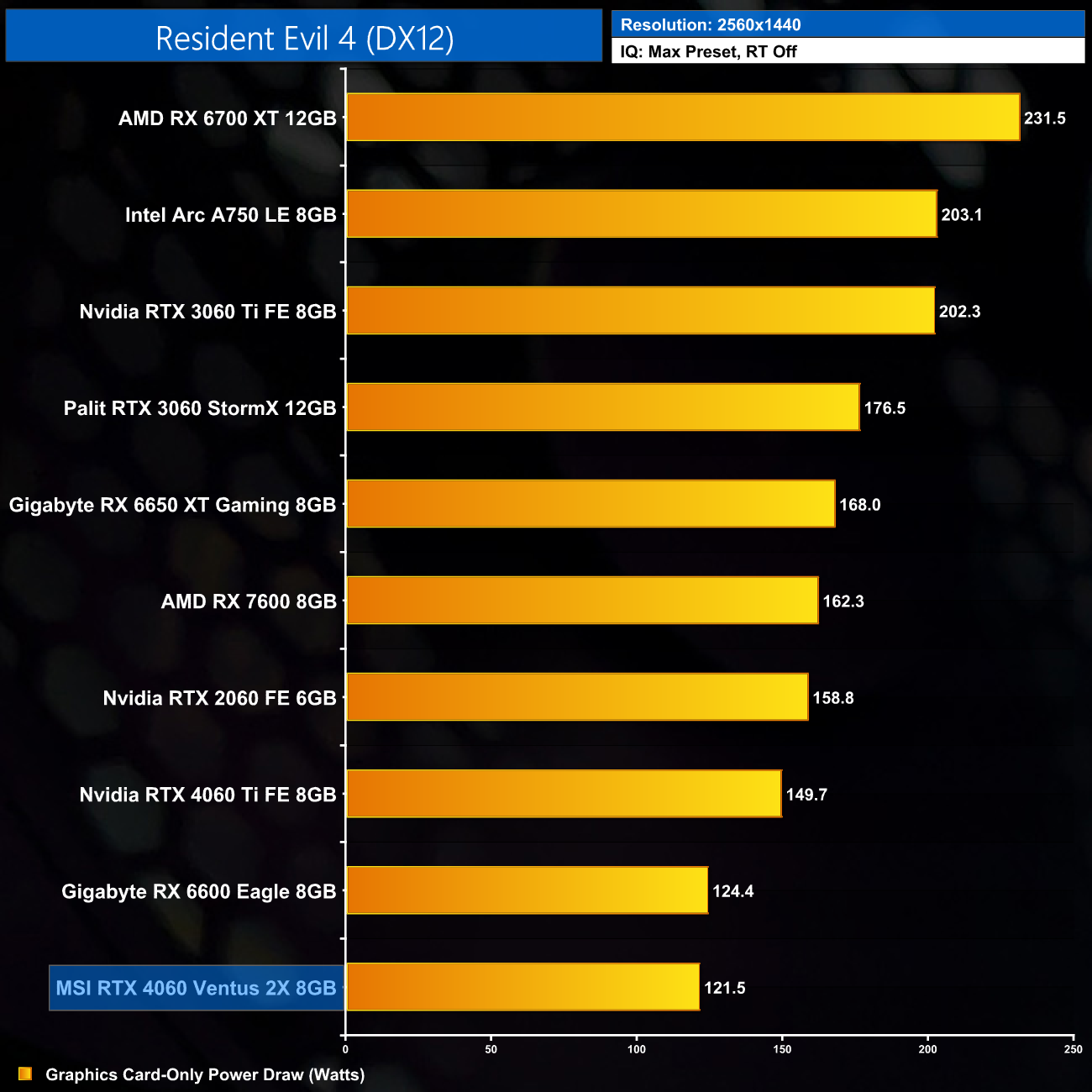

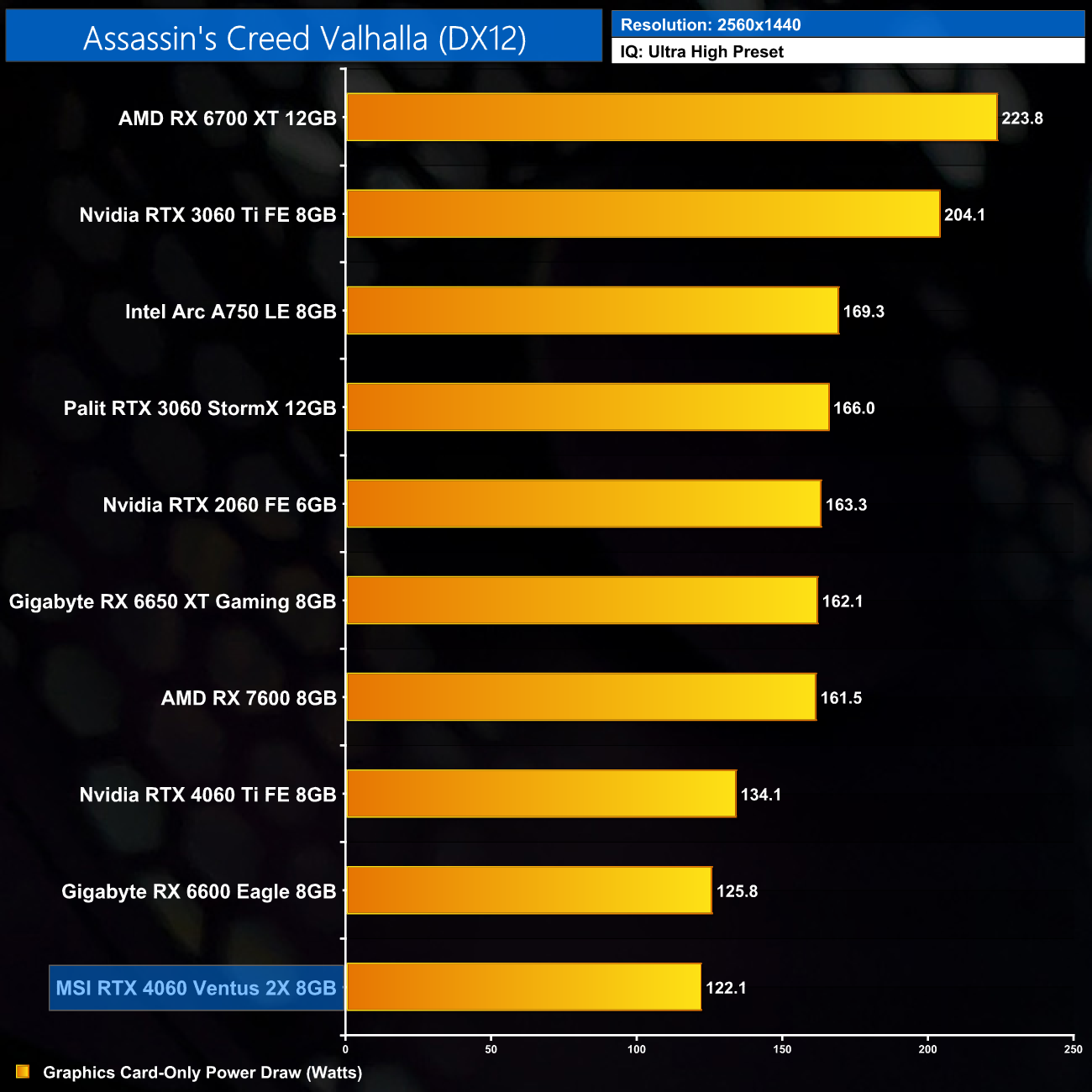

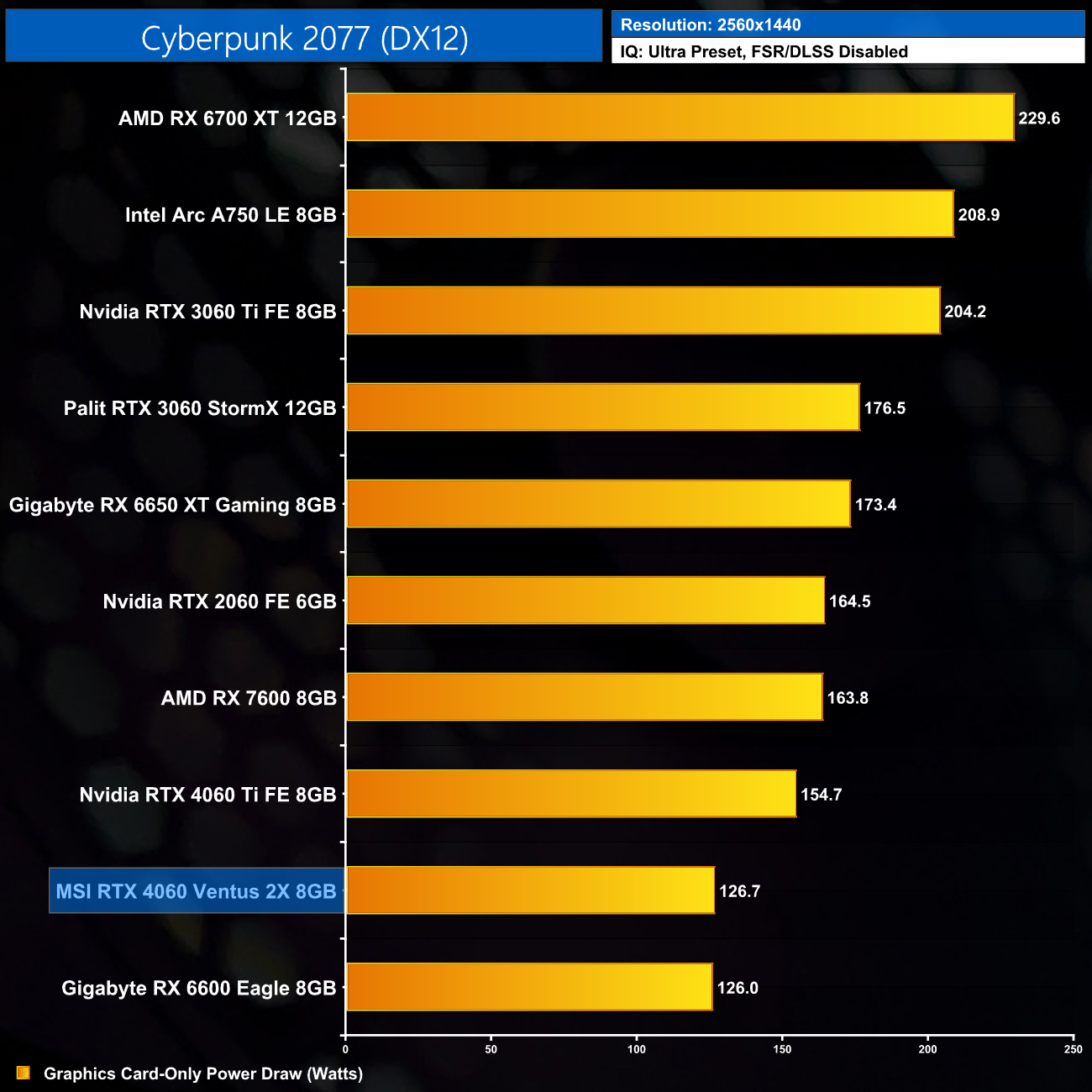

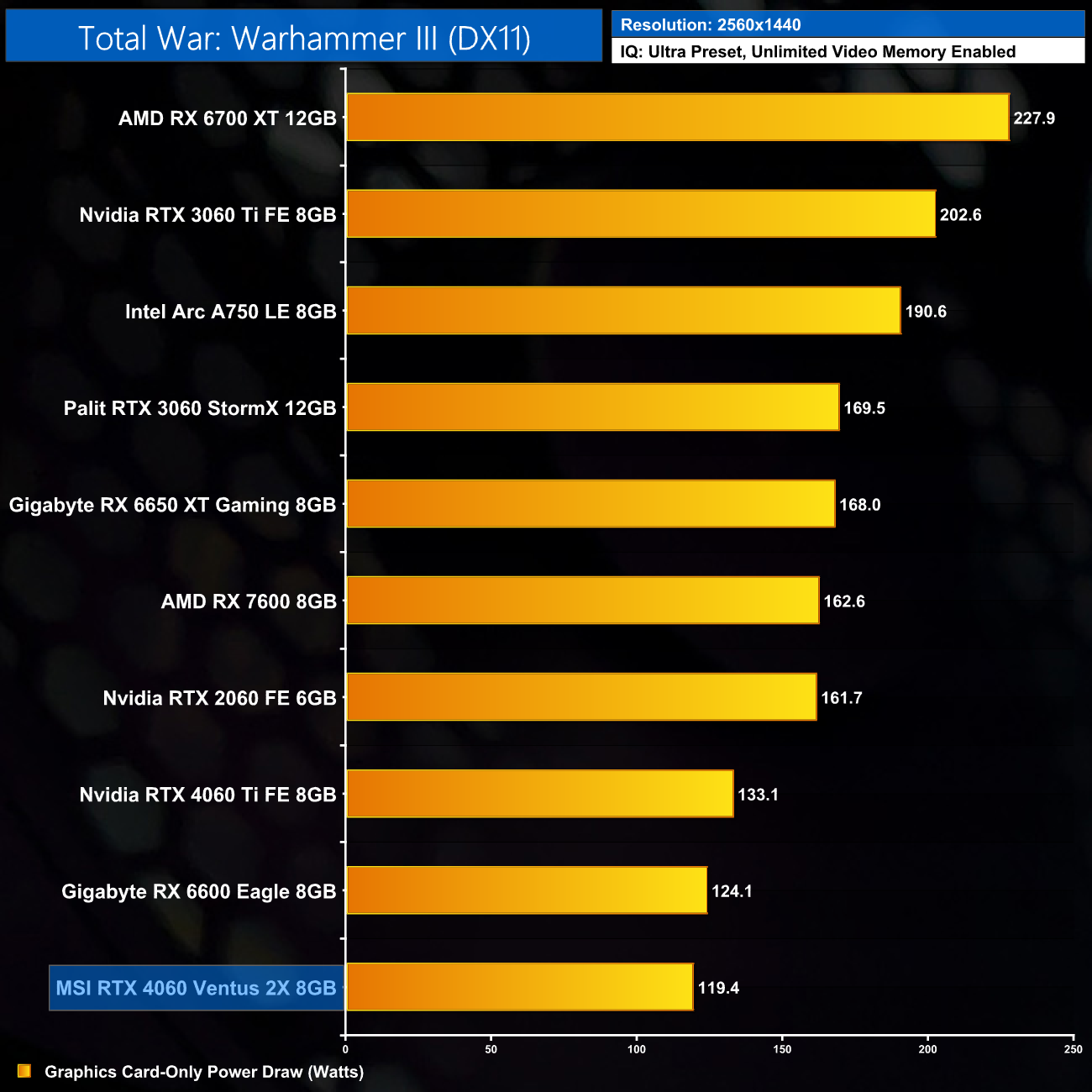

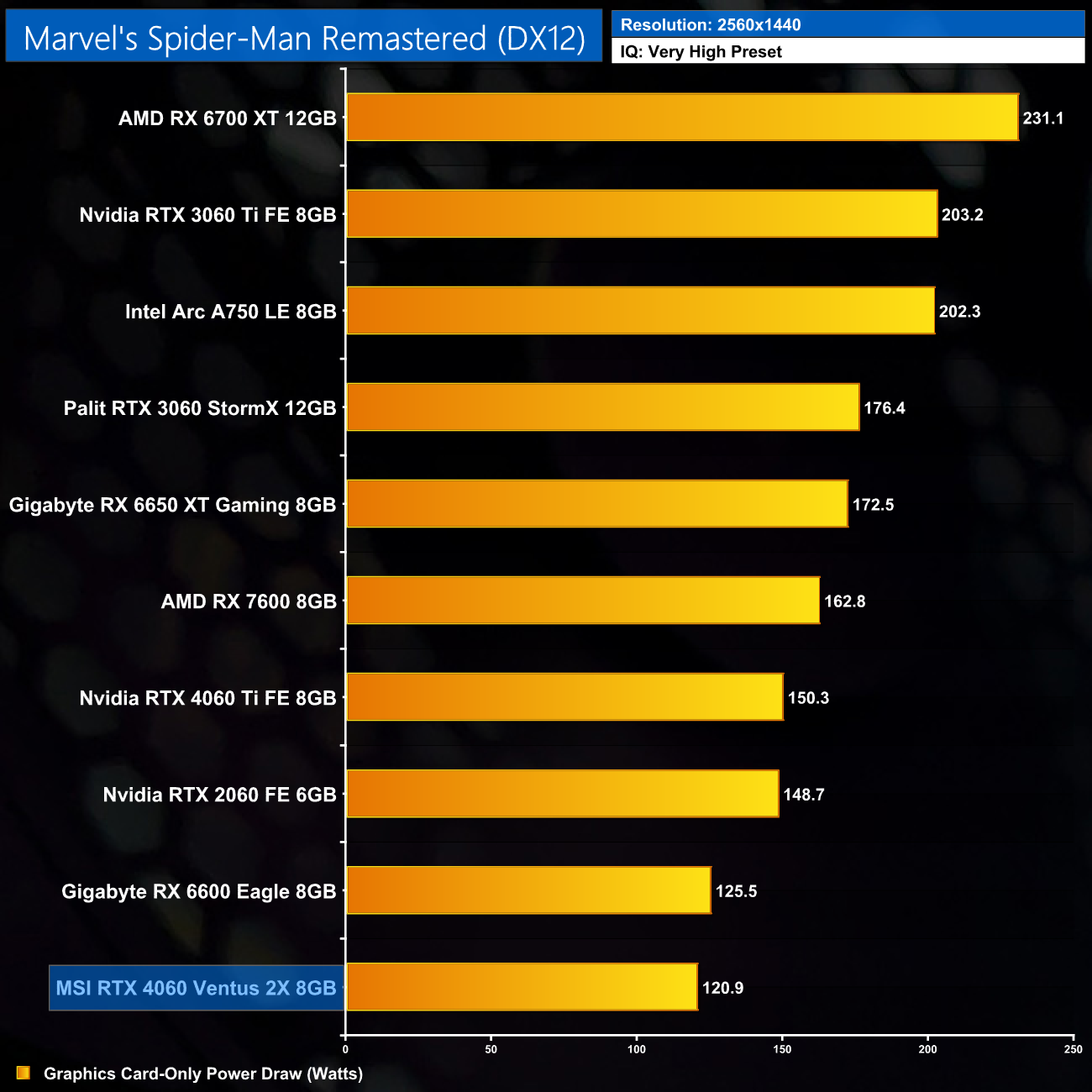

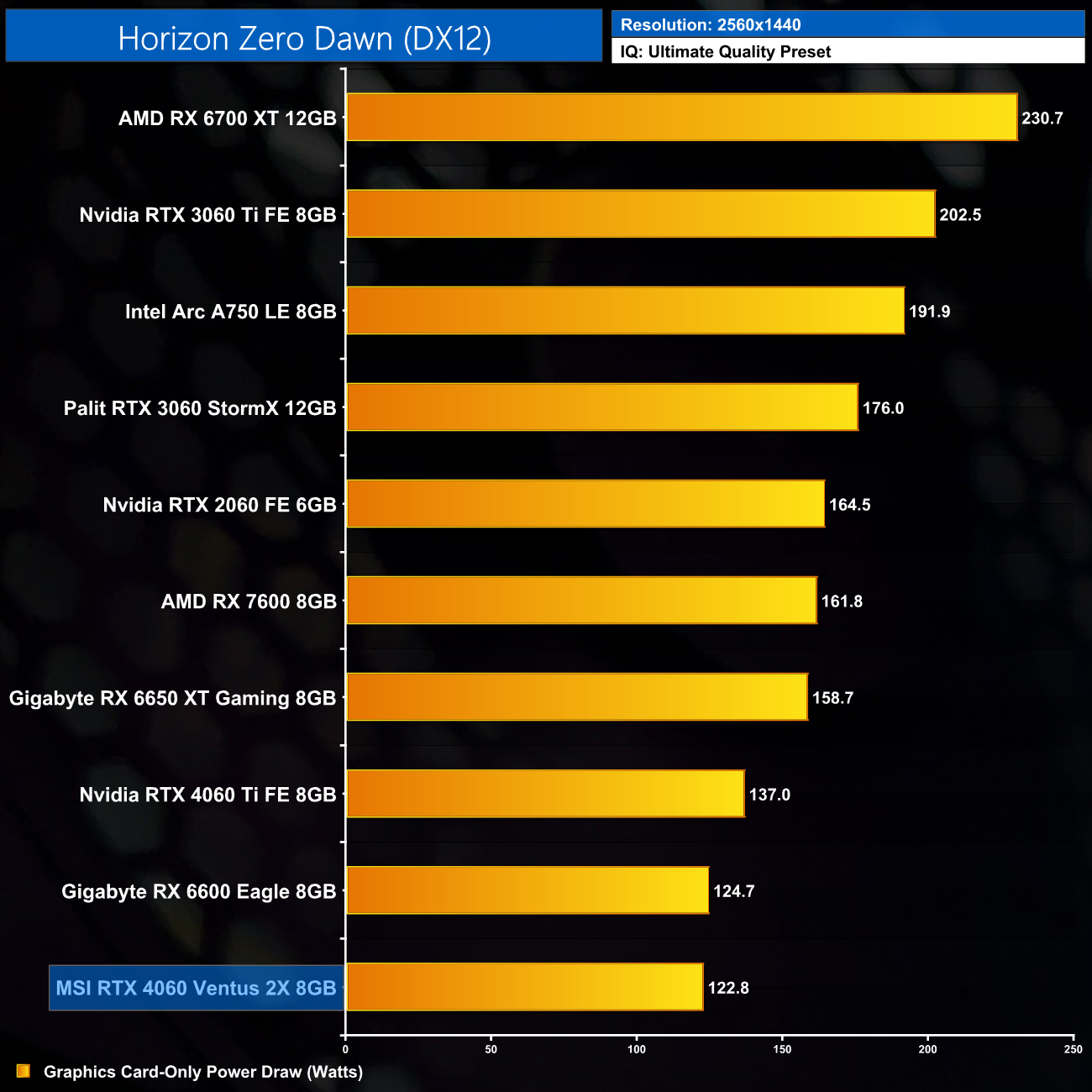

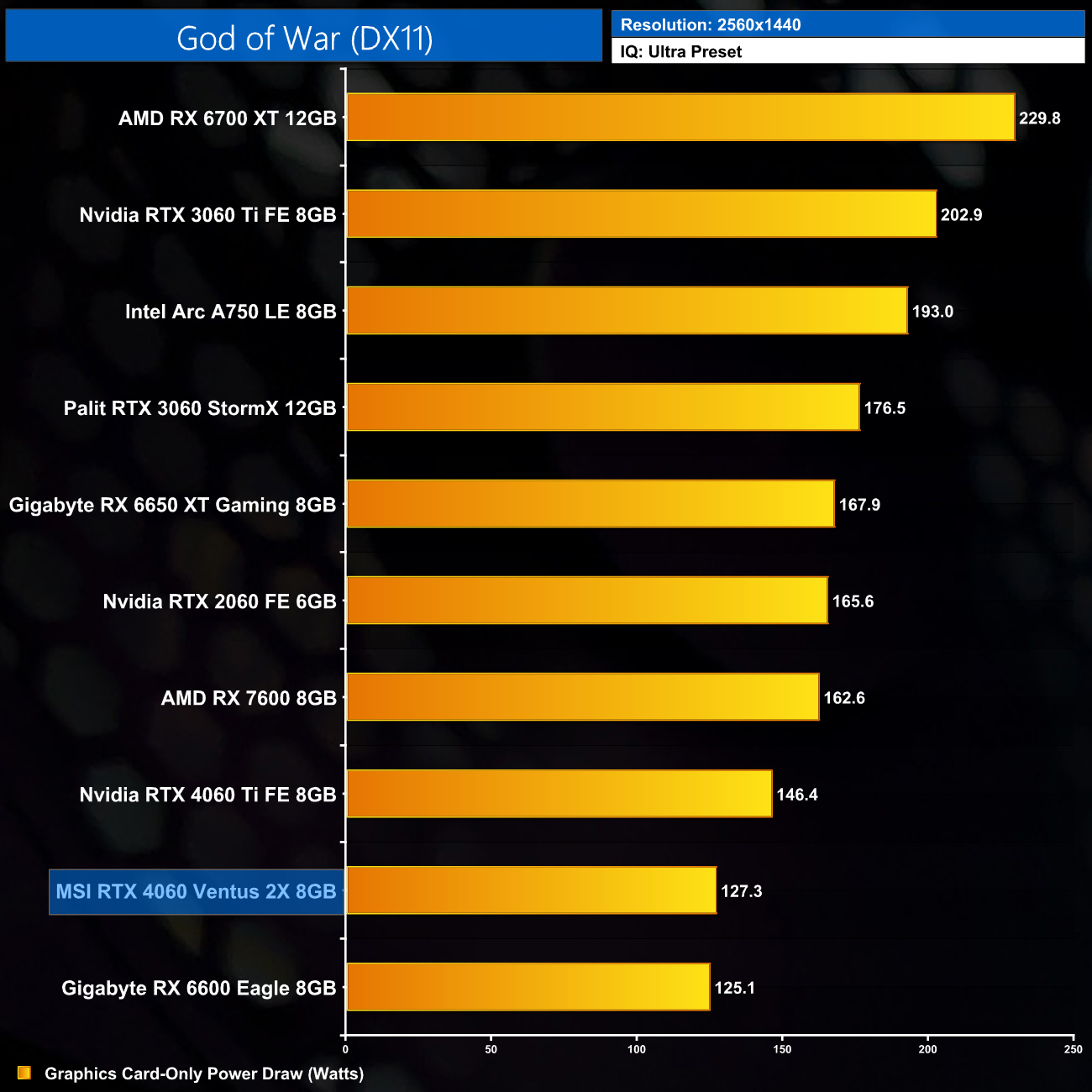

Per-Game Results at 1440p:

Click to enlarge.

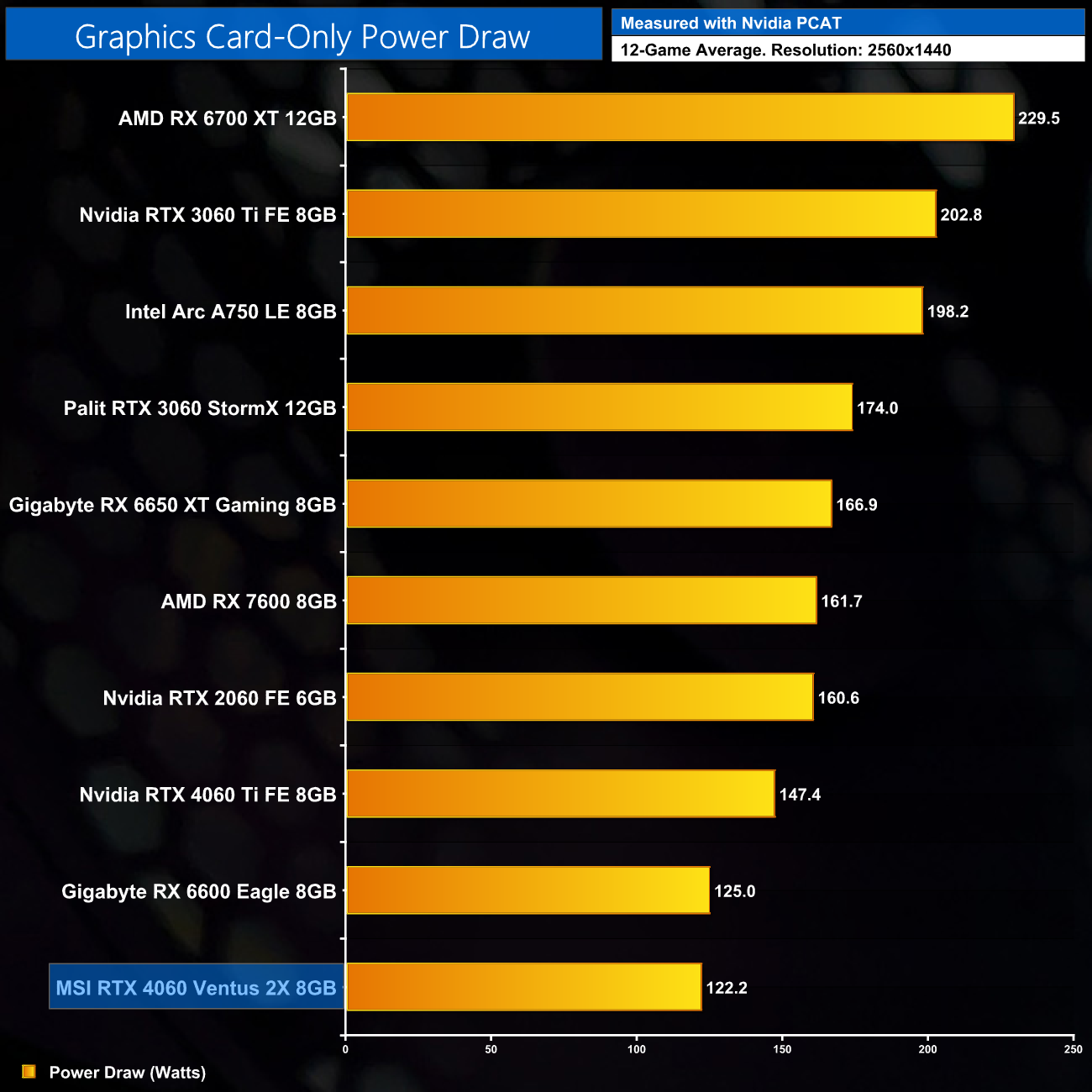

12-Game Average at 1440p:

Up at 1440p we see power has climbed just a touch, up to 122.2W on average. This puts it just below the RX 6600, despite being significantly faster overall, and it's still roughly 40W less power-hungry than the RX 7600.

Ray tracing results

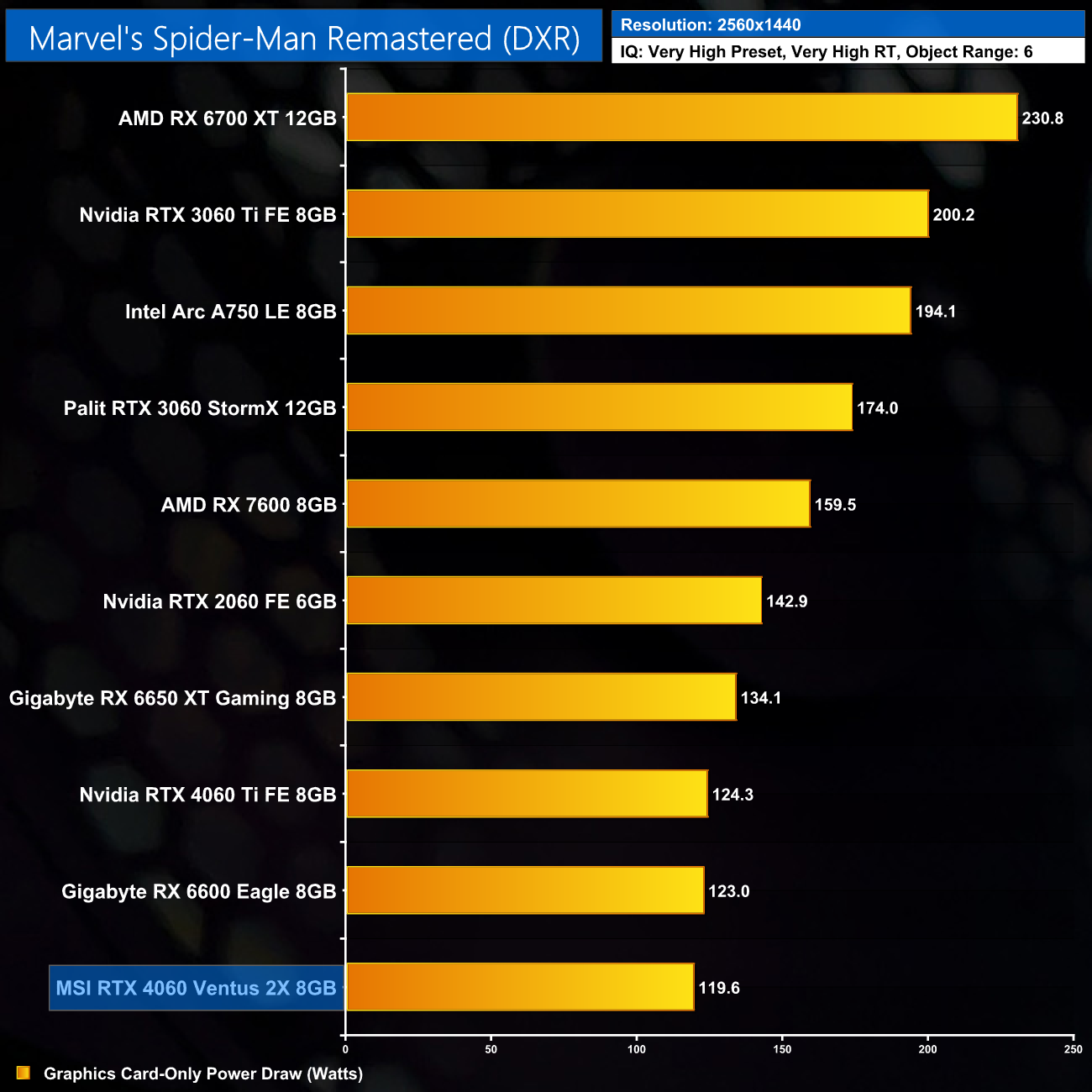

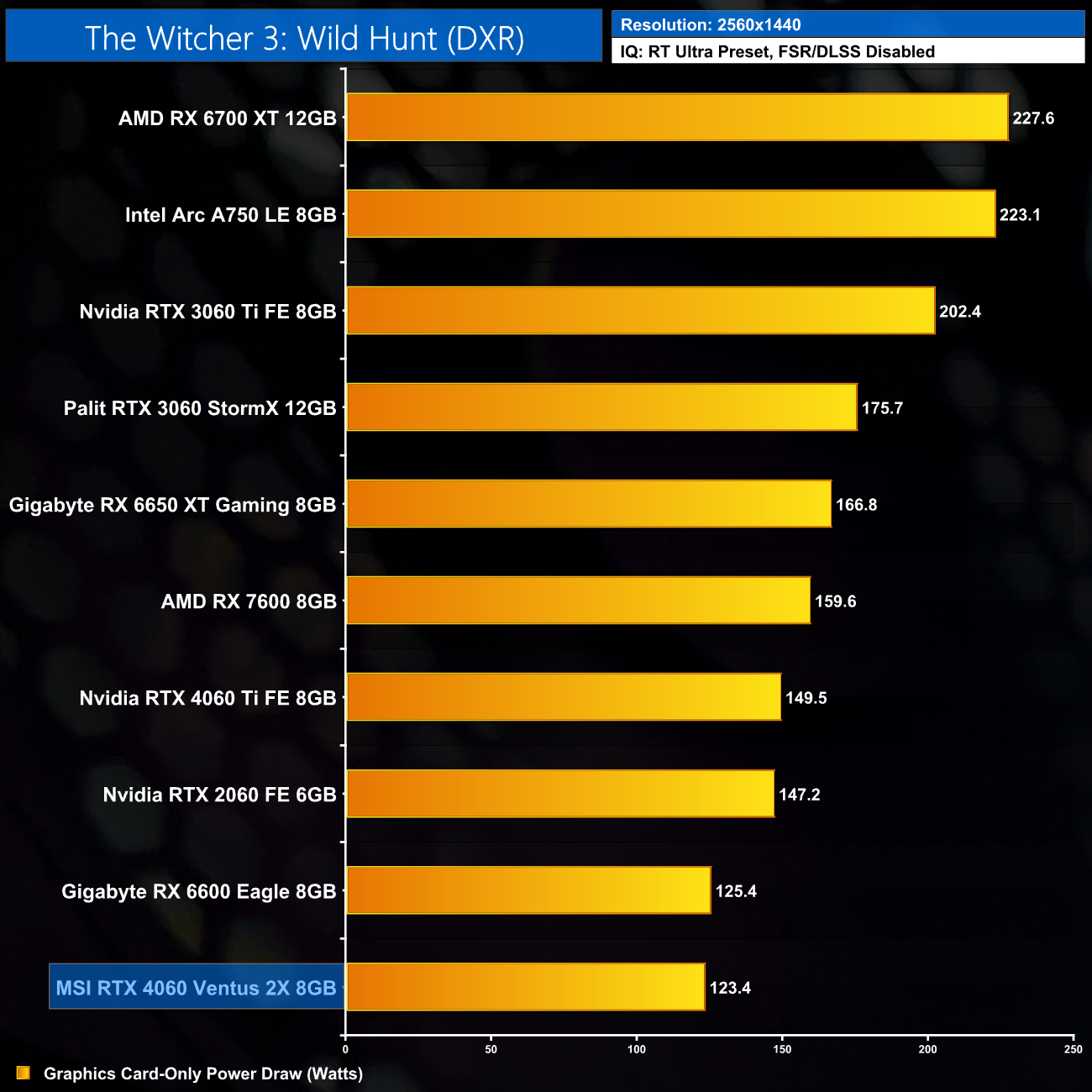

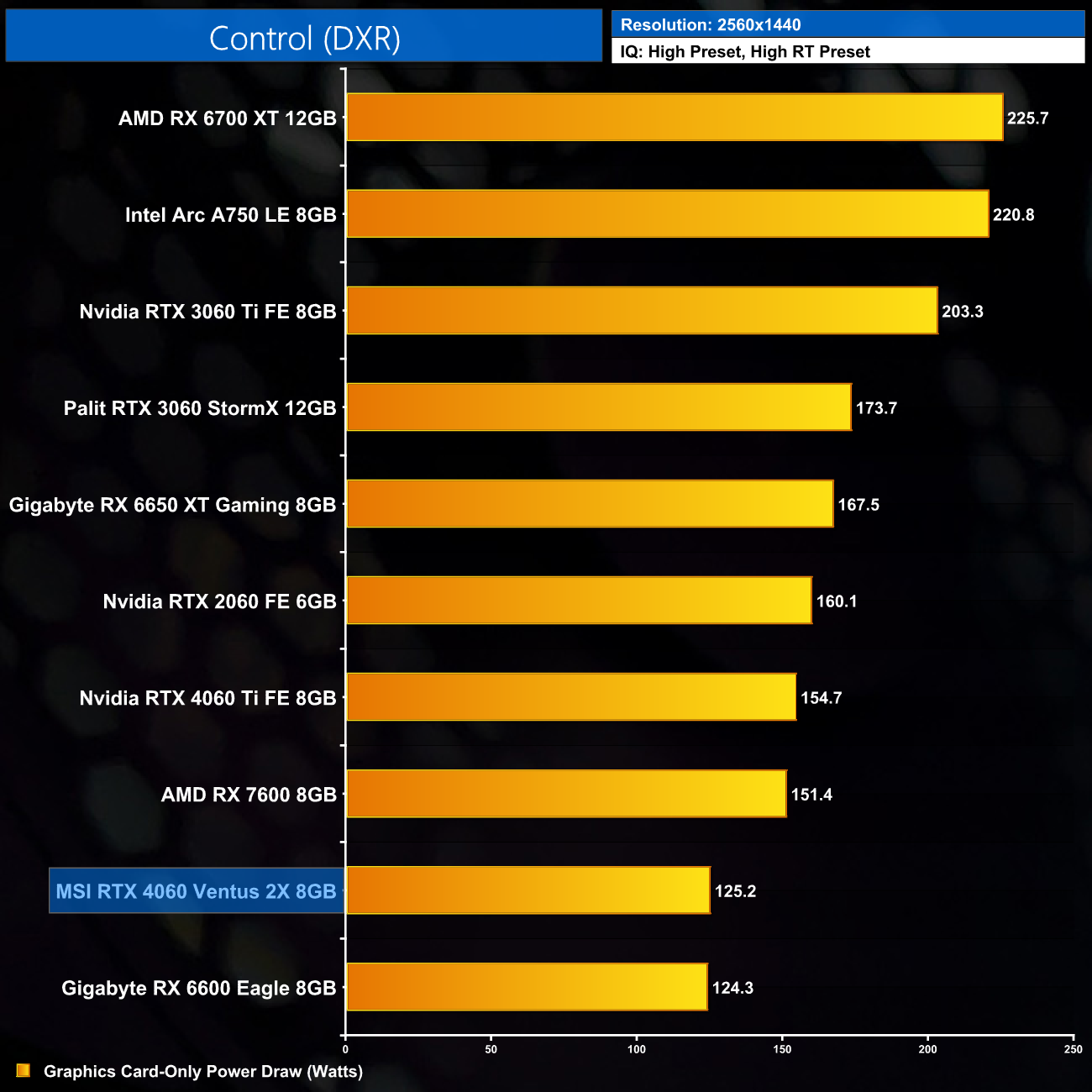

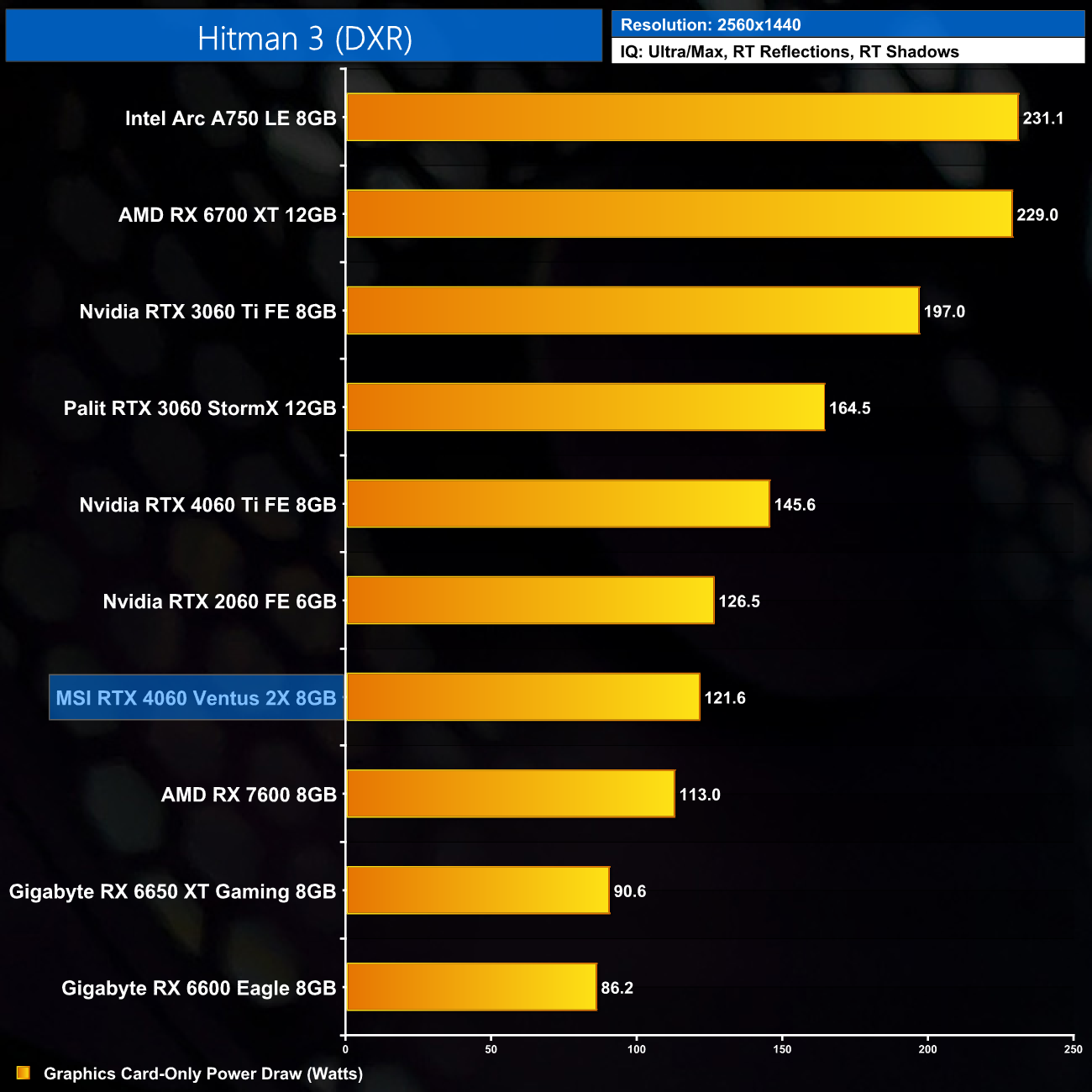

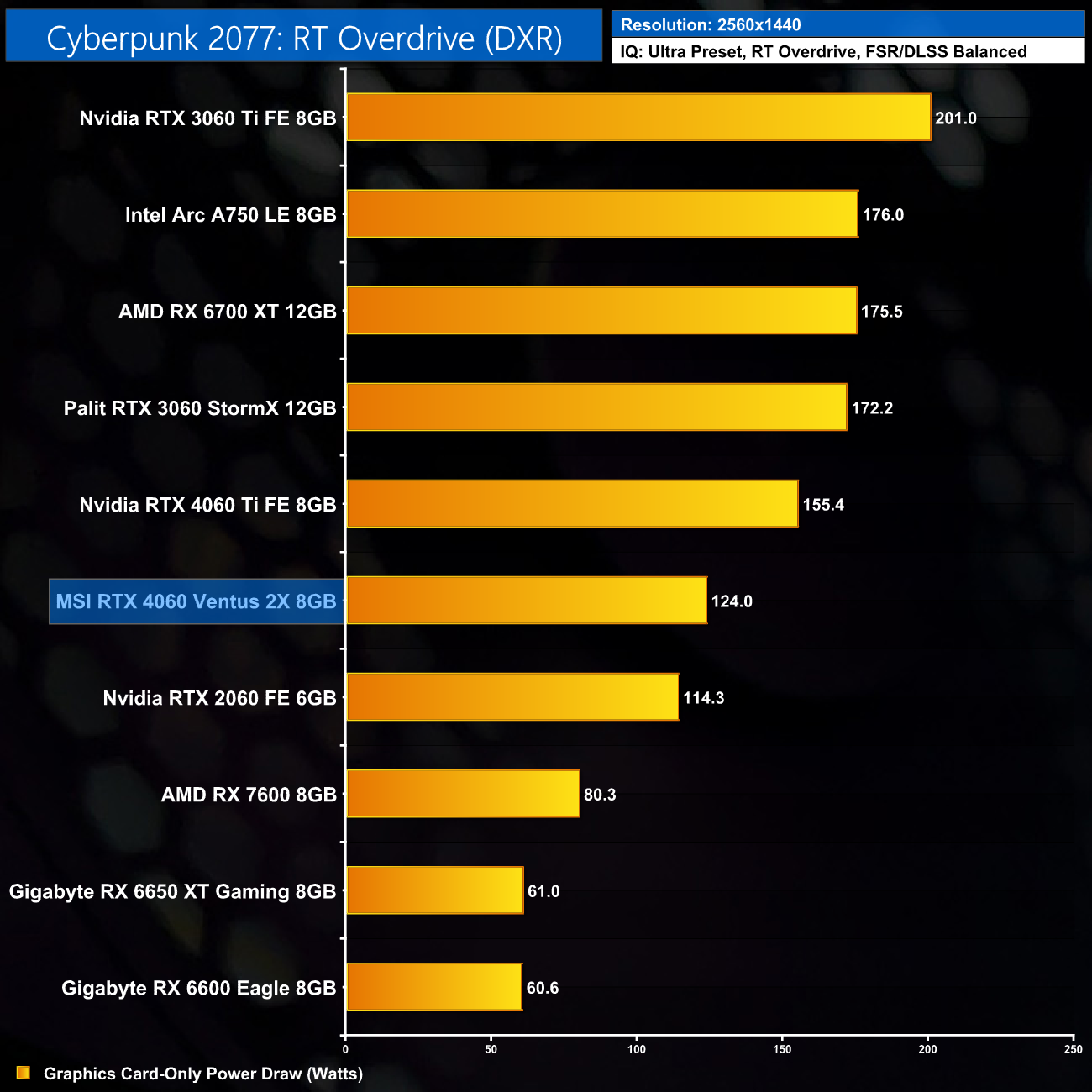

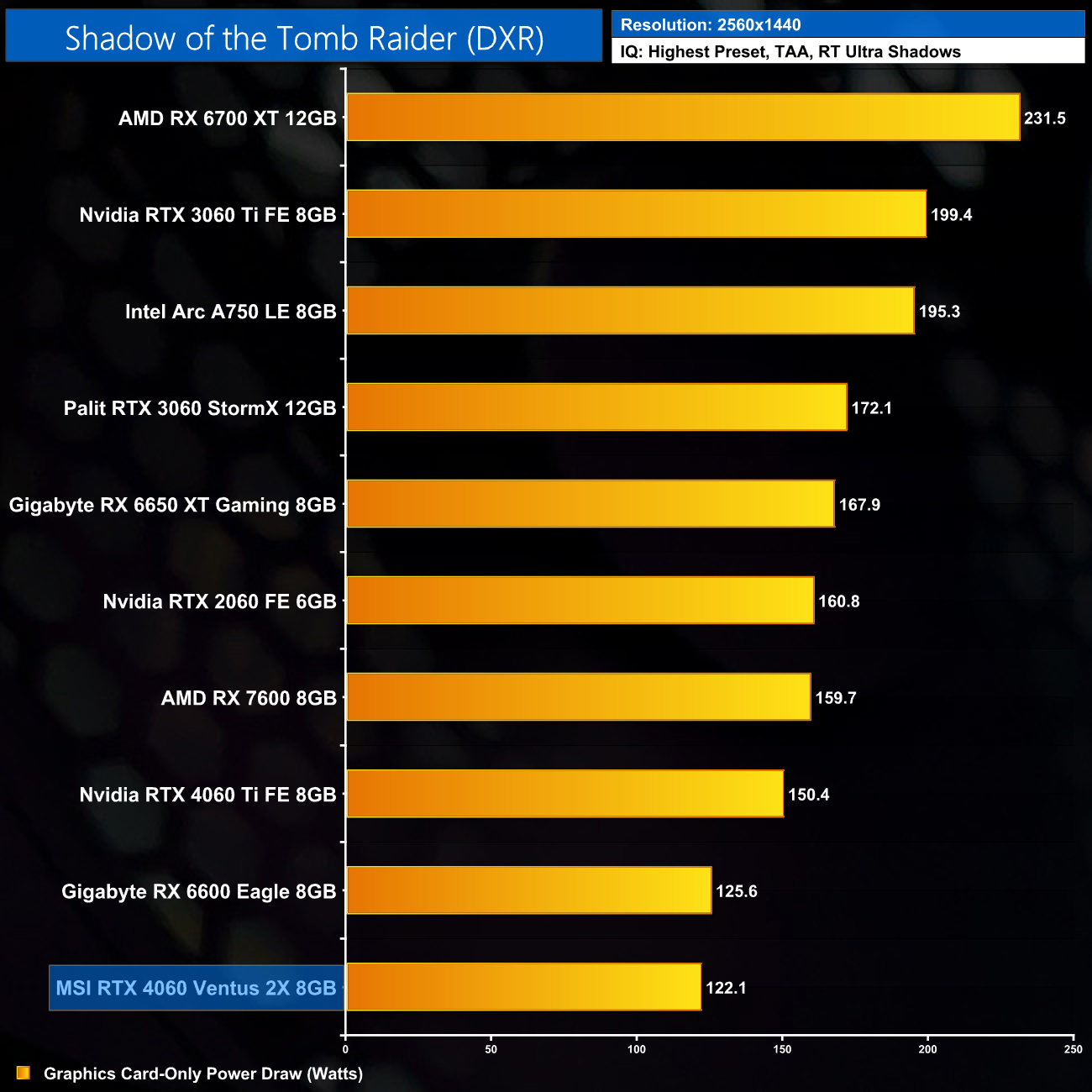

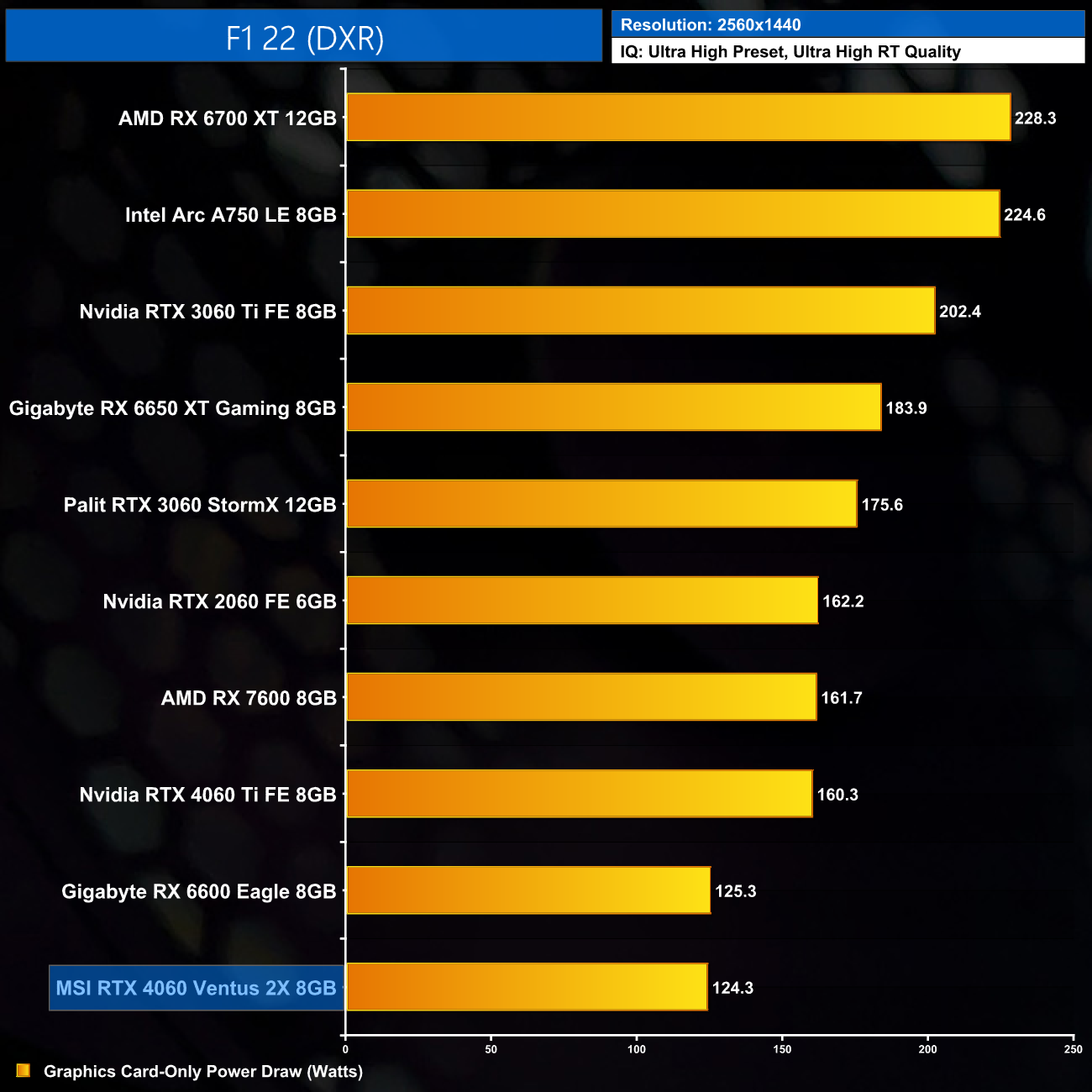

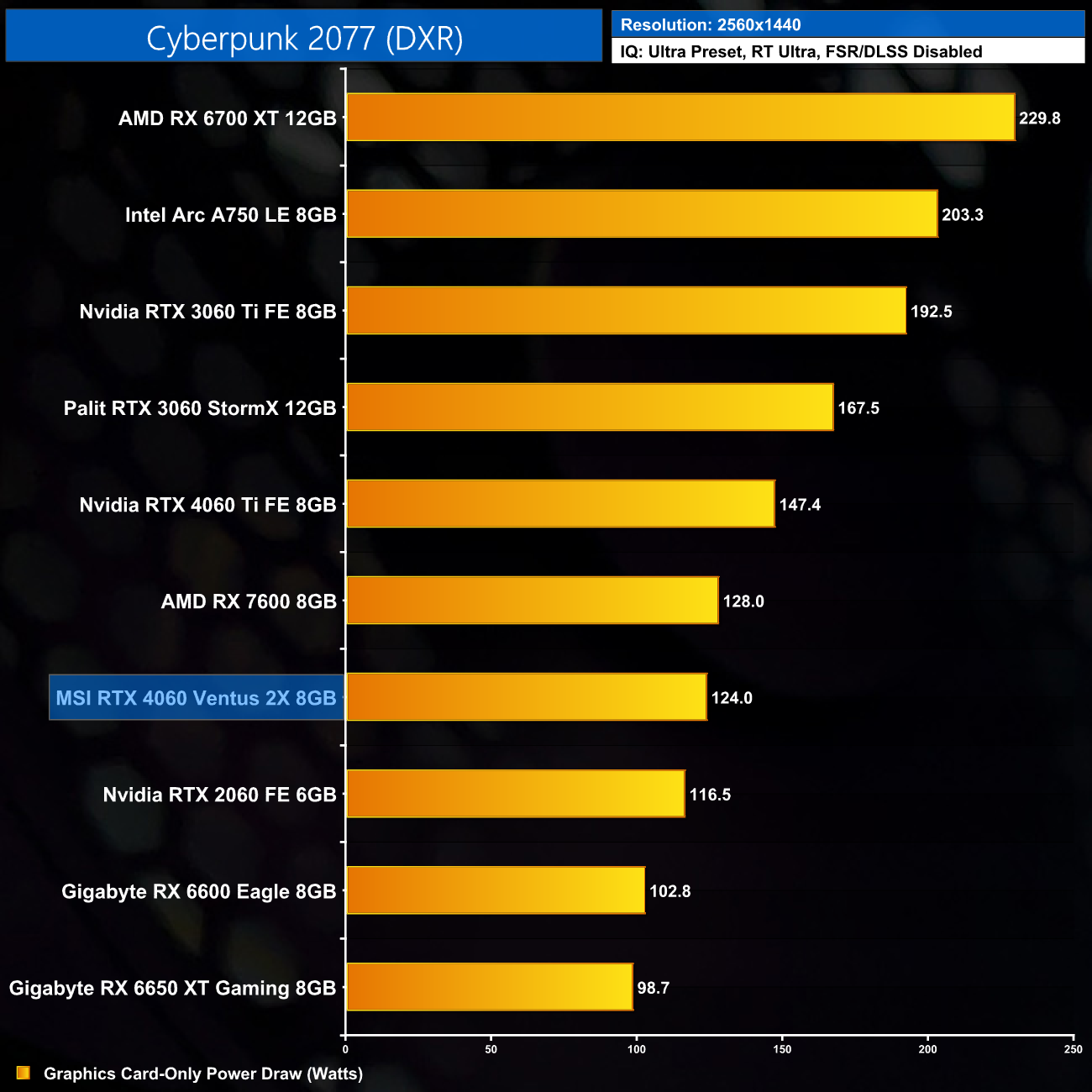

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

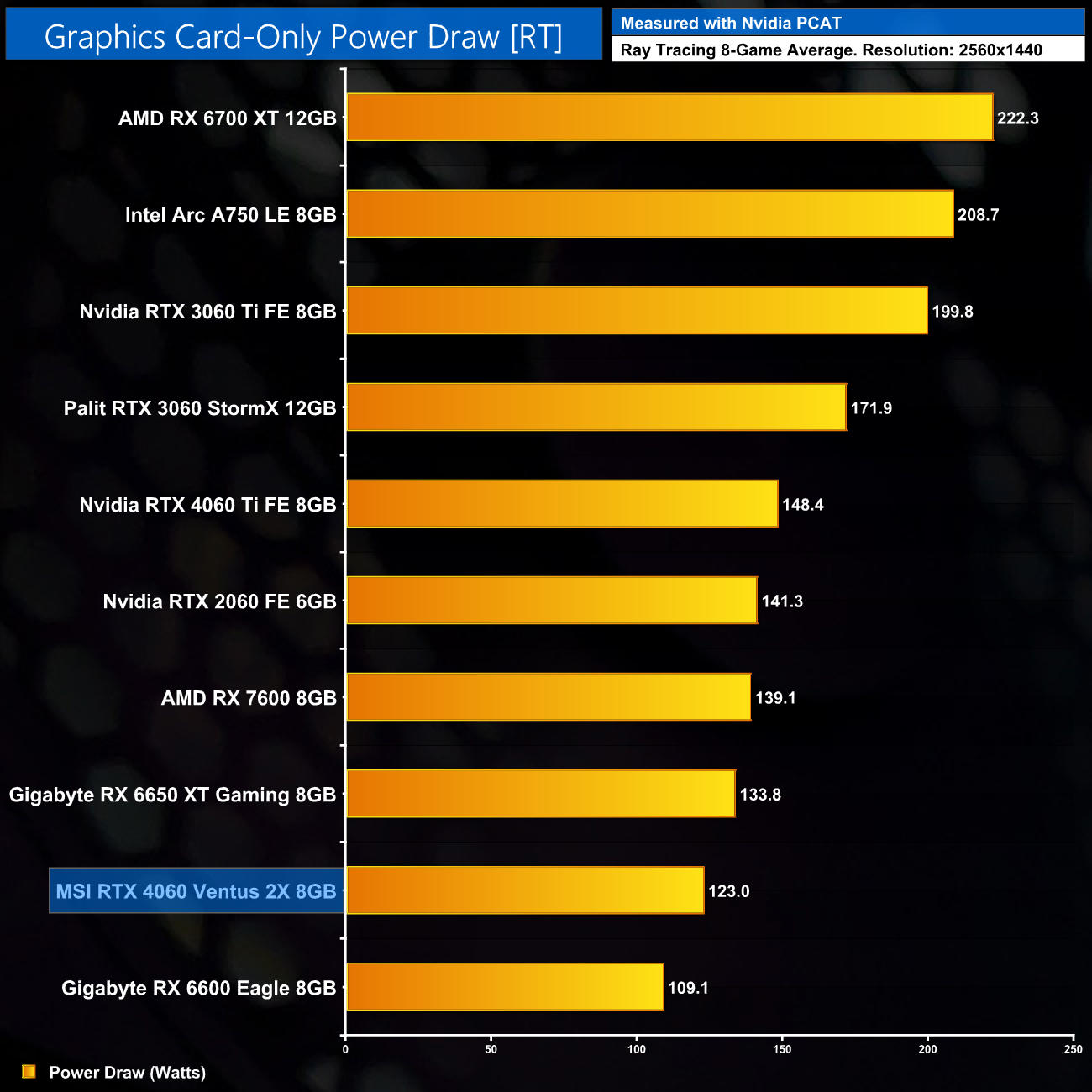

8-Game ray tracing average:

It's a similar story when looking at the ray traced figures too, with an average of 123W.
