Here we present power draw figures for the graphics card-only, on a per-game basis for all twelve games we tested at 2160p (4K). This is measured using Nvidia's Power Capture Analysis Tool, also known as PCAT. You can read more about our updated power draw testing methodology HERE.

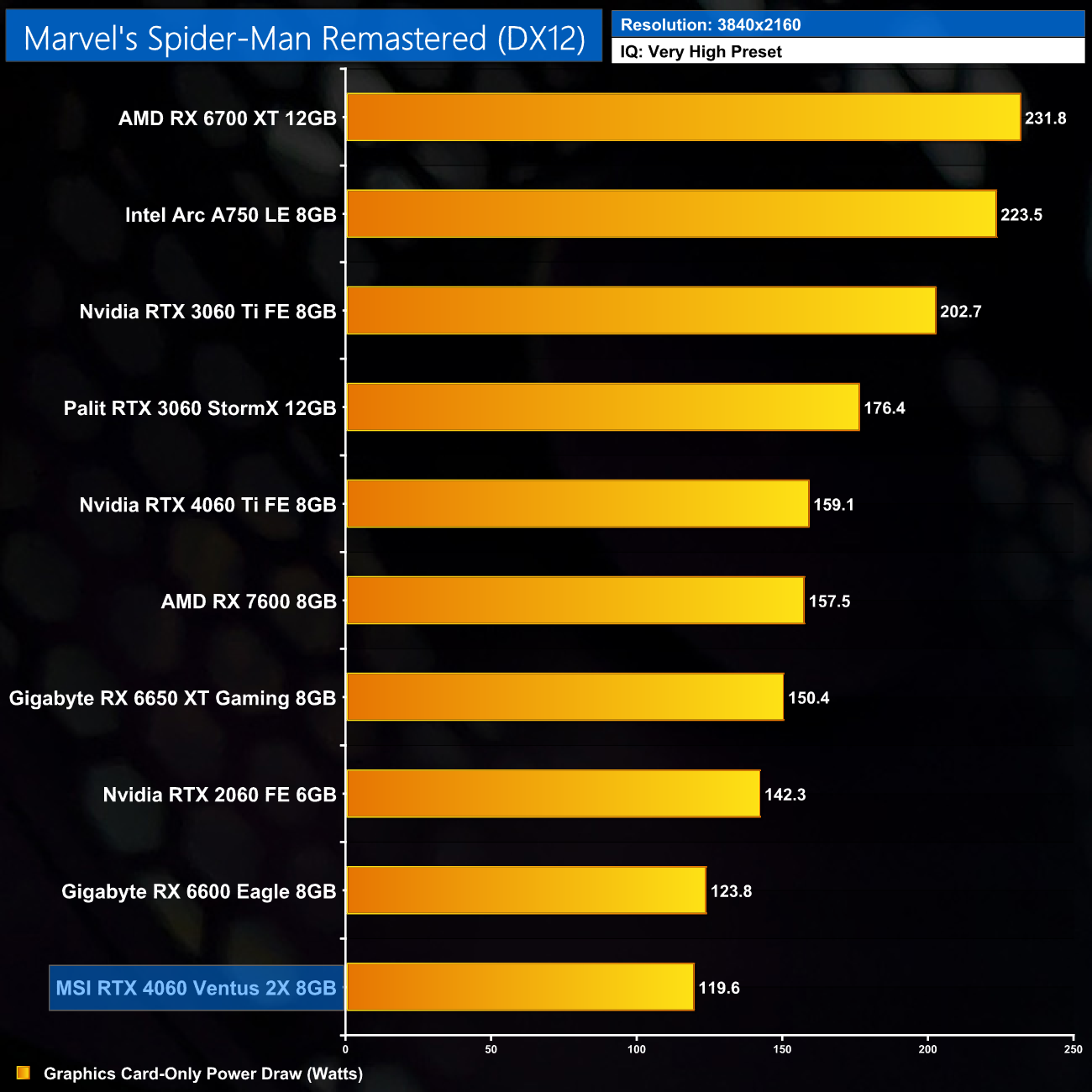

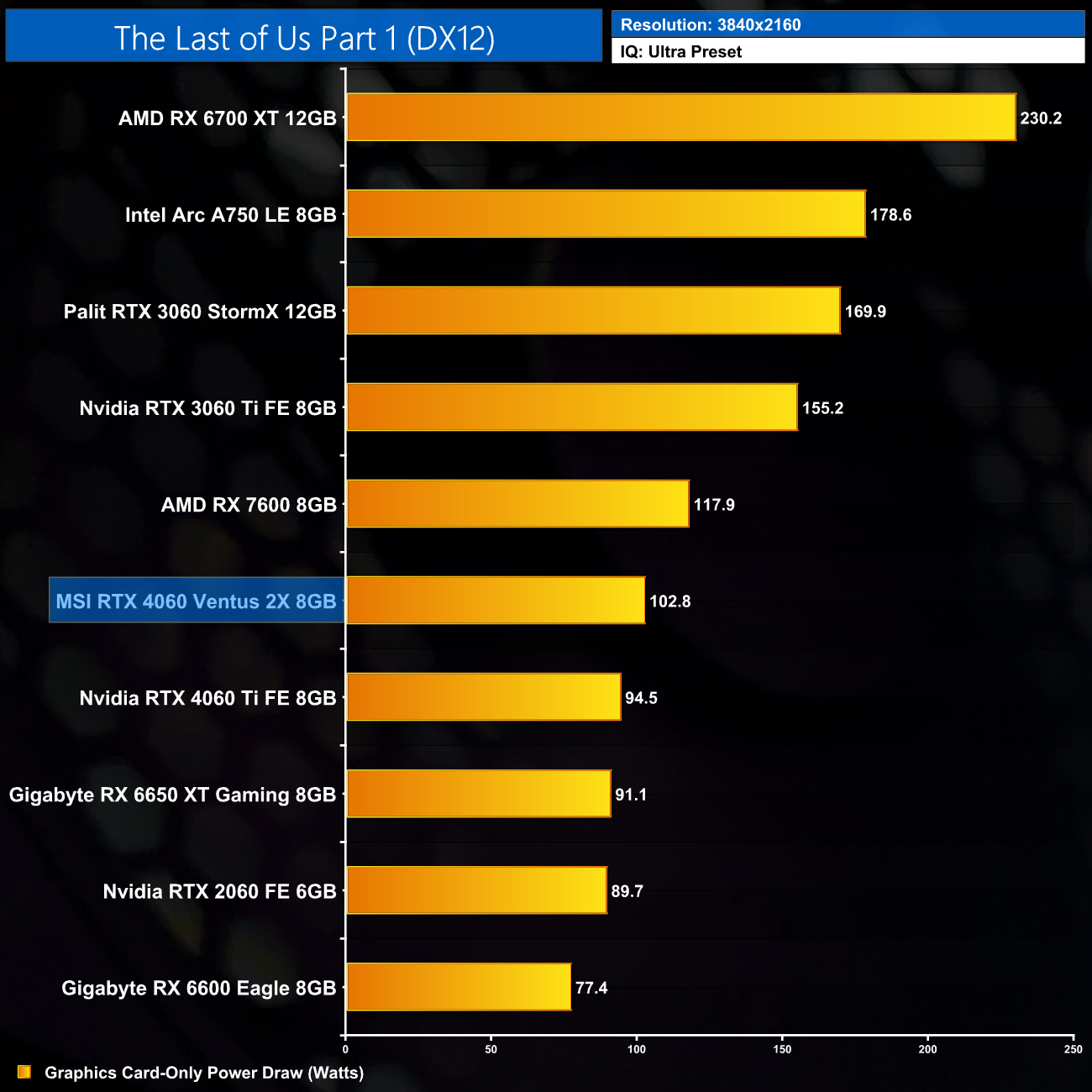

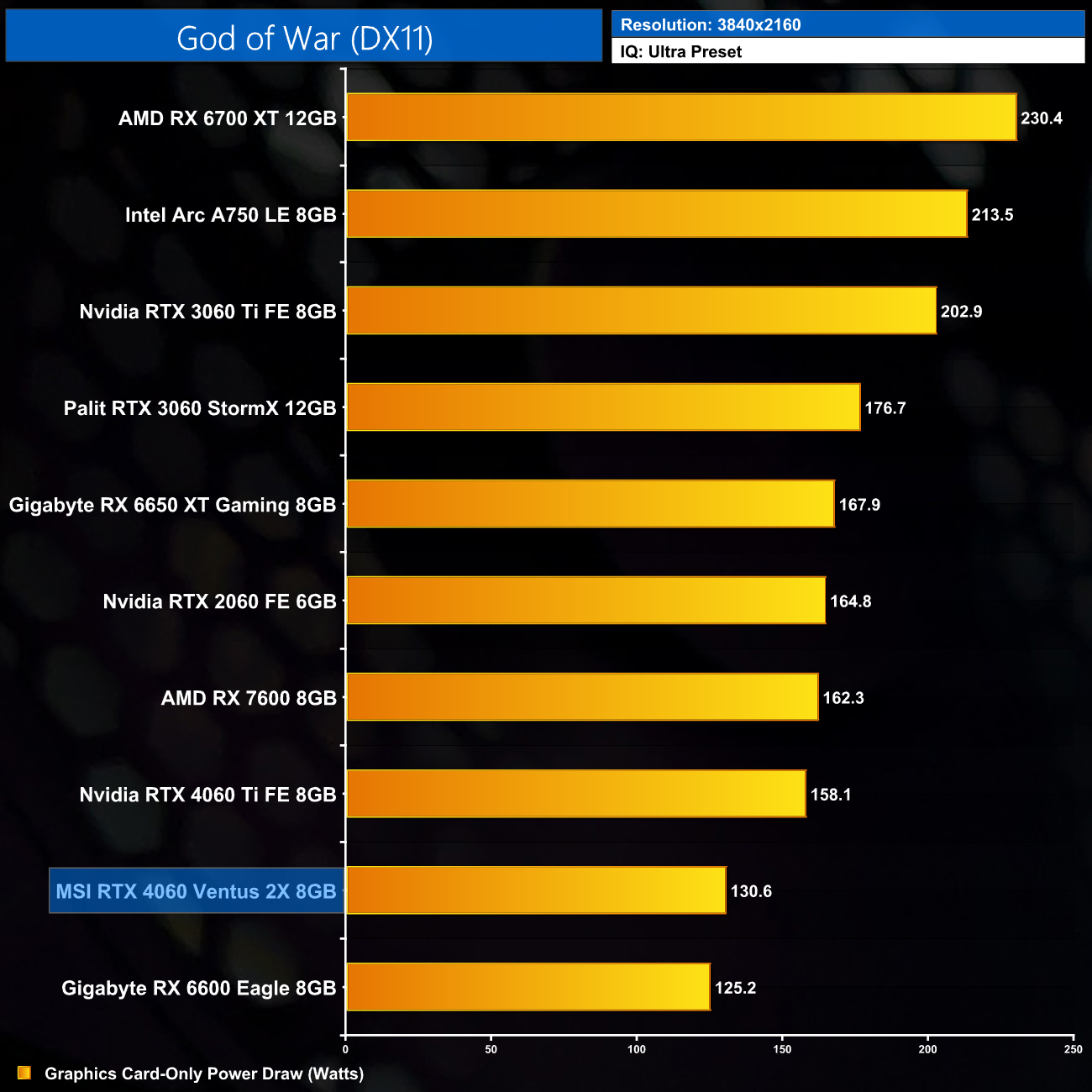

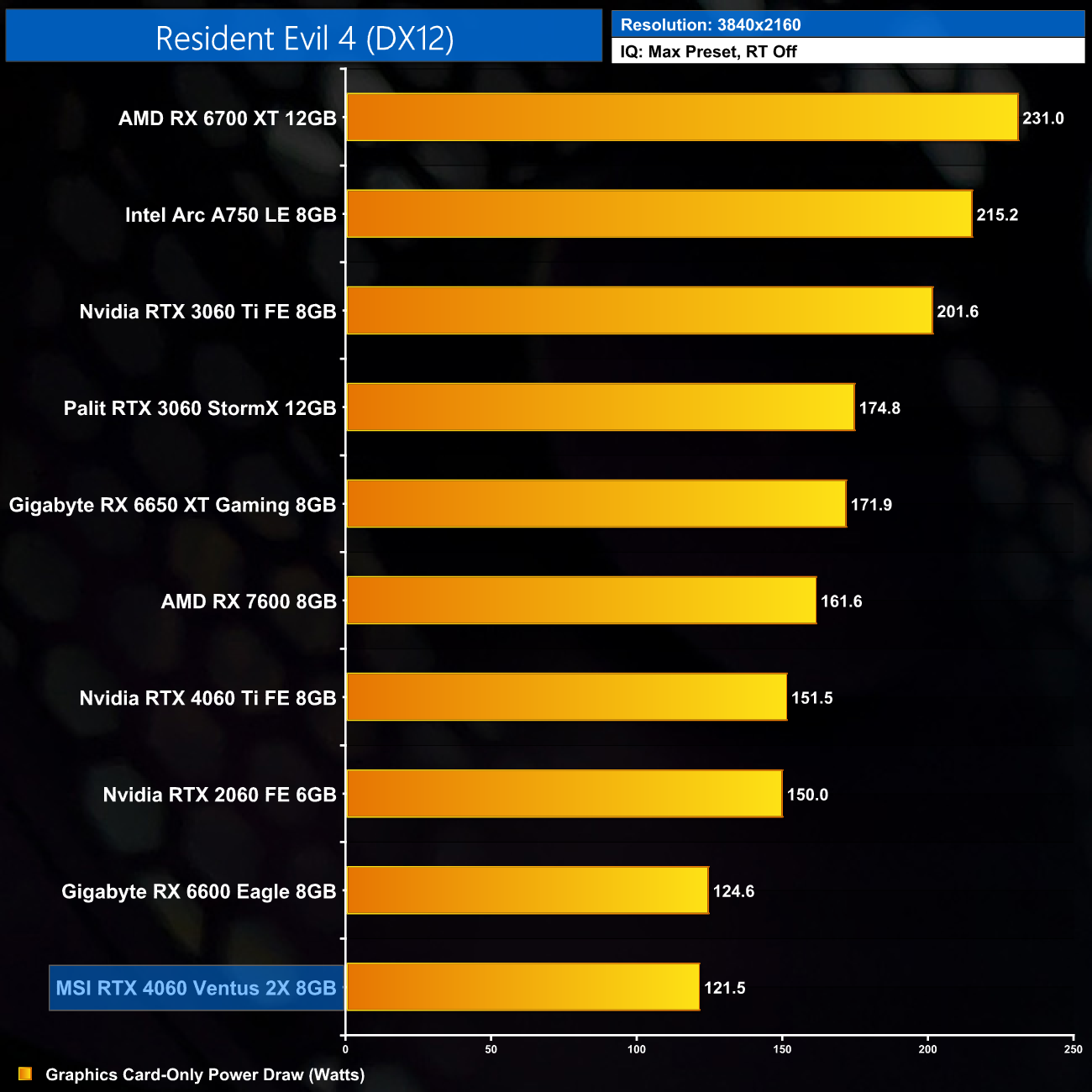

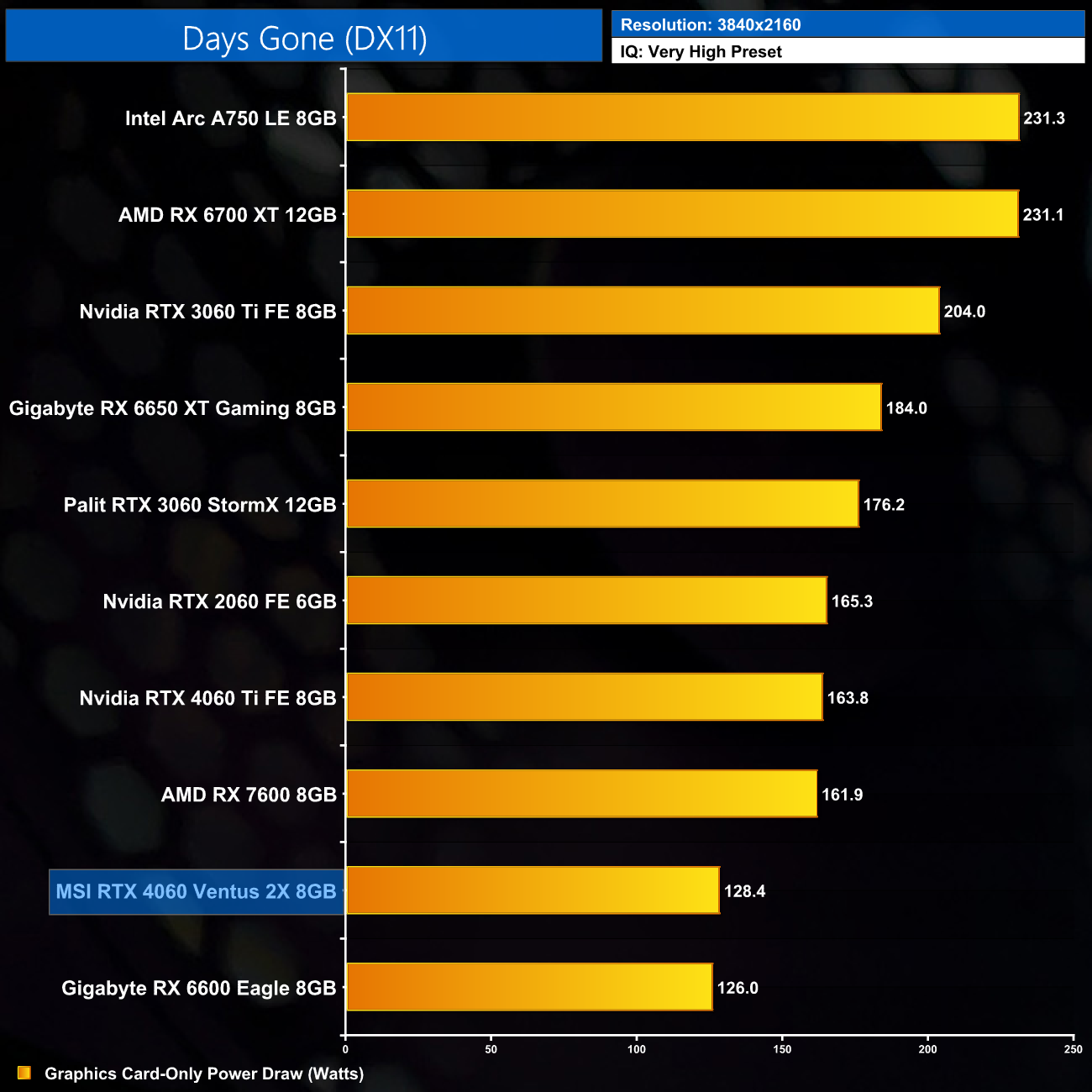

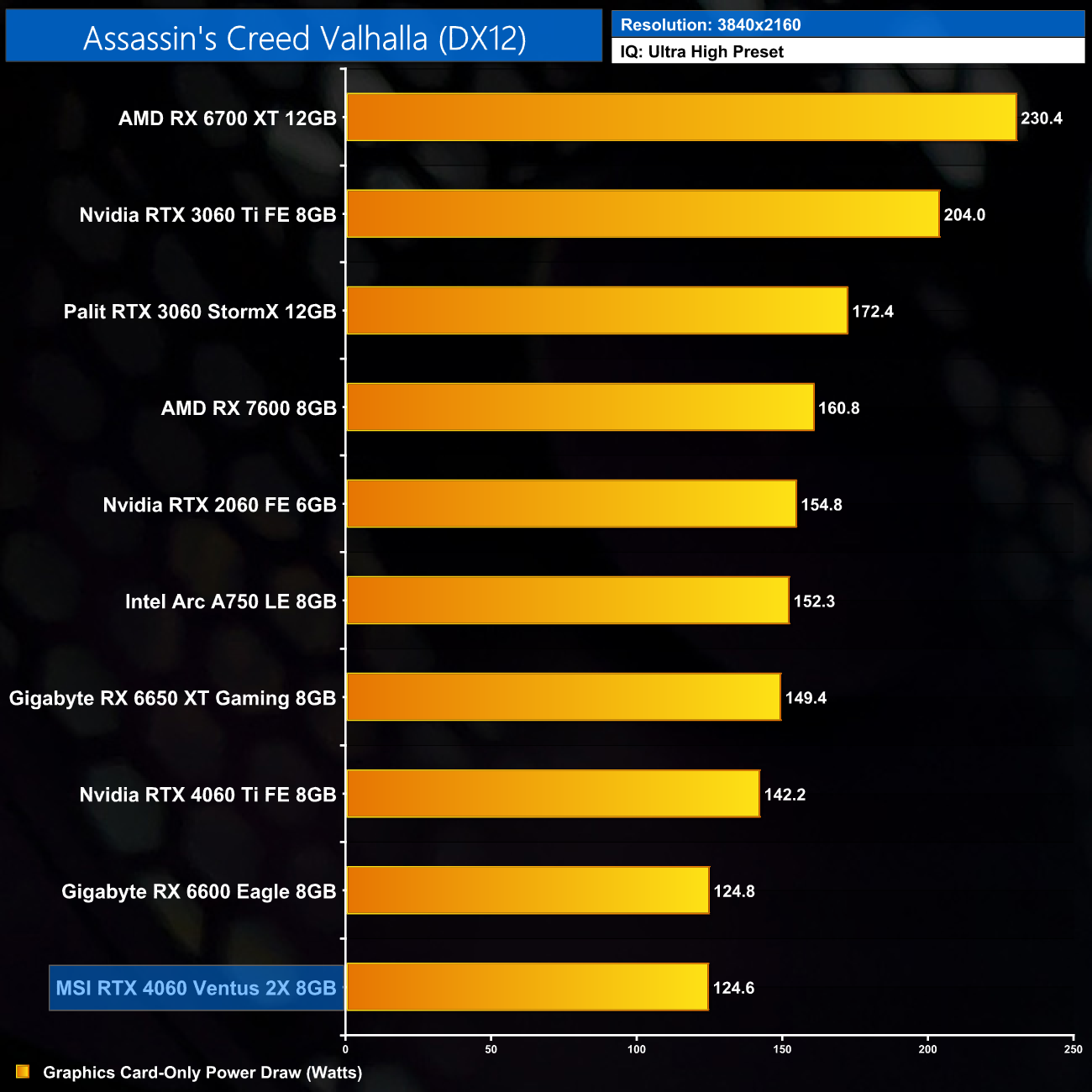

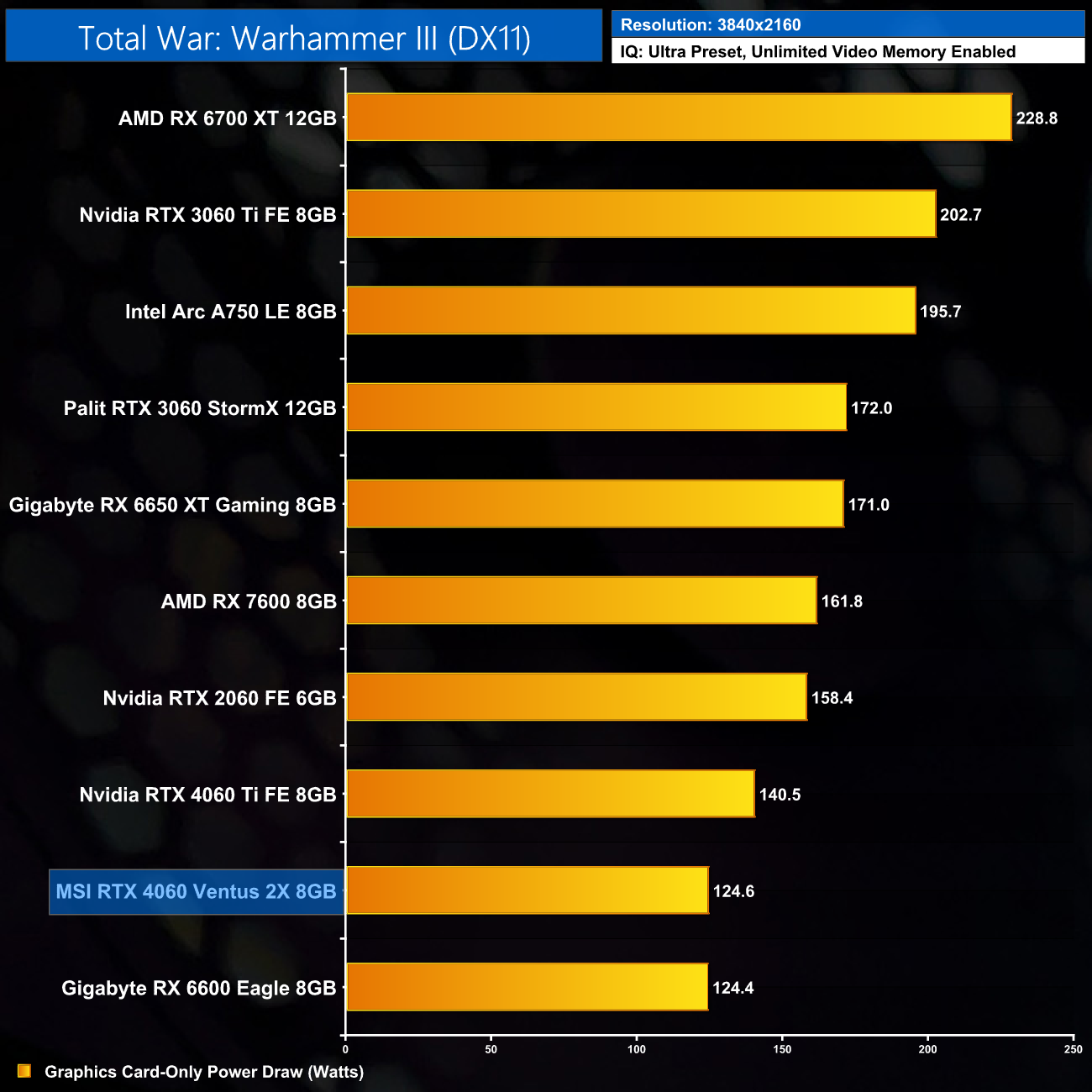

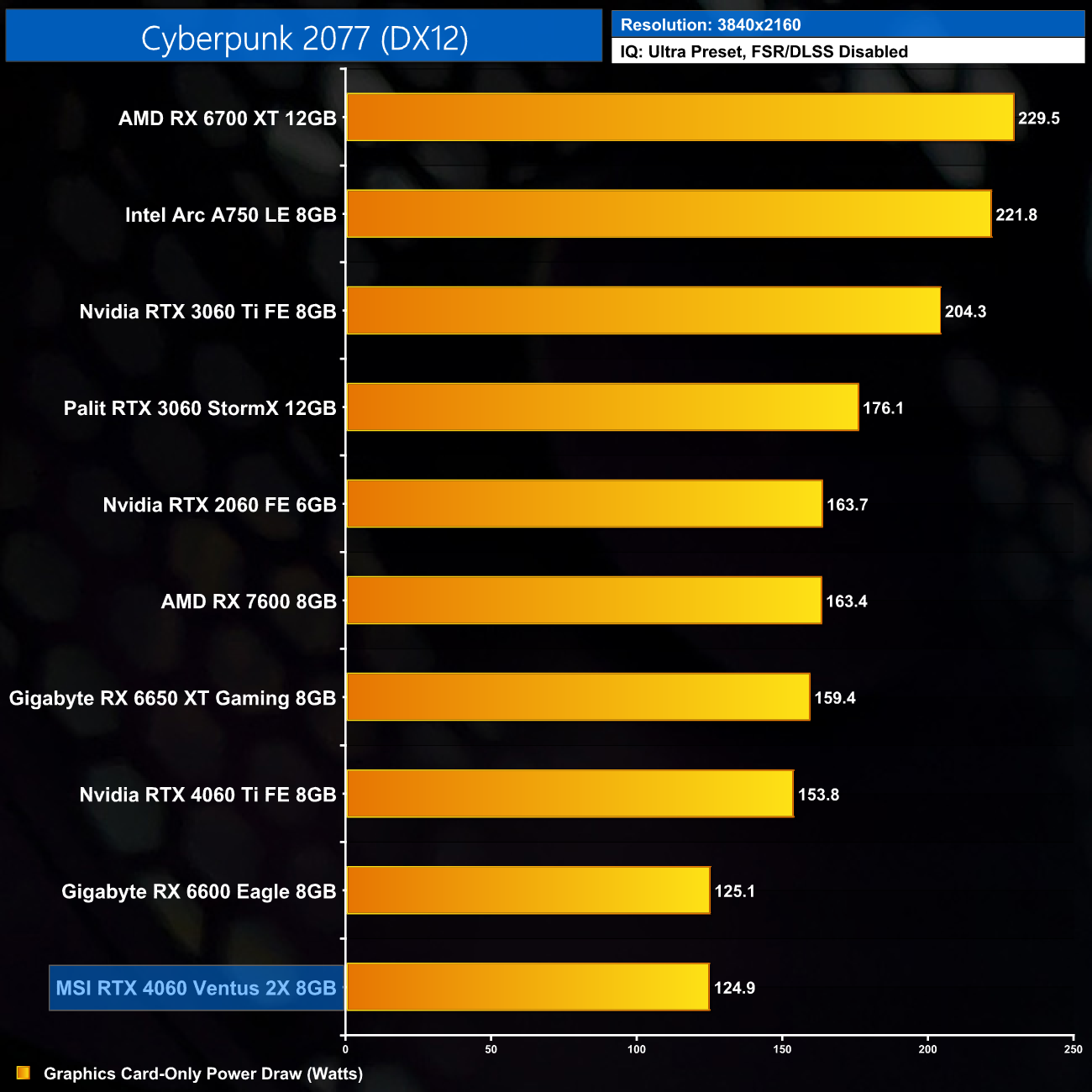

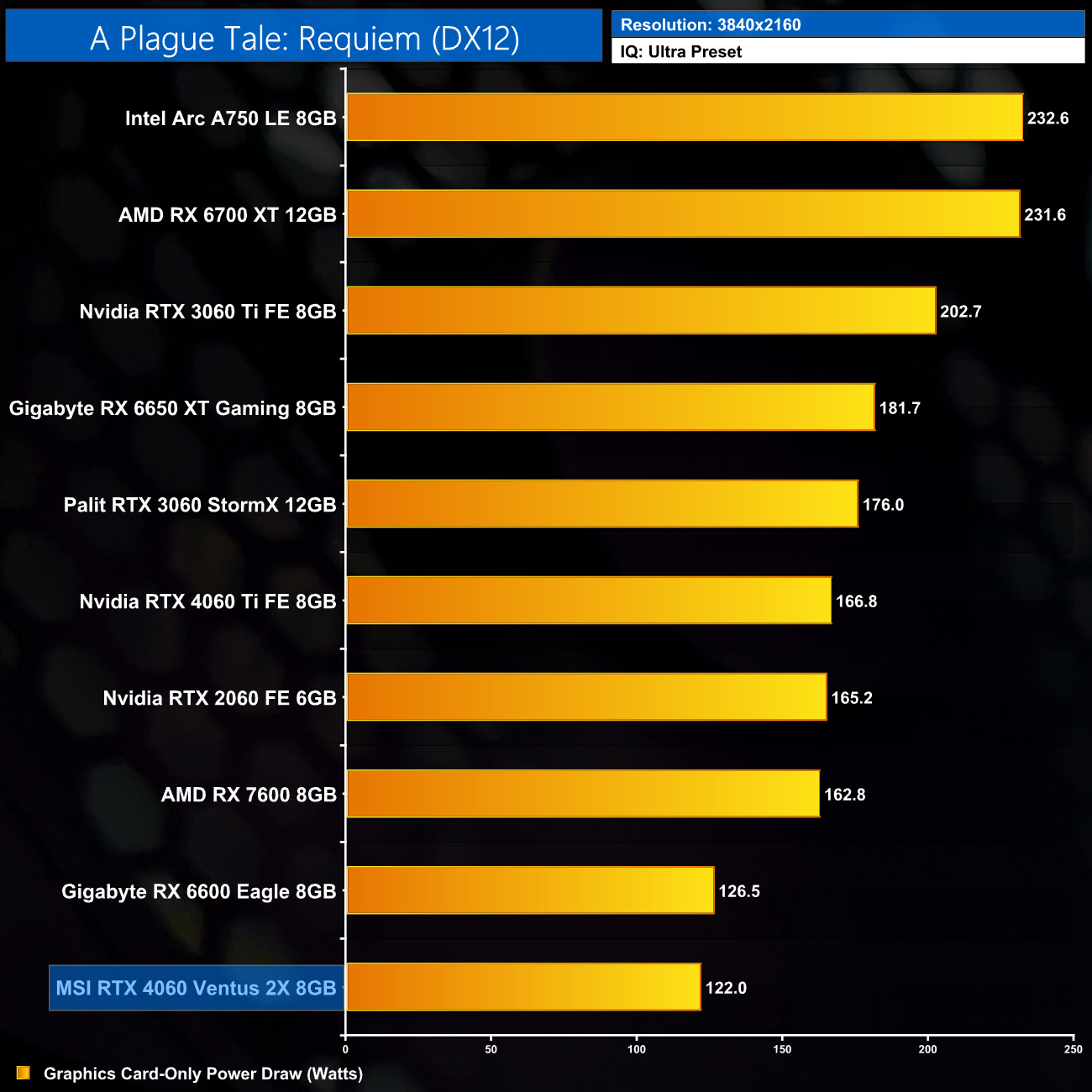

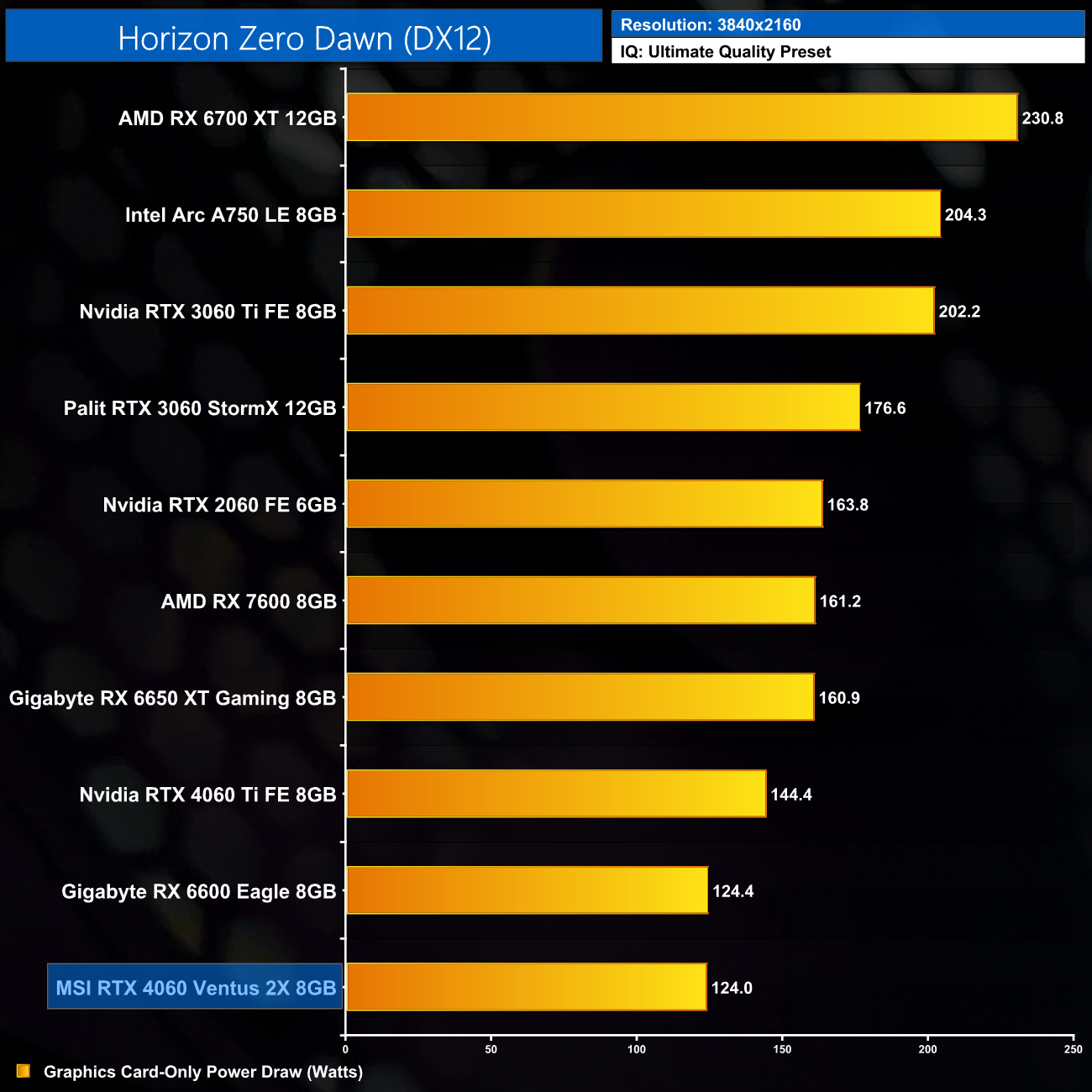

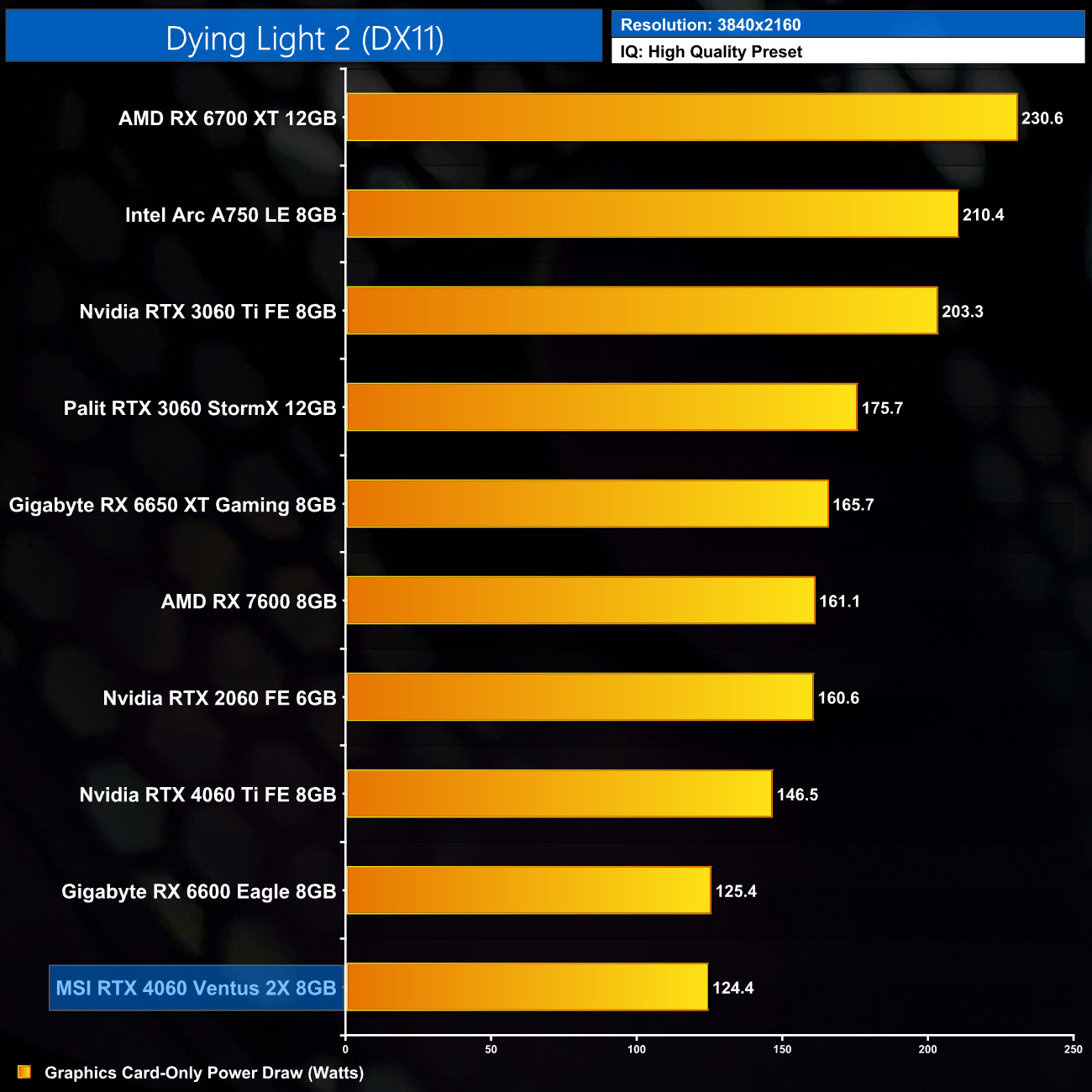

Per-Game Results at 2160p (4K):

Click to enlarge.

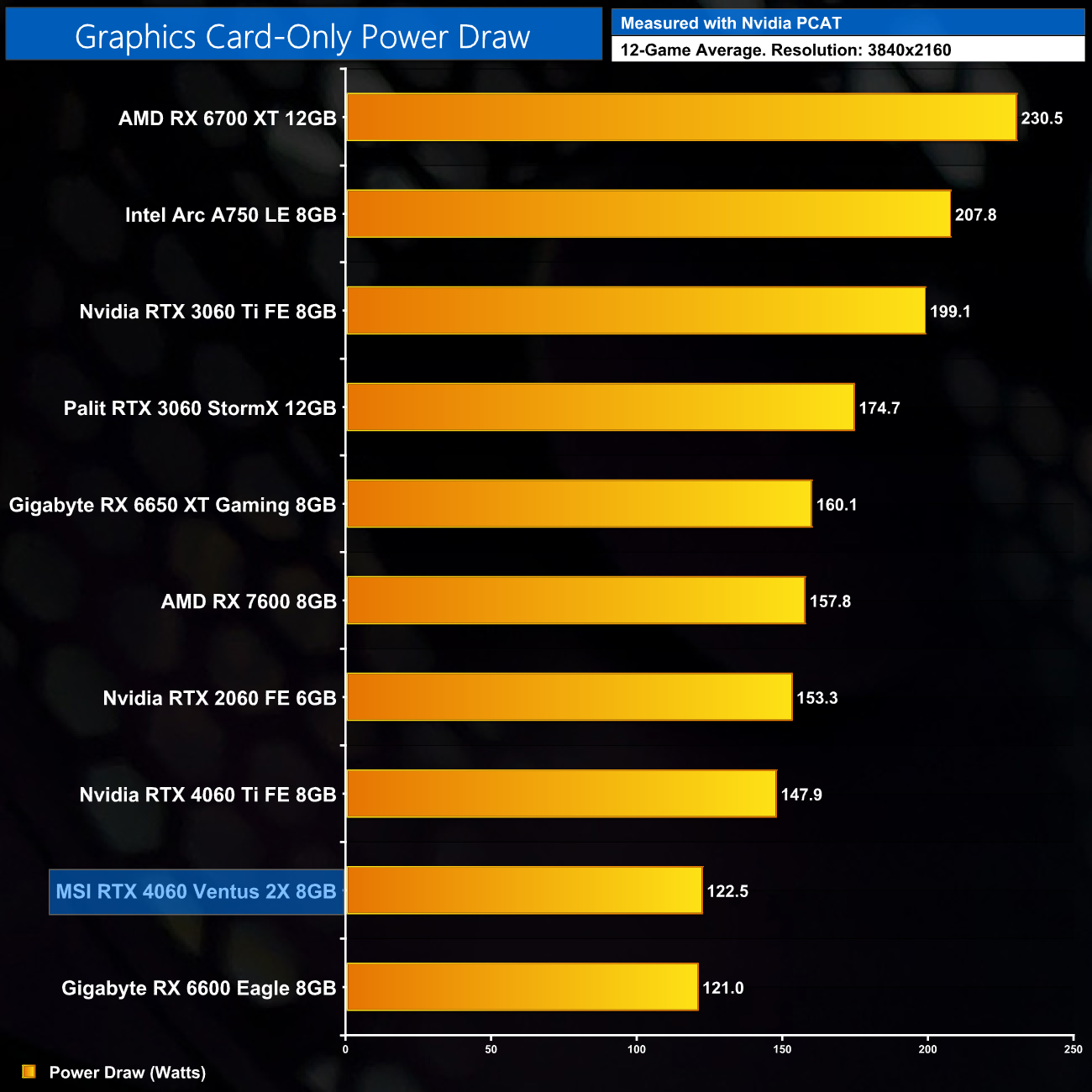

12-Game Average at 2160p (4K):

Up at 4K, we still see very similar overall results, with the 4060 averaging 122.5W over the 12 games we tested.

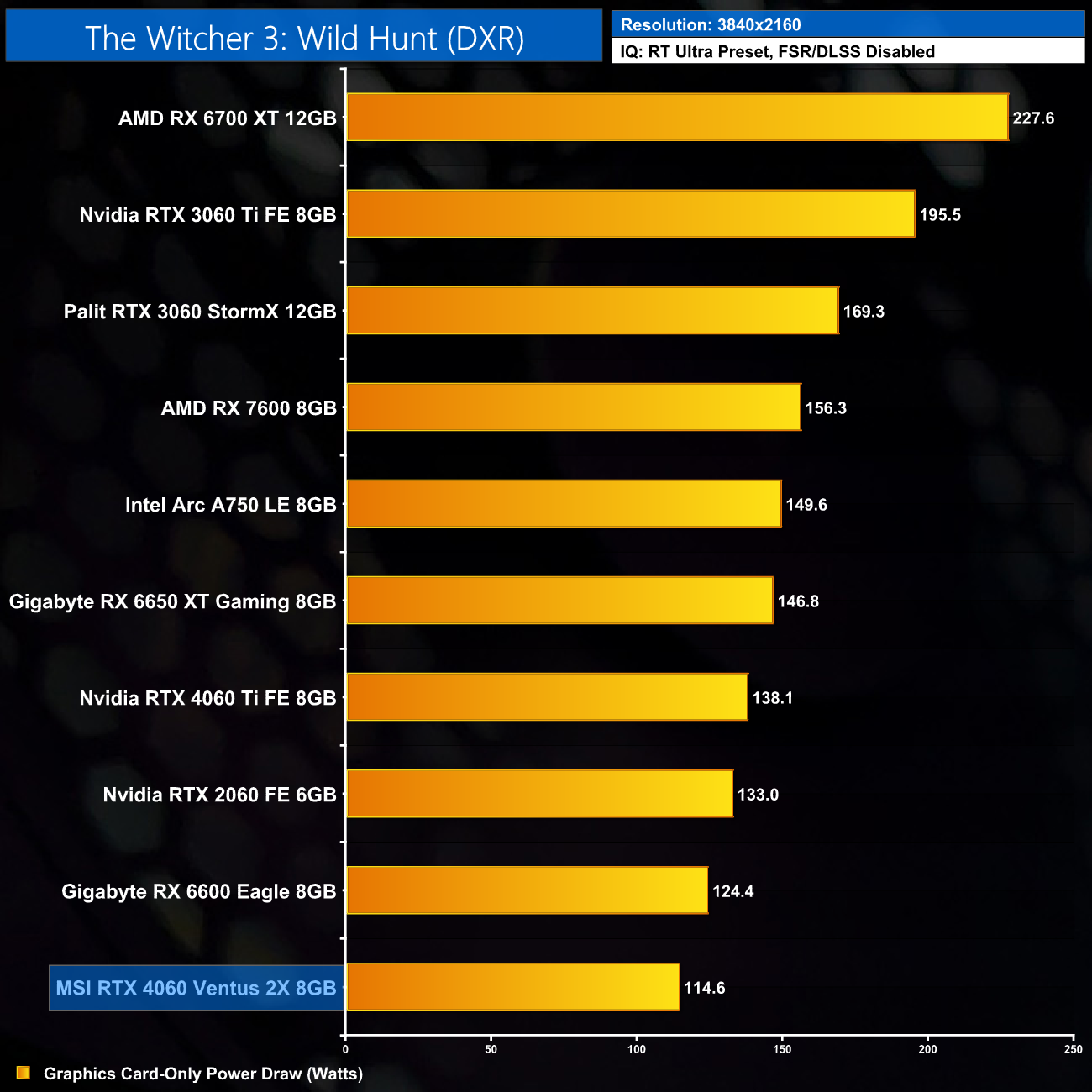

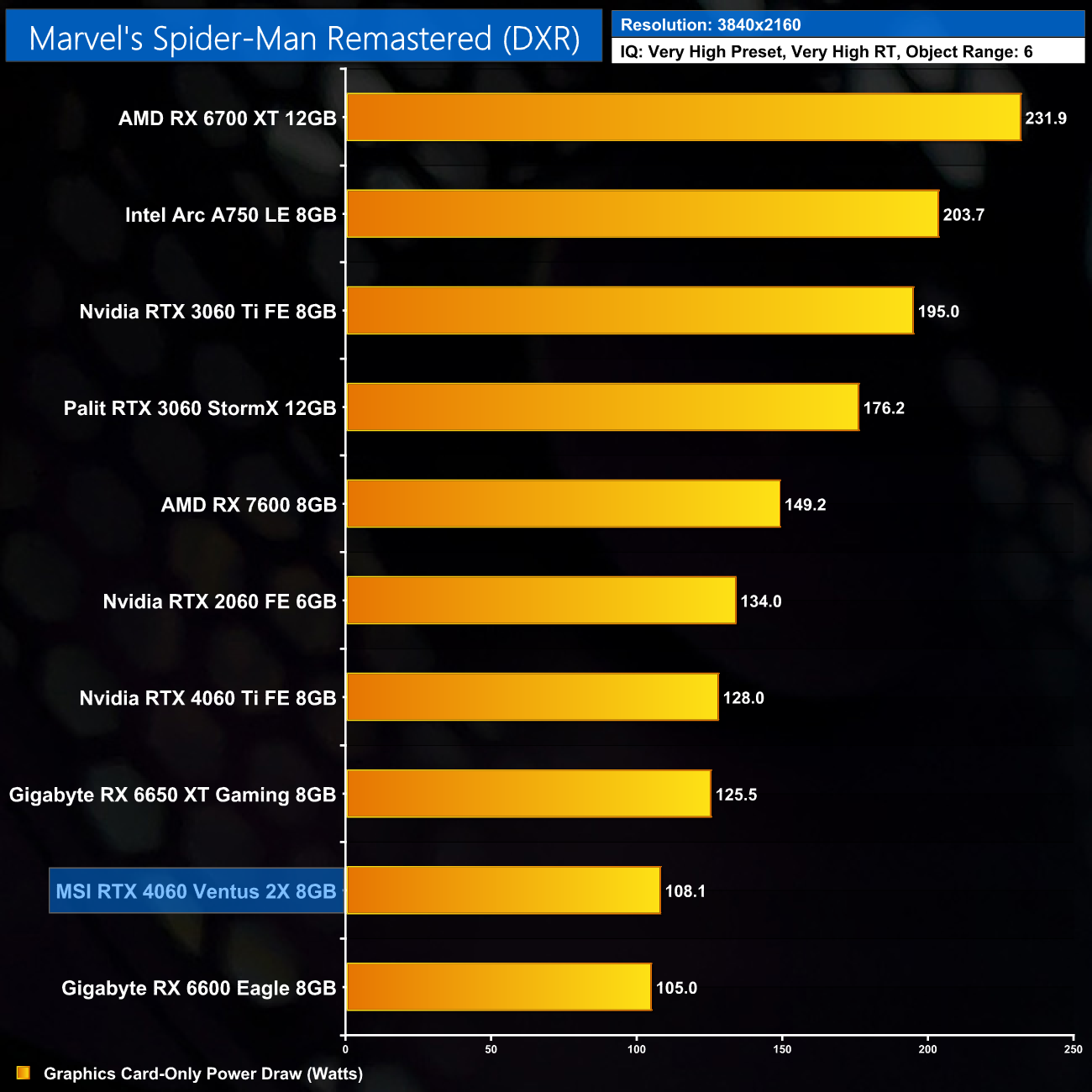

Ray tracing results

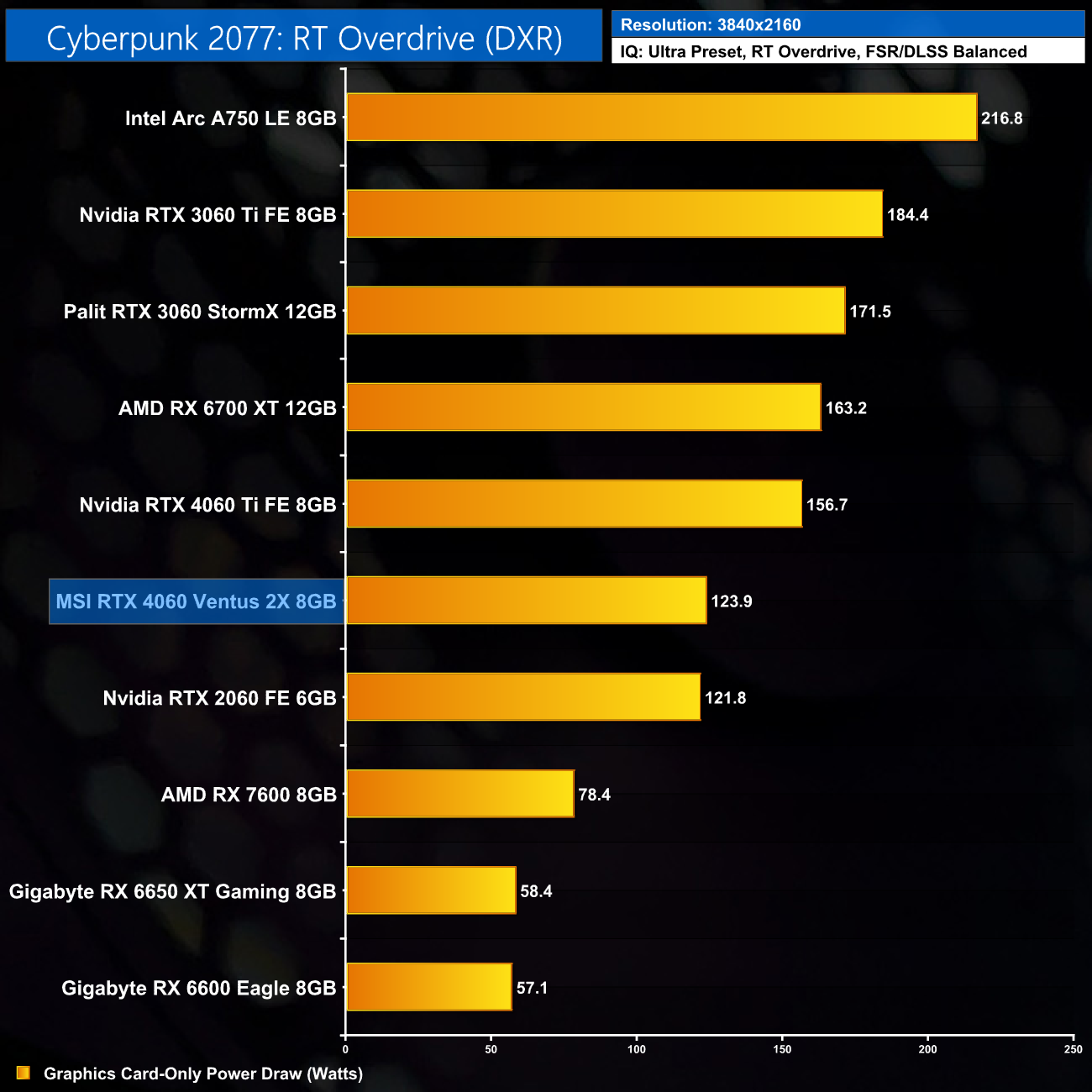

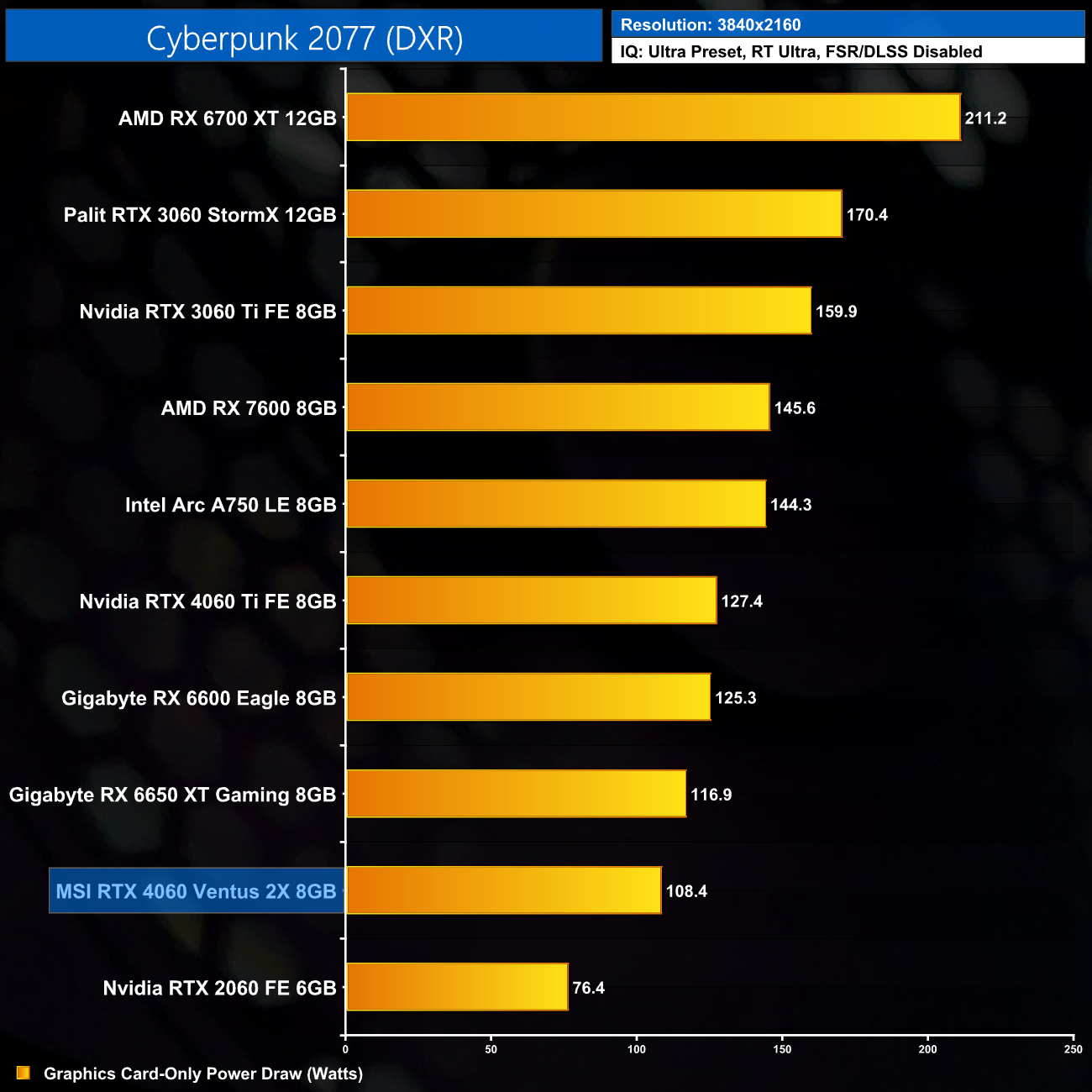

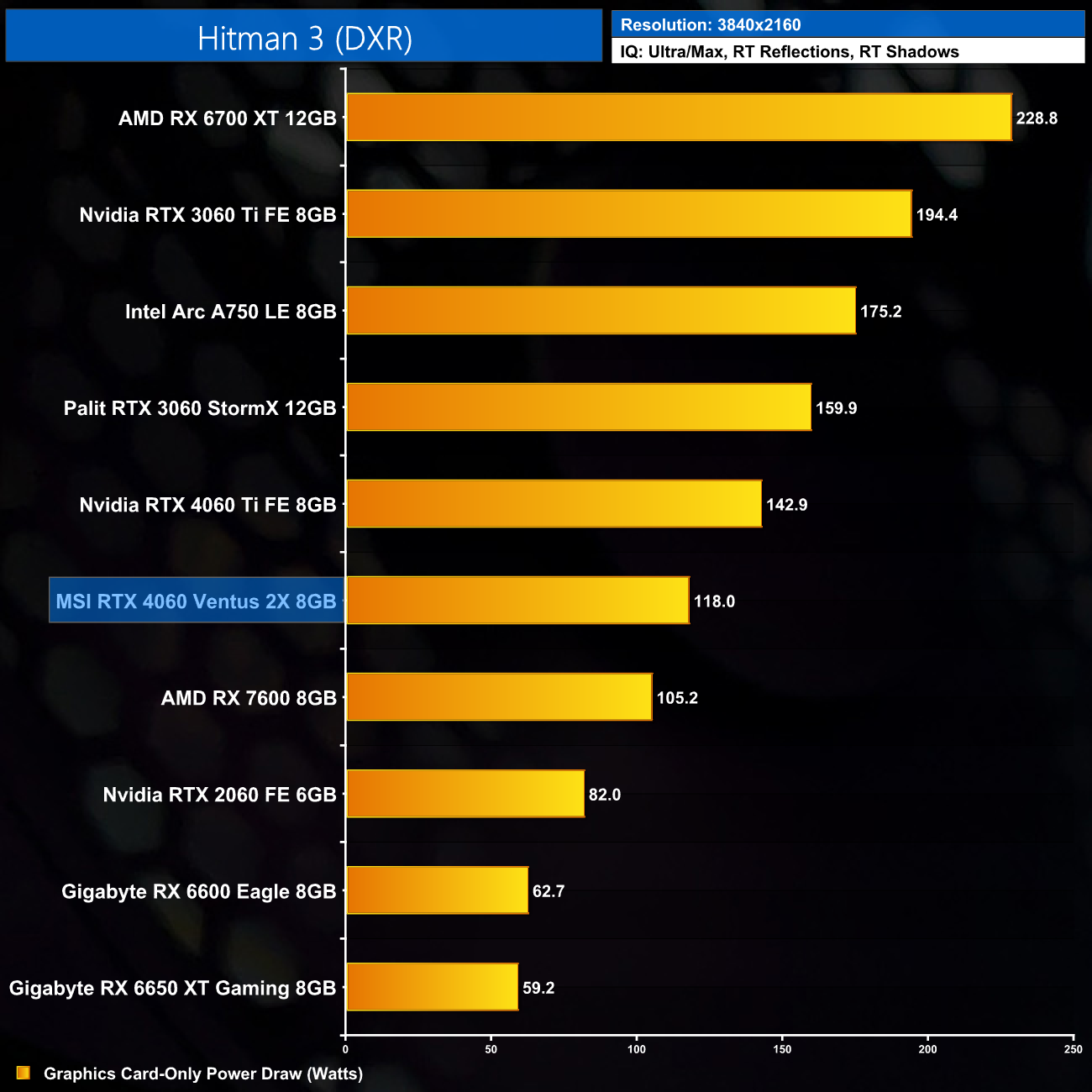

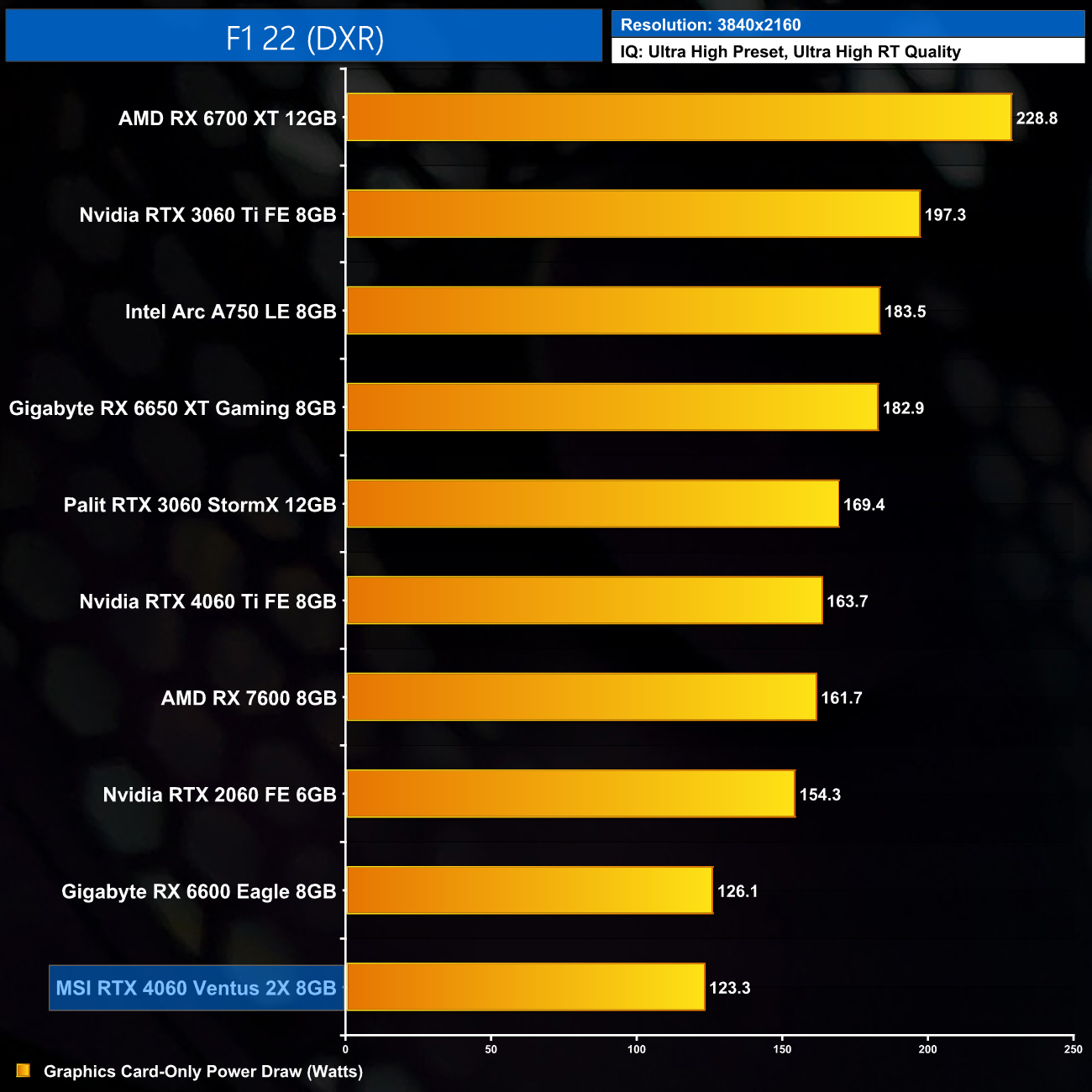

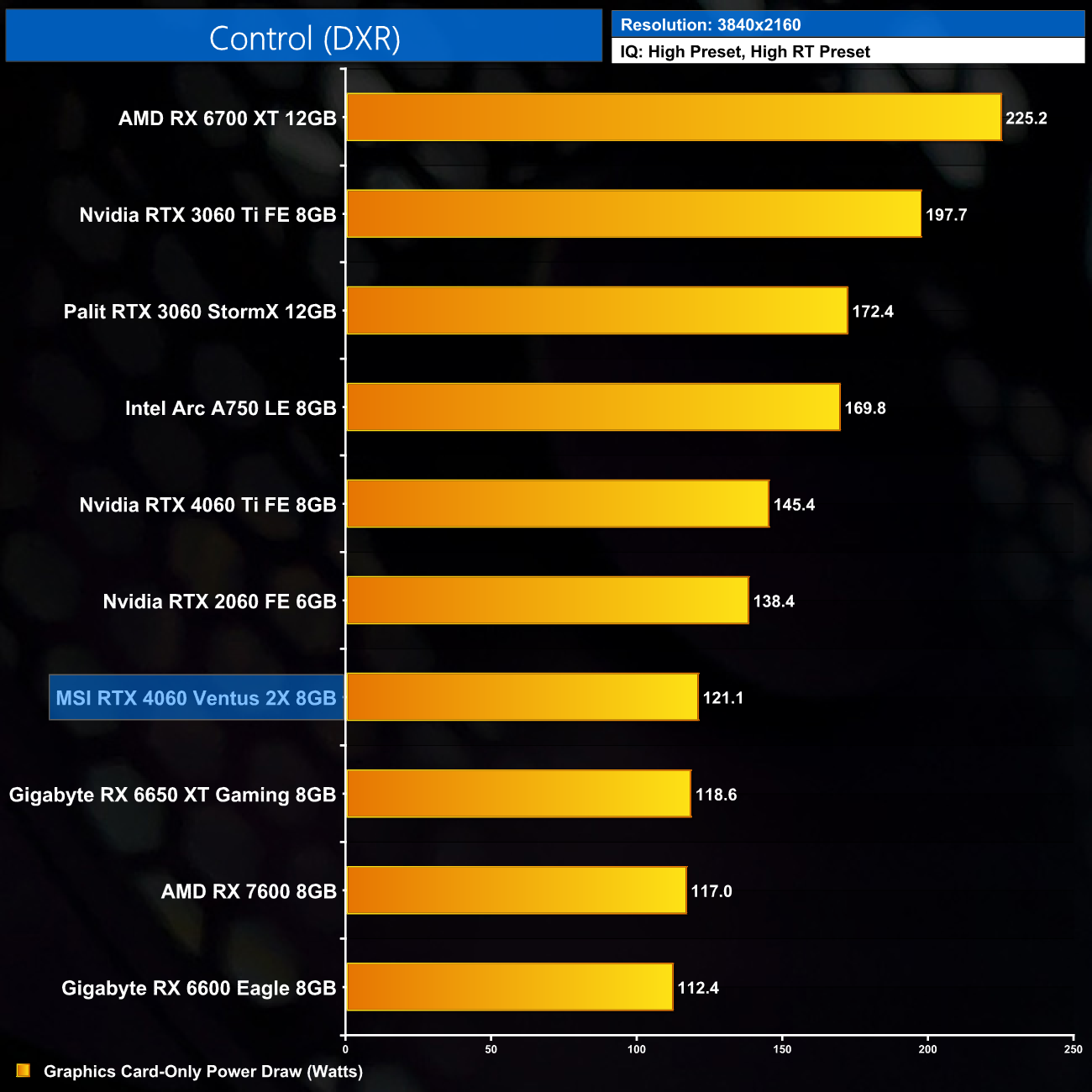

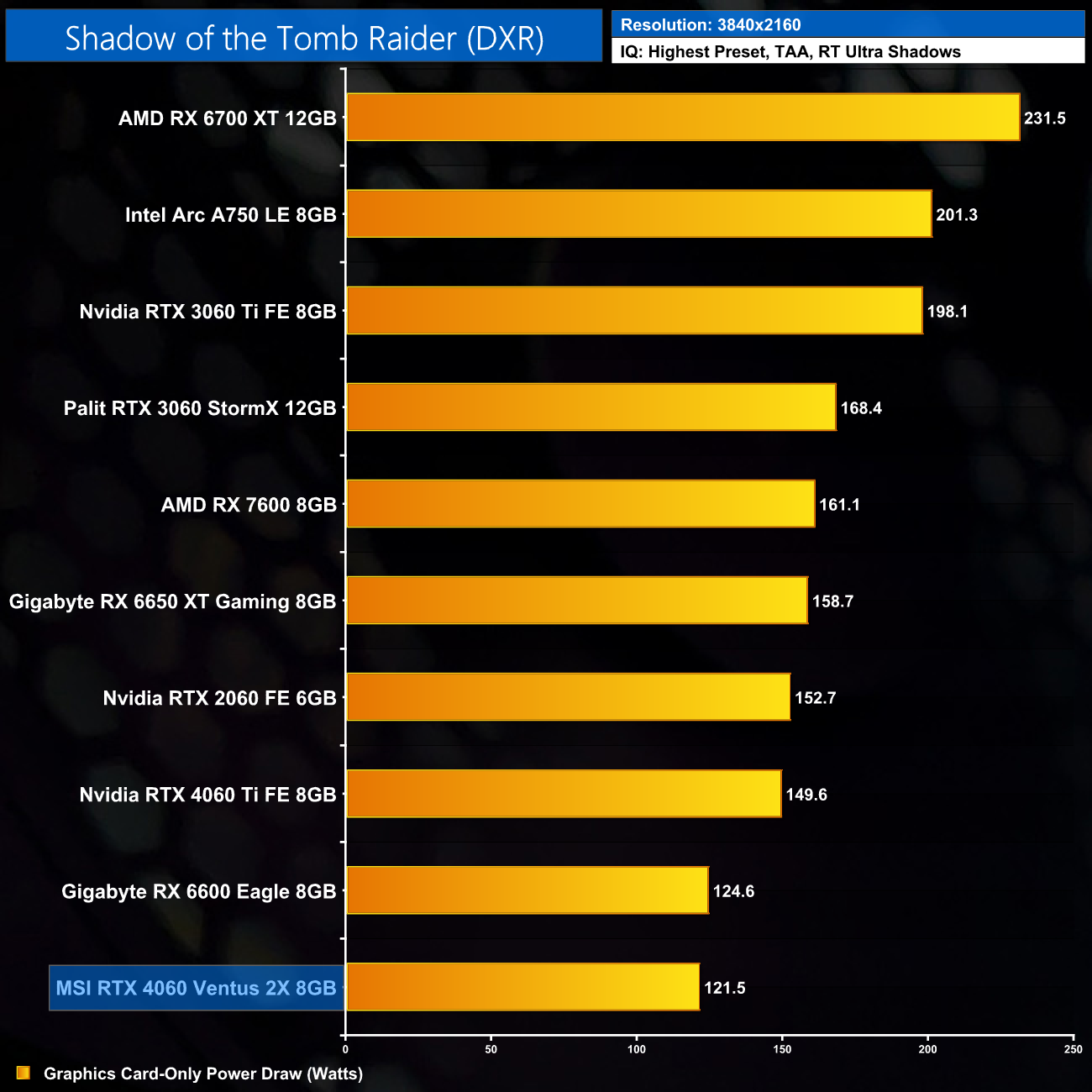

As a bonus, we now include the power figures for all eight games we test with ray tracing enabled.

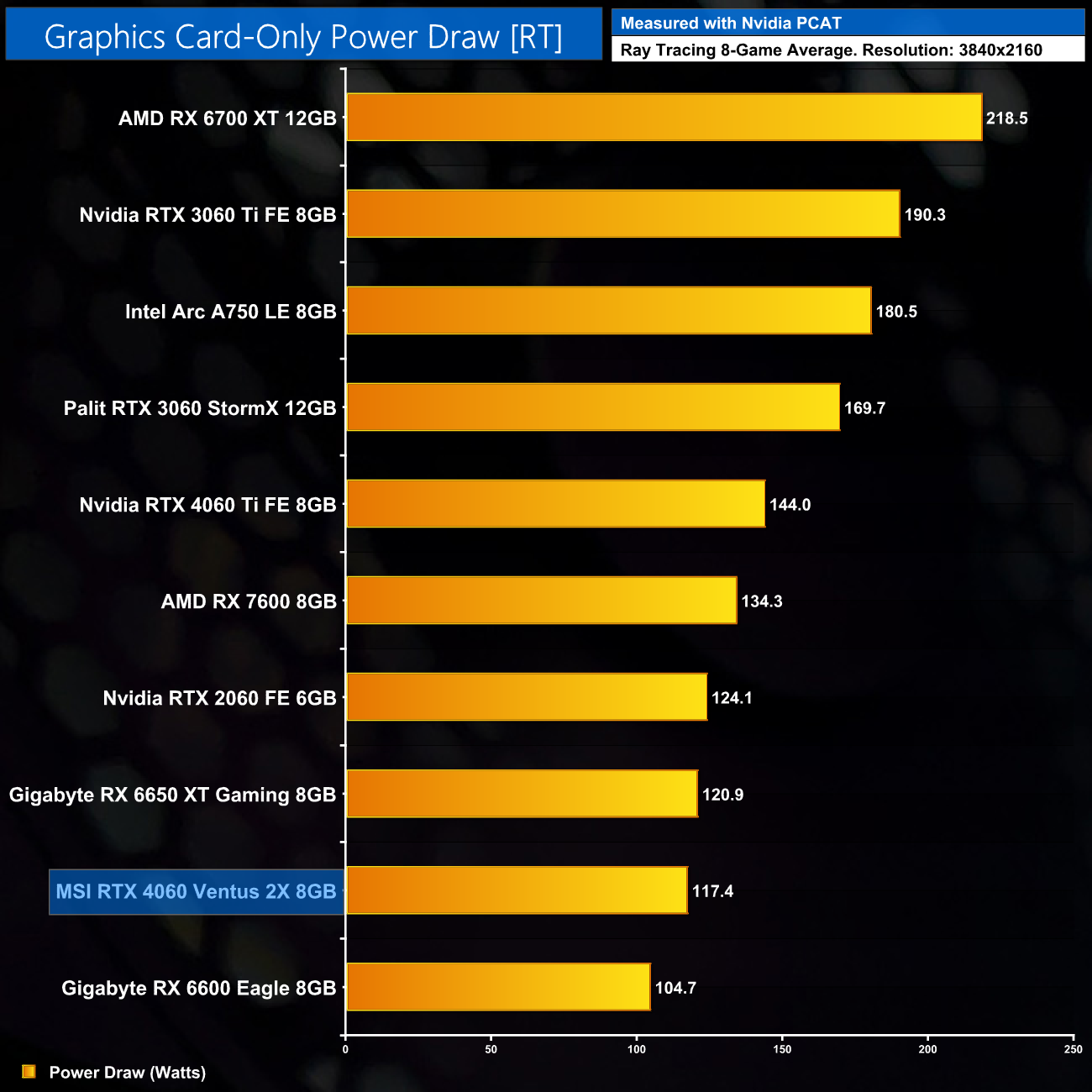

8-Game ray tracing average:

Power does just fall off at 4K with ray tracing enabled however, a few games are completely unplayable here resulting in the GPU stalling, which in turn reduces power.
