CPU Tests

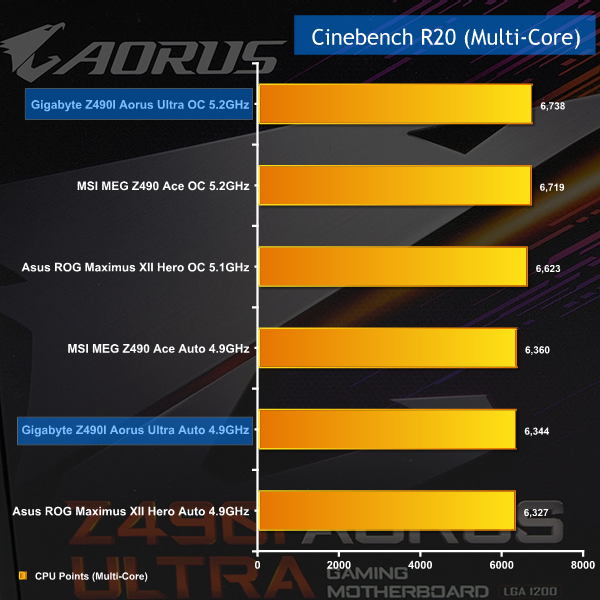

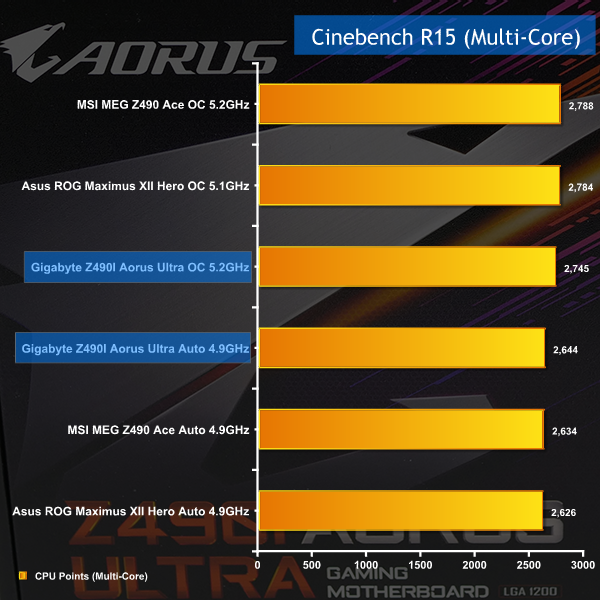

Cinebench Overview

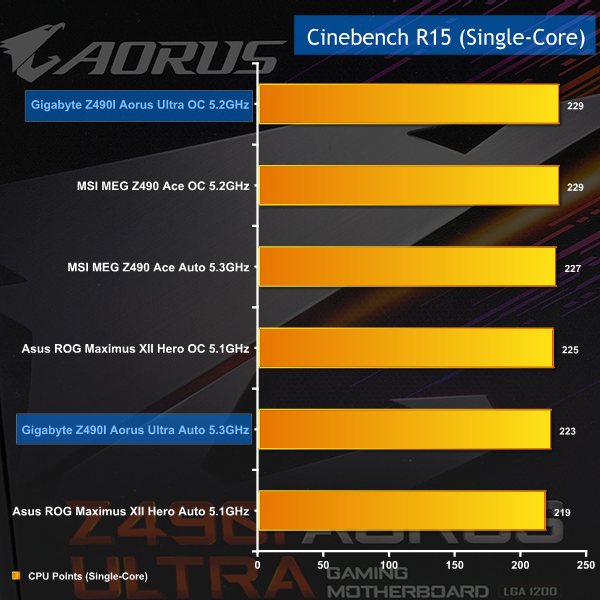

The Multi-Core results from Cinebench are quite predictable as higher clock speeds deliver better results. On the Single-Core side of things the Auto results are lower than we might expect as Thermal Velocity Boost promises a clock speed of 5.3GHz. This is higher than the best overclock we have been able to achieve on all cores however as we have shown in our video TVB only operates momentarily so while Intel can technically claim a maximum speed of 5.3GHz our results demonstrate the facts of the matter.

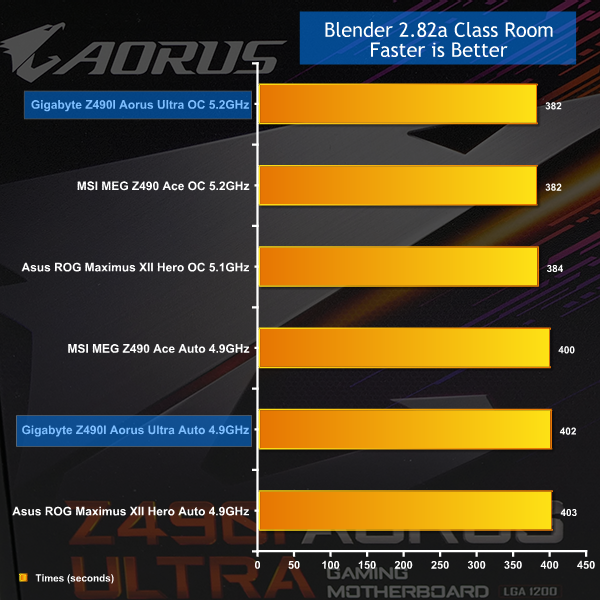

Blender Overview

In Blender 2.82a the Gigabyte ties for honours with MSI as both motherboards can sustain an overclocked speed of 5.2GHz on our Core i9-10900K.
