ASRock B550 Phantom Gaming-ITX/AX Review

1. Introduction2. Board Layout and Features3. Testing Methodology4. Tests: CPU Related5. Tests: Memory Related6. Tests: Gaming Related7. Tests: Motherboard Features Performance8. Overclocking, VRM Temps & Power Consumption9. Closing Thoughts10. View All Pages

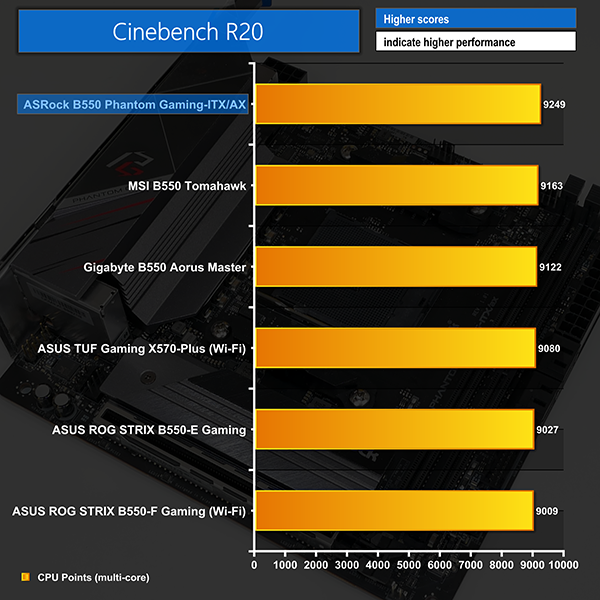

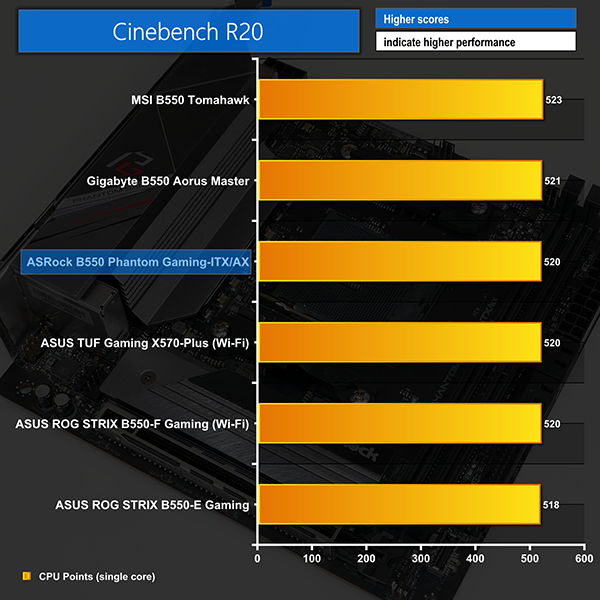

Cinebench R20

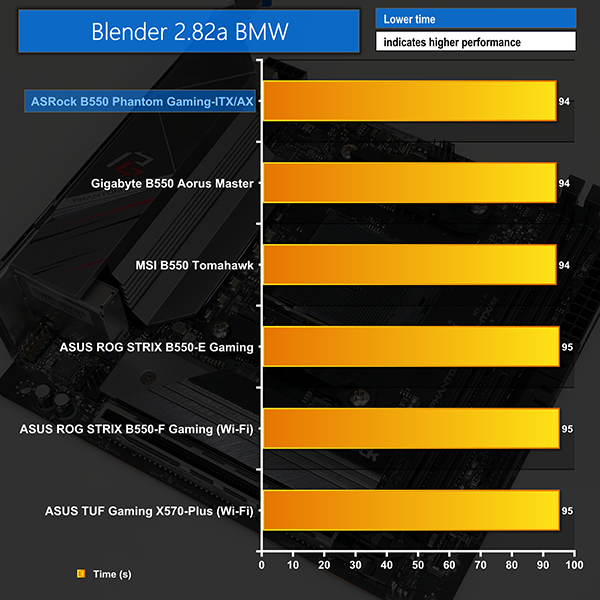

Blender Benchmark

ASRock’s B550 Phantom Gaming-ITX/AX motherboard delivers strong performance for our CPU focussed tests. The board is consistently at or near the top of our multi-threaded and single-threaded test charts.

The primary reason as to why ASRock scores so well is because its voltage levels and power draw are higher than competitors and its sensor readings driving the Precision Boost 2 algorithm are erroneous. This makes the Ryzen 9 3950X run at elevated frequencies compared to the other motherboards.
