EVGA SuperNOVA 650 P2 Review


AS7V3350

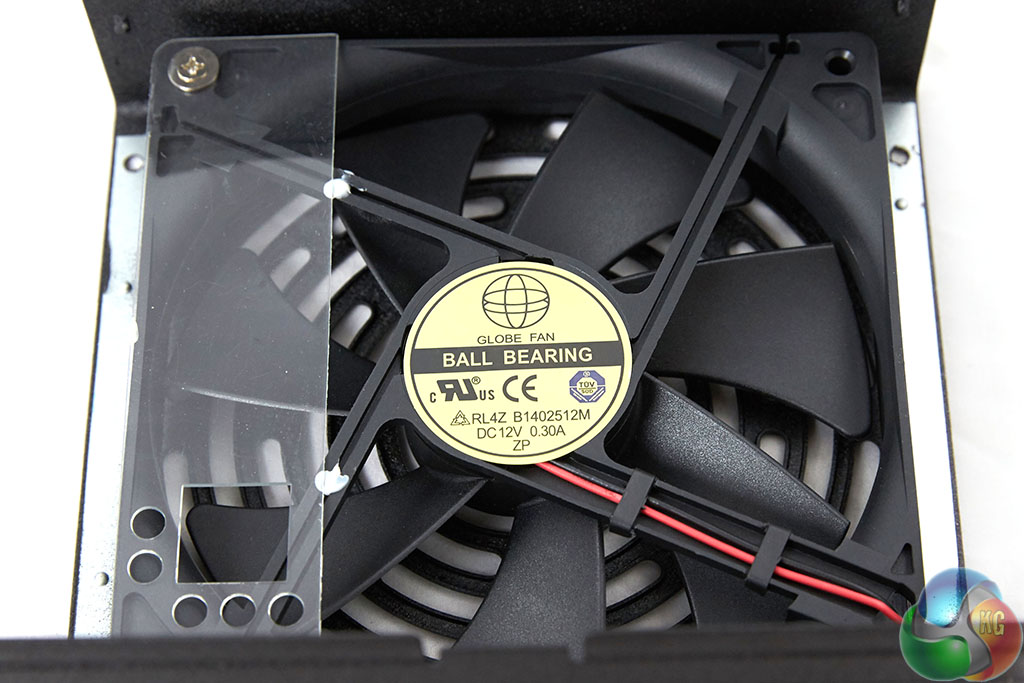

EVGA are using a Globe Fan (Model: RL4Z B1402512M). This is a double ball bearing design  (12V, 0.3A, 92.16 CFM, 24.9dBA, 1200RPM).
AS7V3353AS7V3354
AS7V3358AS7V3366
AS7V3363AS7V3361

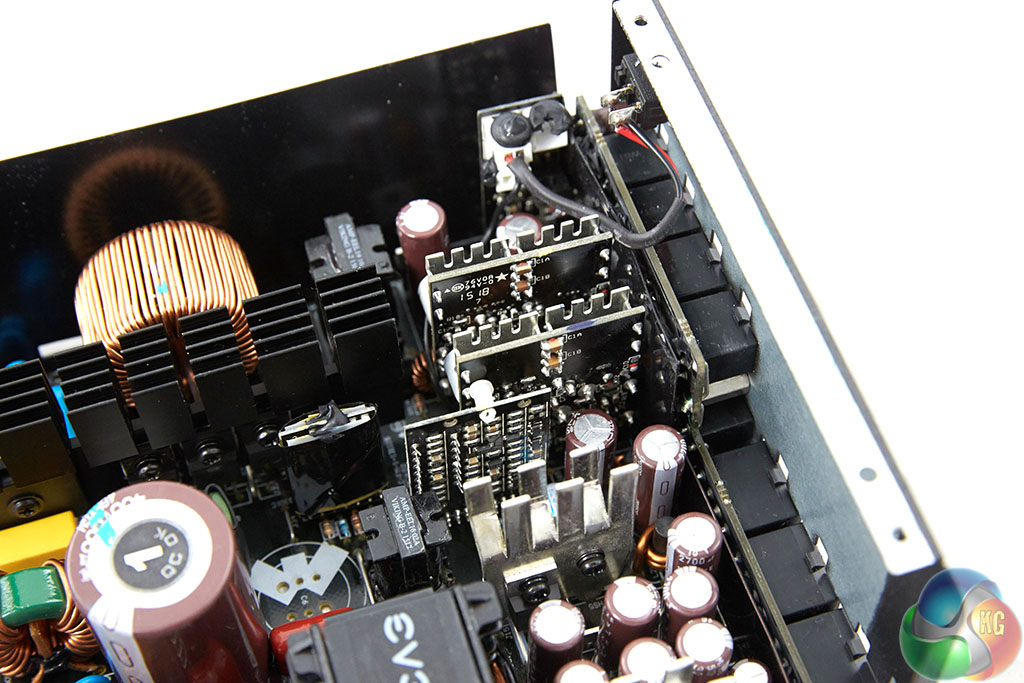

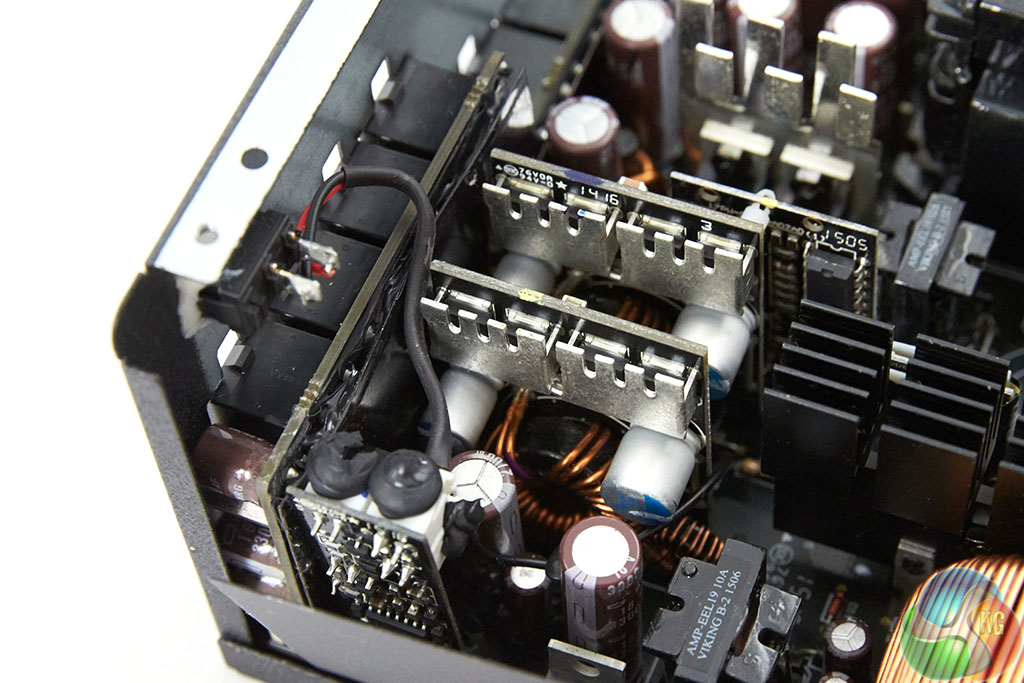

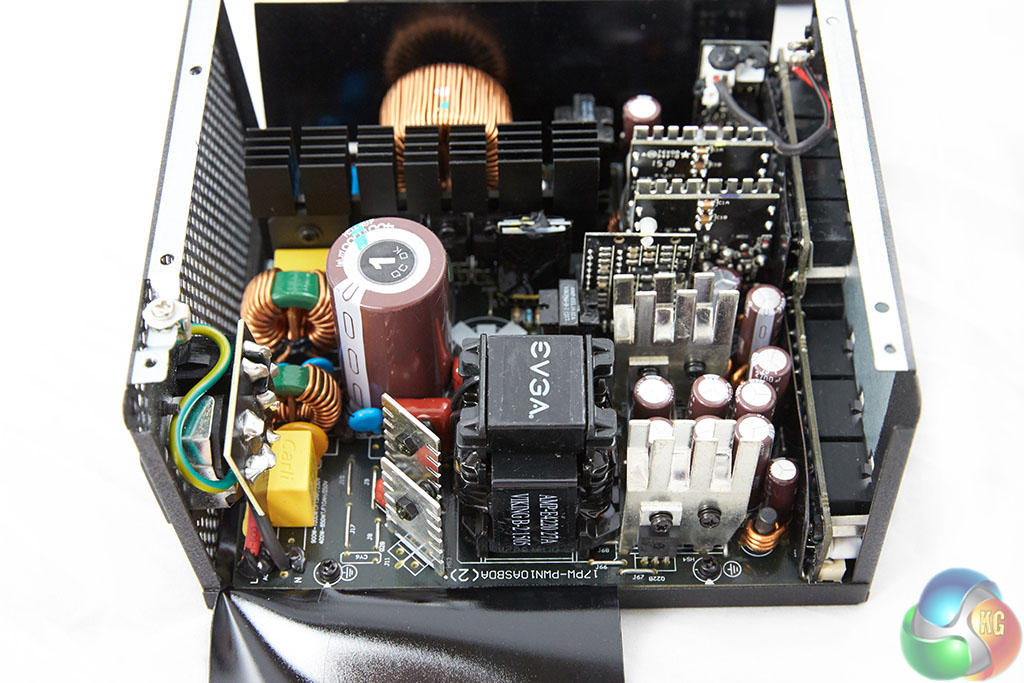

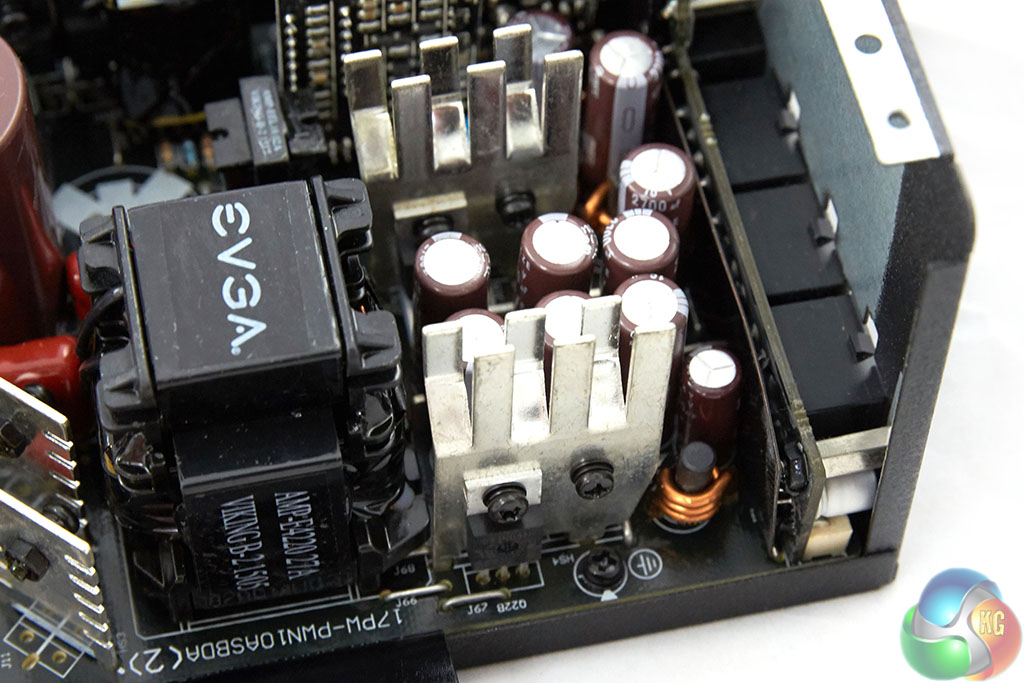

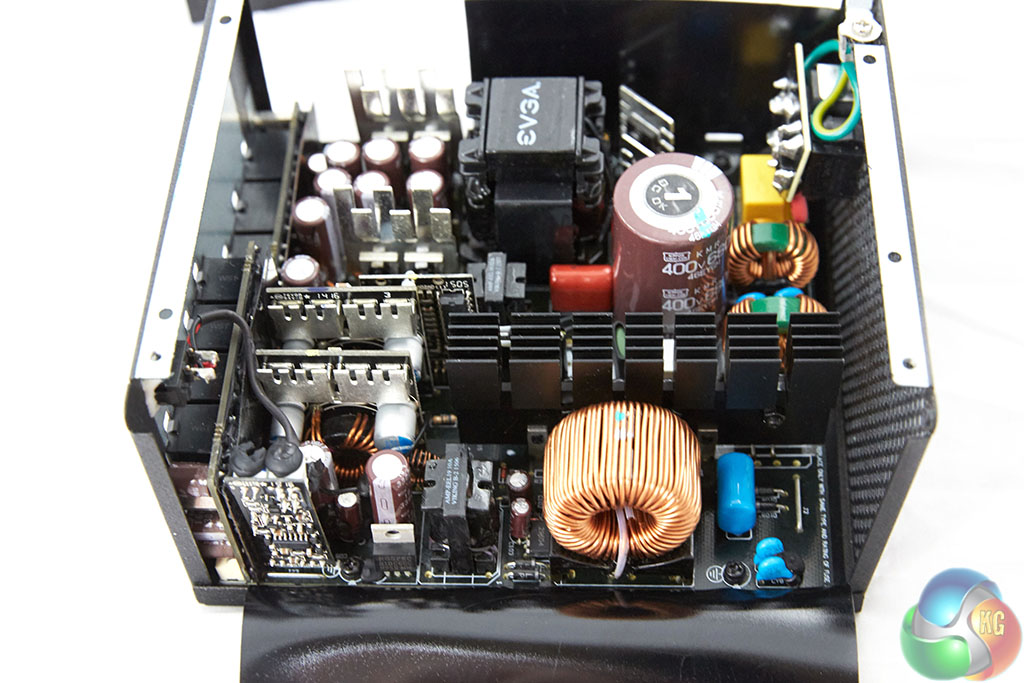

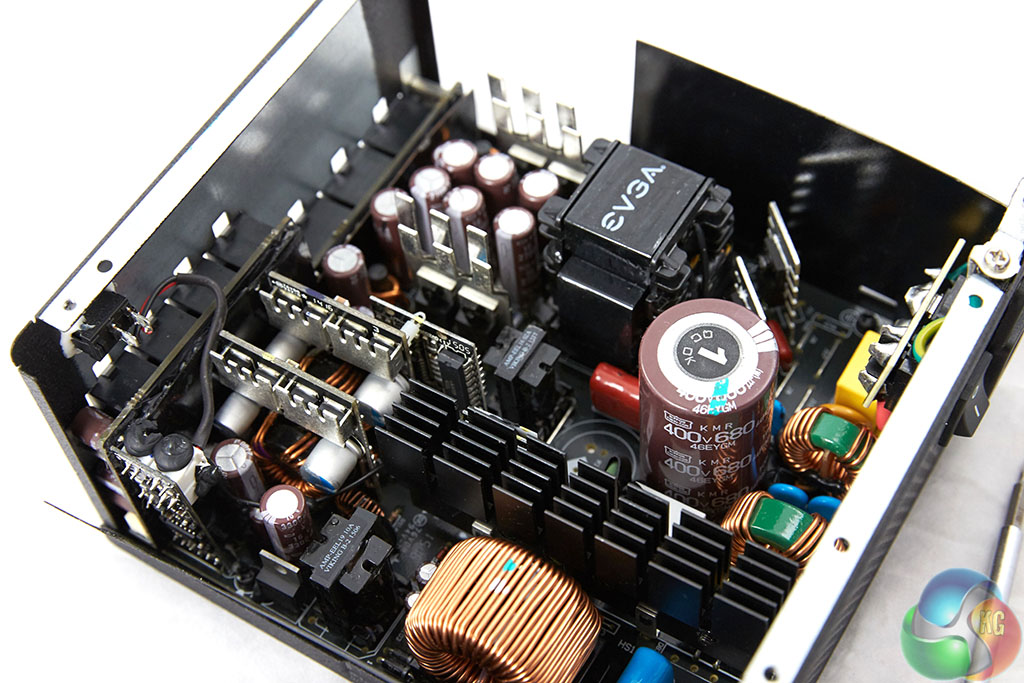

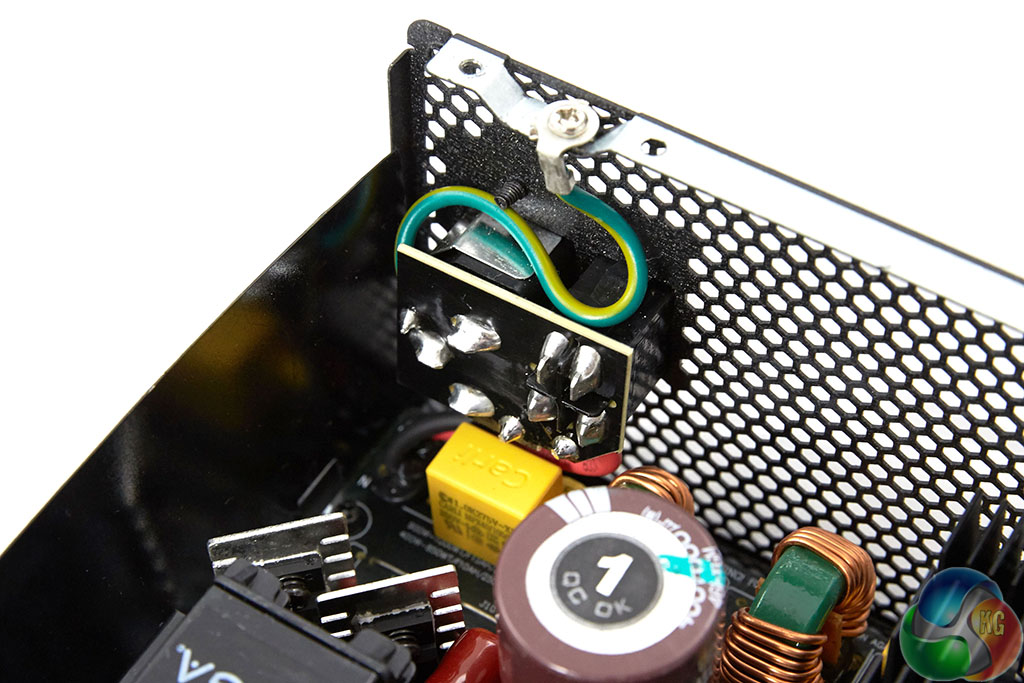

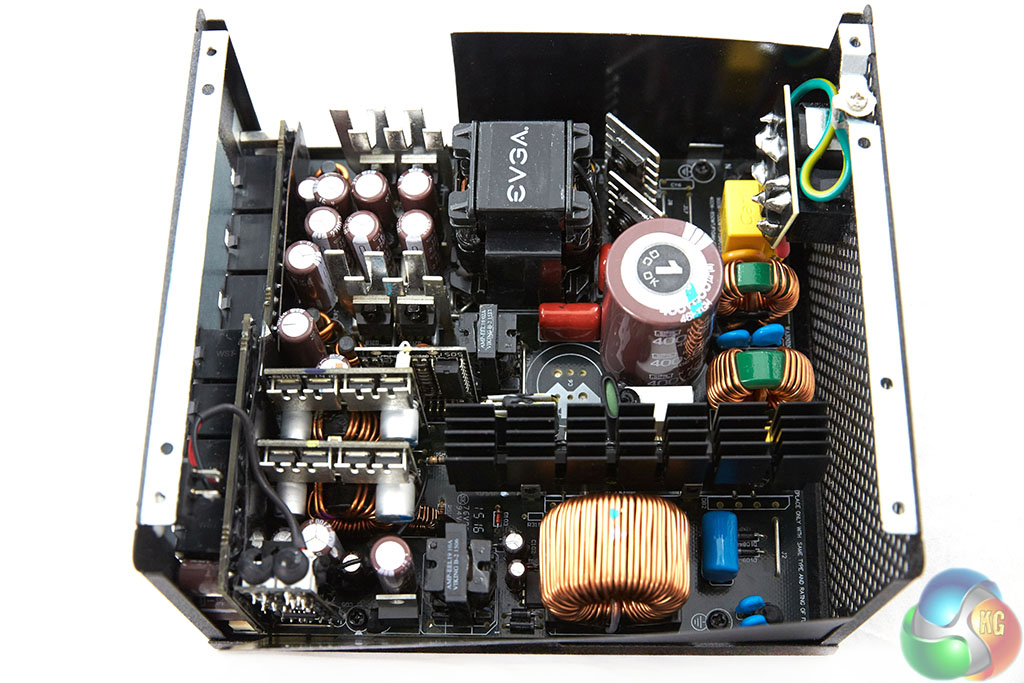

This is a Superflower Leadex design. The AC receptacle has no line filtering. There are five Y caps, two X caps, two coils and a TVS Diode on the main board. Soldering quality is very high throughout, as we would expect from Superflower.
AS7V3373AS7V3377
AS7V3387AS7V3357

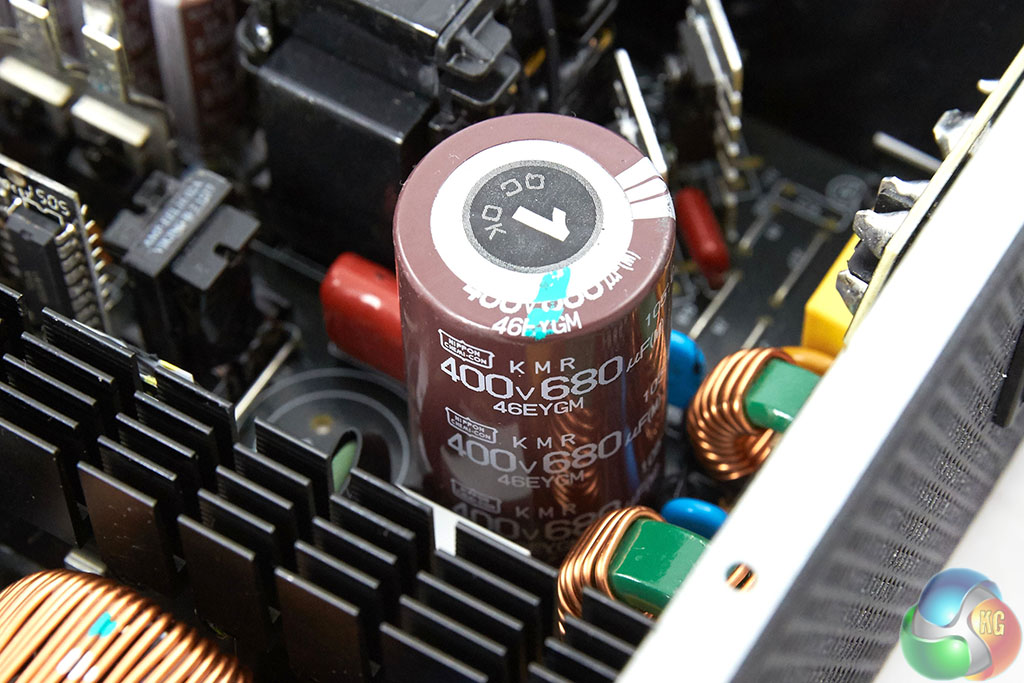

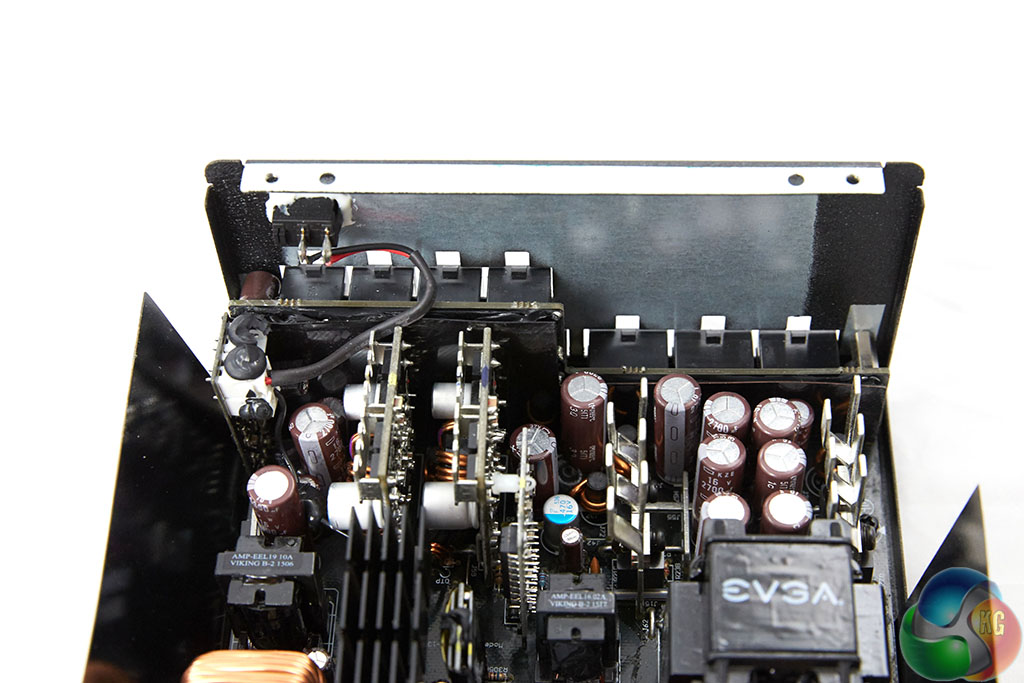

All capacitors in the supply are high grade 105c Japanese, Nippon Chemi Con. The primary capacitor is from their KMR series rated 400v 680uF.
