EVGA SuperNOVA 650GS Review


DSCF7369

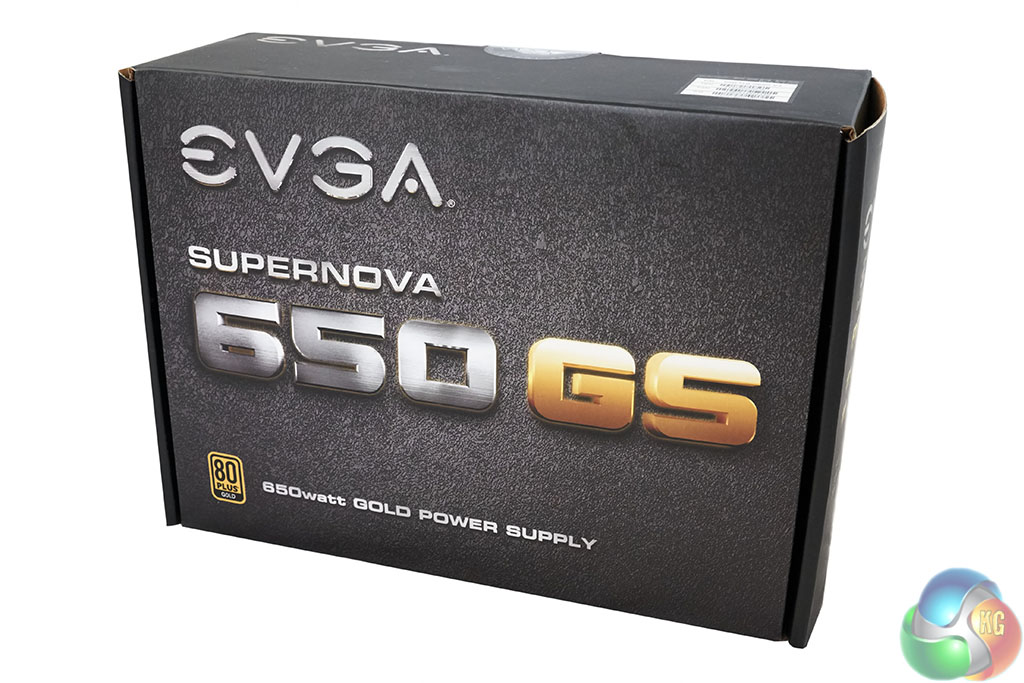

Not the most exciting of box designs, although you get enough basic information, including the 80 Plus Gold Certification.
DSCF7372

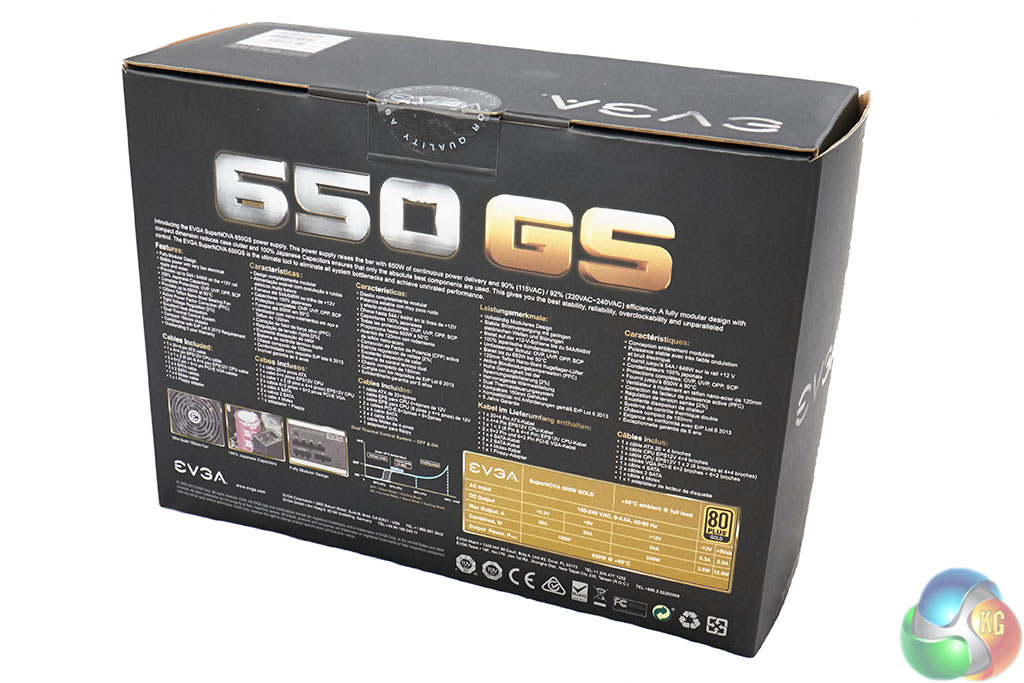

The back of the box lists some of the major features, alongside some images.
DSCF7375DSCF7379

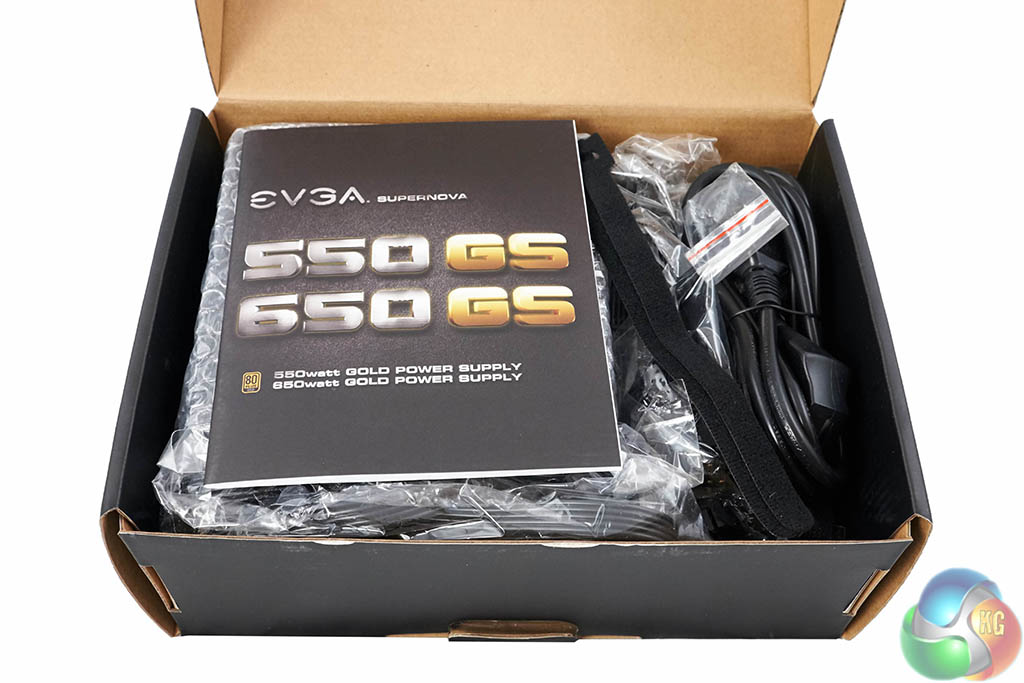

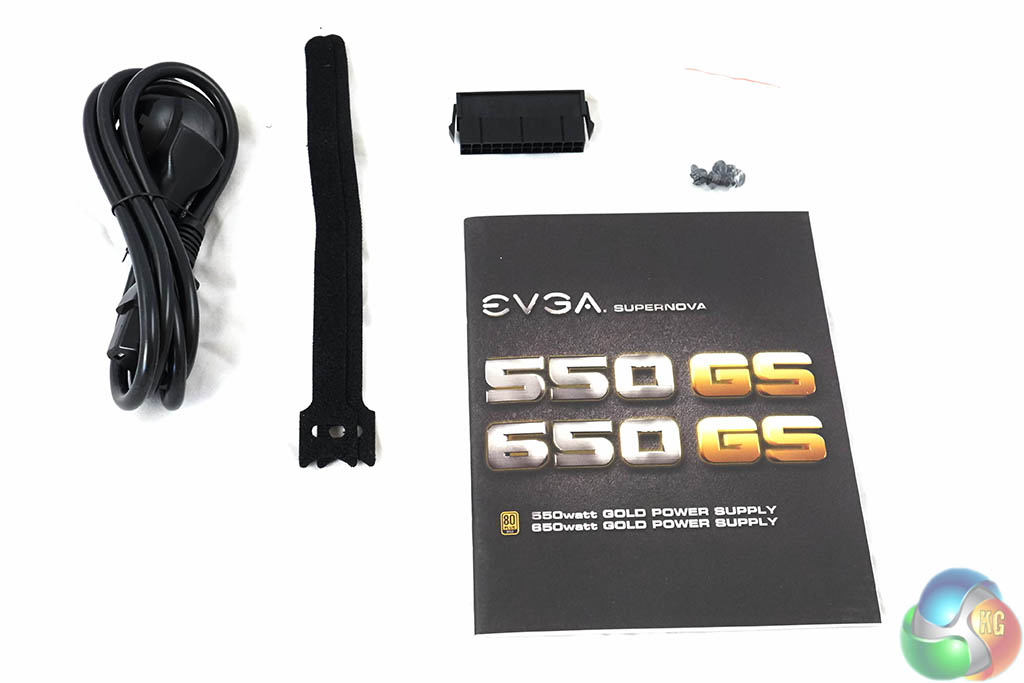

The EVGA power supply box contains a user manual, power cable, Velcro cable ties, mounting screws and a 24 pin test connector.
DSCF7384

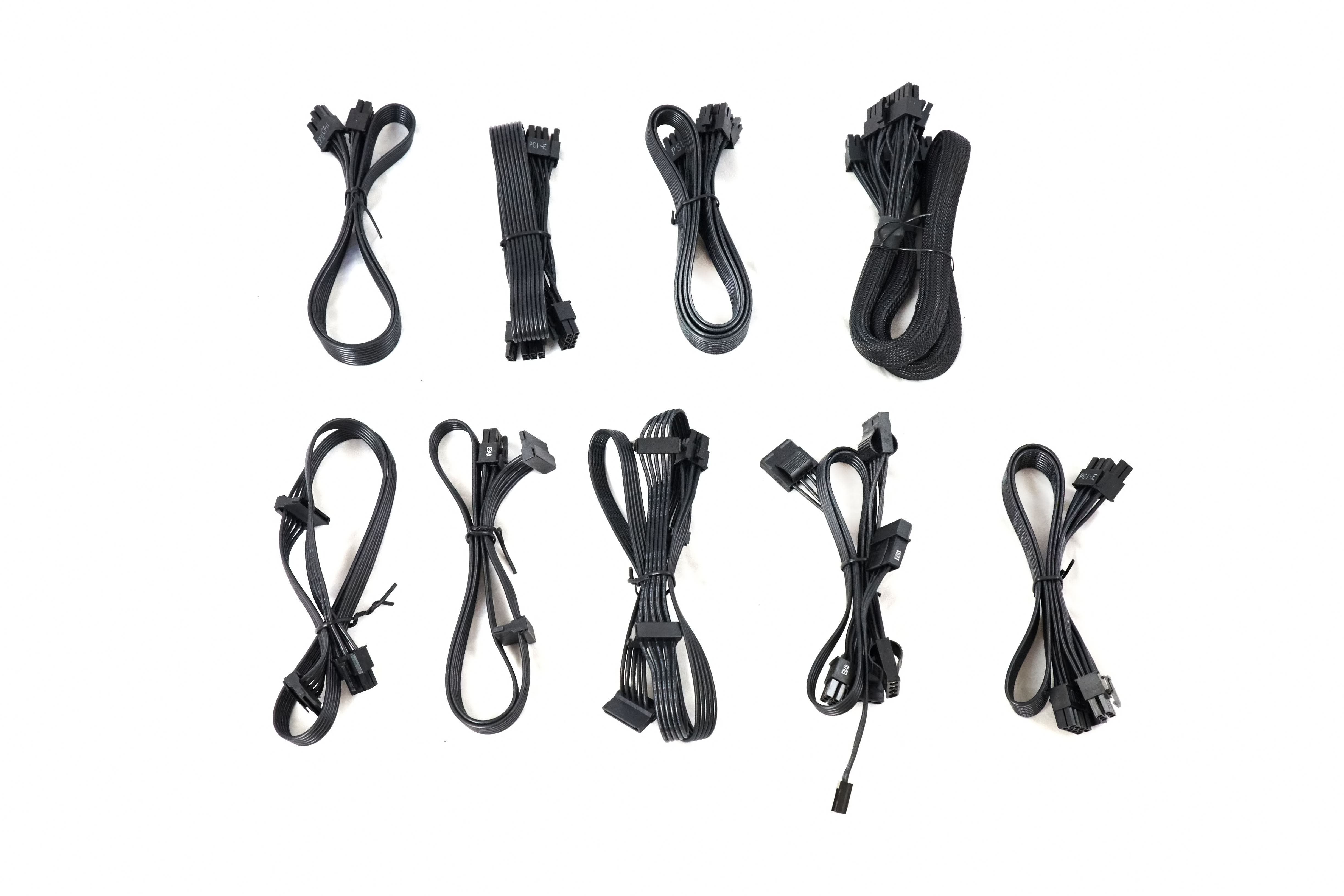

The modular cables are high grade flat ribbon style, except for the main ATX cable.

Cable Length
ATX Cable 1x 600mm (m)
EPS Cable 1x 650mm (m), 1x 550mm+550mm (m)
PCIE Cable 2x 500mm, 600mm (m)
SATA Cable 1x 550mm, 650mm, 750mm, 850mm (m), 1x 550mm, 650mm
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter 1x 100mm
AC Power 1x 1500mm (m)
Modular Cable Type Full

The SuperNOVA 650GS is designed to deliver power to two graphics cards, ideal for those with SLI or Crossfire configurations. It is worth pointing out that you cannot use both the PCI-E cables along with both EPS12V cables, as there are only three cable connectors on the unit itself.
