Phanteks AMP 750 Power Supply Review

1. Introduction2. Bundle & Cabling3. External4. Internal5. Testing Methodology and Results6. Closing Thoughts7. View All Pages

The Phanteks AMP 750 is nicely finished, and measures 150 x 86 x 140 mm (WxHxD).

The fan is hidden behind a metal grill, we will take a closer look at this fan shortly. We quite like the subtle patterning across the top of the PSU.

One side of the power supply is vented for air flow, with a power connector, power switch, and Hybrid fan button.

The modular bay consists of two rows with the motherboard and CPU connectors on the top row, with the SATA/MOLEX and PCIe connectors along the bottom row.

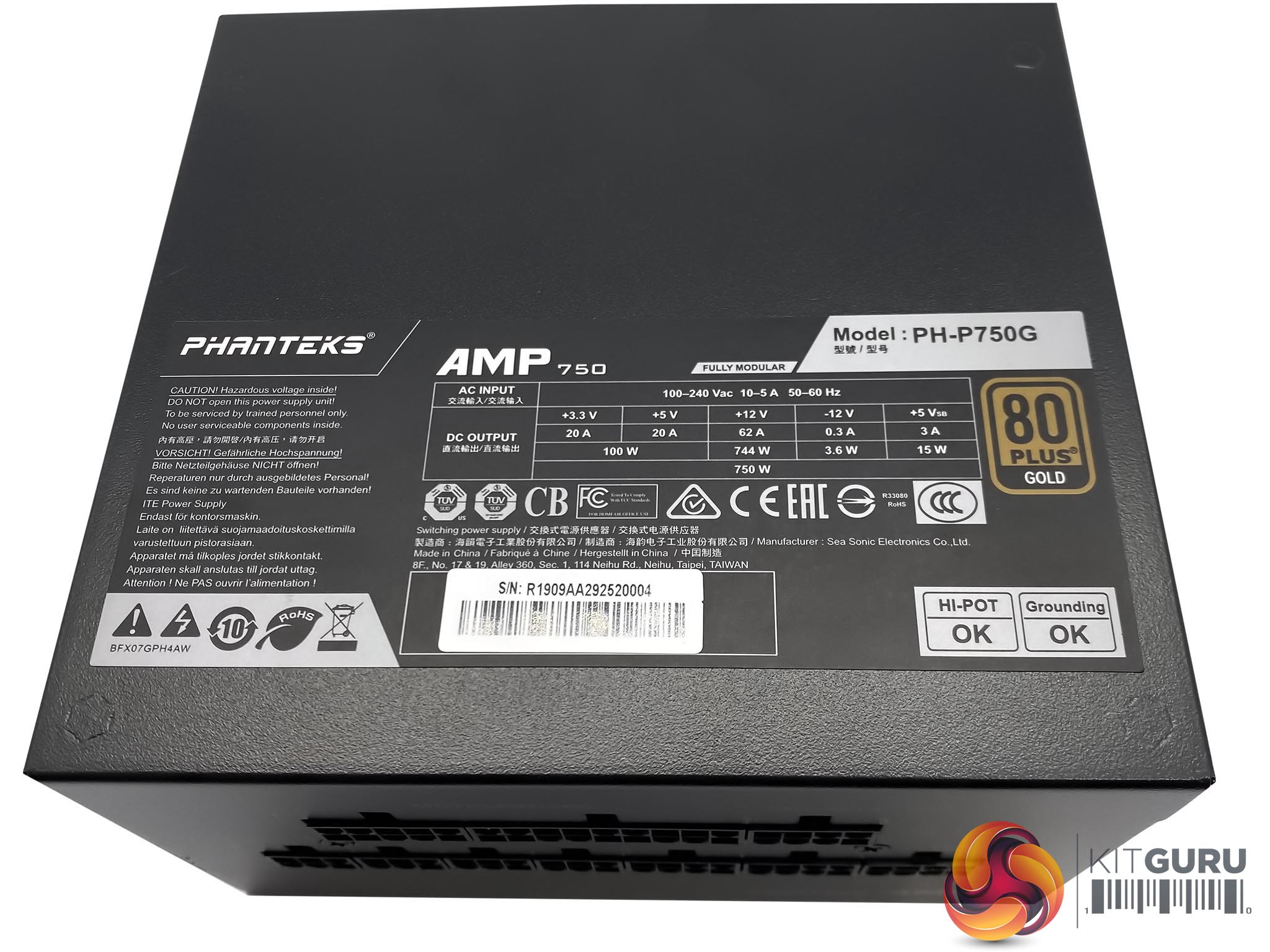

Phanteks AMP 750 Power Supply
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output	20A	20A	62A	0.3A	3.0A
Total Power	100W		744W	3.6W	15W
	750W

The unit is capable of delivering 62A across the +12V rail, delivering 744 Watts.
