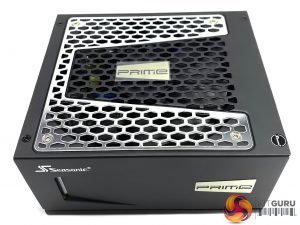

The Seasonic Prime TX650 Titanium power supply is nicely finished to the standards we expect from Seasonic.
The image above is taken from part of a document that Seasonic sent me – with a ‘before' and ‘after' analysis of the old v new Prime TX appearance.

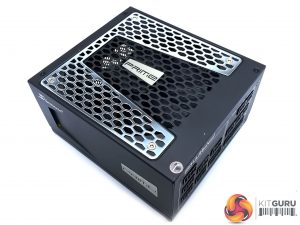

The FDB fan is hidden behind the top honeycomb chassis. We will take a look at this shortly when we open the unit later in the article.

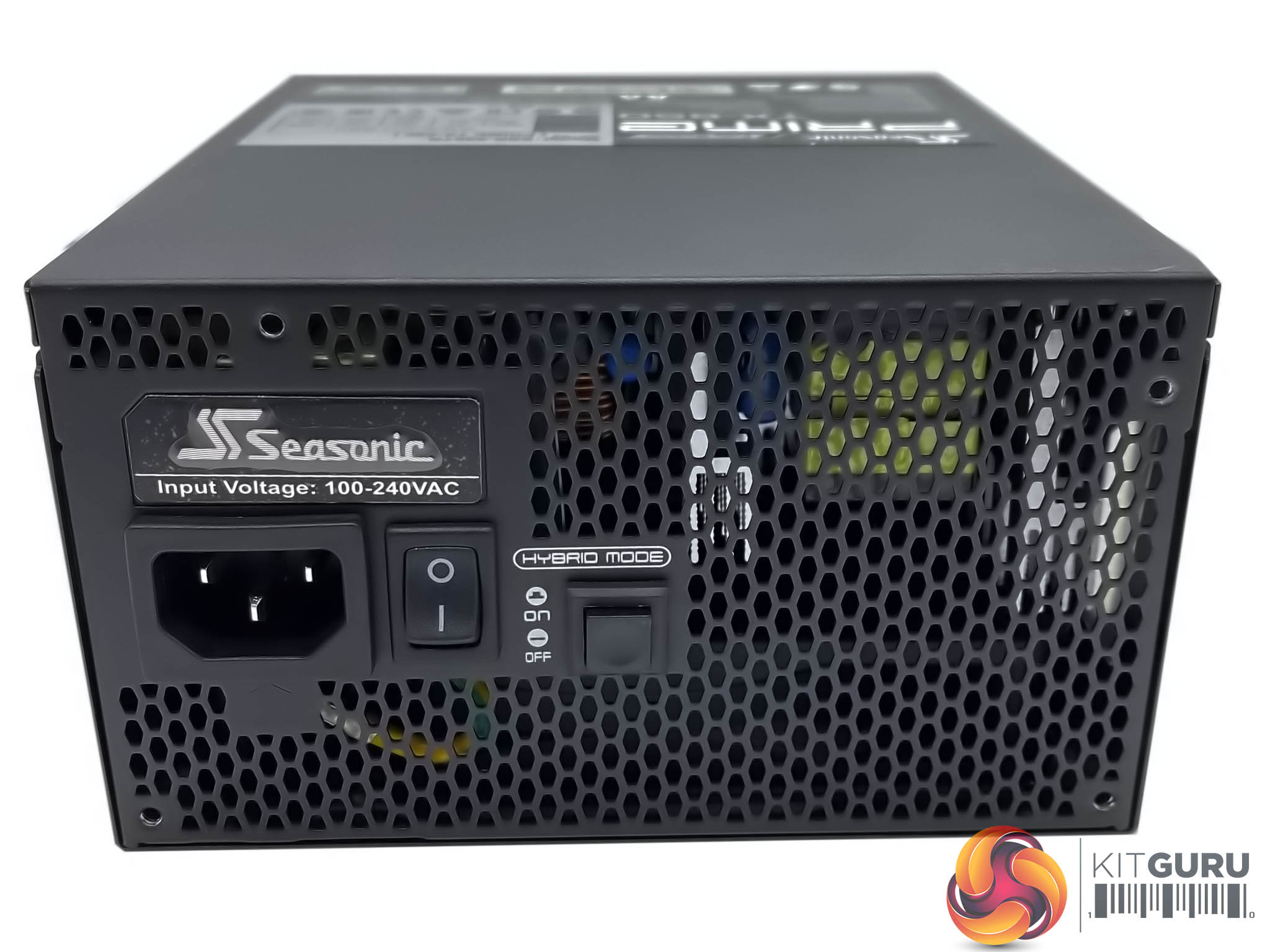

One side of the power supply is vented to help with air flow. There is a power connector, switch and hybrid button here. If the hybrid mode is enabled, the fan will not spin at lower loads. If this switch is disabled then the fan will always spin.

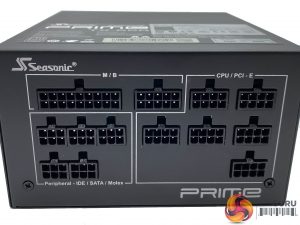

The other side of the power supply is home to the modular bay – with all the cable connector ports clearly labelled for ease of use.
| Seasonic Prime TX650 (SSR-650TR) | |||||
|
DC Output
|
+3.3V
|
+5V
|
+12V |
-12V
|
+5Vsb
|
|
Max Output
|
20A
|
20A
|
54A |
0.3A
|
3.0A
|
| Total Power | 100W | 648W | 3.6W | 15W | |
| 650W | |||||
The Seasonic Prime TX650 Titanium power supply delivers 54A on the +12V for 648 watts of the total output.
