QSAN XCubeNAS XN5004T 4+1 bay NAS review

Intel’s NASPT (NAS Performance Toolkit ) is a benchmark tool designed to enable direct measurement of home network attached storage (NAS) performance. NASPT uses a set of real world workload traces (high definition video playback and recording, video rendering/content creation and office productivity) gathered from typical digital home applications to emulate the behaviour of an actual application.

We’ve used some of the video and office apps results to highlight a NAS device’s performance.

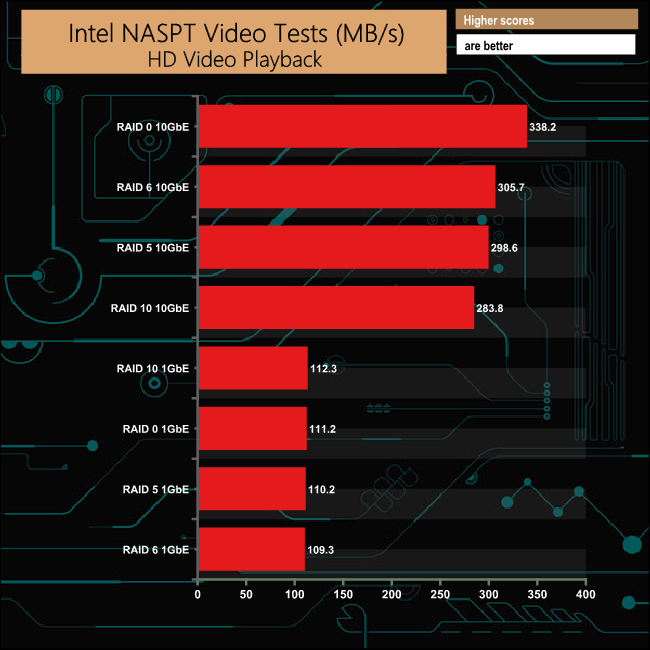

HD Video Playback
This trace represents the playback of a 1.3GB HD video file at 720p using Windows Media Player. The files are accessed sequentially with 256kB user level reads.

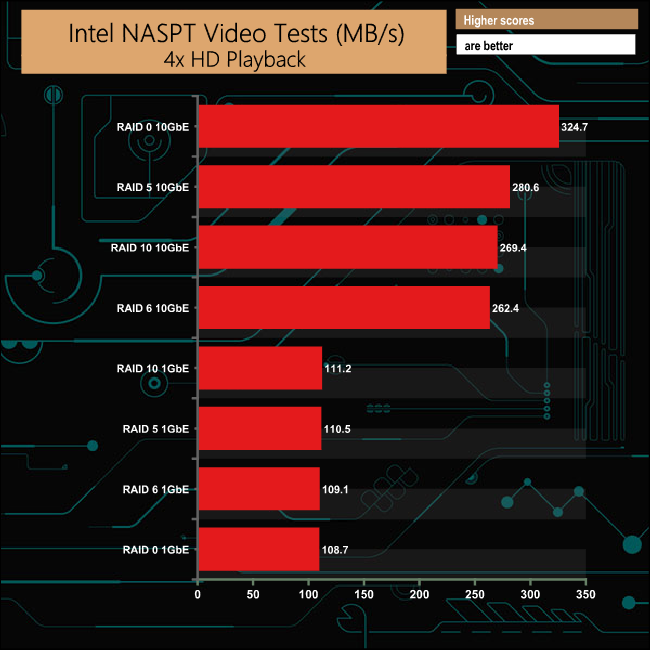

4x HD Playback
This trace is built from four copies of the Video Playback test with around 11% sequential accesses.

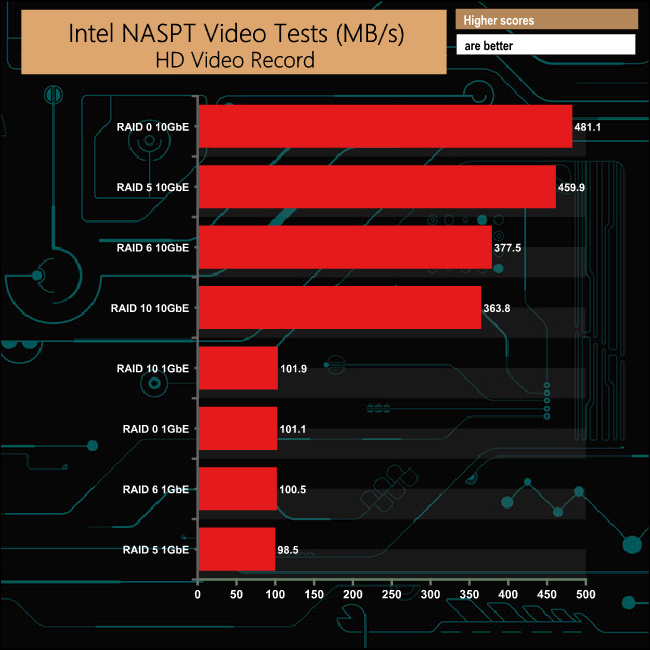

HD Video Record
Trace writes an 720p MPEG-2 video file to the NAS. The single 1.6GB file is written sequentially using 256kB accesses.

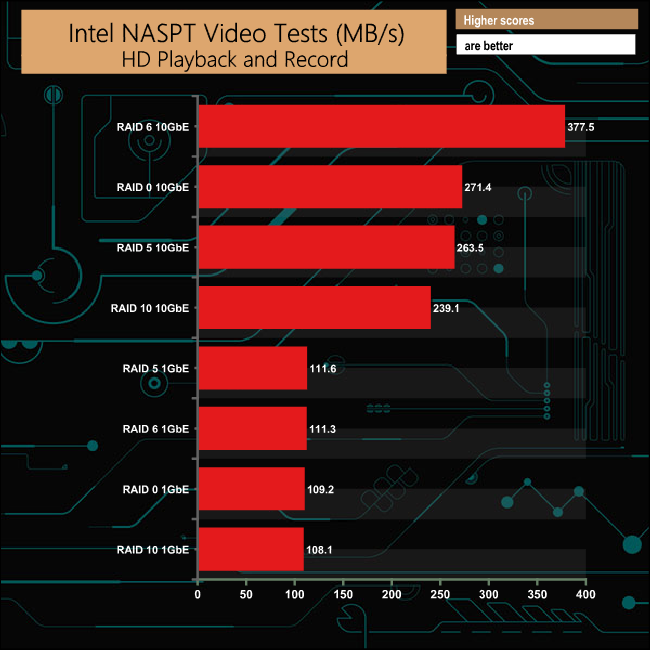

HD Playback and Record
Tests the NAS with simultaneous reads and writes of a 1GB HD Video file in the 720p format.

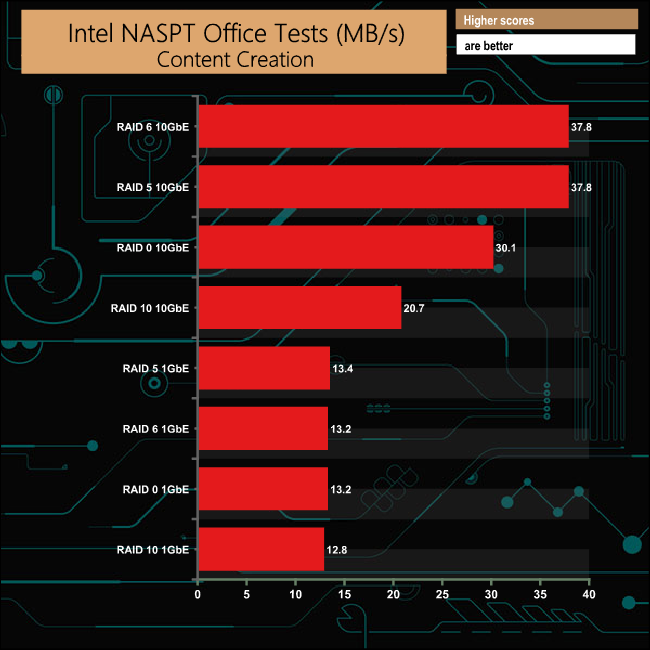

Content Creation
This trace simulates the creation of a video file using both video and photo editing software using a mix of file types and sizes. 90% of the operations are writes to the NAS with around 40% of these being sequential.

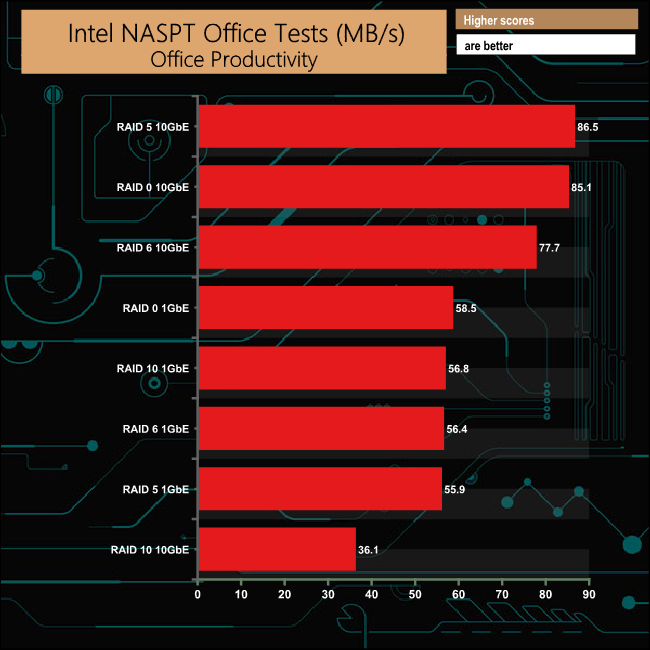

Office Productivity
A trace of typical workday operations. 2.8GB of data made up of 600 files of varying lengths is divided equally between read and writes. 80% of the accesses are sequential.
Photo Album
This simulates the opening and viewing of 169 photos (aprrox 1.2GB). It tests how the NAS deals with a multitude of small files.

NASPT Video Tests

In the video parts of Intel's NASPT benchmark, the XN50004T shows consistent performance across the four arrays when using a 1GbE connection. The best performance figure for the video traces came in the HD Video Record test when the drives were in a RAID 0 array using a 10GbE connection at 481.1MB/s. However, maybe even more impressive is the 459.9MB/s from the RAID 5/10GbE combination in the same test.

NASPT Office Tests

In the office parts of Intel's NASPT benchmark the scores between the two connection speeds are much closer. The fastest score in this group of tests, 86.5MB/s, came in the Office Productivity test with the disks in a RAID 5 configuration with a 10GbE connection.
