The RX 7800 XT reviews continue today as we take a look at the Sapphire Nitro+ model. Sporting an eye-catching design with RGB light bar, dual-BIOS and a thick, triple-slot cooler, Sapphire's Nitro+ series has offered some of the best AMD-based cards to hit the market in recent years. Today we find out if this £539 RX 7800 XT can live up to that billing.

We've already reviewed the Sapphire RX 7900 XTX Nitro+ this generation and came away seriously impressed, so we have have high hopes for the RX 7800 XT Nitro+. Utilising a near-identical design as its more expensive sibling, the 7800 XT Nitro+ is certainly a looker and Sapphire will be hoping it has the cooling grunt to back up that swish design. We'll find out soon enough, so let's dive in…



	RX 7900 XT	RX 7800 XT	RX 7700 XT	RX 6800 XT	RX 6800	RX 6700 XT
Architecture	RDNA 3	RDNA 3	RDNA 3	RDNA 2	RDNA 2	RDNA 2
Manufacturing Process	5nm GCD + 6nm MCD	5nm GCD + 6nm MCD	5nm GCD + 6nm MCD	7nm	7nm	7nm
Transistor Count	57.7 billion	28.1 billion	28.1 billion	26.8 billion	26.8 billion	17.2 billion
Die Size	300 mm² GCD 220 mm² MCD	200 mm² GCD 150 mm² MCD	200 mm² GCD 150 mm² MCD	519 mm²	519 mm²	336 mm²
Compute Units	84	60	54	72	60	40
Ray Accelerators	84	60	54	72	60	40
Stream Processors	5376	3840	3456	4608	3840	2560
Game GPU Clock	Up to 2000 MHz	2124 MHz	2171 MHz	Up to 2015MHz	Up to 1815MHz	Up to 2424MHz
Boost GPU Clock	Up to 2400 MHz	Up to 2430 MHz	Up to 2544 MHz	Up to 2250MHz	Up to 2105MHz	Up to 2581MHz
ROPs	192	96	96	128	96	64
AMD Infinity Cache	80MB	64MB	48MB	128MB	128MB	96MB
Memory	20GB GDDR6 20Gbps	16GB GDDR6 19.5 Gbps	12GB GDDR6 18Gbps	16GB GDDR6 16Gbps	16GB GDDR6 16Gbps	12GB GDDR6 16Gbps
Memory Bandwidth	800 GB/s	624 GB/s	432 GB/s	512 GB/s	512 GB/s	384 GB/s
Memory Interface	320-bit	256-bit	192-bit	256-bit	256-bit	192-bit
Board Power	315W	263W	245W	300W	250W	230W

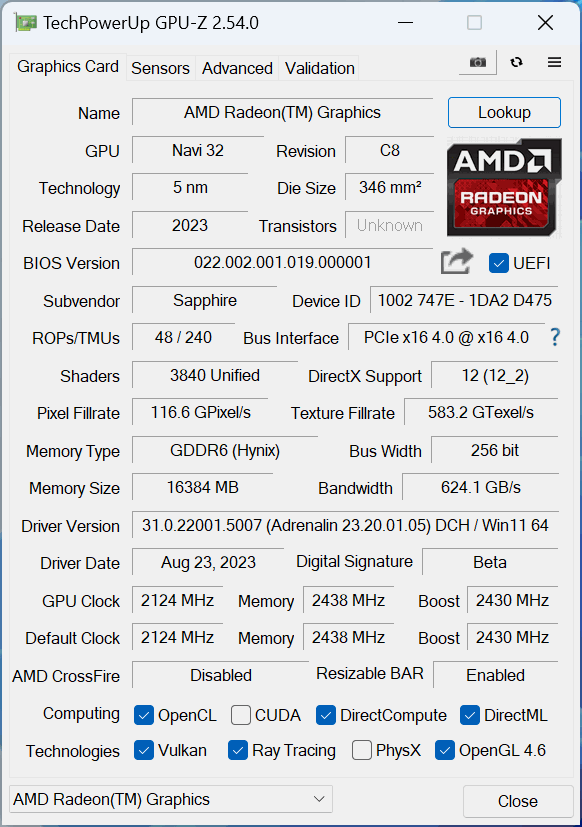

First, let's take a quick look at the specs. Unlike the most recent RDNA 3 GPU – the RX 7600 – AMD has made a return to its chiplet-based design for the RX 7800 XT, as we initially saw last year with the RX 7900 XTX and 7900 XT. This time around, the 7800 XT offers a 200mm² Graphics Compute Die (GCD) using TSMC's 5nm process, flanked by four 150 mm² Memory Compute Dies (MCDs) built on TSMC's 6nm node.

Internally though, the compute makeup hasn't been radically changed. Navi 32 packs in 60 Compute Units, each of which houses 64 Stream Processors, for a total of 3840 shaders. There are also 60 Ray Accelerators – one per CU – and 96 ROPs.

As for clock speed, this remains high with the RX 7800 XT, with AMD touting a boost of up to 2430MHz. Sapphire has increased this to 2565MHz for the OC BIOS, though the Silent BIOS remains with the reference 2430MHz target speed,

Meanwhile, the memory configuration is almost identical to the previous generation RX 6800 XT. We still find 16GB GDDR6 operating over a 256-bit interface, but this time the memory clocks in at 19.5Gbps, up from 16Gbps. This gives a memory bandwidth of 624 GB/s, though AMD claims an ‘effective' bandwidth of 2708.4 GB/s due to the 64MB of 2nd Gen Infinity cache.

Power draw for the RX 7800 XT is rated at 263W Total Board Power (TBP),  though Sapphire has again increased this for the OC BIOS. We are using our well-established GPU power testing methodology in this review, so read on for our most detailed power and efficiency testing yet.
