Seasonic Prime 750W Titanium Power Supply Review

L1000344

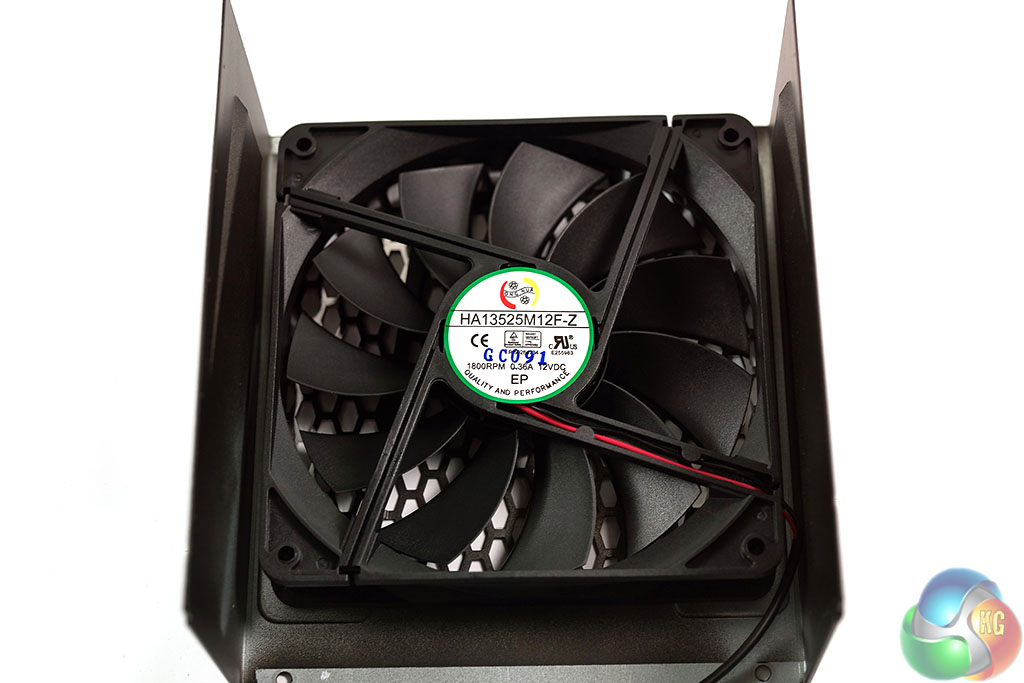

Seasonic are using a Hong Hua 135mm fan, Model number HA13525M12F-Z. This is a Fluid Dynamic Bearing Fan selected for low noise characteristics. Regular readers may recall that the Seasonic Snow Silent 750W unit shipped with a smaller 120mm fan from the same company so its interesting, and likely a good move that Seasonic are adopting larger fans. Larger fans of similar quality are able to push more air at the same speeds, likely often spinning slower to reduce noise emissions.

Seasonic told us that many of their customers have asked for a longer hold up time. Intel specifications state 16ms, and Seasonic worked hard to bring the PRIME units out at a rating of 30ms.

L1000350L1000357

L1000358L1000363

L1000366L1000390

L1000406L1000375

L1000400L1000406

L1000394L1000359

L1000371L1000409

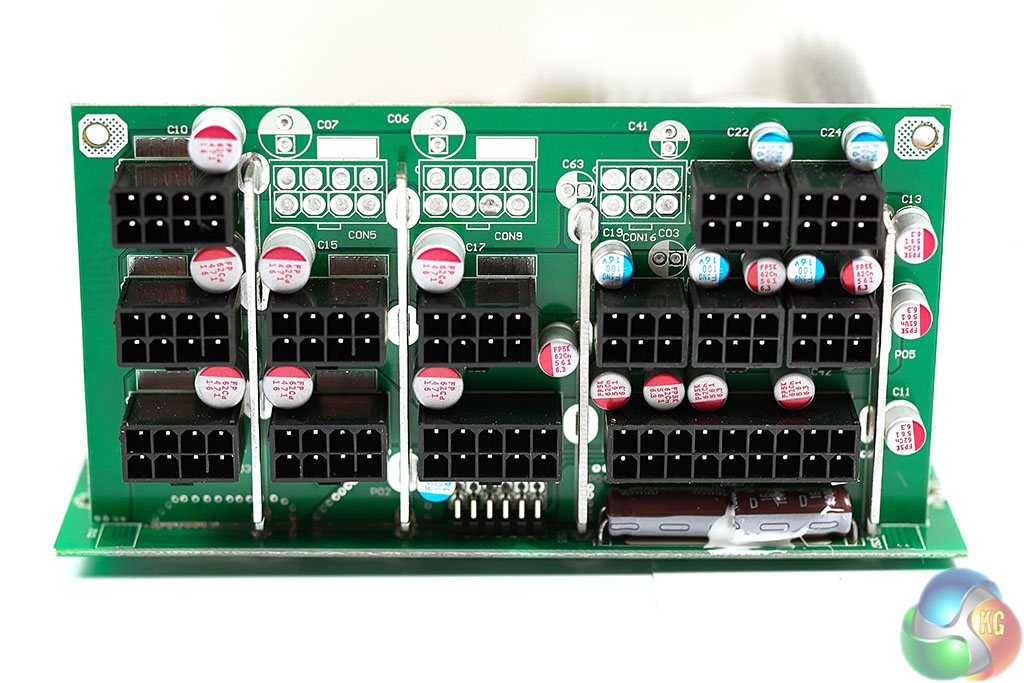

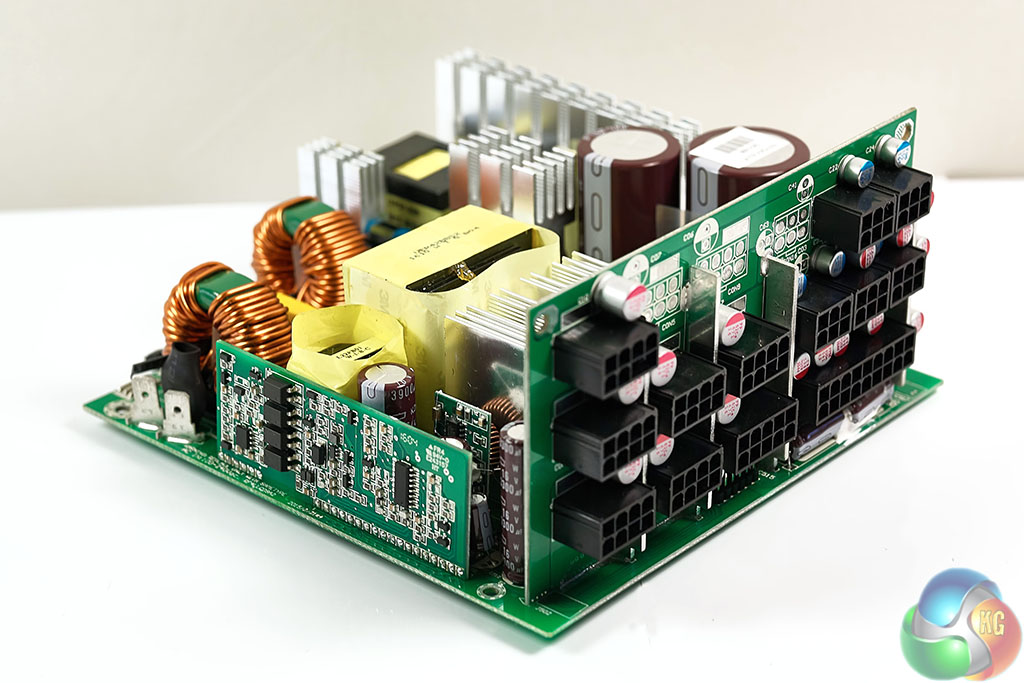

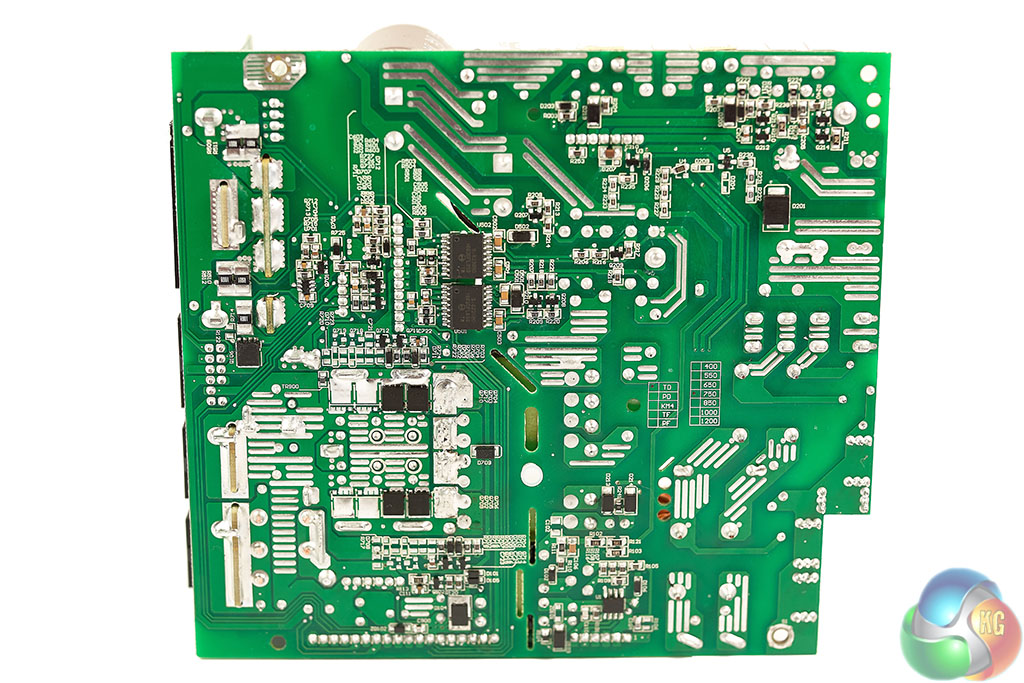

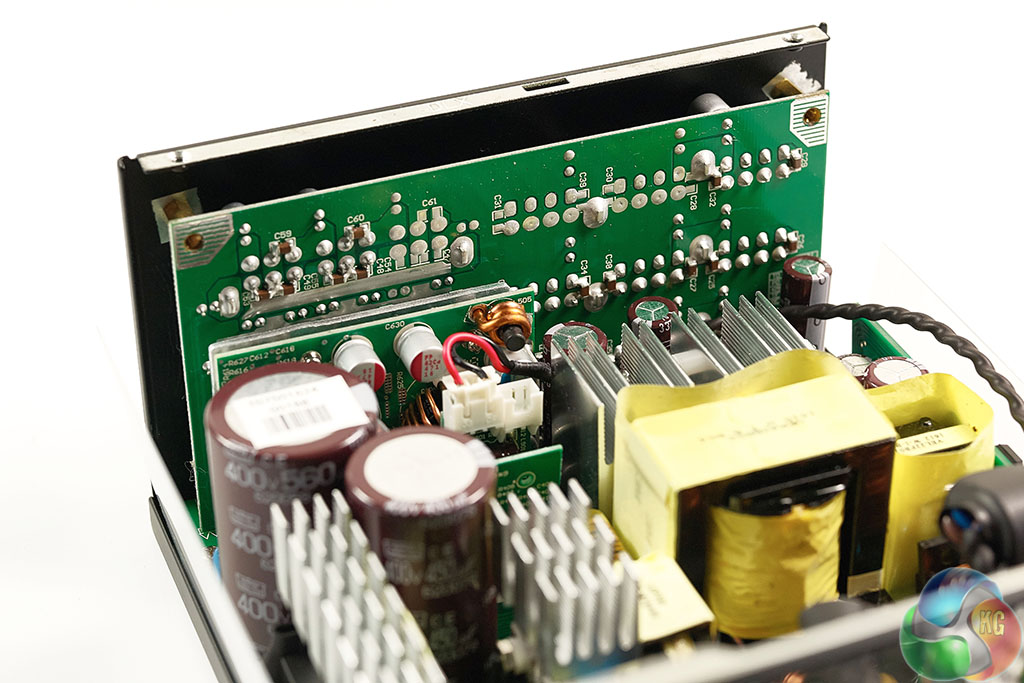

The soldering quality throughout is top drawer and it is clear that Seasonic have succeeded in reducing system clutter thanks to their new internal cable free connection design. There is a copper plate connecting the back panel to the main PCB to increase reliability and improve performance. They are increasing their use of paste solder throughout the design for quality reasons.

Seasonic are offering a full 10 year warranty with these power supplies so it is clear they are confident of long term reliability and stability.

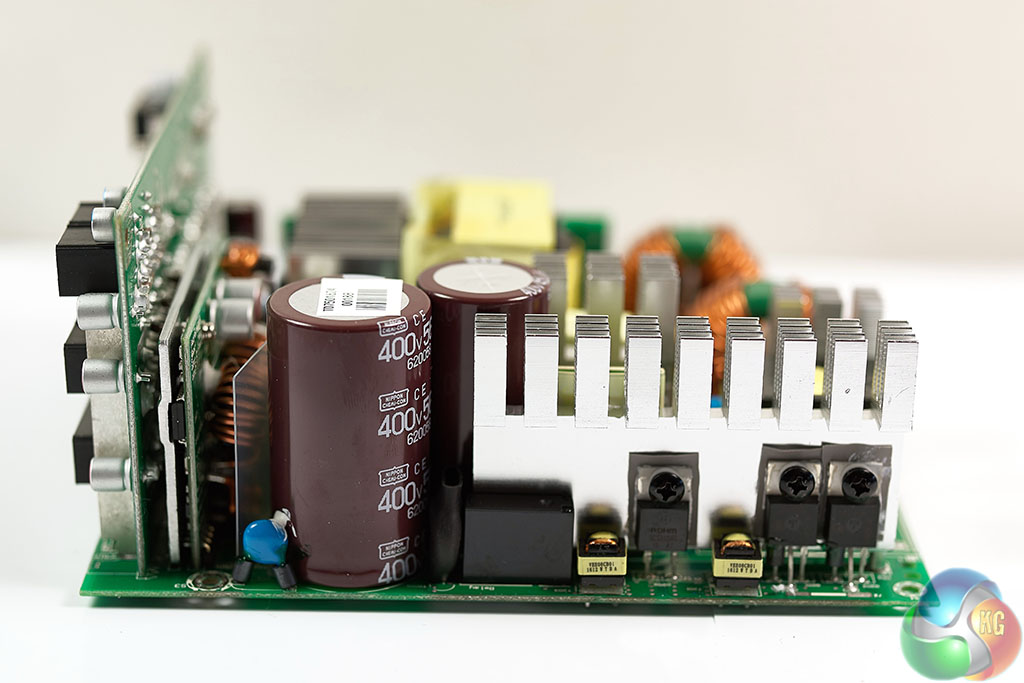

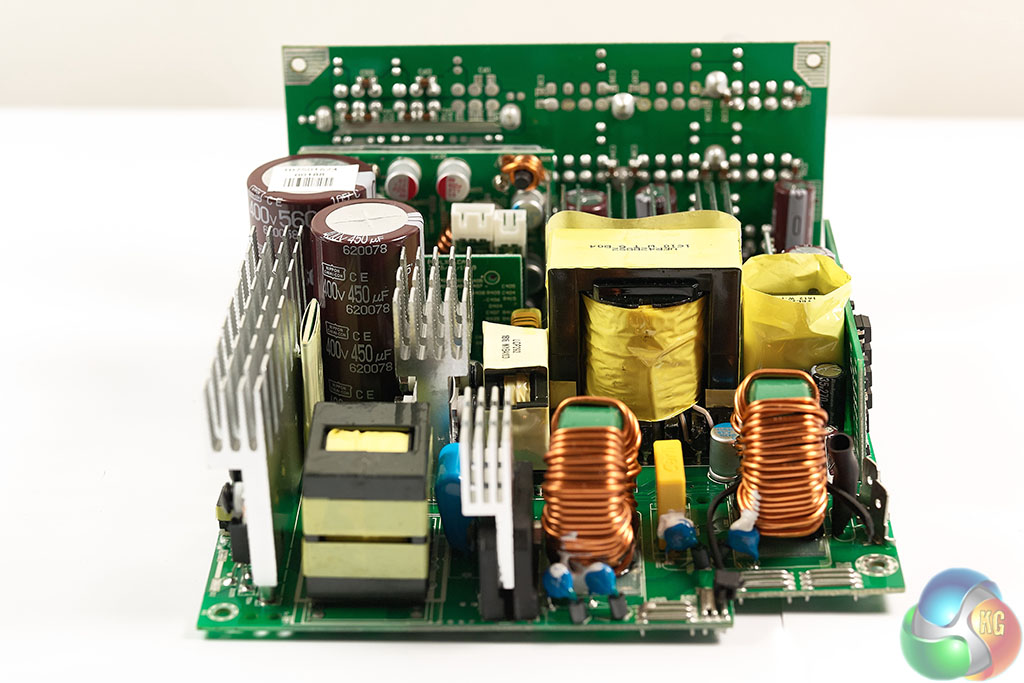

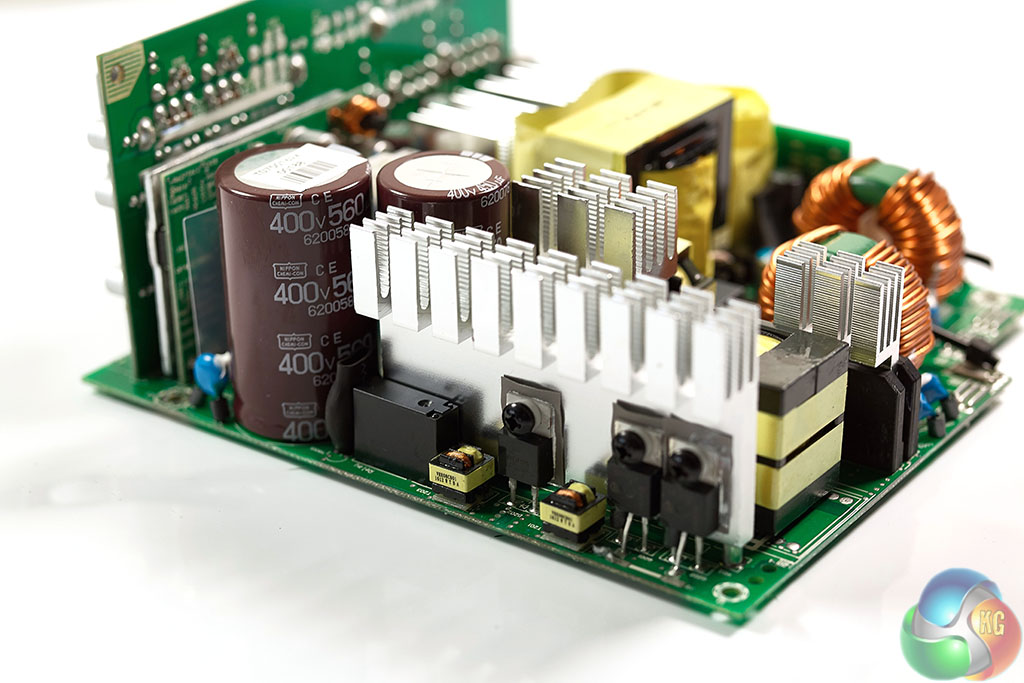

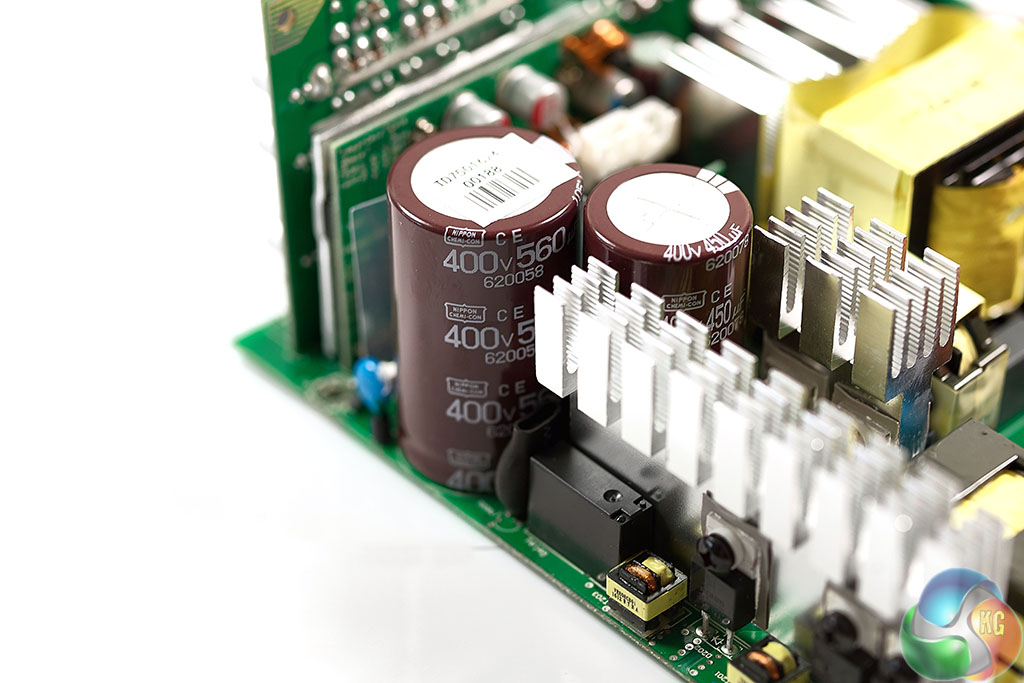

The Prime supply adopts high grade Japanese capacitors throughout both primary and secondary stages. The primary stage is served by two 105c Nippon Chemi Con capacitors rated at 400v 560uF and 400v 450uF (for a combined total of 1010uF).
