Test system

• CPU: Intel Core i7-7820X, 8C/16T, OC to 4.6GHz all cores using 1.25Vcore and 240W power limit.
• CPU Cooler: Fractal Design Celsius S24
• Motherboard: Gigabyte X299 Aorus Master
• RAM: 32GB Corsair Dominator Platinum RGB DDR4-3200MHz
• SSD: 1TB Intel SSD 7 M.2 NVMe
• Power Supply: Seasonic Prime Platinum 1300W
• Operating System: Windows 10 1903

Graphics driver version:
AMD driver: Adrenalin 2019 Edition 19.8.2 (19.30.01.40 RC3)
Nvidia driver: GeForce 436.30

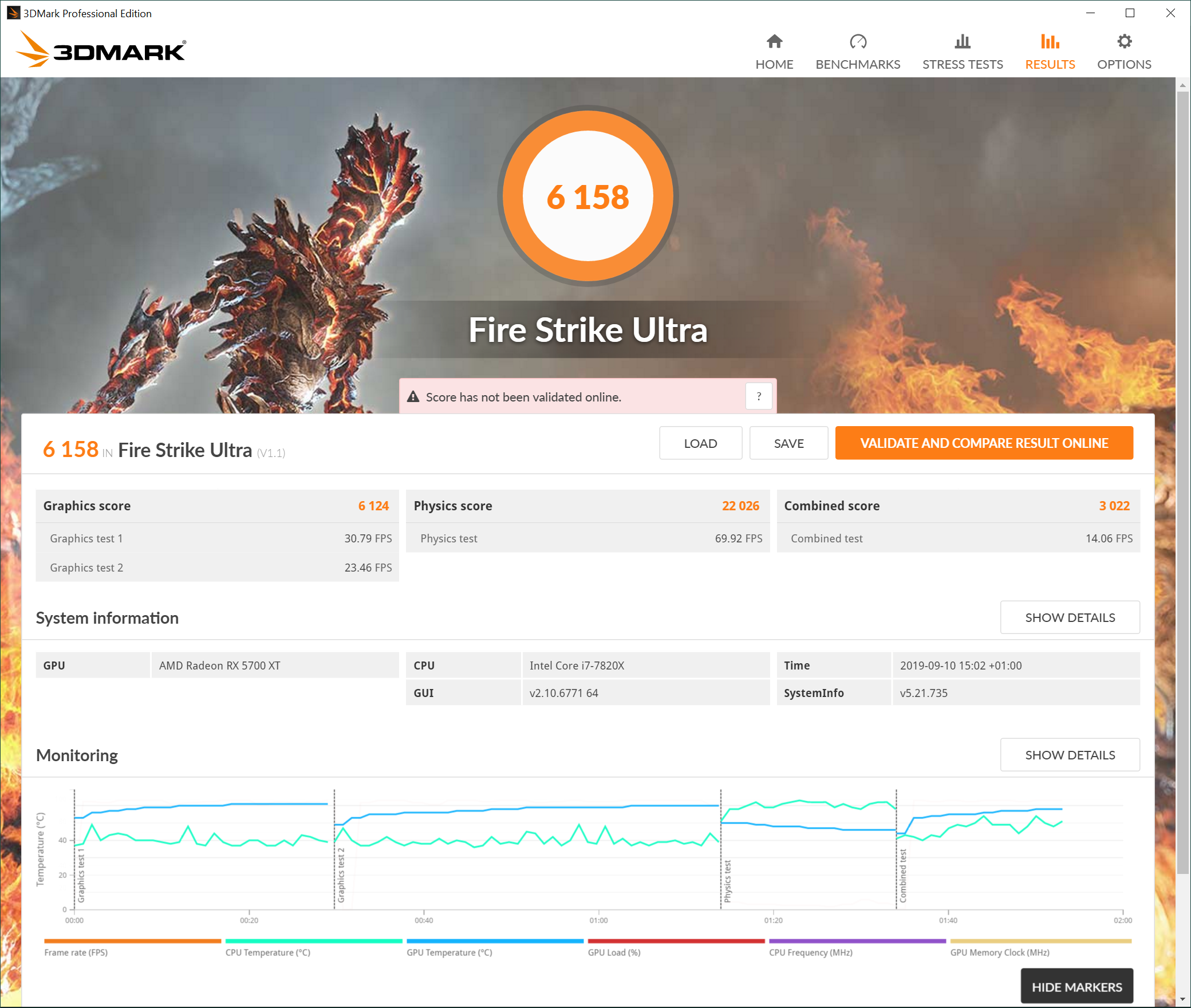

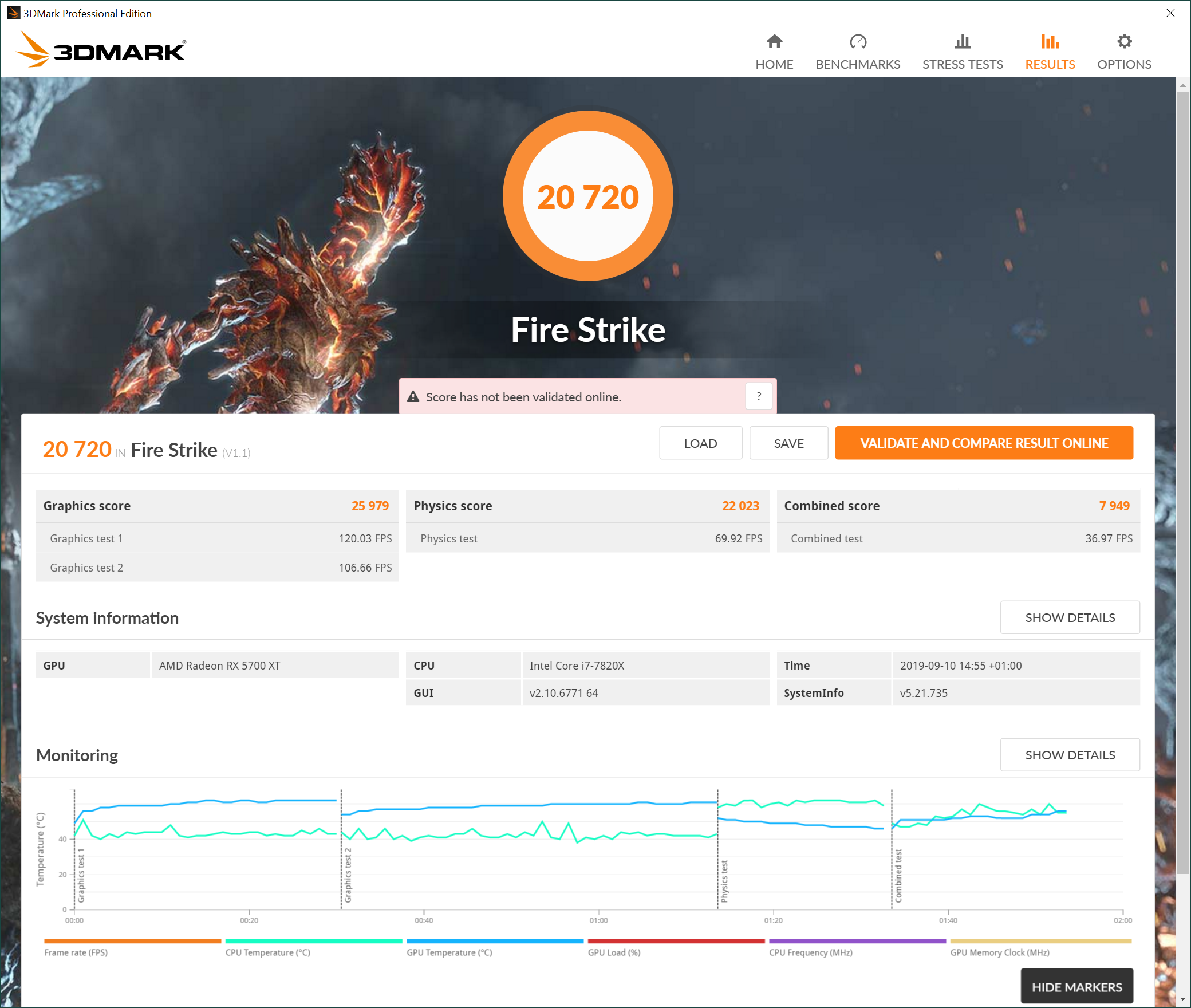

3DMark

3DMark Fire Strike is a showcase DirectX 11 benchmark designed for today’s high-performance gaming PCs. It is our [FutureMark’s] most ambitious and technical benchmark ever, featuring real-time graphics rendered with detail and complexity far beyond what is found in other benchmarks and games today.

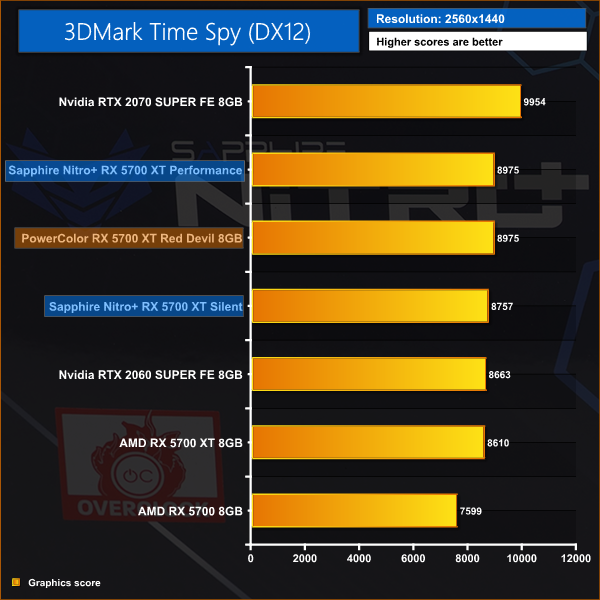

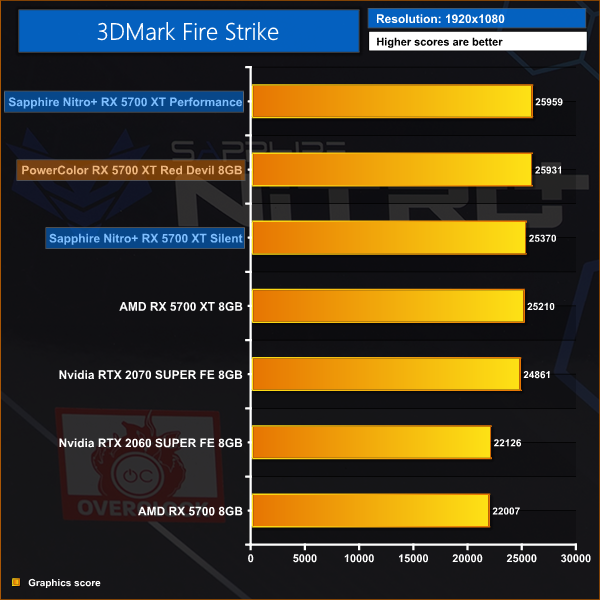

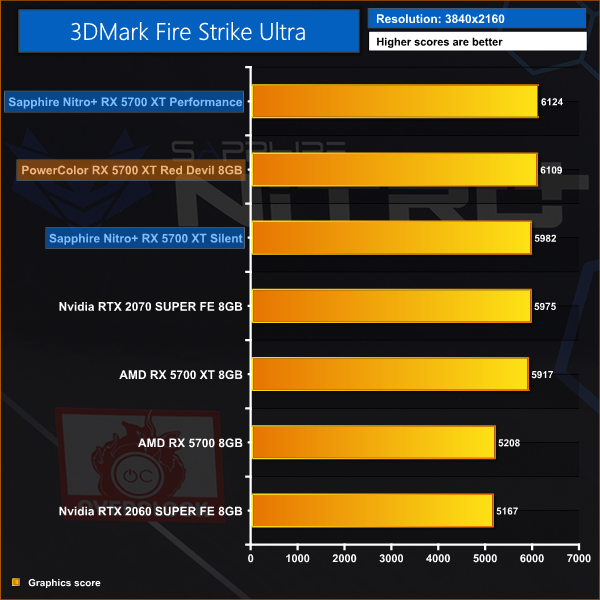

Sapphire's Nitro+ matches the Red Devil in Time Spy and takes two small victories in Fire Strike and Ultra, which is a good start for the new Navi card.
