ATTO Disk Benchmark
The ATTO disk benchmark is a Windows-based utility for testing storage performance of any storage drive or controller. We use the default benchmark setup.

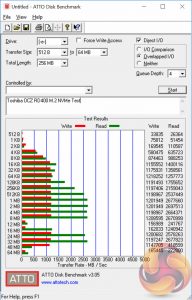

M.2 PCIe Performance
For M.2 testing we use a Toshiba OCZ RD400 256GB M.2 PCIe NVMe SSD.

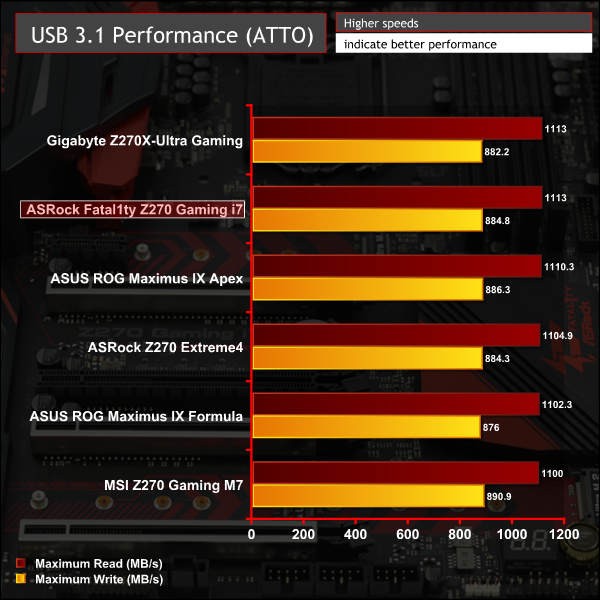

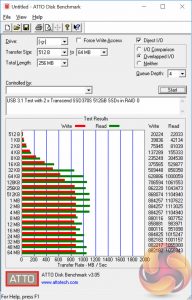

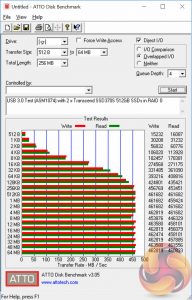

USB Performance

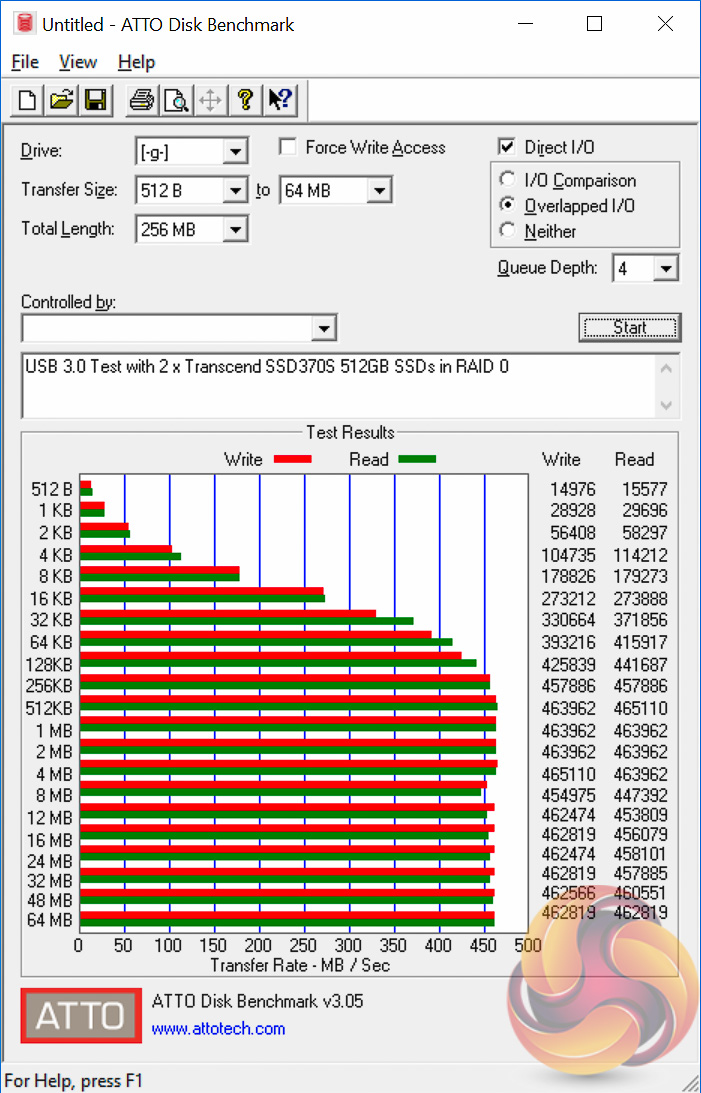

We test USB 3.0 and 3.1 performance using a pair of Transcend SSD370S 512GB SSDs in RAID 0 connected to an Icy Box RD2253-U31 2-bay USB 3.1 enclosure powered by an ASMedia ASM1352R controller.

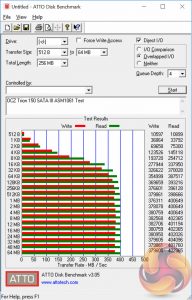

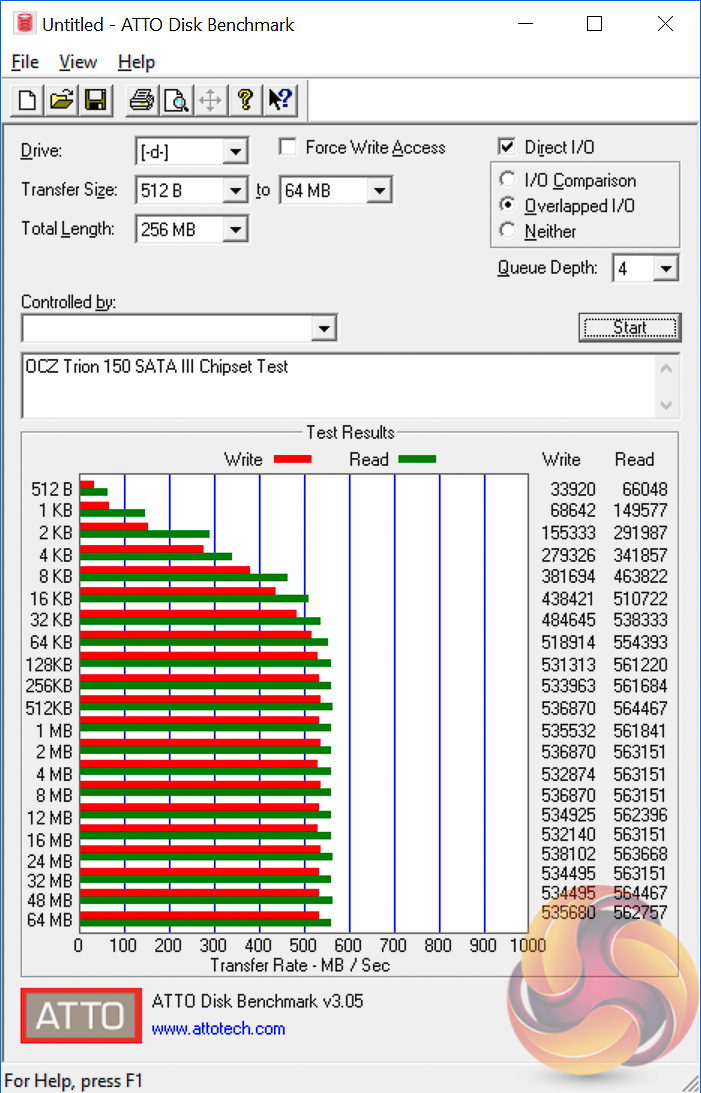

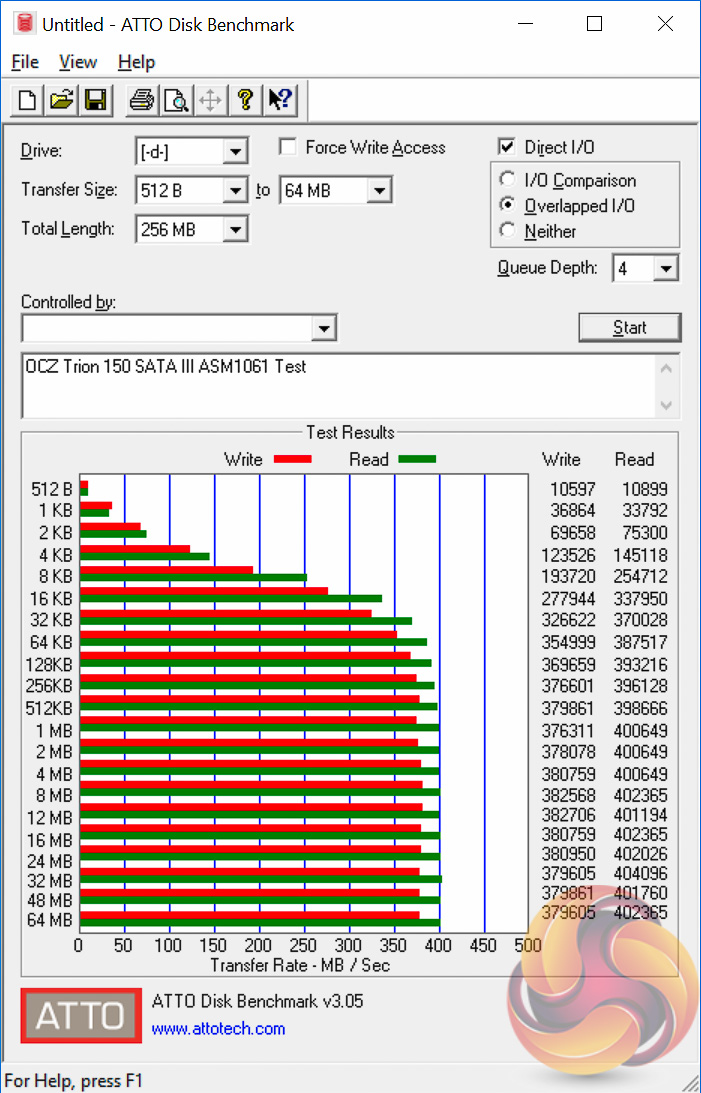

SATA 6Gbps Performance
For SATA 6Gbps testing we use an OCZ Trion 150 480GB SSD.
M.2, SATA and USB performance is standard for the hardware used.
Audio

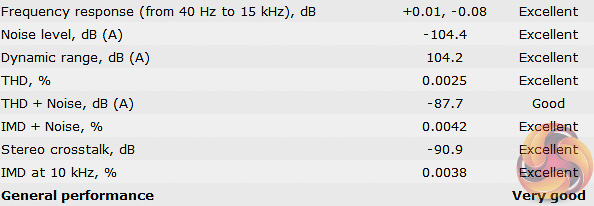

Rightmark Audio Analyser is a freeware benchmarking utility designed to objectively test the performance characteristics of audio solutions. We setup a line-in line-out loop and execute the record/playback test before generating the results report you see below. A sampling mode of 24-bit, 192 kHz was tested.
ASRock's Fatal1ty Z270 Professional Gaming i7 scored Excellent in 7 out of 8 categories and Good in the eight category for an overall rating of Very Good. Only the two ASUS motherboards performed better than it in all categories while the Gaming i7 traded places in the rankings with the Gigabyte, MSI and ASRock boards across the various tests.
