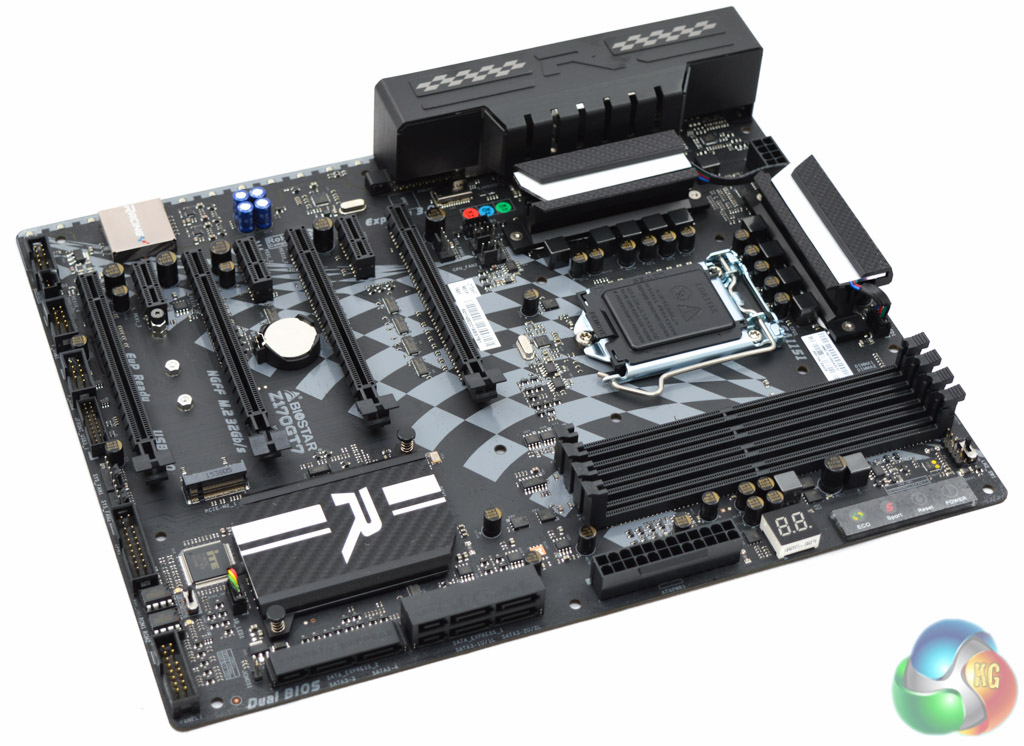

Biostar Racing Z170 GT7 Motherboard Review

1. Introduction2. Biostar Racing Z170 GT7: Packaging and Bundle3. Biostar Racing Z170 GT7: Layout and Examination4. Biostar Racing Z170 GT7: UEFI5. Biostar Racing Z170 GT7: Software6. Testing Methodology7. Tests: CPU-related8. Tests: Memory-related9. Tests: GPU-related10. Tests: Motherboard-related11. Overclocking12. Conclusion13. View All Pages

Intel’s Skylake processors are just the latest Intel CPU architecture to see many of the critical system operations handled by the processor. As such, benchmarking a motherboard becomes more of a test to certify that the part operates correctly and meets the anticipated performance levels.

Z170 Motherboard Test System:

• Processor: Intel Core i7-6700K (4.2GHz all-core turbo).
• Memory: 16GB (4x4GB) G.Skill Ripjaws V 3200MHz 16-16-16-36 DDR4 @ 1.35V.
• Graphics Card: Nvidia GTX 980 Ti (Reference).
• System Drive: Samsung 850 EVO 500GB
• Storage Test Drive: OCZ Trion 150 480GB (with a USB 3.0 to SATA adapter for USB 3.0 testing.)
• CPU Cooler: Antec Kuhler H20 1200
• Power Supply: Seasonic Platinum 760W.
• Operating System: Windows 10 Pro 64-bit.

Comparison Z170 Motherboards:

• Gigabyte Z170-Gaming K3
• ASUS Z170 Pro Gaming
• MSI Z170A Tomahawk
• ASUS Z170 Pro Gaming AURA

Software:

• Biostar UEFI Z17EFC16 (Release Date 16/12/2015)
• Nvidia GeForce 364.72 WHQL Driver

Tests:

• Cinebench R15 – all core CPU test and CPU power consumption figures.
• Handbrake – converting a short 720p movie file into a smartphone suitable format using the Android preset.
• SiSoft Sandra – processor arithmetic and memory bandwidth test sequences.
• AIDA 64 Engineer – memory and cache test.
• 3DMark – Firestrike (1080p) test.
• Ashes of the Singularity – built-in benchmark tool @ 1080p using the Crazy preset.
• Unigine Valley – built-in benchmark using the Extreme HD preset.
• Rightmark Audio Analyser – record and playback test using a line-in to line-out loopback on a high quality gold-plated 3.5mm cable.
• ATTO – default disk benchmark for SATA and USB testing.
