ATTO Disk Benchmark

The ATTO disk benchmark is a Windows-based utility for testing storage performance of any storage drive or controller. We use the default benchmark setup.

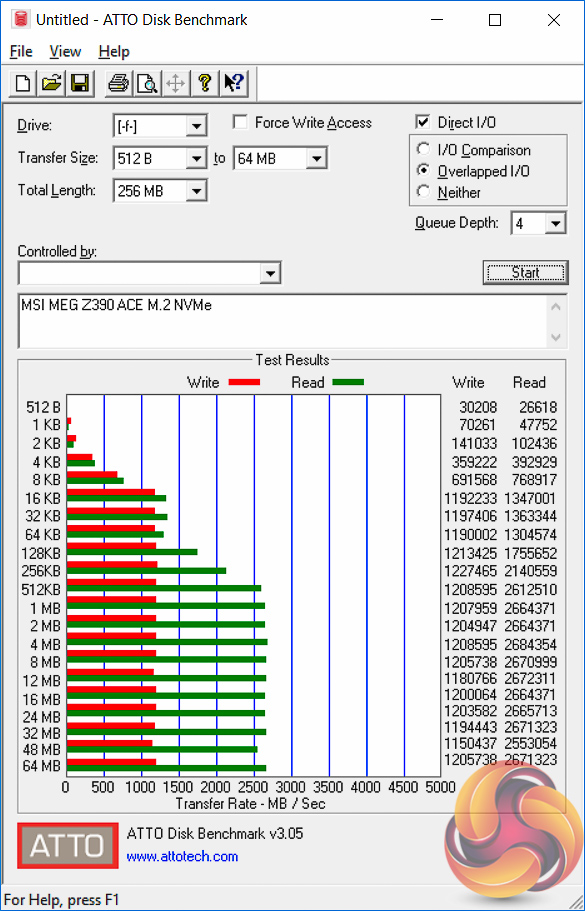

M.2 PCIe Performance

For M.2 testing we use a Toshiba OCZ RD400 256GB M.2 PCIe NVMe SSD.

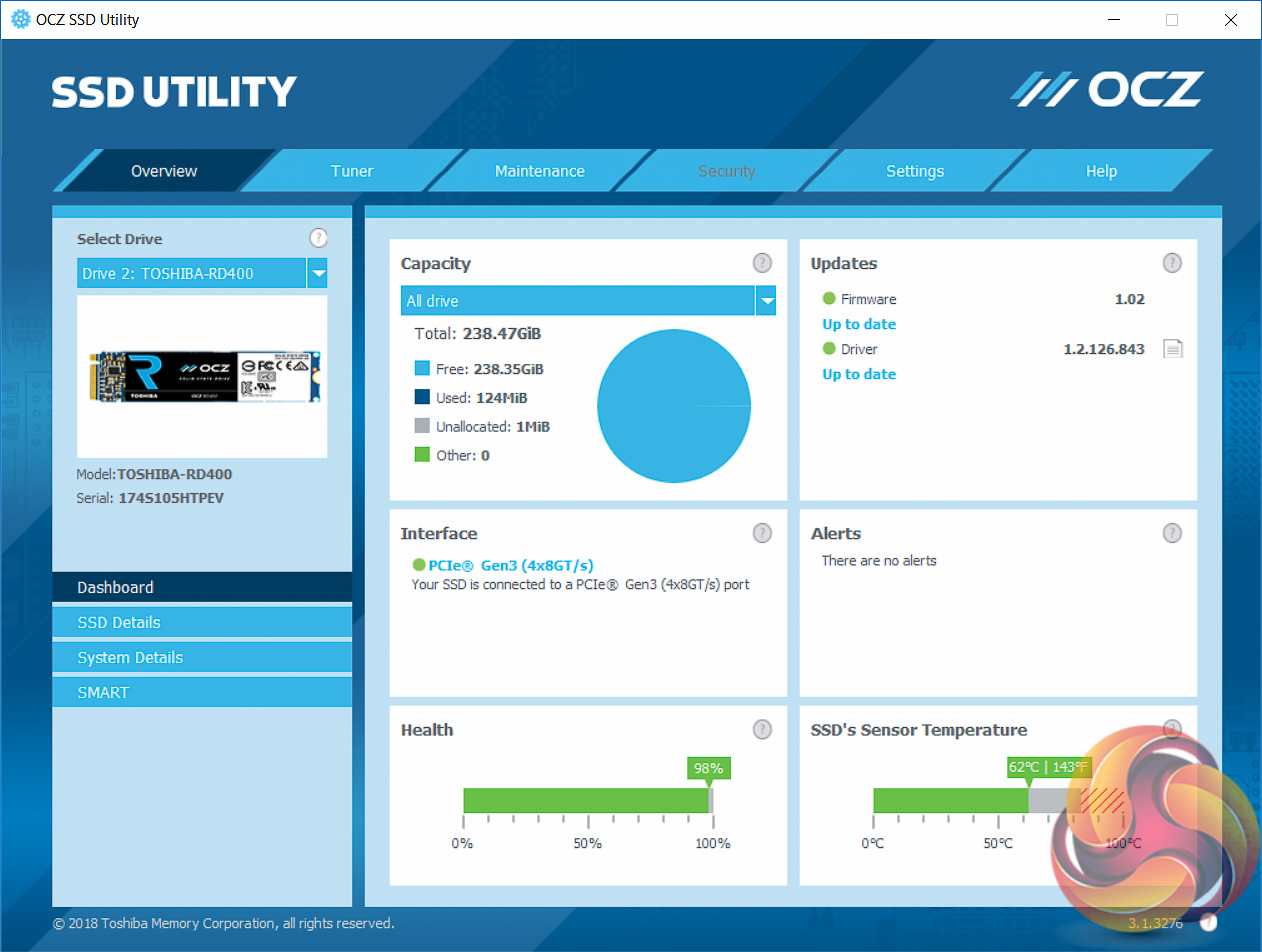

M.2 performance was completely unimpeded thanks to the high-performing M.2 cooling solution.

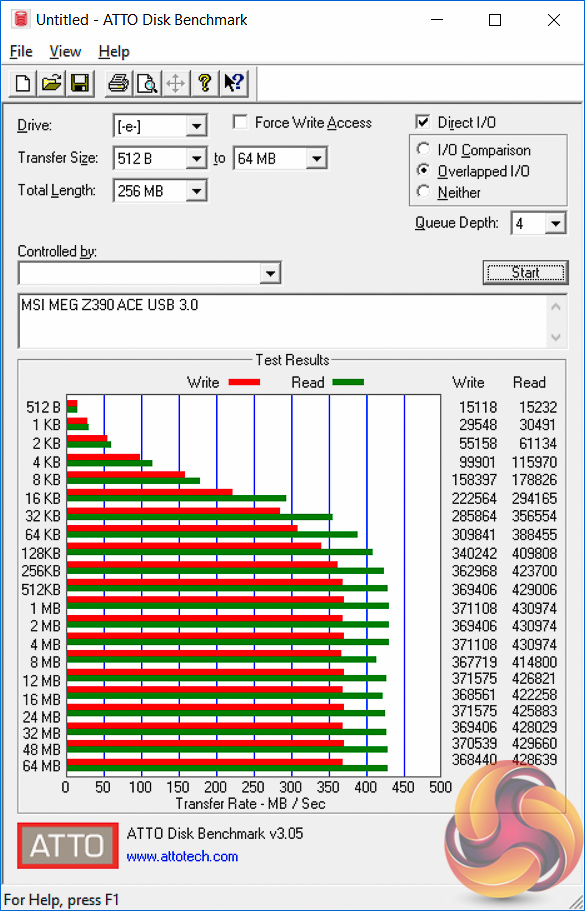

USB Performance

We test USB 3.0 and 3.1 performance using a pair of Transcend SSD370S 512GB SSDs in RAID 0 connected to an RaidSonic Icy Box RD2253-U31 2-bay USB 3.1 enclosure powered by an ASMedia ASM1352R controller.

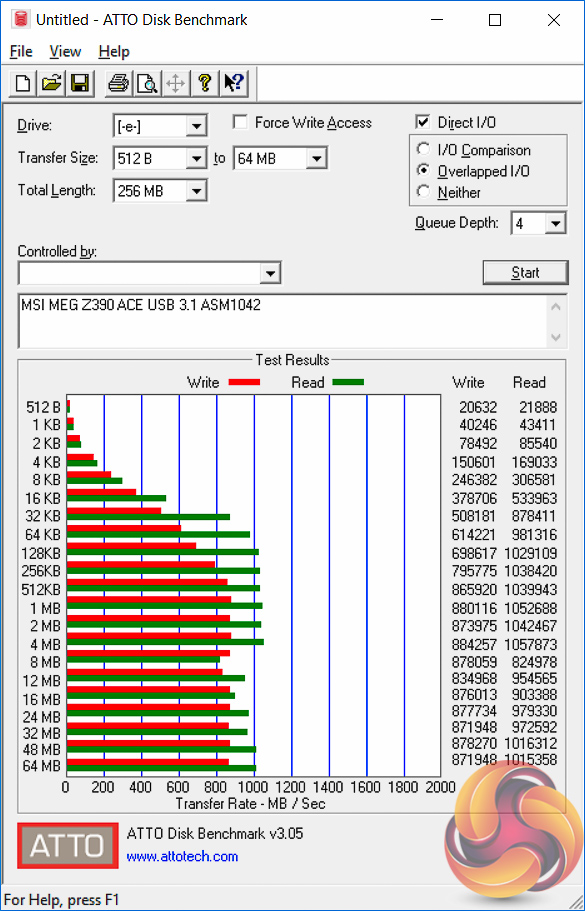

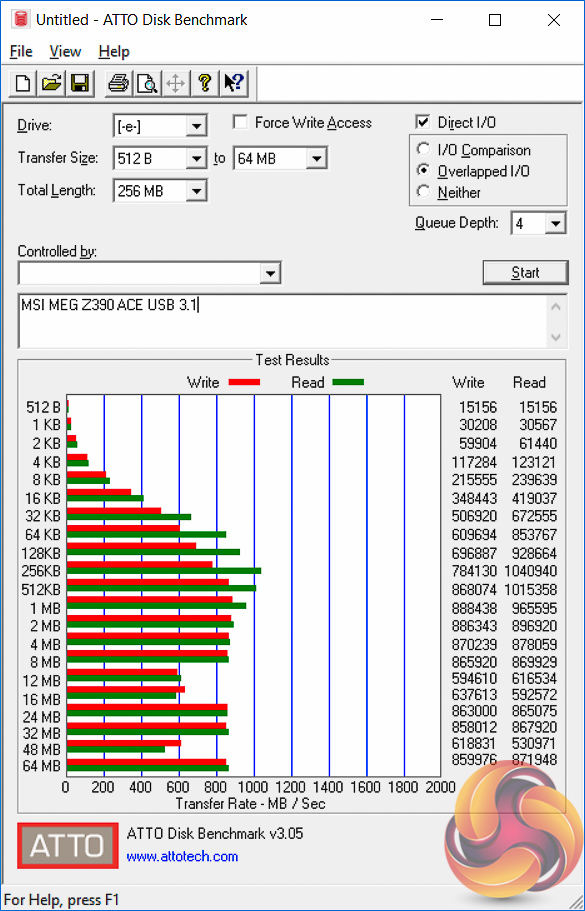

MSI deploys a low-performing USB 3.0 controller, but more than makes up for this with two different USB 3.1 controllers, the Z390 chipset and ASMedia ASM3142, that produce eight USB 3.1 ports in total.

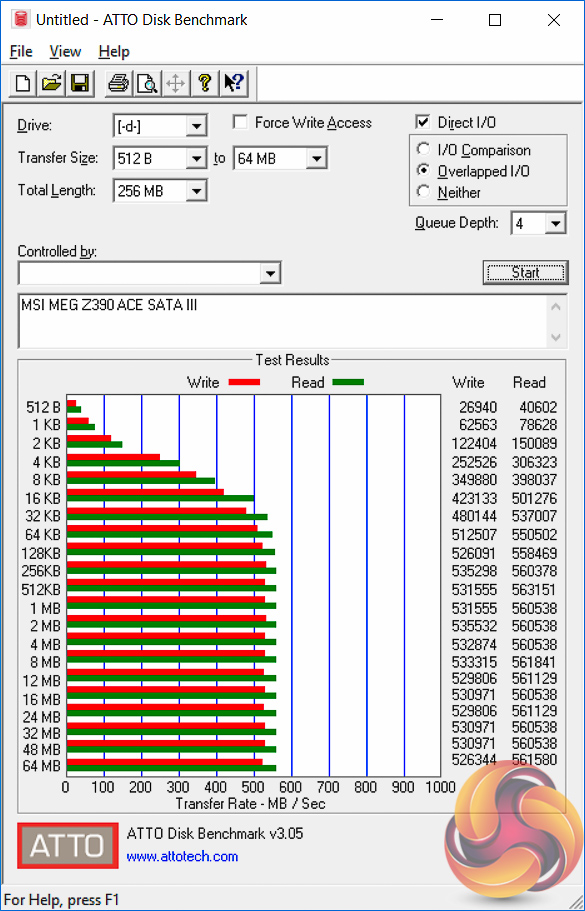

SATA III 6Gbps Performance

For SATA 6Gbps testing we use an OCZ Trion 150 480GB SSD.

SATA performance is par for the course.

Audio

Rightmark Audio Analyser is a freeware benchmarking utility designed to objectively test the performance characteristics of audio solutions. We setup a line-in line-out loop and execute the record/playback test before generating the results report you see below. A sampling mode of 24-bit, 192 kHz is tested where available. If unavailable the closest alternative operating mode available is used and clearly marked.

Audio performance is very good across the suite of Rightmark tests, helped by the Realtek ALC1220 codec, ESS DAC and high-quality audio capacitors.
