Advanced Transient Response Tests
For details on our transient response testing, please click here.
These tests are crucial because they simulate the transient loads a PSU is likely to handle (such as booting a RAID array or an instant 100 percent load of CPU/GPUs). We call these “Advanced Transient Response Tests” and they are designed to be very tough to master, especially for a PSU with a capacity of less than 500W.
In all of the tests, we use an oscilloscope to measure the voltage drops caused by the transient load. The voltages should remain within the ATX specifications regulation limits.
We should note that the ATX spec requires for capacitive loading during the transient rests, but in our methodology we chose to apply the worst case scenario with no extra capacitance on the rails.

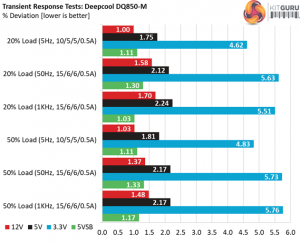

Advanced Transient Response at 20 Percent – 200ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.991V | 11.871V | 1.00% | Pass |
| 5V | 5.040V | 4.952V | 1.75% | Pass |
| 3.3V | 3.357V | 3.202V | 4.62% | Pass |
| 5VSB | 5.061V | 5.005V | 1.11% | Pass |
Advanced Transient Response at 20 Percent – 20ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.990V | 11.801V | 1.58% | Pass |
| 5V | 5.040V | 4.933V | 2.12% | Pass |
| 3.3V | 3.356V | 3.167V | 5.63% | Pass |
| 5VSB | 5.061V | 4.995V | 1.30% | Pass |
Advanced Transient Response at 20 Percent – 1ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.989V | 11.785V | 1.70% | Pass |
| 5V | 5.041V | 4.928V | 2.24% | Pass |
| 3.3V | 3.356V | 3.171V | 5.51% | Pass |
| 5VSB | 5.061V | 5.009V | 1.03% | Pass |
Advanced Transient Response at 50 Percent – 200ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.959V | 11.836V | 1.03% | Pass |
| 5V | 5.034V | 4.943V | 1.81% | Pass |
| 3.3V | 3.351V | 3.189V | 4.83% | Pass |
| 5VSB | 5.041V | 4.985V | 1.11% | Pass |
Advanced Transient Response at 50 Percent – 20ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.958V | 11.794V | 1.37% | Pass |
| 5V | 5.034V | 4.925V | 2.17% | Pass |
| 3.3V | 3.351V | 3.159V | 5.73% | Pass |
| 5VSB | 5.041V | 4.974V | 1.33% | Pass |
Advanced Transient Response at 50 Percent – 1ms
| Voltage | Before | After | Change | Pass/Fail |
|---|---|---|---|---|
| 12V | 11.958V | 11.781V | 1.48% | Pass |
| 5V | 5.034V | 4.925V | 2.17% | Pass |
| 3.3V | 3.351V | 3.158V | 5.76% | Pass |
| 5VSB | 5.041V | 4.982V | 1.17% | Pass |

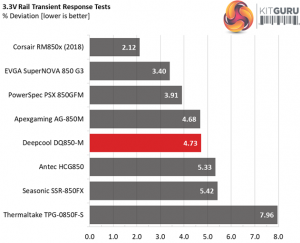

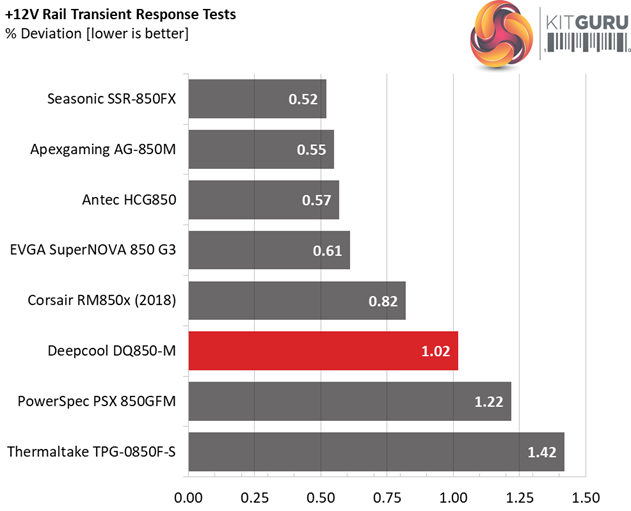

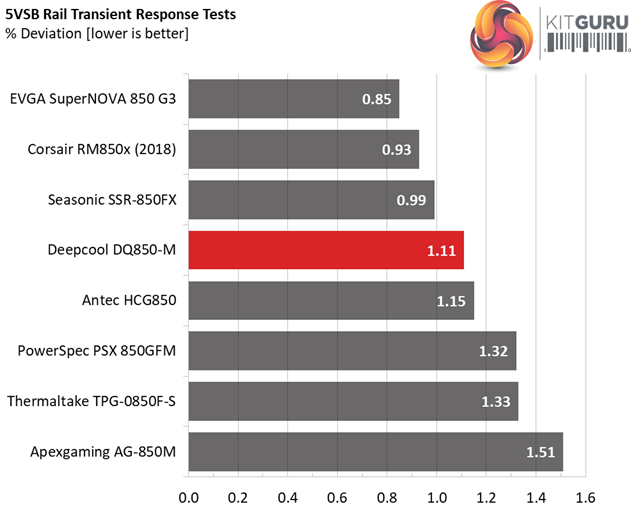

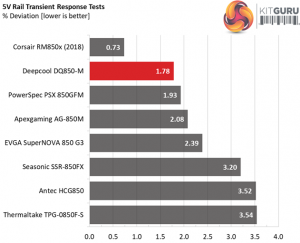

Apparently more capacity is required on the +12V rail, for lower voltage drops with transient loads. The transient response at 5V and 5VSB is good however at 3.3V it needs improvement.
Here are the oscilloscope screenshots we took during Advanced Transient Response Testing:

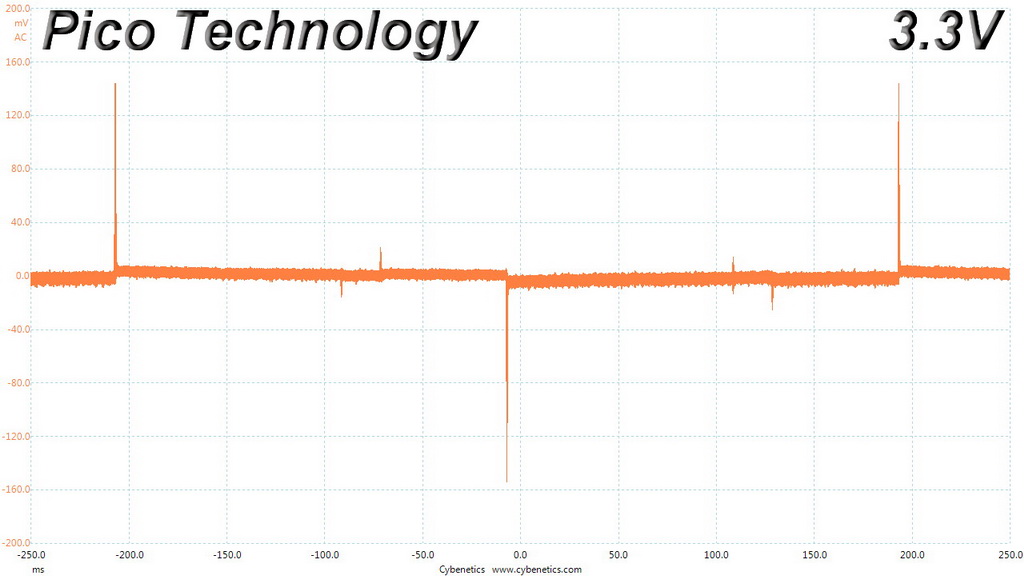

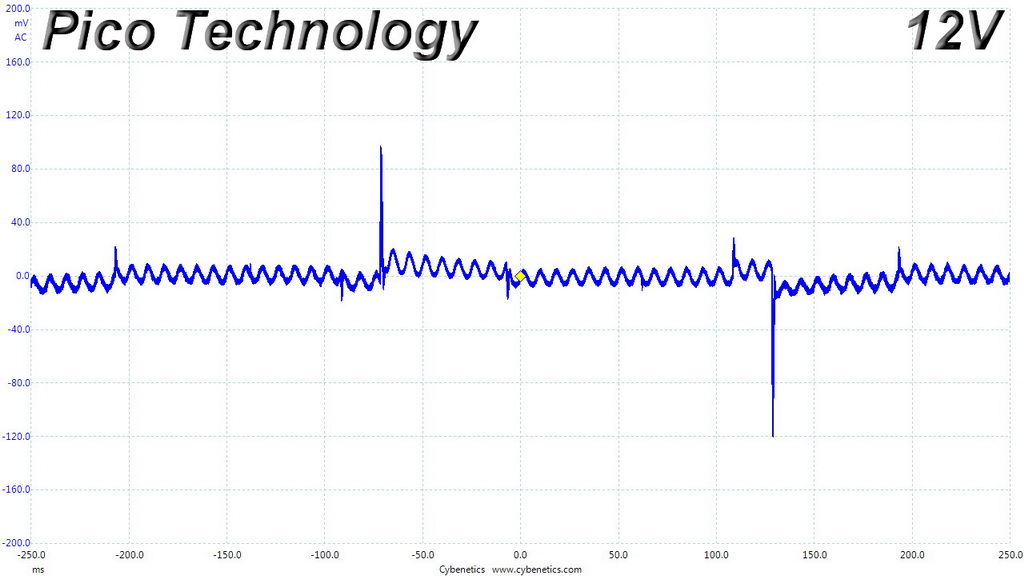

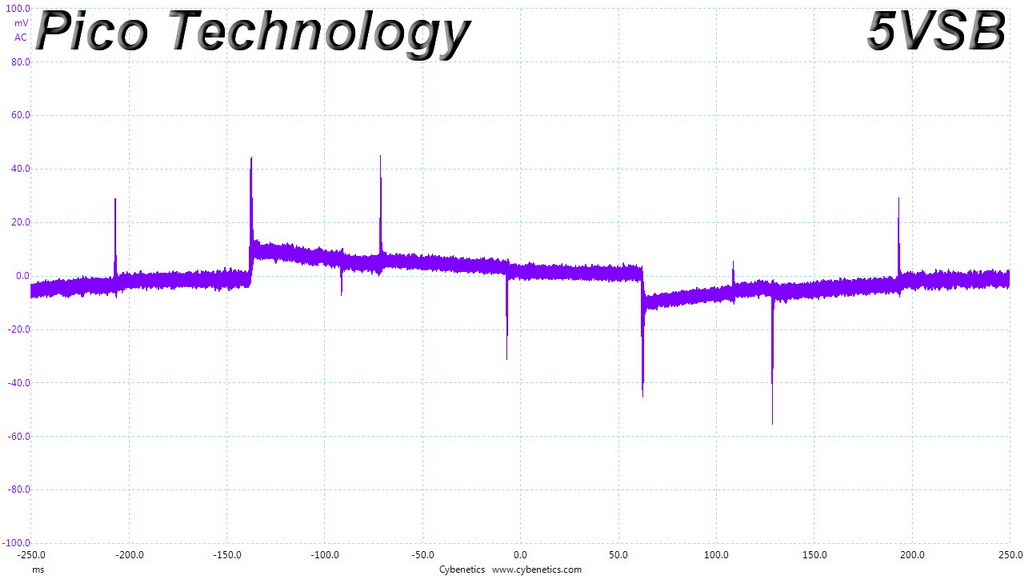

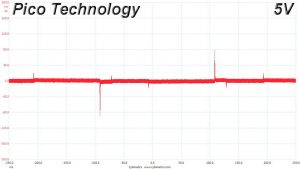

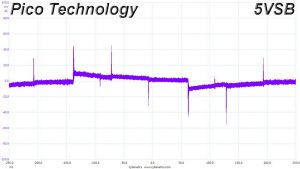

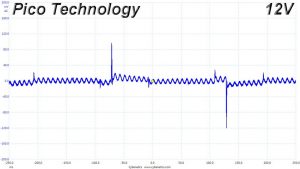

Transient Response At 20 Percent Load – 200ms

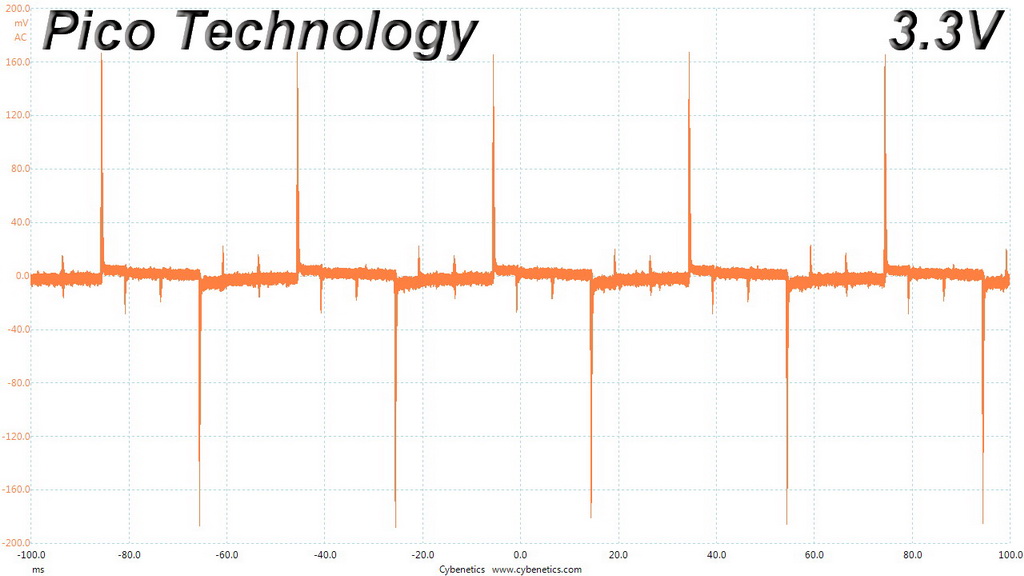

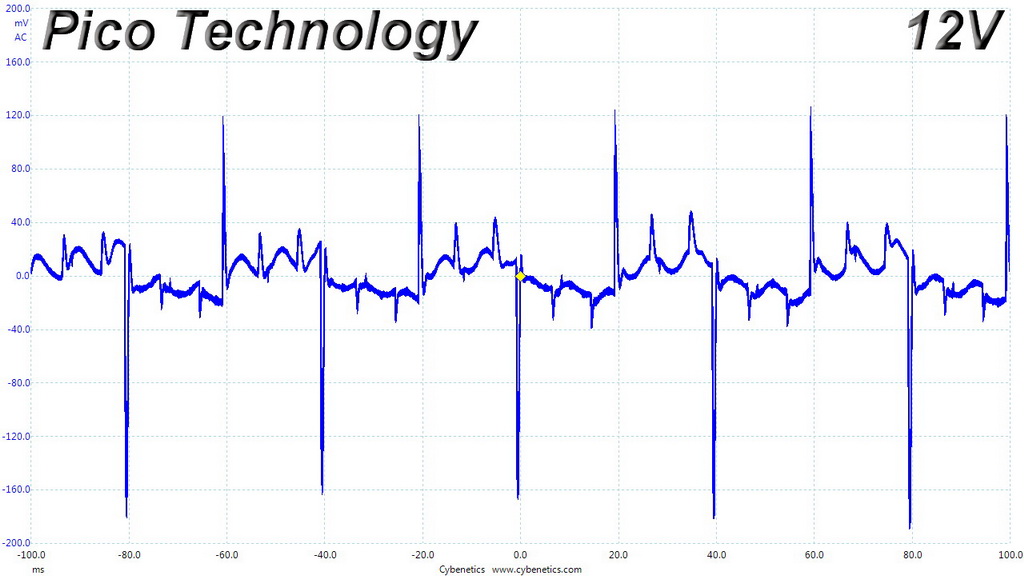

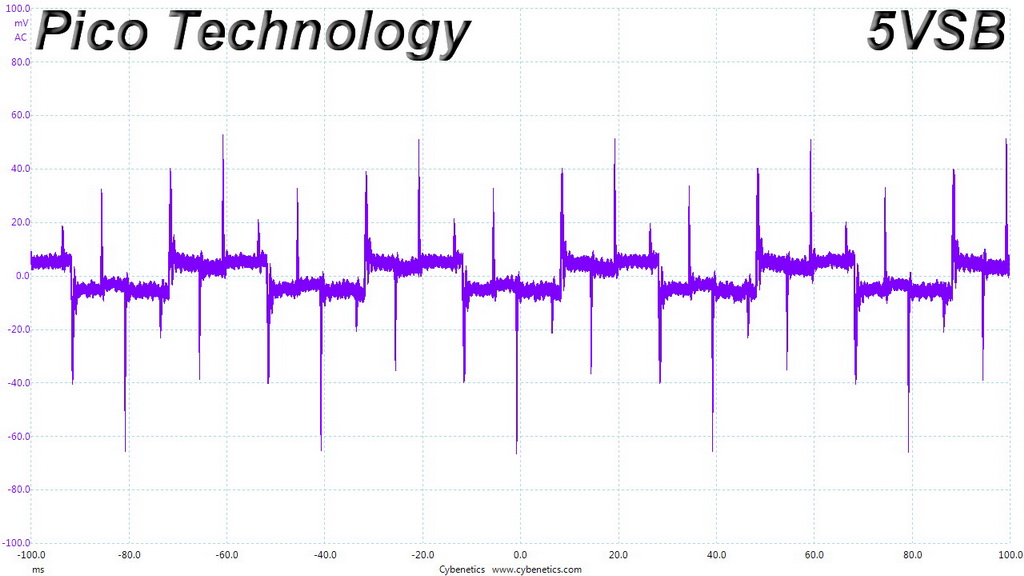

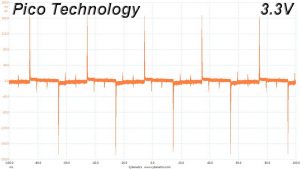

Transient Response At 20 Percent Load – 20ms

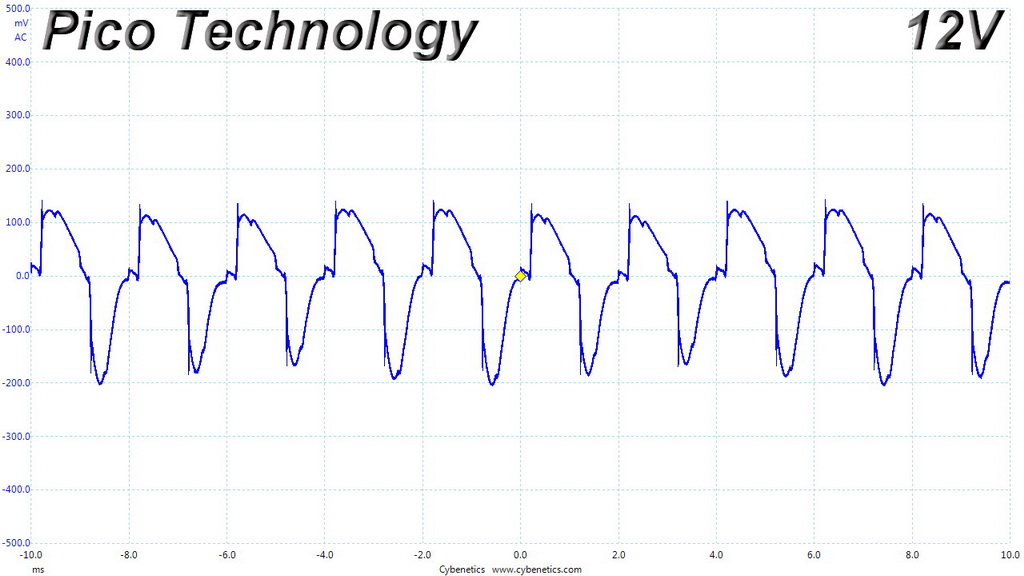

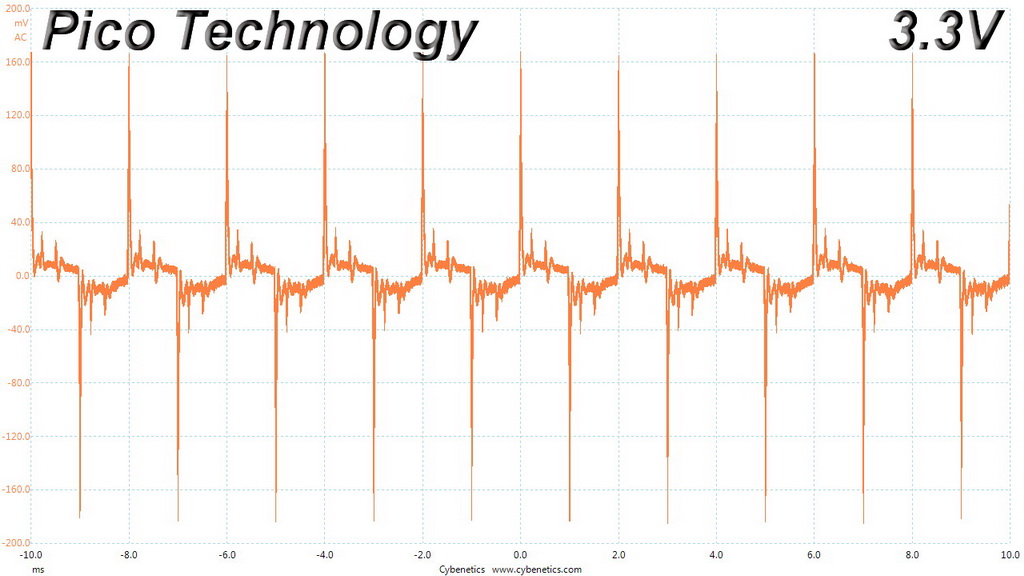

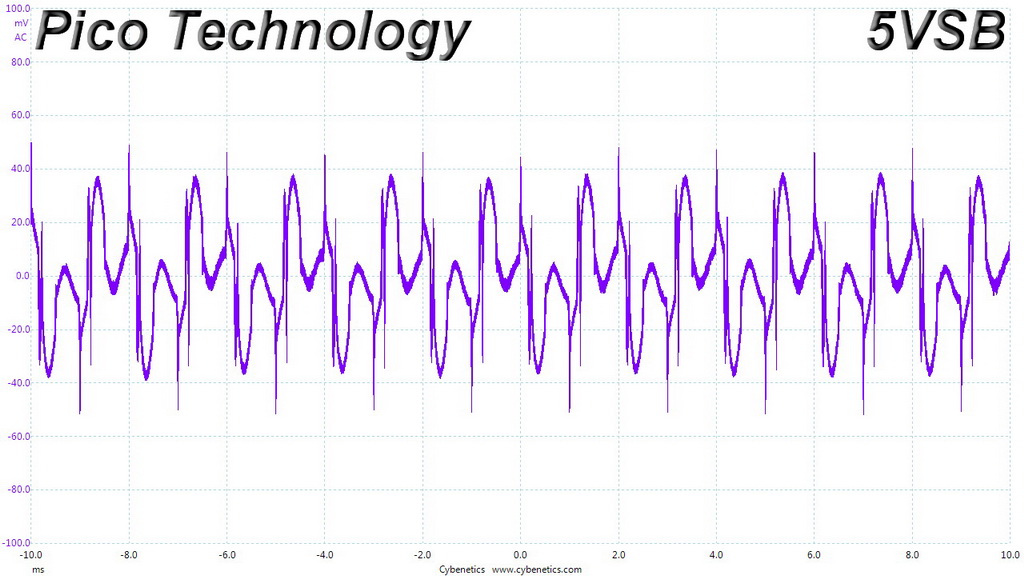

Transient Response At 20 Percent Load – 1ms

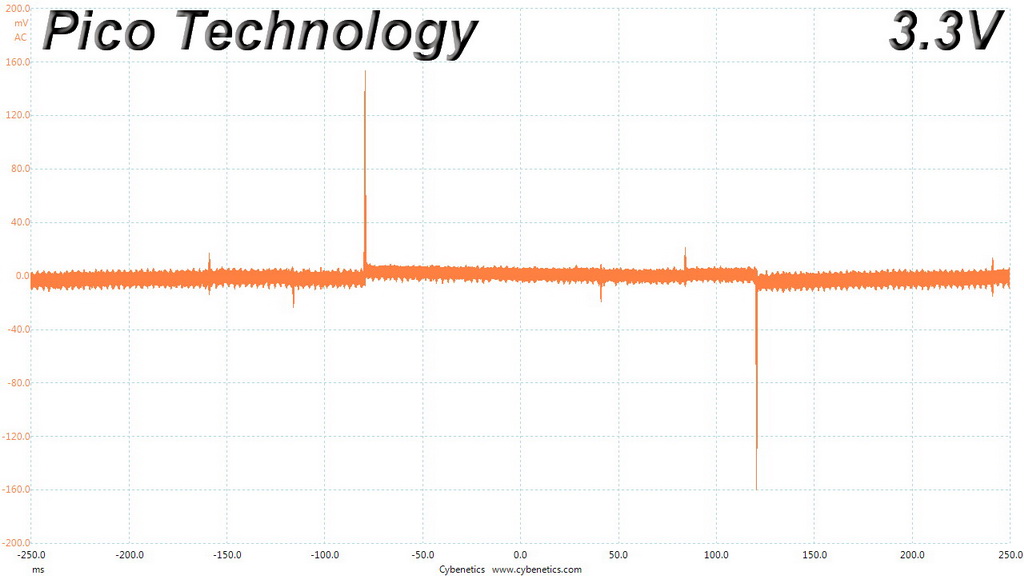

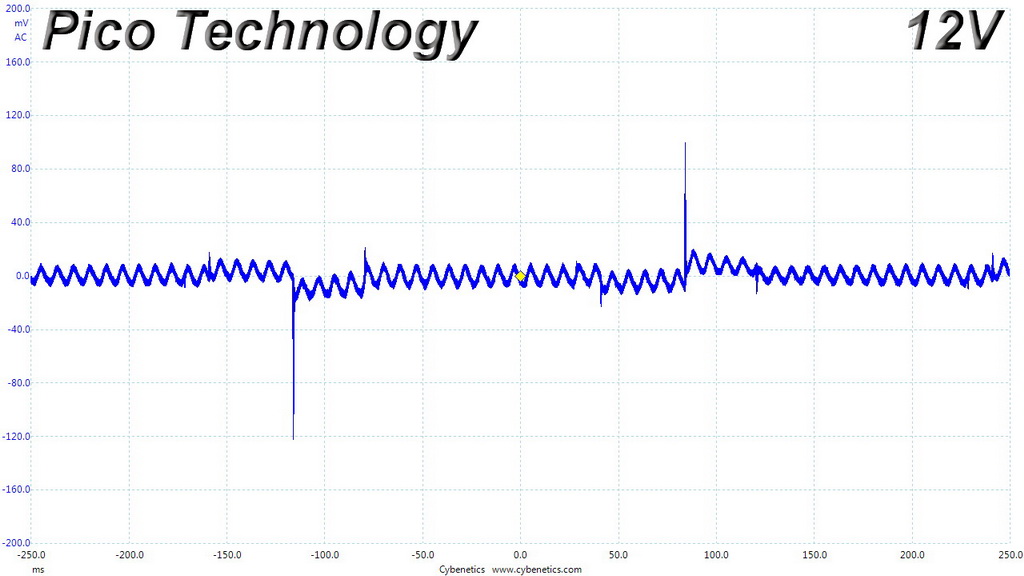

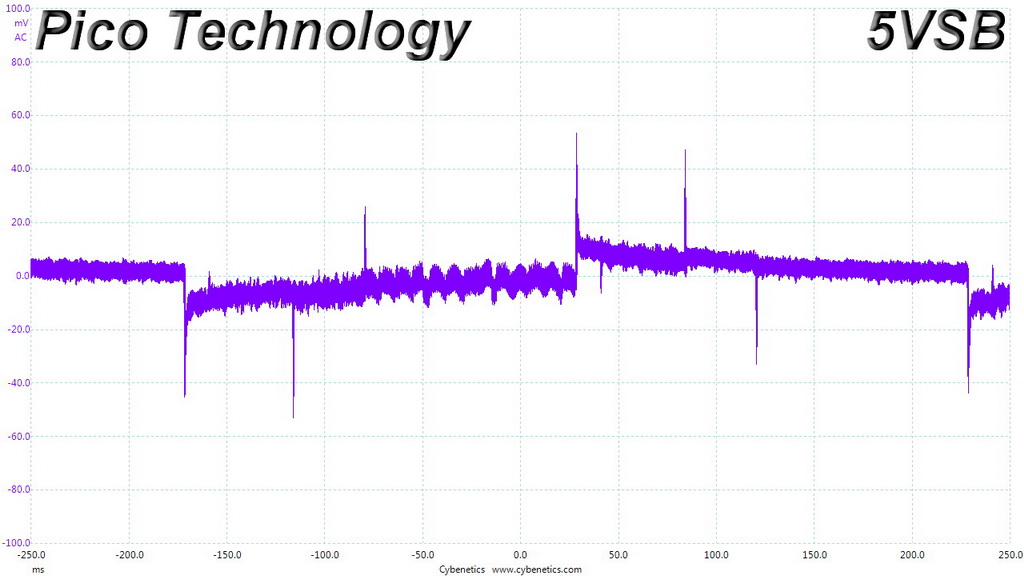

Transient Response At 50 Percent Load – 200ms

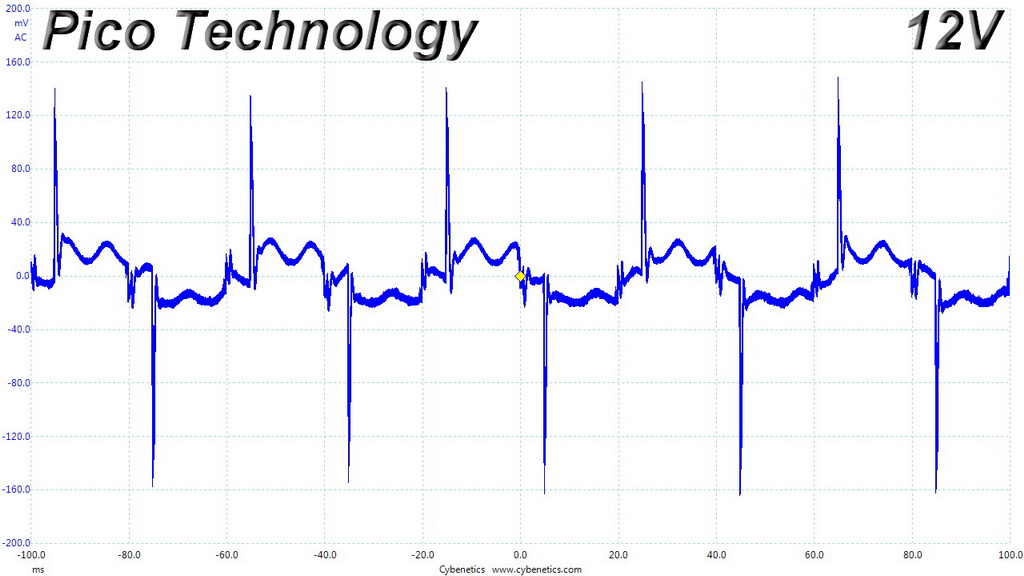

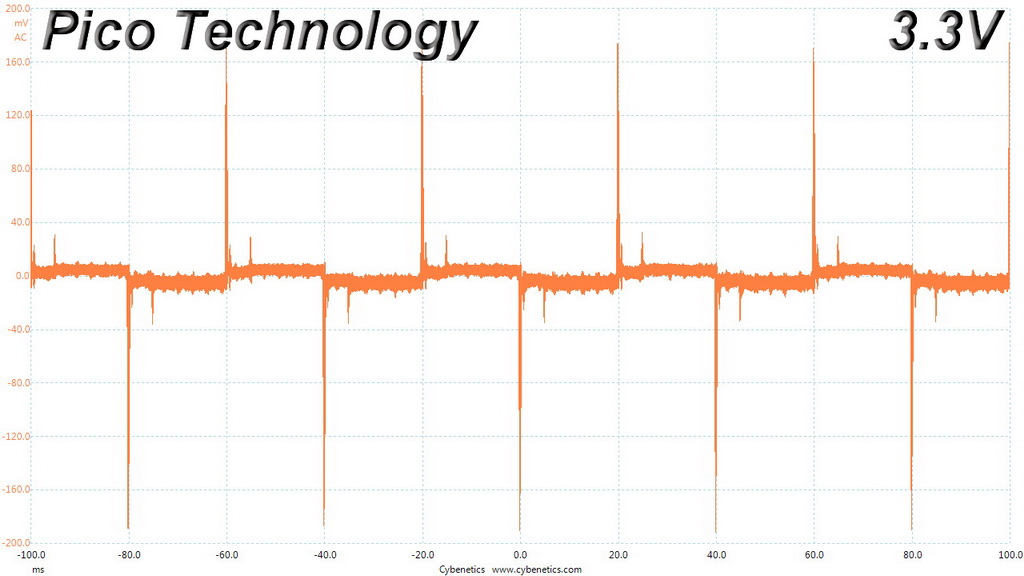

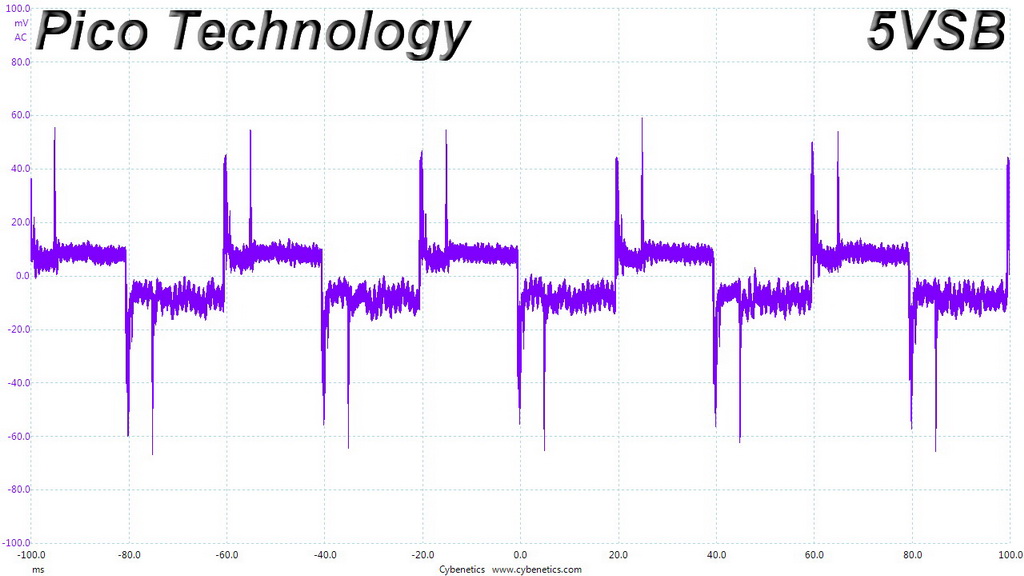

Transient Response At 50 Percent Load – 20ms

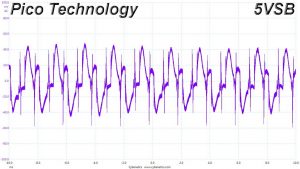

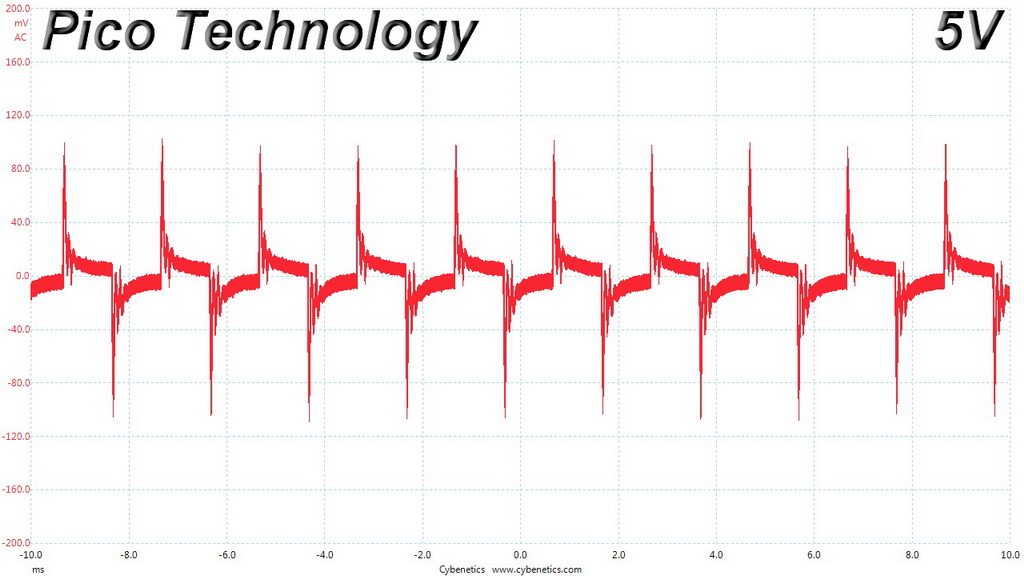

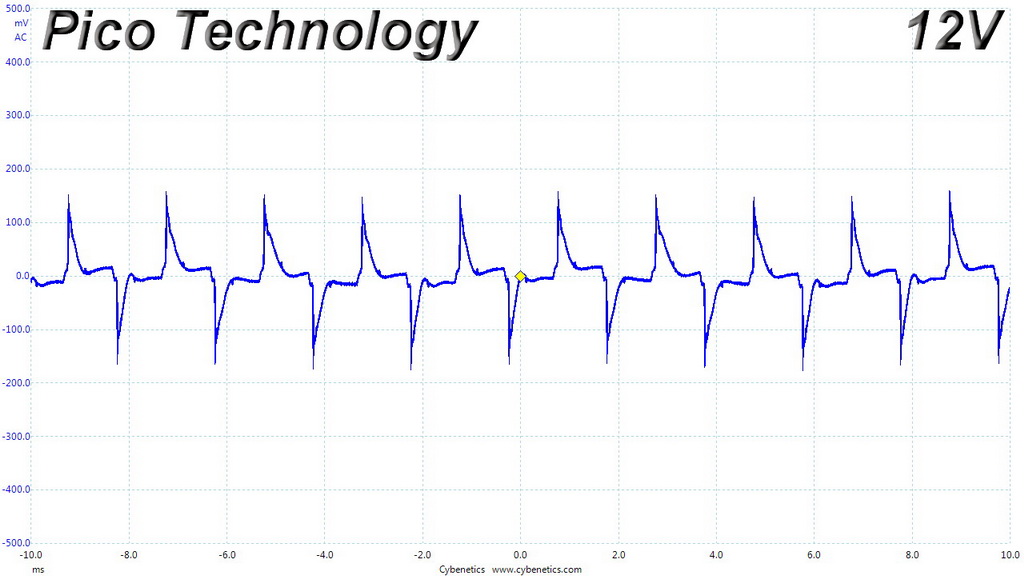

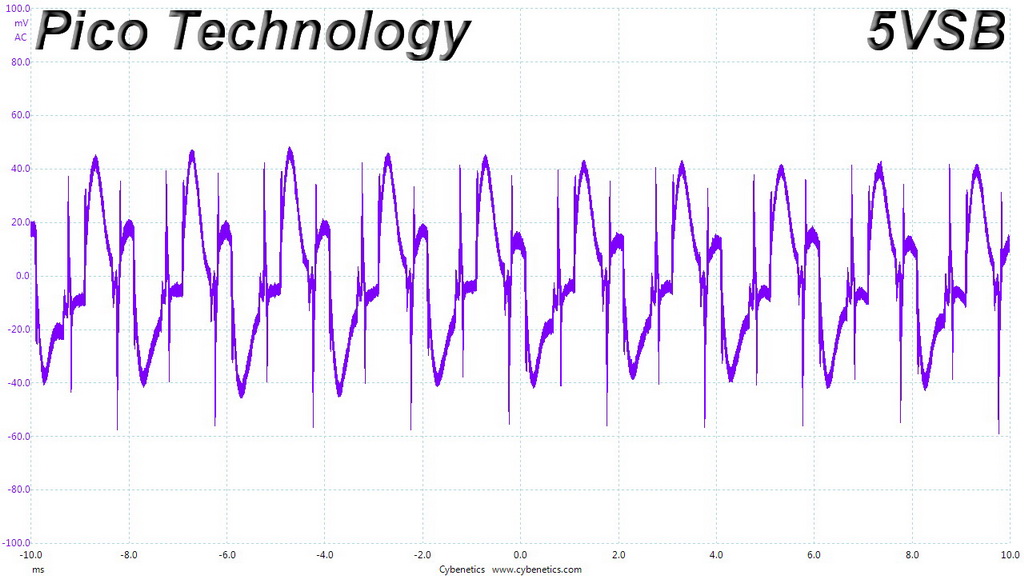

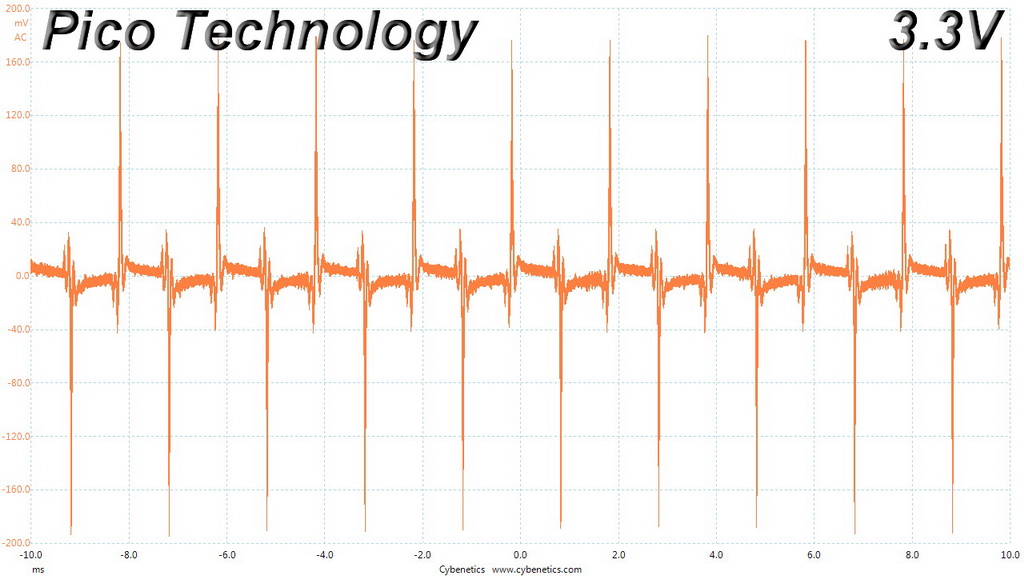

Transient Response At 50 Percent Load – 1ms
Turn-On Transient Tests
In the next set of tests, we measure the DQ850-M’s response in simpler transient load scenarios—during its power-on phase.

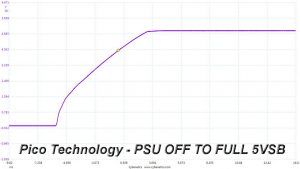

For our first measurement, we turn the DQ850-M off, dial in the maximum current the 5VSB rail can handle, and switch the PSU back on.

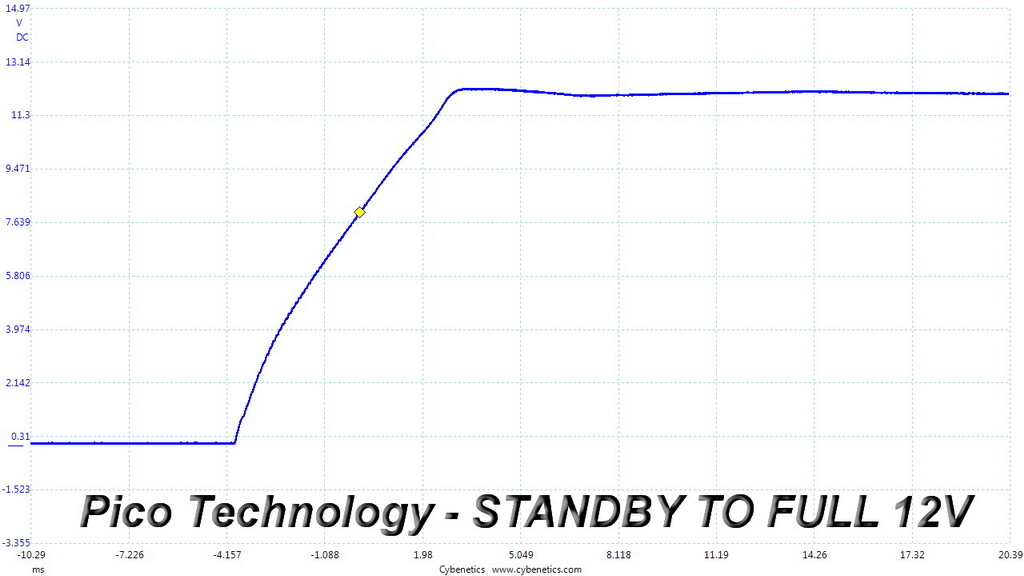

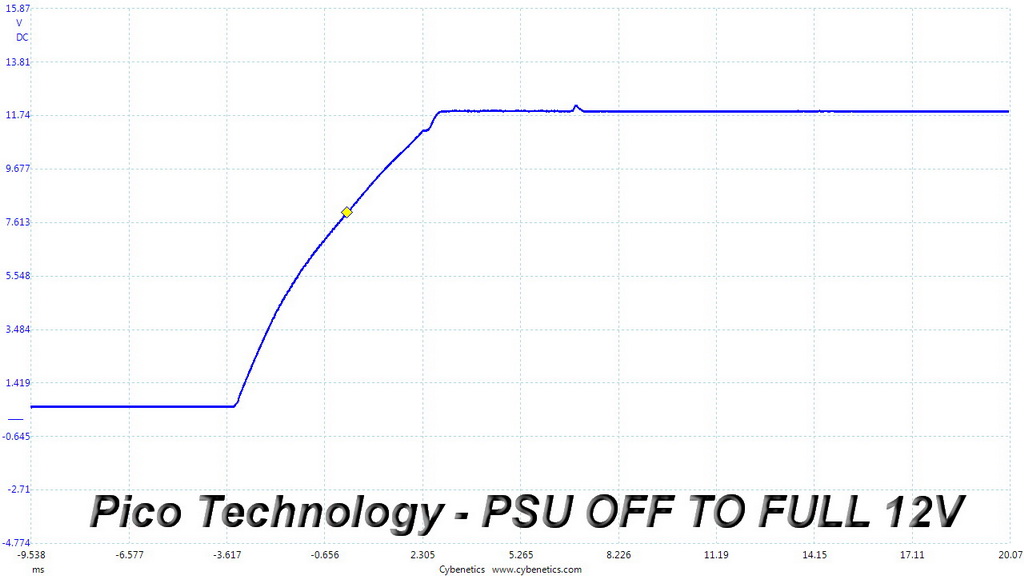

In the second test, we dial the maximum load the +12V rail can handle and start the PSU while it is in standby mode. In the last test, while the PSU is completely switched off (we cut off the power or switch the PSU off through its power switch), we dial the maximum load the +12V rail can handle before restoring power. The ATX specification states that recorded spikes on all rails should not exceed 10 percent of their nominal values (+10 percent for 12V is 13.2V, and 5.5V for 5V).
The unit's turn-on response is excellent with no notable voltage overshoots and spikes while all slopes ramp-up smoothly.
